Mitsubishi L200. Manual - part 670





COMBINATION METER

CHASSIS ELECTRICAL

54A-47

SYMPTOM PROCEDURES

Inspection Procedure 1: Power supply circuit system check.



Inspection Procedure 2: Odometer and trip meter is not displayed.



inspection procedure 3: No needle meters work.



Inspection Procedure 4: If the ignition switch is turned to the ON position, the indicator and warning
lamps do not illuminate.

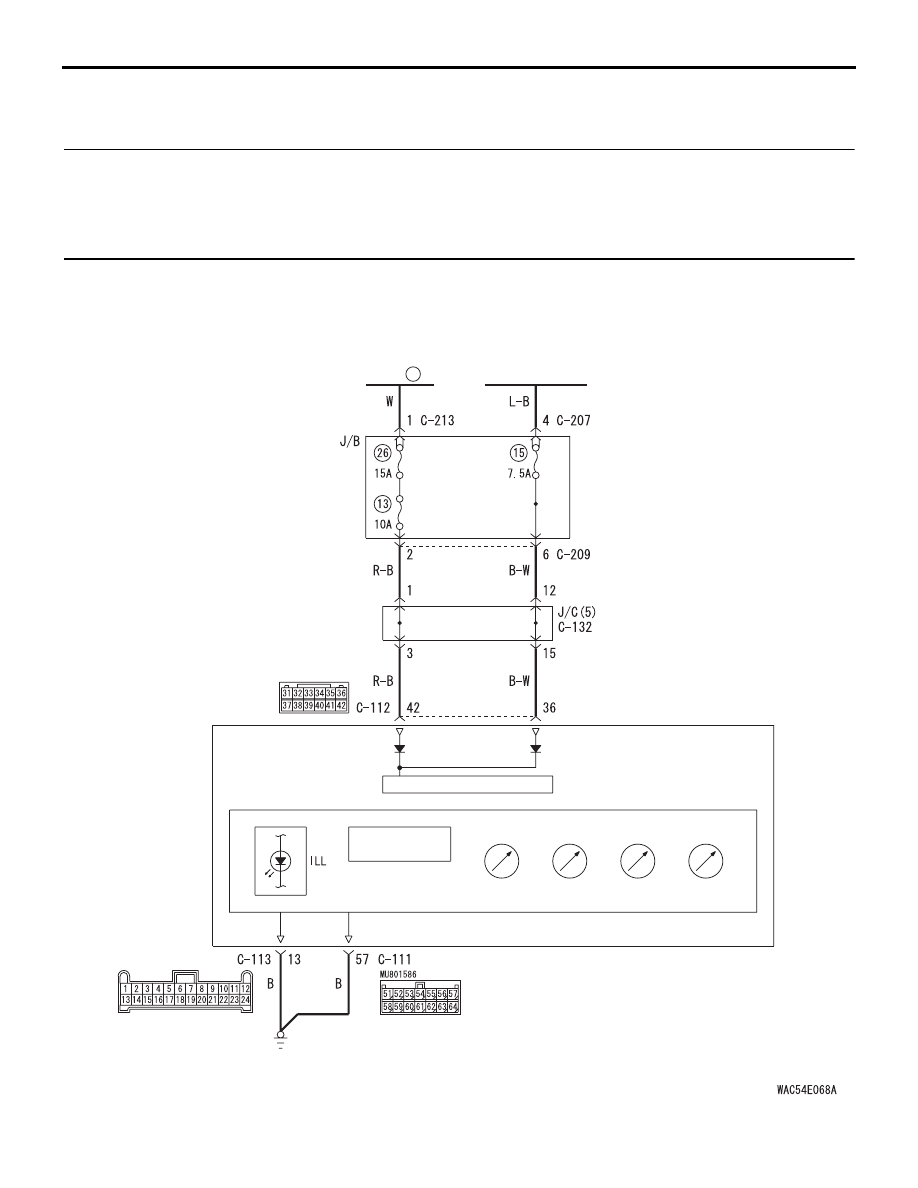

Combination Meter Power Source Circuit

FUSIBLE
LINK

IGNITION
SWITCH (IG1)

LCD ODO/TRIP

POWER SOURCE

F/GA

T/GA

TACHO

SPEED

20

COMBINATION
METER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple     SI : Silver

COMBINATION METER

CHASSIS ELECTRICAL

54A-48

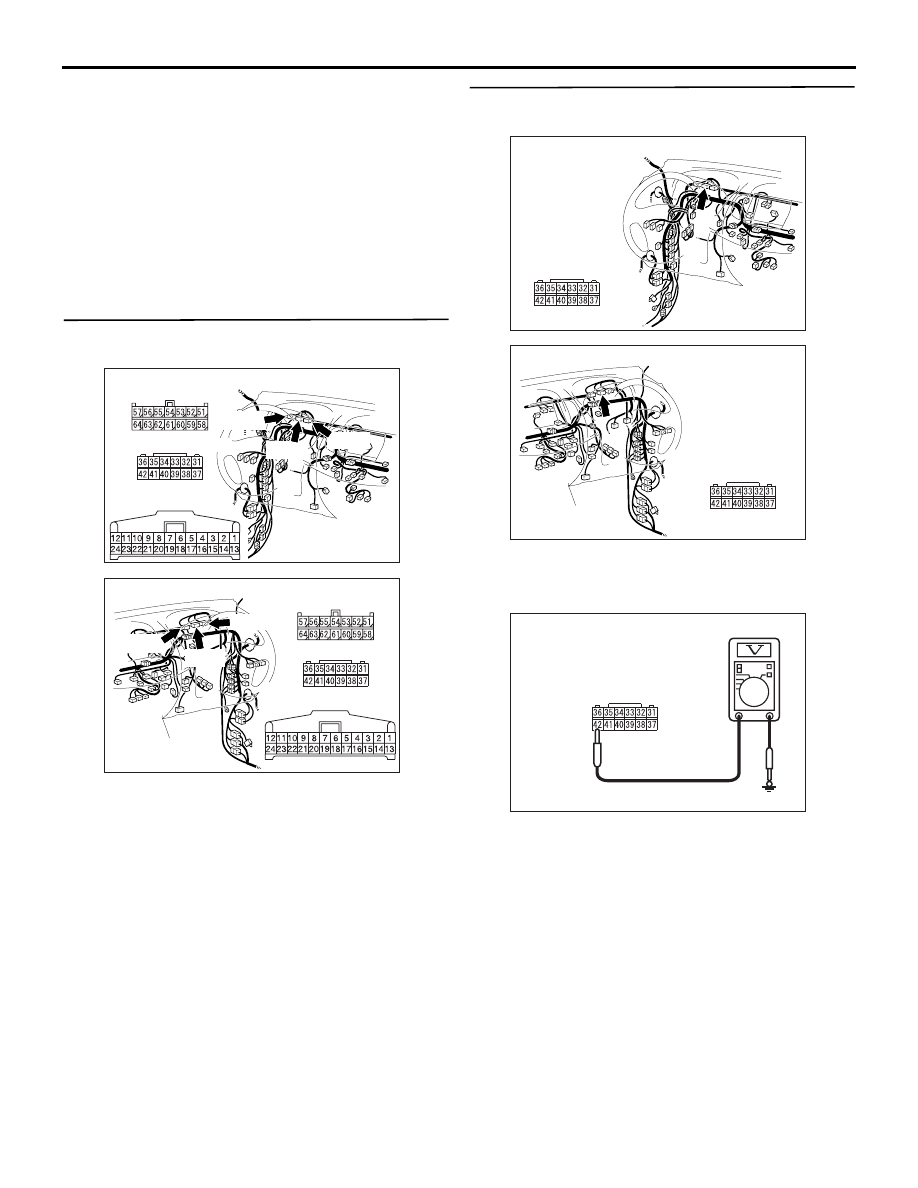

COMMENTS ON TROUBLE SYMPTOM
If the odometer and trip meter is not displayed or no
needle meters work, power supply to the combina-
tion meter, or the combination meter itself may be
defective.

PROBABLE CAUSES

• Damaged harness wires and connectors

• Malfunction of the combination meter

DIAGNOSIS PROCEDURE

STEP 1. Connector check: Combination meter
connector C-111, C-112 and C-113.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Repair the defective connector.

STEP 2. Voltage measurement at combination
meter connector C-112.

Disconnect the connector, and measure at the wiring
harness side.

• Ignition switch: "LOCK" (OFF) position.

Voltage between combination meter connector C-112

terminal No.42 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Go to Step 3.

AC903856

C-111 Harness side

C-113 Harness side

BE

Connectors: C-111, C-112, C-113 <LHD>

C-112 Harness side

C-111

C-112

C-113

AC903868

C-111 Harness side

C-113 Harness side

BV

Connectors: C-111, C-112, C-113 <RHD>

C-112 Harness side

C-111

C-112

C-113

AC903856 BF

Connector: C-112 <LHD>

Harness side

AC903868

BW

Connector: C-112 <RHD>

Harness side

AC208309MX

Connector C-112
(Harness side)

COMBINATION METER

CHASSIS ELECTRICAL

54A-49

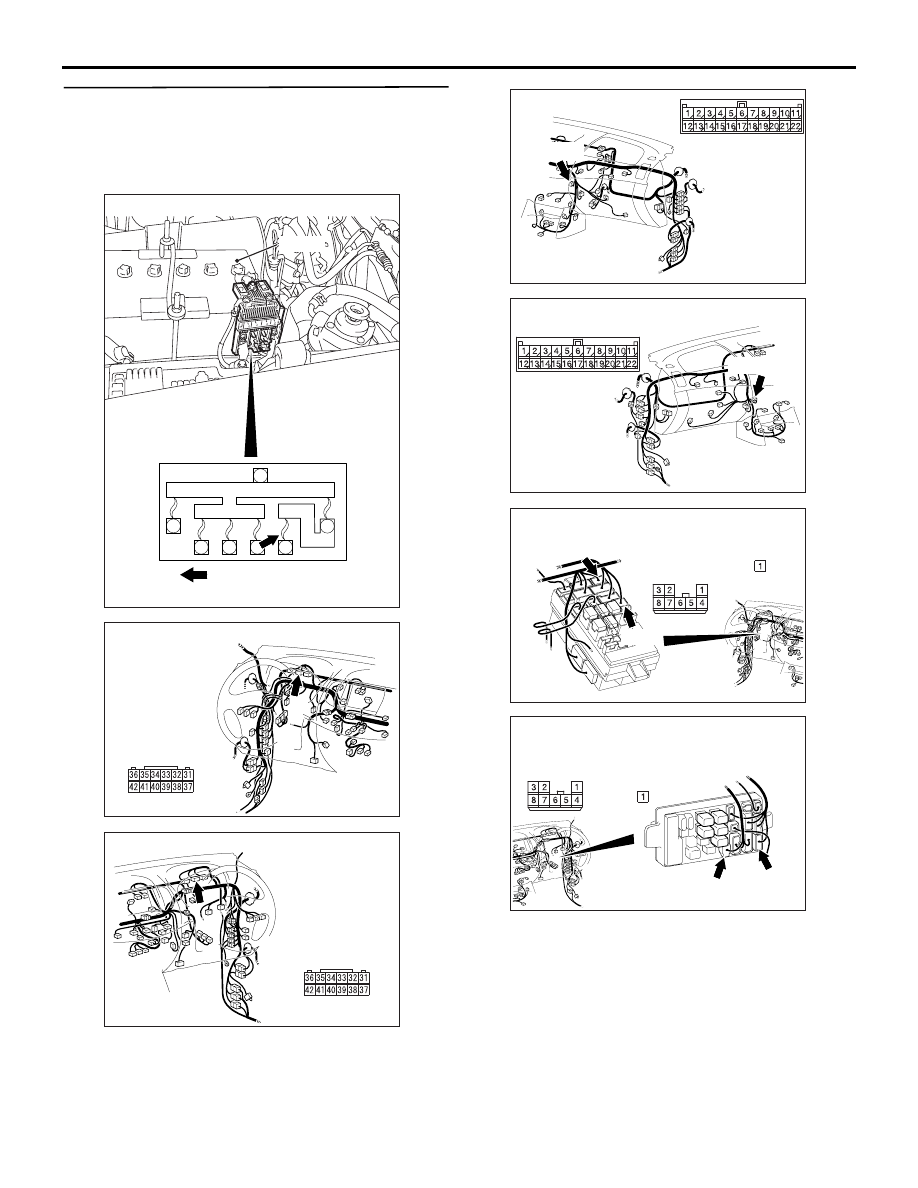

STEP 3. Check the harness wire between the
battery (fusible link No.20) and combination
meter connector C-112 (terminal No.42).
Check the power supply line for open circuit and
short circuit.

NOTE:

Prior to the wiring harness inspection, check joint
connector C-132 and junction block connectors C-
209 and C-213, and repair if necessary.

Q: Is the wiring harness between the battery (fusible

link No.20) and combination meter connector C-112
(terminal No.42) in good condition?
YES :

Retest the system.

NO :

Repair the wiring harness.

AC503086

AD

Battery

Front of vehicle

24

23

22

21

20

19

Fusible link (20)

AC903856 BF

Connector: C-112 <LHD>

Harness side

AC903868

BW

Connector: C-112 <RHD>

Harness side

AC903853

Connector: C-132 <LHD>

AC

C-132 (GR)

AC903865

Connector: C-132 <RHD>

AB

C-132 (GR)

AC509934

Connectors: C-209, C-213 <LHD>

Junction block (Front view)

C-213

C-209

C-213

C-209

AC

Harness side

Harness side

AC509936

Connectors: C-209, C-213 <RHD>

C-213

C-209

AC

Junction block
(Front view)

C-213

C-209

Harness side Harness side

COMBINATION METER

CHASSIS ELECTRICAL

54A-50

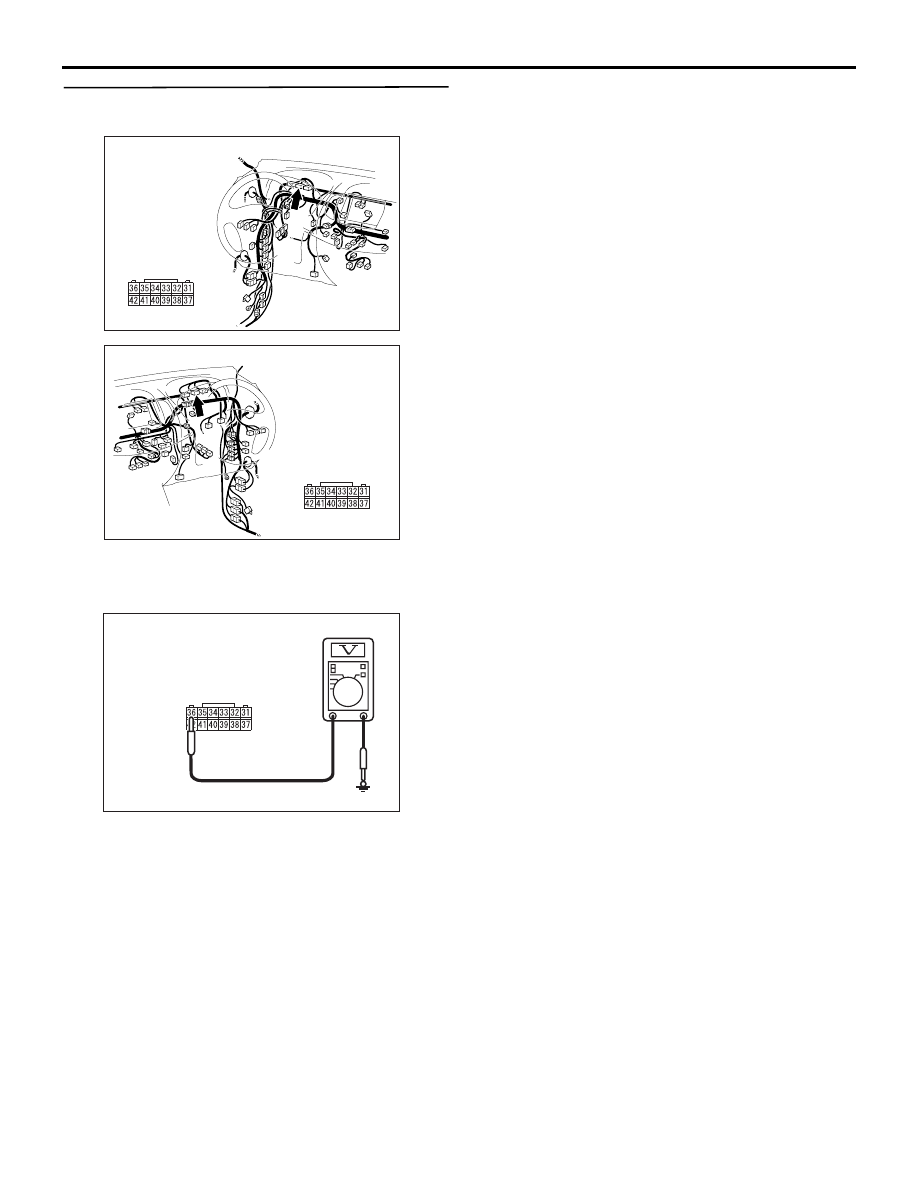

STEP 4. Voltage measurement at combination
meter connector C-112.

Disconnect the connector, and measure at the wiring
harness side.

• Ignition switch: ON position.

Voltage between combination meter connector C-112

terminal No.36 and body earth.

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 6

NO :

Go to Step 5

AC903856 BF

Connector: C-112 <LHD>

Harness side

AC903868

BW

Connector: C-112 <RHD>

Harness side

AC208309MY

Connector C-112
(Harness side)
