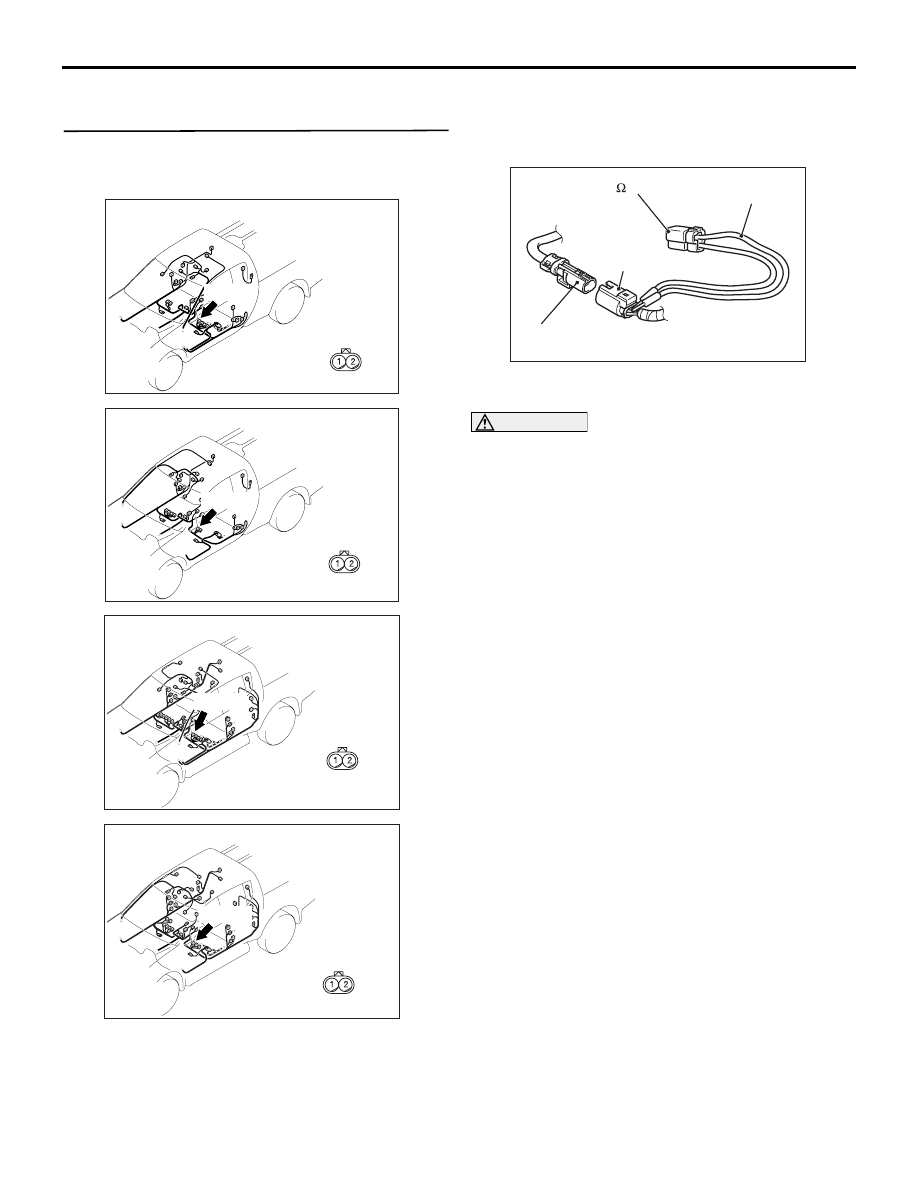

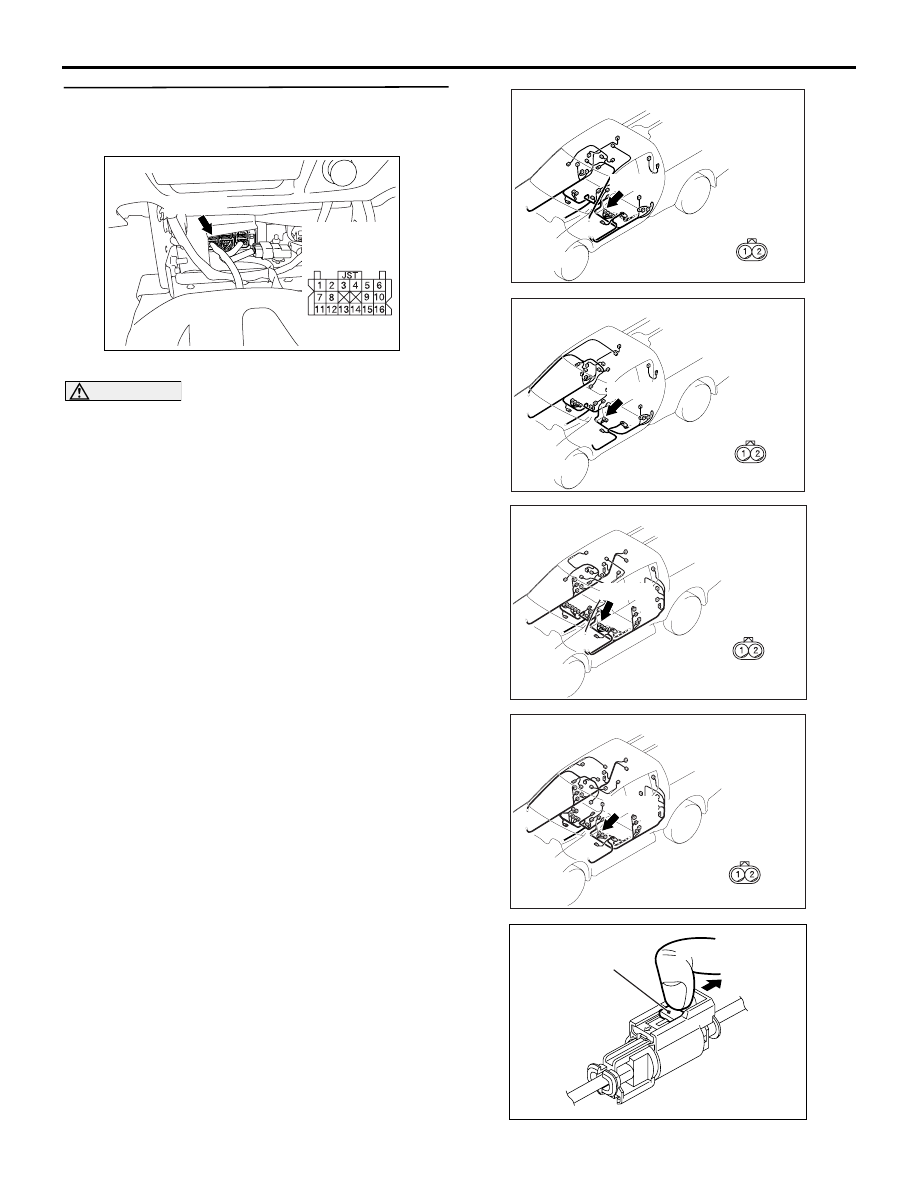

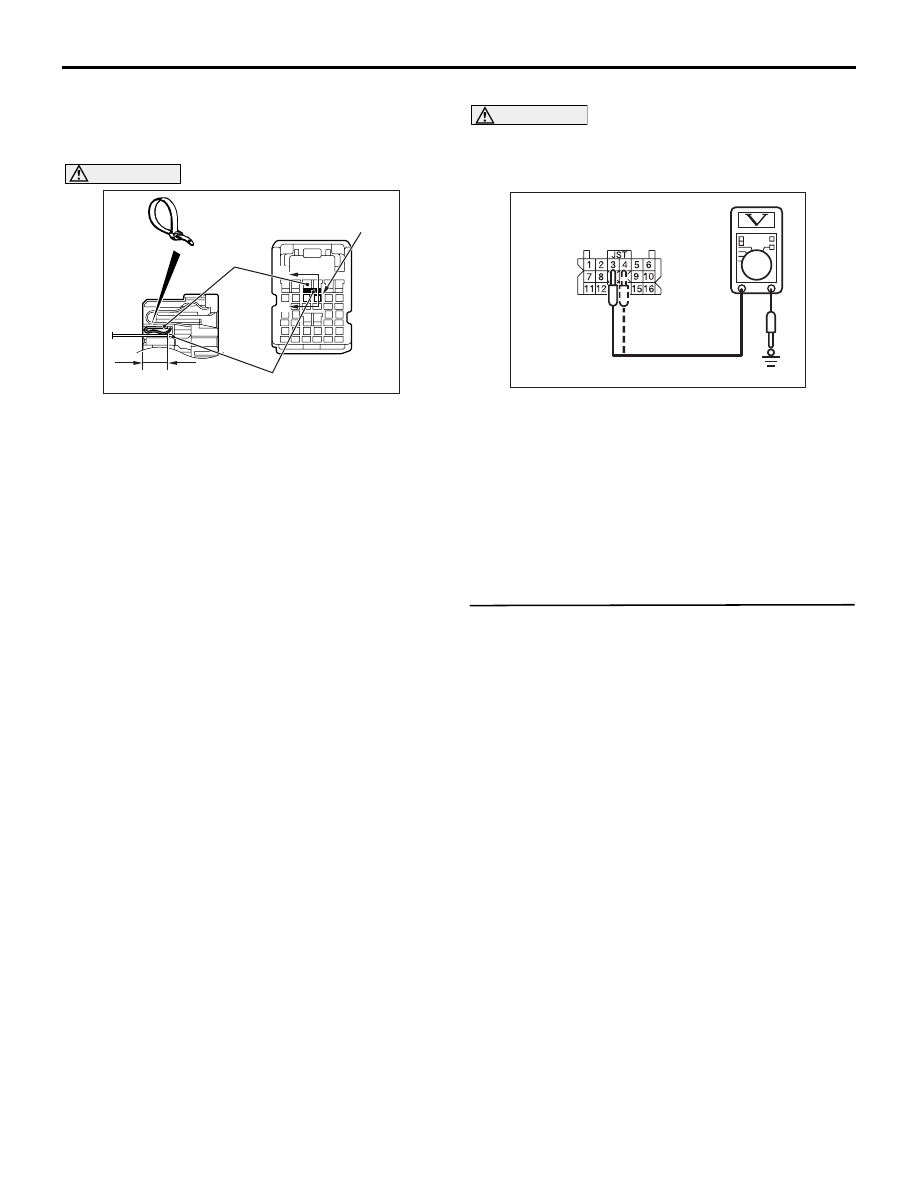

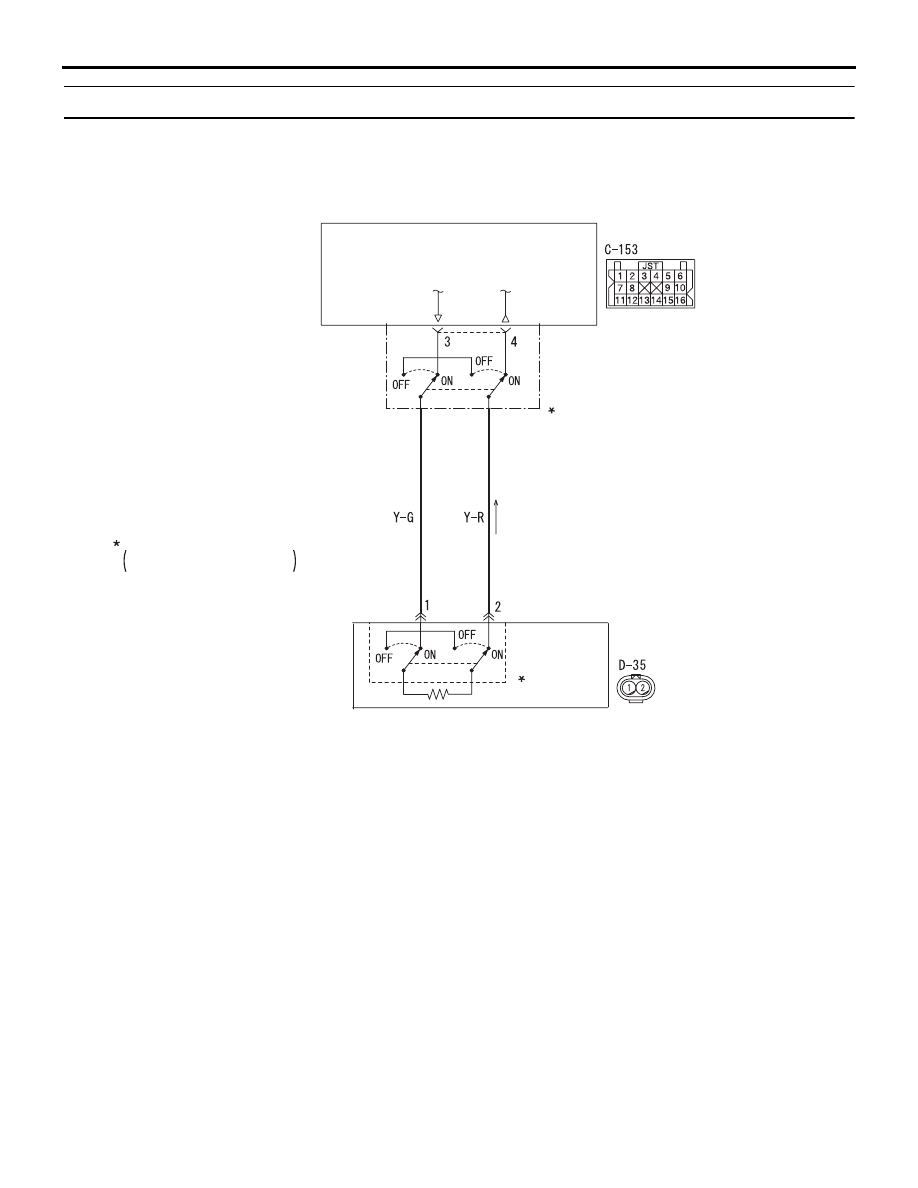

TROUBLESHOOTING SUPPLEMENTAL RESTRAINT SYSTEM (SRS) 52B-167 Code No.B1433: Side-airbag module (LH) (squib) system (short-circuited to the power supply) AC801027 NOTE : CONNECTOR LOCK SWITCH CONNECTOR COUPLED: ON Side-Airbag Module (LH) (Squib) Circuit Wire colour code AC SRS-ECU SIDE-AIRBAG OPERATION • The SRS-ECU judges how severe a collision is by detecting signals from the left and right side • The ignition signal is input to the side-airbag module to inflate the side-airbag. DIAGNOSIS CODE SET CONDITIONS PROBABLE CAUSES • Damaged harness wires and connectors • Short to the power supply in the side-airbag mod- ule (LH) (squib) harness • Malfunction of the SRS-ECU |
