Mitsubishi L200. Manual - part 585





MB991866

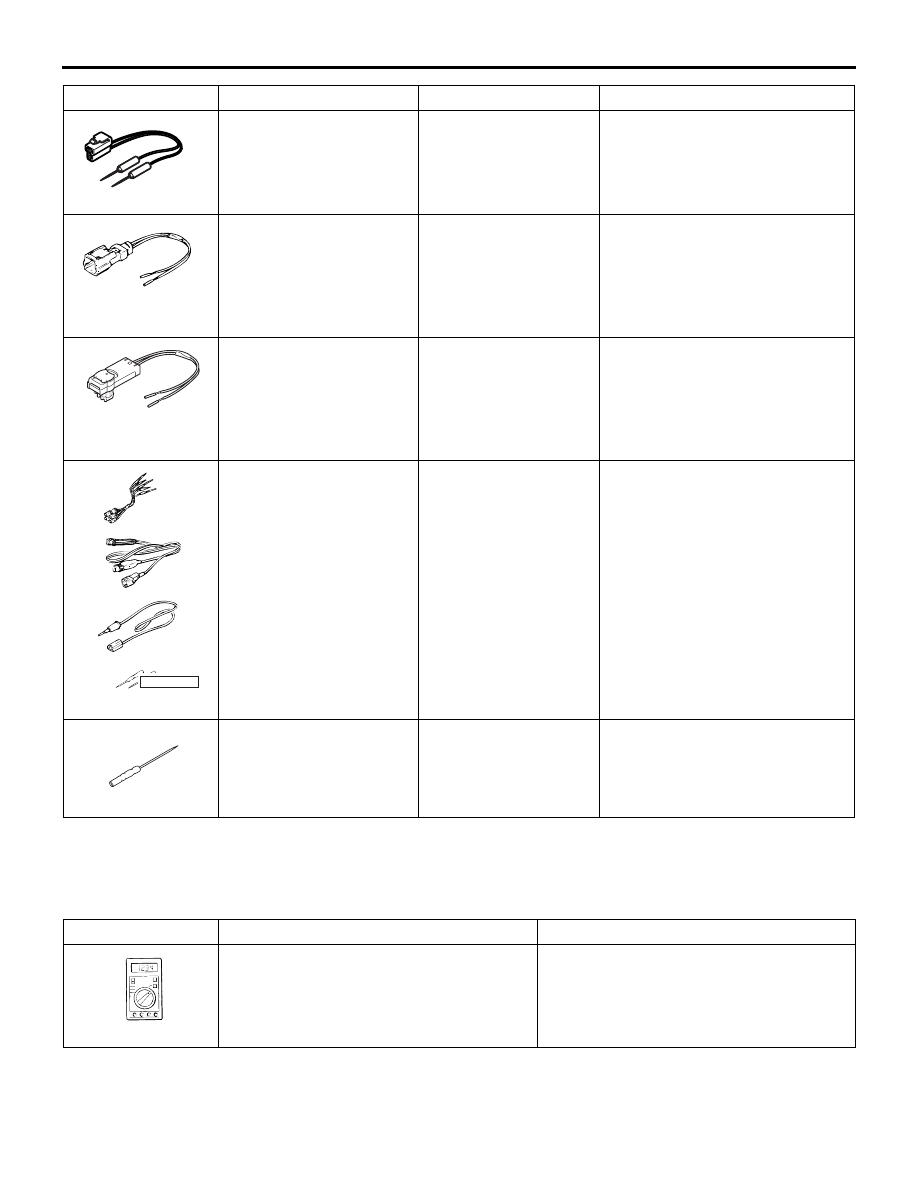

TEST EQUIPMENTS

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-11

TEST EQUIPMENTS

M1524000800568

Tool

Name

Use

AC300683

Digital multi-meter

Checking SRS electrical circuitry (Use
multi-meter for which the maximum test
current is 2 mA or less at minimum range
of resistance measurement)

MB991866

Resistor harness

Driver’s and passenger’s (front)
air bag and side-airbag circuit
check

MB686560

MB686560

SRS air bag adapter
harness

• Deployment of passenger's

(front) air bag module inside
the vehicle

• Deployment of passenger's

(front) air bag module outside
the vehicle

MB991885

MB991885

Pre-tensioner adapter
harness

• Deployment of curtain air bag

module or seat belt pre-
tensioner inside the vehicle

• Deployment of curtain air bag

module or seat belt pre-
tensioner outside the vehicle

MB991223

A

D

C

B

AZ

DO NOT USE

MB991223

A: MB991219
B: MB991220
C: MB991221
D: MB991222

Harness set

A: Check harness
B: LED harness
C: LED harness

adapter

D: Probe

Continuity check and voltage
measurement at harness wire or
connector

A: For checking connector pin

contact pressure

B: For checking power supply

circuit

C: For checking power supply

circuit

D: For connecting a locally

sourced tester

MB992006

MB992006

Extra fine probe

Continuity check and voltage
measurement at harness wire or
connector

Tool

No.

Name

Use

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-12

TROUBLESHOOTING

DIAGNOSIS TROUBLESHOOTING FLOW

M1524003100728

Refer to GROUP 00, Contents of Troubleshooting .

DIAGNOSIS FUNCTION

M1524003200554

DIAGNOSIS CODES CHECK

CAUTION

Turn off the ignition switch before connecting or
disconnecting the M.U.T.-III.
Connect the M.U.T.-III to the diagnosis connector
(16-pin) under the instrument under cover, then
check diagnosis codes (Refer to GROUP 00, Diag-
nosis Function ).

ERASING DIAGNOSIS CODE

CAUTION

Turn off the ignition switch before connecting or
disconnecting the M.U.T.-III.
Connect the M.U.T.-III to the diagnosis connector
and erase the diagnosis code (Refer to GROUP 00,
Diagnosis Function ).

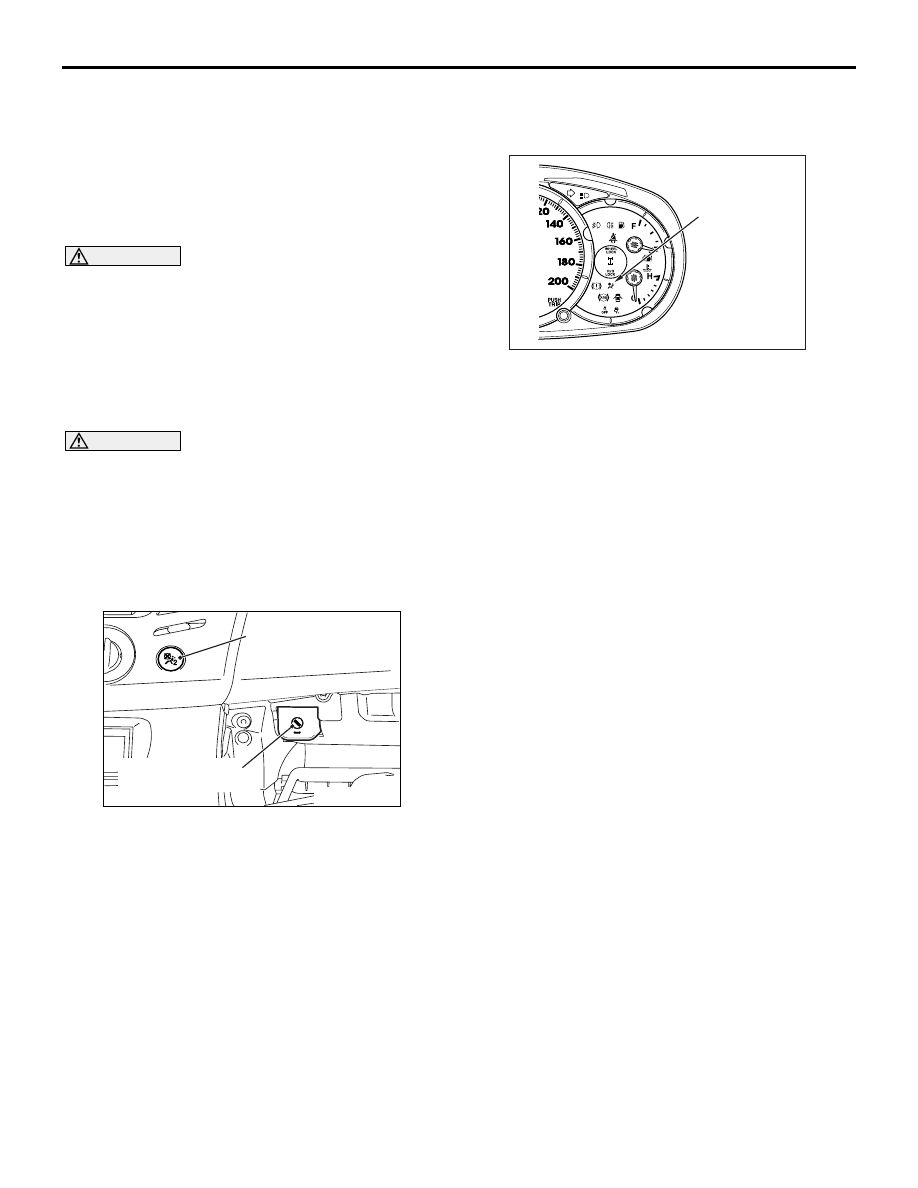

SRS WARNING LAMP CHECK

M1524004301104

AC900540 AB

SRS warning lamp

1. Check that the SRS warning lamp comes on

when the ignition switch is turned ON.

2. Check that the SRS warning lamp illuminates for

about 7 seconds and then goes out.

3. If this is not the cause, check the diagnosis codes.

PASSENGER'S AIR BAG CUT OFF INDICATOR LAMP CHECK

M1524026300217

ON

OFF

PASSENGER

AIRBAG

AC509715

Passenger's air bag
cut off indicator lamp

Passenger's air bag
cut off switch cylinder

AC

1. Check that the passenger’s air bag cut off

indicator lamp illuminates when the ignition key is
inserted in the passenger's air bag cut off switch
cylinder and turned it to the "OFF" position.

2. If not, refer to

P.52B-288

.

CHECK CHART FOR DIAGNOSIS CODES

M1524003302278

Inspect according to the inspection chart that is appropriate for the diagnosis code.

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-13

Code No.

Diagnosis item

Reference Page

B1400

*2

Driver's air bag module (squib) system (short-circuited between
terminals of the squib circuit)

P.52B-21

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-93

 <vehicles

with side-airbag and
curtain air bag>

B1401

*2

Driver's air bag module (squib) system (open-circuited in the squib
circuit)

P.52B-25

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-97

 <vehicles

with side-airbag and
curtain air bag>

B1402

*2

Driver's air bag module (squib) system (short-circuited to the earth)

P.52B-28

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-100

 <vehicles

with side-airbag and
curtain air bag>

B1403

*2

Driver's air bag module (squib) system (short-circuited to the power
supply)

P.52B-31

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-103

 <vehicles

with side-airbag and
curtain air bag>

B1404

*3

Driver's air bag module (squib ignition drive circuit) system detected
short circuit

P.52B-34

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-106

 <vehicles

with side-airbag and
curtain air bag>

B1405

*3

Driver's air bag module (squib ignition drive circuit) system detected
open circuit

P.52B-34

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-106

 <vehicles

with side-airbag and
curtain air bag>

B1410

*2

Passenger's (front) air bag module (squib) system (short-circuited
between terminals of the squib circuit)

P.52B-36

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-109

 <vehicles

with side-airbag and
curtain air bag>

B1411

*2

Passenger's (front) air bag module (squib) system (open-circuited in
the squib circuit)

P.52B-40

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-113

 <vehicles

with side-airbag and
curtain air bag>

TROUBLESHOOTING

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

52B-14

B1412

*2

Passenger's (front) air bag module (squib) system (short-circuited to
the earth)

P.52B-43

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-116

 <vehicles

with side-airbag and
curtain air bag>

B1413

*2

Passenger's (front) air bag module (squib) system (short-circuited to
the power supply)

P.52B-46

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-119

 <vehicles

with side-airbag and
curtain air bag>

B1414

*3

Passenger’s (front) air bag module (squib ignition drive circuit)
system detected short circuit

P.52B-34

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-106

 <vehicles

with side-airbag and
curtain air bag>

B1415

*3

 Passenger’s (front) air bag module (squib ignition drive circuit)
system detected open circuit

P.52B-34

 <vehicles

without side-airbag
and curtain air bag>,

P.52B-106

 <vehicles

with side-airbag and
curtain air bag>

B1420

*2

Side-airbag module (RH) (squib) system (short-circuit between
terminals of the squib circuit)

P.52B-122

B1421

*2

Side-airbag module (RH) (squib) system (open-circuited in the squib
circuit)

P.52B-130

B1422

*2

Side-airbag module (RH) (squib) system (short-circuited to the earth)

P.52B-134

B1423

*2

Side-airbag module (RH) (squib) system (short-circuited to the power
supply)

P.52B-139

B1424

*3

Side-airbag module (RH) (squib ignition drive circuit) system
detected short circuit

P.52B-34

B1425

*3

Side-airbag module (RH) (squib ignition drive circuit) system
detected open circuit

P.52B-106

B1426

*3

G-sensor of side impact sensor (RH) failure

P.52B-143

B1427

*2

Side impact sensor (RH) voltage error

P.52B-144

B1428

*2

Side impact sensor (RH) communication error

P.52B-146

B1429

*2

Side impact sensor (RH) communication impossible

P.52B-146

B1430

*2

Side-airbag module (LH) (squib) system (short-circuit between
terminals of the squib circuit)

P.52B-149

B1431

*2

Side-airbag module (LH) (squib) system (open-circuited in the squib
circuit)

P.52B-157

B1432

*2

Side-airbag module (LH) (squib) system (short-circuited to the earth)

P.52B-162



Code No.

Diagnosis item

Reference Page
