DOOR

BODY

42-132

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III diagnosis code.
When the ignition switch is turned to the "ON" posi-
tion, check that the ETACS-ECU does not set the
diagnosis code.

Q: Is the diagnosis code set?

YES :

Refer to

P.42-64

.

NO :

Go to Step 2.

STEP 2. Check the power window main switch.
Check that all of the front passenger's power window
and the rear power windows <Double cab> can oper-
ate by means of the power window main switch.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Refer to

P.42-186

.

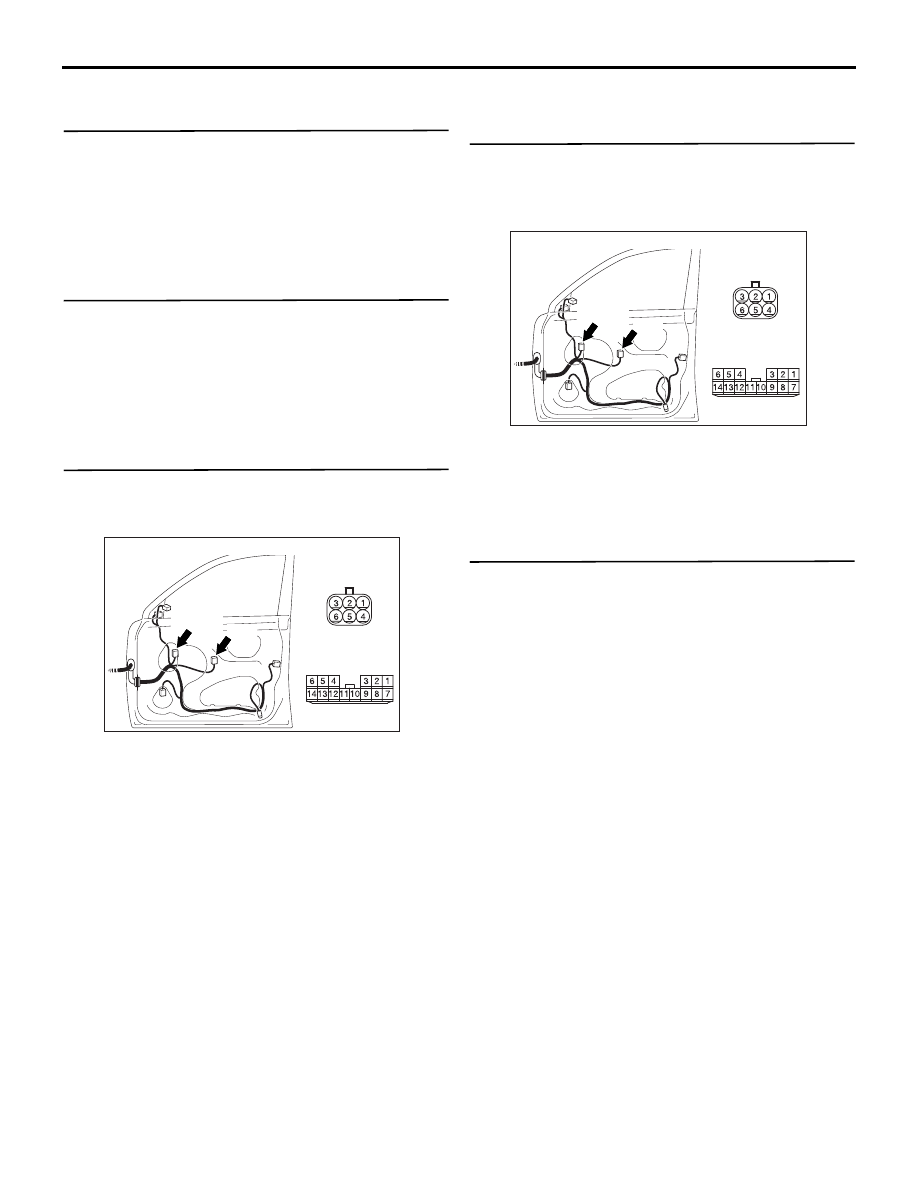

STEP 3. Connector check: Connector check: E-
03 power window main switch connector and E-
01 power window motor (front: RH) connector

AC509954

Connectors: E-01, E-03 <RHD>

AG

Harness side

E-03

E-03

Harness side

E-01 (B)

E-01 (B)

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

STEP 4. Check the wiring harness from E-03
power window main switch connector terminal
Nos. 1, 7 and E-01 power window motor (front:
RH) connector terminal Nos. 3, 1.

AC509954

Connectors: E-01, E-03 <RHD>

AG

Harness side

E-03

E-03

Harness side

E-01 (B)

E-01 (B)

• Check the input and output lines for open and

short circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the wiring harness.

STEP 5. Retest the system.
(1) Replace the power window main switch.
(2) Check that the driver's power window works by

means of the power window main switch.

Q: Is the check result normal?

YES :

The procedure is complete.

NO :

Replace the power window motor (front:
RH).

DOOR

BODY

42-133

Inspection Procedure B-4: Relevant Power Window(s) do not Work by means of the Front
Passenger's Power Window Sub Switch and Rear Power Window Sub Switches. <LH drive vehicles>

CAUTION

Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.

CPU

IC

IC

AC806165

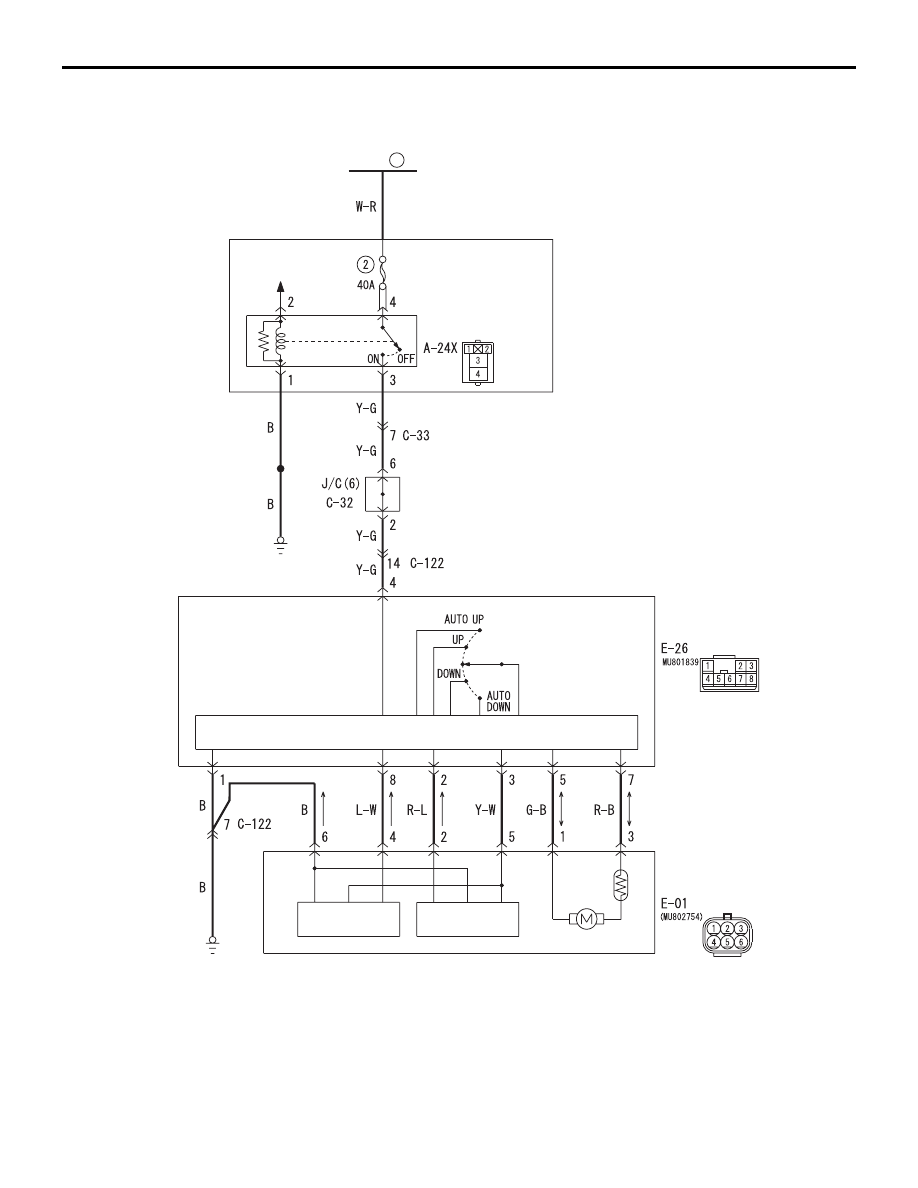

Power Window Sub Switch Circuit

ETACS-ECU

RELAY
BOX

POWER WINDOW
RELAY

FUSIBLE
LINK

23

POWER WINDOW
SUB SWITCH
(FRONT: RH)

POWER WINDOW
MOTOR
(FRONT: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

AB

AC900873AB

HALL IC

HALL IC

DOOR

BODY

42-134

AC903704

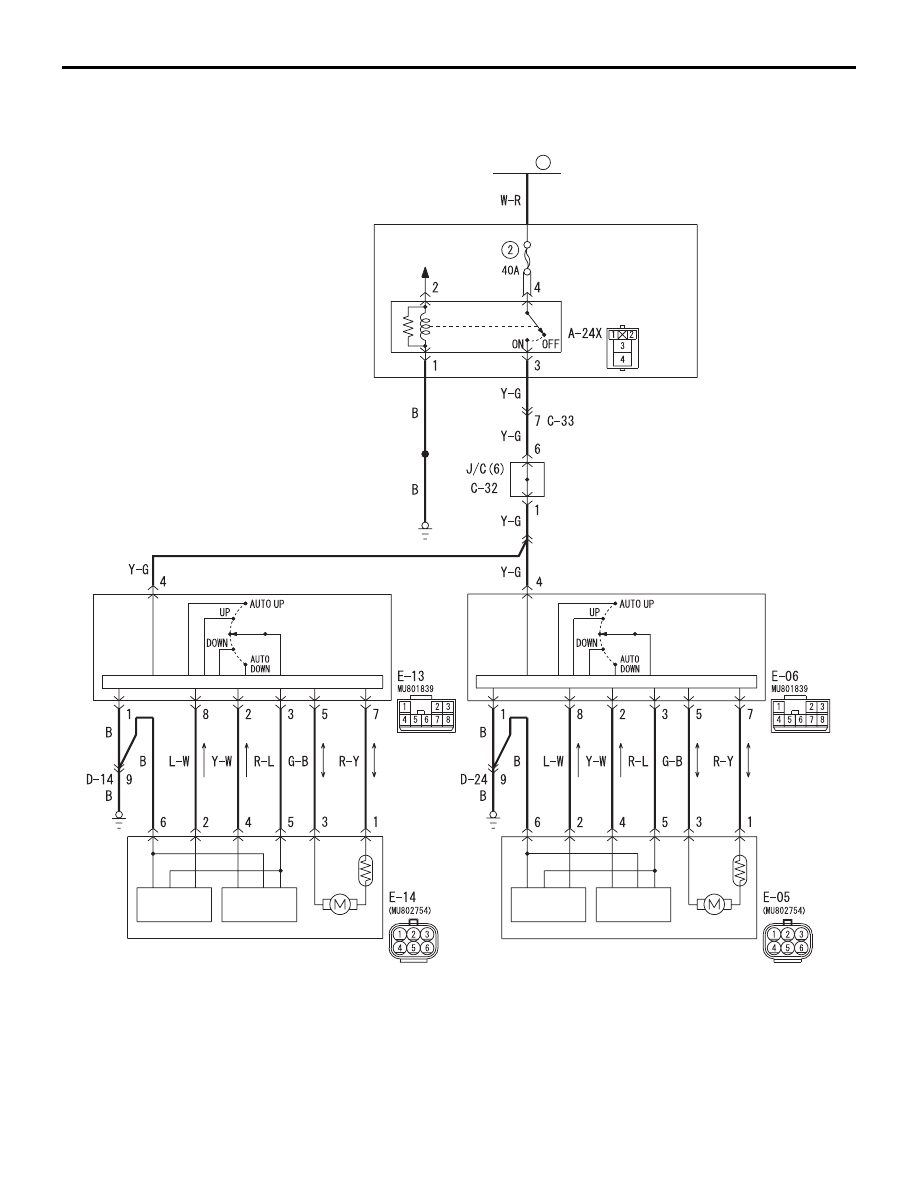

Power Window Sub Switch Circuit <Double Cab>

RELAY
BOX

POWER WINDOW
RELAY

FUSIBLE
LINK

23

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

POWER
WINDOW
SUB
SWITCH
(REAR: LH)

POWER
WINDOW
MOTOR
(REAR: LH)

POWER
WINDOW
MOTOR
(REAR: RH)

CPU

HALL IC

HALL IC

CPU

POWER
WINDOW
SUB
SWITCH
(REAR: RH)

ETACS-ECU

AB

18  C-16

HALL IC

HALL IC

DOOR

BODY

42-135

COMMENTS ON TROUBLE SYMPTOM
If the front passenger's or rear power window <Dou-
ble cab> does not work by means of the respective
power window sub switch, the power window sub
switch or the power window motor may be defective.

PROBABLE CAUSES

• Malfunction of the power window sub switch

(front: RH), power window sub switch (rear: RH)
or power window sub switch (rear: LH)
