DOOR

BODY

42-72

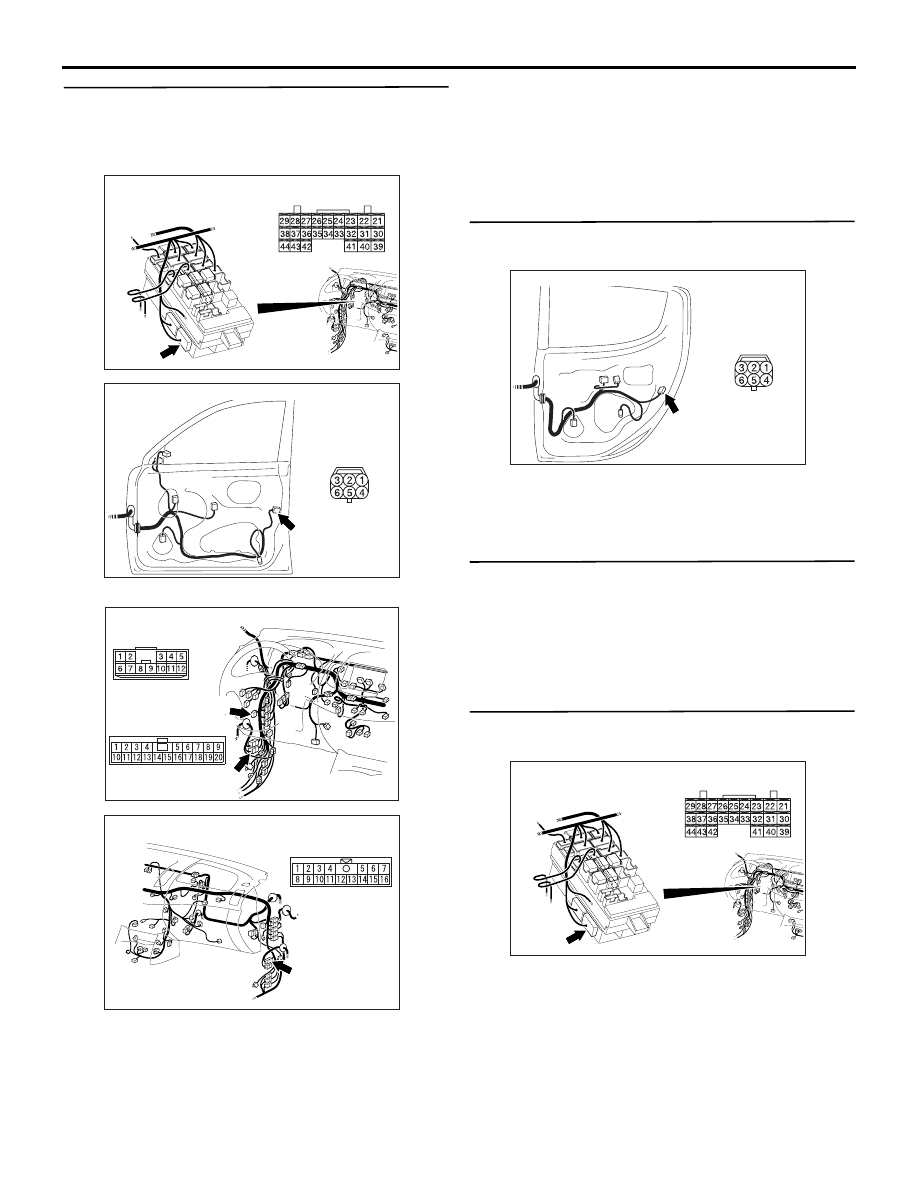

STEP 9. Check the wiring harness between C-220
ETACS-ECU connector terminal Nos. 22, 23 and
E-04 front door lock actuator (RH) connector
terminal Nos. 6, 4.

AC509934

Connector: C-220 <LHD>

AM

Junction block

Harness side

AC509954AD

Harness side

E-04 (B)

Connector: E-04 <LHD>

NOTE:

AC805686AQ

Connectors: C-32,  C-133 <LHD>

C-133

C-133

C-32 (GR)

C-32 (GR)

AC903853

Connector: C-122 <LHD>

AG

Prior to the wiring harness inspection, check interme-
diate connector C-122 and junction block connector
C-32, and repair if necessary.

• Check the power supply line for open and short

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

STEP 10. Connector check: E-07 rear door lock
actuator (RH) connector

AC509958AB

Harness side

E-07 (B)

Connector: E-07

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Repair the defective connector.

STEP 11. Check the rear door lock actuator (RH).
Check that the rear door lock actuator (RH) is in
good condition. Refer to

P.42-194

.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Replace the tailgate lock actuator.

STEP 12. Connector check: C-220 ETACS-ECU
connector

AC509934

Connector: C-220 <LHD>

AM

Junction block

Harness side

Q: Is the check result normal?

YES :

Go to Step 13.

NO :

Repair the defective connector.

DOOR

BODY

42-73

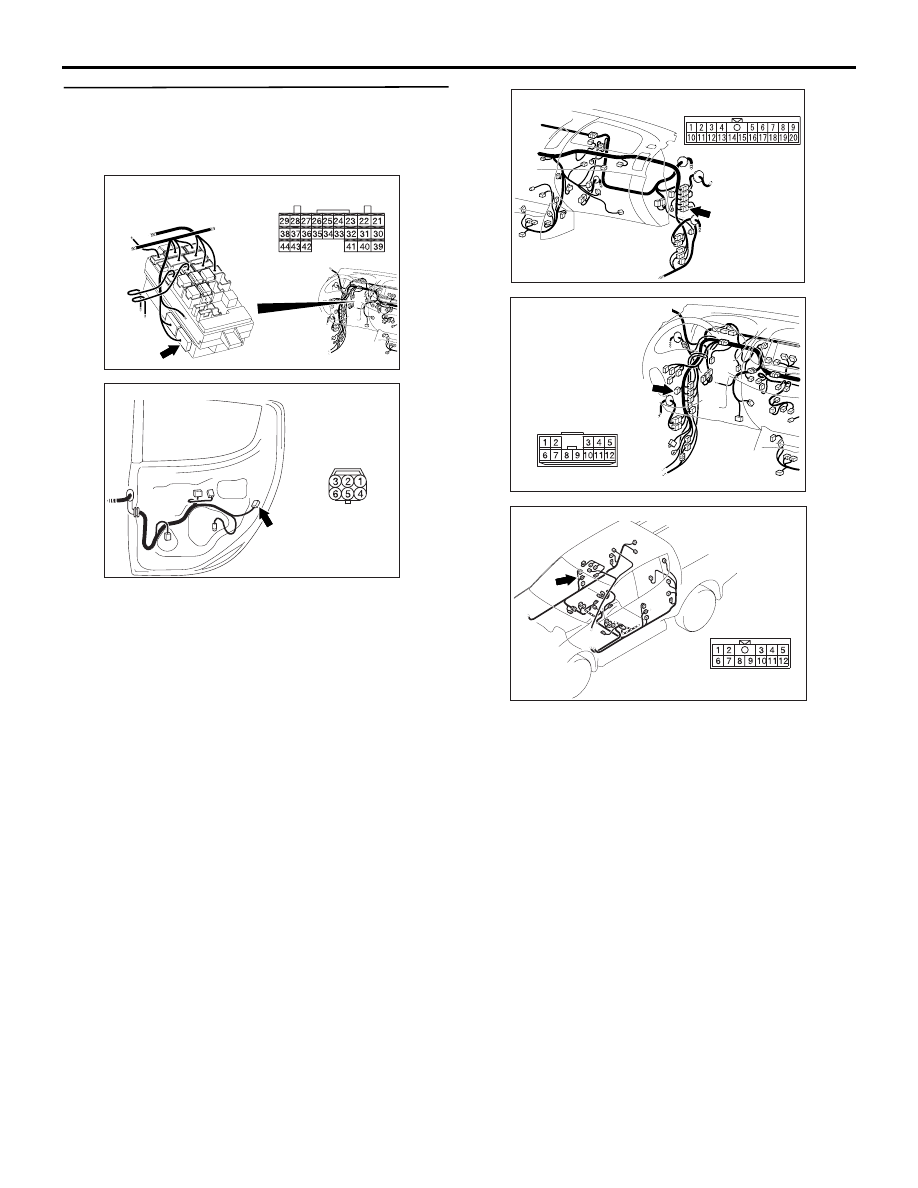

STEP 13. Check the wiring harness between C-
220 ETACS-ECU connector terminal Nos. 22, 23
and E-07 rear door lock actuator (RH) connector
terminal Nos. 6, 4.

AC509934

Connector: C-220 <LHD>

AM

Junction block

Harness side

AC509958AB

Harness side

E-07 (B)

Connector: E-07

NOTE:

AC805687

Connector: C-16 <LHD>

AJ

AC509611AL

Connector: C-32 <LHD>

C-32 (GR)

AC509967AC

Connector: D-24 <LHD>

Prior to the wiring harness inspection, check interme-
diate connectors C-16, D-24 and junction block con-
nector C-32, and repair if necessary.

• Check the power supply line for open and short

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.

DOOR

BODY

42-74

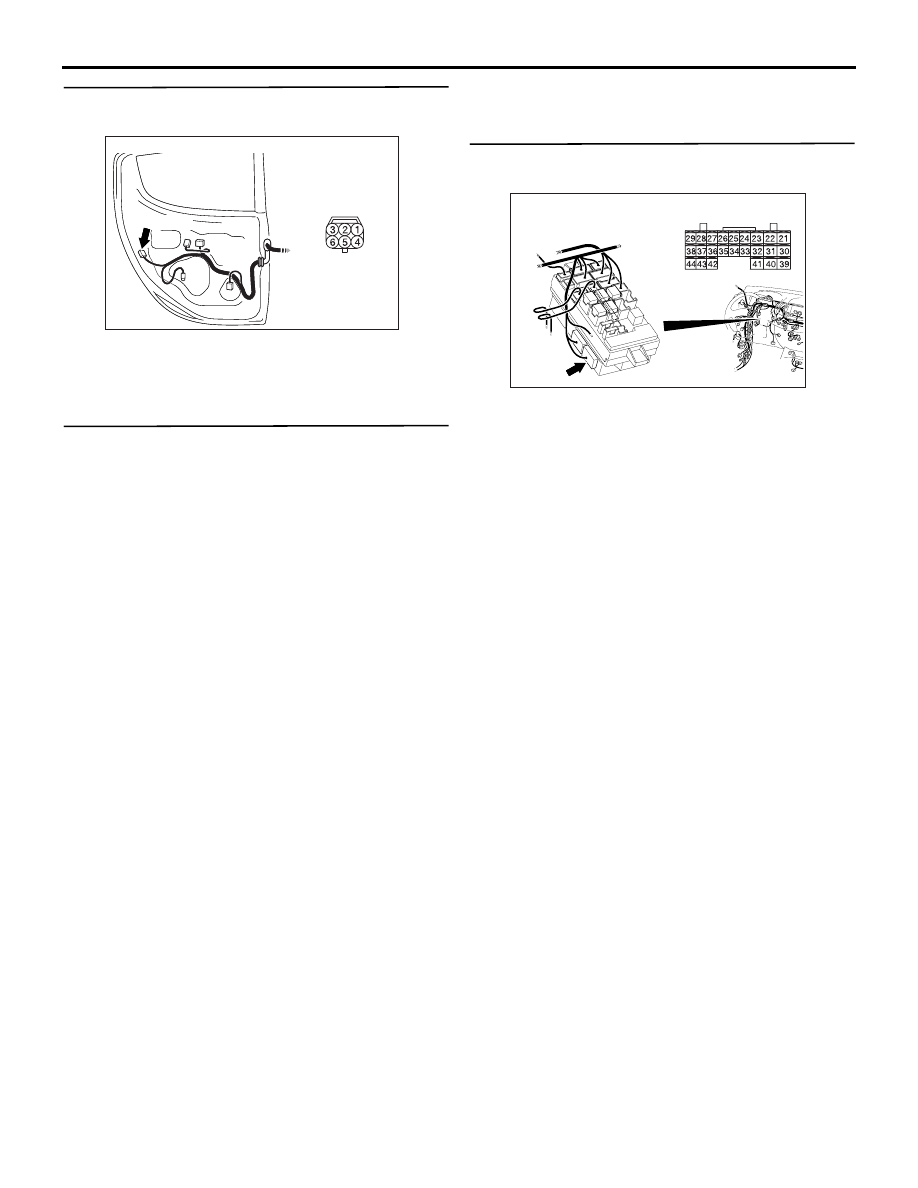

STEP 14. Connector check: E-12 rear door lock
actuator (LH) connector

AC509956AB

Harness side

Connector: E-12

E-12 (B)

Q: Is the check result normal?

YES :

Go to Step 15.

NO :

Repair the defective connector.

STEP 15. Check the rear door lock actuator (LH).
Check that the rear door lock actuator (LH) is in good
condition. Refer to

P.42-194

.

Q: Is the check result normal?

YES :

Go to Step 16.

NO :

Replace the tailgate lock actuator.

STEP 16. Connector check: C-220 ETACS-ECU
connector

AC509934

Connector: C-220 <LHD>

AM

Junction block

Harness side

Q: Is the check result normal?

YES :

Go to Step 17.

NO :

Repair the defective connector.

DOOR

BODY

42-75

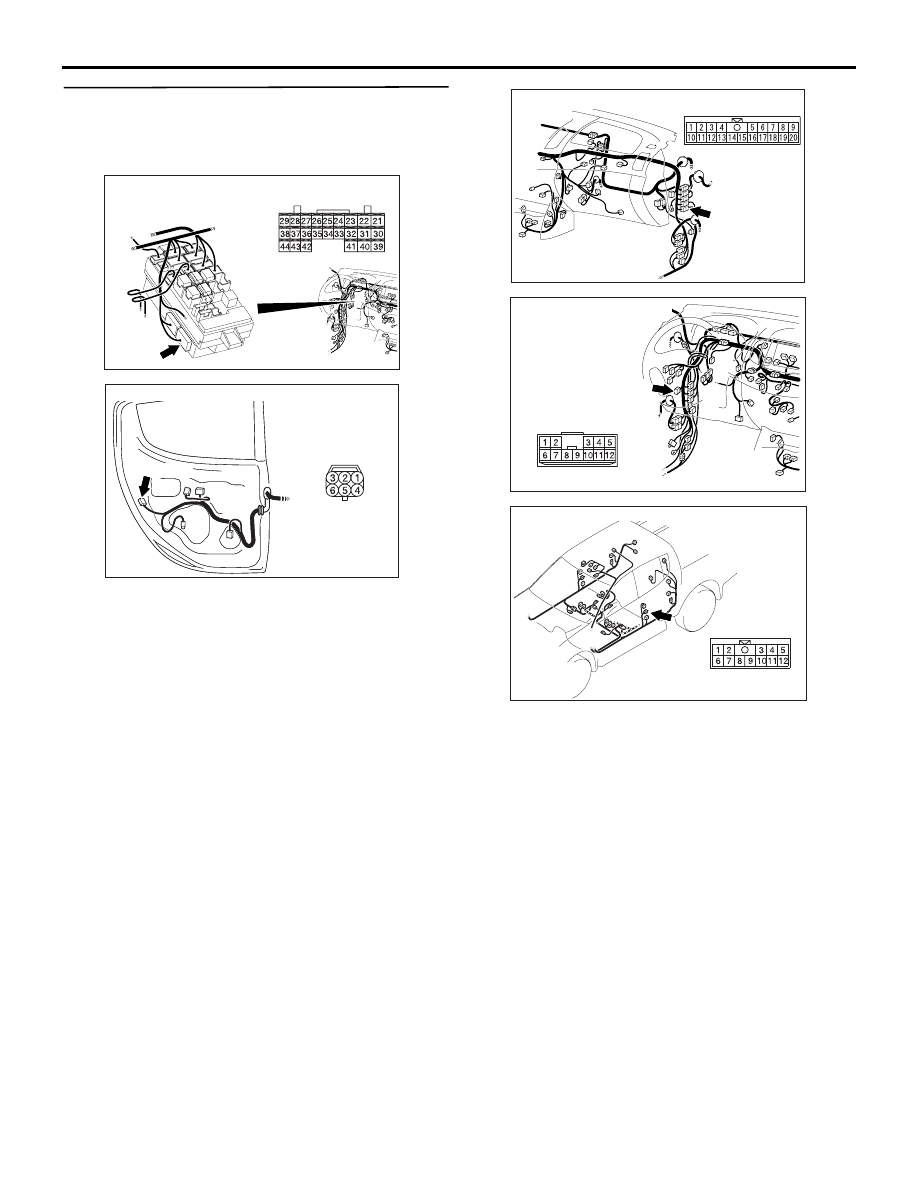

STEP 17. Check the wiring harness between C-
220 ETACS-ECU connector terminal Nos. 22, 23
and E-12 rear door lock actuator (LH) connector
terminal Nos. 6, 4.

AC509934

Connector: C-220 <LHD>

AM

Junction block

Harness side

AC509956AB

Harness side

Connector: E-12

E-12 (B)

NOTE:

AC805687

Connector: C-16 <LHD>

AJ

AC509611AL

Connector: C-32 <LHD>

C-32 (GR)

AC509967AB

Connector: D-14 <LHD>

Prior to the wiring harness inspection, check interme-
diate connectors C-16, D-14 and junction block con-
nector C-32, and repair if necessary.

• Check the power supply line for open and short

circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
use Troubleshooting/inspection Service
Points

− How to Cope with Intermittent

Malfunction ).

NO :

Repair the wiring harness.
