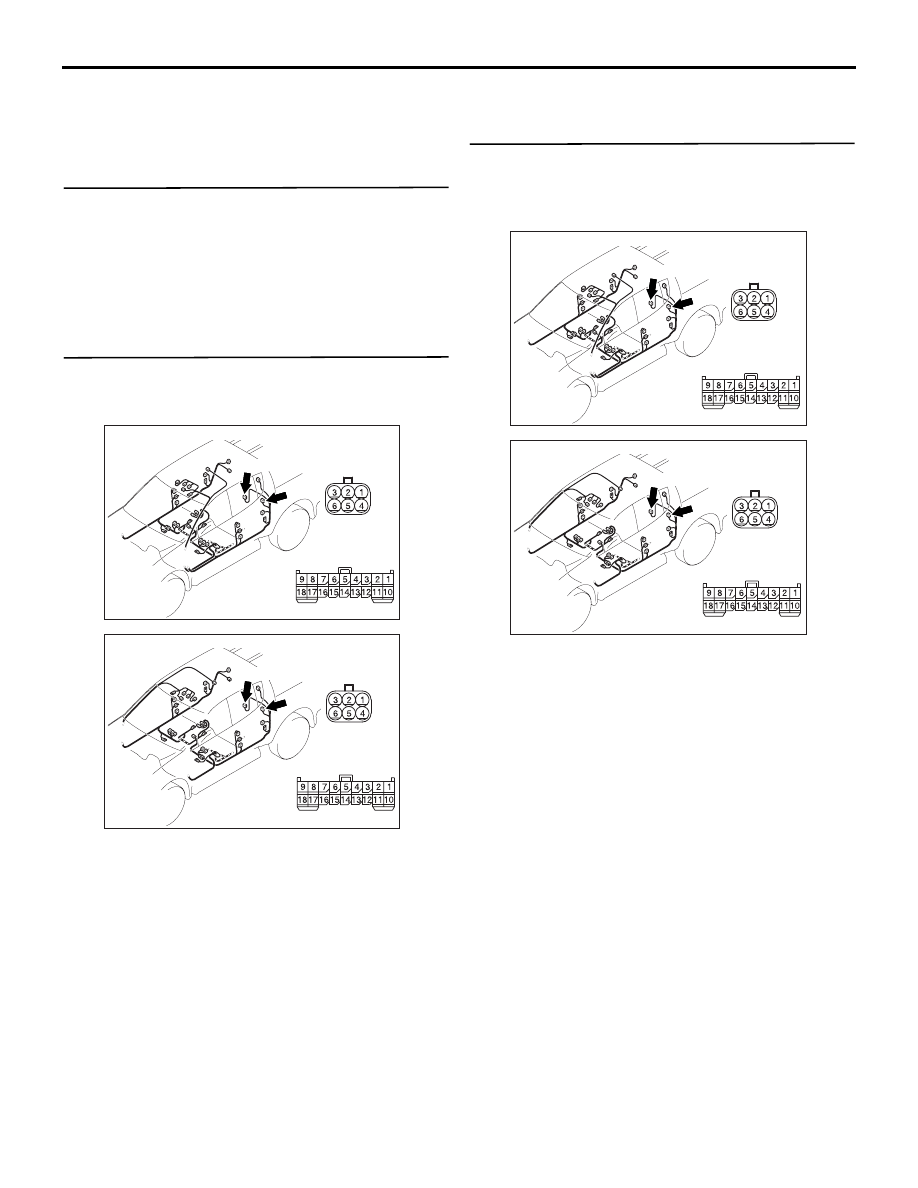

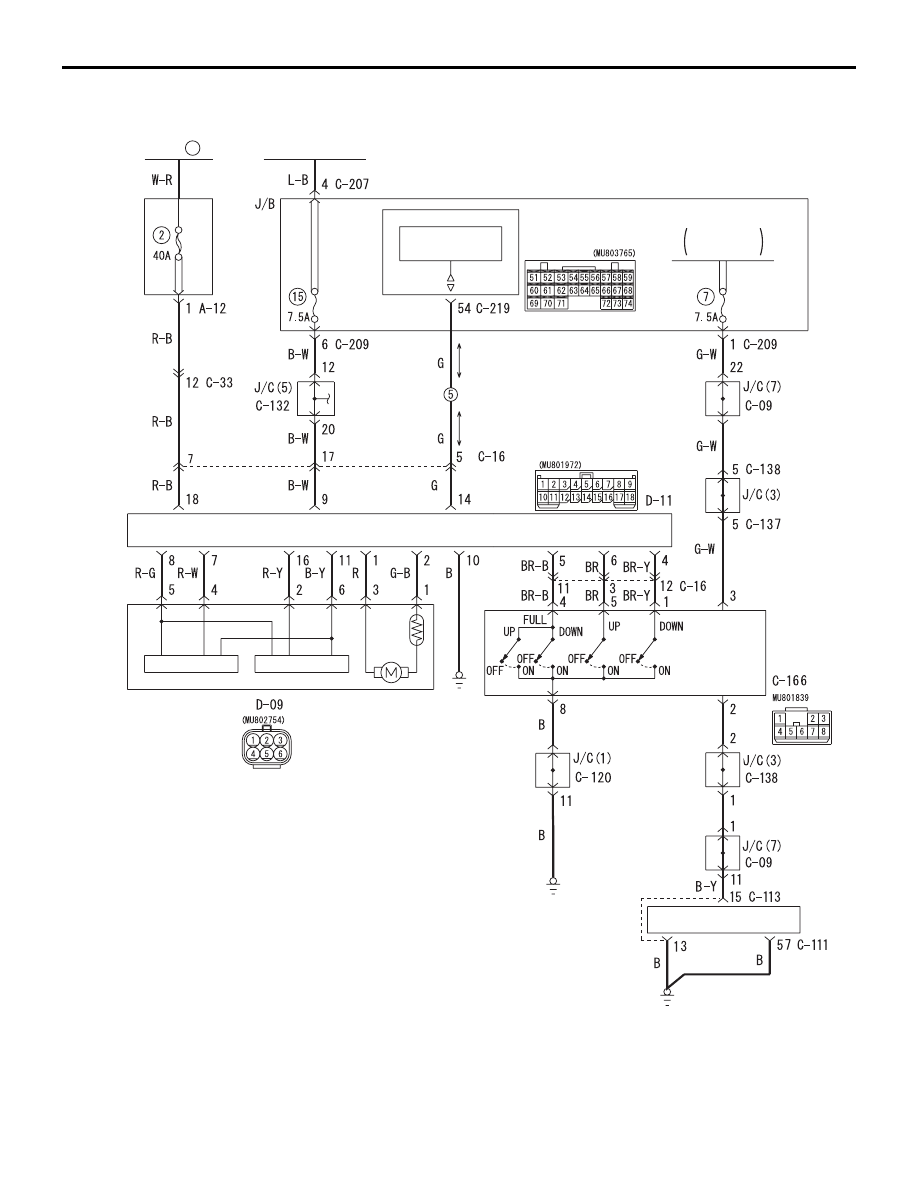

REAR PANEL POWER WINDOW <Vehicles with rear panel power window>
BODY
42-36
DIAGNOSIS PROCEDURE
STEP 1. Confirm the rear panel power window
learning function.
(1) Check that the rear panel power window switch
has learned the fully closed position of the
window (Refer to
).
(2) On completion, check that diagnosis code
No.5005 is not reset.
Q: Is the check result normal?
YES :
The procedure is complete.
NO :
Go to Step 2.
STEP 2. Check whether the diagnosis code is
reset.
(1) Replace the rear panel power window motor.
(2) Check that diagnosis code is not reset.
Q: Is diagnosis code set?
YES :
Replace the rear panel power window-ECU.
NO :
The procedure is complete.
Code No. 5008: P/W (RP) Parameter read fail,
Code No. 5009: P/W (RP) Position read fail
CAUTION
Whenever the ECU is replaced, ensure that the
input and output signal circuits are normal.
COMMENTS ON TROUBLE SYMPTOM
• At the engine startup, if a signal reception of the
rear panel power window-ECU information fails,
rear panel power window-ECU stores the diagno-
sis code No. 5008.
• At the engine startup, if a signal reception of the
rear panel window glass position information
fails, rear panel power window-ECU stores the
diagnosis code No. 5009.
PROBABLE CAUSES
• Malfunction of the rear panel power window-ECU
DIAGNOSIS PROCEDURE
Check whether the diagnosis code is reset.
Check that the diagnosis code is not reset.
Q: Is diagnosis code set?
YES :
Replace the rear panel power window-ECU.
NO :
The procedure is complete.
