GENERAL INFORMATION

REAR SUSPENSION

34-2

GENERAL INFORMATION

M1341000101914

The leaf spring type rear suspension featuring the
simple structure and outstanding strength has been
adopted.

• The spring is fixed at the top to increase ground

clearance of the leaf spring. <2WD (High rider),
4WD>

• The suspension geometry has been optimized to

assure stability under loaded condition and to
improve adhesion under unladen condition, and
the SUV-like steering stability has been achieved.
<2WD (High rider), 4WD>

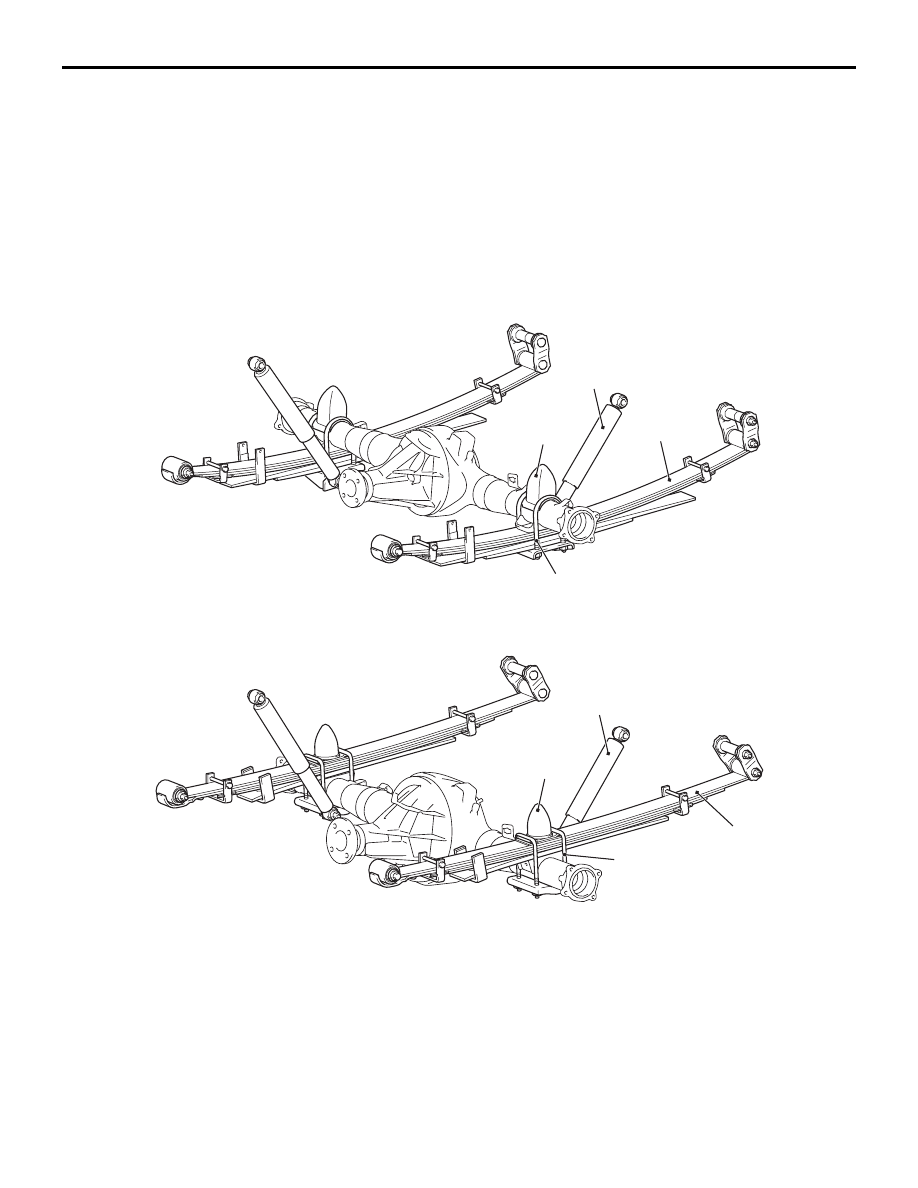

CONSTRUCTION DIAGRAM
<2WD (except High rider)>

AC501757

U-bolt

Bump stopper

Shock absorber

Leaf spring

AB

<2WD (High rider), 4WD>

AC808337

U-bolt

Bump stopper

Shock absorber

Leaf spring

AB

REAR SUSPENSION ASSEMBLY

REAR SUSPENSION

34-3

REAR SUSPENSION ASSEMBLY

REMOVAL AND INSTALLATION

M1341001000359

CAUTION

•

Pre-installation Operation
• Support the axle housing with a garage jack etc..



*

: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle

on the earth in the unladen condition.

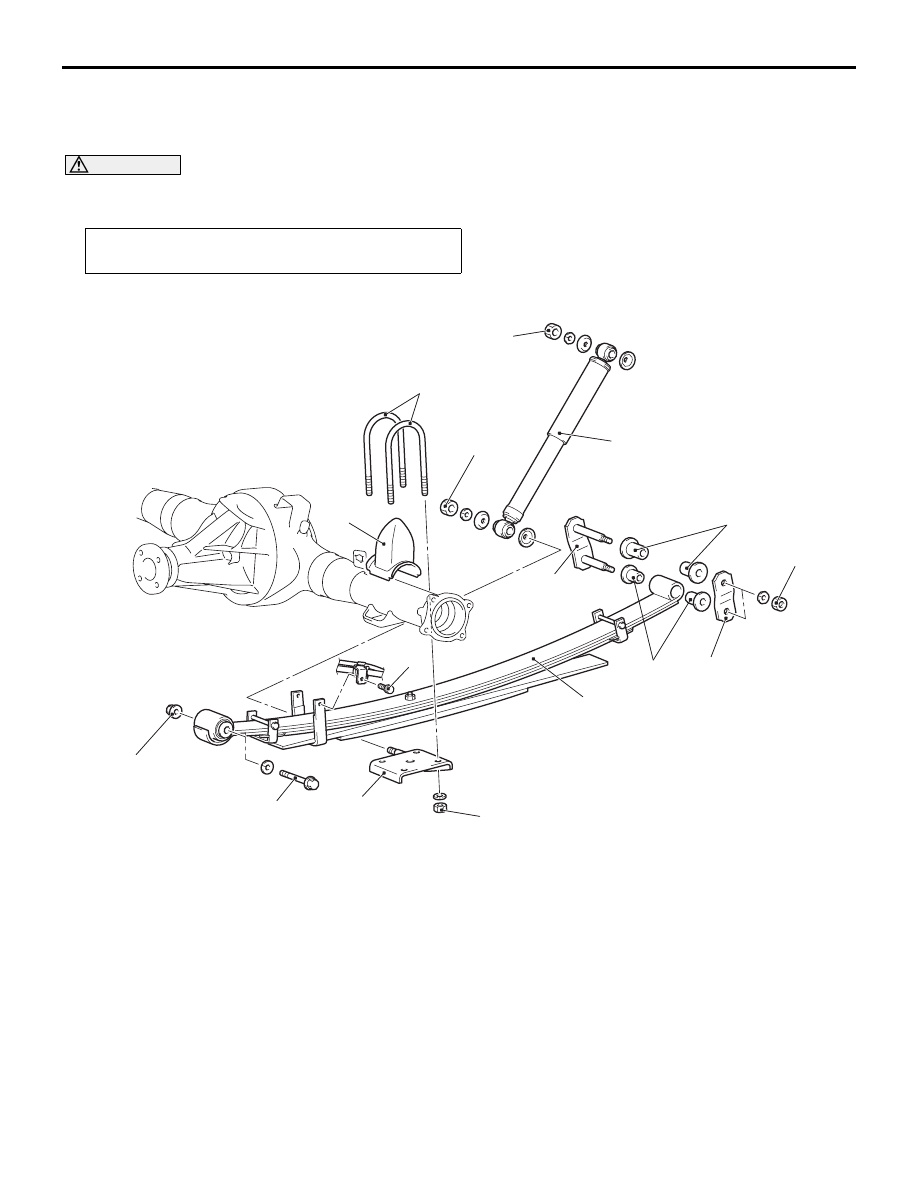

<2WD (EXCEPT HIGH RIDER)>

AC501835AB

105 ± 10 N·m*

10

108 ± 10 N·m

52 ± 7 N·m*

8

6

7

4

2

1

22 ± 3 N·m*

22 ± 3 N·m*

5

3

9

8

REAR SUSPENSION ASSEMBLY

REAR SUSPENSION

34-4

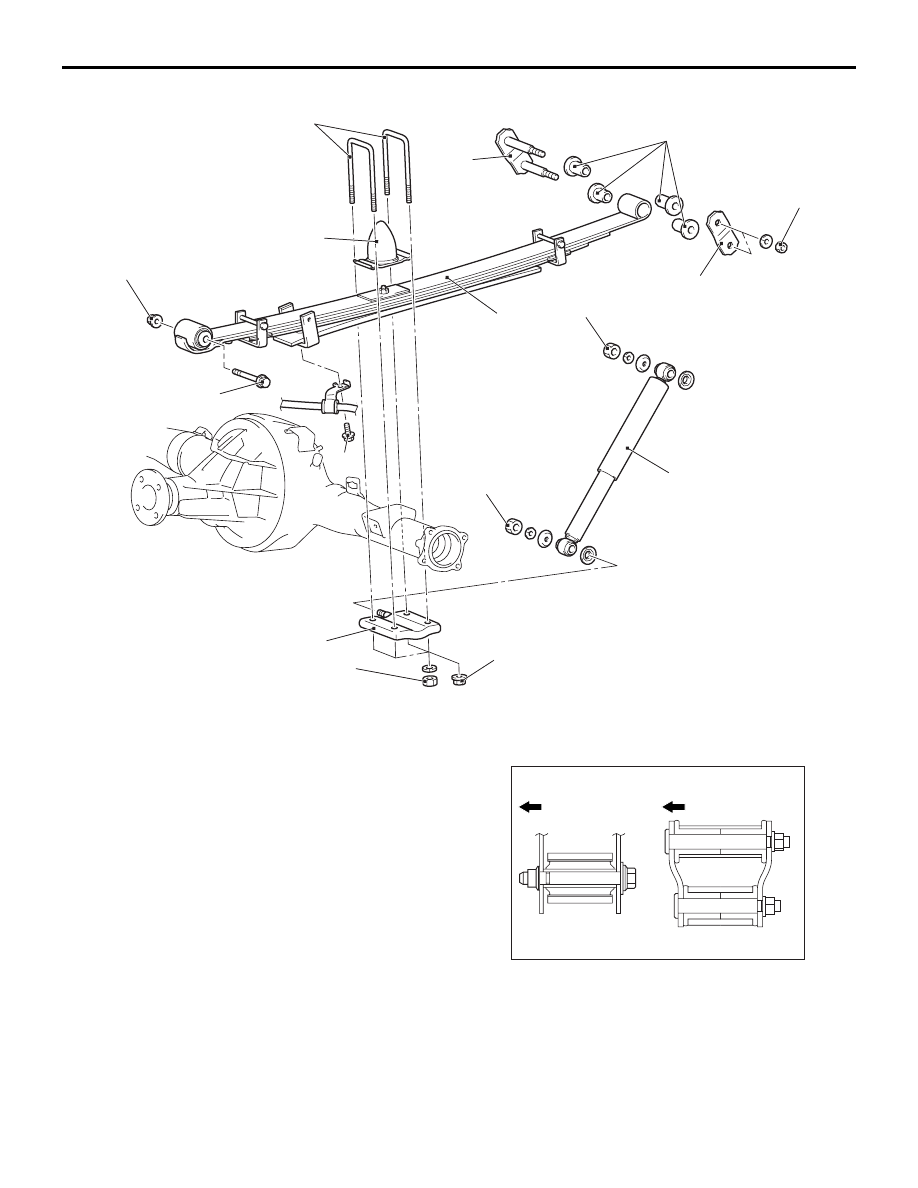

<2WD (HIGH RIDER), 4WD>

AC808360AD

2

1

105 ± 10 N·m*

8

6

7

3

5

4

10

9

108 ± 10 N·m
<Except 4WD - RHD>

52 ± 7 N·m*

22 ± 3 N·m*

22 ± 3 N·m*

88 ± 8 N·m
<4WD - RHD>

Removal steps

1.

Parking brake cable attaching bolt

>>

C

<< 2.

Shock absorber

3.

U-bolt seat

>>

B

<< 4.

U-bolts

5.

Bump stopper

•

Spare tyre (LH only)

6.

Shackle plate

>>

A

<< 7.

Shackle assembly

8.

Rubber bushings

>>

A

<< 9.

Bolt

10. Rear spring

INSTALLATION SERVICE POINTS

>>A<< BOLT/SHACKLE ASSEMBLY INSTALLA-
TION

AC501428

Inside of vehicle

Inside of vehicle

AB

Bolt side

Shackle side

1. Install the bolt from the outside toward the inside

of vehicle.

2. Install the shackle assembly from the inside

toward the outside of vehicle.

REAR SUSPENSION ASSEMBLY

REAR SUSPENSION

34-5

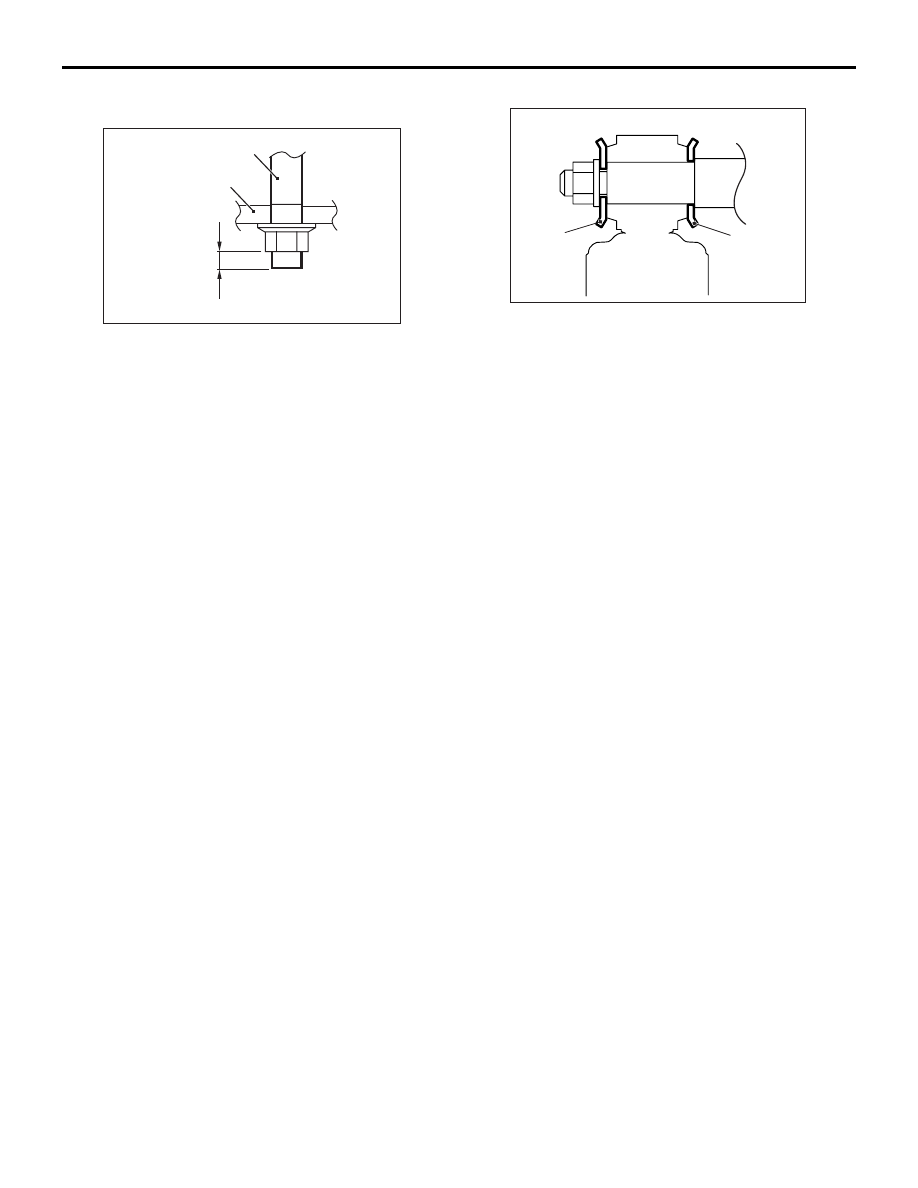

>>B<< U-BOLTS INSTALLATION <2WD (HIGH
RIDER), 4WD>

ACB00222

Approximately
3 mm max

AB

U-bolt

U-bolt seat

Install the u-bolts as shown in the figure.

>>C<< SHOCK ABSORBER INSTALLATION

AC702929AB

Inner
washer

Outer
washer

Be sure to install the shock absorber washers (outer
and inner) in the specified direction.

INSPECTION

M1341015500175

• Check the rubber parts for cracks and wear.

• Check the shock absorber for malfunction, oil

leakage, or abnormal noise.

• Check the leaf springs for damage or deteriora-

tion.

• Check the U-bolt for cracks or bends.
