Mitsubishi L200. Manual - part 372





PROPELLER SHAFT

PROPELLER SHAFT

25-9

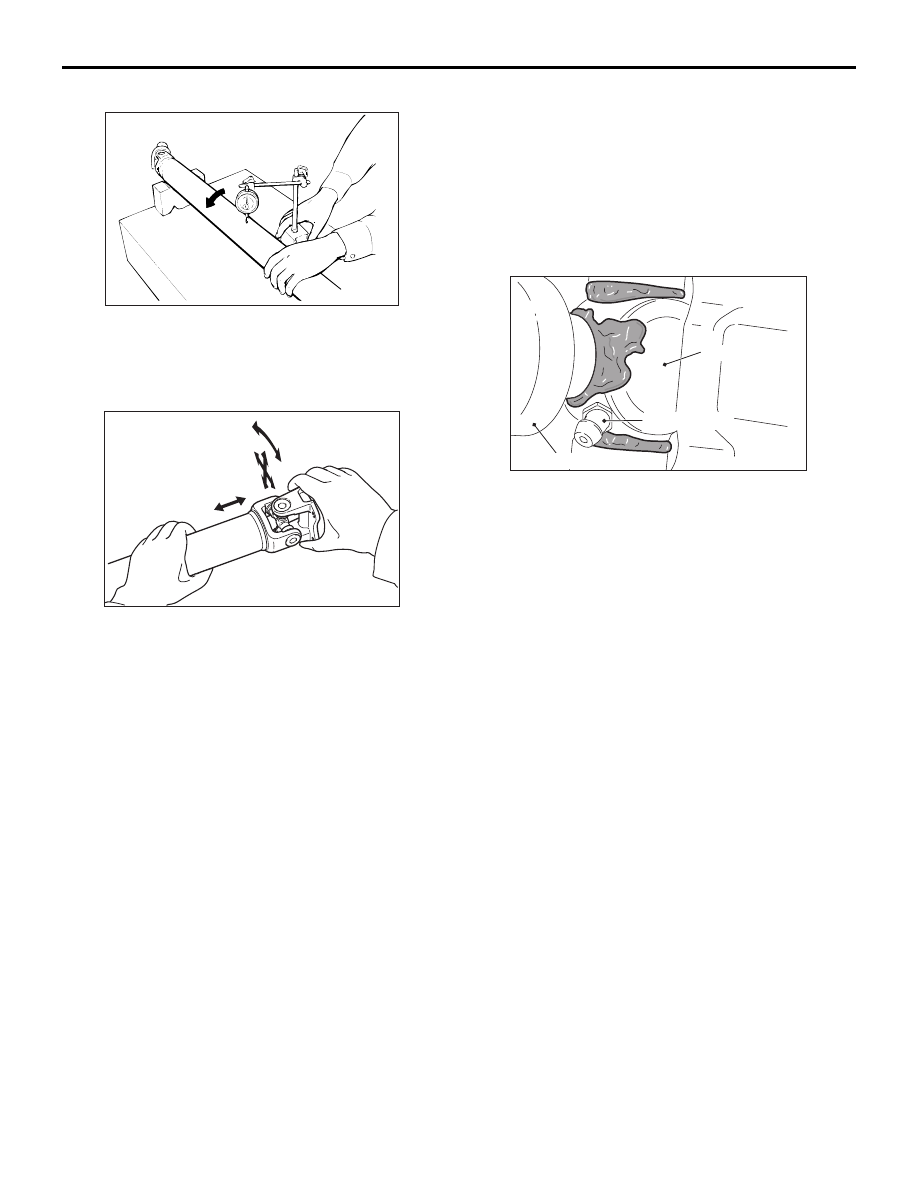

PROPELLER SHAFT RUN-OUT

ACX00643AB

Limit: 0.6 mm

PROPELLER SHAFT UNIVERSAL JOINT
PLAY CHECK

AC501206

1. Hold the tube of propeller shaft by one hand, and

apply force by the other hand to the flange yoke or
sleeve yoke in rotative direction, axial direction,
and perpendicular direction for checking
looseness.

2. If looseness is recognized, perform service work

or replace the propeller shaft with a new one.

PROPELLER SHAFT UNIVERSAL
GREASE CHECK

Perform grease-up with a grease gun, and check the
grease ejected from the oil seal when grease-up is
completed.
Judgement standard

AC501207AB

Journal bearing

Grease nipple

Journal

If blackish grease is evenly ejected from the oil seal

periphery, it is normal.

• If non-discoloured grease is ejected from the spe-

cific area (partially), the grease amount is insuffi-
cient and the oil seal is worn. Perform service
work or replace the propeller shaft with a new
one.

• If the white cloudy grease is ejected, water has

been mixed in grease. Replace the propeller
shaft with a new one.

PROPELLER SHAFT

PROPELLER SHAFT

25-10

DISASSEMBLY AND REASSEMBLY

M1251001200625

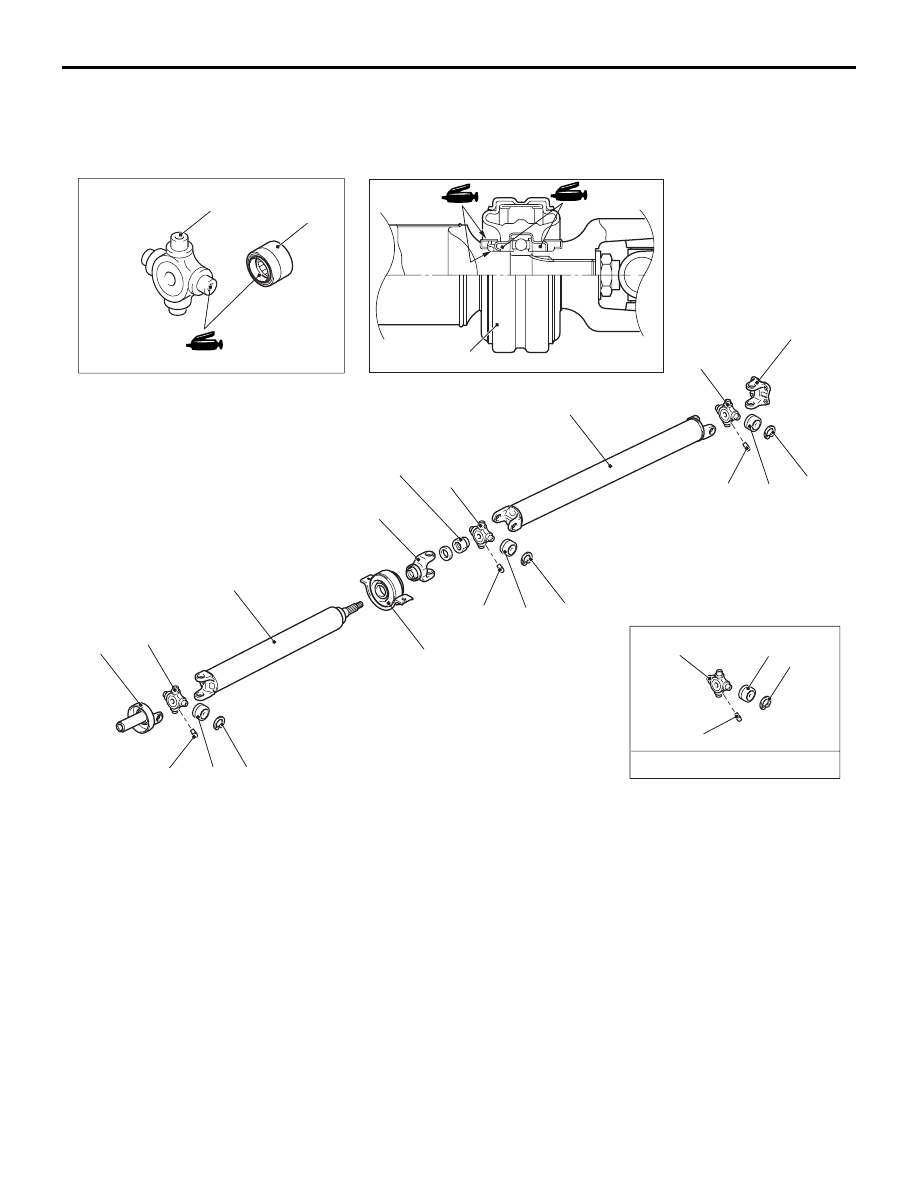

<2WD>

AC611838

AC407357

AB

4

3

9

Universal joint kit

7

4

6

4

8

9

10

4

5

2

187 ± 29 N·m

1

3

2

1

3

2

1

3

4

2

1

3

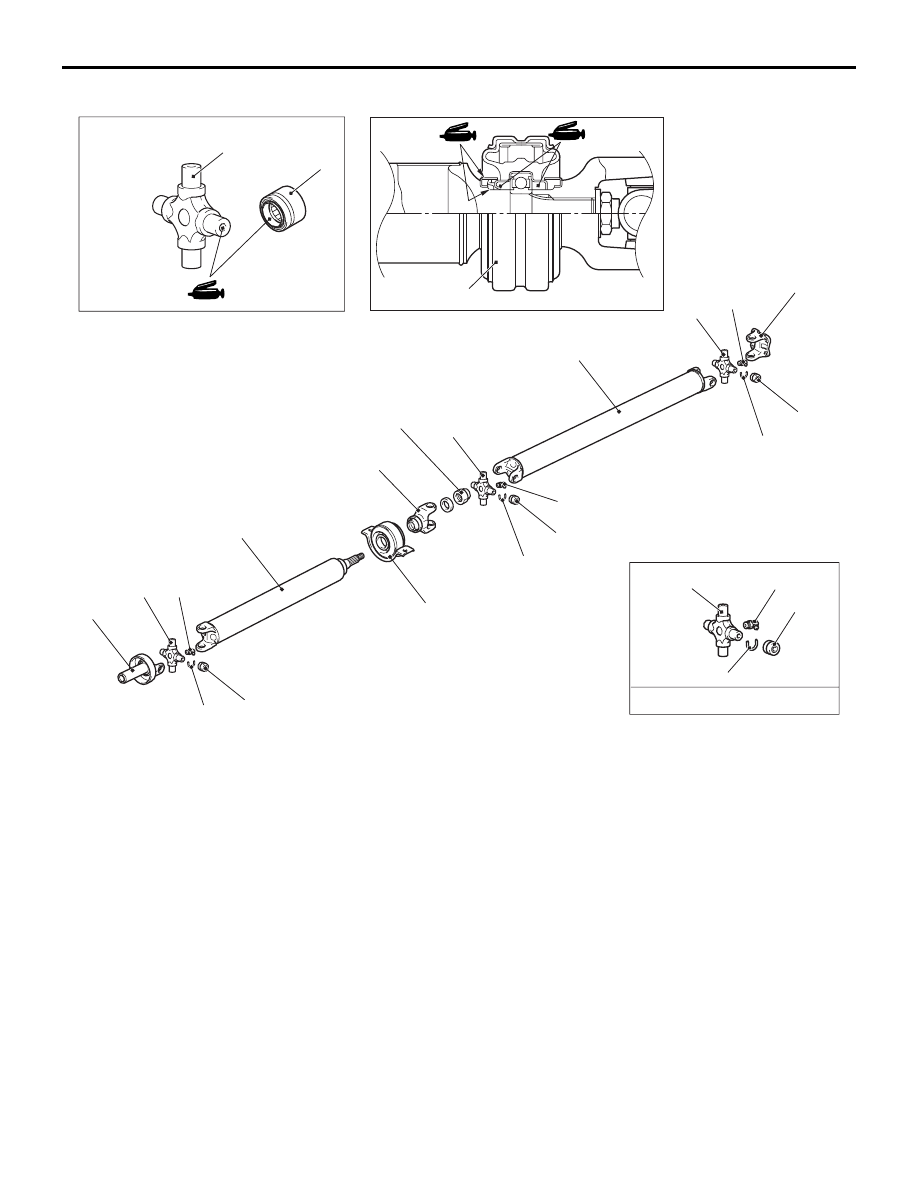

<Except High rider>

AC807773

AC407357

AB

4

3

9

Universal joint kit

7

4

6

4

8

9

10

4

5

2

187 ± 29 N·m

1

3

2

1

3

2

1

3

4

2

1

3

<High rider>

Disassembly steps

<<

A

>> >>

C

<< 1.

Snap ring

2.

Grease nipple

<<

B

>> >>

B

<< 3.

Journal bearing

>>

B

<< 4.

Journal

5.

Sleeve yoke

6.

Rear propeller shaft

7.

Flange yoke

<<

C

>> >>

A

<< 8.

Centre yoke

<<

D

>> >>

A

<< 9.

Centre bearing assembly

10. Front propeller shaft

PROPELLER SHAFT

PROPELLER SHAFT

25-11

Disassembly steps (Continued)

PROPELLER SHAFT

PROPELLER SHAFT

25-12

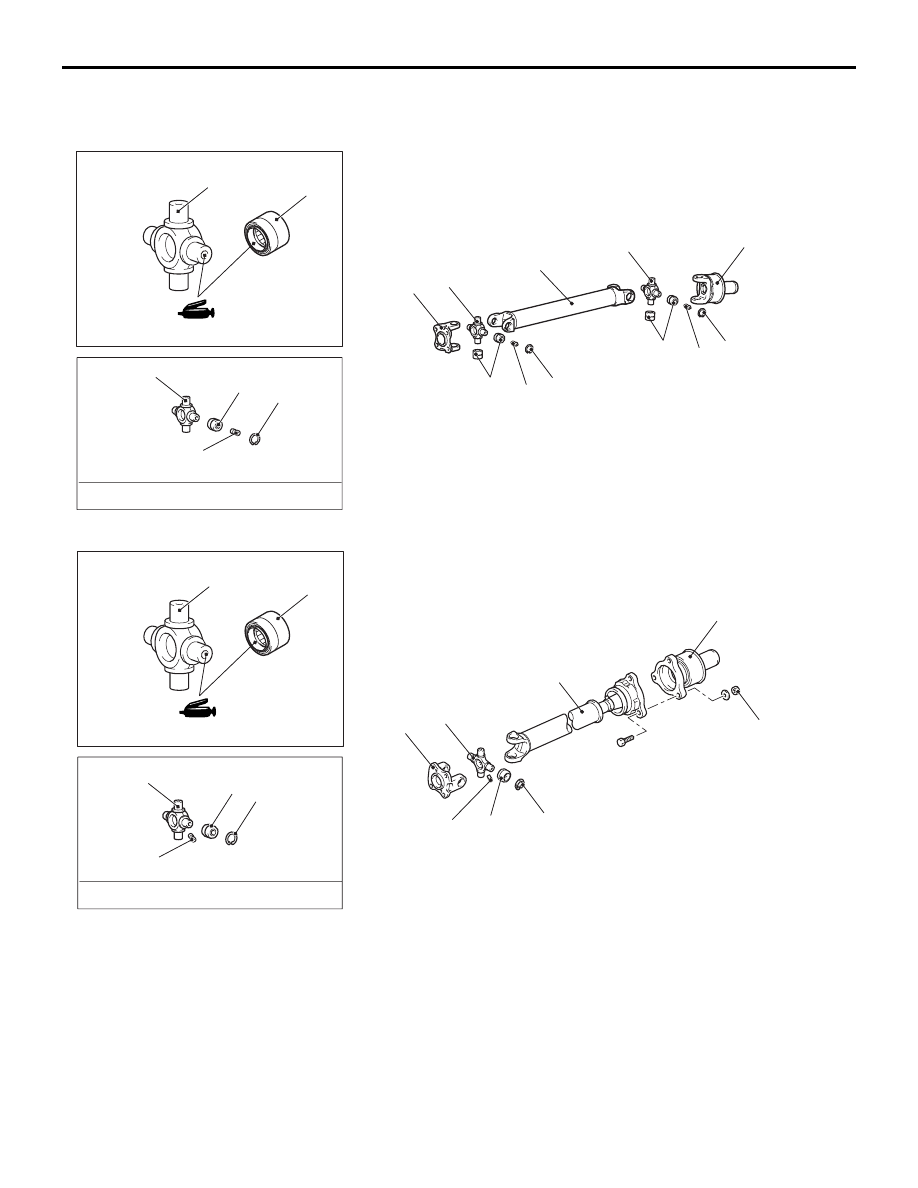

<4WD>

AC611900

6

4

3

7

5

2

1

<Front propeller shaft: Vehicles with Easy select 4WD>

3

2

1

4

AC

4

3

Universal joint kit

4

2

1

3

AC800360

<Front propeller shaft: Vehicles with Super select 4WD>

AC

4

3

Universal joint kit

4

2

1

3

4

7

5

3

2

1

54 ± 5 N·m

6
