Mitsubishi L200. Manual - part 231





ACA01401

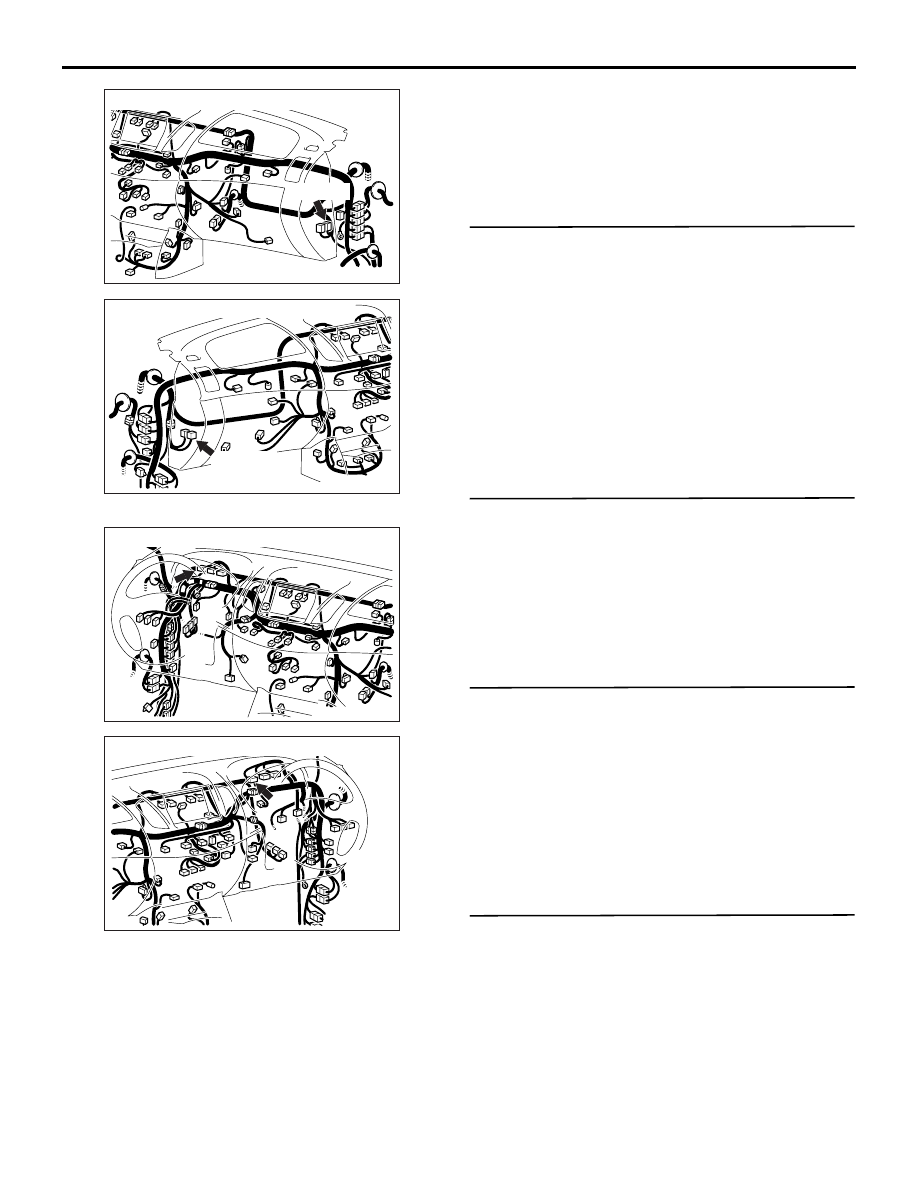

Connector: C-105 <LH drive vehicles>

AC

C-105 (B)

ACA01402

Connector: C-105 <RH drive vehicles>

AC

C-105 (B)

ACA01405

Connector: C-111 <LH drive vehicles>

AD

ACA01406 AD

Connector: C-111 <RH drive vehicles>

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-28

OPERATION
The engine-ECU detects "ON/OFF" switch ON signal
to illuminate the cruise control indicator lamp on the
combination meter.

COMMENT
The combination meter or engine-ECU may also be
defective.

PROBABLE CAUSE

• Damaged harness or connector.

• Malfunction of the combination meter.

• Malfunction of the engine-ECU.

DIAGNOSIS PROCEDURE

STEP 1. Check the cruise control indicator lamp.
(1) Disconnect engine-ECU connector C-105 and

check at the harness side connector.

(2) Turn the ignition switch to the "ON" position.
(3) Check the illumination condition of the cruise

control indicator lamp when engine-ECU
connector C-105 terminal No.45 is earthed.

OK: The cruise control indicator lamp
illuminates.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Go to Step 2.

STEP 2. Connectors check: C-111 combination
meter connector, C-105 engine-ECU connector
and C-53 <LHD> or C-35 <RHD> intermediate
connector.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair or replace the damaged connector.
Then go to Step 6.

STEP 3. Check the harness wire between
combination meter connector C-111 terminal
No.53 and engine-ECU connector C-105 terminal
No.45.

• Check harness wire for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair or replace the damaged harness
wire. Then go to Step 6.

STEP 4. Check the combination meter.
Refer to GROUP 54A

− Combination Meter, Trouble-

shooting, Check at ECU Terminals .

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Replace the combination meter (Refer to
GROUP 54A

− Combination Meter ). Then

go to Step 6.

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-29

STEP 5. Check the symptom.

Q: When the "ON/OFF" switch is turned ON, is the

cruise control indicator lamp illuminated?
YES :

It can be assumed that this malfunction is

intermittent (Refer to GROUP 00

− How to

Use Troubleshooting/Inspection Service
Points, How to Cope with Intermittent
Malfunctions ).

NO :

Replace the engine-ECU (Refer to GROUP
13A

− Engine-ECU ). Then go to Step 6.

STEP 6. Check the symptom.

Q: When the "ON/OFF" switch is turned ON, is the

cruise control indicator lamp illuminated?
YES :

The procedure is complete.

NO :

Return to Step 1.

DATA LIST REFERENCE TABLE

M1172002401980

CAUTION

• Road test always need two people: one driver and one observer.
• When shifting the selector lever to "D" position the brakes should be applied so that the vehicle

does not move forward.

NOTE: When reading the data list, do not select the
item under "CRUISE CONTROL," but select the item
under "DIESEL ENGINE."

Item No. Check item

Check condition

Normal condition

04

Vehicle speed sensor Road test the vehicle.

The speedometer and
M.U.T.-III display the
same value.

42

Inhibitor switch <A/T> Ignition switch:

"ON"

Selector lever: "N" or "P" position ON
Selector lever: Other than "N" or
"P" position

OFF

130

Cancel code

Ignition switch: "ON"

The cancel code,
which set when the
cruise control system
was cancelled at the
last time, is set again.

131

Clutch switch <M/T>

Ignition switch:
"ON"

Clutch pedal: Depressed

ON

Clutch pedal: Released

OFF

134

Brake switch (for
cruise control circuit)

Ignition switch:
"ON"

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

135

Stop lamp switch (for
stop lamp circuit)

Ignition switch:
"ON"

Brake pedal: Depressed

ON

Brake pedal: Released

OFF

136

Cruise control switch
("ON/OFF" switch)

Ignition switch:
"ON"

"ON/OFF" switch: Pushed

ON

"ON/OFF" switch: Pushed again OFF

137

Cruise control switch
("CANCEL" switch)

Ignition switch:
"ON"

"CANCEL" switch: Pushed

ON

"CANCEL" switch: Released

OFF

138

Cruise control switch
("COAST/SET"
switch)

Ignition switch:
"ON"

"COAST/SET" switch: Pushed

ON

"COAST/SET" switch: Released OFF

139

Cruise control switch
("ACC/RES" switch)

Ignition switch:
"ON"

"ACC/RES" switch: Pushed

ON

"ACC/RES" switch: Released

OFF

140

Cruise control
operation

Cruise control system: active

ON

Cruise control system: Inactive

OFF

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-30

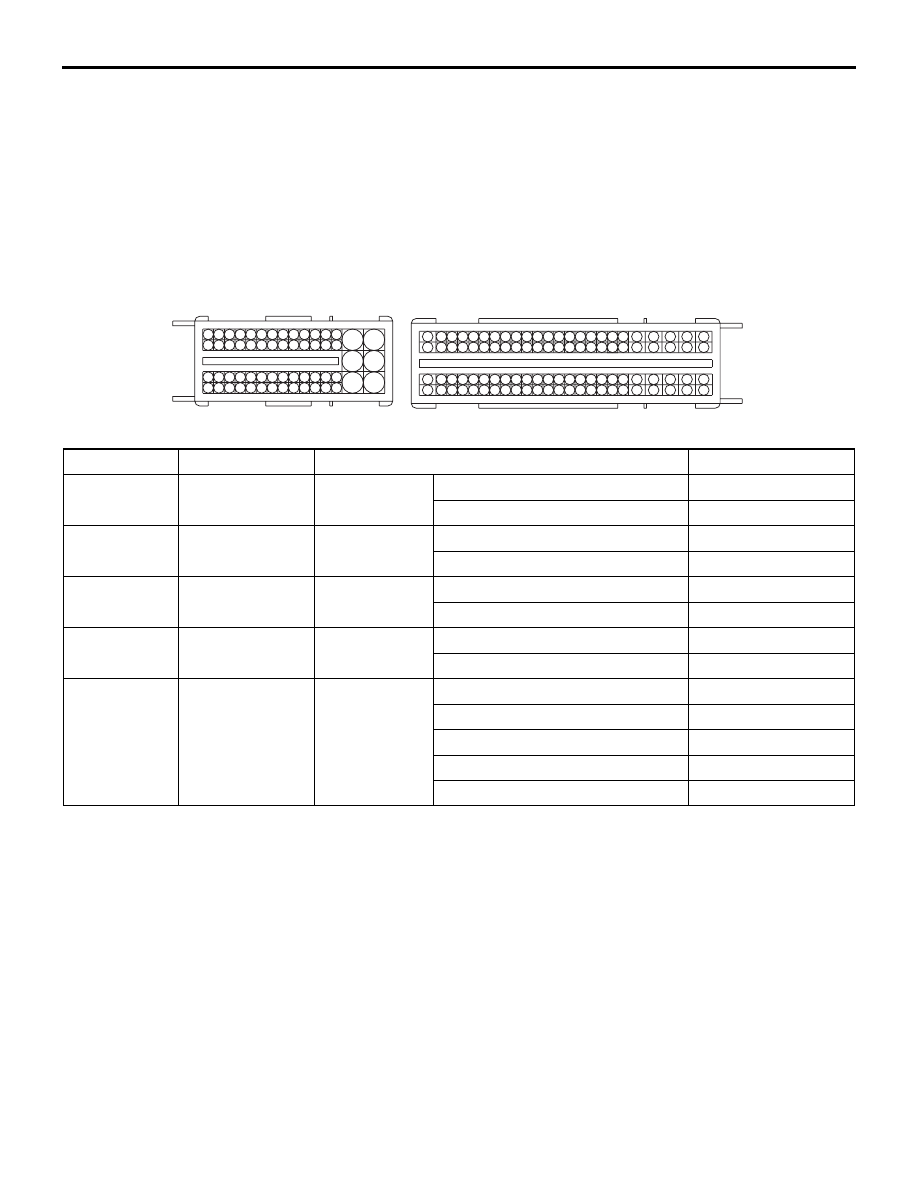

CHECK AT ENGINE-ECU TERMINAL

M1172002701936

Use special tool power plant ECU check harness
(MB992291), check the engine-ECU terminal volt-
age.
1. Remove the engine-ECU (Refer to GROUP 13A

−

Engine-ECU ).

2. Connect special tool MB992291 between the

engine-ECU and the body-side harness
connector.

3. Measure the voltages between the check

connector terminals of special tool MB992291 and
earth terminals No.116, 117 or 145.

AC809546

35

40

41

42

1817

38

39

15

16

14

3736

12

13

11

32

8

3433

9

10

30

31

7 6

29

5

4

28

3

27

2

26

1

25

19
43

2120

22

23

46

47

4544

24
48

76

52

86

62

63

64

65

66

67

68

69

70

71

72

92

95

96

93

94

89

90

91

8887

53

54

55

56

57

58

59

60

61

83

8584

8281

78

79

80

77

49

50

51

74

75

73

125

110

122

107

108

123

109

124

128

113

111

126

112

127

129

114

115

130

119

104

120

105

121

106

118

103

102 101

117 116

151

142

157

158

143

154

156

141

155

140

138

153

139

152

137

146

135

150

136

149

134

132

147

148

133

131

145 144

AE

Special tool - Power plant ECU check harness (MB992291) connector

58-Pin connector
(Engine-ECU connector C-103)

96-Pin connector
(Engine-ECU connector C-105)

Terminal No. Check item

Check condition

Normal condition

7 <Except
EURO 5>

Stop lamp switch
(brake switch)

Ignition switch:
"ON"

Depress the brake pedal.

System voltage

Release the brake pedal.

1V or less

112

Clutch switch
<M/T>

Ignition switch:
"ON"

Release the clutch pedal.

10 V or more

Depress the clutch pedal.

1 V or less

125

Stop lamp switch Ignition switch:

"ON"

Depress the brake pedal.

System voltage

Release the brake pedal.

1V or less

126 <EURO
5>

Stop lamp switch
(brake switch)

Ignition switch:
"ON"

Depress the brake pedal.

System voltage

Release the brake pedal.

1V or less

139

Cruise control
switch power
supply

Ignition switch:
"ON"

All switches: Released

4.7

− 5.0 V

"ON/OFF" switch: Pushed.

− 0.5 V

"CANCEL" switch: Pushed.

1.0

− 1.8 V

"COAST/SET" switch: Pushed.

2.3

− 3.0 V

"ACC/RES" switch: Pushed.

3.5

− 4.2 V

ON-VEHICLE SERVICE

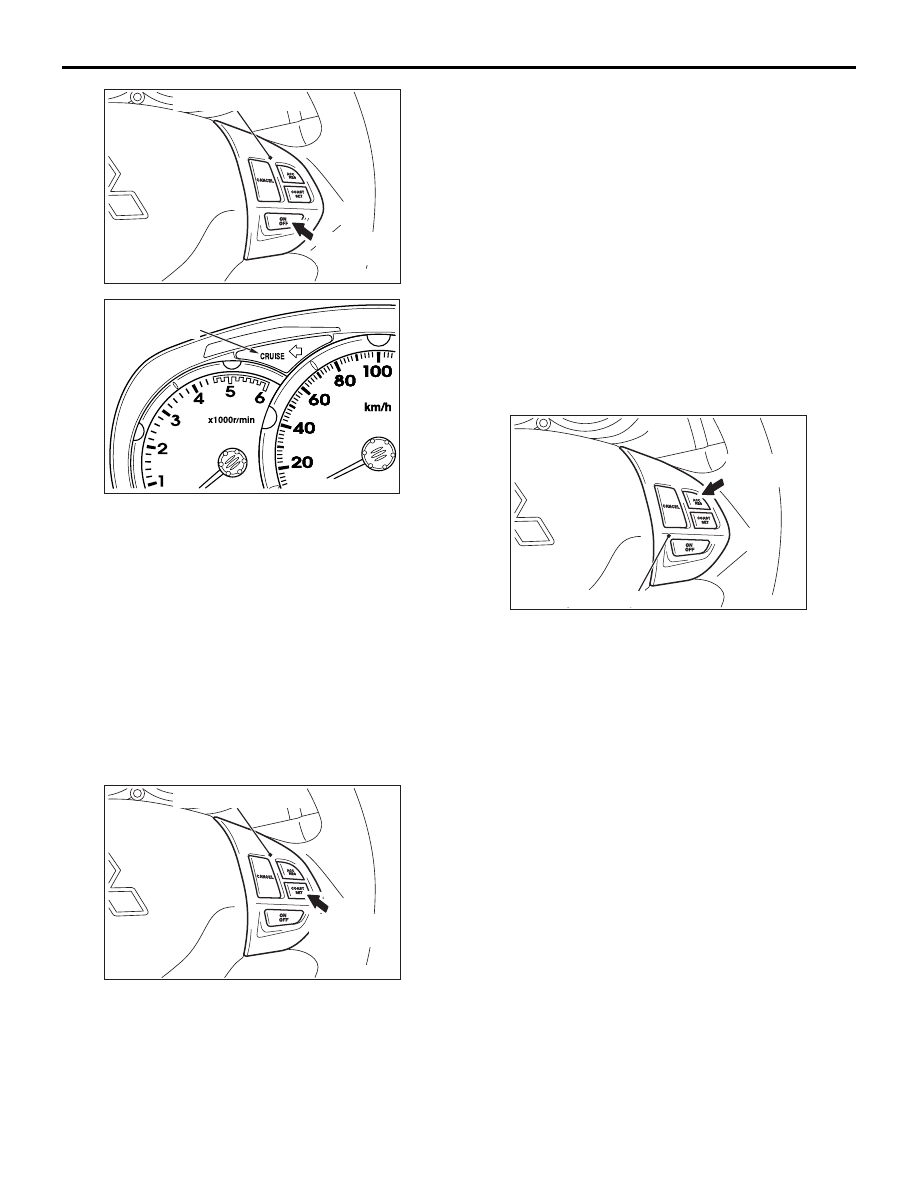

CRUISE CONTROL SWITCH CHECK

M1172001201295

CRUISE CONTROL "ON/OFF" SWITCH
CHECK

1. Turn the ignition switch to "ON" position.

AC807212

"ON/OFF"
switch

AC

Cruise control switch

AC900932

Cruise control
indicator lamp

AB

CRUISE CONTROL

ENGINE AND EMISSION CONTROL

17-31

2. Push the "ON/OFF" switch of the cruise control

switch, and check that the cruise control indicator
lamp within the combination meter illuminates.

3. Push the "ON/OFF" switch again, and check that

the cruise control indicator lamp within the
combination meter goes out.

CRUISE CONTROL SETTING

1. Turn the ignition switch to "ON" position.
2. Push the "ON/OFF" switch (cruise control system:

ON, cruise control indicator lamp: illuminated).

3. Drive at the desired speed within the range of

approximately 40

− 200 km/h.

AC807212

"COAST/SET"
switch

AD

Cruise control switch

4. Push the "COAST/SET" switch.
5. Check to be sure that when the "COAST/SET"

switch is released the speed is the desired
constant speed.

NOTE: If the vehicle speed decreases to approxi-
mately 15 km/h below the set speed because of
climbing a hill for example, it is normal for the
cruise control to be cancelled. When the vehicle
speed is decelerated to the low speed limit
(approximately 40 km/h) or less, the constant
speed driving will be cancelled even if the vehicle
speed is not decelerated 15 km/h or more from
the set speed.

SPEED-INCREASE SETTING

1. Turn the ignition switch to "ON" position.
2. Push the "ON/OFF" switch (cruise control system:

ON, cruise control indicator lamp: illuminated).

3. Set to the desired speed within the range of

approximately 40

− 200 km/h.

AC807212 AE

Cruise control switch

"ACC/RES"
switch

4. Push the "ACC/RES" switch.
5. Check to be sure that acceleration continues

while the "ACC/RES" switch is pushed, and that
the speed at the time it was released becomes the
constant driving speed.
NOTE: When the vehicle speed reaches the high
speed limit (approximately 200 km/h) during
acceleration, the vehicle is driven at a constant
speed of the high speed limit (approximately 200
km/h).

SPEED-REDUCTION SETTING

1. Turn the ignition switch to "ON" position.
2. Push the "ON/OFF" switch (cruise control system:

ON, cruise control indicator lamp: illuminated).

3. Set to the desired speed within the range of

approximately 40

− 200 km/h.

4. Press the "COAST/SET" switch.
5. Check to be sure that deceleration continues

while the "COAST/SET" switch is pushed, and
that the speed at the time it was released
becomes the constant driving speed.
