TROUBLESHOOTING

DIESEL FUEL

13A-408

STEP 4. Check harness between C-105 (terminal
No. 115) engine-ECU connector and A-45
(terminal No. 6) EGR valve assembly connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair the damaged harness wire.

STEP 5. Check harness between C-105 (terminal
No. 130) engine-ECU connector and A-45
(terminal No. 4) EGR valve connector.

• Check output line for open/short circuit and dam-

age.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

STEP 6. M.U.T.-III diagnosis code.

• After erasing the diagnosis code through M.U.T.-

III, start the engine and confirm whether the diag-
nosis code is output.

Q: Is the diagnosis code set?

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

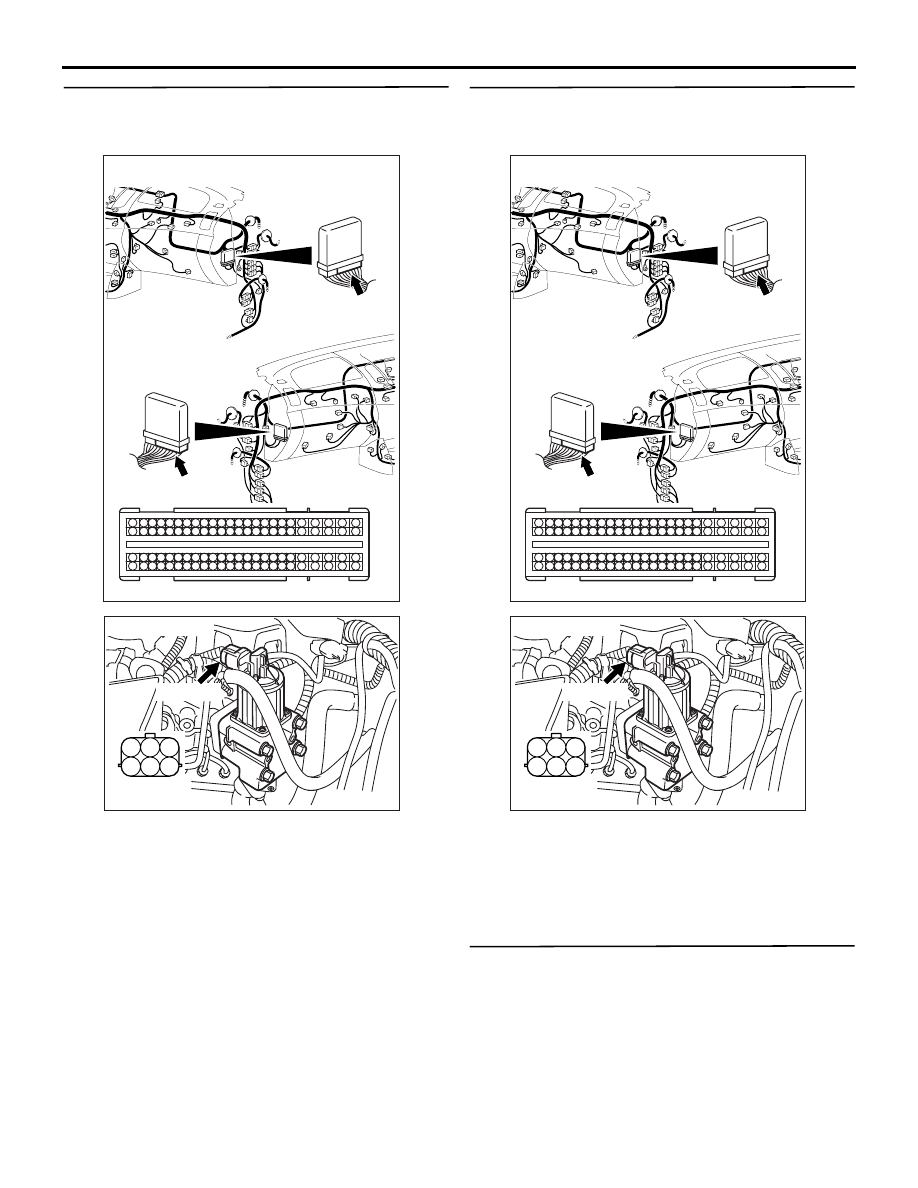

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501331

1

2

3

4

5

6

AB

Harness side
connector

A-45 (GR)

Connector: A-45

TROUBLESHOOTING

DIESEL FUEL

13A-409

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

TROUBLESHOOTING

DIESEL FUEL

13A-410

Code No. P2454: Exhaust Differential Pressure Sensor Circuit Low Input <Euro5>

OPERATION

• A power voltage of 5 V is applied to the exhaust

differential pressure sensor power terminal (ter-
minal No. 3) from the engine-ECU (terminal No.
94) and earthed to the engine-ECU (terminal No.
80) from exhaust differential pressure sensor (ter-
minal No. 2).

• The sensor signal is inputted to the engine-ECU

(terminal No. 56) from the exhaust differential
pressure sensor output terminal (terminal No. 1).

FUNCTION

• The exhaust differential pressure sensor outputs

the voltage to the engine-ECU in accordance with
the difference in the voltage between the DPF
upstream area and the DPF downstream area.

• The engine-ECU anticipates the amount of PM

accumulated in the DPF through this output volt-
age.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up

Judgment Criterion

• The exhaust differential pressure sensor output

voltage is 0.49 V or less.

PROBABLE CAUSES

• Failed exhaust differential pressure sensor

• Open/short circuit or harness damage in exhaust

differential pressure sensor circuit or loose con-
nector contact

• Failed engine-ECU

AKB00280

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

1 2 3

AB

80

GR-B

P-G

B-O

56

94

A-148

Exhaust differential
pressure sensor

2

1

3

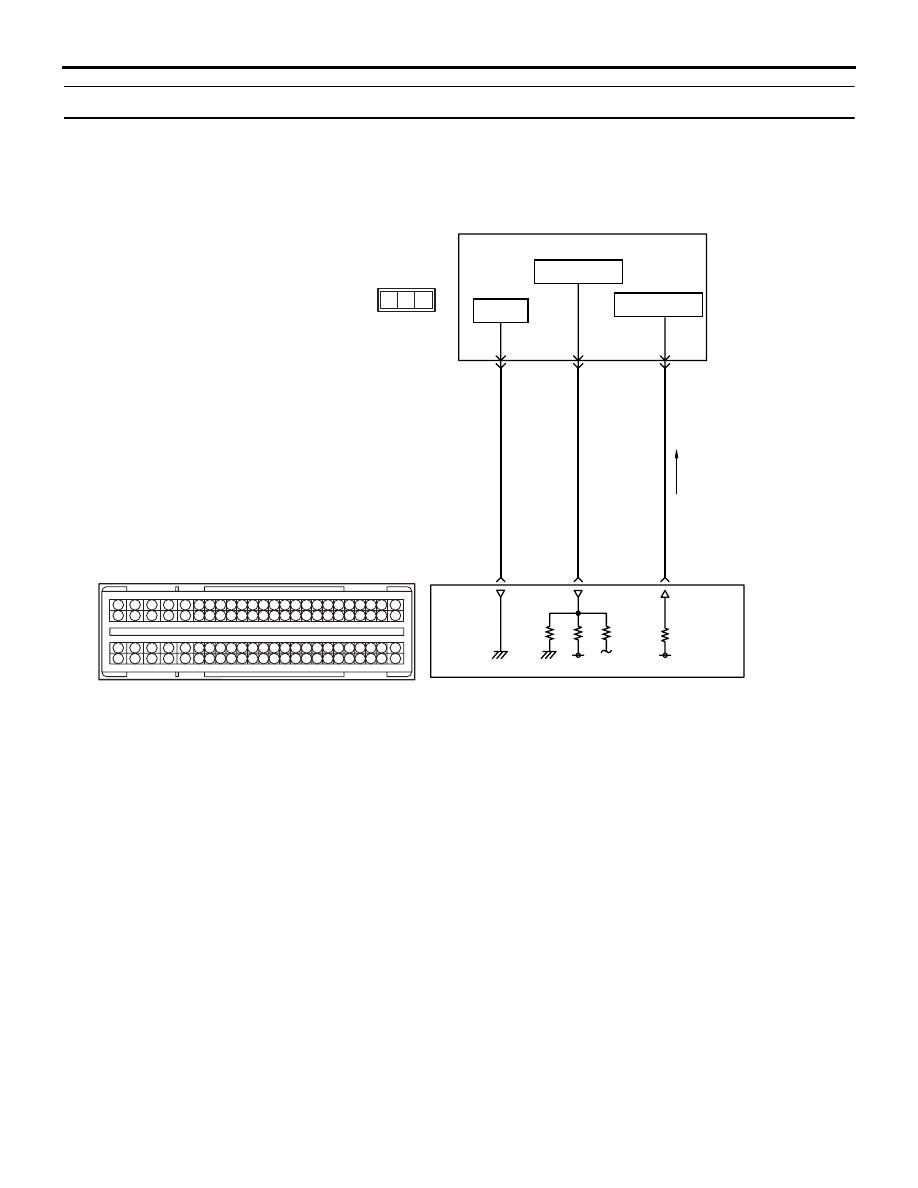

Exhaust Differential Pressure Sensor Circuit

C-105

5 V

Earth

Output signal

Power source

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

TROUBLESHOOTING

DIESEL FUEL

13A-411

DIAGNOSTIC PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 120: exhaust differential pressure sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

STEP 2. Connector check: A-148 exhaust
differential pressure sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform voltage measurement at A-148
exhaust differential pressure sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 3 and earth.

OK: 4.9

− 5.1 V

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 4 .

STEP 4. Perform voltage measurement at C-105
engine-ECU connector.

• Measure engine-ECU terminal voltage.

• Ignition switch: ON

• Voltage between terminal No. 94 and earth.

OK: 4.9

− 5.1 V

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 5 .

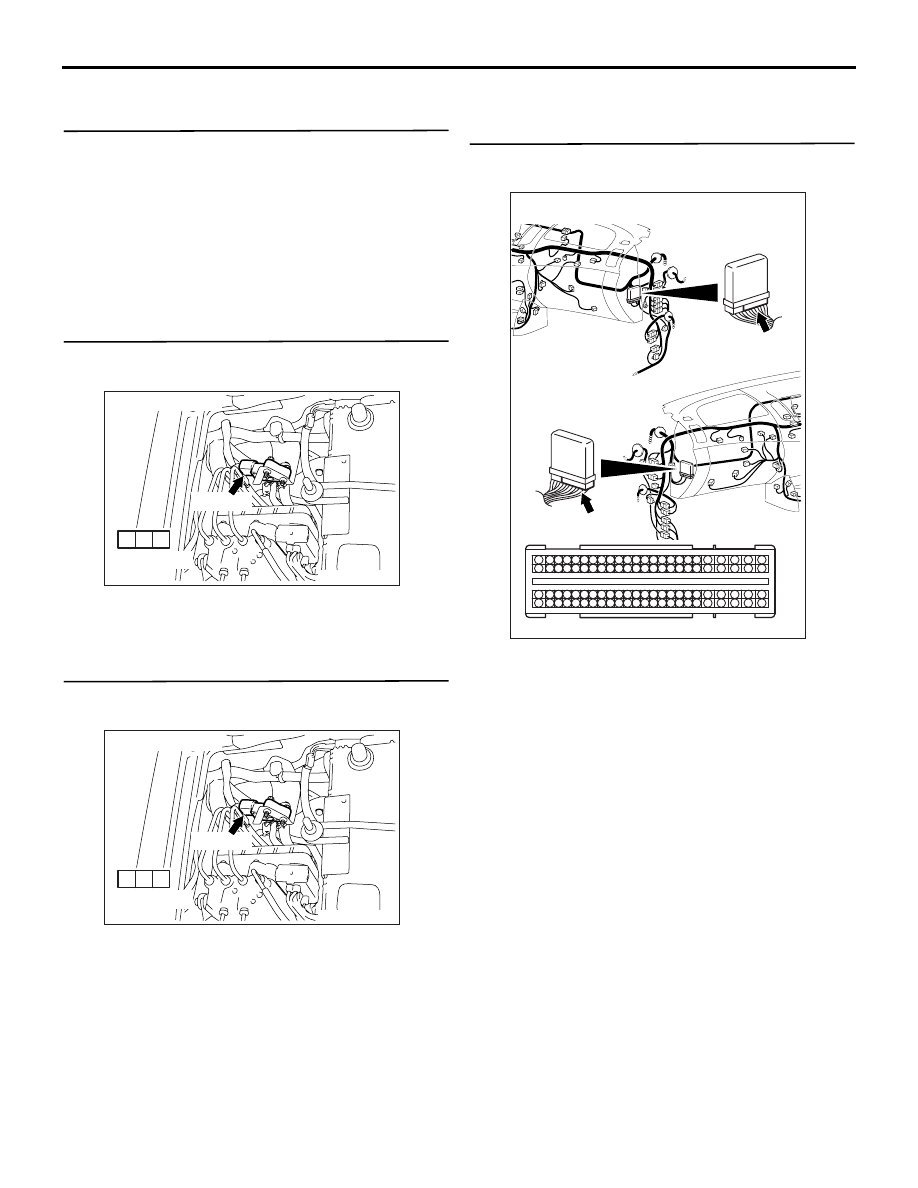

AKB00281

3 2 1

AB

A-148 (B)

Harness side
connector

Connector: A-148

AKB00281

3 2 1

AB

A-148 (B)

Harness side
connector
