TROUBLESHOOTING

DIESEL FUEL

13A-392

Judgment Criterion

• When the peak current is not detected in injector

circuits No. 2 and No. 3

PROBABLE CAUSES

• Failed No. 2 injector

• Failed No. 3 injector

• Open/short circuit or harness damage in No. 2

and No. 3 injector circuit or loose connector con-
tact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

WARNING

A high-tension voltage is flowing between
the engine-ECU and the injectors while the
engine is running. Handle them carefully to
avoid receiving electric shocks from the volt-
age.

STEP 1. Connector check: A-41 No. 2 injector
connector and A-130 No. 3 injector connector

Q: Are the check results normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Check Injector itself

• Check No. 2 injector and No. 3 injector itself

(Refer to

P.13A-595

).

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Replace the injector. After replacing the
Injector, register the injector identification
code and learn fuel injection (Refer to
GROUP 00

− Precautions Before Service −

What The Common Rail Engine Learns ).

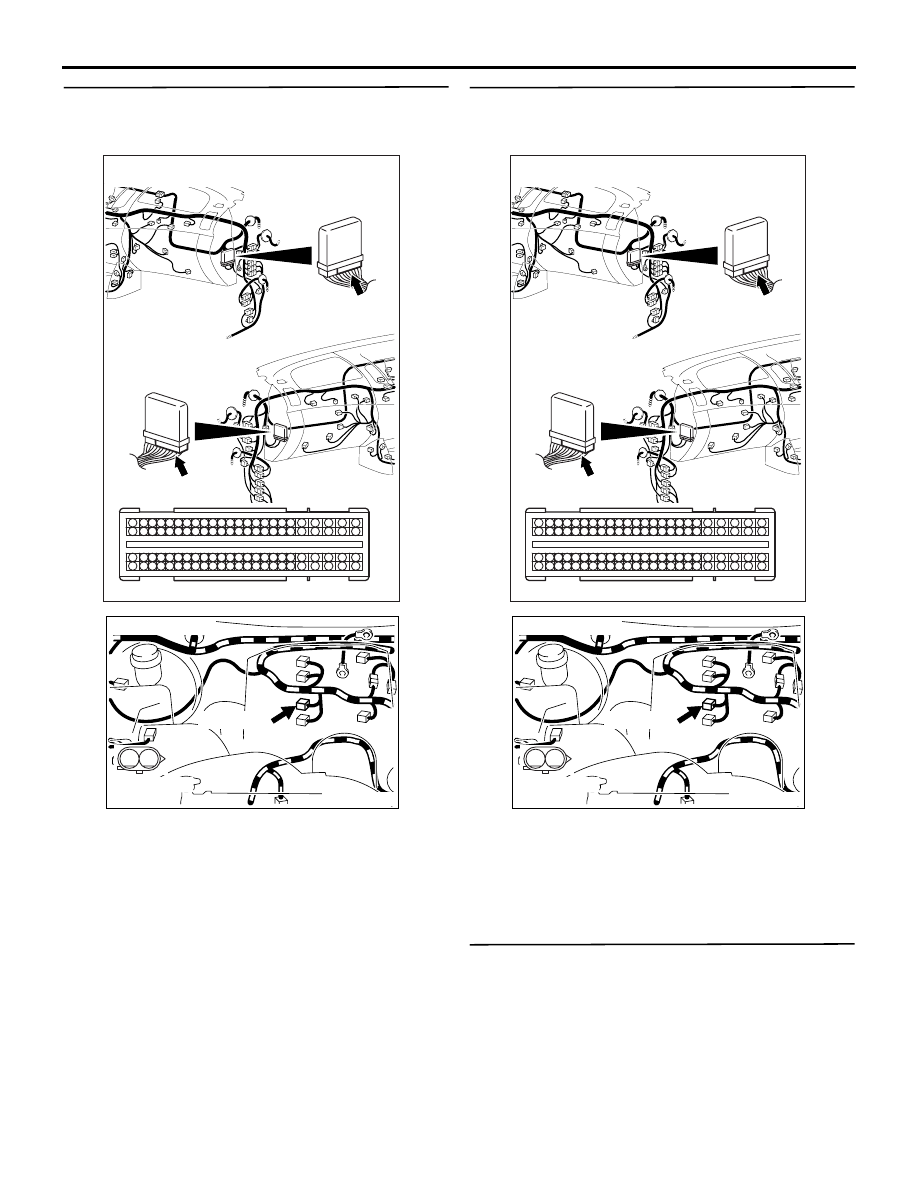

STEP 3. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Repair or replace the connector.

AKA00191

1

2

Connectors: A-41, A-130

A-41 (GR)

A-130 (GR)

Harness side
connector

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-393

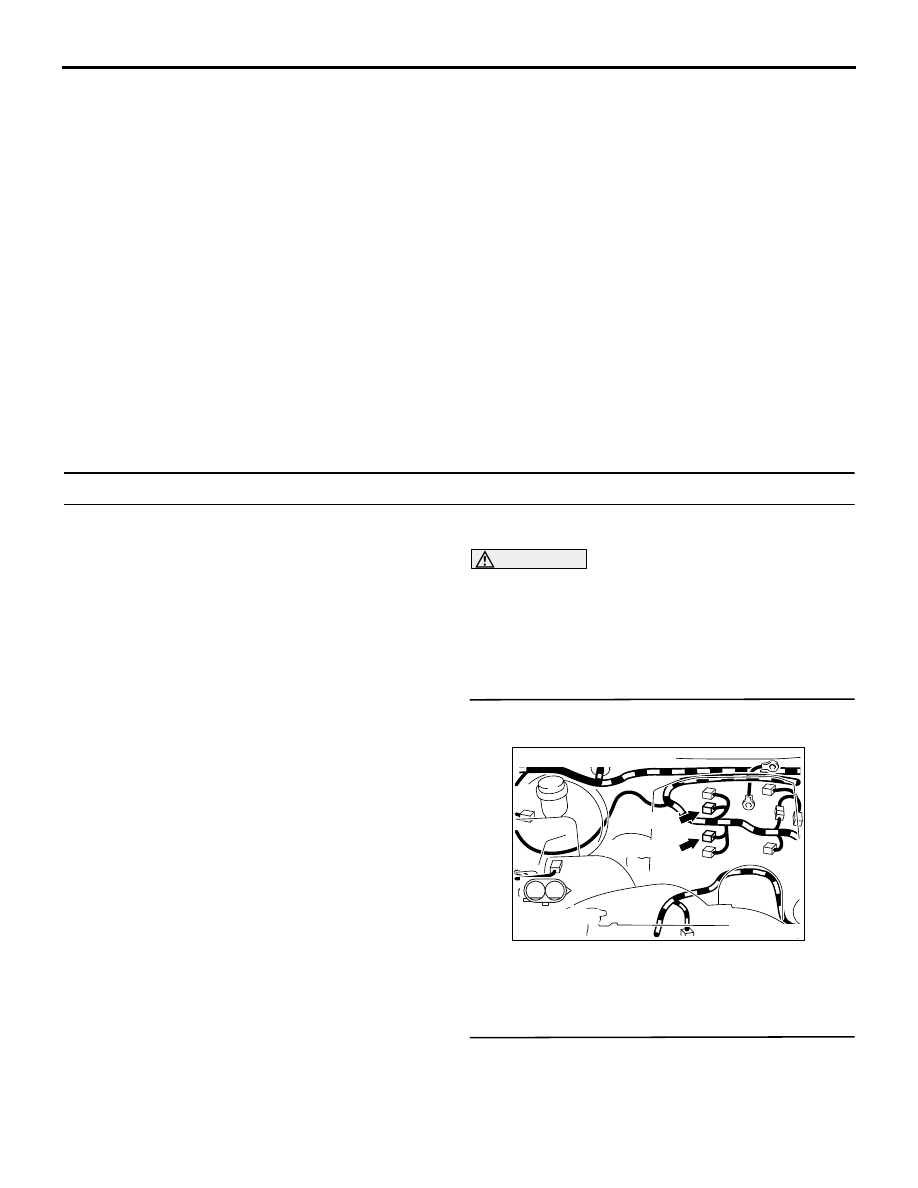

STEP 4. Check harness between C-105 (terminal
No. 73) engine-ECU connector and A-41 (terminal
No. 2) No. 2 injector connector.

• Check power supply line for open circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair the damaged harness wire.

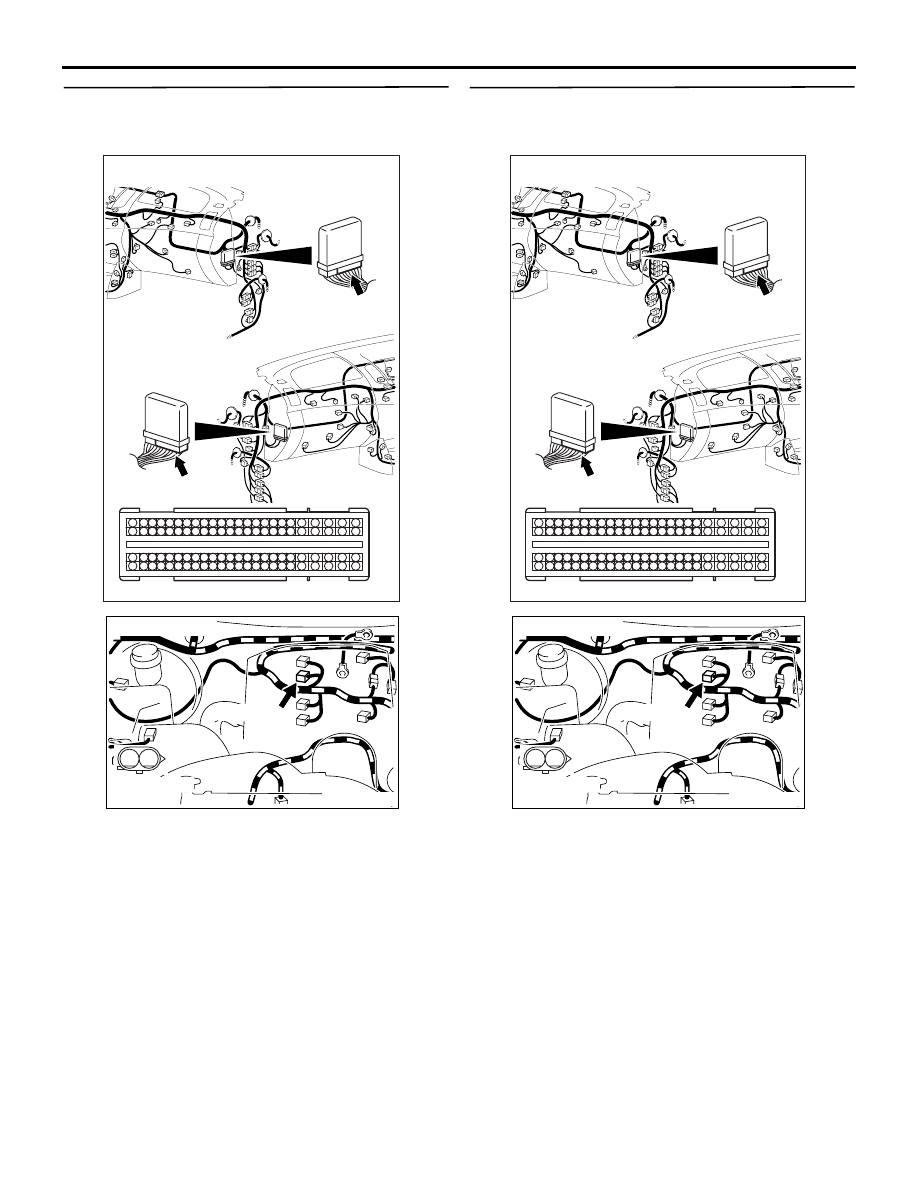

STEP 5. Check harness between C-105 (terminal
No. 75) engine-ECU connector and A-41 (terminal
No. 1) No. 2 injector connector.

• Check earthing line for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00187

1

2

Connector: A-41

A-41 (GR)

Harness side
connector

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00187

1

2

Connector: A-41

A-41 (GR)

Harness side
connector

AB

TROUBLESHOOTING

DIESEL FUEL

13A-394

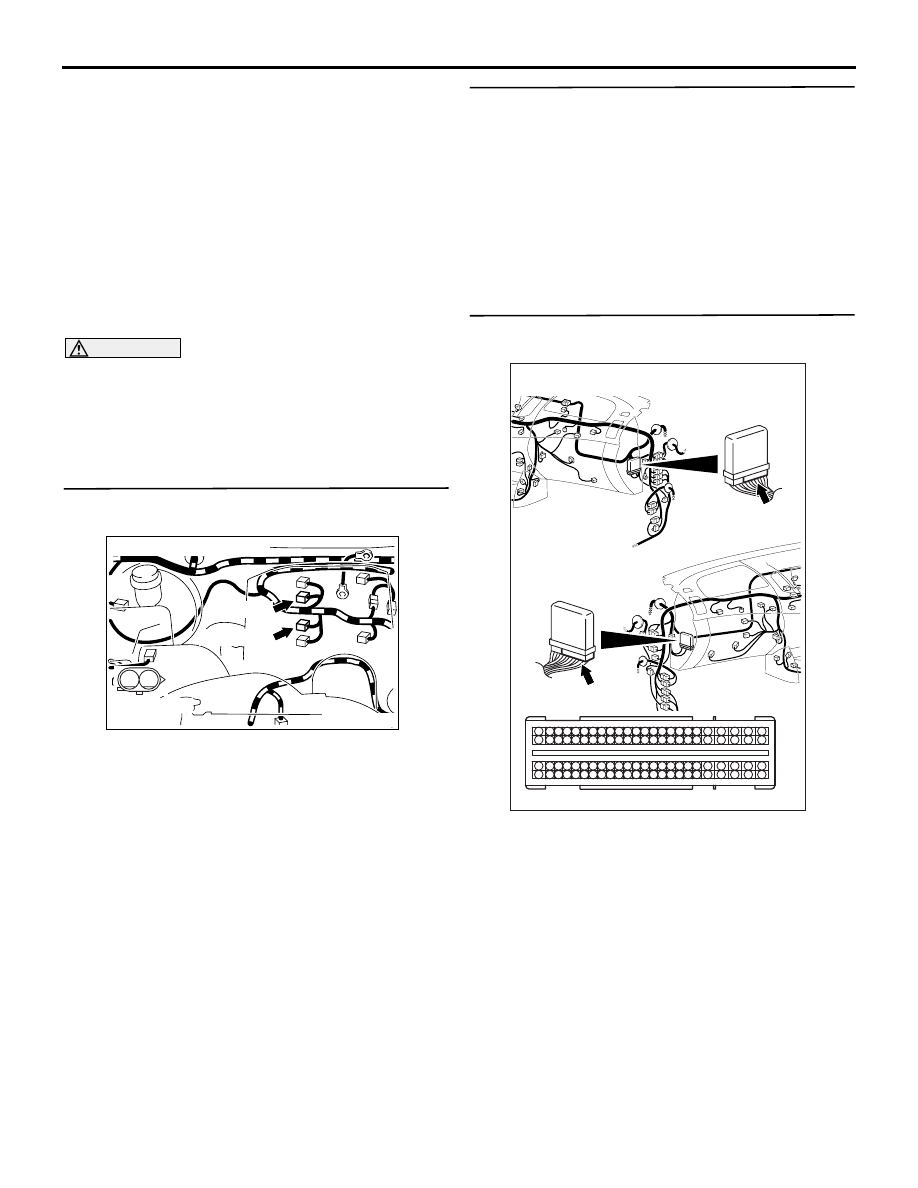

STEP 6. Check harness between C-105 (terminal
No. 49) engine-ECU connector and A-130
(terminal No. 2) No. 3 injector connector.

• Check power supply line for open/short circuit

and damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

STEP 7. Check harness between C-105 (terminal
No. 50) engine-ECU connector and A-130
(terminal No. 1) No. 3 injector connector.

• Check earthing line for open/short circuit and

damage.

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Repair the damaged harness wire.

STEP 8. M.U.T.-III diagnosis code.

• After erasing the diagnosis code through M.U.T.-

III, start the engine and confirm whether the diag-
nosis code is output.

Q: Is the diagnosis code set?

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00188

1

2

Connector: A-130

A-130 (GR)

Harness side
connector

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00188

1

2

Connector: A-130

A-130 (GR)

Harness side
connector

AB

TROUBLESHOOTING

DIESEL FUEL

13A-395

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

Code No. P2149: Injector Common 2 (cylinder No. 2 and No. 3) Circuit Open <Except Euro5>

OPERATION
Driving power is supplied from the engine-ECU (ter-
minal No. 25) to the No. 2 injector (terminal No. 2)
and No. 3 injector (terminal No. 2).

FUNCTION

• The engine-ECU monitors peak current from the

No. 2 and No. 3 injector drive circuits.

TROUBLE JUDGMENT

Check Conditions

• Ignition switch is in "ON" position.

• Except during the engine cranking period

• Battery positive voltage is 8 V or more.

• When an engine-ECU internal capacitor is

allowed to be charged

Judgment Criterion

• When the peak current is not detected in injector

circuits No. 2 and No. 3

PROBABLE CAUSES

• Failed No. 2 injector

• Failed No. 3 injector

• Open/short circuit or harness damage in No. 2

and No. 3 injector circuit or loose connector con-
tact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

WARNING

A high-tension voltage is flowing between
the engine-ECU and the injectors while the
engine is running. Handle them carefully to
avoid receiving electric shocks from the volt-
age.

STEP 1. Connector check: A-41 No. 2 injector
connector and A-130 No. 3 injector connector

Q: Are the check results normal?

YES :

Go to Step 2 .

NO :

Repair or replace the connector.

STEP 2. Check Injector itself

• Check No. 2 injector and No. 3 injector itself

(Refer to

P.13A-595

).

Q: Is the check result normal?

AKA00191

1

2

Connectors: A-41, A-130

A-41 (GR)

A-130 (GR)

Harness side
connector

AB
