TROUBLESHOOTING

DIESEL FUEL

13A-376

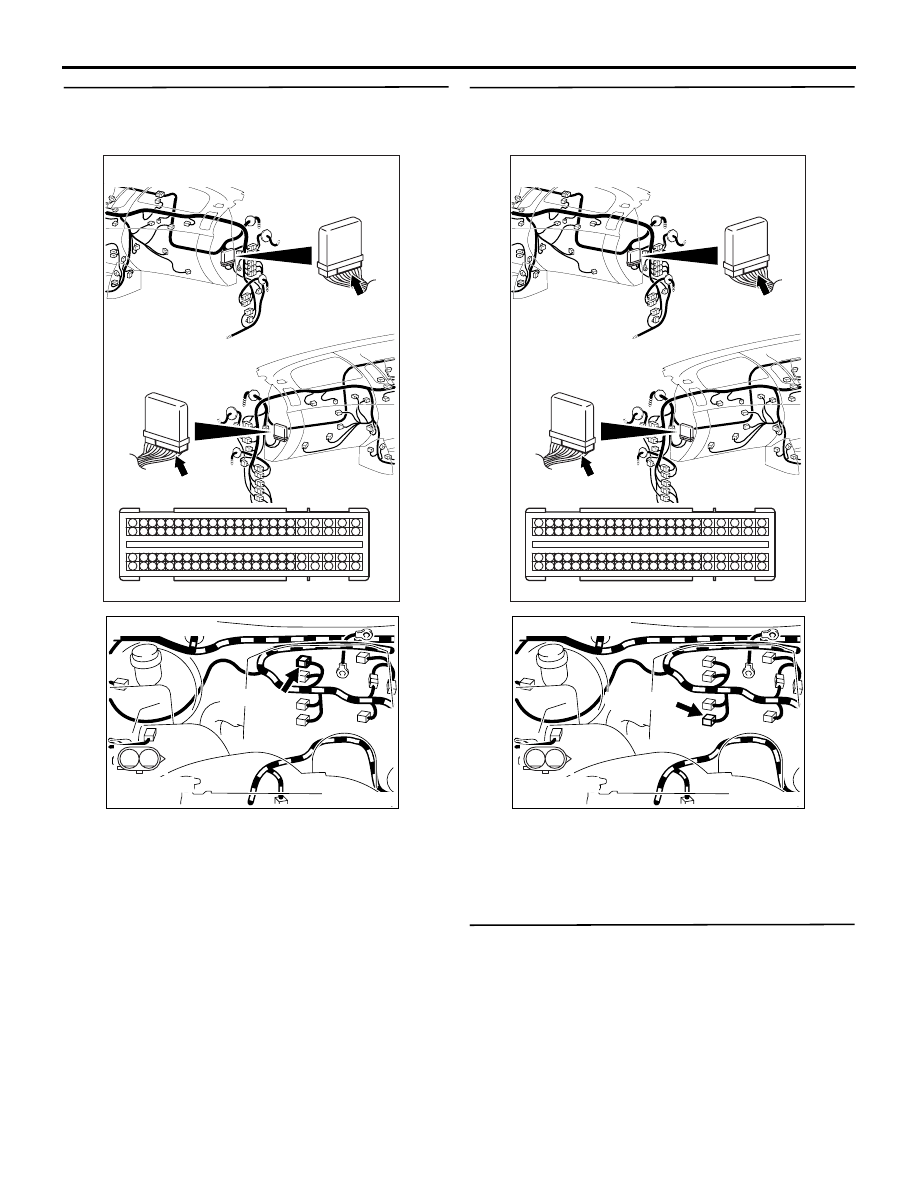

STEP 5. Check harness between C-105 (terminal
No. 1) engine-ECU connector and A-42 (terminal
No. 2) No. 1 injector connector.

• Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

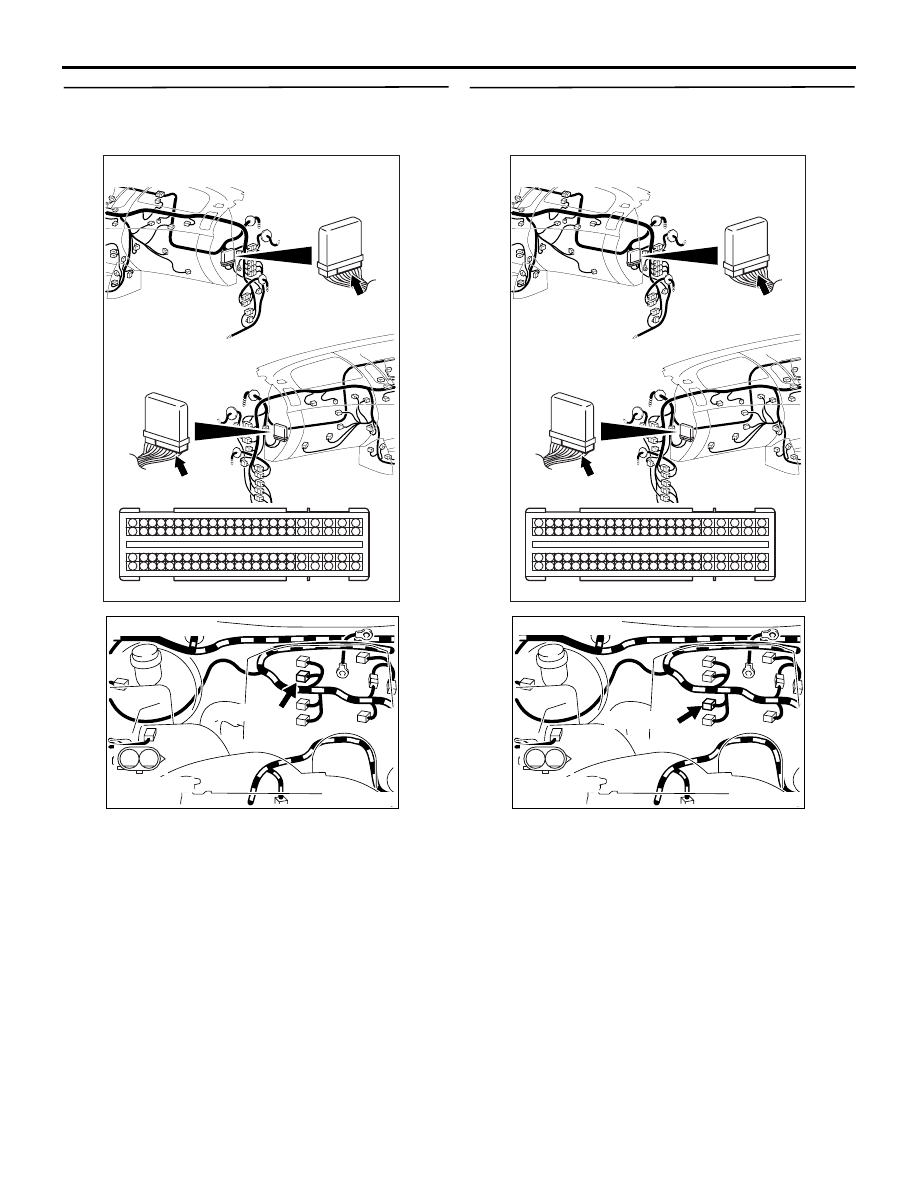

STEP 6. Check harness between C-105 (terminal
No. 25) engine-ECU connector and A-129
(terminal No. 2) No. 4 injector connector.

• Check power supply line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

STEP 7. Check Injector itself

• Check No. 1 injector and No. 4 injector itself

(Refer to

P.13A-595

).

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Replace the injector.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00186

1

2

Connector: A-42

A-42 (GR)

Harness side
connector

AB

1

2

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00189

1

2

Connector: A-129

Harness side
connector

AB

A-129 (GR)

TROUBLESHOOTING

DIESEL FUEL

13A-377

STEP 8. M.U.T.-III diagnosis code.

• After clearing the diagnosis code through M.U.T.-

III, start the engine and confirm whether the diag-
nosis code is set.

Q: Is the diagnosis code set?

YES :

Replace the engine-ECU. When the engine-

ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

NO :

Intermittent malfunction (Refer to GROUP
00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

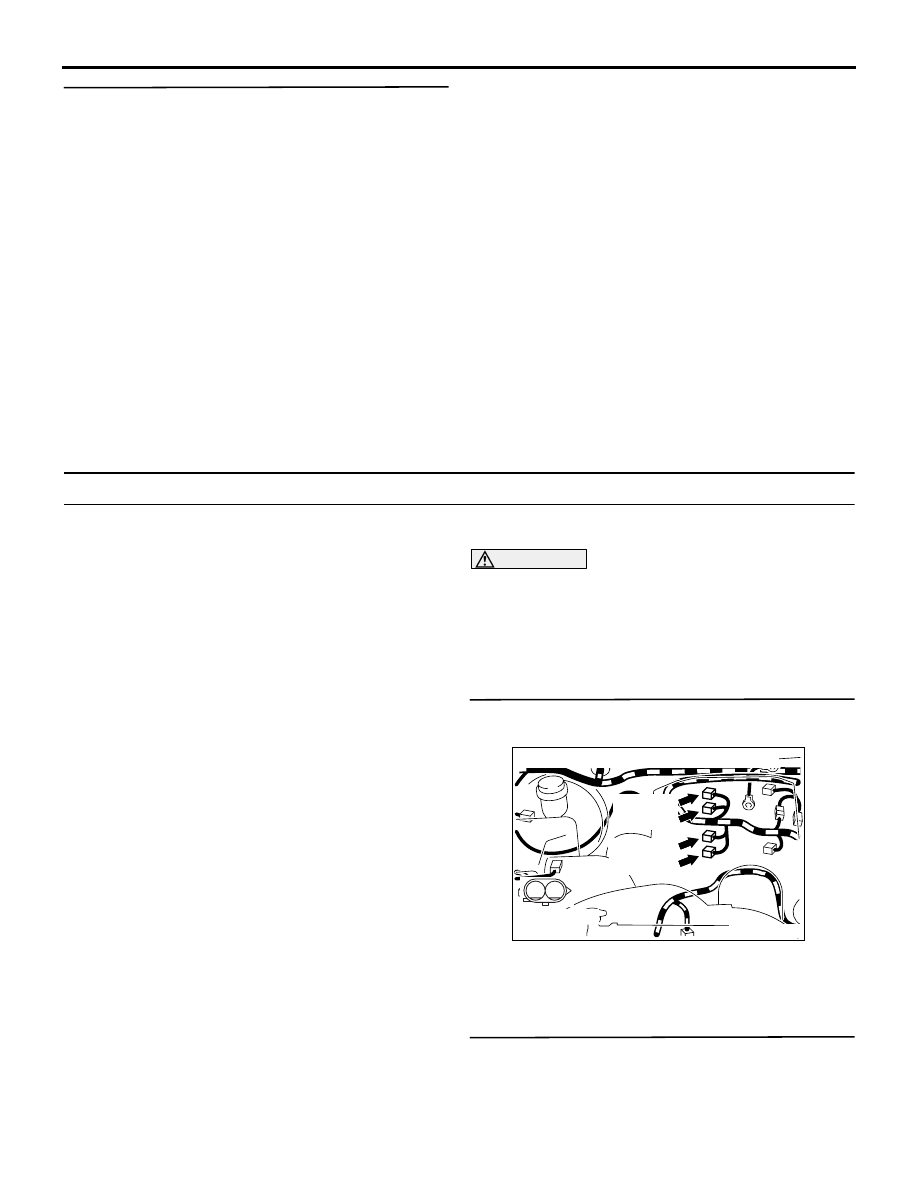

Code No. P2147: Injector Common Circuit Earth Short <Except Euro5>

FUNCTION

• The engine-ECU monitors voltage application to

the injector during no injector energization to
detect errors in the injector drive circuit.

TROUBLE JUDGMENT

Check Conditions

• Ignition switch is in "ON" position.

• Except during the engine cranking period

• Battery positive voltage is 8 V or more.

• When an engine-ECU internal capacitor is

allowed to be charged

Judgment Criterion

• Short-circuit to earth is detected in the injector

drive circuit.

PROBABLE CAUSES

• Failed injector

• Short circuit in injector circuit or loose connector

contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

WARNING

A high-tension voltage is flowing between
the engine-ECU and the injectors while the
engine is running. Handle them carefully to
avoid receiving electric shocks from the volt-
age.

STEP 1. Connector check: A-41, A-42, A-129 and
A-130 injector connectors

Q: Are the check results normal?

YES :

Go to Step 2.

NO :

Repair or replace the connector.

STEP 2. Check Injector itself

• Check injector itself (Refer to

P.13A-595

).

Q: Is the check result normal?

AKA00192

1

2

Connectors: A-41, A-42, A-129 and A-130

A-42 (GR)
A-41 (GR)

A-130 (GR)

A-129 (GR)

Harness side
connector

AB

TROUBLESHOOTING

DIESEL FUEL

13A-378

YES :

Go to Step 3.

NO :

Replace the injector. After replacing the
Injector, register the injector identification
code and learn fuel injection (Refer to
GROUP 00

− Precautions Before Service −

What The Common Rail Engine Learns ).

STEP 3. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair or replace the connector.

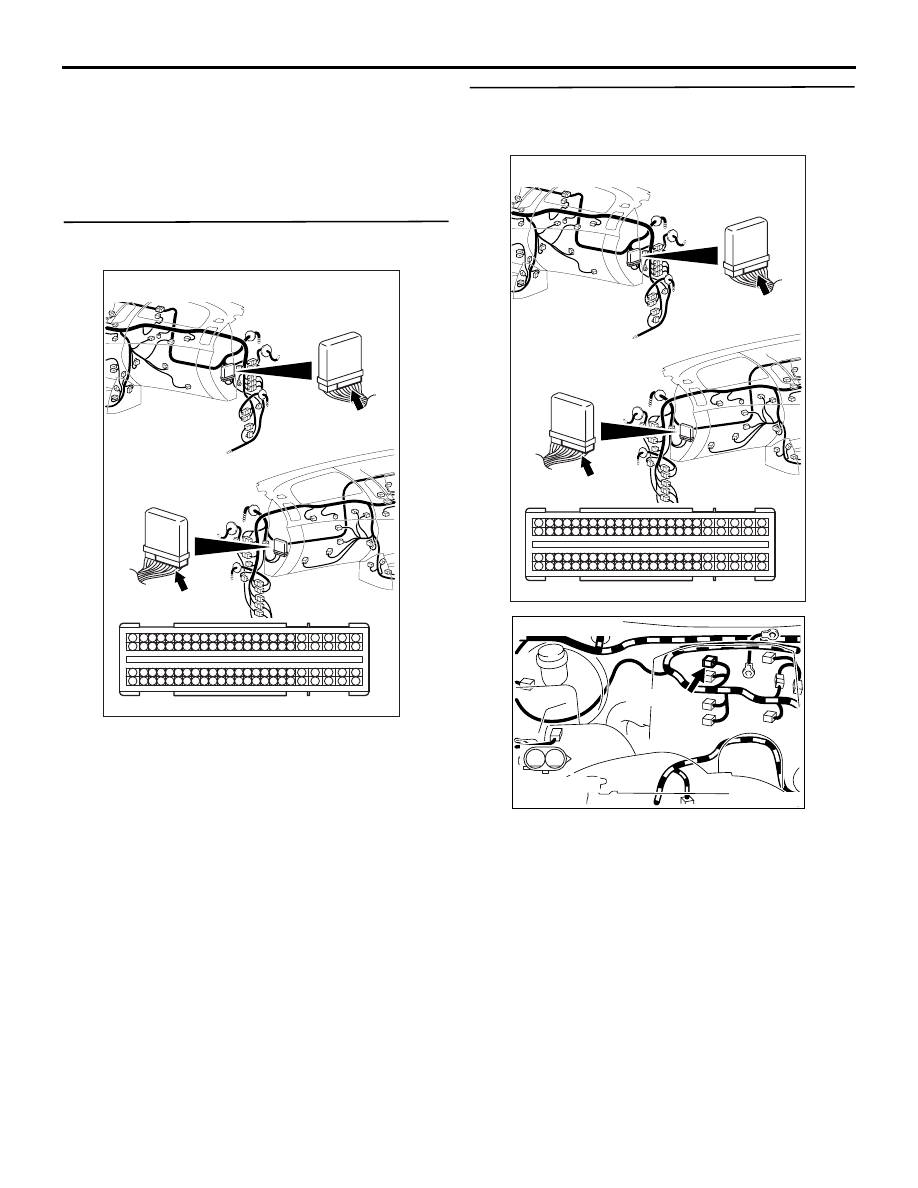

STEP 4. Check harness between C-105 (terminal
No. 2) engine-ECU connector and A-42 (terminal
No. 1) No. 1 injector connector.

• Check earthing line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKA00186

1

2

Connector: A-42

A-42 (GR)

Harness side
connector

AB

1

2

TROUBLESHOOTING

DIESEL FUEL

13A-379

STEP 5. Check harness between C-105 (terminal
No. 75) engine-ECU connector and A-41 (terminal
No. 1) No. 2 injector connector.

• Check earthing line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Repair the damaged harness wire.

STEP 6. Check harness between C-105 (terminal
