TROUBLESHOOTING

DIESEL FUEL

13A-344

Code No. P2124: Accelerator Pedal Position Sensor (Main) Circuit High Input Intermittent

OPERATION

• A power voltage of 5 V is applied to the accelera-

tor pedal position sensor (terminal No. 1) from the
engine-ECU (terminal No. 149).

• The power voltage is earthed to the engine-ECU

(terminal No. 151) from the accelerator pedal
position sensor (terminal No. 2).

• The sensor signal is inputted to the engine-ECU

(terminal No. 150) from the accelerator pedal
position sensor output terminal (terminal No. 3).

FUNCTION

• The accelerator pedal position sensor (main) out-

puts voltage which corresponds to the accelera-
tor pedal depression.

• The engine-ECU checks whether the voltage is

within a specified range.

TROUBLE JUDGMENT

Check Conditions

• Ignition switch is in "ON" position

• Accelerator pedal position sensor (sub) is normal

Judgment Criterion

• Accelerator pedal position sensor (main) output

voltage exceeds 4.8 V for 0.05 seconds.

PROBABLE CAUSES

• Failed accelerator pedal position sensor

• Open circuit in accelerator pedal position sensor

circuit or loose connector contact

• Failed engine-ECU

AKA00109

6

1 2 3 4 5

101 102

103104 105 106107 108109 110 111112 113 114115

118119 120 121122 123124 125126127 128 129130

131132 133 134135 136137 138139140 141142 143

146147 148 149150 151152 153154155 156 157158

117

145

116

144

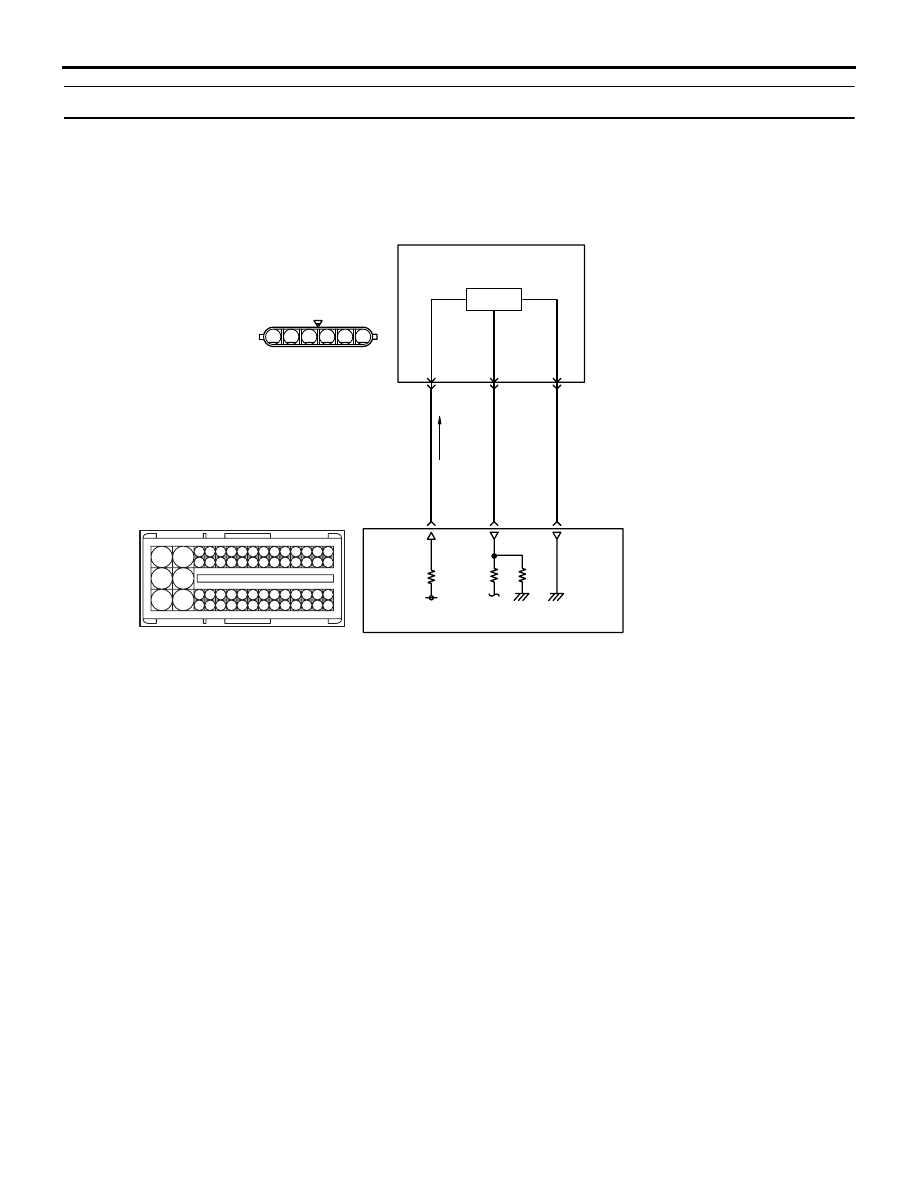

Accelerator Pedal Position Sensor (main) Circuit

(main)

Hall IC

Accelerator
pedal
position
sensor

C-115

(MU805200)

1

149

5 V

L-W

3

150

GR

2

151

BR-W

C-103

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

Engine-ECU

AB

TROUBLESHOOTING

DIESEL FUEL

13A-345

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 9: Accelerator pedal position sensor

(main)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

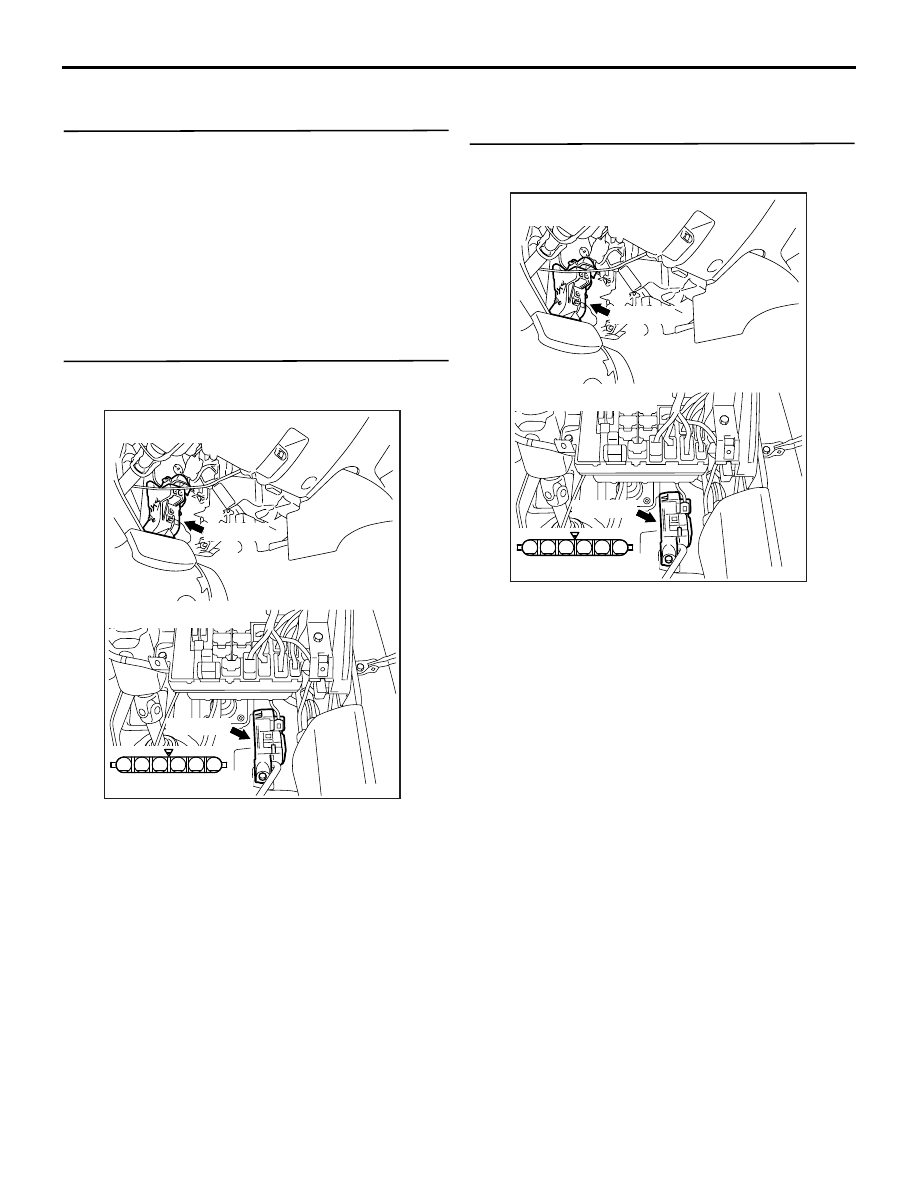

STEP 2. Connector check: C-115 accelerator
pedal position sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform resistance measurement at C-
115 accelerator pedal position sensor connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

TROUBLESHOOTING

DIESEL FUEL

13A-346

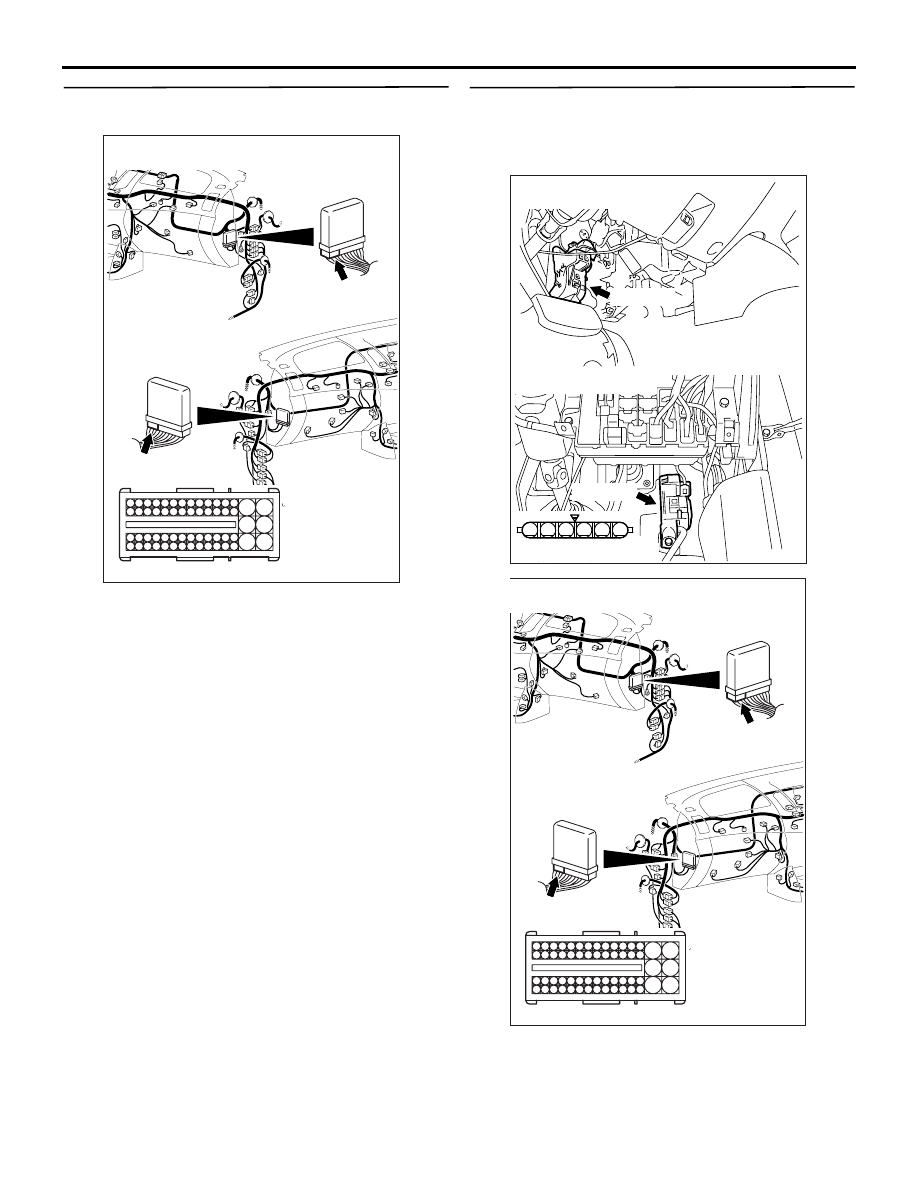

STEP 4. Connector check: C-103 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

STEP 5. Check harness between C-115 (terminal
No. 2) accelerator pedal position sensor
connector and C-103 (terminal No. 151) engine-
ECU connector.

• Check earthing line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

AK700804

1

6 5 4 3 2

C-115 (B)

C-115 (B)

Connector: C-115

<R.H. drive vehicles>

<L.H. drive vehicles>

AB

Harness side connector

AKA00090

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

146

147

148

149

150

151

152

153

154

155

156

157

158

117

145

116

144

C-103 (B)

C-103 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-103

AB

TROUBLESHOOTING

DIESEL FUEL

13A-347

STEP 6. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 9: Accelerator pedal position sensor

(main)

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

STEP 7. Replace the accelerator pedal position
sensor

• After replacing the accelerator pedal position

sensor, re-check the trouble symptoms.

Q: Is the check result normal?

YES :

The check is end.

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).
