TROUBLESHOOTING

DIESEL FUEL

13A-316

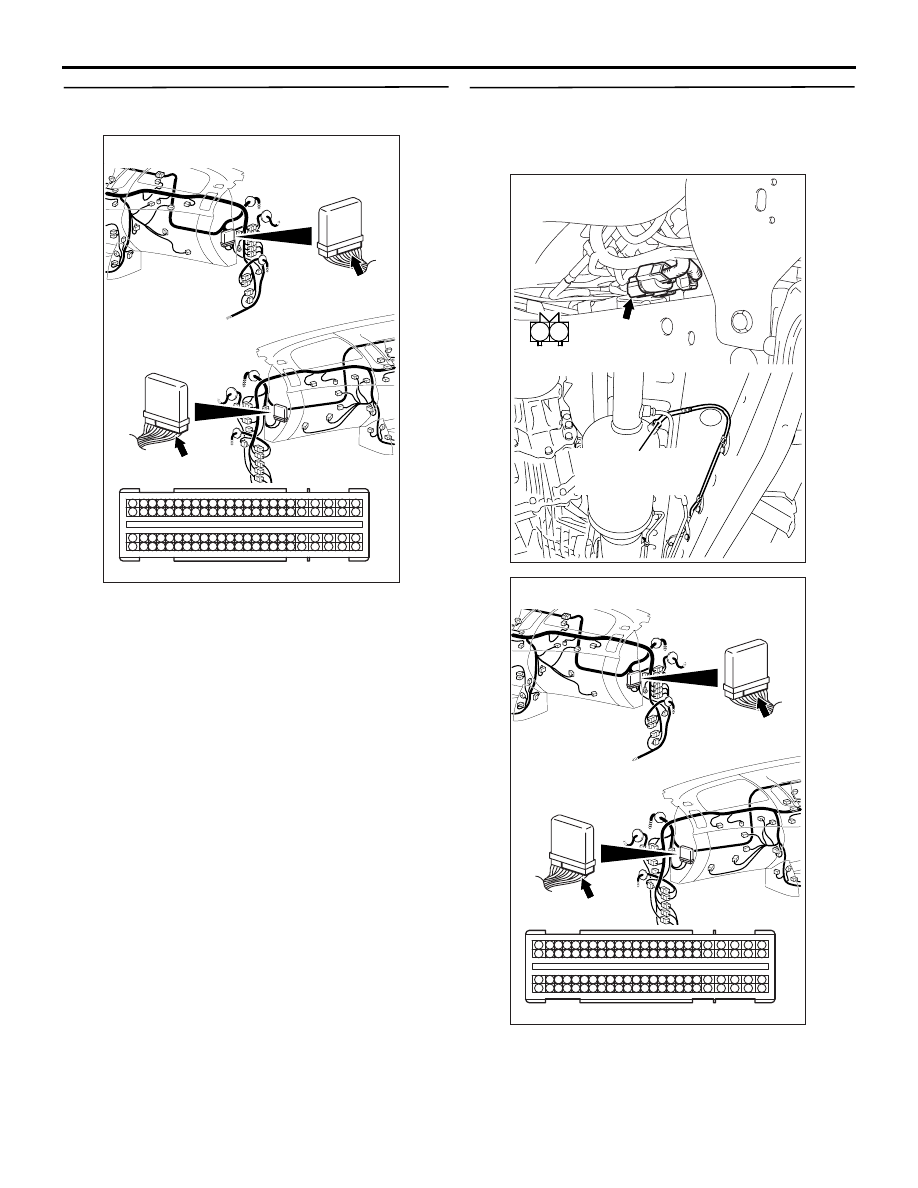

STEP 9. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace the connector.

STEP 10. Check harness between A-158 (terminal
No. 1) No. 3 exhaust gas temperature sensor
(DPF temperature) connector and C-105 (terminal
No. 84) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector A-28, and repair if necessary.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKB00278

1

2

A-158 (B)

Connector: A-158

AB

Harness side
connector

No. 3 exhaust gas
temperature sensor
(DPF temperature)

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-317

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

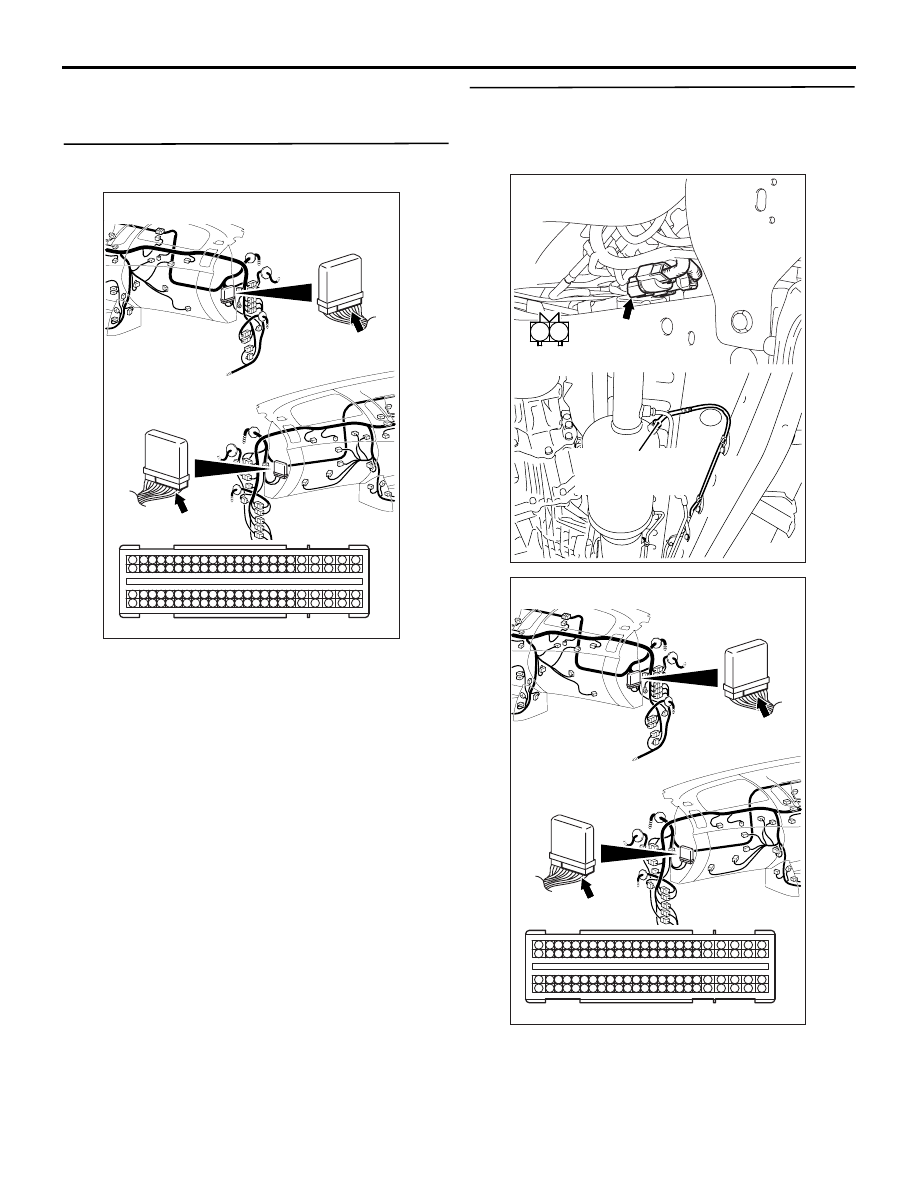

STEP 11. Connector check: C-105 engine-ECU
connector.

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace the connector.

STEP 12. Check harness between A-158 (terminal
No. 2) No. 3 exhaust gas temperature sensor
(DPF temperature) connector and C-105 (terminal
No. 60) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector A-28, and repair if necessary.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKB00278

1

2

A-158 (B)

Connector: A-158

AB

Harness side
connector

No. 3 exhaust gas
temperature sensor
(DPF temperature)

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-318

Code No. P1497: DPF System Malfunction <Euro5>

FUNCTION

• The engine-ECU monitors the input signals from

sensors to check if the DPF regeneration is exe-
cuted normally.

TROUBLE JUDGMENT

Check Condition

• On DPF regeneration

Judgement Criterion

• The DPF regeneration status continues for 30

minutes or more.

Check Condition

• Ignition switch is in "ON" position

Judgement Criterion

• The regeneration with short interval continues for

specified times.

PROBABLE CAUSES

• Failed No. 2 exhaust gas temperature sensor

(catalyst temperature)

• Failed No. 3 exhaust gas temperature sensor

(DPF temperature)

• Failed exhaust differential pressure sensor

• Failed exhaust differential pressure sensor ambi-

ent air temperature sensor

• Catalytic converter inactive

• The engine oil-containing ash is loaded to the

DPF inside.

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list.

• Refer to Data List Reference Table

P.13A-542

.

a. Item 118: No. 2 exhaust gas temperature sen-

sor (catalyst temperature)

b. Item 119: No. 3 exhaust gas temperature sen-

sor (DPF temperature)

c. Item 120: Exhaust differential pressure sensor

Q: Are the check results normal?

YES :

Go to Step 2 .

NO :

Perform the diagnosis code classified check
procedure for the sensor that has shown an
abnormal data value (Refer to Inspection
Chart for Diagnosis Code

P.13A-21

).

STEP 2. M.U.T.-III data list.

• Item 208: Short interval DPF regeneration count

OK: 10 or more

Q: Is the short interval DPF regeneration counting 10

or more?
YES :

Go to Step 4 .

NO :

Go to Step 3 .

STEP 3. Forcible DPF regeneration execution

• Initialise the DPF-related parts, and then delete

the diagnosis code (Refer to GROUP 00

− Pre-

cautions before Service

− Initialisation Procedure

for Learning Value in Diesel Particulate Filter
(DPF) System ).

a. Item 42: DPF system malfunction service

• Carry out the forcible DPF regeneration (Refer to

GROUP 17

− Emission Control − Diesel Particu-

late Filter (DPF) System

− Forcible DPF Regen-

eration ).

Q: Is the diagnosis code P0420 or P1497 set?

YES :

 Replace the catalytic converter. When the

catalytic converter is replaced, initialise the
learning value (Refer to GROUP 00

−

Precautions before Service

− Initialisation

Procedure for Learning Value in Diesel
Particulate Filter (DPF) System ). On
completion, carry out the forcible DPF
regeneration (Refer to GROUP 17

−

Emission Control

− Diesel Particulate Filter

(DPF) System

− Forcible DPF Regeneration

).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
carry out the forcible DPF regeneration.
(Refer to GROUP 17

− Emission Control −

Diesel Particulate Filter (DPF) System

−

Forcible DPF Regeneration ).

TROUBLESHOOTING

DIESEL FUEL

13A-319

STEP 4. Forcible DPF regeneration execution

• Initialise the DPF-related parts, and then delete

the diagnosis code (Refer to GROUP 00

− Pre-

cautions before Service

− Initialisation Procedure

for Learning Value in Diesel Particulate Filter
(DPF) System ).

a. Item 42: DPF system malfunction service

• Carry out the forcible DPF regeneration 2 times

(Refer to GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible DPF

Regeneration ).

NOTE: Carry out the DPF regeneration 2 times

because the assumption of the accumulated
amount of the DPF is not stable.

• M.U.T.-III data list

a. Item 156: Soot loading by differential pressure

OK: 3 g/L or less

Q: Is the check result normal?

YES :

Proceed to troubleshooting for black smoke

(Refer to Inspection Procedure 13

P.13A-

479

).

NO :

Replace the DPF. When the DPF is
replaced, initialise the learning value (Refer
to GROUP 00

− Precautions Before Service

− Initialisation Procedure For Learning
Value in Diesel Particulate Filter (DPF)
System ).

Code No. P1498: Excessive PM Accumulated in DPF <Euro5>

FUNCTION

• The engine-ECU monitors the input signals from

sensors to estimate the PM amount loaded to the
DPF inside.

• If the PM is loaded more than the specified

amount, the DPF regeneration is automatically
executed under certain conditions in order to
eliminate the PM.

• If the PM is excessively loaded, the engine-ECU

does not execute the automatic DPF regenera-
tion. It makes the engine warning lamp illuminate
and the DPF lamp blink.

TROUBLE JUDGMENT

Check Condition

• Ignition switch is in "ON" position.

Judgement Criterion

• Driving distance exceeds the specified value after

the last DPF regeneration.

PROBABLE CAUSE

• The PM is abnormally loaded to the DPF inside.

DIAGNOSIS PROCEDURE

STEP 1. Forcible DPF regeneration execution

• Carry out the forcible DPF regeneration (Refer to

GROUP 17

− Emission Control − Diesel Particu-

late Filter (DPF) System

− Forcible DPF Regen-

eration ).

Q: Is the diagnosis code output?

YES :

Inspection chart for diagnosis code (Refer

to

P.13A-21

).

NO :

Check end.

Code No. P1499: Abnormally high DPF temperature <Euro5>

FUNCTION

• The DPF may be have melting damage if the

temperature exceeds the specified value.

• The engine-ECU monitors the signals from No. 3

exhaust gas temperature sensor (DPF tempera-
ture) to check if the DPF is under the specified
temperature.

TROUBLE JUDGMENT

Check Condition

• On DPF regeneration
