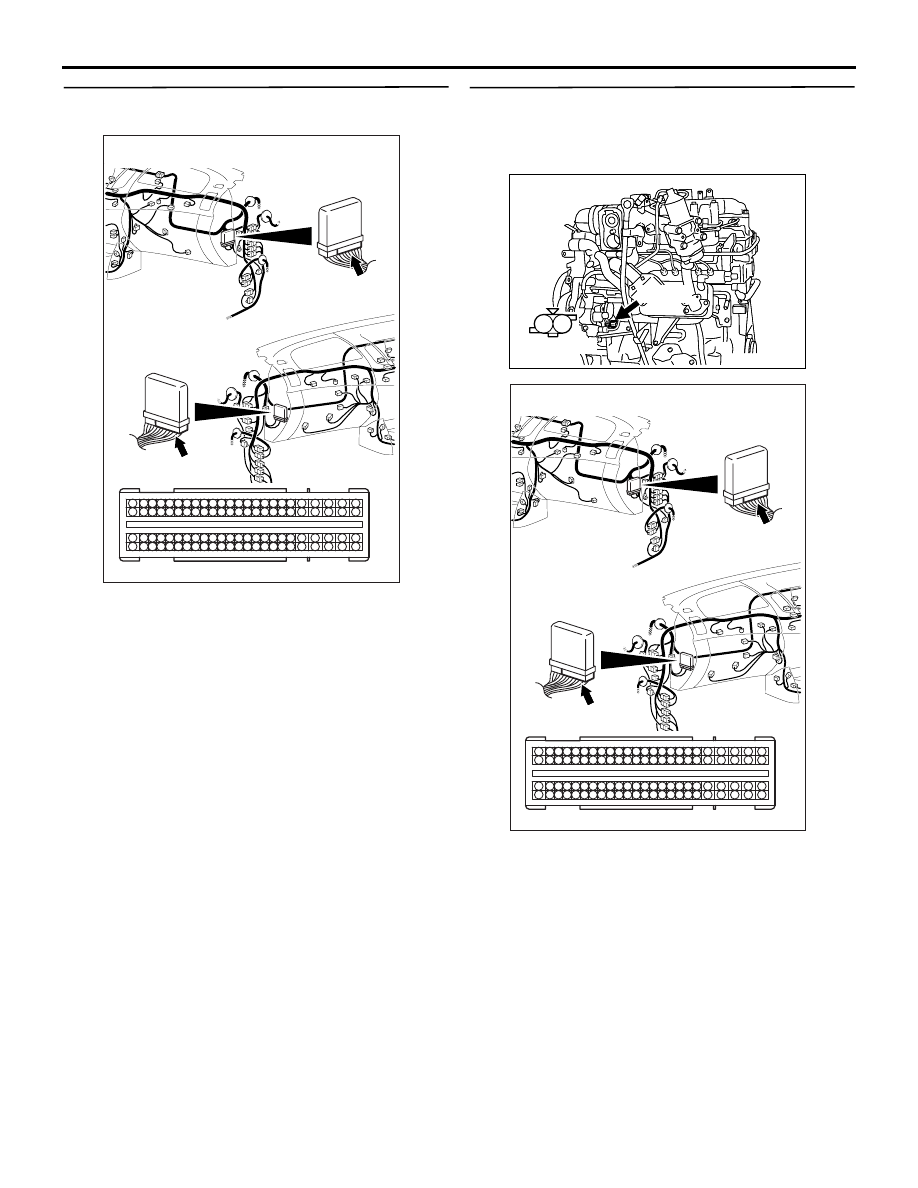

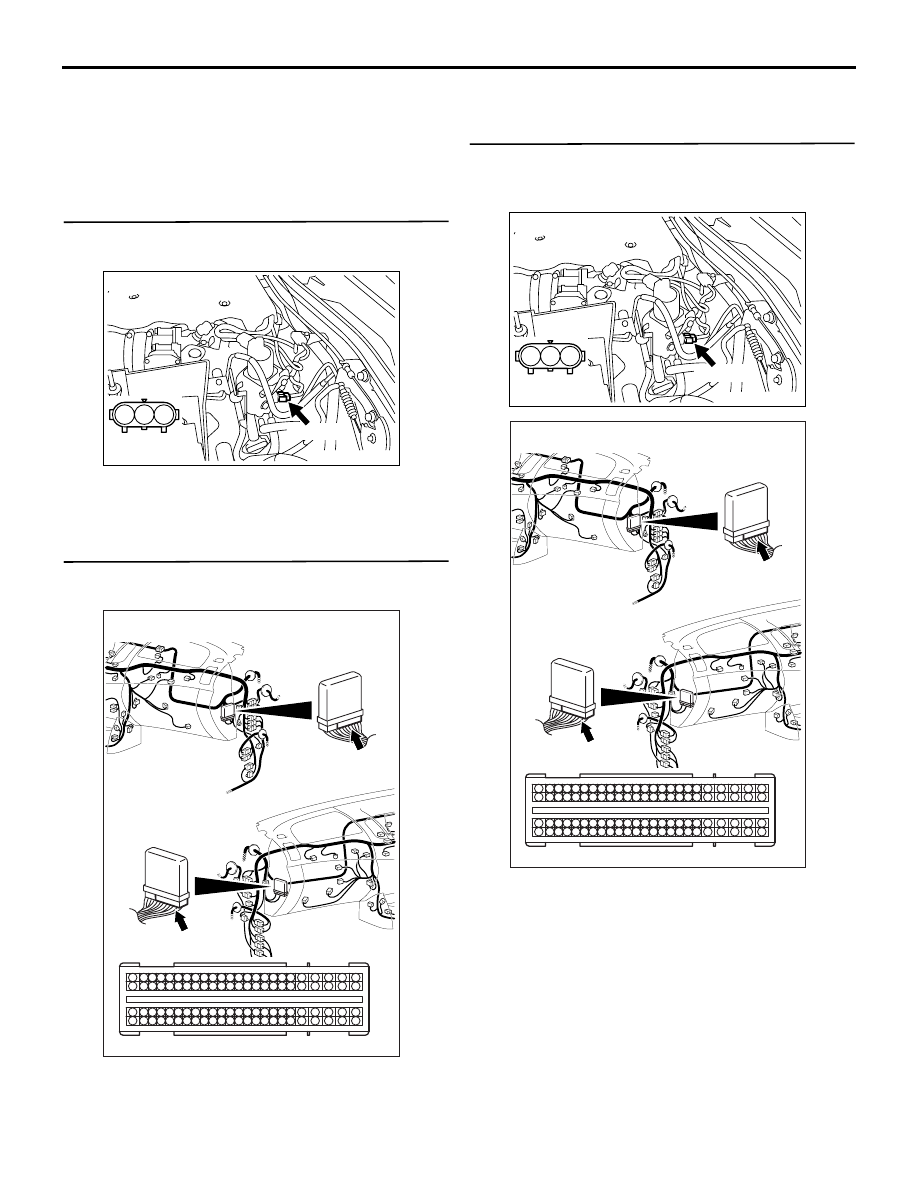

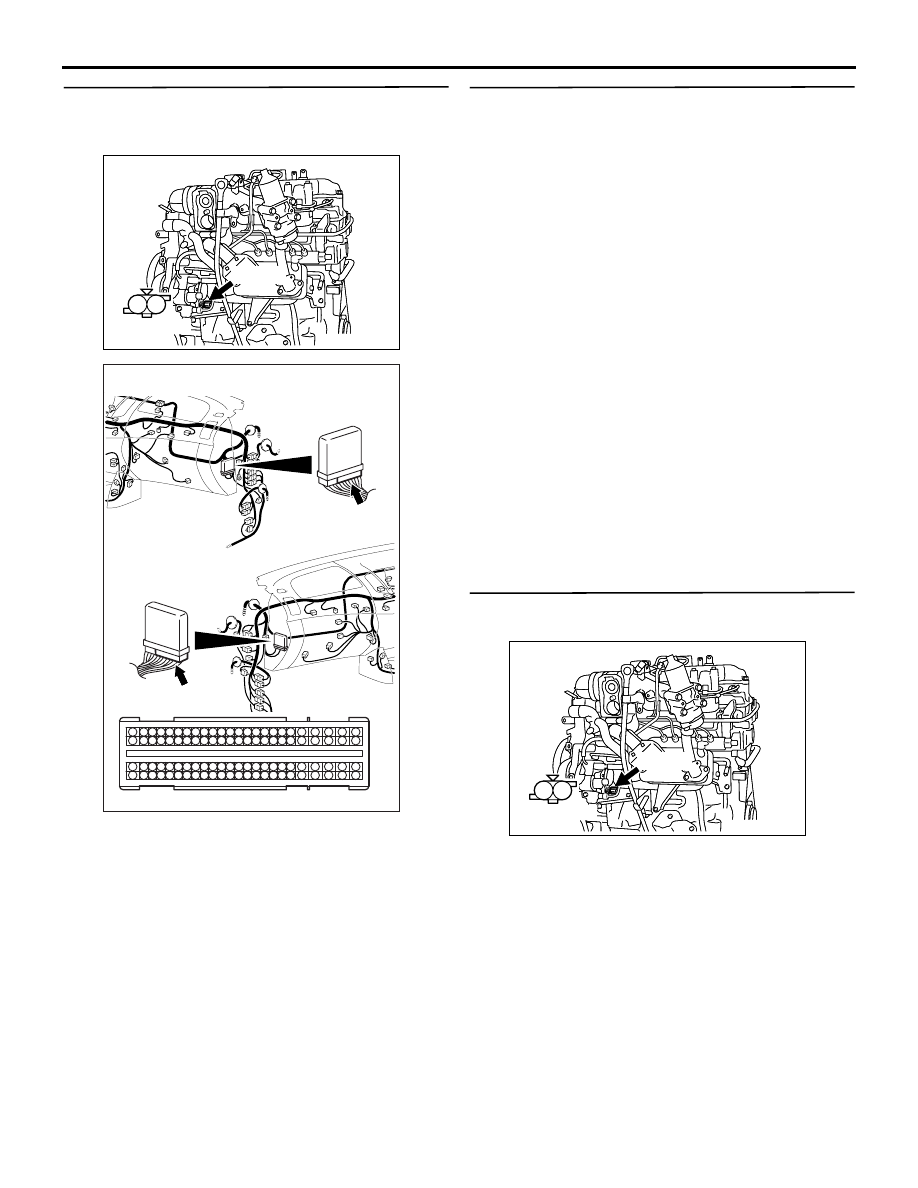

TROUBLESHOOTING

DIESEL FUEL

13A-140

STEP 6. Check harness between A-46 (terminal
No. 1) fuel temperature sensor connector and C-
105 (terminal No. 55) engine-ECU connector.

• Check output line for open circuit.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

STEP 7. M.U.T.-III data list

• Item 21: Fuel temperature sensor

OK: At ambient temperature (fuel tempera-
ture) or equivalent.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

STEP 8. Perform resistance measurement at A-46
fuel temperature sensor connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 2 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 9 .

AK501326

1

2

AB

A-46 (B)

Harness side
connector

Connector: A-46

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501326

1

2

AB

A-46 (B)

Harness side
connector

Connector: A-46

TROUBLESHOOTING

DIESEL FUEL

13A-141

STEP 9. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace the connector.

STEP 10. Check harness between A-46 (terminal
No. 2) fuel temperature sensor connector and C-
105 (terminal No. 79) engine-ECU connector.

• Check earthing line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501326

1

2

AB

A-46 (B)

Harness side
connector

Connector: A-46

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-142

Code No. P0191: Rail Pressure Sensor Range/Performance Problem

OPERATION

• 5 V power is supplied from the engine-ECU (ter-

minal No. 70) to the rail pressure sensor (terminal
No. 1).

• The rail pressure sensor (terminal No. 3) is

earthed to the engine-ECU (terminal No. 88).

• Sensor signals are input from the rail pressure

sensor (terminal No. 2) to the engine-ECU (termi-
nal No. 64).

FUNCTION

• The engine-ECU monitors the signals input from

the rail pressure sensor.

• Based on these signals, the engine-ECU checks

the rail pressure sensor for errors.

TROUBLE JUDGMENT

Check Condition

• Engine is running.

Judgment Criterion

• A difference between the objective and actual rail

pressures exceeds 15 MPa for 0.5 second, and
the rail pressure sensor has an output voltage
variation of 0.01 V or less.

PROBABLE CAUSES

• Failed rail pressure sensor

• Failed suction control valve

• Fuel line blocked

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. Check suction control valve itself.

• Check suction control valve itself (Refer to

P.13A-

596

).

Q: Is the check result normal?

AKA00196

1

2

3

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

Engine-ECU

W

R

B

W

R

B

B

A-44

(MU802408)

Rail pressure
sensor

2

1

3

5

6

4

A-131

64

70

88

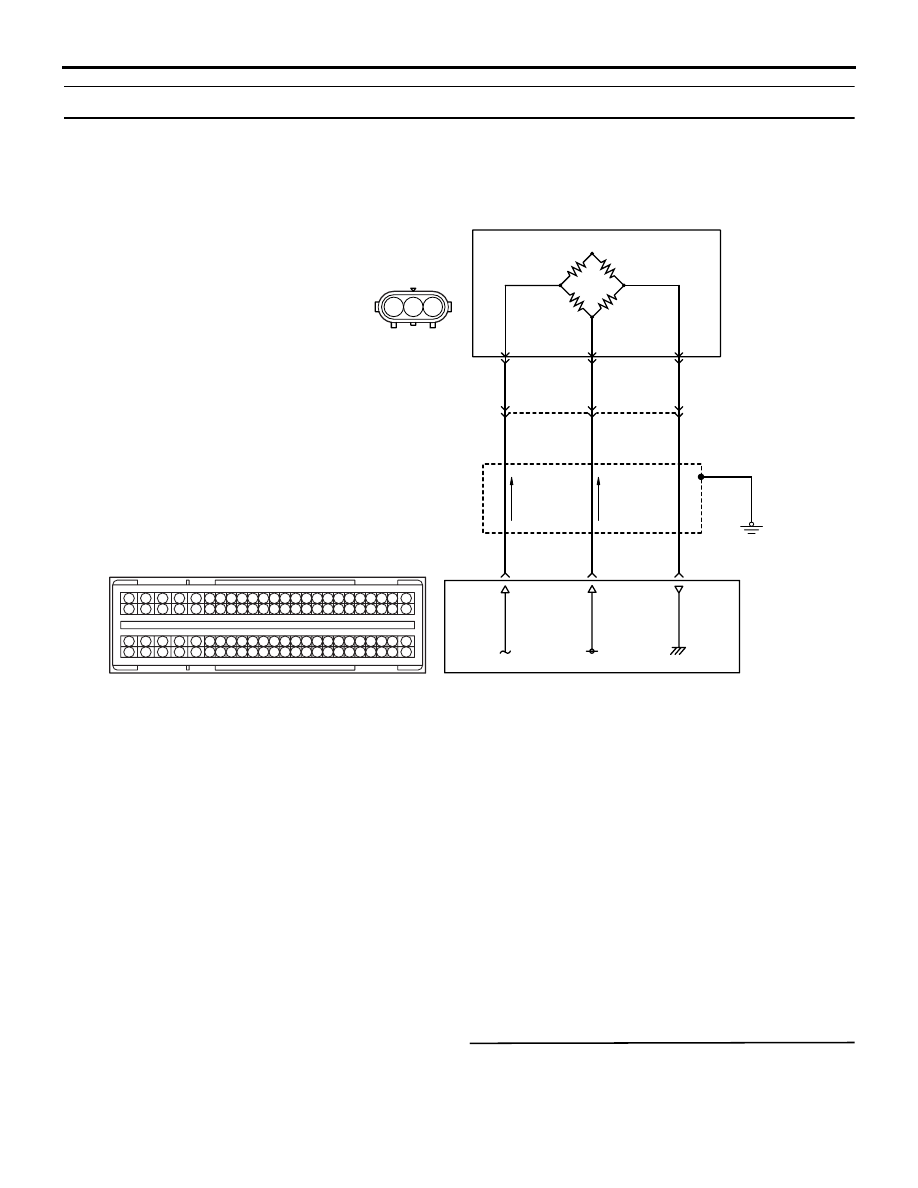

Rail Pressure Sensor Circuit

AD

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V:Violet  PU: Purple  SI: Silver

C-105

5 V

TROUBLESHOOTING

DIESEL FUEL

13A-143

YES :

Go to Step 2.

NO :

Replace the suction control valve. After
replacing the suction control valve, learn the
supply pump (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ).

STEP 2. Connector check: A-44 rail pressure
sensor connector.

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair or replace the connector.

STEP 3. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair or replace the connector.

STEP 4. Check harness between A-44 (terminal
No. 3) rail pressure sensor connector and C-105
(terminal No. 88) engine-ECU connector.

NOTE: Before checking harness, check intermediate
connector A-131, and repair if necessary.

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 5.

NO :

Repair the damaged harness wire.

AK501327

1

2

3

AB

A-44 (B)

Harness side
connector

Connector: A-44

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK501327

1

2

3

AB

A-44 (B)

Harness side
connector

Connector: A-44

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
