TROUBLESHOOTING

DIESEL FUEL

13A-128

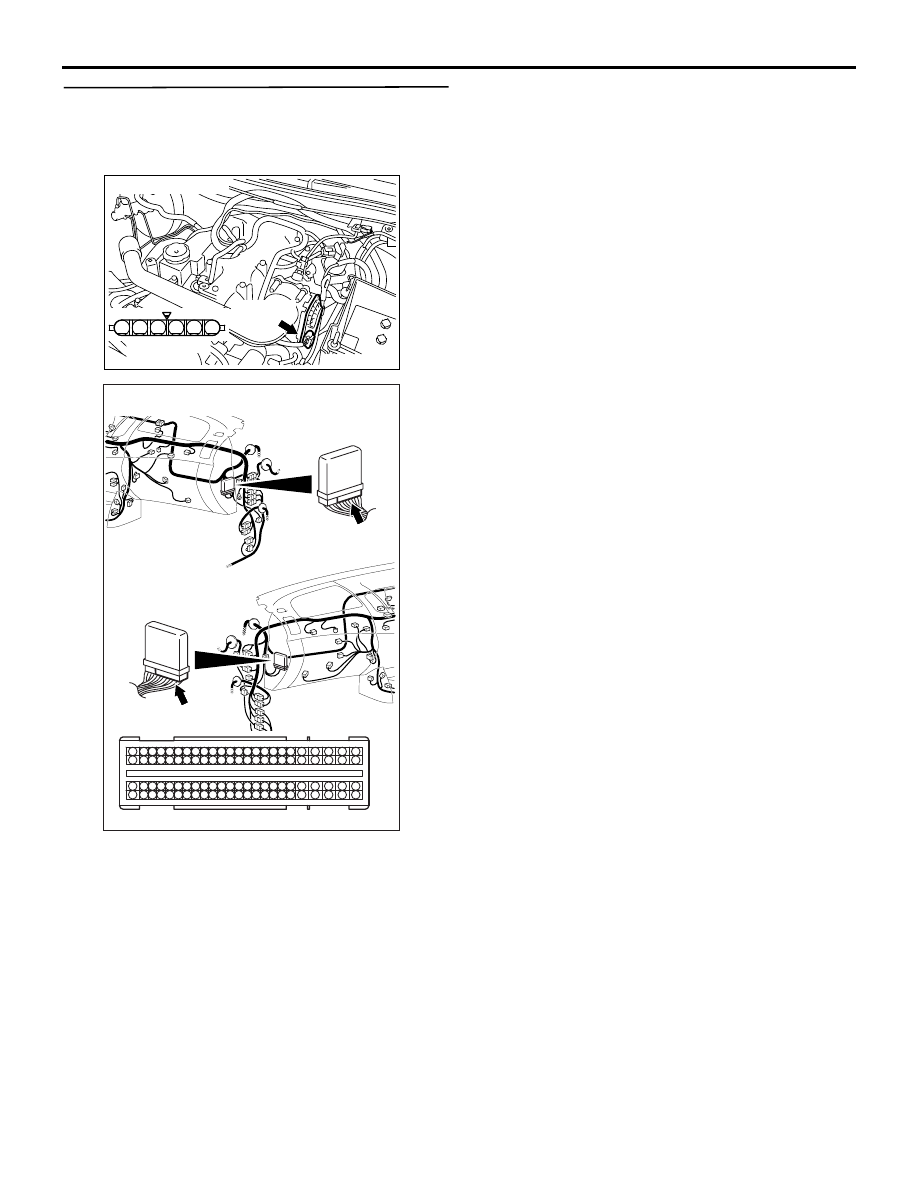

STEP 13. Check harness between A-132 (terminal
No. 1) electronic-controlled throttle valve
connector and C-105 (terminal No. 40) engine-
ECU connector.

• Check output line for short circuit.

Q: Is the check result normal?

YES :

Go to Step 14 .

NO :

Repair the damaged harness wire.

STEP 14. Check harness between A-132 (terminal
No. 2) electronic-controlled throttle valve
connector and C-105 (terminal No. 93) engine-
ECU connector.

• Check power supply line for damage.

Q: Is the check result normal?

YES :

Replace the electronic-controlled throttle

valve.

NO :

Repair the damaged harness wire.

AK604705

1

6 5 4 3 2

AB

A-132 (B)

Connector: A-132

Harness side
connector

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK604705

1

6 5 4 3 2

AB

A-132 (B)

Connector: A-132

Harness side
connector

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-129

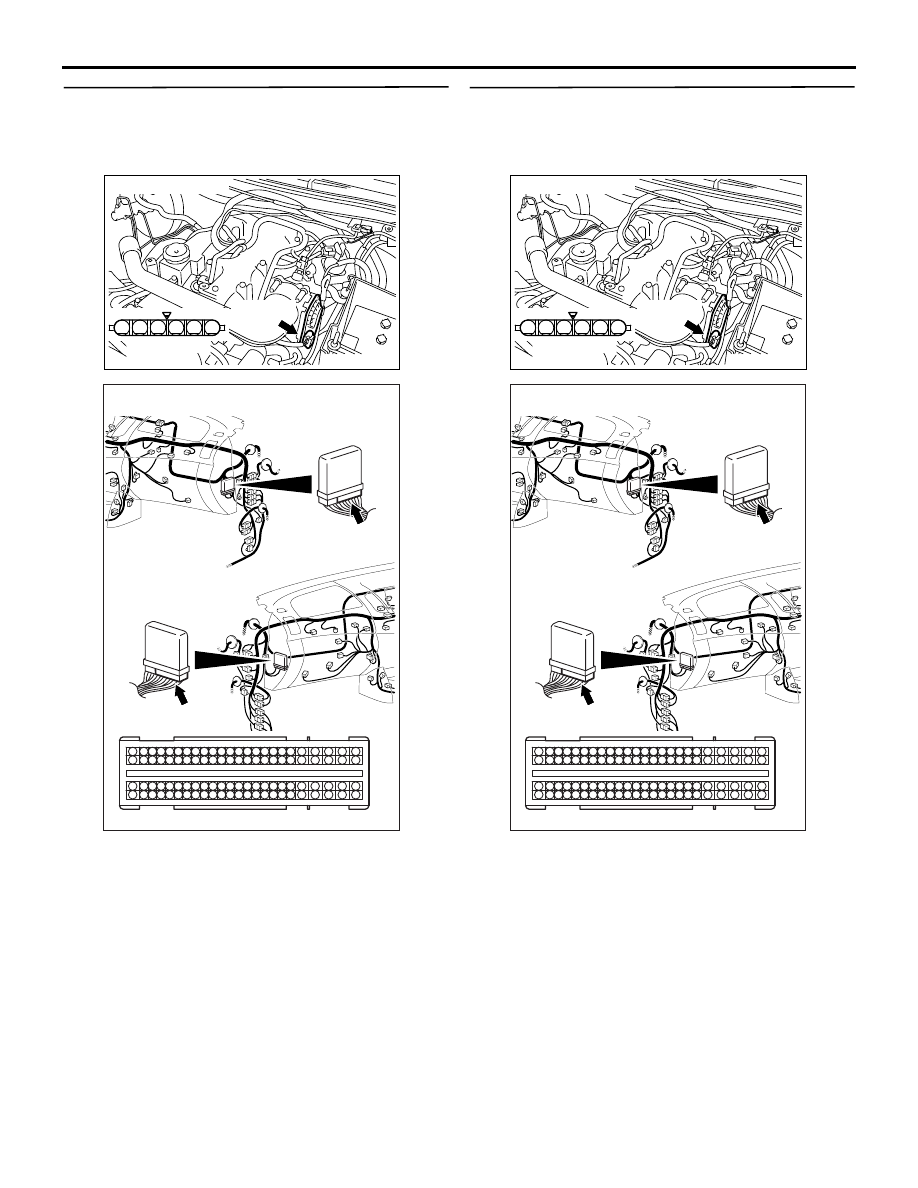

STEP 15. Check harness between A-132 (terminal
No. 1) electronic-controlled throttle valve
connector and C-105 (terminal No. 40) engine-
ECU connector.

• Check output line for open circuit and damage.

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair the damaged harness wire.

AK604705

1

6 5 4 3 2

AB

A-132 (B)

Connector: A-132

Harness side
connector

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-130

Code No. P0123: Throttle Position Sensor Circuit High Input

OPERATION

• A power voltage of 5 V is applied to the elec-

tronic-controlled throttle valve (terminal No. 2)
from the engine-ECU (terminal No. 93).

• The power voltage is earthed to the engine-ECU

(terminal No. 34) from the electronic-controlled
throttle valve (terminal No. 4).

• The sensor signal is inputted to the engine-ECU

(terminal No. 40) from the electronic-controlled
throttle valve output terminal (terminal No. 1).

FUNCTION

• The throttle position sensor converts the throttle

valve position into voltage and inputs it into the
engine-ECU.

• The engine-ECU control the throttle valve posi-

tion.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up

AKA00096

6

1 2 3 4 5

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

93

2

Electronic-controlled
throttle valve

R

W

Engine-ECU

40

34

1

4

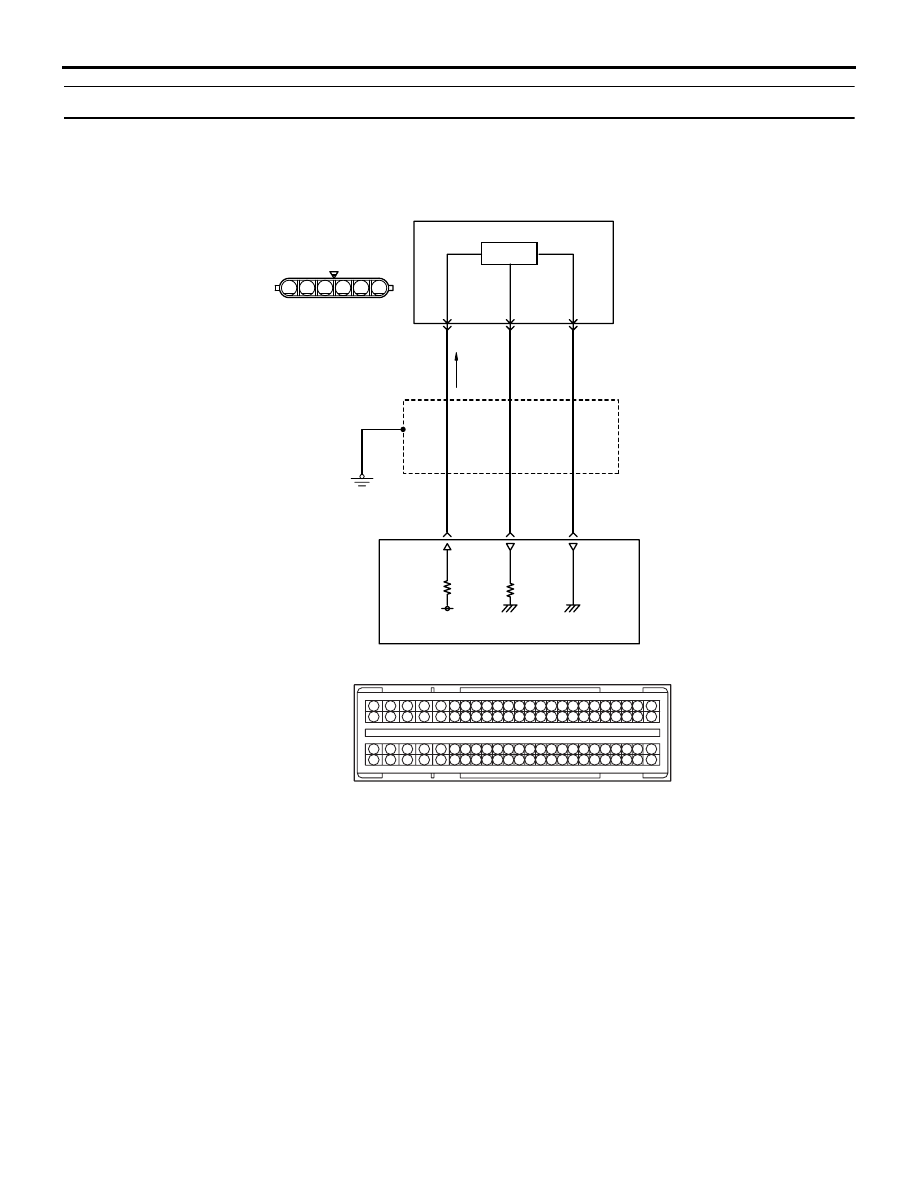

Throttle Position Sensor Circuit

C-105

A-132

(MU805200)

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

Hall IC

5 V

B

B

AB

TROUBLESHOOTING

DIESEL FUEL

13A-131

Judgment Criterion

• The throttle position sensor output voltage is 4.85

V or more for 0.5 second.

PROBABLE CAUSES

• Failed throttle position sensor

• Open circuit or harness damage in throttle posi-

tion sensor circuit or loose connector contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 45: Throttle position sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

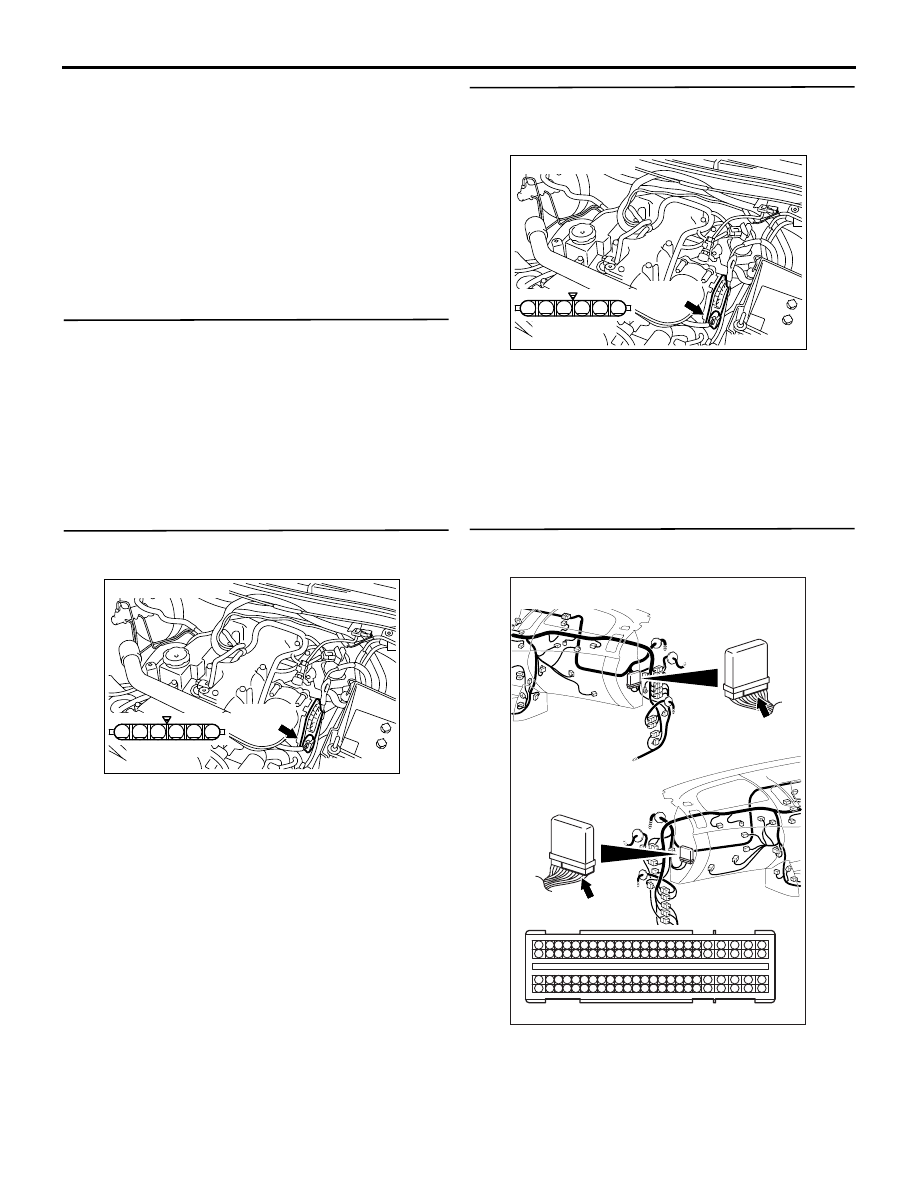

STEP 2. Connector check: A-132 electronic-
controlled throttle valve connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform resistance measurement at A-
132 electronic-controlled throttle valve
connector.

• Disconnect connector, and measure at harness

side.

• Resistance between terminal No. 4 and earth.

OK: Continuity (2

Ω or less)

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Go to Step 4 .

STEP 4. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 5 .

NO :

Repair or replace the connector.

AK604705

1

6 5 4 3 2

AB

A-132 (B)

Connector: A-132

Harness side
connector

AK604705

1

6 5 4 3 2

AB

A-132 (B)

Connector: A-132

Harness side
connector

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
