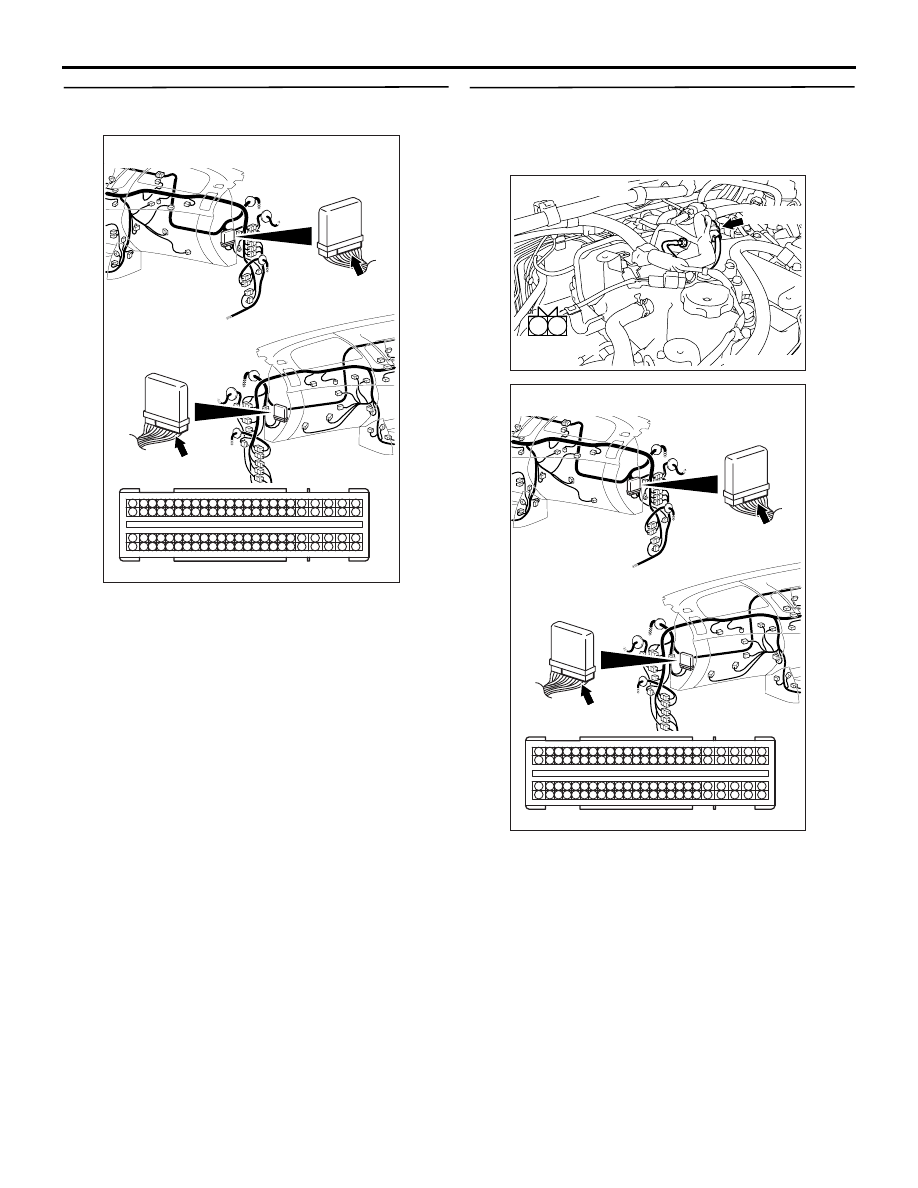

TROUBLESHOOTING

DIESEL FUEL

13A-96

STEP 9. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10 .

NO :

Repair or replace the connector.

STEP 10. Check harness between A-157 (terminal
No. 1) EGR gas temperature sensor connector
and C-105 (terminal No. 30) engine-ECU
connector.

• Check earthing line for damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKB00263

1

2

AB

A-157 (B)

Harness side
connector

Connector: A-157

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-97

STEP 11. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 12 .

NO :

Repair or replace the connector.

STEP 12. Check harness between A-157 (terminal
No. 2) EGR gas temperature sensor connector
and C-105 (terminal No. 36) engine-ECU
connector.

• Check output line for damage.

Q: Is the check result normal?

YES :

Go to Step 7 .

NO :

Repair the damaged harness wire.

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AKB00263

1

2

AB

A-157 (B)

Harness side
connector

Connector: A-157

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-98

Code No. P0112: Intake Air Temperature Sensor No. 1 Circuit Low Input <Except Euro5>

OPERATION

• A power voltage of 5 V is applied to the intake air

temperature sensor No. 1 output terminal (termi-
nal No. 2) from the engine-ECU (terminal No. 62).

• The power voltage is earthed to the engine-ECU

(terminal No. 86) from the intake air temperature
sensor No. 1 (terminal No. 1).

FUNCTION

• The intake air temperature sensor No. 1 converts

the intake air temperature into a voltage and
inputs the voltage signal to the engine-ECU.

• In response to the signal, the engine-ECU cor-

rects the fuel injection amount, etc.

• The intake air temperature sensor No. 1 is a kind

of resistor, which has characteristics to reduce its
resistance as the intake air temperature rises.
Therefore, the sensor output voltage varies with
the intake air temperature, and becomes lower as
the intake air temperature rises.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up.

Judgment Criterion

• The intake air temperature sensor No. 1 output

voltage is 0.09 V or less for 0.5 second.

PROBABLE CAUSES

• Failed intake air temperature sensor No. 1

• Short circuit or harness damage in intake air tem-

perature sensor No.1 circuit or loose connector
contact

• Failed engine-ECU

AKA00356

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

5

4

3

2

1

86

62

Intake air temperature
sensor No. 1 (integrated in
air flow sensor)

Engine-ECU

1

2

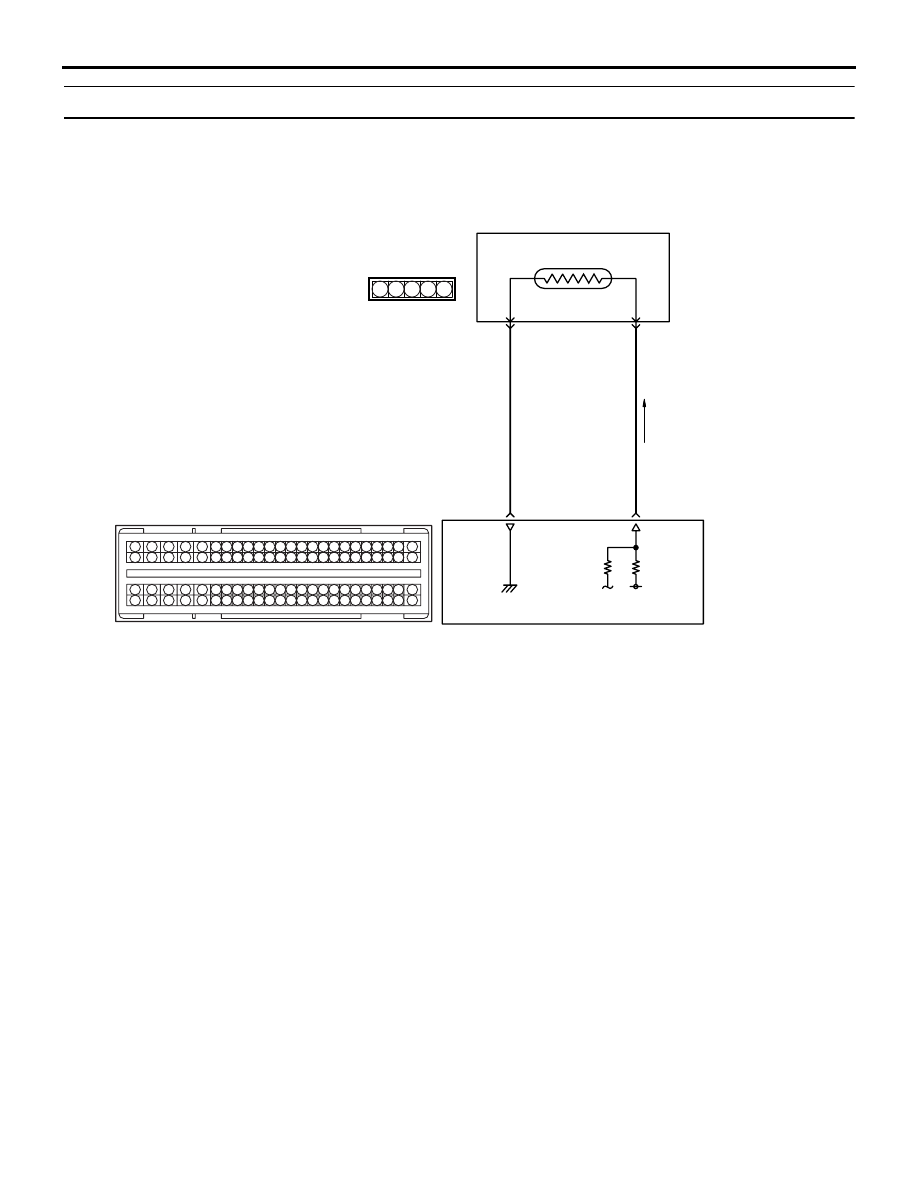

Intake Air Temperature Sensor No. 1 Circuit

B-L

Y-L

A-135

C-105

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Gray
R: Red  P: Pink  V: Violet  PU: Purple  SI: Silver

5 V

AB

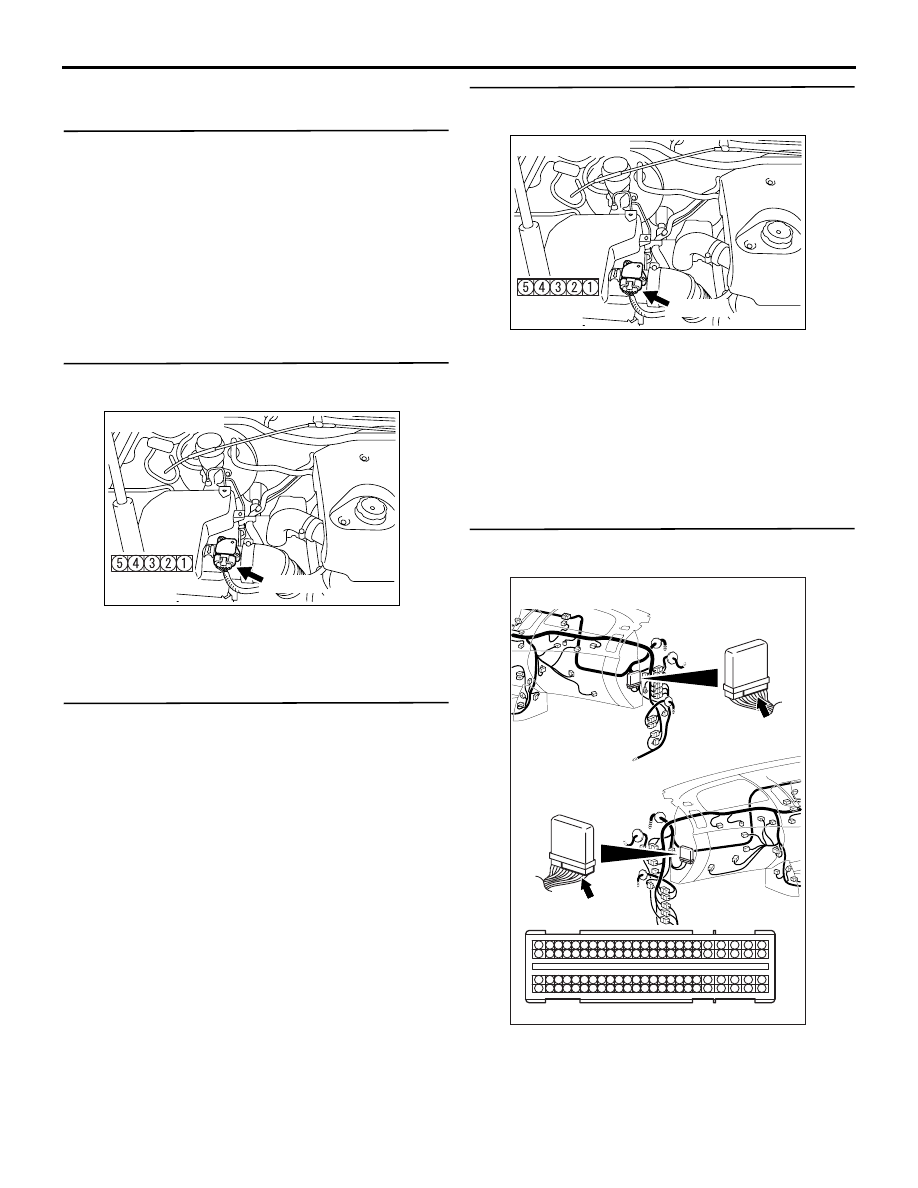

TROUBLESHOOTING

DIESEL FUEL

13A-99

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Item 43: Intake air temperature sensor No. 1

OK: At ambient temperature (atmospheric
temperature) or equivalent.

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

STEP 2. Connector check: A-135 air flow sensor
connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Check intake air temperature sensor No.
1 itself.

• Check intake air temperature sensor No. 1 itself

(Refer to

P.13A-595

).

Q: Is the check result normal?

YES :

Go to Step 4 .

NO :

Replace the air flow sensor.

STEP 4. Perform Voltage measurement at A-135
air flow sensor connector.

• Disconnect connector, and measure at harness

side.

• Ignition switch: ON

• Voltage between terminal No. 2 and earth.

OK: 4.5

 4.9 V

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 5 .

STEP 5. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 6 .

NO :

Repair or replace the connector.

AKA00399

AB

Harness side
connector

A-135 (B)

Connector: A-135

AKA00399

AB

Harness side
connector

A-135 (B)

Connector: A-135

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
