TROUBLESHOOTING

DIESEL FUEL

13A-80

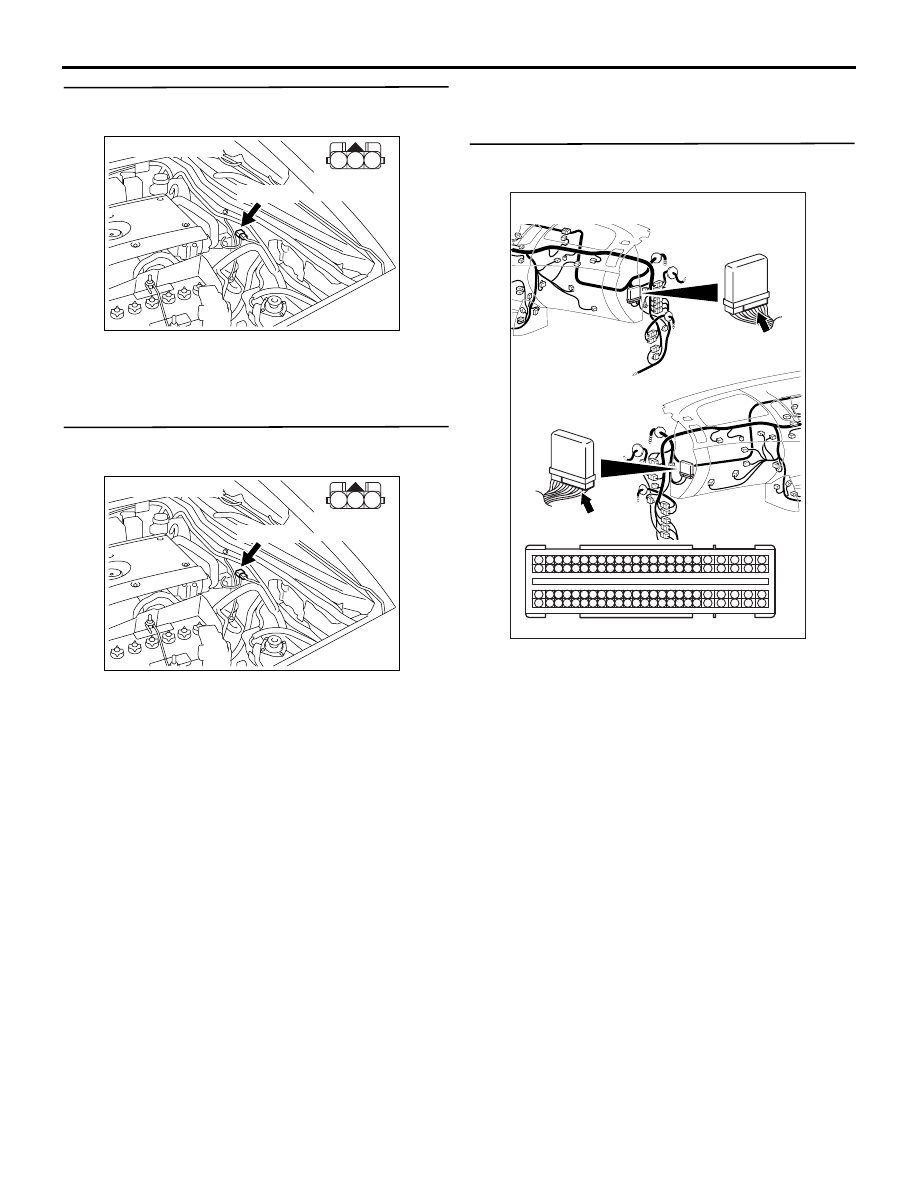

STEP 7. Perform voltage measurement at A-105
manifold absolute pressure sensor connector.

• Use special tool harness (MB991709) to connect

connector, and measure at pick-up harness.

• Ignition switch: ON

• Voltage between terminal No. 2 and earth.

OK: The voltage should be 0.7

− 1.2 V. When

the accelerator pedal is quickly depressed
from the idling state, the voltage temporarily
rises.

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Replace the manifold absolute pressure
sensor.

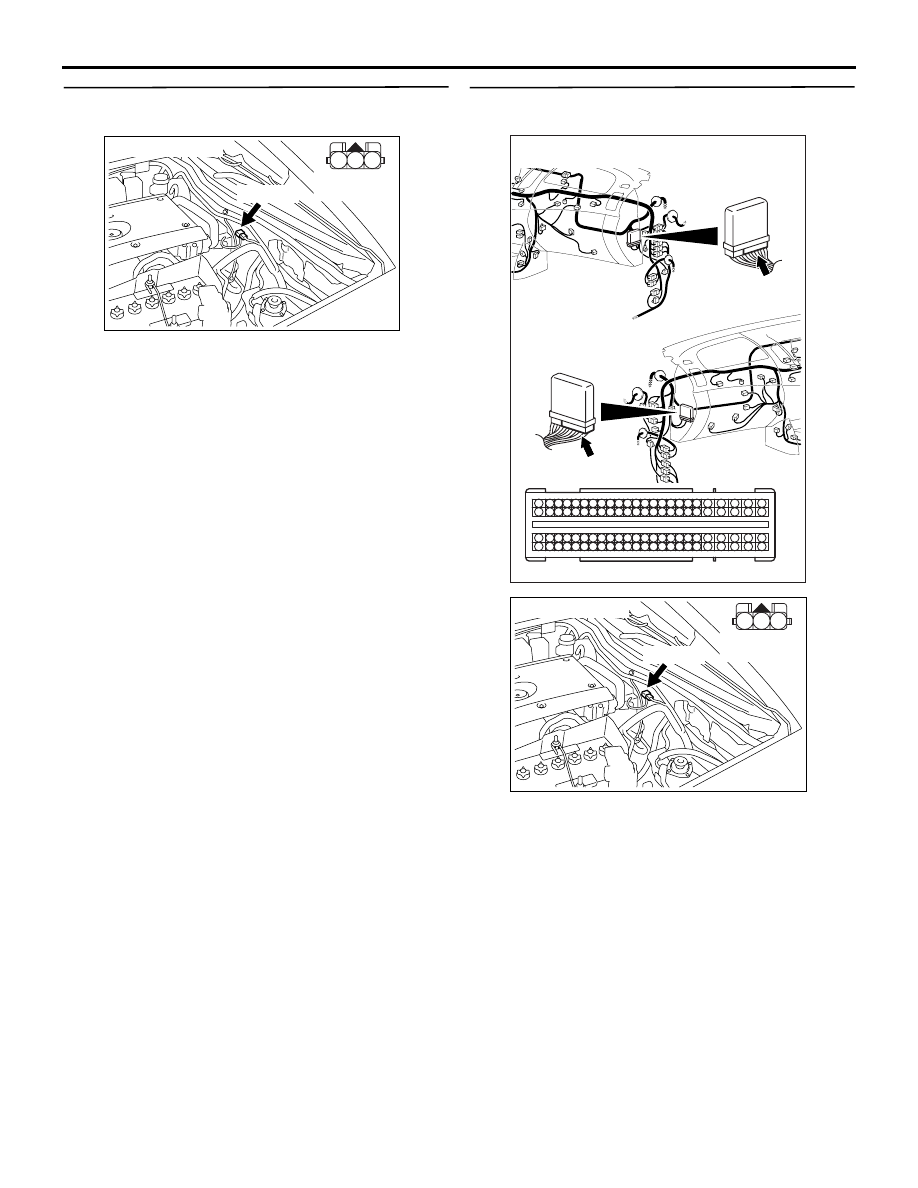

STEP 8. Perform voltage measurement at C-105
engine-ECU connector.

• Measure engine-ECU terminal voltage.

• Ignition switch: ON

• Voltage between terminal No. 37 and earth.

OK: The voltage should be 0.7

− 1.2 V. When

the accelerator pedal is quickly depressed
from the idling state, the voltage temporarily
rises.

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Check and repair harness between A-105

(terminal No. 2) manifold absolute pressure
sensor connector and C-105 (terminal No.
37) engine-ECU connector.

• Check output line for damage.

AK900797

1

3 2

AB

Harness side
connector

A-105 (L)

Connector: A-105

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

AK900797

1

3 2

AB

Harness side
connector

A-105 (L)

Connector: A-105

TROUBLESHOOTING

DIESEL FUEL

13A-81

STEP 9. Connector check: C-105 engine-ECU
connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair or replace the connector.

STEP 10. Check on clogged EGR cooler.
NOTE: When checking the clogged EGR cooler,
make a visual check or use an air blower.

• Check whether the EGR cooler is being clogged

or not.

Q: Is the check result normal?

YES :

Go to Step 11.

NO :

Replace the EGR cooler.

STEP 11. Check on clogged EGR pipe (A, B).

• Check whether the EGR pipe (A, B) is being

clogged or not.

Q: Is the check result normal?

YES :

Go to Step 12.

NO :

Replace the EGR pipe (A, B).

STEP 12. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 6: Manifold absolute pressure sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Replace the engine-ECU. When the engine-
ECU is replaced, write the chassis number
(Refer to GROUP 00

− Precautions Before

Service

− How to Perform Chassis Number

Writing ). After replacing the engine-ECU,
register the injector identification code and
learn fuel injection (Refer to GROUP 00

−

Precautions Before Service

− What The

Common Rail Engine Learns ). After
registering the injector identification code,
the vehicle equipped with the DPF carries
out the forcible DPF regeneration. (Refer to
GROUP 17

− Emission Control − Diesel

Particulate Filter (DPF) System

− Forcible

DPF Regeneration ).

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB

TROUBLESHOOTING

DIESEL FUEL

13A-82

Code No. P0107: Manifold Absolute Pressure Sensor Circuit Low Input

OPERATION

• A power voltage of 5 V is applied to the manifold

absolute pressure sensor power terminal (termi-
nal No. 1) from the engine-ECU (terminal No. 72)
and earthed to the engine-ECU (terminal No. 31)
from the manifold absolute pressure sensor (ter-
minal No. 3).

• The sensor signal is inputted to the engine-ECU

(terminal No. 37) from the manifold absolute
pressure sensor output terminal (terminal No. 2).

FUNCTION

• The manifold absolute pressure sensor converts

the manifold absolute pressure into a voltage sig-
nal and inputs the signal to the engine-ECU.

• In response to the signal, the engine-ECU cor-

rects the fuel injection amount, etc.

TROUBLE JUDGMENT

Check Conditions

• Battery positive voltage is 8 − 16 V

• 2 seconds later after the ignition switch has been

in "ON" position or the engine has started up

Judgment Criterion

• The manifold absolute pressure sensor output

voltage should is lower than 0.28 V for 0.5 sec-
onds.

PROBABLE CAUSES

• Failed manifold absolute pressure sensor

• Open/short or harness damage circuit in manifold

absolute pressure sensor circuit or loose connec-
tor contact

• Failed engine-ECU

DIAGNOSIS PROCEDURE

STEP 1. M.U.T.-III data list

• Refer to Data List Reference Table

P.13A-542

.

a. Item 6: Manifold absolute pressure sensor

Q: Is the check result normal?

YES :

Intermittent malfunction (Refer to GROUP

00

− How to Use Troubleshooting/

Inspection Service Points

− How to Cope

with Intermittent Malfunctions ).

NO :

Go to Step 2 .

AKA00093

3

2

1

1

2

3

4

5 6 7 8 9

10 1112 13 14 15 16 17 18 19 20 21 22 23 24

25 26

27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72

43 44 45 46 47 48

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96

Engine-ECU

31

LG-B

G-L

GR

37

72

A-105

Manifold
absolute
pressure
sensor

3

2

1

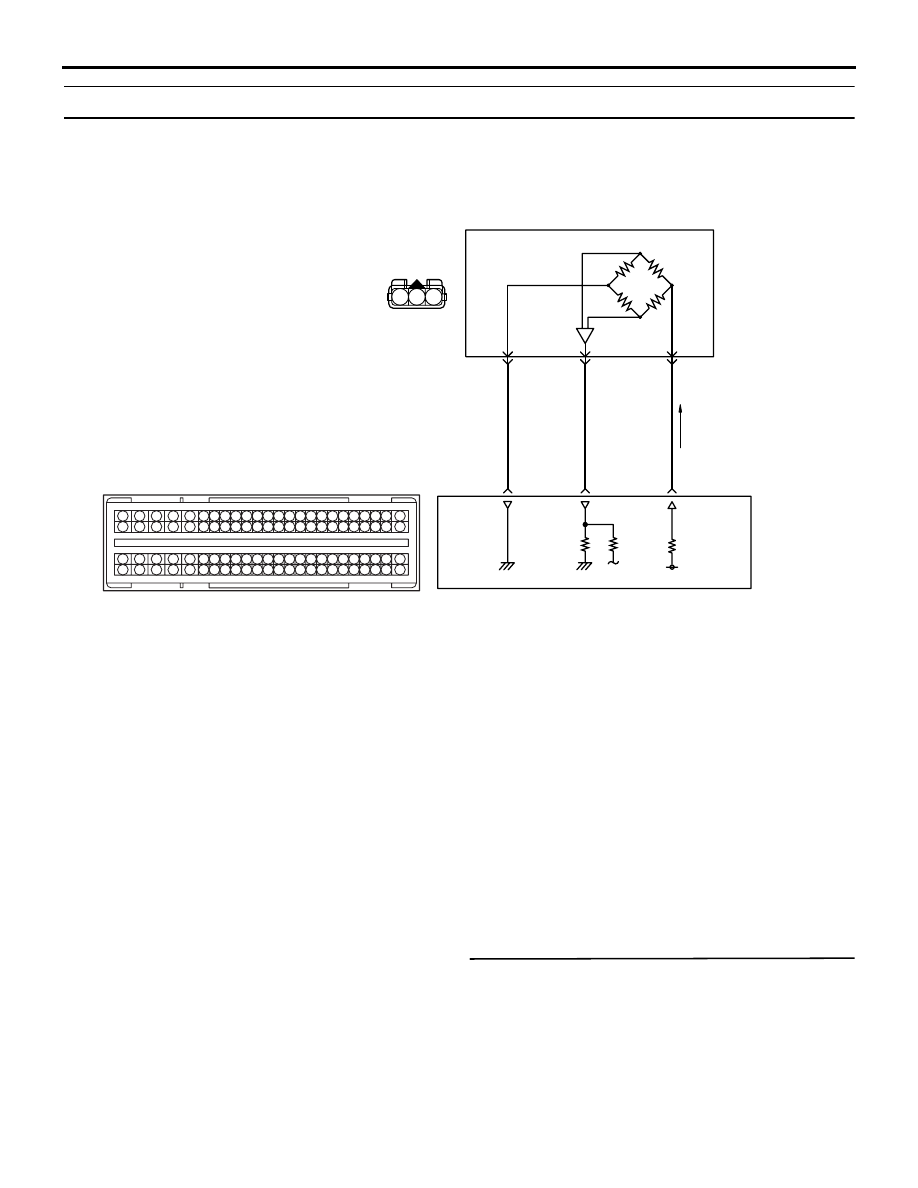

Manifold Absolute Pressure Sensor Circuit

Wire colour code
B: Black  LG: Light green  G: Green  L: Blue  W: White  Y: Yellow  SB: Sky blue  BR: Brown  O: Orange  GR: Grey
R: Red  P: Pink  V:Violet  PU: Purple  SI:Silver

C-105

5 V

AB

TROUBLESHOOTING

DIESEL FUEL

13A-83

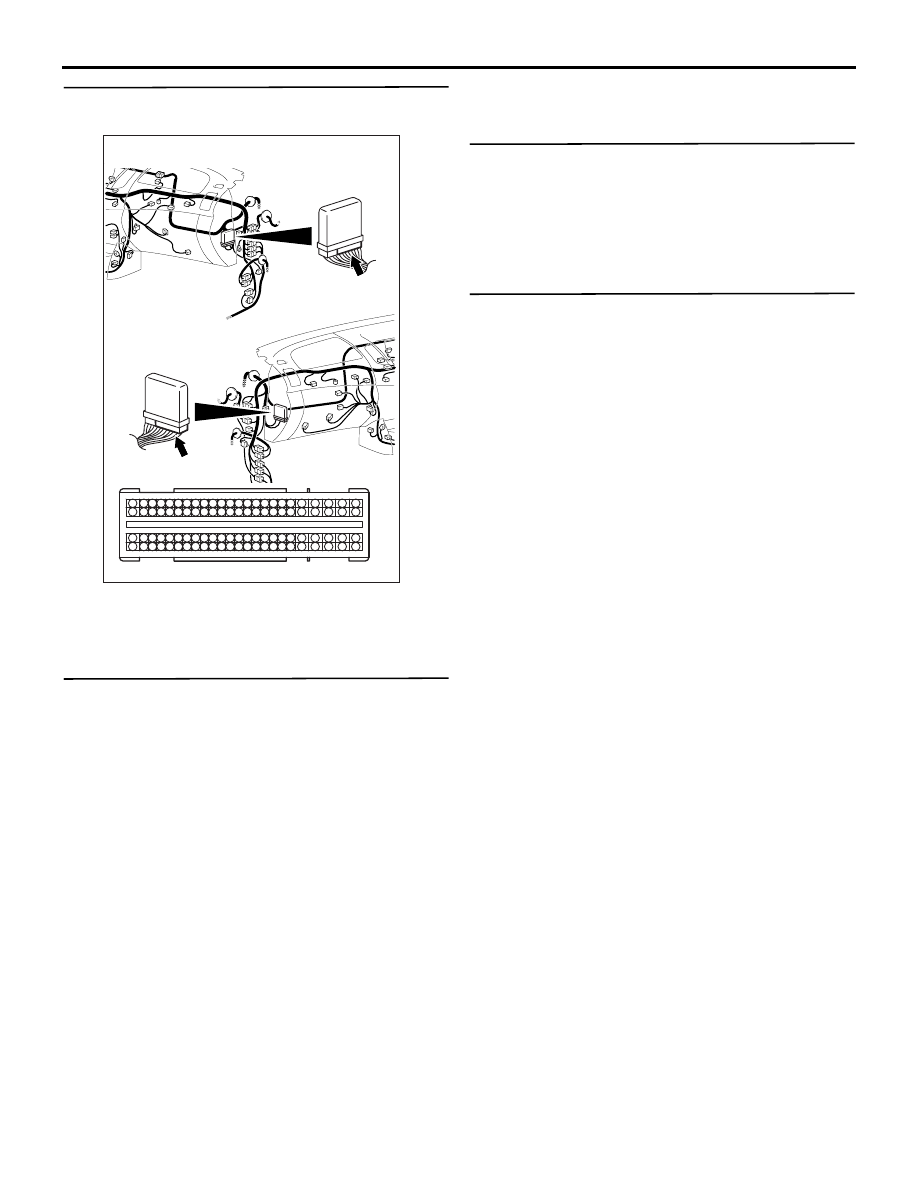

STEP 2. Connector check: A-105 manifold
absolute pressure sensor connector

Q: Is the check result normal?

YES :

Go to Step 3 .

NO :

Repair or replace the connector.

STEP 3. Perform voltage measurement at A-105
manifold absolute pressure sensor connector.

• Use special tool test harness (MB991709) to con-

nect connector, and measure at pick-up harness.

• Ignition switch: ON

• Voltage between terminal No. 1 and earth.

OK: 4.9

− 5.1 V

Q: Is the check result normal?

YES :

Go to Step 9 .

NO :

Go to Step 4 .

STEP 4. Perform voltage measurement at C-105
engine-ECU connector.

• Measure engine-ECU terminal voltage.

• Ignition switch: ON

• Voltage between terminal No. 72 and earth.

OK: 4.9

− 5.1 V

Q: Is the check result normal?

YES :

Go to Step 8 .

NO :

Go to Step 5 .

AK900797

1

3 2

AB

Harness side
connector

A-105 (L)

Connector: A-105

AK900797

1

3 2

AB

Harness side
connector

A-105 (L)

Connector: A-105

AKA00089

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

49

50

51

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

43

44

45

46

47

48

73

74

75

76

77

78

79

80

81

82

83

84

85

86

87

88

89

90

91

92

93

94

95

96

C-105 (B)

C-105 (B)

<R.H. drive vehicles>

Harness side connector

<L.H. drive vehicles>

Connector: C-105

AB
