HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-5

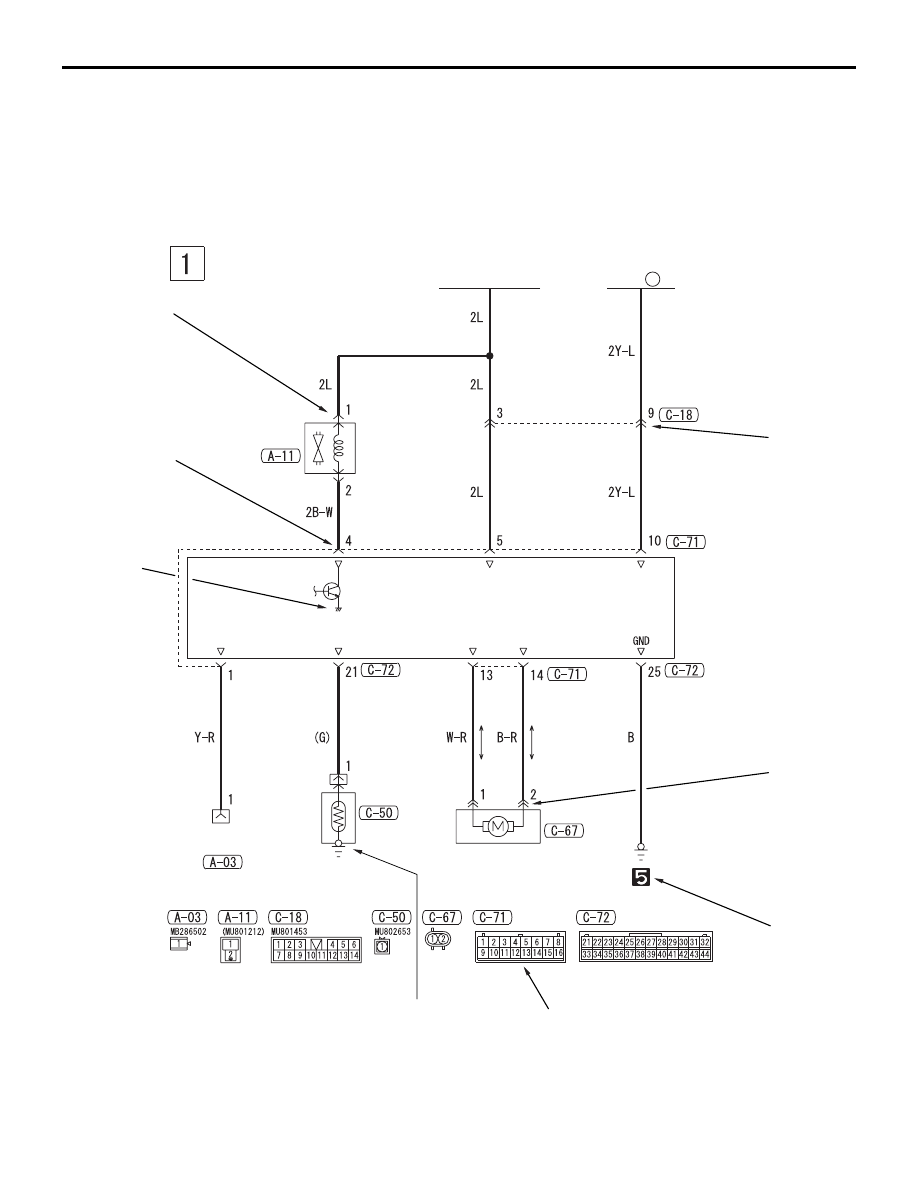

MARKINGS FOR CONNECTOR AND
EARTHING

M1001007900162

AC208460

IGNITION
SWITCH (IG1)

FUSIBLE
LINK

1

SOLENOID
VALVE

ECU

INSPECTION
CONNECTOR

SENSOR

MOTOR

AB

3

1

8

7

2

6

4

5

HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-6

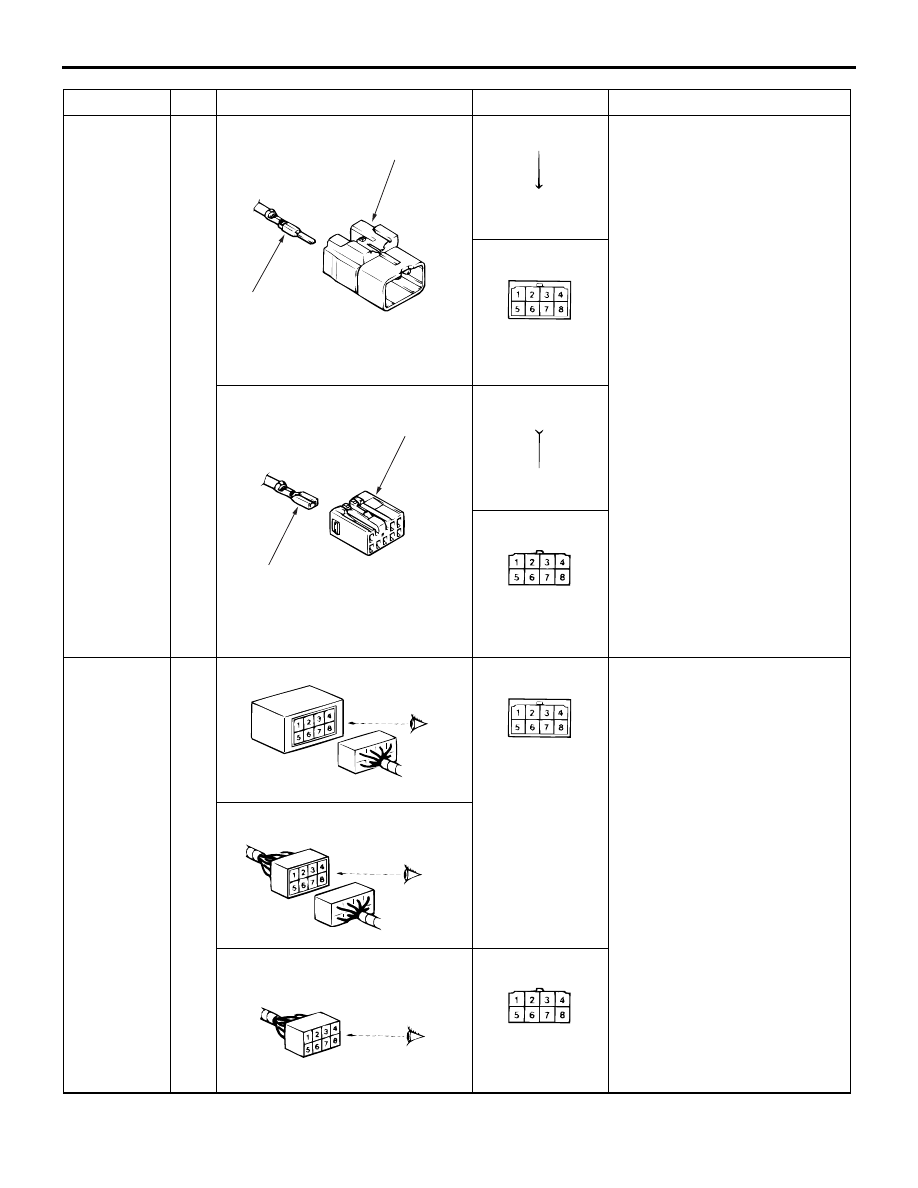

Item

No.

Connector/Earthing

Symbol

Contents

Connector
and terminal
marking

1

ACX01251AE

Male terminal

Male connector

ACX01252AD

Male terminal

The male and female terminals
are indicated as shown. The
connector with male terminal(s)
is called as male connector and
indicated by two connector
contour lines, while the
connector with female
terminal(s) is called as female
connector and indicated by
single connector contour line.

ACX01253 AI

Male connector

ACX01254 AD

Female terminal

Female connector

ACX01255AD

Female terminal

ACX01256 AH

Female connector

Connector
symbol
marking

2

ACX01257AD

Device

ACX01253

The symbol indicates the
connector is viewed as shown.
At a device connection, the
connector symbol on the device
side is shown. For an
intermediate connector, the
male connector symbol is
shown. For spare connectors
and check connectors, no
device is connected, and so the
harness-side connector symbol
is shown for these connectors.
However, a diagnosis connector
is exceptional.

ACX01258AD

Intermediate connector

ACX01816

Spare connector, check connector

AD

ACX01256

HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-7

WIRE COLOUR CODE

M1001008000195

Wire colours are identified by the following colour
codes.

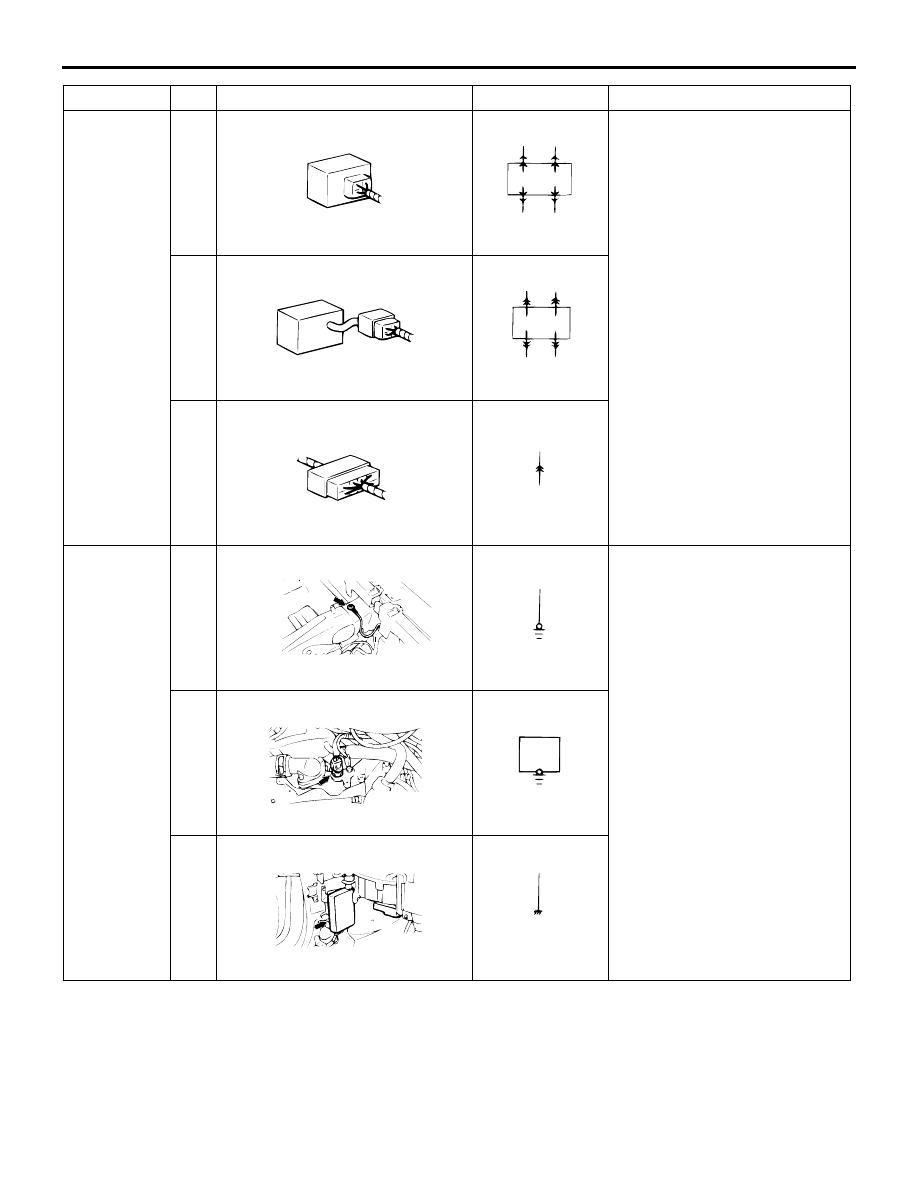

Connector
connection
marking

3

ACX01260 AD

Direct connection type

ACX01261

Connection between a device
and the harness is either by
direct insertion in the device
(direct connection type) or by
connection with a harness
connector furnished on the
device side (harness
connection type). The two types
are indicated as illustrated.

4

ACX01262 AD

Harness connection type

ACX01263

5

ACX01264AD

Intermediate connector

ACX01265

Earth
marking

6

AC208448

AB

Body earth

ACX01274

Earthing is either by body earth,
device earth or control unit
interior earth. These are
indicated as illustrated.

7

AC208449

AB

Device earth

ACX01276

8

AC208450

AB

Earth in control unit

ACX01278

Item

No.

Connector/Earthing

Symbol

Contents

Code

Wire colour

Code

Wire colour

Code

Wire colour

Code

Wire colour

B

Black

L

Blue

PU

Purple

V

Violet

BR

Brown

LG

Light green

R

Red

W

White

G

Green

O

Orange

SB

Sky blue

Y

Yellow

GR

Grey

P

Pink

SI

Silver

−

−

ACX01279 AE

<F>

1.25

G

B

1

2

3

4

Example:

HOW TO READ WIRING DIAGRAMS

GENERAL <ELECTRICAL>

00E-8

If a cable has two colours, the first of the two colour
code characters indicates the basic colour (colour of
the cable coating) and the second indicates the
marking colour.

No.

Meaning

1

<F>: Flexible wire
<T>: Twisted wire

2

Wire size (mm

2

)*

3

Basic colour (colour of the cable coating)

4

Marking colour

NOTE:



*: No code indicates 0.5 mm

2

. Cable colour code in

parentheses indicates 0.3 mm

2

.

ABBREVIATION SYMBOLS

M1001008101593

The abbreviation symbols used in wiring diagrams are defined below.

1. FOR SYSTEM NAME

Abbreviation
symbol

Meaning

Abbreviation
symbol

Meaning

ABS

Anti-skid braking system

LHD

Left hand drive vehicles

ASTC

Active stability and traction control
system

MMCS

Mitsubishi multi-communication
system

CAN

Controller area network

PTC

Positive temperature coefficient

ELC-4A/T

Electronic controlled 4-speed
automatic transmission

RHD

Right hand drive vehicles

ELC-5A/T

Electronic controlled 5-speed
automatic transmission

RV

Recreation vehicle

J/B

Junction block

SRS

Supplemental restraint system

J/C

Joint connector

USB

Universal serial bus
