MODELS 163, up to 31.8.01, 168 with CODE (580) Air conditioning or Tempmatic for USA

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

FLUID RESERVOIR, LOCATION/PURPOSE/FUNCTION - GF83.40-P-2153GI

MODEL 163 (except 163.128) as of 1.9.01 with CODE (580a) Automatic air conditioning

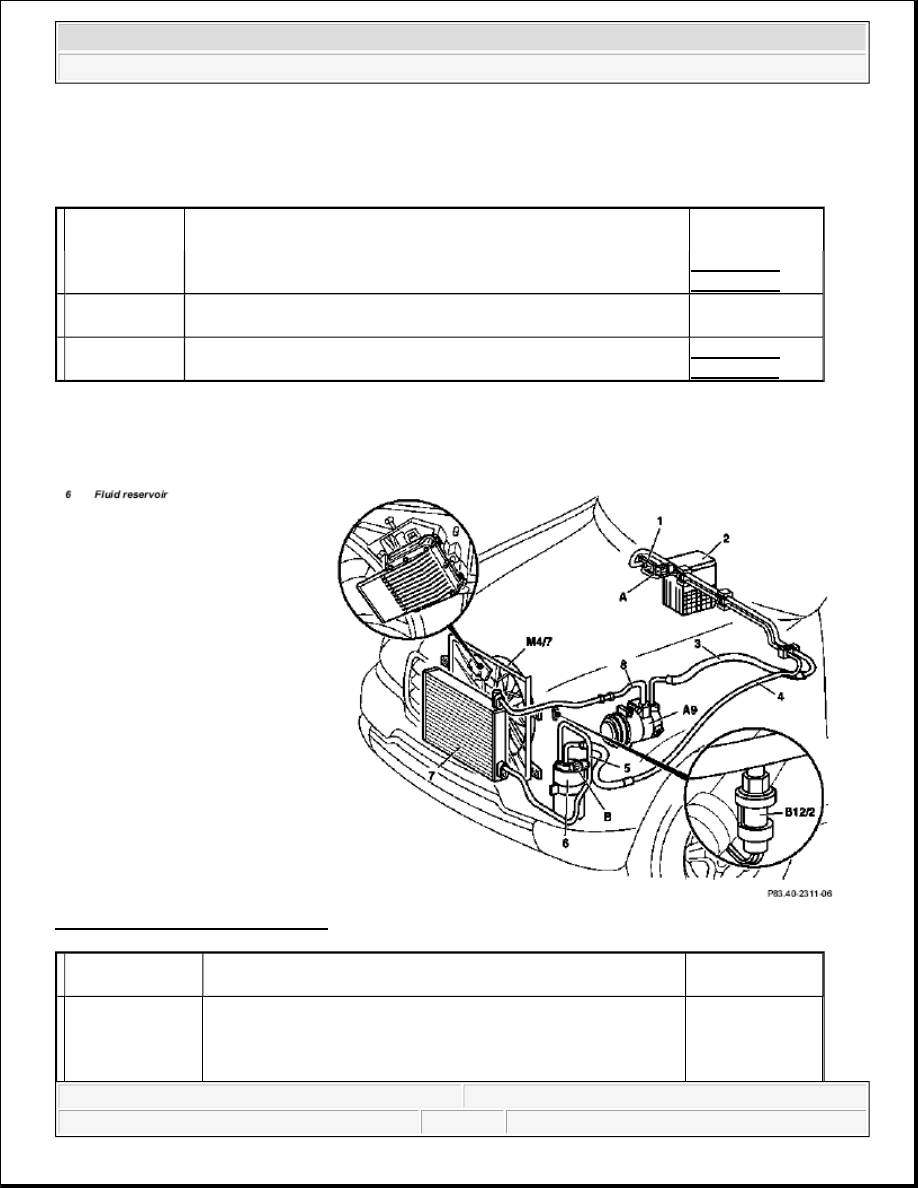

Fig. 93: Identifying Fluid Reservoir



Condenser,
location

Model 168

GF83.40-P-2120-
02GC



Model 163

GF83.40-P-
2120-02GH

  Condenser task

The condenser ensures that the state of the refrigerant coming from
the compressor changes from gaseous to liquid.





Condenser
function



GF83.40-P-
2120-01GC

  Receiver position

The fluid reservoir is located in the engine compartment on the
left front next to the condenser





Fluid reservoir,
purpose



Filtering chemical and mechanical impurities out of the
refrigerant



Volume reservoir for the refrigerant





2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



REFRIGERANT PRESSURE SENSOR, LOCATION/TASK/FUNCTION - GF83.40-P-2156GH

MODEL 163 up to 31.08.01 with CODE (580) Air conditioning or Tempmatic for USA

AIR DISTRIBUTION BUTTON, LOCATION/TASK/FUNCTION - GF83.40-P-2159GI

MODEL 163 as of 01.09 01 with CODE (580a) Automatic air conditioning in the rear ventilation control
panel

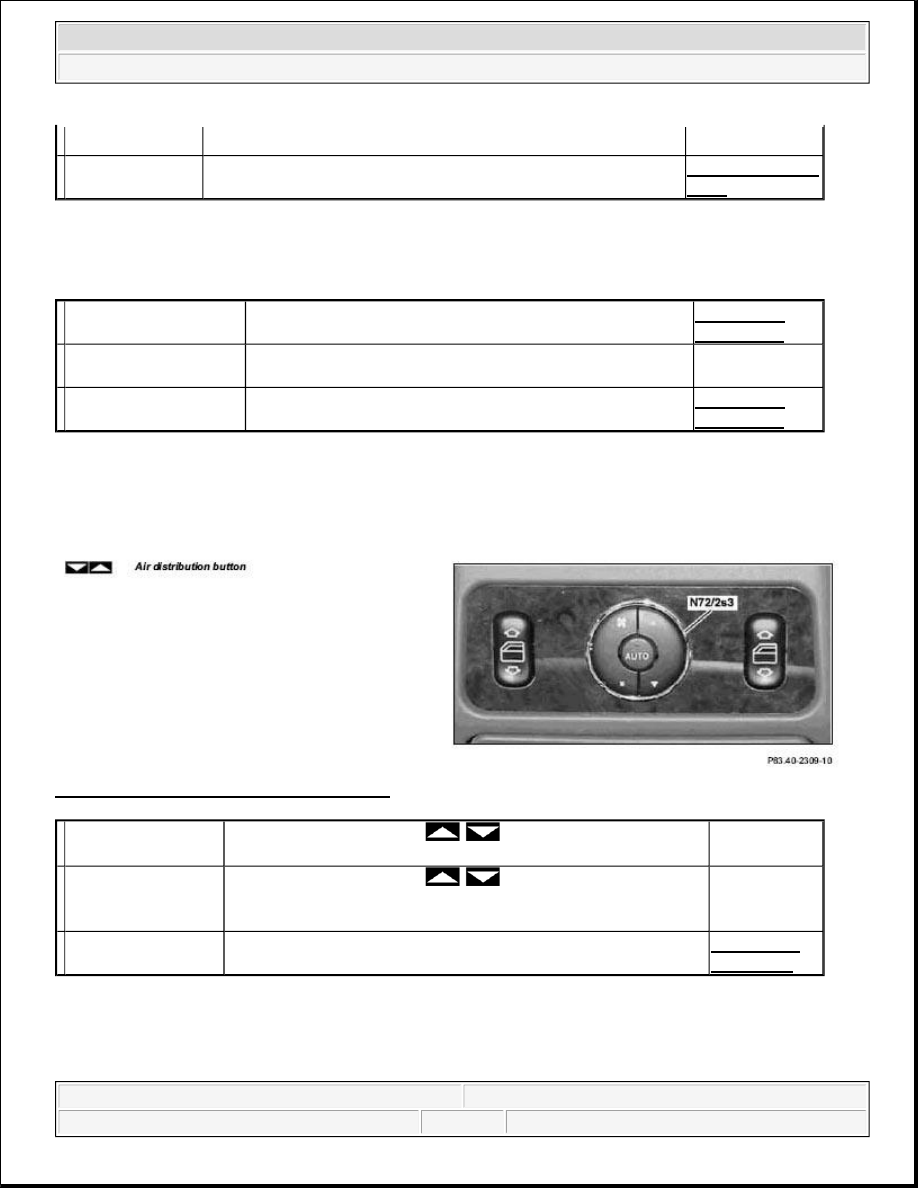

Fig. 94: Identifying Air Distribution Button

AUXILIARY FAN, LOCATION/PURPOSE/FUNCTION - GF83.40-P-2162GH

MODEL 163 up to 31.8.01 with ENGINE 111.977,112.942 /970 with CODE (580) Air conditioning or
Tempmatic for USA



Draining the refrigerant

  Receiver, function

GF83.40-P-2122-
01GI



Refrigerant pressure
sensor, location



GF83.40-P-
2126-02GH



Refrigerant pressure
sensor, task

The refrigerant pressure sensor (B12) detects the refrigerant
pressure and sends it to the All Activity Module.





Refrigerant pressure
sensor, function



GF83.40-P-
2126-01GH



Air distribution
button, location

The air distribution button (

 ) is located in the center in

the rear ventilation control panel (N72/2s3).





Air distribution
button, task

The air distribution button (

 ) controls the air

distribution to the rear area nozzle and the rear legroom air outlets
for ventilating the rear area.





Air distribution push-
button function



GF83.40-P-
2101-01GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



MODEL 163 as of 1.9.01 with ENGINE 112.942 /970 with CODE (580a) Automatic air conditioning

REFRIGERANT PRESSURE AND TEMPERATURE SENSOR, FUNCTION - GF83.40-P-2171-01GI

Detecting the refrigerant pressure

The refrigerant pressure and temperature sensor (B12/2) detects the refrigerant pressure and sends the
determined value via the CAN-BUS to the AAC push-button control module (N22). This value is compared
with a stored temperature/pressure curve.

The refrigerant pressure and temperature sensor (B12/2) operates in a pressure value range of from 0 to 35 bar.

Shutting of the refrigerant compressor

At the following values, the refrigerant compressor is switched off.



refrigerant pressure < 1.75 bar = refrigerant compressor OFF



refrigerant pressure > 30 bar = refrigerant compressor OFF

Switching on the refrigerant compressor

The refrigerant compressor is switched on at the following value



refrigerant pressure > 2.25 bar = refrigerant compressor ON

Detecting the refrigerant temperature

The refrigerant pressure and temperature sensor (B12/2) detects the temperature of the refrigerant and sends the
determined value via the CAN-BUS to the AAC push-button control module (N22). This value is compared
with a stored temperature/pressure curve and the refrigerant level is determined as a result.

With a refrigerant level that is too low, the refrigerant compressor is switched off by the AAC push-button
control module (N22) via the CAN-BUS.

The AC OFF mode is activated and can no longer be quit. Only when the error has been eliminated and the
diagnostic trouble code memory in the AAC push-button control module (N22) has been erased will the system
be operational again.



Auxiliary fan,
location



GF83.40-P-2115-
02GH



Auxiliary fan,
purpose

The left auxiliary fan (M4m1) and right auxiliary fan (M4m2) serve
for cooling the coolant and the refrigerant.





Auxiliary fan,
function

up to 31.08.01

GF83.40-P-2115-
01GH



as of 1.09.01

GF83.40-P-2115-
01GI



2001 Mercedes-Benz ML320

1998-2005 HVAC Climate Control - 163 Chassis



me



The refrigerant pressure and temperature sensor (B12/2) operates in a temperature value range of from -10°C to
+90°C.

Cut-in of electric suction-type fan for engine and AC with integrated control (M4/7)

At the following values the electric suction-type fan for engine and AC with integrated control (M4/7) is
actuated:



refrigerant pressure < 14 bar = fan OFF



Refrigerant pressure > 20 bar = fan ON (100 %)



refrigerant pressure 14 to 20 bar = Continuous linear increase in fan speed (20 -100 %)

REFRIGERANT PRESSURE AND TEMPERATURE SENSOR POSITION/TASK/FUNCTION - GF83.40-P-2171GI

MODEL 163 as of 01.09.01 with CODE (580a) Automatic air conditioning

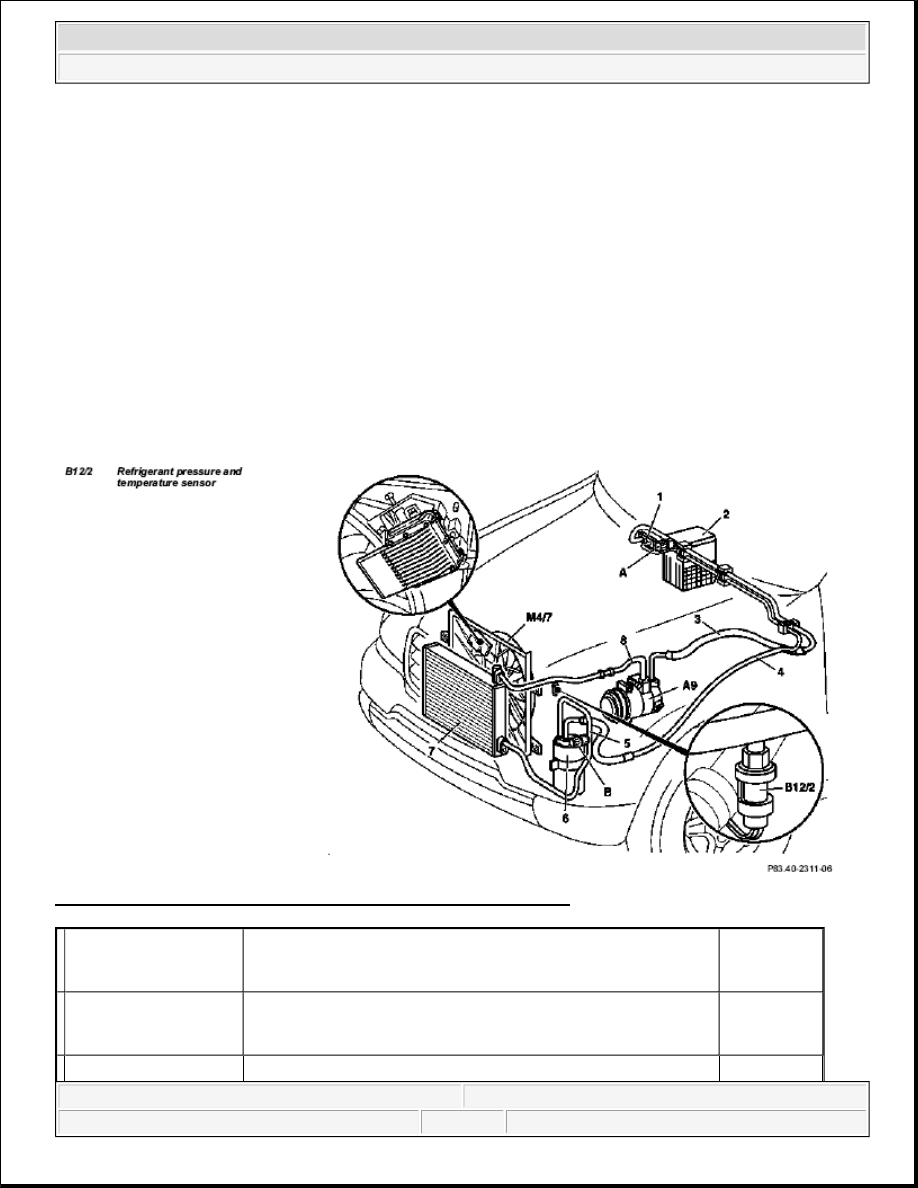

Fig. 95: Identifying Refrigerant Pressure And Temperature Sensor



Refrigerant pressure
and temperature sensor,
location

The refrigerant pressure sensor (B12/2) is located at the front left
in the engine compartment at the high-pressure line (8) between
the refrigerant compressor (A9) and the capacitor (7).





Refrigerant pressure
and temperature sensor,
task

The refrigerant pressure and temperature sensor (B12/1) detects
the refrigerant pressure and the refrigerant temperature and sends
these values to the AAC push-button control module (N22).



Refrigerant pressure
