AIR BAG SAFETY PRECAUTIONS

Observe following precautions when working with air bag systems:

When working around steering column components and before any repairs are performed, disable air bag
system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

Before straightening any damage to body, or before performing electrical arc-welding, disable air bag
system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

Always wear safety glasses and gloves when handling a deployed air bag module. Air bag module may
contain sodium hydroxide deposits which are irritating to the skin.

DO NOT repair any portion of SRS wiring harness.

Always handle air bag module with trim cover away from your body. Always place air bag module on
workbench with trim cover up, away from loose objects.

DO NOT expose any SRS component to temperatures in excess of 212 F (100 C).

DO NOT expose any SRS component to cleaning agents such as solvents, gasoline, lye, etc.

DO NOT connect Hand-Held Tester (6511 0001 99) to Data Link Connector (DLC) with ignition on.
Damage to HHT may result.

DO NOT connect HHT (6511 0001 99) to vehicle if a battery charger is connected to vehicle battery.
Damage to HHT may result.



2001 Mercedes-Benz ML320

2000-01 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems





2001 Mercedes-Benz ML320

2000-01 ACCESSORIES/SAFETY EQUIPMENT Mercedes-Benz - Air Bag Restraint Systems



me



me



AR68.30-P-4050GH

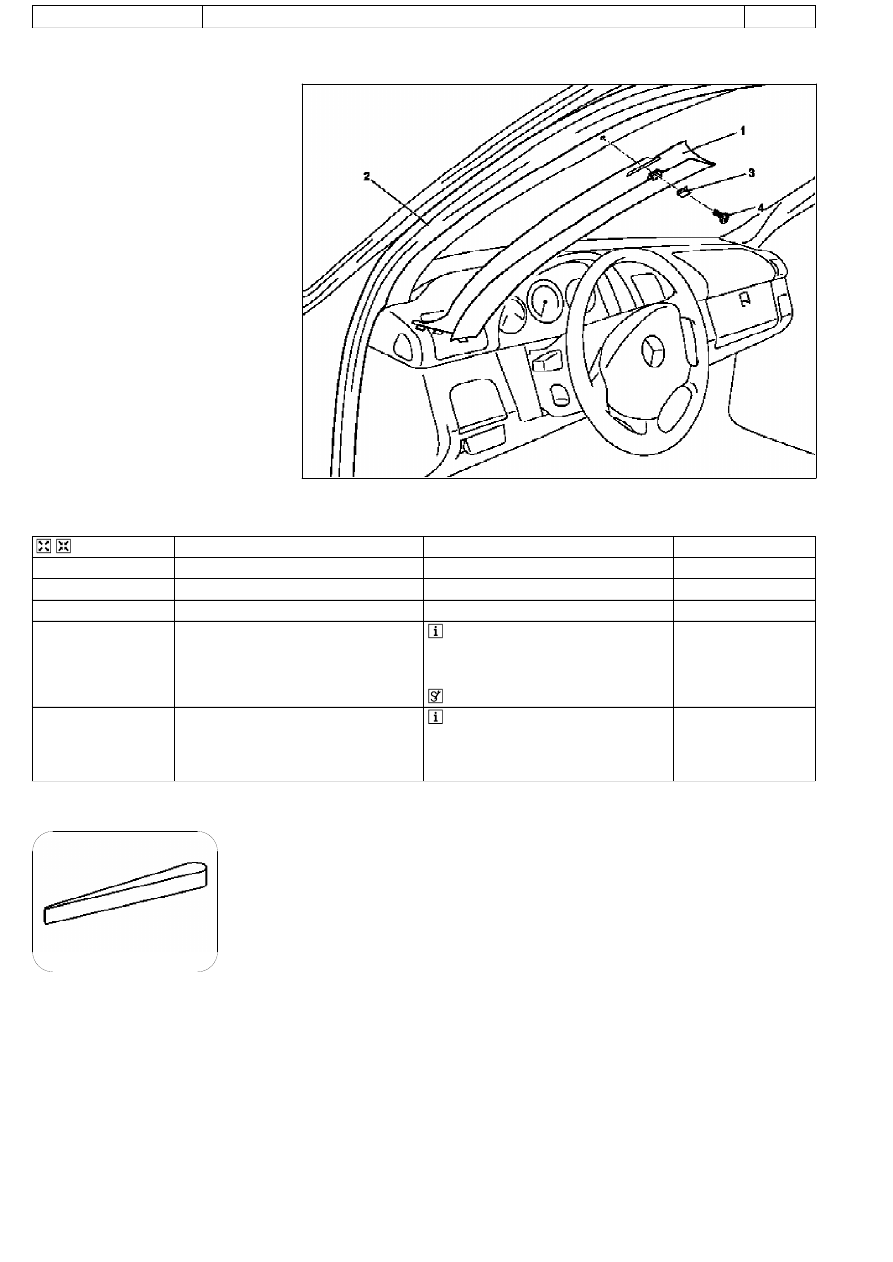

Removing and installing paneling on A-pillar

12.3.97

MODELS  163.113 /128 /136 /154 /157 /172 /174 /175

P68.30-0537-06

Vehicle illustrated up to 31.8.98

1

A-pillar paneling

2

Door rubber seal

3

Cover cap

4

Bolt



Remove/install

1

Remove door rubber seal (2) in area of A-pillar

2.1

Remove cap (3)

Up to 08/98.

3.1

Unscrew screw (4)

Up to 08/98.

4

Remove A-pillar paneling (1)

 The paneling is fastened in the instrument

panel at the bottom with lugs and will be
fastened with a clip at top as of 09/98.

Installation: Replace clip

 Long wedge

*115589035900

5

Install in the reverse order

 On vehicles up to 08/98, on which a new

paneling should be installed, the upper area
of the fixing opening at the top of the A-pillar
must be enlarged so that the clip retainer of
the paneling can be installed in the A-pillar.

Long wedge

115 589 03 59 00

Copyright DaimlerChrysler AG  09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

GF54.15-P-1255GH

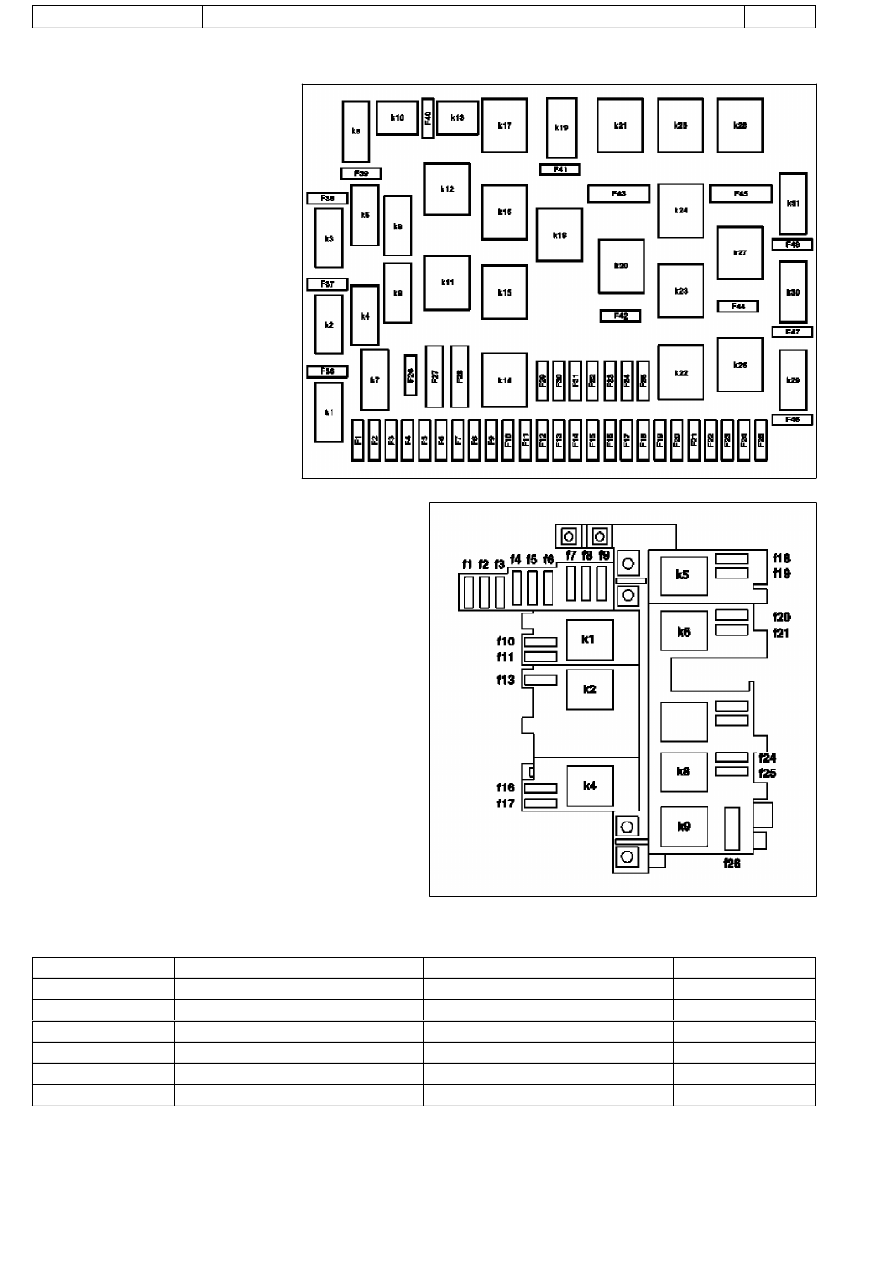

Assignment and cable connections of fuse blocks

18.3.97

MODEL

163

P54.15-0438-06

Fuses

1-42

Relay

k1-k32

P54.15-2486-12

Overview of fuse and relay module in right front footwell

Fuse and relay box, fuses, relay holder

Engines 612.963 and 628.963

GF54.15-P-1255-12G

Fuse and relay box, fuses, relay holder

up to 31.08.01

GF54.15-P-1255-15GH

Fuse and relay box, fuses, relay holder

as of 01.09.01

GF54.15-P-1255-15GA

Fuse and relay box, fuses, relay holder

Fuse and module box in right front footwell

GF54.15-P-1255-15GI

Fuse and relay box, relay/relay holder

up to 31.08.01

GF54.15-P-1255-18GH

Fuse and relay box, relay/relay holder

as of 01.09.01

GF54.15-P-1255-18GA

Fuse and relay box, relay/relay holder

Fuse and module box in right front footwell

GF54.15-P-1255-18GI

Copyright DaimlerChrysler AG  28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorded by Modification services.

Page 1

1998-03 AUTOMATIC TRANSMISSIONS

Complete Transmissions - ML 320 - 722.662

MODEL IDENTIFICATION

MODEL IDENTIFICATION

COMPLETE TRANSMISSION

REMOVE/INSTALL OIL PUMP

Model (Year)

Chassis

Engine

Transmission

ML320 (2001-03)

163.154

112.942

722.662



2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662





2001 Mercedes-Benz ML320

1998-03 AUTOMATIC TRANSMISSIONS Complete Transmissions - ML 320 - 722.662
