Maintenance and Care
Owner Maintenance
The top of the fluid level is lower than E

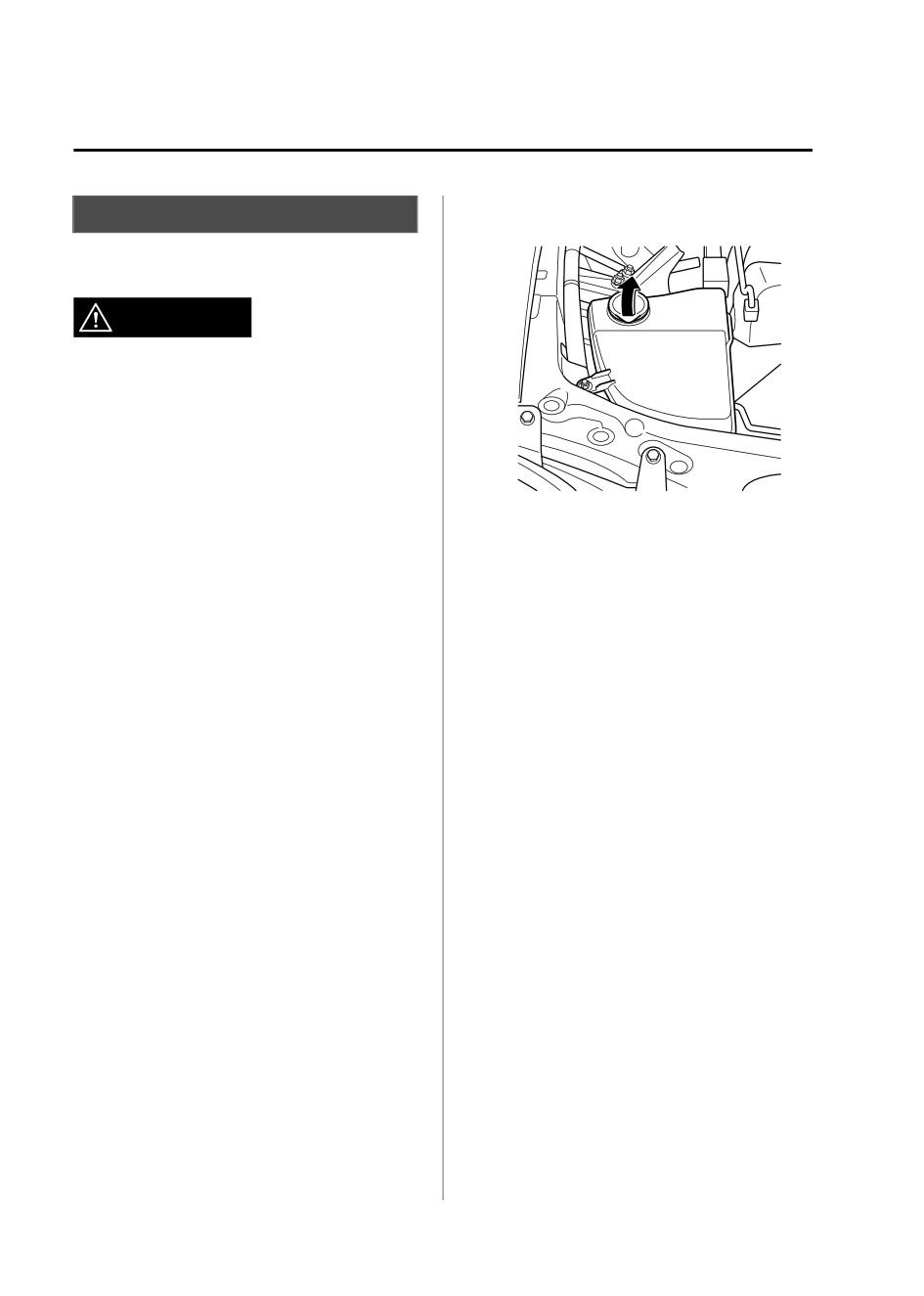

Washer Fluid
(if equipped).
Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.
Using Washer Fluid Without Anti-freeze
Use plain water if washer fluid is
Protection in Cold Weather:
unavailable.
Operating your vehicle in temperatures
But use only washer fluid in cold weather
below 4 °C (40 °F) using washer fluid
to prevent it from freezing.
without anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In cold
weather, always use washer fluid with
anti-freeze protection.
NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.
The Low Washer Fluid Level Warning
Indication/Warning Light (if equipped)
turns on.
6-24
Maintenance and Care
Owner Maintenance
Body Lubrication
Wiper Blades
All moving points of the body, such as
door and hood hinges and locks, should be
CAUTION
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
¾ Hot waxes applied by automatic car
locks during cold weather.
washers have been known to affect the
wiper's ability to clean windows.
Make sure the hood's secondary latch
¾ To prevent damage to the wiper blades,
keeps the hood from opening when the
do not use gasoline, kerosene, paint
primary latch is released.
thinner, or other solvents on or near
them.
¾ When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾ If the windshield above the rain sensor
is touched.
¾ If the windshield above the rain sensor
is wiped with a cloth.
¾ If the windshield is struck with a hand
or other object.
¾ If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fingers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
6-25
Maintenance and Care
Owner Maintenance

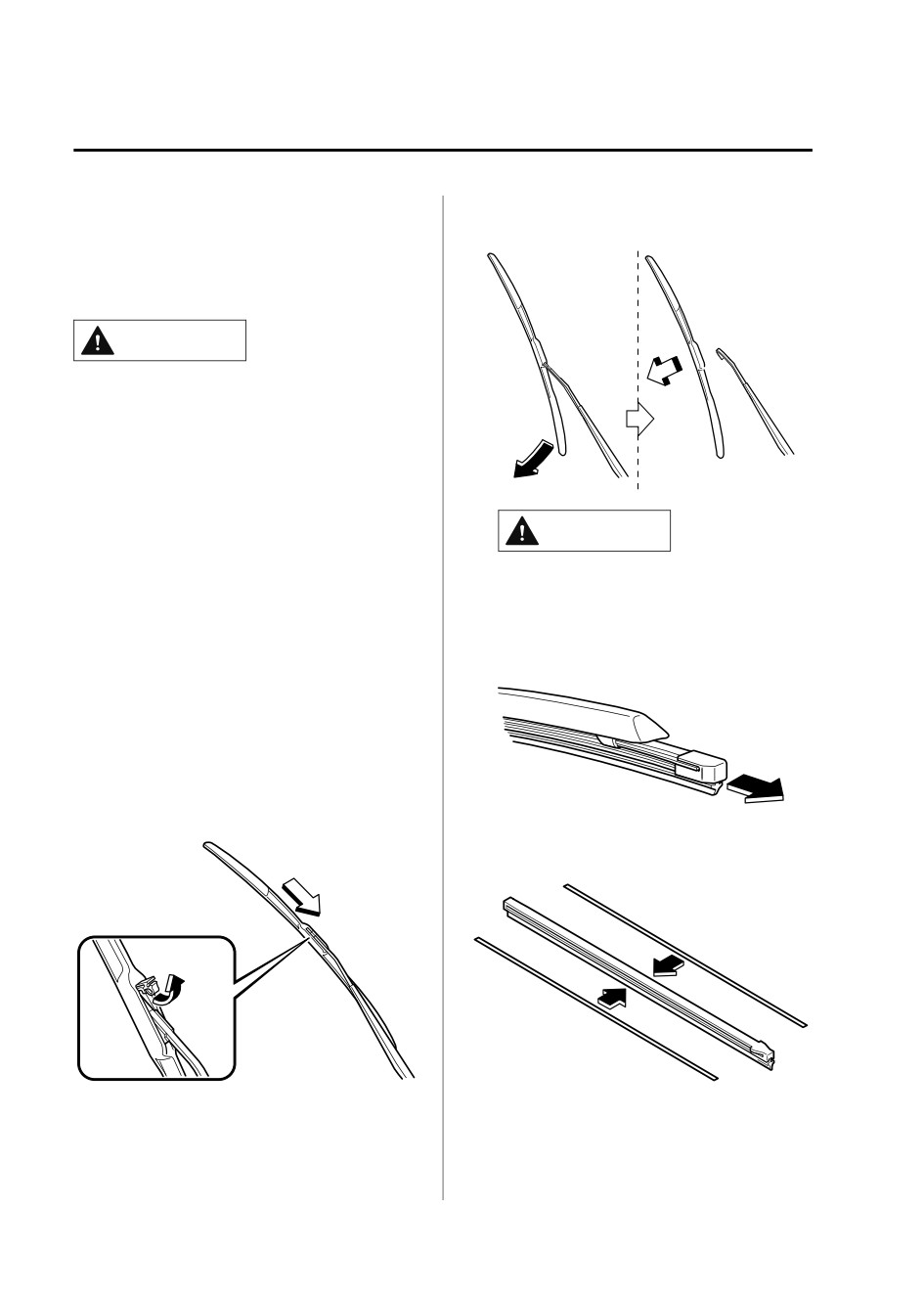

Replacing Windshield Wiper Blades
3.
Tilt the blade assembly and remove it
from the arm.
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
To prevent damage to the wiper arms and
other components, do not try to sweep the
wiper arm by hand.
NOTE
When raising both windshield wiper arms,
raise the driver's side wiper arm first.
CAUTION
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
To prevent damage to the windshield
side first while supporting it with your
let the wiper arm down easily, do not
hand. Forcefully lowering the wiper arms
let it slap down on the windshield.
could damage the wiper arm and blade,
4.
Pull down the blade rubber and slide it
and may scratch or crack the windshield.
out of blade holder.

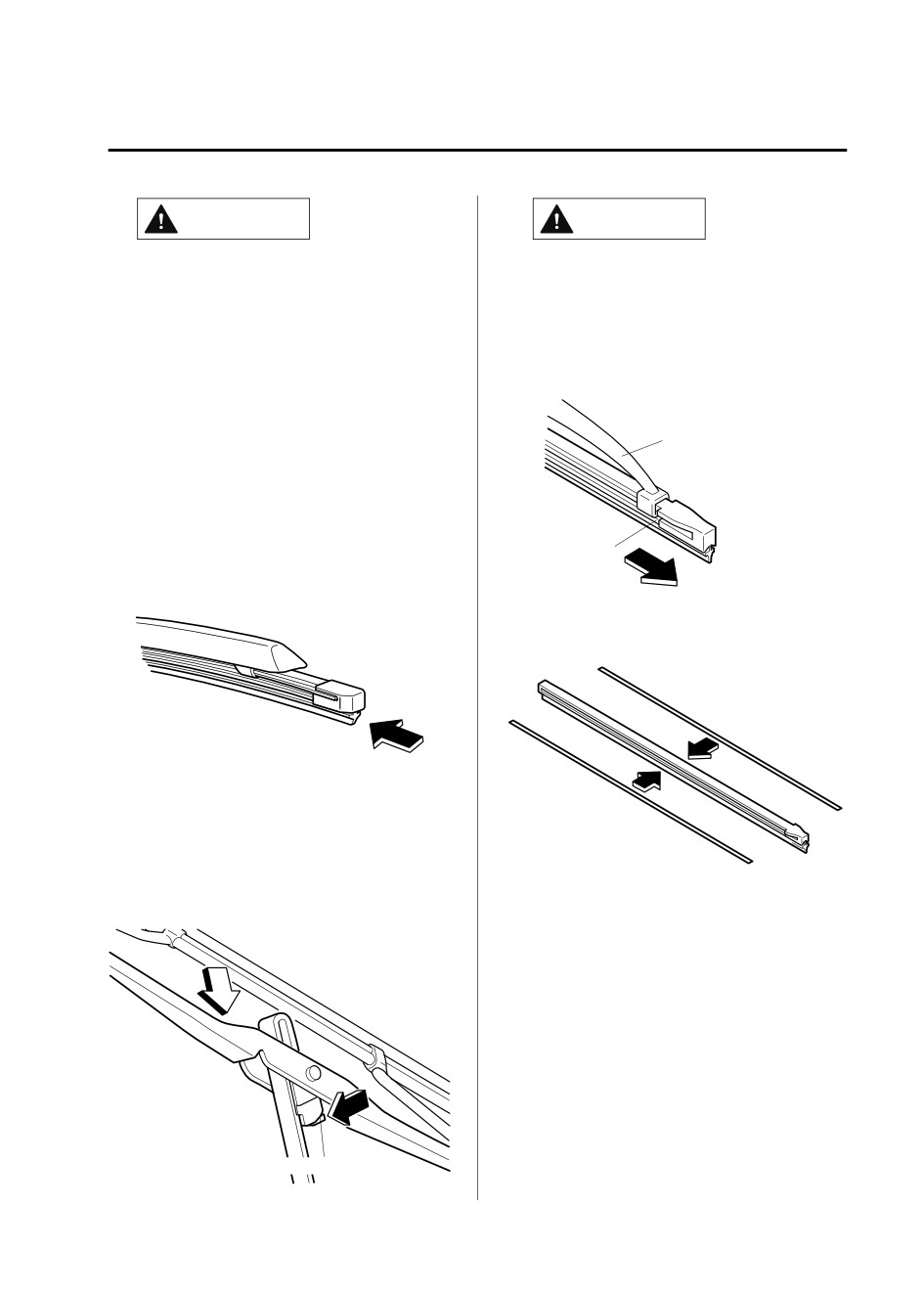

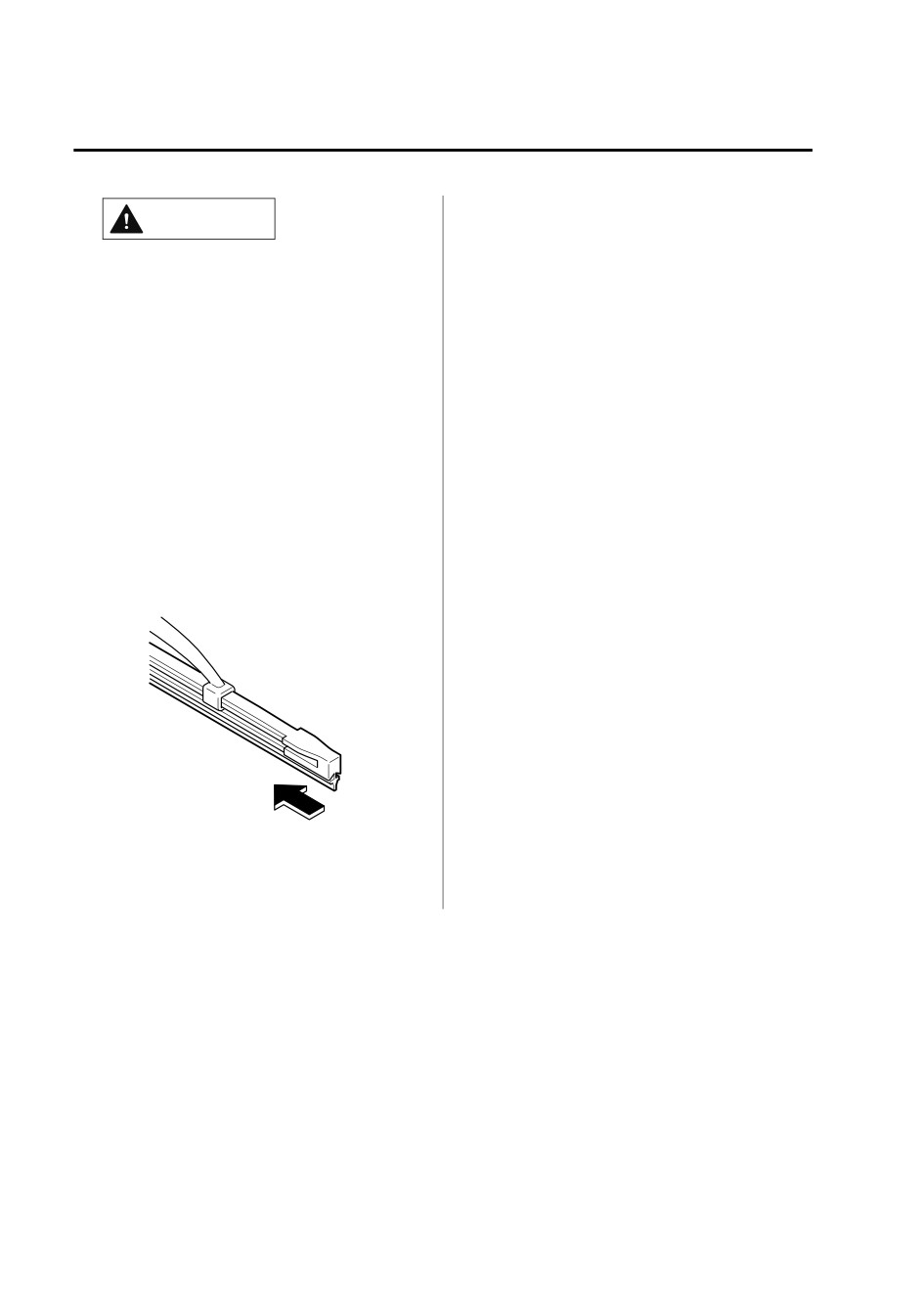

Replace the wiper blades using the
following procedure.
(Type A)
1. Raise the wiper arm.
2. Open the clip and slide the blade
5.
Remove the metal stiffeners from each
assembly in the direction of the arrow.
blade rubber and install them in the
new blade.
6-26
Maintenance and Care
Owner Maintenance
CAUTION
CAUTION
¾ Do not bend or discard the stiffeners.
To prevent damage to the windshield
You need to use them again.
let the wiper arm down easily, do not
¾ If the metal stiffeners are switched,
let it slap down on the windshield.
the blade's wiping efficiency could be
2. Hold the end of the rubber and pull
reduced.
until the tabs are free of the metal
So do not use the driver's side metal
support.
stiffeners on the passenger's side, or
vice versa.
Metal support
¾ Be sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was in
the old blade rubber.
Tab
6. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
3. Remove the metal stiffeners from each
blade rubber and install them in the
new blade.
(Type B)
1. Raise the wiper arm and turn the blade
assembly to expose the plastic locking
clip.
Compress the clip and slide the
assembly downward; then lift it off the
arm.
Plastic locking clip
6-27
Maintenance and Care
Owner Maintenance
CAUTION
¾ Do not bend or discard the stiffeners.
You need to use them again.
¾ If the metal stiffeners are switched,
the blade's wiping efficiency could be
reduced.
So do not use the driver's side metal
stiffeners on the passenger's side, or
vice versa.
¾ Be sure to reinstall the metal
stiffeners in the new blade rubber so
that the curve is the same as it was in
the old blade rubber.
4. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are
toward the bottom of the wiper arm.
6-28
Maintenance and Care
Owner Maintenance

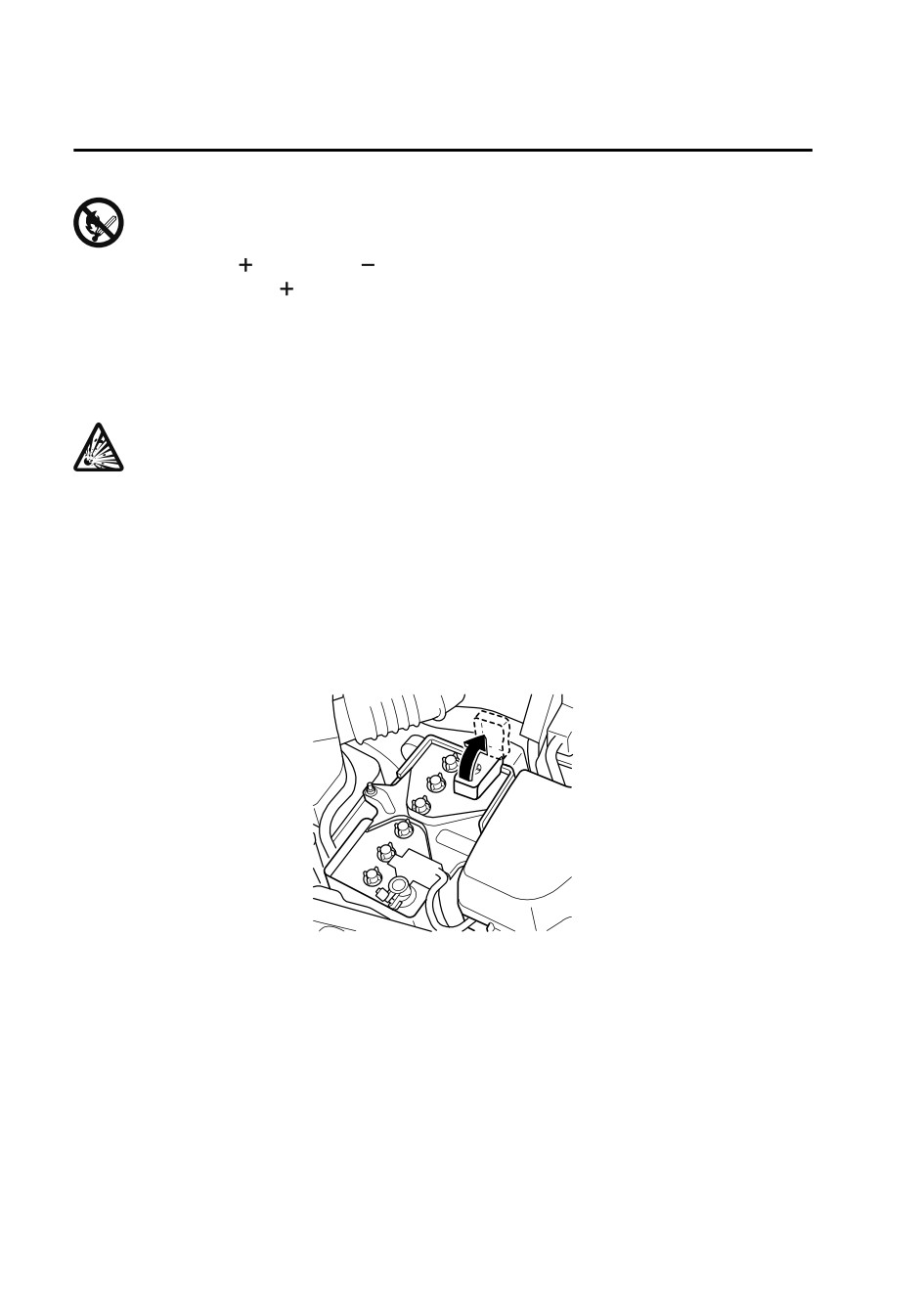

Battery
WARNING
Wash hands after handling the battery and related accessories:
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm.
Read the following precautions carefully before using the battery or inspecting to
ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.
6-29
Maintenance and Care
Owner Maintenance
Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (
) or negative (
) terminal of the battery when working near a battery.
Do not allow the positive (
) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen gas is
produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
NOTE
Before performing battery maintenance, remove the battery cover.
6-30
Maintenance and Care
Owner Maintenance

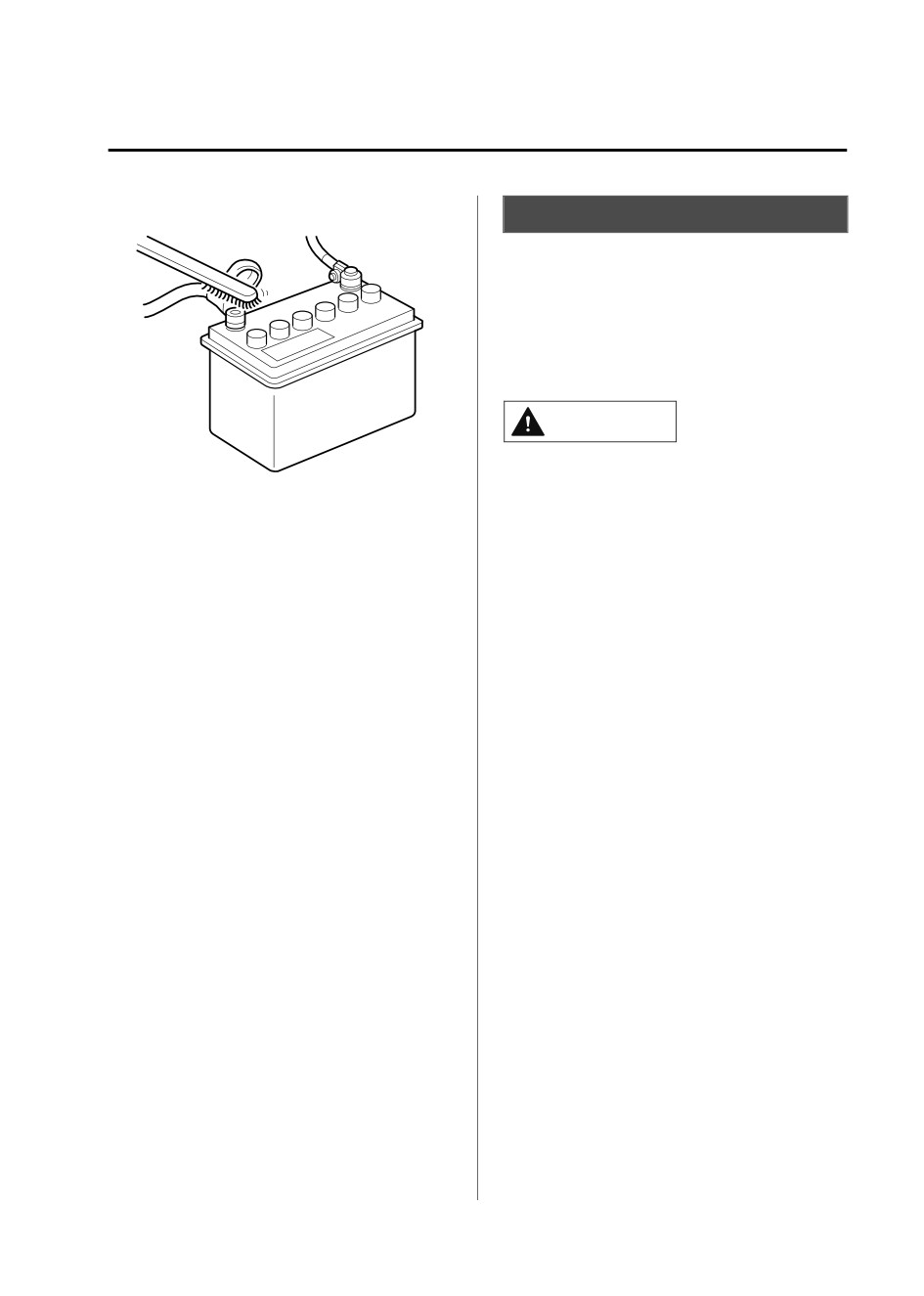

Battery Maintenance
Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
¾ Make sure the battery is installed
To get the best service from a battery:
correctly. Battery leakage could occur if it
is not installed correctly.
Keep it securely mounted.
¾ When replacing the battery, be careful
Keep the top clean and dry.
not to touch any of the internal circuitry
Keep terminals and connections clean,
and electrical terminals, bend the
tight, and coated with petroleum jelly or
electrical terminals, or get dirt in the
terminal grease.
transmitter as the transmitter could be
Rinse off spilled electrolyte immediately
damaged.
with a solution of water and baking
¾ There is the danger of explosion if the
soda.
battery is not correctly replaced.
If the vehicle will not be used for an
¾ Dispose of used batteries according to
extended time, disconnect the battery
the following instructions.
cables and charge the battery every 6
weeks.
¾ Insulate the plus and minus terminals
of the battery using cellophane or
Battery Replacement
equivalent tape.
Contact an Authorized Mazda Dealer for
¾ Never disassemble.
battery replacement.
¾ Never throw the battery into fire or
water.
¾ Never deform or crush.
¾ Replace only with the same type battery
(CR2032 or equivalent).
6-31
Maintenance and Care
Owner Maintenance
The following conditions indicate that the
2.
Press in the tab to unlock the upper
battery power is low:
cover.
The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is switched
OFF (for vehicles with a type A
instrument cluster (page 4-27), messages
are displayed in the instrument cluster).
The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
The system's operational range is
3.
Insert a tape-wrapped flathead
reduced.
screwdriver into the gap and slide it in
the direction of the arrow.
Replacing the battery at an Authorized
Mazda Dealer, is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.

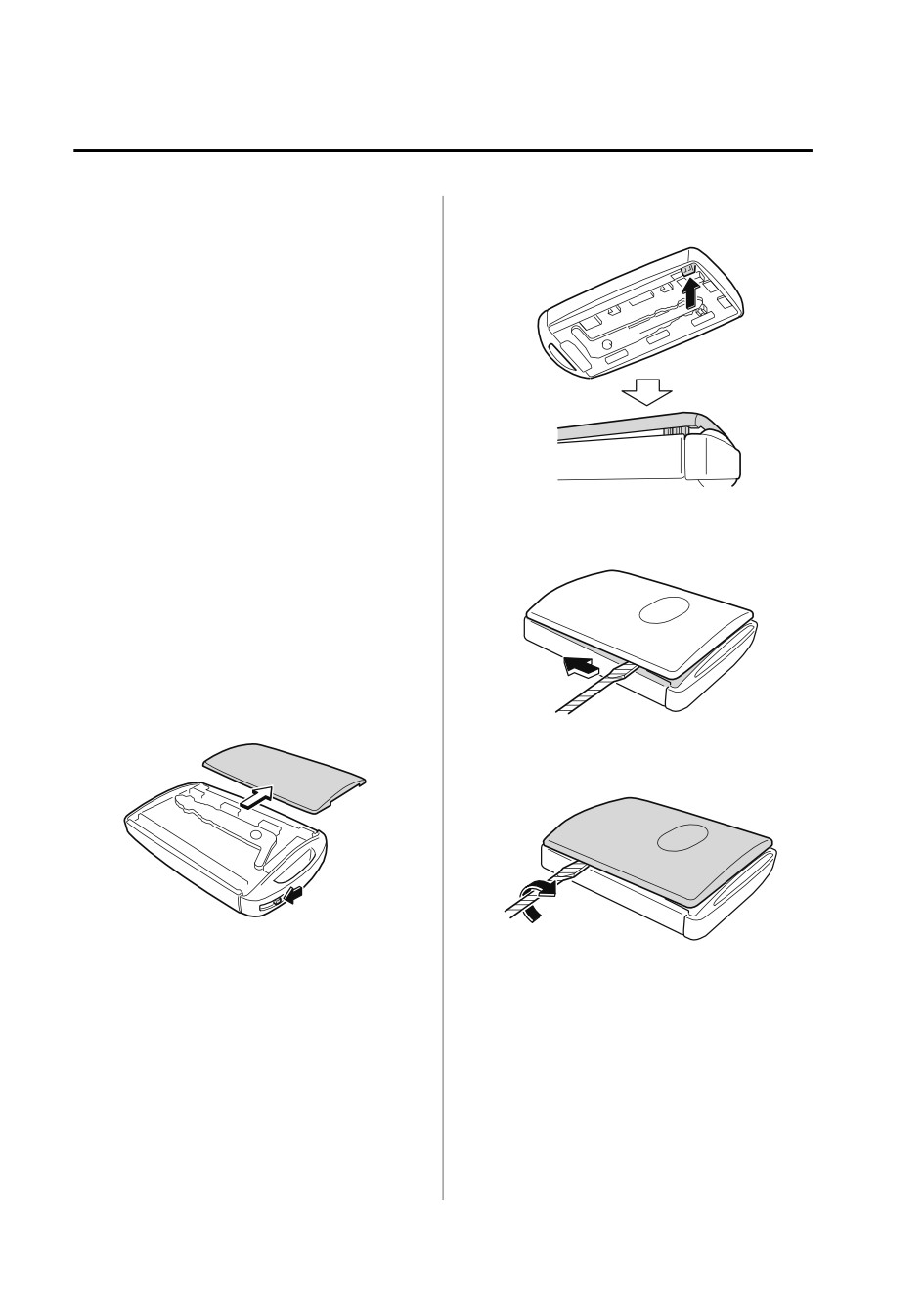

Replacing the key battery
1. Remove the lower cover while sliding
the knob in the direction of the arrow.
4.
Twist the flathead screwdriver in the
direction of the arrow and remove the
upper cover.
6-32
Maintenance and Care
Owner Maintenance

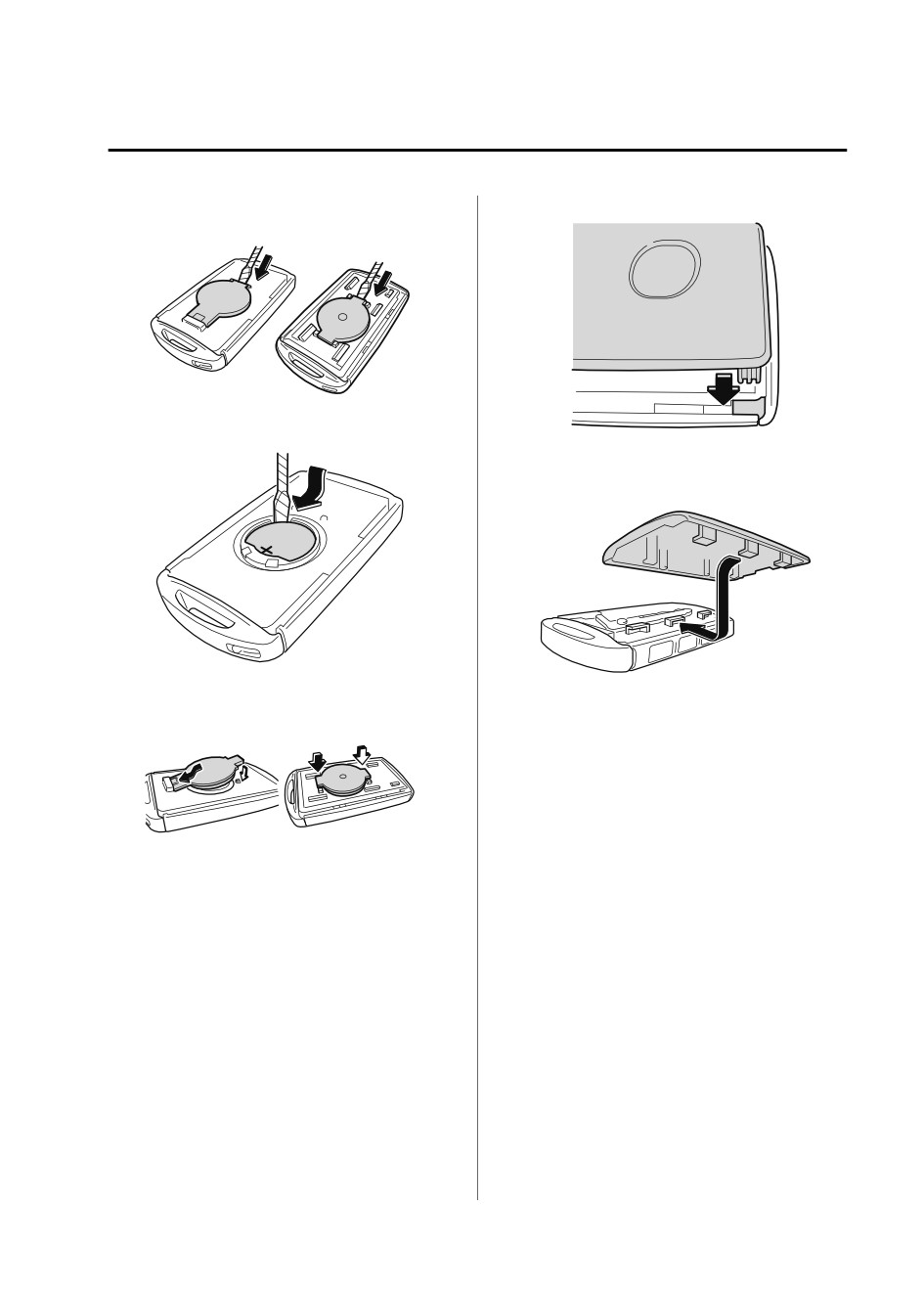

5. Remove the cap using the
9. Install the upper cover.
tape-wrapped flathead screwdriver.
6. Remove the battery using
tape-wrapped flathead screwdriver.
10. Insert the tabs of the lower cover into
the slots of the transmitter and install
the lower cover.
7. Insert a new battery into the transmitter
so that the positive pole is facing up.
8. Install the cap.
6-33
Maintenance and Care
Owner Maintenance
Use only a Mazda-genuine tire valve cap:
Tires
Use of a non-genuine part is dangerous as
For reasons of proper performance, safety,
the correct tire air pressure cannot be
and better fuel economy, always maintain
maintained if the tire valve becomes
recommended tire inflation pressures and
damaged. If the vehicle is driven under this
stay within the recommended load limits
condition, the tire air pressure will decrease
and weight distribution.
which could result in a serious accident. Do
not use any part for the tire valve cap that
WARNING
is not a Mazda-genuine part.
Inspect all tire pressures monthly when the
Using Different Tire Types:
tires are cold. Maintain recommended
Driving your vehicle with different types of
pressures for the best ride, handling, and
tires is dangerous. It could cause poor
minimum tire wear.
handling and poor braking; leading to loss
Refer to the specification charts (page
of control.
9-9).
Except for the limited use of the temporary
NOTE
spare tire, use only the same type tires
(radial, bias-belted, bias-type) on all four
Always check tire pressure when tires
wheels.
are cold.
Warm tires normally exceed
Using Wrong-Sized Tires:
recommended pressures. Do not release
Using any other tire size than what is
air from warm tires to adjust the
specified for the vehicle (page 9-9) is
pressure.
dangerous. It could seriously affect ride,
Underinflation can cause reduced fuel
handling, ground clearance, tire clearance,
economy, uneven and accelerated tire
and speedometer calibration. This could
wear, and poor sealing of the tire bead,
cause you to have an accident. Use only
which will deform the wheel and cause
tires that are the correct size specified for
separation of tire from rim.
the vehicle.
Overinflation can produce a harsh ride,
uneven and accelerated tire wear, and a
Tire Inflation Pressure
greater possibility of damage from road
hazards.
WARNING
Keep your tire pressure at the correct
levels. If one frequently needs inflating,
have it inspected.
Always inflate the tires to the correct
pressure:
Overinflation or underinflation of tires is
dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-9.
6-34
Maintenance and Care
Owner Maintenance

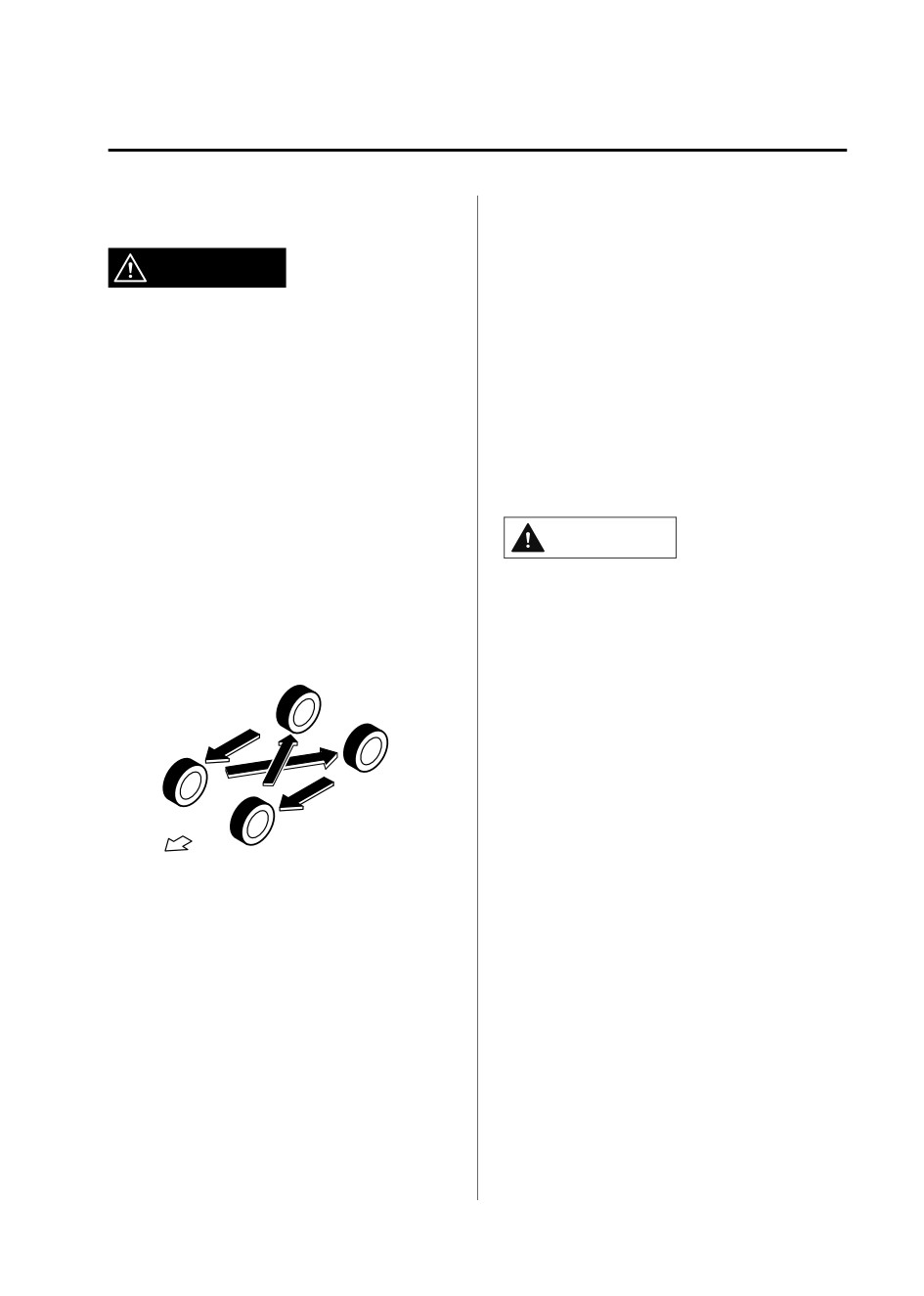

Tire Rotation
Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:
WARNING
Incorrect tire pressure
Rotate tires periodically:
Improper wheel alignment
Irregular tire wear is dangerous. To
Out-of-balance wheel
equalize tread wear for maintaining good
Severe braking
performance in handling and braking,
rotate the tires every 12,000 km (7,500
miles). However Mazda recommends to
After rotation, inflate all tire pressures to
rotate every 8,000 km (5,000 miles) to help
specification (page 9-9) and inspect the
increase tire life and distribute wear more
lug nuts for tightness.
evenly.
Refer to Scheduled Maintenance on page
CAUTION
6-4.
Rotate unidirectional tires and radial tires
that have an asymmetrical tread pattern or
During rotation, inspect them for correct
studs only from front to rear, not from side
balance.
to side. Tire performance will be reduced if
rotated from side to side.
(With limited-slip differential)
Do not use the following:
¾ Tires not of the designated size
¾ Tires of different sizes or types at the
same time
¾ Tires not sufficiently inflated
Forward
If these instructions are not followed, the
Do not include (TEMPORARY USE ONLY)
rotation of the left and right wheels will be
spare tire in rotation.
different and will thus apply a constant
load on the limited-slip differential.
This will cause a malfunction.
6-35
Maintenance and Care
Owner Maintenance
Replacing a Tire
NOTE
Tires degrade over time, even when they
are not being used on the road. It is
WARNING
recommended that tires generally be
replaced when they are 6 years or older.
Always use tires that are in good condition:
Heat caused by hot climates or frequent
Driving with worn tires is dangerous.
high loading conditions can accelerate the
Reduced braking, steering, and traction
aging process. The period in which the tire
could result in an accident.
was manufactured (both week and year) is
indicated by a 4-digit number.
Replace all four tires at the same time:
Refer to Tire Labeling on page 8-25.
Replacing just one tire is dangerous. It
could cause poor handling and poor
Replacing a Wheel
braking resulting in loss of vehicle control.
Mazda strongly recommends that you
WARNING
replace all four tires at the same time.

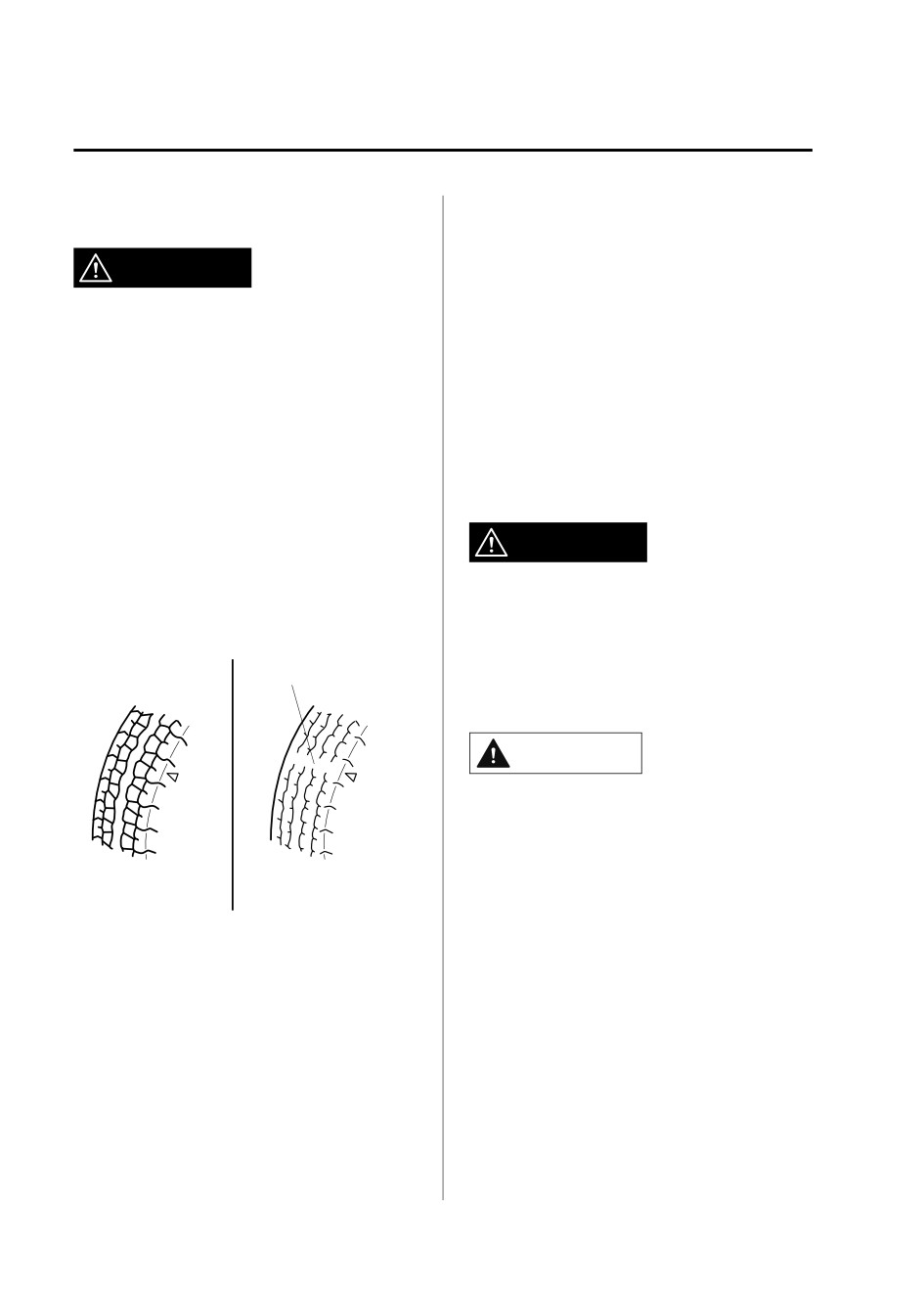

If a tire wears evenly, a wear indicator will
Always use wheels of the correct size on
appear as a solid band across the tread.
your vehicle:
Replace the tire when this happens.
Using a wrong-sized wheel is dangerous.
Tread wear indicator
Braking and handling could be affected,
leading to loss of control and an accident.
CAUTION
A wrong-sized wheel may adversely affect:
¾ Tire fit
¾ Wheel and bearing life
New tread
Worn tread
¾ Ground clearance
¾ Snow-chain clearance
You should replace the tire before the band
¾ Speedometer calibration
crosses the entire tread.
¾ Headlight aim
¾ Bumper height
¾ Tire Pressure Monitoring System
6-36
Maintenance and Care
Owner Maintenance
NOTE
When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).
For details, contact an Authorized
Mazda Dealer.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
6-37
Maintenance and Care
Owner Maintenance

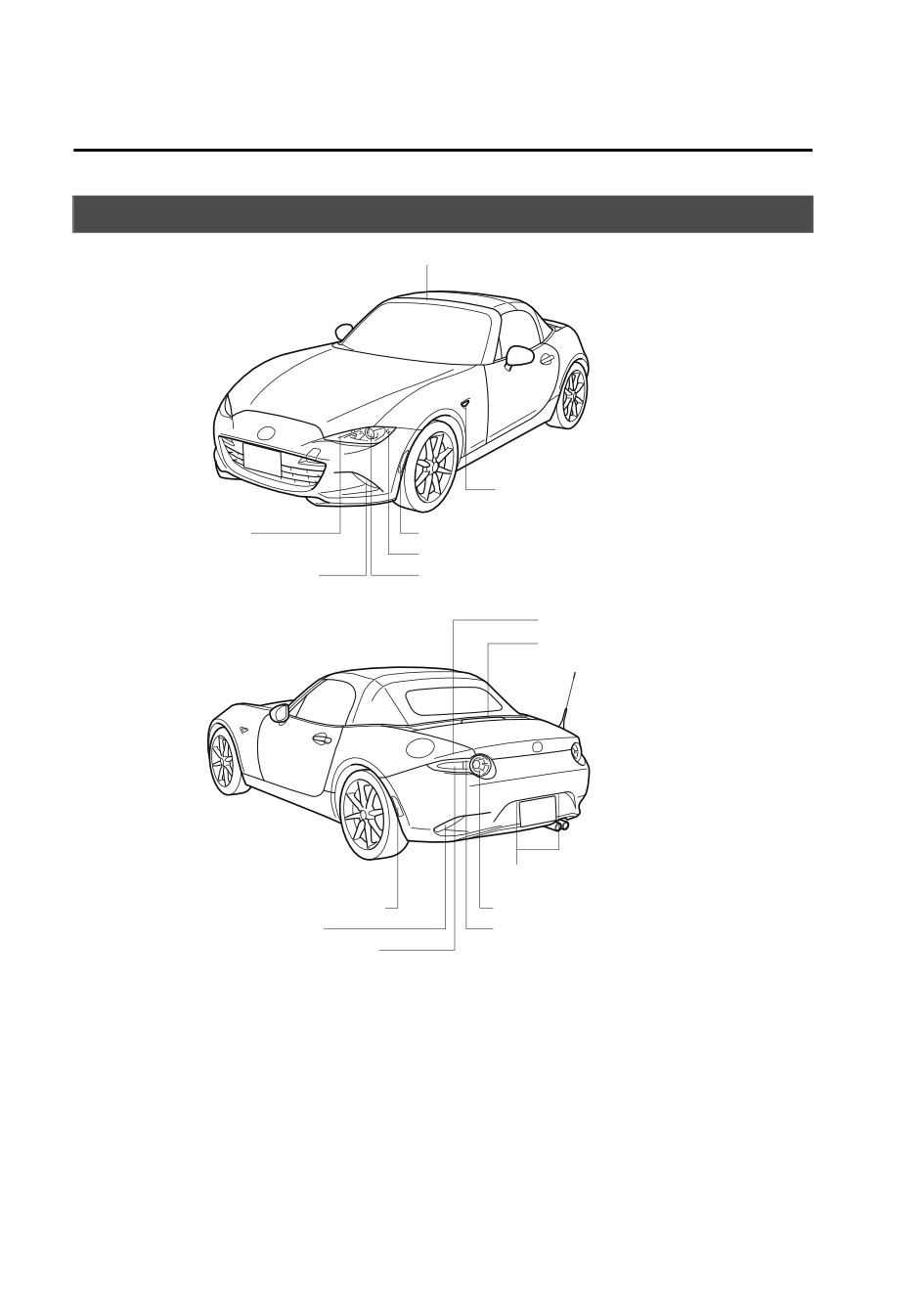

Light Bulbs
Overhead light
Side turn signal lights
Parking lights

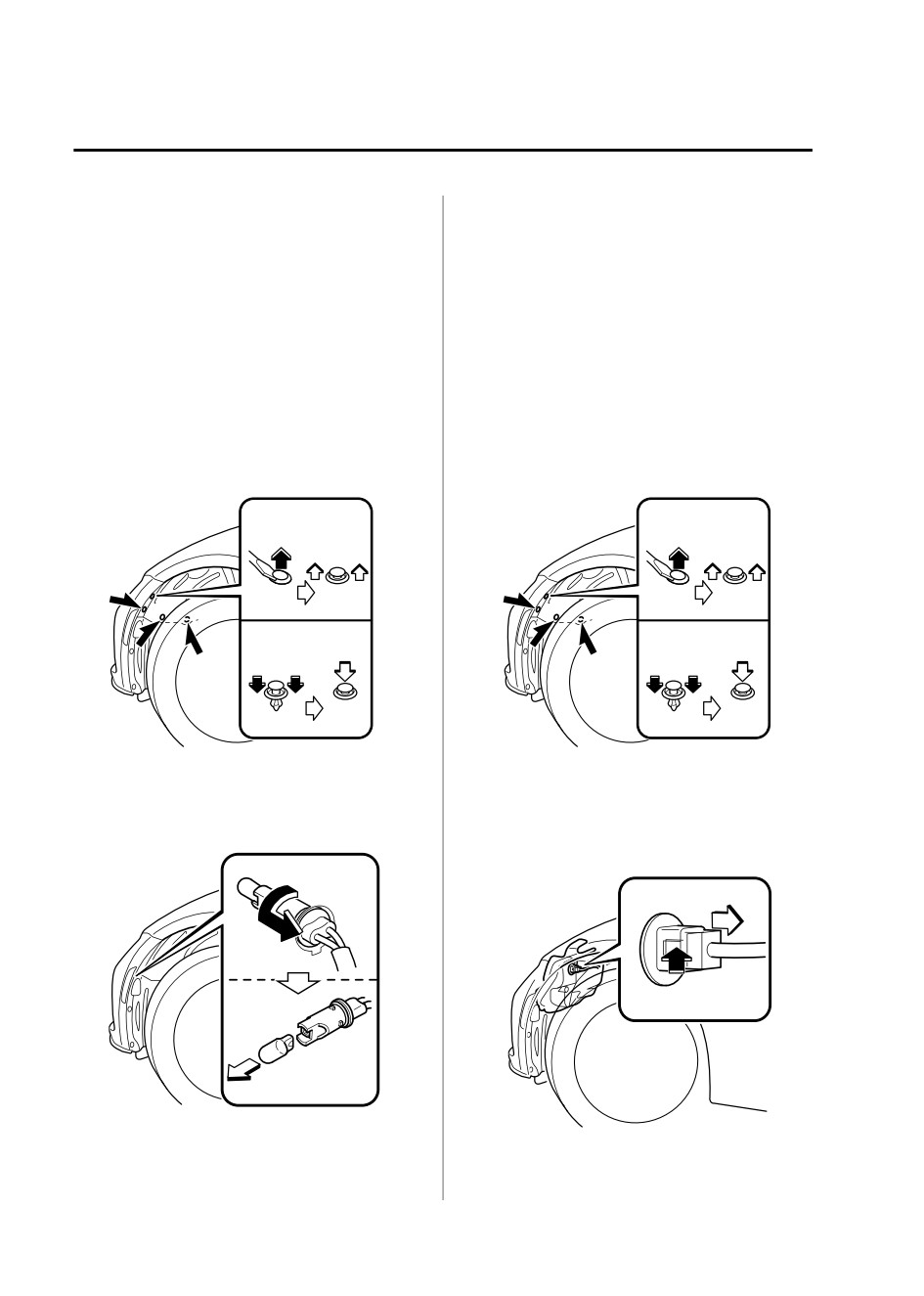

Front side-marker lights
Front turn signal lights
Daytime running lights
Headlights (Low/High beam)
Trunk light
High-mount brake light
License plate lights
Rear side-marker lights
Brake lights
Reverse lights
Taillights
Rear turn signal lights
6-38
Maintenance and Care
Owner Maintenance
CAUTION
When removing the lens or lamp unit using a flathead screwdriver, make sure that the
flathead screwdriver does not contact the interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may occur.
NOTE
To replace the bulb, contact an Authorized Mazda Dealer.
Use the protective cover and carton for the replacement bulb to dispose of the old bulb
promptly and out of the reach of children.

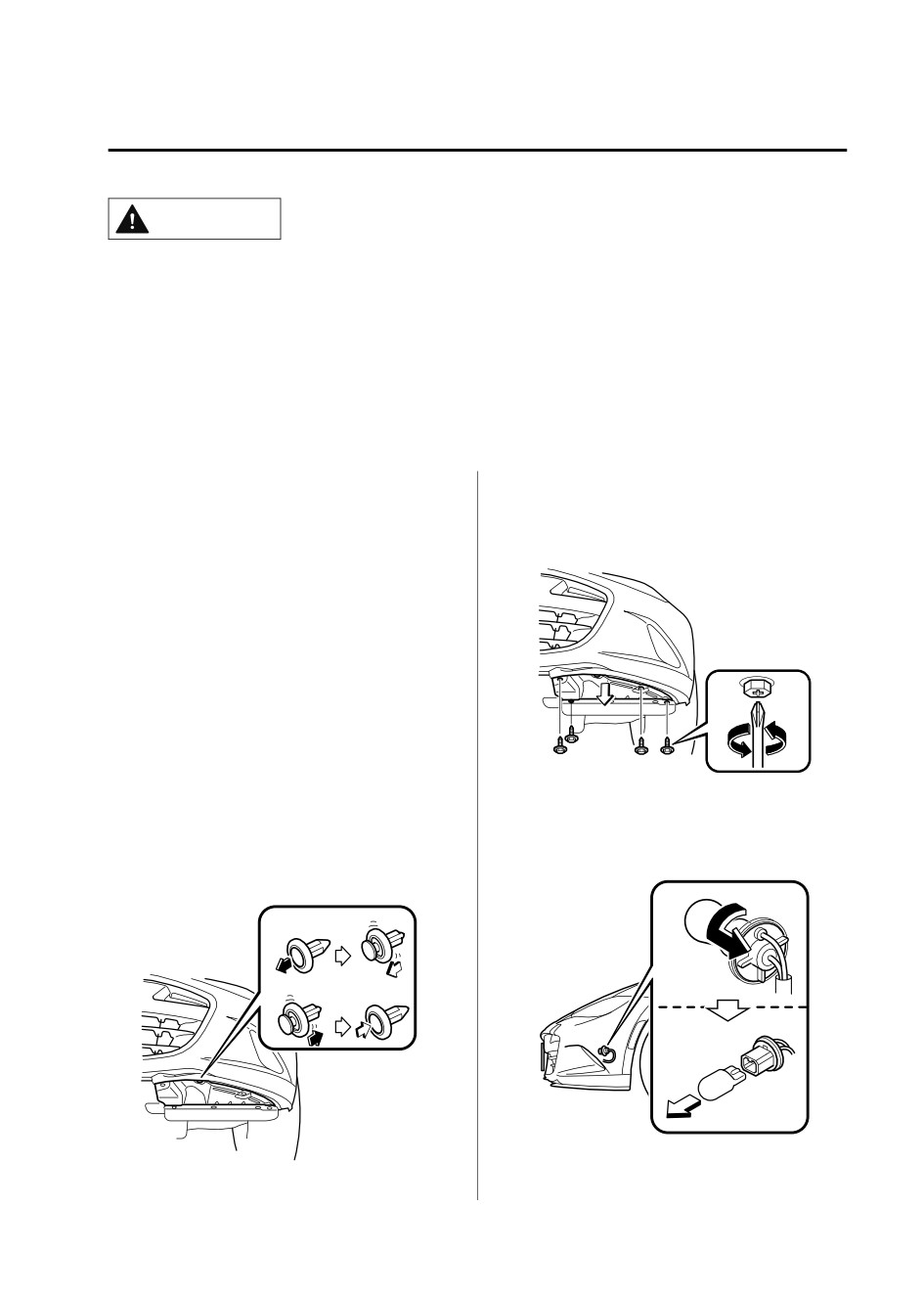

Replacing Exterior Light Bulbs
3.
Turn the screw counterclockwise and
remove it, and then partially peel back
Headlights, Daytime running lights
the mudguard.
(LED type), Parking lights, High-mount
brake light, Brake lights, Taillights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized
Mazda Dealer when the replacement is
necessary.

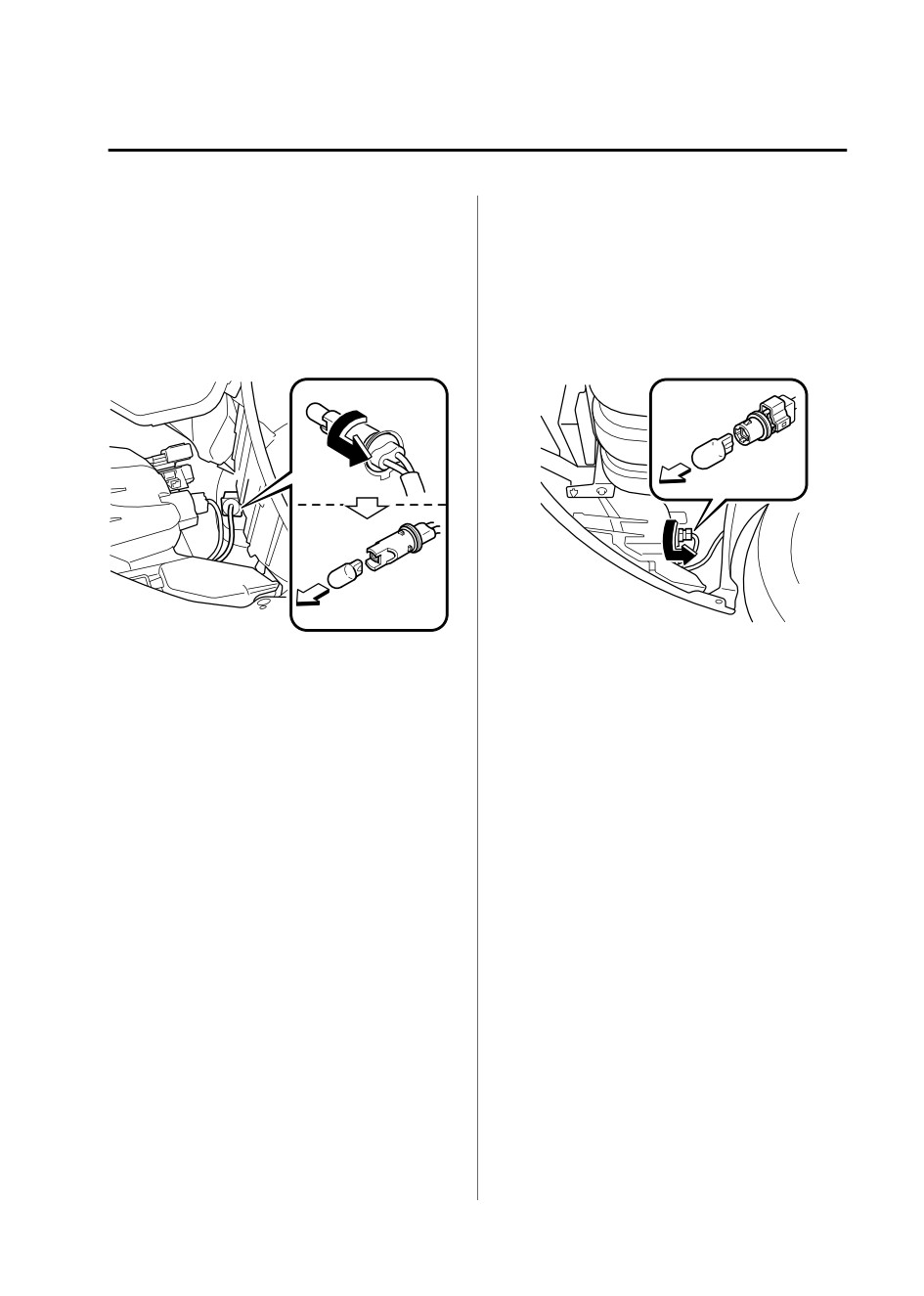

Daytime running lights (Bulb type)
1. Make sure the ignition is switched off,
4.
Turn the socket and bulb assembly
and the headlight switch is off.
counterclockwise and remove it.
2. Pull the center of each plastic retainer
5.
Disconnect the bulb from the socket.
and remove the retainers.
Removal
Installation
6. Install the new bulb in the reverse
order of the removal procedure.
6-39
Maintenance and Care
Owner Maintenance
Front side-marker lights
Front turn signal lights
1. Make sure the ignition is switched off,
1. Make sure the ignition is switched off,
and the headlight switch is off.
and the headlight switch is off.
2. If you are changing the right bulb, start
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the engine, turn the steering wheel all
the way to the right, and turn off
the way to the right, and turn off
engine. If you are changing the left
engine. If you are changing the left
bulb, turn the steering wheel to the left.
bulb, turn the steering wheel to the left.
3. Pull the center of each plastic retainer
3. Pull the center of each plastic retainer
and remove the retainers, and then
and remove the retainers, and then
partially peel back the mudguard.
partially peel back the mudguard.
Removal
Removal
Installation
Installation
4. Turn the socket and bulb assembly
4. Disconnect the connector from the unit
counterclockwise and remove it.
by pressing the tab on the connector
5. Disconnect the bulb from the socket.
with your finger and pulling the
connector rearward.
6. Install the new bulb in the reverse
order of the removal procedure.
6-40
Maintenance and Care
Owner Maintenance

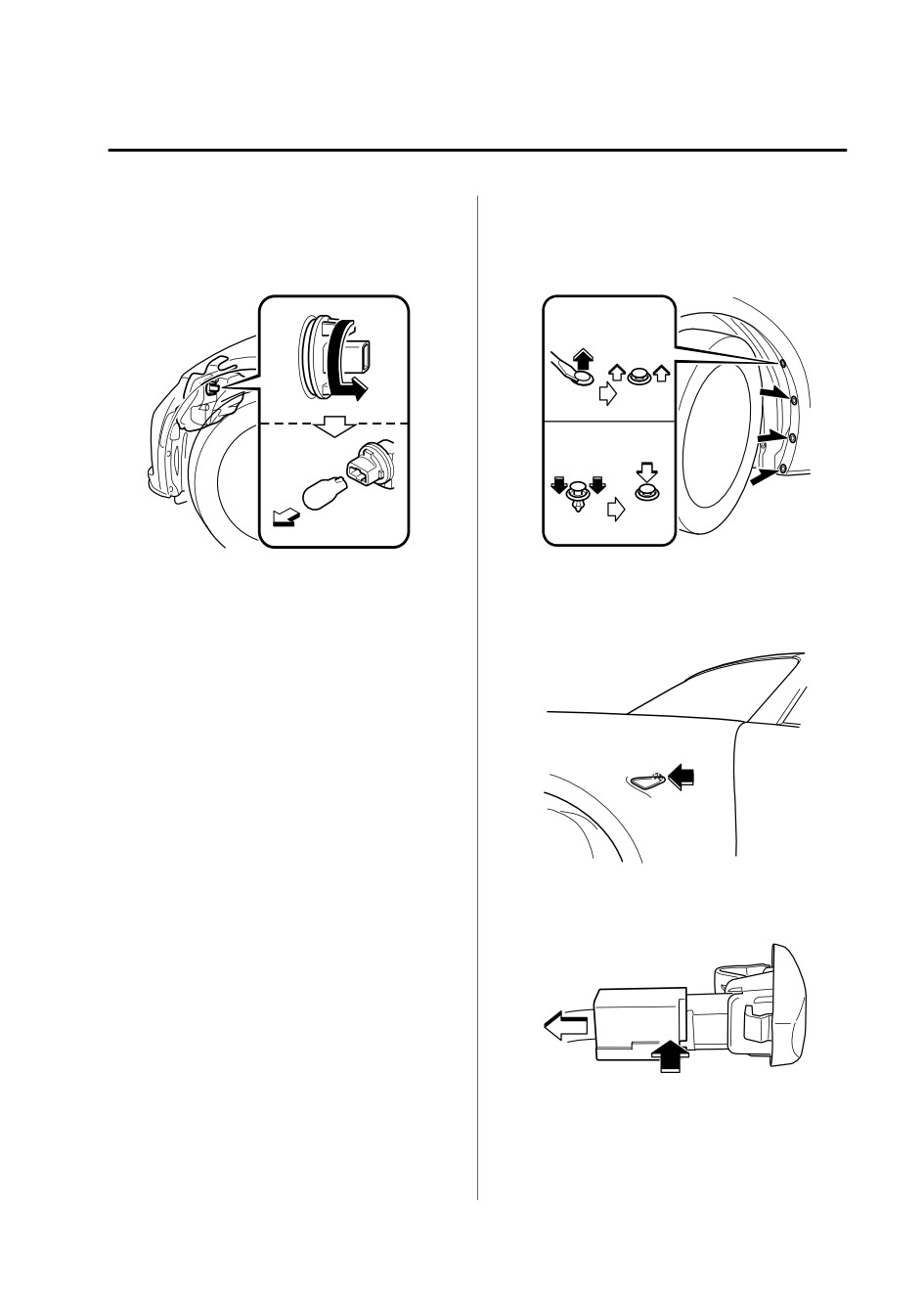

5. Turn the socket and bulb assembly
3. Pull the center of each plastic retainer
counterclockwise and remove it.
and remove the retainers, and then
6. Disconnect the bulb from the socket.
partially peel back the mudguard.
Removal
Installation
7. Install the new bulb in the reverse
4. Remove the unit by pressing the tab on
order of the removal procedure.
the unit with your finger and pulling
the unit forward.
Side turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. If you are changing the right bulb, start
the engine, turn the steering wheel all
the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left.
5. Detach the electrical connector from
the unit by pulling it to the rear.
6-41
Maintenance and Care
Owner Maintenance
6. Install the new side turn signal unit in
3. Disconnect the connector from the unit
the reverse order of the removal
by pressing the tab on the connector
procedure.
with your finger and pulling the
connector downward.
Rear turn signal lights
1. Make sure the ignition is switched off,
and the headlight switch is off.

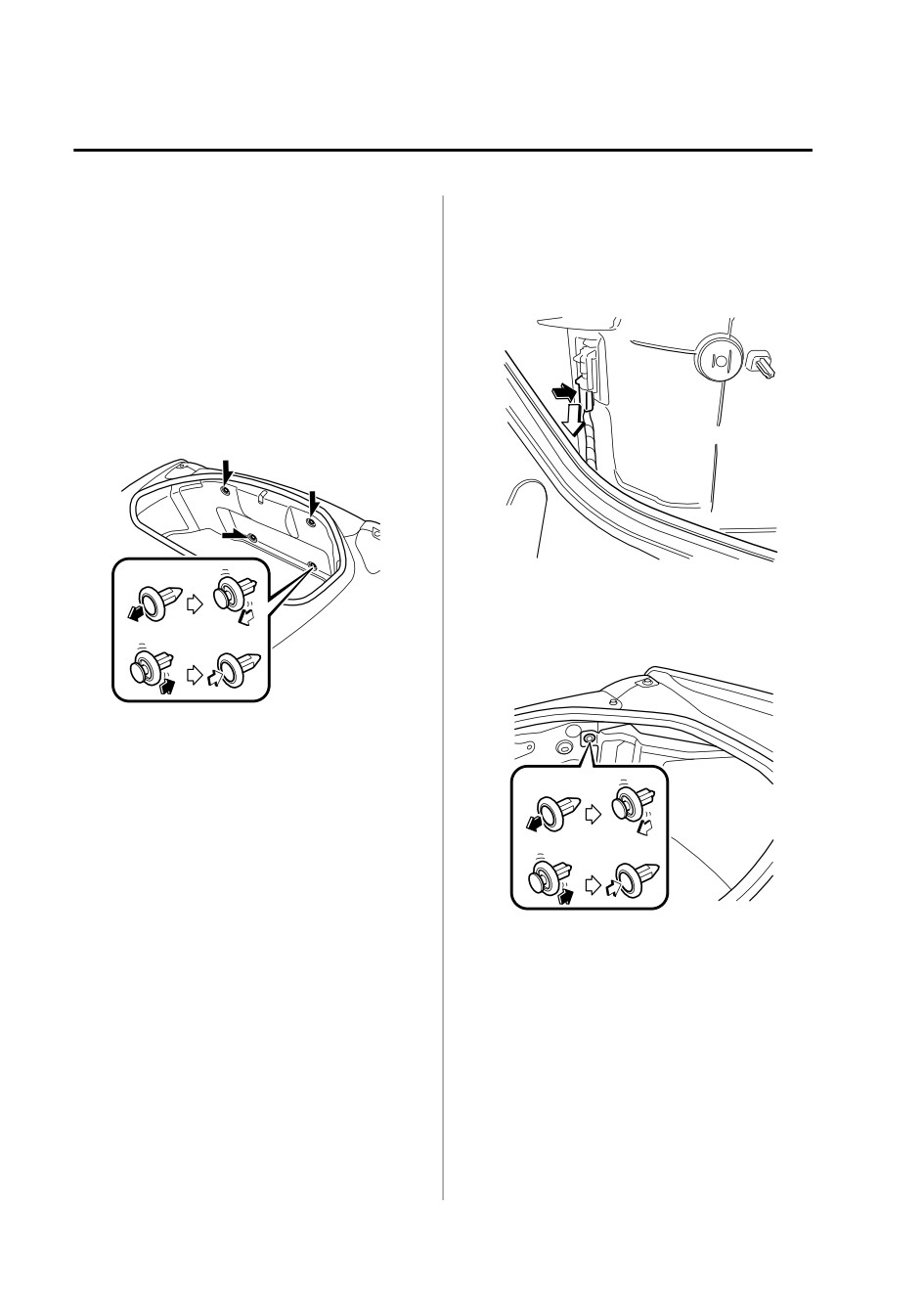

2. Pull the center of each plastic retainer
and remove the retainers and the trunk
end trim.
Removal
4. Pull the center of each plastic retainer
and remove the retainers, and then
partially peel back the trunk side trim.
Installation
Removal
Installation
6-42
Maintenance and Care
Owner Maintenance

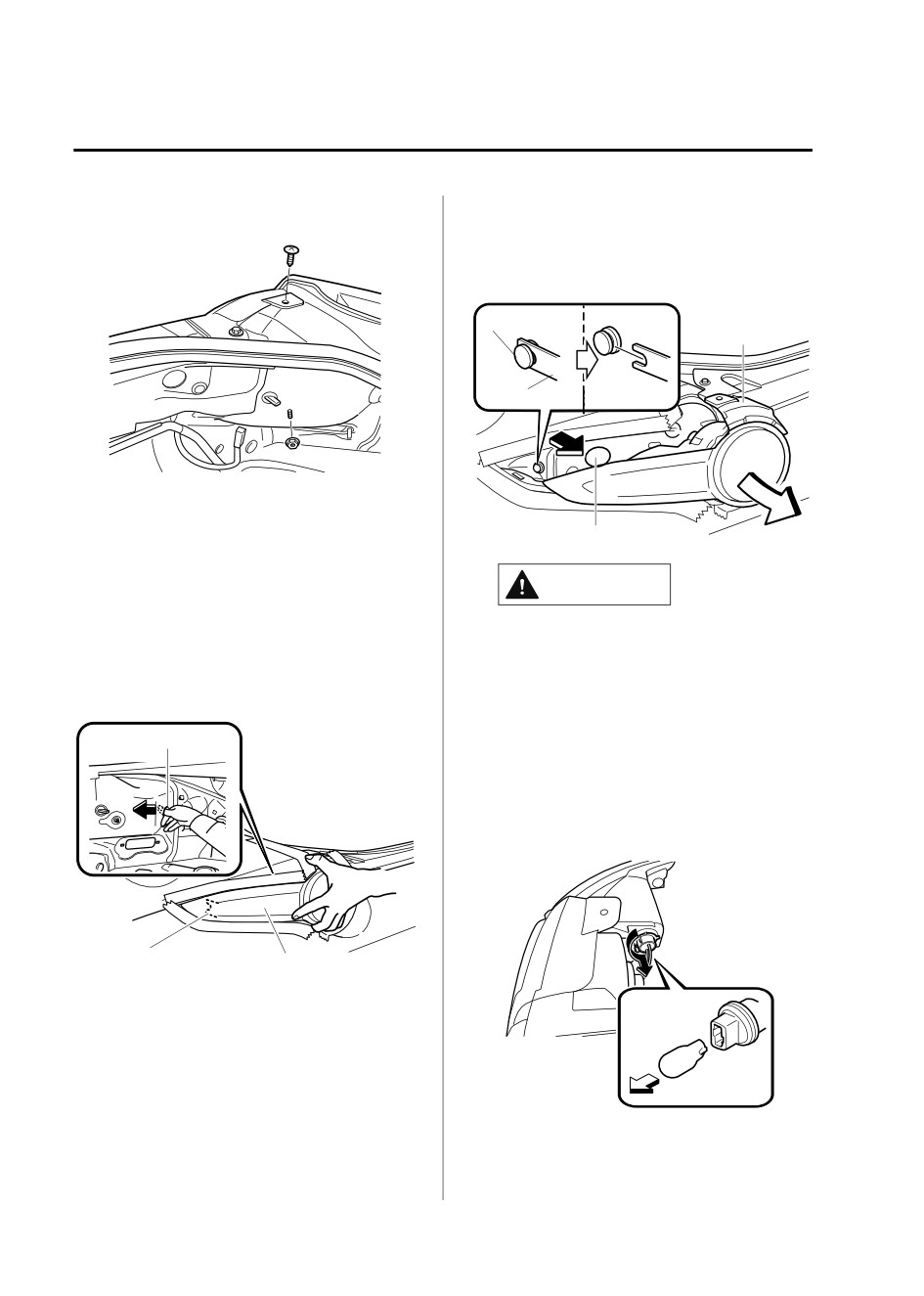

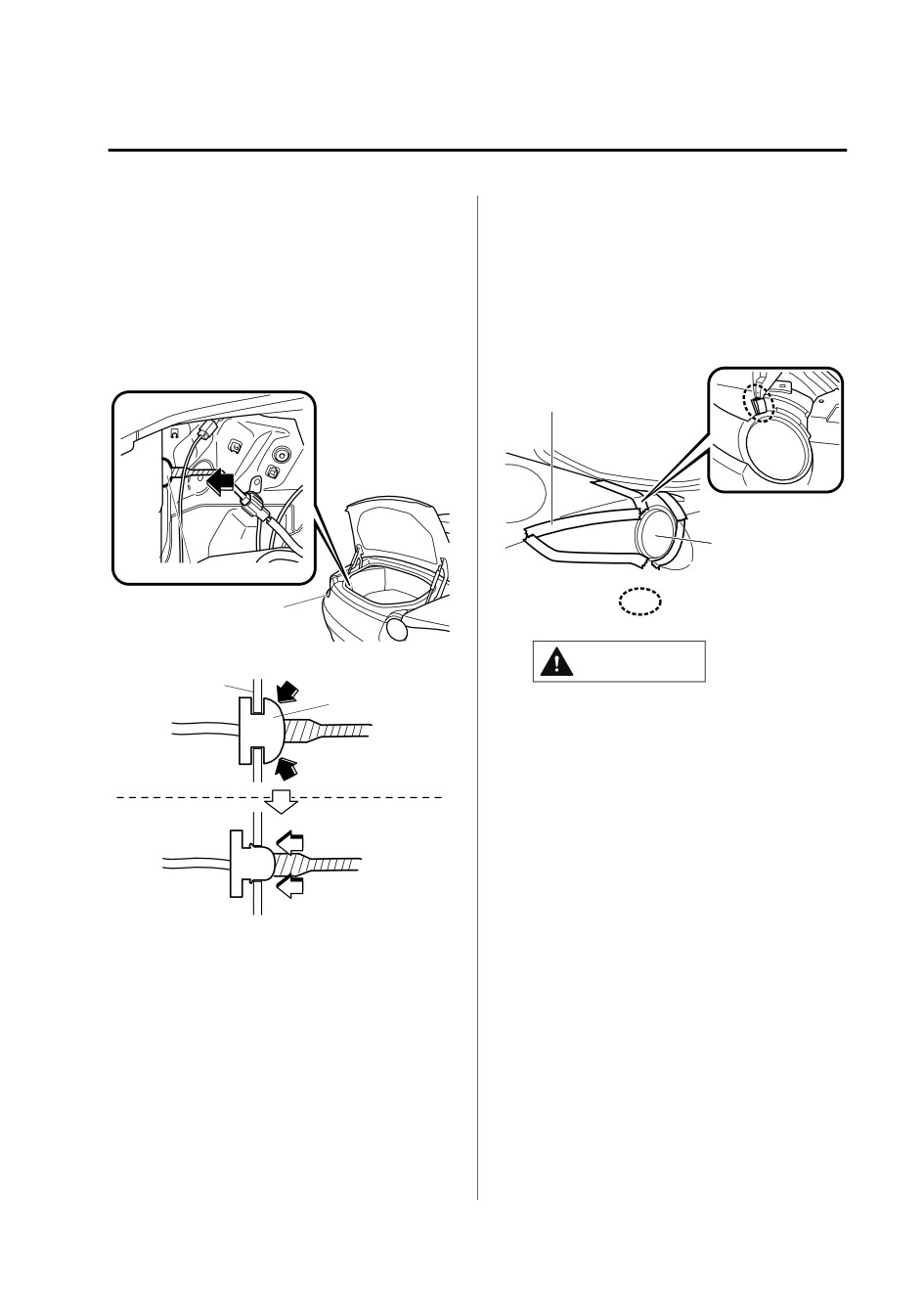

5. To provide a hole for inserting a finger
6. Apply protective tape as shown in the
to remove the rear combination lamp
figure. Otherwise, the rear combination
unit later in the procedure, pinch the
lamp unit will contact the body and
top and bottom of the grommet shown
may scratch or damage it.
in the figure and press it out of the hole
Always apply three layers of protective
in the direction of the rear combination
tape to the area indicated in the figure.
lamp unit.
Protective tape
Rear combination
lamp unit
Grommet
Area specifically in need
Rear combination lamp
of protection
unit
CAUTION
Body
Grommet
¾ Do not use tape with strong adhesive
strength. Otherwise, the vehicle paint
may peel off.
¾ Always apply three layers of
protective tape to the area indicated
in the figure. Otherwise, the body
may become scratched or damaged
when pulling out the rear
combination lamp unit.
6-43
Maintenance and Care
Owner Maintenance
7. Remove the screw and nut.
9. After the hook is detached, pull out the
rear combination lamp unit in the
direction of the arrow and remove it.
Rear combination
Clip
lamp unit
Hook
8. To remove the rear combination lamp
unit, insert your finger from inside the
Grommet installation hole
trunk and into the hole from which the
grommet was removed in Step 5, and
while holding the lamp lens (round
CAUTION
part) of the rear combination lamp with
your hand, press the rear combination
Carefully pull out the rear combination
lamp unit until the hook detaches from
lamp unit when removing it from the
the clip.
body.
The wiring may become damaged if the
rear combination lamp unit is forcefully
Grommet installation
hole
pulled out.
10. Turn the socket and bulb assembly
counterclockwise and remove it.
11. Disconnect the bulb from the socket.
Hook
Rear combination lamp unit
12. Install the new bulb in the reverse
order of the removal procedure.
6-44
Maintenance and Care
Owner Maintenance
Rear side-marker lights
Reverse lights
1. Make sure the ignition is switched off,
1. Make sure the ignition is switched off,
and the headlight switch is off.
and the headlight switch is off.
2. Turn the socket and bulb assembly
2. Turn the socket and bulb assembly
counterclockwise and remove it.
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse
4. Install the new bulb in the reverse
order of the removal procedure.
order of the removal procedure.
6-45
Maintenance and Care
Owner Maintenance
License plate lights

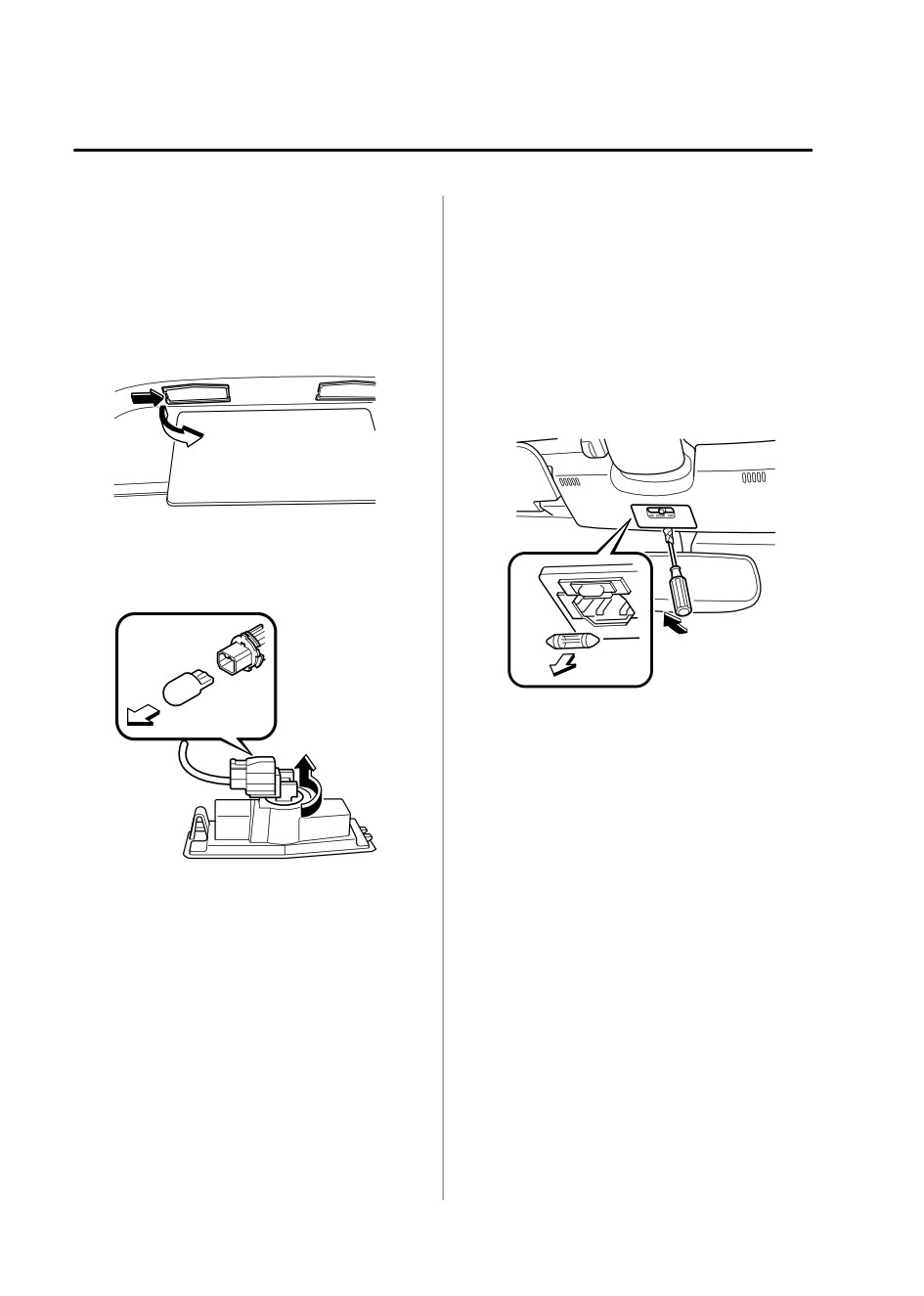

Replacing Interior Light Bulbs
1. Make sure the ignition is switched off,
Overhead light
and the headlight switch is off.
1. Wrap a small flathead screwdriver with
2. Remove the unit by pressing the tab on
a soft cloth to prevent damage to the
the unit with your finger and pulling
lens, and then remove the lens by
the unit downward.
carefully prying on the edge of the lens
with the flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
3. Install the new bulb in the reverse
order of the removal procedure.
5. Install the new bulb in the reverse
order of the removal procedure.
6-46
Maintenance and Care
Owner Maintenance

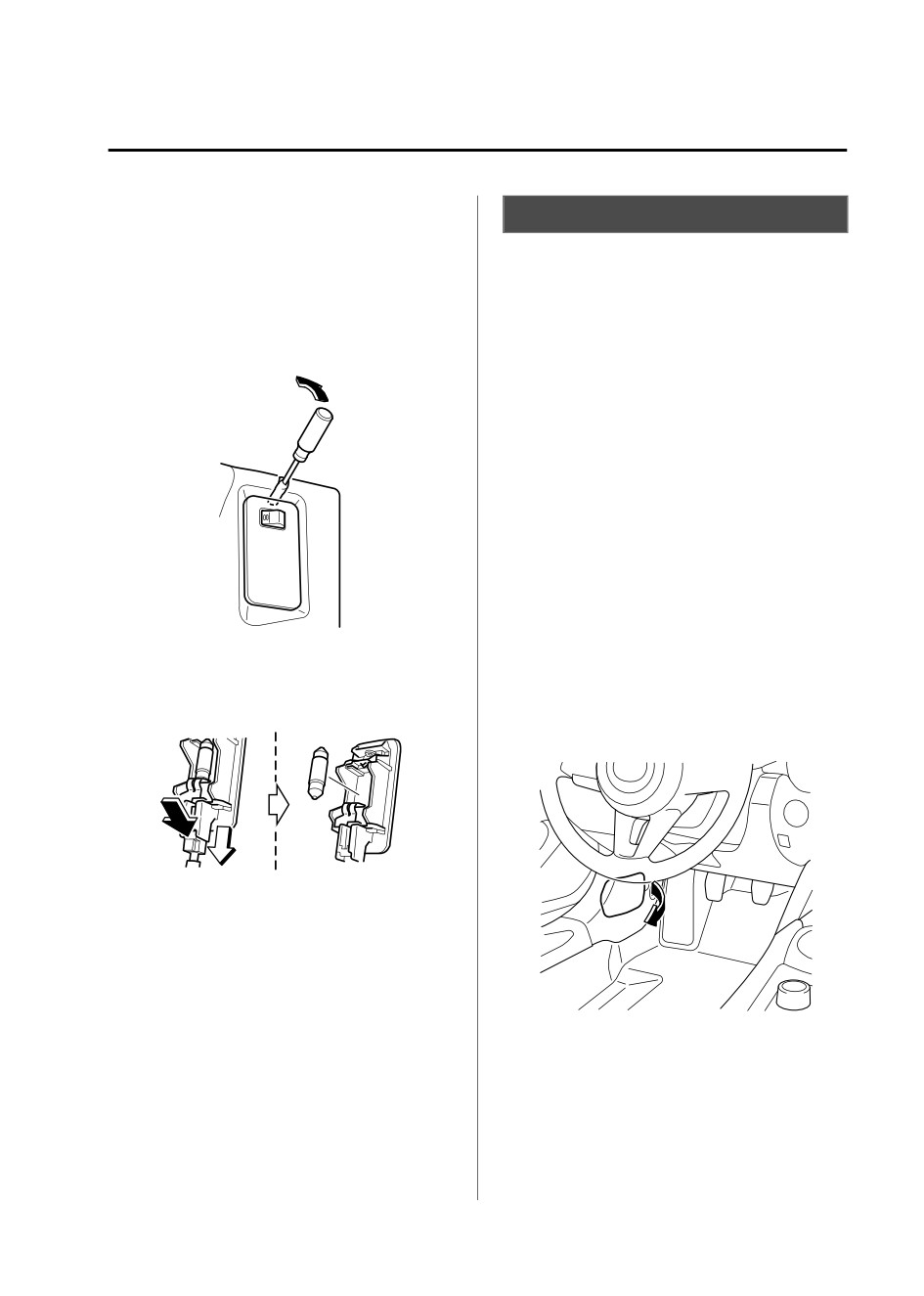

Trunk light
Fuses
1.
Wrap a small flathead screwdriver with
Your vehicle's electrical system is
a soft cloth to prevent damage to the
protected by fuses.
lens, and then remove the lens by
carefully prying on the edge of the lens
If any lights, accessories, or controls do
with the flathead screwdriver.
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.

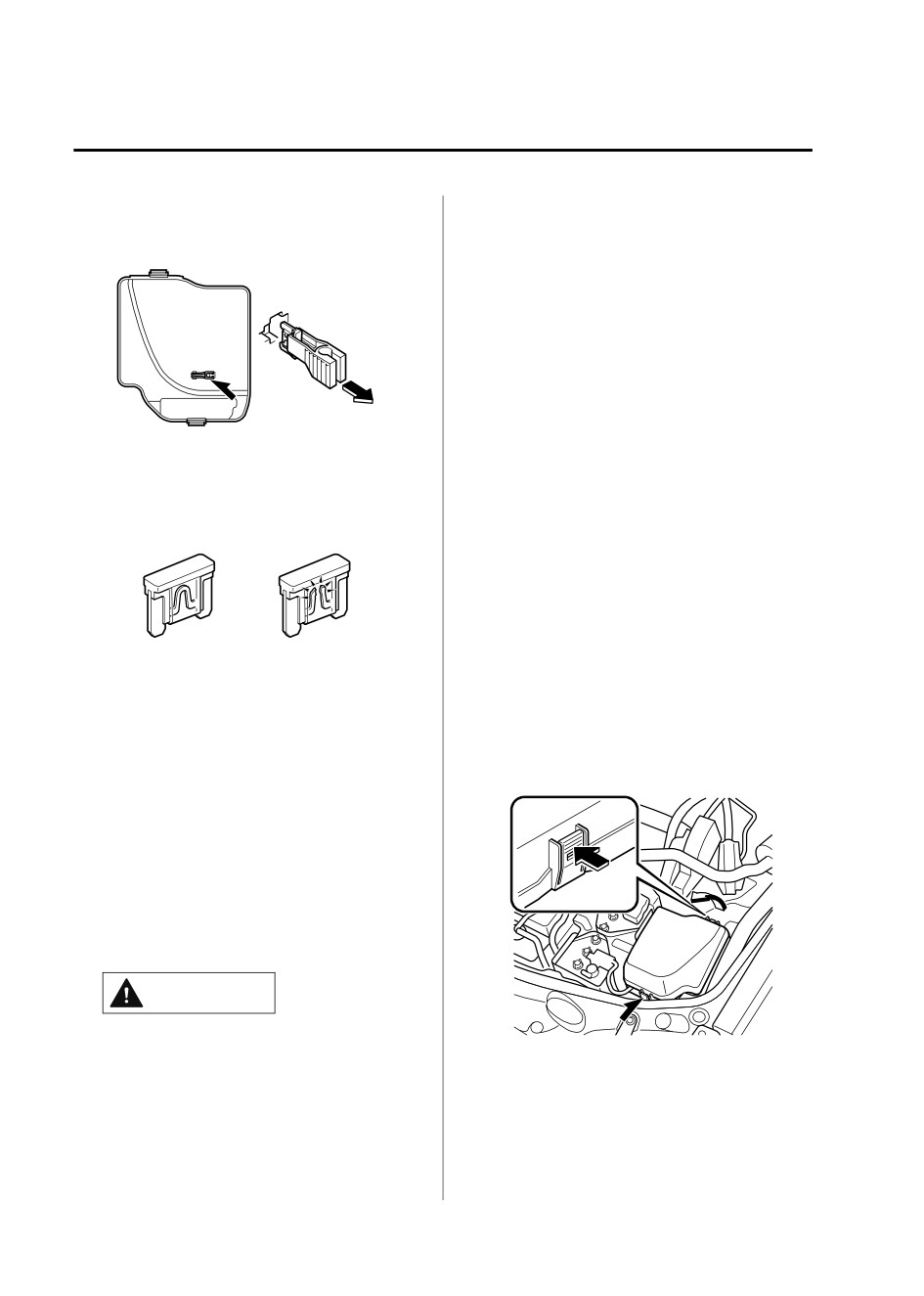

Fuse Replacement
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
2.
Disconnect the connector from the
inspect the fuses on the vehicle's left side.
unit.
3.
Disconnect the bulb by pulling it out.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
4. Install the new bulb in the reverse
order of the removal procedure.
6-47
Maintenance and Care
Owner Maintenance
3.
Pull the fuse straight out with the fuse

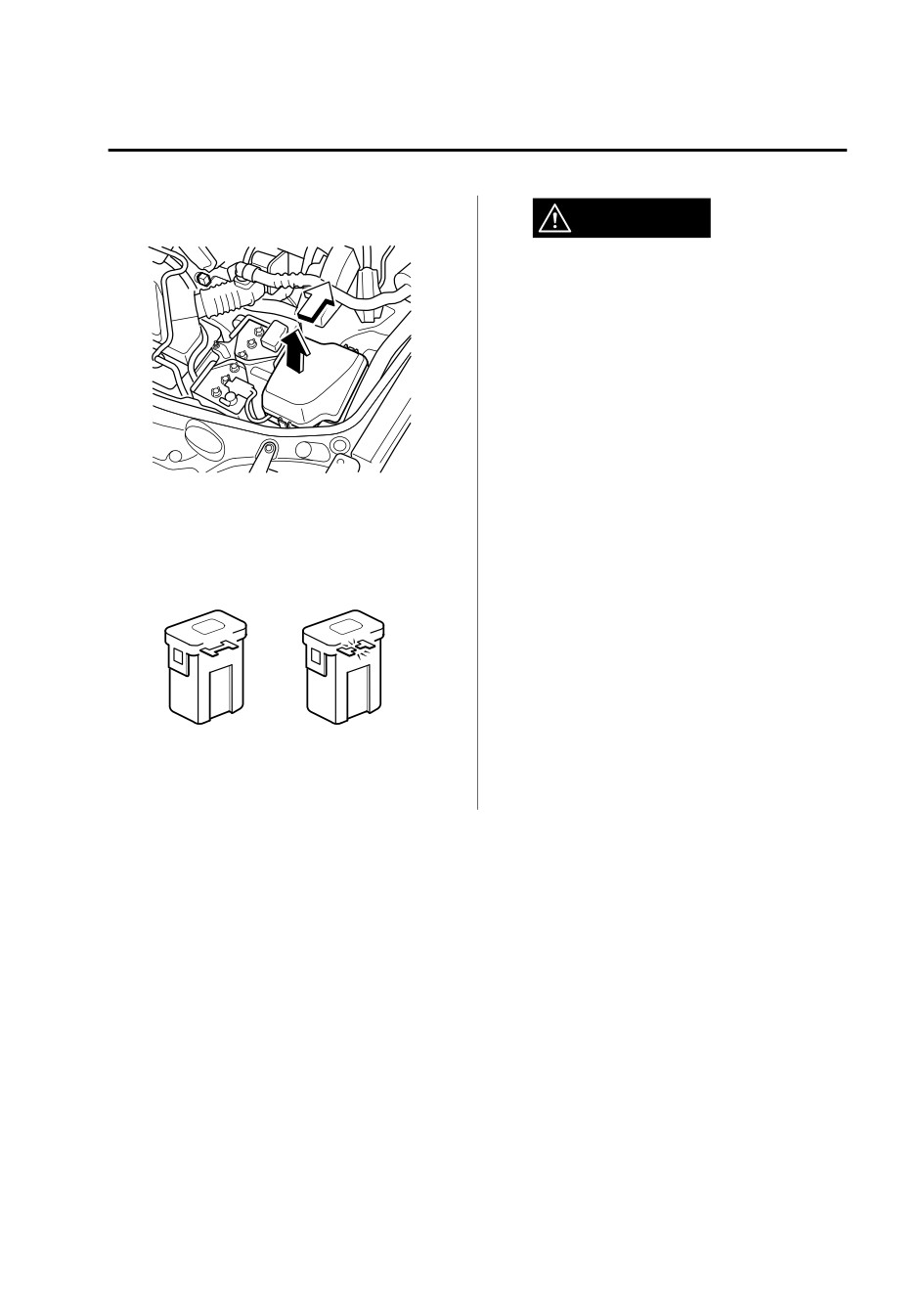

Replacing the fuses under the hood
puller provided on the fuse block
If the headlights or other electrical
located in the engine compartment.
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood.
If a fuse is blown, it must be replaced.
Follow these steps:
1.
Make sure the ignition is switched off,
and other switches are off.
4.
Inspect the fuse and replace it if it is
2.
Remove the fuse block cover.
blown.
NOTE
If the lock is forcefully opened, the fuse
block cover may come in contact with
the frame when it is removed and
become scratched.
When removing the cover, remove it
slowly according to the following
procedure.
Normal
Blown
1.
Disengage the rear lock by
pressing down on the front tab with
your fingers.
5.
Insert a new fuse of the same
2.
Remove the front tab while slightly
amperage rating, and make sure it fits
lifting the front of the cover.
tightly. If it does not fit tightly, have an
expert install it. Consult an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
CAUTION
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6.
Reinstall the cover and make sure that
it is securely installed.
6-48
Maintenance and Care
Owner Maintenance
3. Remove the cover while lifting it
WARNING
and sliding it to the rear.
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
3. If any fuse but the MAIN fuse is
4. Reinstall the cover and make sure that
blown, replace it with a new one of the
it is securely installed.
same amperage rating.
Normal
Blown
6-49
Maintenance and Care
Owner Maintenance

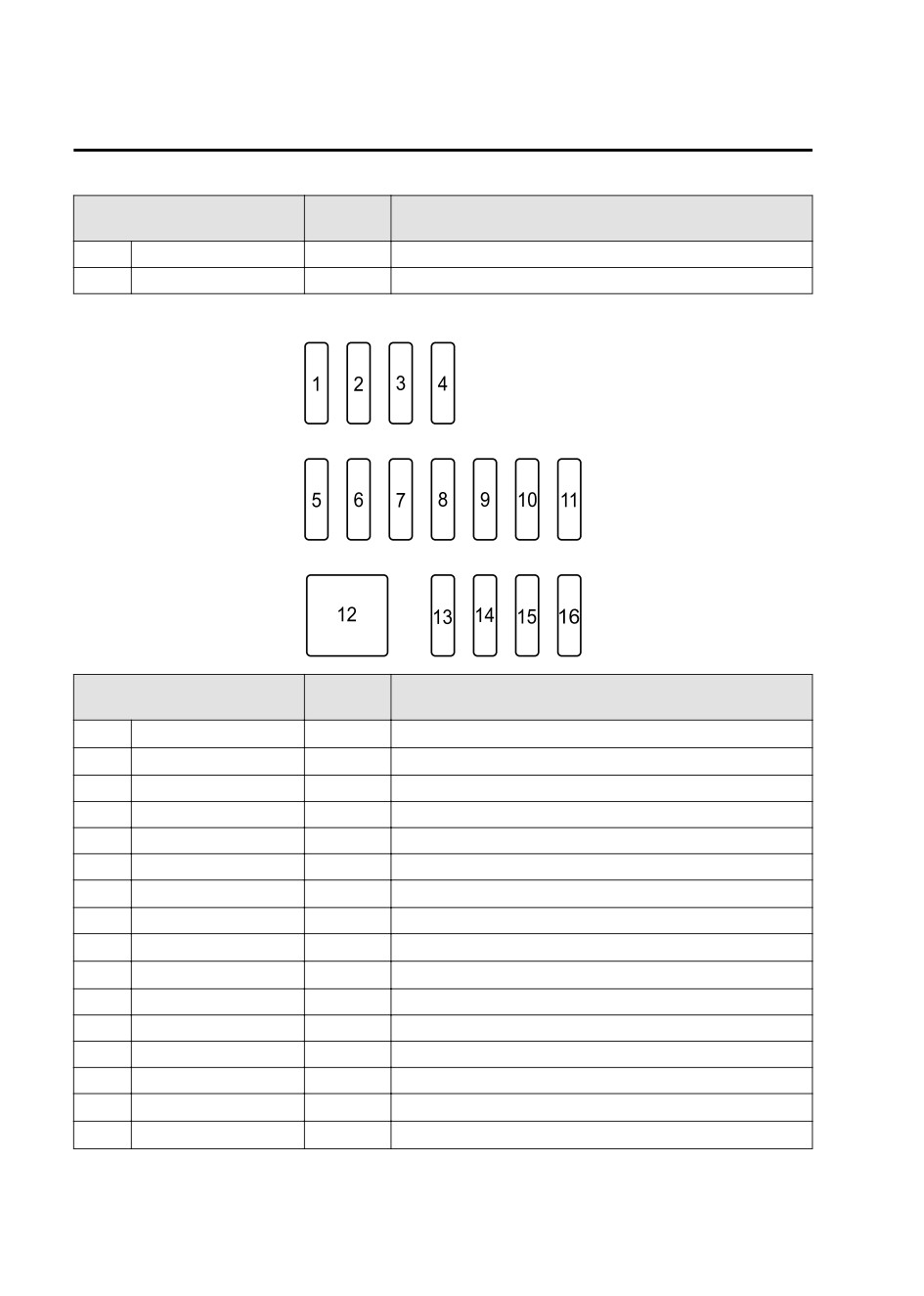

Fuse Panel Description

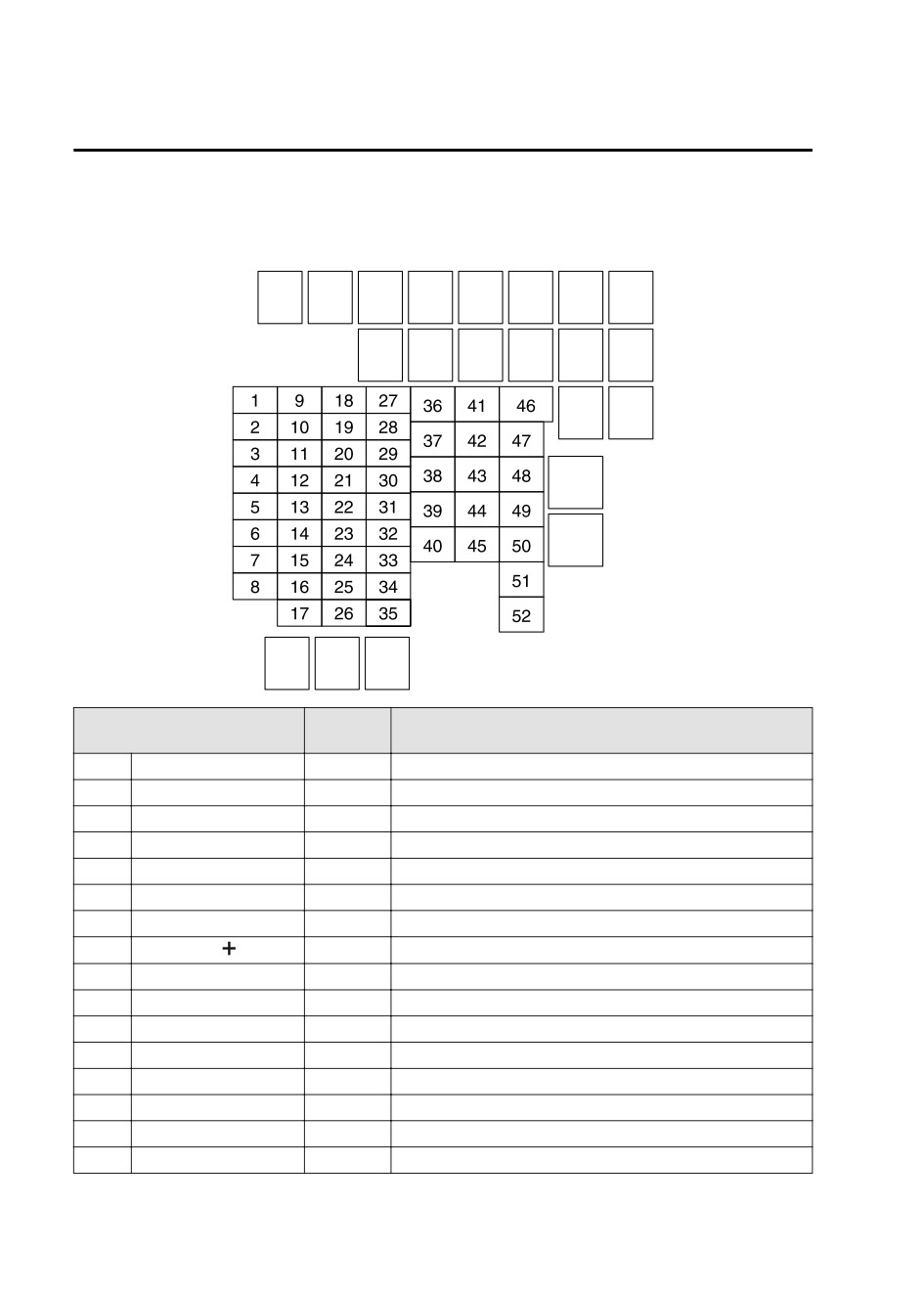

Fuse block (Engine compartment)
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
1
ENG IG3
5 A
ʊ
2
ENG IG2
5 A
ʊ
3
HORN2
7.5 A
Horn
4
C/U IG1
15 A
For protection of various circuits
5
ENG IG1
7.5 A
Engine control system
6
ʊ
ʊ
ʊ
7
INTERIOR
15 A
Overhead light
8
ENG B
7.5 A
Engine control system
9
AUDIO2
15 A
Audio system
10
METER1
10 A
Instrument cluster
11
SRS1
7.5 A
Air bag
12
ʊ
ʊ
ʊ
13
RADIO
7.5 A
Audio system
14
ENGINE3
20 A
ʊ
15
ENGINE1
10 A
Engine control system
16
ENGINE2
15 A
Engine control system
6-50
Maintenance and Care
Owner Maintenance
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
17
AUDIO1
25 A
Audio system
18
A/C MAG
7.5 A
Air conditioner
AT PUMP
19
20 A
Transmission control system*
H/L HI
20
AT
15 A
Transmission control system*
21
D LOCK
25 A
Power door locks
22
H/L RH
20 A
Headlight (RH)
23
ENG B2
7.5 A
Engine control system
24
TAIL
20 A
Taillights, License plate lights, Parking lights
25
DRL
15 A
ʊ
26
ROOM
25 A
Overhead light
27
FOG
15 A
ʊ
28
H/CLEAN
20 A
ʊ
29
STOP
10 A
Brake lights
30
HORN
15 A
Horn
31
H/L LH
20 A
Headlight (LH)
32
ABS/DSC S
30 A
ABS, Dynamic stability control system
33
HAZARD
15 A
Hazard warning flashers, Turn signal lights
34
FUEL PUMP
15 A
Fuel system
35
ENG B3
5 A
ʊ
36
WIPER
20 A
Windshield wipers
37
CABIN B
50 A
For protection of various circuits
38
ʊ
ʊ
ʊ
39
ENG SUB
30 A
Engine control system
40
ABS/DSC M
50 A
ABS, Dynamic stability control system
EVVT
41
20 A
Engine control system
A/R PUMP
42
EVPS
30 A
Brake control system
43
FAN1
30 A
Cooling fan
44
FAN2
40 A
ʊ
45
ENG.MAIN
40 A
Engine control system
46
EPS
60 A
Power steering system
47
DEFOG
30 A
Rear window defogger
48
IG2
30 A
For protection of various circuits
49
INJECTOR
30 A
ʊ
50
HEATER
40 A
Air conditioner
*Some models.
6-51
Maintenance and Care
Owner Maintenance
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
51
ʊ
ʊ
ʊ
52
ENGINE4
20 A
Engine control system
Fuse block (Left side)
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
1
RHT R
30 A
Retractable hardtop (RH)*
2
RHT L
30 A
Retractable hardtop (LH)*
3
ʊ
ʊ
ʊ
4
ENGINE6
10 A
Engine control system
5
F.OUTLET
15 A
Accessory sockets
6
ʊ
ʊ
ʊ
7
AT IND
7.5 A
AT shift indicator*
8
MIRROR
7.5 A
Power control mirror
9
R_DECK R
30 A
Retractable hardtop (RH)*
10
R_DECK L
30 A
Retractable hardtop (LH)*
11
F.WASHER
15 A
Windshield washer
12
P.WINDOW
30 A
Power windows
13
ʊ
ʊ
ʊ
14
SRS2/ESCL
15 A
Electronic steering lock
15
SEAT WARM
20 A
Seat warmer*
16
M.DEF
7.5 A
Mirror defogger*
6-52
*Some models.
Maintenance and Care
Appearance Care
Damage Caused by Bird Dropping,
Exterior Care
Insects, or Tree Sap
The paintwork on your Mazda represents
Occurrence
the latest technical developments in
composition and methods of application.
Bird droppings contain acids. If these are
not removed they can eat away the clear
Environmental hazards, however, can
and color base coat of the vehicle's
harm the paint's protective properties, if
paintwork.
proper care is not taken.
When insects stick to the paint surface and
Here are some examples of possible
decompose, corrosive compounds form.
damage, with tips on how to prevent them.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
Etching Caused by Acid Rain or
not removed.
Industrial Fallout
Occurrence
Tree sap will harden and adhere
permanently to the paint finish. If you
Industrial pollutants and vehicle emissions
scratch the sap off while it is hard, some
drift into the air and mix with rain or dew
vehicle paint could come off with it.
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
Prevention
the acid becomes concentrated and can
It is necessary to have your Mazda washed
damage the finish.
and waxed to preserve its finish according
And the longer the acid remains on the
to the instructions in this section. This
surface, the greater the chance is for
should be done as soon as possible.
damage.
Prevention
Bird droppings can be removed with a soft
sponge and water. If you are traveling and
It is necessary to wash and wax your
these are not available, a moistened tissue
vehicle to preserve its finish according to
may also take care of the problem. The
the instructions in this section. These steps
cleaned area should be waxed according to
should be taken immediately after you
the instructions in this section.
suspect that acid rain has settled on your
Insects and tree sap are best removed with
vehicle's finish.
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for 1 to 2
hours. After removing the newspaper,
rinse off the loosened debris with water.
6-53
Maintenance and Care
Appearance Care
Water Marks
Chipped paint can lead to rust forming
on your Mazda. Before this happens,
Occurrence
repair the damage by using Mazda
Rain, fog, dew, and even tap water can
touch-up paint according to the
contain harmful minerals such as salt and
instructions in this section. Failure to
lime. If moisture containing these minerals
repair the affected area could lead to
settles on the vehicle and evaporates, the
serious rusting and expensive repairs.
minerals will concentrate and harden to
form white rings. The rings can damage
Follow all label and container directions
your vehicle's finish.
when using a chemical cleaner or polish.
Prevention
Read all warnings and cautions.
It is necessary to wash and wax your
Maintaining the Finish
vehicle to preserve its finish according to
Washing
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
CAUTION
Paint Chipping
¾ When the ignition is switched ON and
Occurrence
the wiper lever is in the AUTO position,
the windshield wipers may operate
Paint chipping occurs when gravel thrown
automatically in the following cases:
in the air by another vehicle's tires hits
your vehicle.
¾ The area of the windshield above the
rain sensor is touched or wiped with a
How to avoid paint chipping
cloth.
Keeping a safe distance between you and
¾ The windshield or the rain sensor area
the vehicle ahead reduces the chances of
in the cabin is hit.
having your paint chipped by flying
When the ignition is switched ON and
gravel.
the wiper lever is in the AUTO position,
NOTE
do not touch the windshield or the
windshield wipers Otherwise, the
The paint chipping zone varies with the
speed of the vehicle. For example, when
windshield wipers will operate
traveling at 90 km/h (56 mph), the paint
automatically which could catch your
chipping zone is 50 m (164 ft).
fingers or damage the windshield wipers.
When removing ice or snow, or cleaning
In low temperatures a vehicle's finish
hardens. This increases the chance of
the windshield, always make sure the
paint chipping.
wiper lever is in the OFF position.
6-54















Content      ..     9      10      11      12     ..
