Before Driving
Driving Tips
Break-In Period
Saving Fuel and
Protection of the
▼ Break-In Period
Environment
No special break-in is necessary, but a
few precautions in the first 1,000 km
▼ Saving Fuel and Protection of the
(600 miles) may add to the
Environment
performance, economy, and life of the
vehicle.
How you operate your Mazda
determines how far it will travel on a
Do not race the engine.
tank of fuel. Use these suggestions to
Do not maintain one constant
help save fuel and reduce CO2.
speed, either slow or fast, for a long
period of time.
Avoid long warm-ups. Once the
Do not drive constantly at
engine runs smoothly, begin driving.
full-throttle or high engine rpm for
Avoid fast starts.
extended periods of time.
Drive at lower speeds.
Avoid unnecessary hard stops.
Anticipate when to apply the brakes
Avoid full-throttle starts.
(avoid sudden braking).
Follow the maintenance schedule
and have an Authorized Mazda
Dealer perform inspections and
servicing.
Refer to Scheduled Maintenance
(U.S.A. and Puerto Rico) on page
6-4.
Refer to Scheduled Maintenance
(Canada) on page 6-6.
Refer to Scheduled Maintenance
(Mexico) on page 6-8.
Use the air conditioner only when
necessary.
Slow down on rough roads.
Keep the tires properly inflated.
Do not carry unnecessary weight.
Do not rest your foot on the brake
pedal while driving.
Keep the wheels in correct
alignment.
Keep windows closed at high
speeds.
Slow down when driving in
crosswinds and headwinds.
3-50
Before Driving
Driving Tips
WARNING
Hazardous Driving
Never stop the engine when going
▼ Hazardous Driving
down a hill:
Stopping the engine when going down
WARNING
a hill is dangerous. This causes the loss
of power steering and power brake
Be extremely careful if it is necessary
control, and may cause damage to the
to downshift on slippery surfaces:
drivetrain. Any loss of steering or
Downshifting into lower gear while
braking control could cause an
driving on slippery surfaces is
accident.
dangerous. The sudden change in tire
speed could cause the tires to skid.
This could lead to loss of vehicle
control and an accident.
Avoid sharp turns, excessive speed
and abrupt maneuvers when driving
this vehicle:
Sharp turns, excessive speed and
abrupt maneuvering of this vehicle are
dangerous as it could result in the
increased risk of loss of vehicle control,
vehicle roll-over, personal injury or
death.
This vehicle has a higher center of
gravity. Vehicles with a higher center of
gravity such as utility vehicles handle
differently than vehicles with a lower
center of gravity.
Utility vehicles are not designed for
cornering at high speeds any more
than low profile sports cars are
designed to perform satisfactorily
under off-road conditions.
In addition, utility vehicles have a
significantly higher rollover rate than
other types of vehicles.
In a rollover crash, an unbelted person
is significantly more likely to die than a
person wearing a seat belt.
3-51
Before Driving
Driving Tips
When driving on ice or in water, snow,
Floor Mat
mud, sand, or similar hazards:
Be cautious and allow extra distance
▼ Floor Mat
for braking.
We recommend the use of Genuine
Avoid sudden braking and sudden
Mazda floor mats.
maneuvering.
Do not pump the brakes. Continue
WARNING
to press down on the brake pedal.
Refer to Antilock Brake System (ABS)
Make sure the floor mats are hooked
on page 4-84.
on the retention pins to prevent them
If you get stuck, select a lower gear
from bunching up under the foot
and accelerate slowly. Do not spin
pedals:
the front wheels.
Using a floor mat that is not secured is
For more traction in starting on
dangerous as it will interfere with the
slippery surfaces such as ice or
accelerator and brake pedal operation,
packed snow, use sand, rock salt,
which could result in an accident.
chains, carpeting, or other nonslip
material under the front wheels.
Do not install two floor mats, one on
top of the other, on the driver's side:
NOTE
Installing two floor mats, one on top of
Use snow chains only on the front
the other, on the driver's side is
wheels.
dangerous as the retention pins can
only keep one floor mat from sliding
forward.
Loose floor mat(s) will interfere with
the foot pedals and could result in an
accident.
If using an all-weather mat for winter
use always remove the original floor
mat.

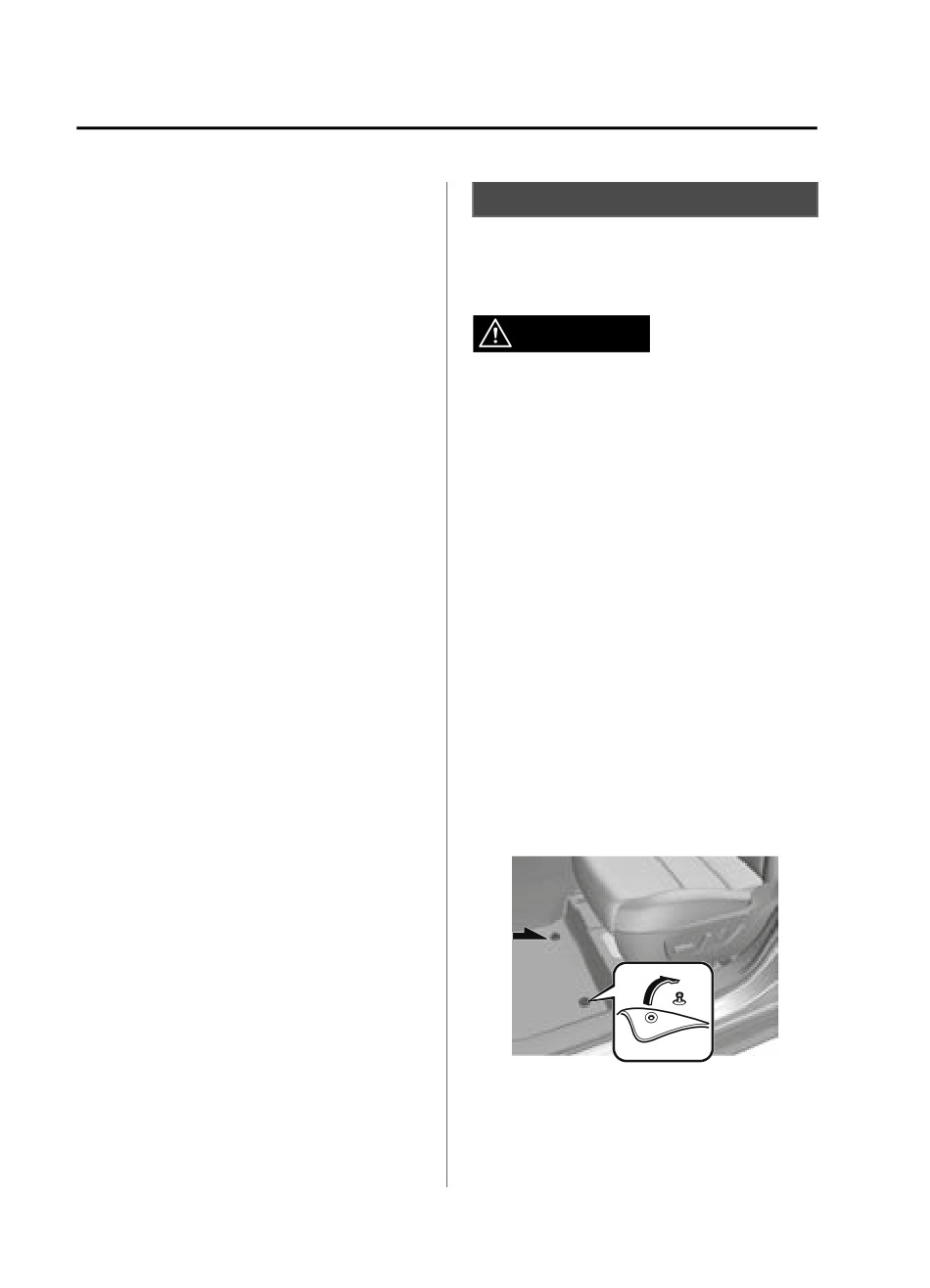

When setting a floor mat, position the
floor mat so that its grommets are
inserted over the pointed end of the
retention posts.
3-52
Before Driving
Driving Tips
Rocking the Vehicle
Winter Driving
▼ Rocking the Vehicle
▼ Winter Driving
Carry emergency gear, including tire
WARNING
chains, window scraper, flares, a small
shovel, jumper cables, and a small bag
Do not spin the wheels at more than
of sand or salt.
56 km/h (35 mph), and do not allow
Ask an Authorized Mazda Dealer to
anyone to stand behind a wheel when
check the following:
pushing the vehicle:
Have the proper ratio of antifreeze in
When the vehicle is stuck, spinning the
the radiator.
wheels at high speed is dangerous. The
Refer to Engine Coolant on page
spinning tire could overheat and
6-18.
explode. This could cause serious
Inspect the battery and its cables.
injuries.
Cold reduces battery capacity.
Use an engine oil appropriate for the
CAUTION
lowest ambient temperatures that
the vehicle will be driven in (page
Too much rocking may cause
6-16).
transmission failure, and tire damage.
Inspect the ignition system for
damage and loose connections.
If you must rock the vehicle to free it
Use washer fluid made with
from snow, sand or mud, depress the
antifreeze―but do not use engine
accelerator slightly and slowly move
coolant antifreeze for washer fluid
the selector lever from D to R position.
(page 6-20).
NOTE
Remove snow before driving. Snow
left on the windshield is dangerous
as it could obstruct vision.
Do not apply excessive force to a
window scraper when removing ice
or frozen snow on the mirror glass
and windshield.
Never use warm or hot water for
removing snow or ice from windows
and mirrors as it could result in the
glass cracking.
3-53
Before Driving
Driving Tips
Drive slowly. Braking performance
NOTE
can be adversely affected if snow or
The tire pressure monitoring system
ice adheres to the brake
may not function correctly when using
components. If this situation occurs,
tires with steel wire reinforcement in
drive the vehicle slowly, releasing the
the sidewalls (page 4-213).
accelerator pedal and lightly applying
▼ Tire Chains
the brakes several times until the
brake performance returns to
Check local regulations before using
normal.
tire chains.
▼ Snow Tires
CAUTION
Use snow tires on all 4 wheels
¾ Chains may affect handling.
Do not go faster than 120 km/h (75
¾ Do not go faster than 50 km/h (30
mph) while driving with snow tires.
mph) or the chain manufacturer's
Inflate snow tires 30 kPa (0.3 kgf/cm2,
recommended limit, whichever is
4.3 psi) more than recommended on
lower.
the tire pressure label (driver's door
¾ Drive carefully and avoid bumps,
frame), but never more than the
holes, and sharp turns.
maximum cold-tire pressure shown on
¾ Avoid locked-wheel braking.
the tires.
¾ Do not use chains on a temporary
spare tire; it may result in damage to
The vehicle is originally equipped with
the vehicle and to the tire.
all season radials designed to be used
¾ Do not use chains on roads that are
all year around. In some extreme
free of snow or ice. The tires and
climates you may find it necessary to
chains could be damaged.
replace them with snow tires during
¾ Chains may scratch or chip
the winter months to further improve
aluminum wheels.
traction on snow and ice covered
roads.
NOTE
WARNING
The tire pressure monitoring system
may not function correctly when
Use only the same size and type tires
using tire chains.
(snow, radial, or non-radial) on all 4
Install the chains on the front tires only.
wheels:
Do not use chains on the rear tires.
Using tires different in size or type is
Please consult an Authorized Mazda
dangerous. Your vehicle's handling
Dealer.
could be greatly affected and result in
an accident.
CAUTION
Check local regulations before using
studded tires.
3-54
Before Driving
Driving Tips
Installing the chains
Driving In Flooded Area
1.
If your vehicle is equipped with
wheel covers remove them,
▼ Driving In Flooded Area
otherwise the chain bands will
scratch them.
WARNING
2.
Secure the chains on the front tires
as tightly as possible.
Dry off brakes that have become wet
Always follow the chain
by driving slowly, releasing the
manufacturer's instructions.
accelerator pedal and lightly applying
3.
Retighten the chains after driving
the brakes several times until the
1/2―1 km (1/4―1/2 mile).
brake performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been
affected.
CAUTION
Do not drive the vehicle on flooded
roads as it could cause short circuiting
of electrical/electronic parts, or engine
damage or stalling from water
absorption. If the vehicle has been
immersed in water, consult an
Authorized Mazda Dealer.
3-55
Before Driving
Driving Tips
Overloading

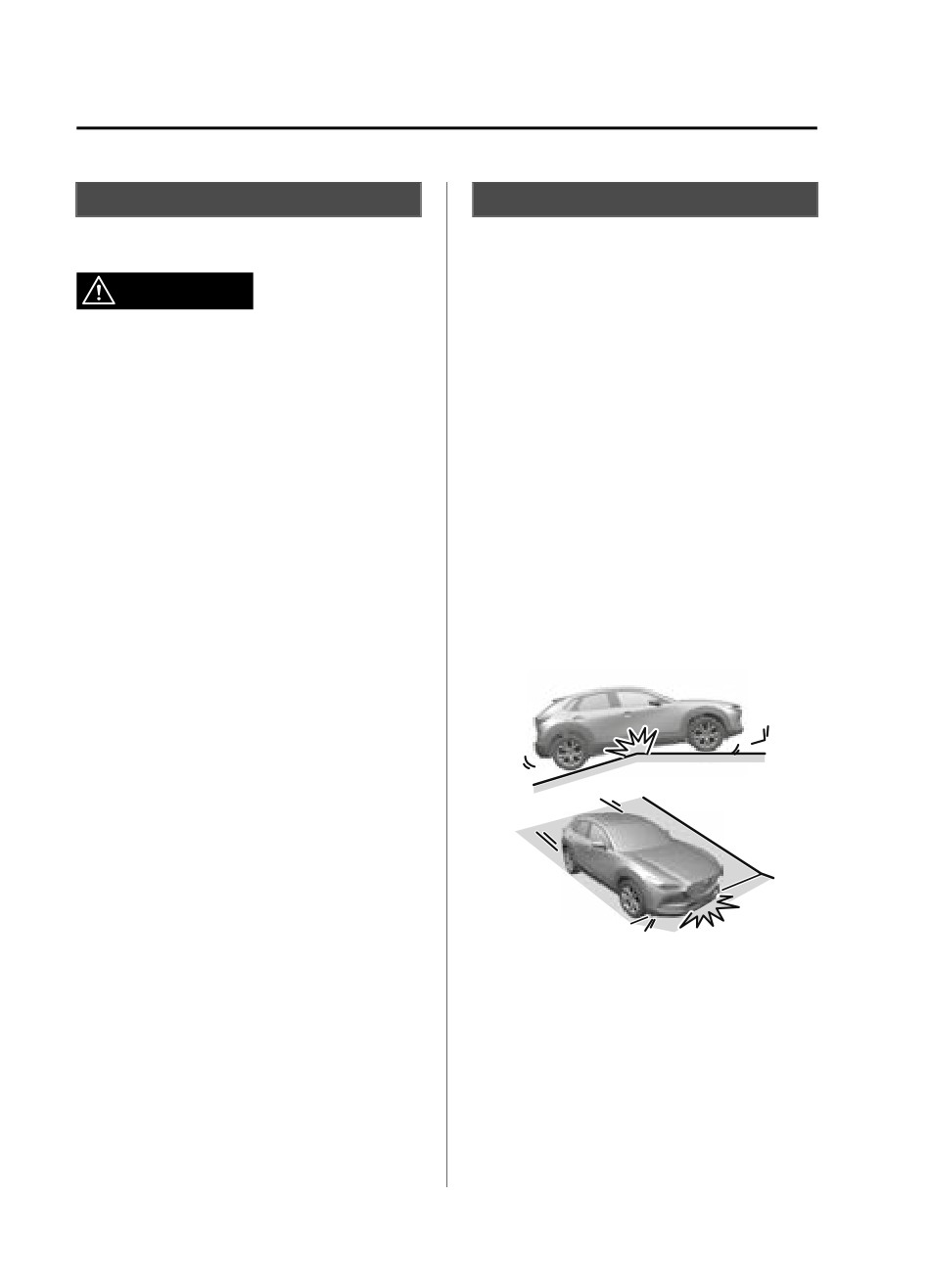

Driving on Uneven Road
▼ Overloading
▼ Driving on Uneven Road
Your vehicle's suspension and
WARNING
underbody can be damaged if driven
on rough/uneven roads or over speed
Be careful not to overload your
bumps at excessive speeds. Use care
vehicle:
and reduce speed when traveling on
The gross axle weight rating (GAWR)
rough/uneven roads or over speed
and the gross vehicle weight rating
bumps.
(GVWR) of the vehicle are on the
Motor Vehicle Safety Standard Label
Use care not to damage the vehicle's
on the driver's door frame. Exceeding
underbody, bumpers or muffler(s)
these ratings can cause an accident or
when driving under the following
vehicle damage. You can estimate the
conditions:
weight of the load by weighing the
Ascending or descending a slope
items (or people) before putting them
with a sharp transition angle
in the vehicle.
Ascending or descending a driveway
or trailer ramp with a sharp transition
angle
This vehicle is equipped with low
profile tires allowing class-leading
performance and handling. As a result,
the sidewall of the tires are very thin
and the tires and wheels can be
damaged if driven through potholes or
on rough/uneven roads at excessive
speeds. Use care and reduce speed
when traveling on rough/uneven roads
or through potholes.
3-56
Before Driving
Driving Tips
Turbocharger Information
(SKYACTIV-G 2.5T)
▼ Turbocharger Information
(SKYACTIV-G 2.5T)
CAUTION
¾ After driving at freeway speeds or up
a long hill, idle the engine at least 30
seconds before stopping it.
Otherwise, the turbocharger could
be damaged. However, when i-stop
operates, idling is unnecessary.
¾ Racing or over-revving the engine,
particularly after it's just been
started, can damage the
turbocharger.
¾ To protect the engine from damage,
the engine is designed so that it
cannot be raced just after starting it
in extremely cold weather.
The turbocharger greatly enhances
engine power. Its advanced design
provides improved operation and
requires minimum maintenance.
To get the most from it, observe the
following.
1. Change engine oil and filter
according to Scheduled
Maintenance.
Refer to Scheduled Maintenance
(U.S.A. and Puerto Rico) on page
6-4.
Refer to Scheduled Maintenance
(Canada) on page 6-6.
Refer to Scheduled Maintenance
(Mexico) on page 6-8.
2. Use only recommended engine oil
(page 6-16). Extra additives are
NOT recommended.
3-57
Before Driving
Towing
Trailer Towing
Recreational Towing
▼ Trailer Towing
▼ Recreational Towing
Your Mazda is not designed for towing.
An example of "recreational towing" is
Never tow a trailer with your Mazda.
towing your vehicle behind a
motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer
to "Towing Description" (page 7-19)
and "Tiedown Hooks" (page 7-20)
and carefully follow the instructions.
3-58
When Driving
4
Information concerning safer driving and stopping.
Start/Stop Engine
4-4
Horn
4-65
Ignition Switch
4-4
Hazard Warning Flasher
4-66
Starting the Engine
4-5
HomeLink Wireless Control
Turning the Engine Off
4-10
System*
4-66
i-stop*
4-11
Brake
4-72
Instrument Cluster and
Brake System
4-72
Display
4-18
AUTOHOLD
4-78
Instrument Cluster and
Hill Launch Assist (HLA)
4-82
Display
4-18
Instrument Cluster
4-18
ABS/TCS/DSC/Off-Road
Active Driving Display*
4-35
Traction Assist
4-84
Antilock Brake System
Automatic Transmission
4-37
(ABS)
4-84
Automatic Transmission
Traction Control System
Controls
4-37
(TCS)
4-85
Shift-Lock System
4-38
Dynamic Stability Control
Transmission Ranges
4-39
(DSC)
4-87
Manual Shift Mode
4-41
Off-Road Traction Assist*
4-88
Direct Mode*
4-47
Driving Tips
4-48
Drive Selection
4-90
Drive Selection*
4-90
M Hybrid
4-49
M Hybrid*
4-49
i-ACTIV AWD
4-92
i-ACTIV AWD Operation*
4-92
Switches and Controls
4-53
Lighting Control
4-53
Power Steering
4-94
Turn and Lane-Change
Power Steering
4-94
Signals
4-58
Windshield Wipers and
i-ACTIVSENSE
4-95
Washer
4-59
i-ACTIVSENSE*
4-95
Rear Window Wiper and
Adaptive Front Lighting System
Washer
4-63
(AFS)*
4-99
Rear Window Defogger
4-64
*Some models.
4-1
High Beam Control System
Forward Sensing Camera
(HBC)*
4-100
(FSC)*
4-197
Lane Departure Warning System
Front Radar Sensor*
4-201
(LDWS)*
4-102
Front Side Radar Sensor*
4-203
Blind Spot Monitoring (BSM)*
Rear Side Radar Sensor*
4-204
........................................ 4-105
Rear/Rear Corner Ultrasonic
Traffic Sign Recognition System
Sensor*
4-206
(TSR)*
4-110
Front Camera/Side Cameras/
Distance & Speed Alert (DSA)*
Rear Camera*
4-206
........................................ 4-116
Driver Monitoring Camera*
Driver Attention Alert (DAA)*
........................................ 4-207
........................................ 4-117
Driver Monitoring (DM)*
4-119
Cruise Control
4-208
Front Cross Traffic Alert
Cruise Control*
4-208
(FCTA)*
4-121
Rear Cross Traffic Alert (RCTA)*
Tire Pressure Monitoring System
........................................ 4-124
(TPMS)
4-212
Mazda Radar Cruise Control with
Tire Pressure Monitoring System
Stop & Go function (MRCC with
(TPMS)
4-212
Stop & Go function)*
4-128
Traffic Jam Assist (TJA)*
4-138
Rear View Monitor
4-216
Lane-keep Assist System (LAS)*
Rear View Monitor*
4-216
........................................ 4-152
Smart Brake Support (SBS)*
........................................ 4-156
Parking Sensor System
4-231
360° View Monitor*
4-164
Parking Sensor System*
4-231
4-2
*Some models.
When Driving
Start/Stop Engine
Ignition Switch
WARNING
▼ Push Button Start Positions
Before leaving the driver's seat,
always switch the ignition off, set the
The system operates only when the key
parking brake, and make sure the
is within operational range.
selector lever is in P position:
Each time the push button start is
Leaving the driver's seat without
pressed, the ignition switches in the
switching the ignition off, setting the
order of off, ACC, and ON. Pressing
parking brake, and shifting the selector
the push button start again from ON
lever to P position is dangerous.
switches the ignition off.
Unexpected vehicle movement could
occur which could result in an
accident.
In addition, if your intention is to leave
the vehicle for even a short period, it is
important to switch the ignition off, as
leaving it in another position will
disable some of the vehicle's security
systems and run the battery down.
ACC (Accessory)

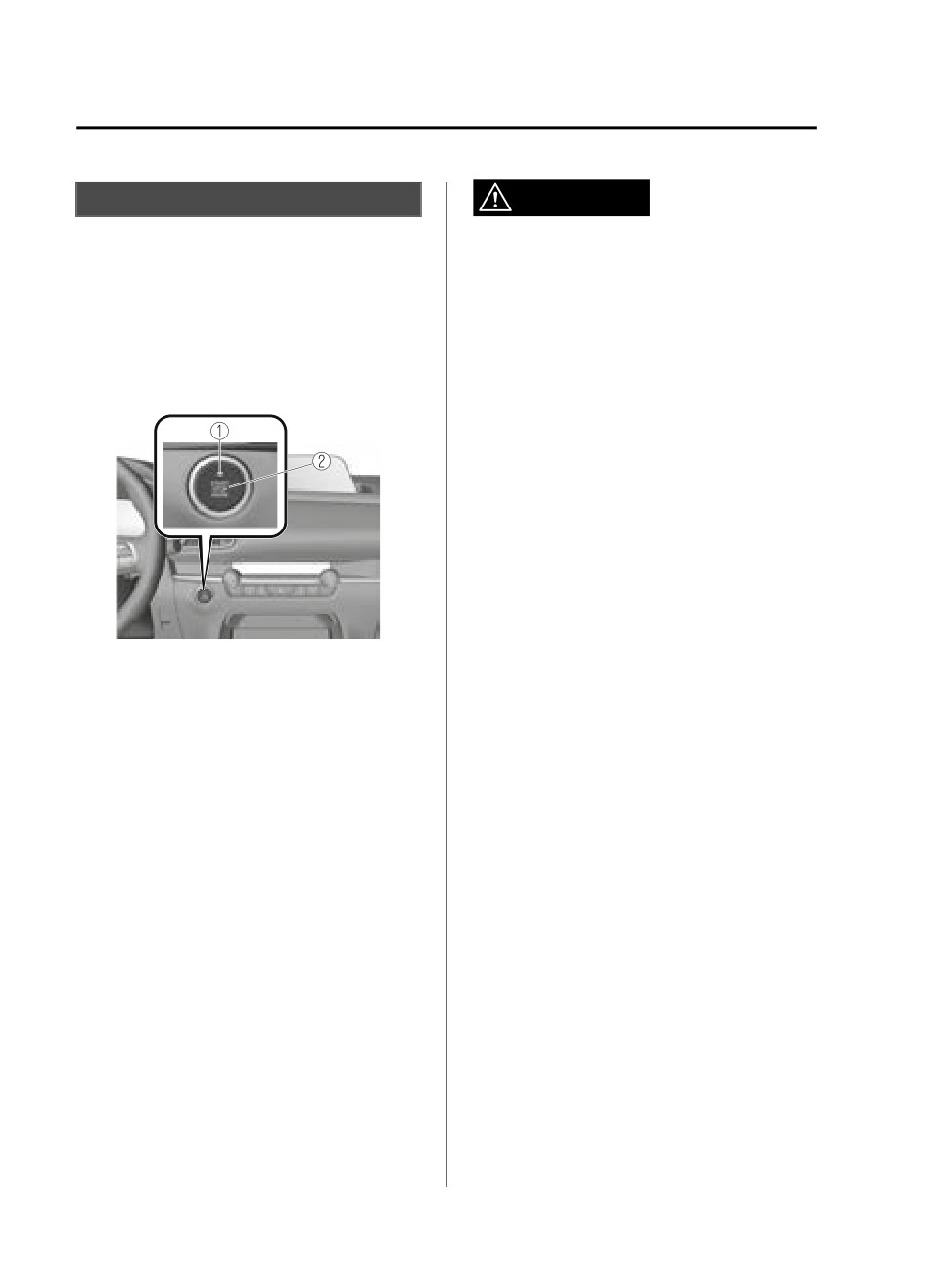

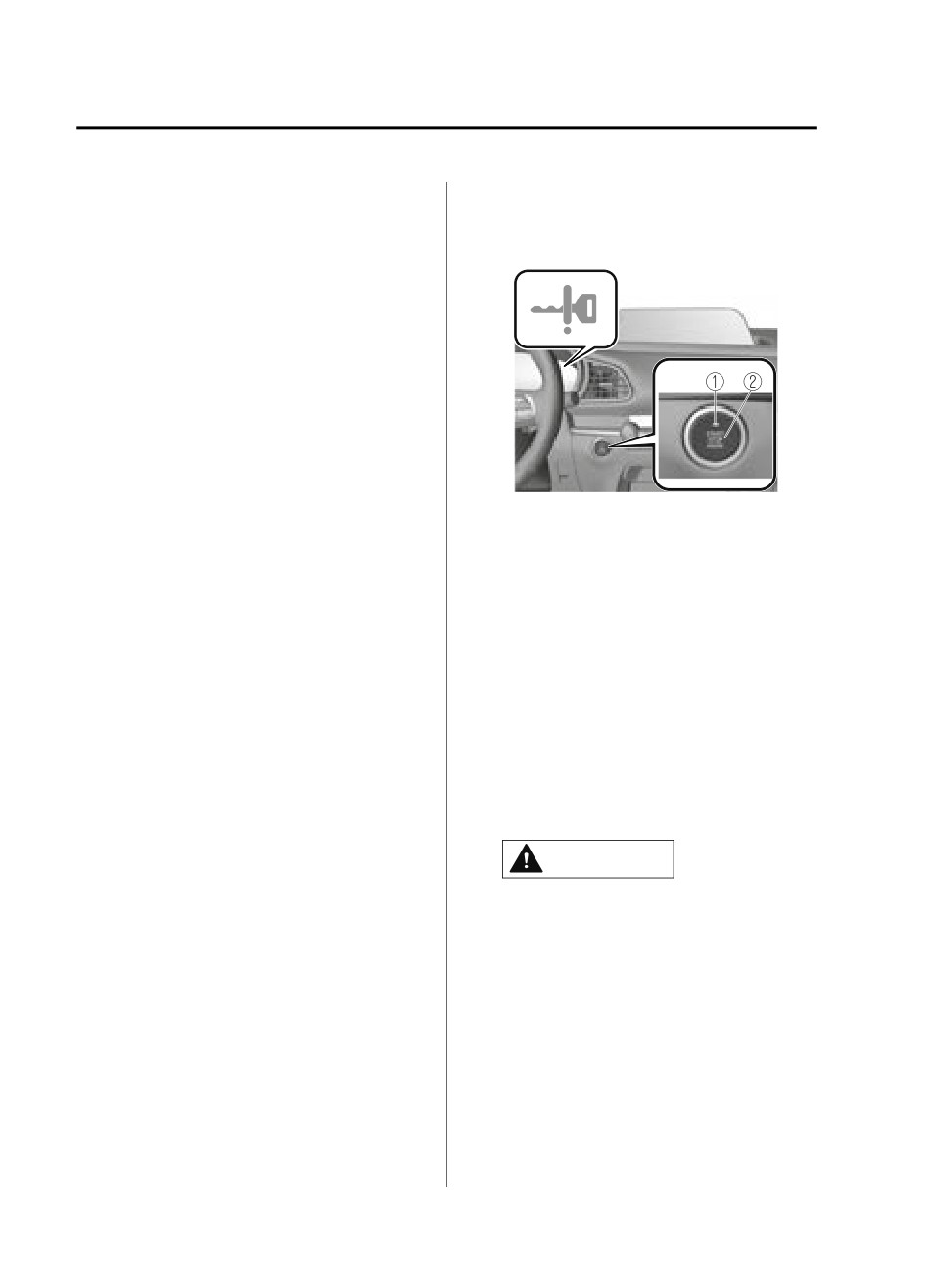

1. Indicator light
Some electrical accessories will
2. Push button start
operate and the indicator light (amber)
illuminates.
NOTE
NOTE
The engine starts by pressing the
The keyless entry system does not
push button start while depressing
function while the push button start
the brake pedal. To switch the
has been pressed to ACC, and the
ignition position, press the push
doors will not lock/unlock even if they
button start without depressing the
have been locked manually.
pedal.
Do not leave the ignition switched
ON while the engine is not running.
Doing so could result in the battery
going dead. If the selector lever is in
the P position, and the ignition is in
ACC, the ignition switches off
automatically after about 25
minutes.
Off
The power supply to electrical devices
turns off and the indicator light
(amber) also turns off.
4-4
When Driving
Start/Stop Engine
ON
Starting the Engine
This is the normal running position
after the engine is started. The
▼ Starting the Engine
indicator light (amber) turns off. (The
indicator light (amber) illuminates
WARNING
when the ignition is switched ON and
the engine is not running.)
Radio waves from the key may affect
Some indicator lights/warning lights
medical devices such as pacemakers:
should be inspected before the engine
Before using the key near people who
is started.
use medical devices, ask the medical
Refer to Warning/Indicator Lights on
device manufacturer or your physician
page 4-29.
if radio waves from the key will affect
Refer to Indication/Indicator Lights on
the device.
page 4-31.
NOTE
NOTE
When the push button start is pressed
The key must be carried because the
to ON, the sound of the fuel pump
key carries an immobilizer chip that
motor operating near the fuel tank can
must communicate with the engine
be heard. This does not indicate an
controls at short range.
abnormality.
The engine can be started when the
push button start is pressed from off,
ACC, or ON.
The push button start system
functions (function which can start
the engine by only carrying the key)
can be deactivated to prevent any
possible adverse effect on a user
wearing a pacemaker or other
medical device. If the system is
deactivated, you will be unable to
start the engine by carrying the key.
Consult an Authorized Mazda Dealer
for details. If the push button start
system functions have been
deactivated, you can start the engine
by following the procedure indicated
when the key battery goes dead.
Refer to Engine Start Function When
Key Battery is Dead on page 4-8.
4-5
When Driving
Start/Stop Engine
After starting a cold engine, the
6.
Make sure that the KEY indicator
engine speed increases and a
light (green) in the instrument
whining sound from the engine
cluster and push button start
compartment can be heard.
indicator light (green) turns on.
This is for improved exhaust gas
purification and does not indicate
any parts defect.
Engine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
1.
Make sure you are carrying the key.
1. Indicator light
2.
Occupants should fasten their seat
2. Push button start
belts.
NOTE
3.
Make sure the parking brake is on.
4.
Continue to depress the brake
If the push button start indicator
pedal firmly until the engine has
light (green) flashes, make sure
completely started.
that the key is being carried.
5.
Put the vehicle in park (P). If you
If the push button start indicator
must restart the engine while the
light (green) flashes with the key
vehicle is moving, shift into neutral
being carried, touch the key to
(N).
the push button start and start
the engine.
NOTE
Refer to Engine Start Function
The starter will not operate if the
When Key Battery is Dead on
selector lever is not in P or N
page 4-8.
position and the brake pedal is not
depressed sufficiently.
CAUTION
If the KEY warning indication (red)
is displayed, or the push button
start indicator light (amber) flashes,
this could indicate a problem with
the engine starting system. This may
prevent the engine from starting or
from switching the ignition to ACC
or ON.
Refer to KEY Warning Indication/
Warning Light (Red) on page
7-29.
4-6
When Driving
Start/Stop Engine
Have your vehicle inspected at an
When the selector lever is in the
Authorized Mazda Dealer as soon
neutral (N) position, the push
as possible.
button start indicator light (green)
does not turn on.
NOTE
7.
Press the push button start after the
push button start indicator light
Under the following conditions,
(green) turns on.
the KEY warning indication (red)
is displayed after the push button
NOTE
start is pressed. This informs the
After starting the engine, the push
driver that the push button start
button start indicator light
will not switch to ACC, even if it
(amber) turns off and the ignition
is pressed from off (page 7-29).
switches to the ON position.
The key battery is dead.
After pressing the push button
The key is out of operational
start and before the engine starts,
range.
the operation sound of the fuel
The key is placed in areas where
pump motor from near the fuel
it is difficult for the system to
tank can be heard, however, this
detect the signal (page 3-8).
does not indicate a malfunction.
A key from another
8.
After starting the engine, let it idle
manufacturer similar to the key
for about 10 seconds.
is in the operational range.
NOTE
(Forced engine starting method)
If the KEY warning indication
Do not use high engine speeds
(red) is displayed, or the push
until reaching the operating
button start indicator light
temperature.
(amber) flashes, this could
Whether the engine is cold or
indicate that the engine may not
warm, it should be started
start using the usual starting
without the use of the
method (page 7-29). Have your
accelerator.
vehicle inspected at an
If the engine does not start the
Authorized Mazda Dealer as
first time, refer to Starting a
soon as possible. If this occurs,
Flooded Engine under Emergency
the engine can be force-started.
Starting. If the engine still does
Press and hold the push button
not start, have your vehicle
start until the engine starts. Other
inspected by an Authorized
procedures necessary for starting
Mazda Dealer (page 7-16).
the engine, such as having the key
in the cabin, and depressing the
brake pedal are required.
When the engine is force-started,
the KEY warning indication (red)
remains displayed and the push
button start indicator light
(amber) remains flashing.
4-7
When Driving
Start/Stop Engine

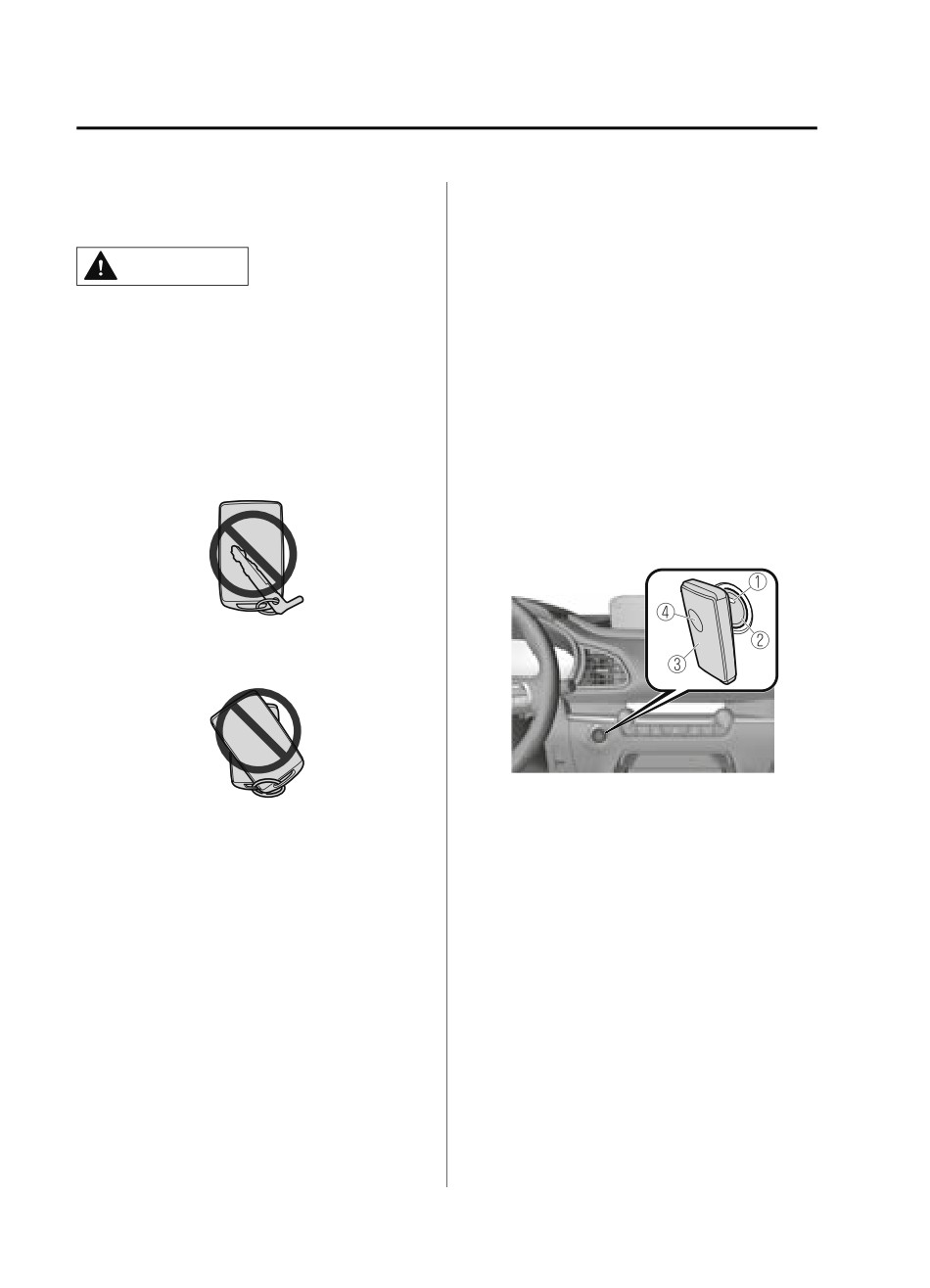

▼ Engine Start Function When Key
If the engine cannot be started due to
Battery is Dead
a dead key battery, the engine can be
started using the following procedure:
1. Continue to depress the brake
CAUTION
pedal firmly until the engine has
completely started.
When starting the engine by holding
2. Put the vehicle in park (P). If you
the transmitter over the push button
must restart the engine while the
start due to a dead key battery or a
vehicle is moving, shift into neutral
malfunctioning key, be careful not to
(N).
allow the following, otherwise the
3. Make sure that the push button
signal from the key will not be received
start indication light (green) flashes.
correctly and the engine may not start.
4. Align the center area of the
¾ Metal parts of other keys or metal
emblem on the transmitter with the
objects touch the key.
center area of the push button start
while the push button start
indicator light (green) flashes.
¾ Spare keys or keys for other vehicles
equipped with an immobilizer
system touch or come near the key.
1. Indicator light
2. Push button start
¾ Devices for electronic purchases, or
security passage touch or come near
3. Transmitter
4. Emblem
the key.
5. Make sure that the push button
start indicator light (green) turns
on.
6. Press the push button start to start
the engine.
4-8
When Driving
Start/Stop Engine
NOTE
▼ Emergency Operation for Starting
the Engine
The engine cannot be started
unless the brake pedal is fully
If the KEY warning indication (red) is
depressed.
displayed, or the push button start
If there is a malfunction with the
indicator light (amber) flashes, this
push button start function, the
could indicate that the engine may not
push button start indicator light
start using the usual starting method.
(amber) flashes. In this case, the
Have your vehicle inspected at an
engine may start, however, have
Authorized Mazda Dealer as soon as
the vehicle checked at an
possible. If this occurs, the engine can
Authorized Mazda Dealer as
be force-started. Press and hold the
soon as possible.
push button start until the engine
If the push button start indicator
starts. Other procedures necessary for
light (green) does not illuminate,
starting the engine such as having the
perform the operation from the
key in the cabin, and depressing the
beginning again. If it does not
brake pedal are required.
illuminate, have the vehicle
checked at an Authorized Mazda
Dealer.
To switch the ignition position
without starting the engine,
perform the following operations
after the push button start
indicator light (green) turns on.
1. Release the brake pedal.
2. Press the push button start to
switch the ignition position.
The ignition switches in the
order of ACC, ON, and off
each time the push button
start is pressed. To switch the
ignition position again,
perform the operation from
the beginning.
4-9
When Driving
Start/Stop Engine
Turning the Engine Off
CAUTION
▼ Turning the Engine Off
¾ When leaving the vehicle, make sure
the push button start is off.
WARNING
NOTE
Do not stop the engine while the
The cooling fan in the engine
vehicle is moving:
compartment could turn on for a few
Stopping the engine while the vehicle
minutes after the ignition is switched
is moving for any reason other than in
from ON to OFF, whether or not the
an emergency is dangerous. Stopping
A/C is on or off, to cool the engine
the engine while the vehicle is moving
compartment quickly.
will result in reduced braking ability
If the system detects that the
due to the loss of power braking,
remaining battery power of the key is
which could cause an accident and
low when the ignition is switched
serious injury.
from ON to ACC or OFF, the
following is indicated.
1. Stop the vehicle completely.
Replace with a new battery before
2. Shift the selector lever to the P
the key becomes unusable.
position and set the parking brake.
Refer to Key Battery Replacement on
3. Press the push button start to turn
page 6-29.
off the engine. The ignition position
A message is indicated in the display
is off.
of the instrument cluster.
Refer to KEY Warning Indication/
Warning Light (Red) on page 7-29.
If the engine is turned off while the
selector lever is in a position other
than P, the ignition switches to ACC.
▼ Emergency Engine Stop
Continuously pressing the push button
start or quickly pressing it any number
of times while the engine is running or
the vehicle is being driven will turn the
engine off immediately. The ignition
switches to ACC.
4-10
When Driving
Start/Stop Engine
(MRCC with Stop & Go function)/
i-stop*
Traffic Jam Assist (TJA))
1. Engine idling stops when the brake
▼ i-stop
pedal is depressed while the vehicle
The i-stop function automatically stops
is driven (except for driving in the R
the engine when the vehicle is stopped
or M position second gear fixed
at a traffic light or stuck in traffic, and
mode) and the vehicle is stopped.
then restarts the engine automatically
2. The engine restarts automatically
to resume driving. The system provides
when the brake pedal is released
improved fuel economy, reduced
with the selector lever in the D or
exhaust gas emissions, and eliminates
M position (not in second gear
idling noise while the engine is
fixed mode).
stopped.
3. If the selector lever is in the N or P
position, the engine does not
Engine idle stopping and restarting
restart when the brake pedal is
released. The engine restarts when
NOTE
the brake pedal is depressed again
After parking the vehicle, make sure
or the selector lever is shifted to the
that the ignition is switched OFF.
D, M (not in second gear fixed
There is the possibility of the vehicle
mode) or the R position. (For the
moving if the vehicle is parked while
purposes of safety, always keep the
i-stop is operating.
brake pedal depressed when

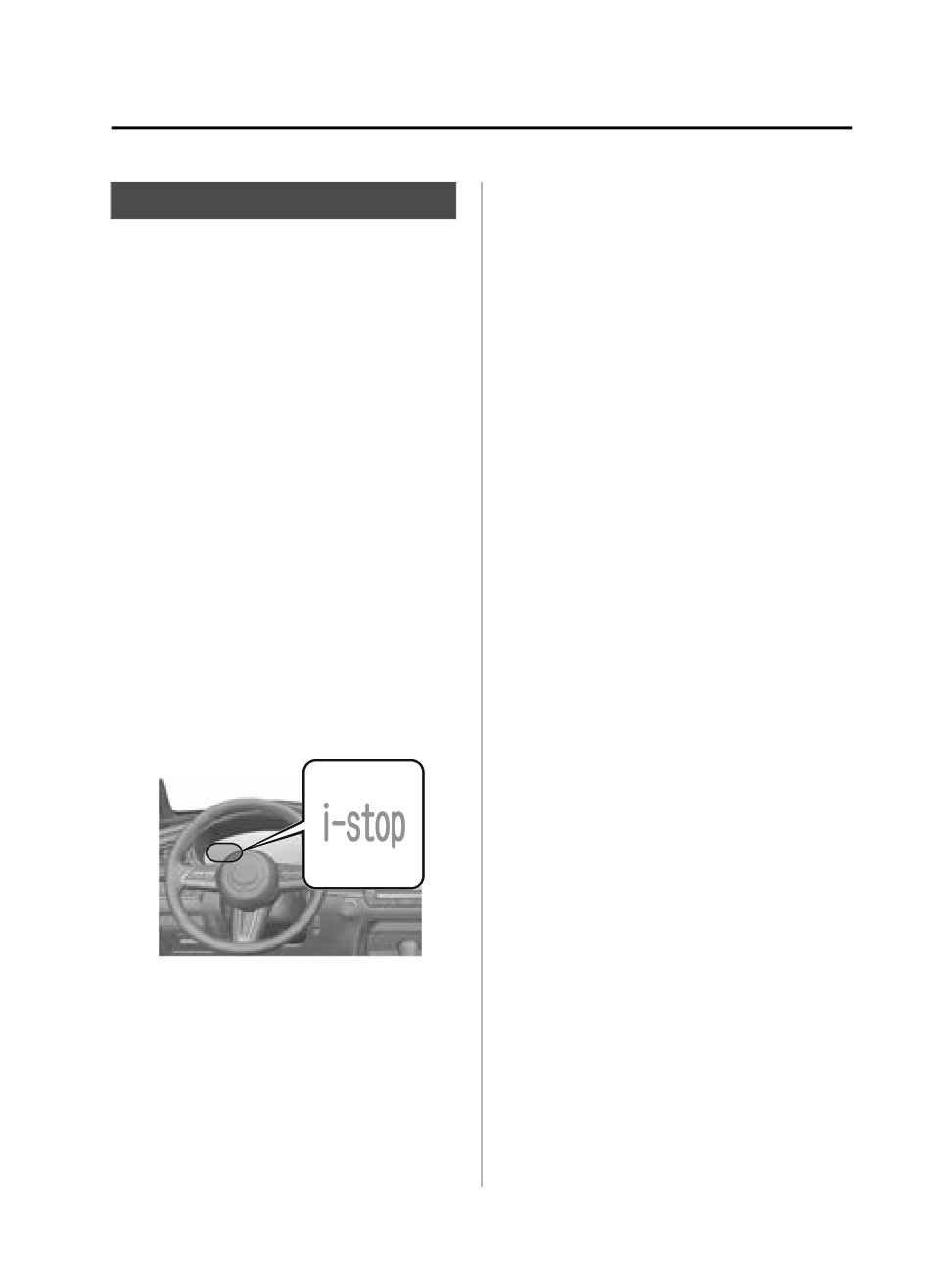

The i-stop indicator light (green)
shifting the selector lever while
turns on under the following
engine idling is stopped.)
conditions:
(When the vehicle is stopped by the
MRCC with Stop & Go function/TJA
When engine idling is stopped.
stop hold control)
1. When the vehicle is stopped by the
MRCC with Stop & Go function/
TJA, engine idling stops and
continues to be stopped without
depressing the brake pedal.
2. When the accelerator pedal is
depressed or the RES switch is
operated, while the vehicle is
stopped by the MRCC with Stop &
Go function/TJA, the engine will
The i-stop indicator light (green)
automatically restart if the selector
turns off when the engine is
lever is in the D/M position (not in
restarted.
second gear fixed mode).
Engine idle stopping and restarting
(When the vehicle is stopped by the
while vehicle is stopped
AUTOHOLD function)
(AUTOHOLD operation turned off and
1. When the brake pedal is depressed
When not using Mazda Radar Cruise
while the vehicle is being driven
Control with Stop & Go function
and the vehicle comes to a stop,
the i-stop function will operate and
*Some models.
4-11
When Driving
Start/Stop Engine
continue to operate even if the
Operation conditions
brake is released (except when
Under the following conditions, engine
driving in the R or M position
idling stops and the i-stop indicator
second gear fixed mode).
light (green) turns on.
2. The engine restarts automatically
when the accelerator pedal is
The engine is warmed up.
depressed with the selector lever in
The engine has been started and the
the D/M position (not in second
vehicle is driven for a certain period.
gear fixed mode).
The engine is started with the hood
3. If the selector lever is in the N or P
closed.
position, the engine does not
All doors, liftgate, and hood are
restart when the brake pedal is
closed.
released. The engine restarts when
The driver's seat belt is fastened.
the brake pedal is depressed again
The air conditioner is not operating
or the selector lever is shifted to the
with the airflow mode in the
D, M (not in second gear fixed
position.
mode) or the R position. (For the
The temperature setting dial of the
purposes of safety, always keep the
air conditioner is in a position other
brake pedal depressed when
than maximum heating or maximum
shifting the selector lever while
cooling (A/C ON) position.
engine idling is stopped.)
(Automatic climate control system)
Engine idle stopping and restarting
The vehicle's interior temperature
while driving (With M Hybrid)
and the set temperature for the air
(When not using MRCC with Stop &
conditioner are nearly the same.
Go function/TJA)
The i-stop warning light (amber) is
1. Engine idling stops when the
not turned on/flashing.
vehicle speed is about 20 km/h (12
The keyless entry & push button start
mph) or slower after depressing the
system functions are normal.
brake pedal while driving the
(With M Hybrid)
vehicle (in D position).
2. The engine restarts automatically
The temperature and charge
after releasing the brake pedal with
condition of the M Hybrid battery
the selector lever in the D position.
is within normal operating range.
(When using MRCC with Stop & Go
The Integrated Starter-Generator
function/TJA)
(ISG) is in good condition.
1. Engine idling stops when the
(Without M Hybrid)
vehicle has decelerated to about 20
The brake vacuum is sufficiently
km/h (12 mph) or slower while in
high.
headway control using the MRCC
The battery is in good condition.
with Stop & Go function/TJA.
(While vehicle is stopped)
2. If it is necessary to accelerate while
in headway control using the MRCC
The selector lever is in the D or M
with Stop & Go function/TJA, the
position (not in second gear fixed
engine restarts automatically.
mode).
The automatic transmission fluid
has warmed up sufficiently.
4-12
When Driving
Start/Stop Engine
The automatic transmission fluid
The vehicle is not stopped
temperature is not abnormally
suddenly.
high.
The steering wheel is almost in the
NOTE
straight-ahead position (idling may
Under the following conditions, a
not stop even with the steering
period of time is required to stop
wheel in the straight-ahead
engine idling
position if force is applied to the
(Without M Hybrid)
steering wheel. Release the force
The battery power is depleted for
applied to the steering wheel to
some reason such as the vehicle has
stop engine idling).
not been driven for a long period.
The vehicle is stopped by
(With M Hybrid)
depressing the brake pedal.
The M Hybrid battery power is
The vehicle is not on a steep slope.
depleted for some reason such as the
The vehicle is not stopped
vehicle has not been driven for a
suddenly.
long period.
(While driving (With M Hybrid))
The ambient temperature is high or
The selector lever is in the D
low.
position (not in second gear fixed
After the battery terminals are
mode).
disconnected for some reason such
The vehicle is driven at a speed of
as for battery replacement.
20 km/h (12 mph) or faster after
Engine-stop period is short or time
engine idling stops.
until next engine idle stop is long
The vehicle is driven at a vehicle
speed of about 30 km/h (19 mph)
The ambient temperature is high or
or faster after engine idling stops
low.
while driving.
(Without M Hybrid)
The vehicle is not driven in sport
The battery power is depleted.
mode.
(With M Hybrid)
The automatic transmission fluid
The M Hybrid battery power is
has warmed up sufficiently.
depleted.
The automatic transmission fluid
Power consumption by the vehicle's
temperature is not abnormally
electrical parts is high.
high.
Engine restarts automatically while
The steering wheel is almost in the
engine idling is stopped
straight-ahead position (idling may
Under the following conditions, the
not stop even with the steering
engine restarts automatically.
wheel in the straight-ahead
position if force is applied to the
The i-stop OFF switch is pressed until
steering wheel. Release the force
the beep sounds.
applied to the steering wheel to
The air conditioner is operated with
stop engine idling).
the airflow mode in the
The vehicle is stopped by
position.
depressing the brake pedal.
The vehicle is not driven on a
slope.
4-13
When Driving
Start/Stop Engine
The temperature setting dial of the
(Engine idling is stopped while
air conditioner is in the maximum
driving (With M Hybrid))
heating or maximum cooling (A/C
The selector lever is in a position
ON) position.
other than the D position.
(Automatic climate control system)
The accelerator pedal is depressed.
The cabin temperature is largely
Sport mode is selected.
different from the set temperature of
The steering wheel is operated.
the air conditioner.
The shift lever is shifted to the R
The brakes are released slightly on a
position.
slope and the vehicle begins to
The brake pedal is depressed with
move.
the shift lever in the N position.
Two minutes have elapsed since the
The accelerator pedal is depressed.
idling was stopped.
(Without M Hybrid)
Selector lever is operated while
The battery power is depleted.
engine idling is stopped
(With M Hybrid)
If the selector lever is shifted from D or
The M Hybrid battery power is
M (not in second gear fixed mode)
depleted.
position to N or P position while
(Engine idling is stopped while the
engine idling is stopped, the engine
vehicle is stopped)
does not restart even when the brake
pedal is released. The engine will
The accelerator pedal is depressed
restart if the brake pedal is depressed
with the selector lever in the D or
again or the selector lever is shifted to
M (not in second gear fixed mode)
the D, M (not in second gear fixed
position.
mode), or R position. (For the
The selector lever is shifted to the R
purposes of safety, always keep the
position.
brake pedal depressed when shifting
The selector lever is shifted from N
the selector lever.)
or P position to D or M (not in
If the selector lever is shifted from the
second gear fixed mode) position.
D or M (not in second gear fixed
The steering wheel is operated
mode) to the N or P position, and the
with the selector lever in the D or
driver's seat belt is unfastened or the
M (not in second gear fixed mode)
driver's door is opened, the engine
position.
restarts.
The selector lever is in the M
Battery terminals have been
position and the second gear fixed
disconnected
mode is selected.
Engine idling may not stop right after
With the selector lever in the P or
the battery terminals have been
N position, or the D/M range, the
disconnected. In addition, if the
driver's seat belt is unfastened, the
battery is replaced, the i-stop functions
driver's door is opened, or the
must be verified. Consult an
hood is opened.
Authorized Mazda Dealer.
The steering wheel is operated.

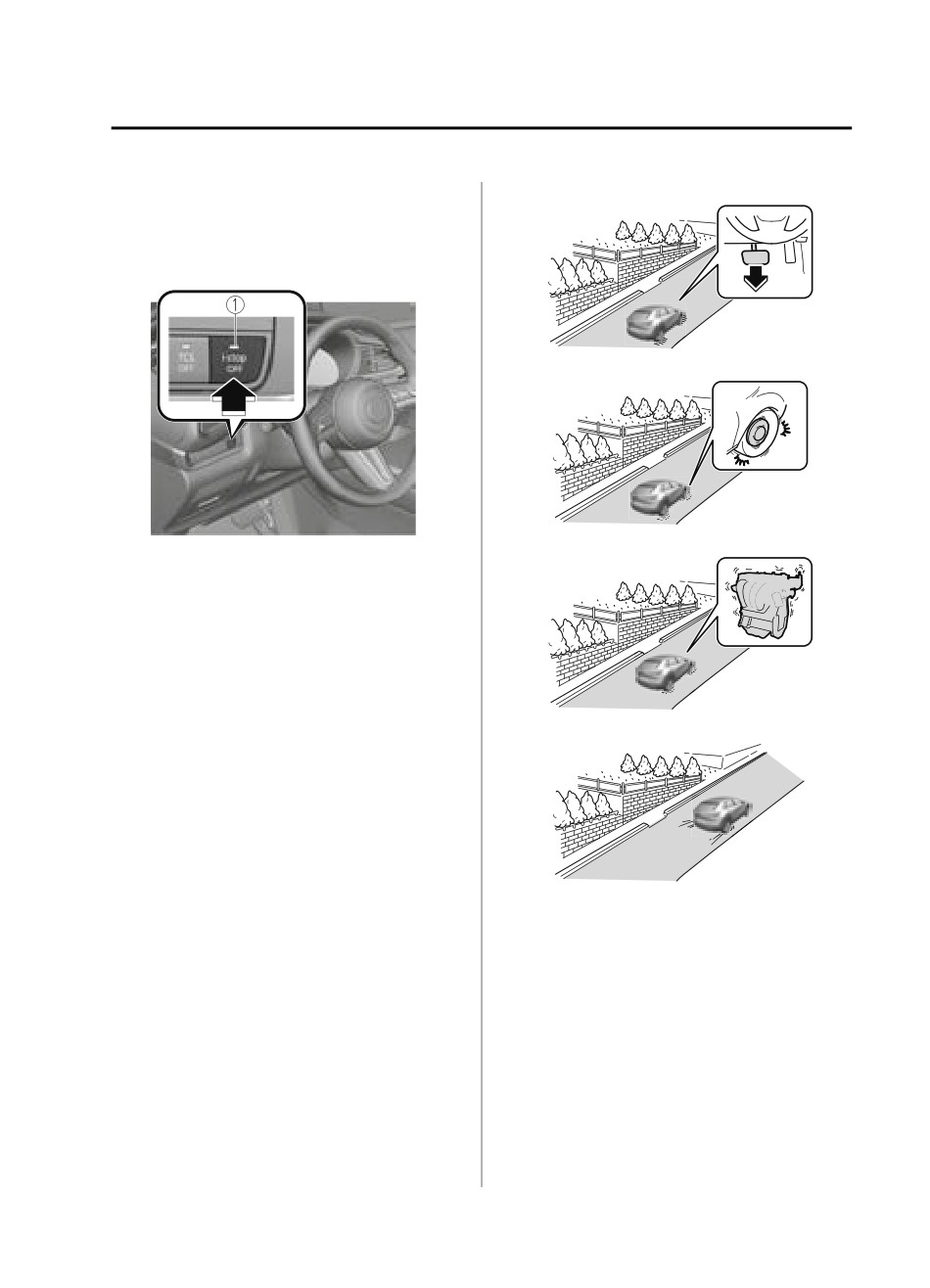

▼ i-stop OFF Switch
When pressing the switch, the i-stop
function stops and the i-stop OFF
4-14
When Driving
Start/Stop Engine
switch indicator light turns on. If the
1. Release foot from brake pedal
switch is pressed again, the i-stop
function becomes operational and the
i-stop OFF switch indicator light turns
off.
2. Vehicle brake force maintained
3.
Engine restarted
1. Indicator light
NOTE
If the engine is stopped with the i-stop
function stopped, the i-stop function
becomes operational again when the
engine is started the next time.
▼ Vehicle Roll Prevention Function
4.
Acceleration
Vehicles with the i-stop function are
equipped with a vehicle roll prevention
function. This function prevents the
vehicle from rolling, such as when
releasing the brake pedal while on a
slope under the following conditions:
While engine idling is stopped
(prevents the vehicle from rolling
back)
When the engine restarts after
releasing the brake pedal (prevents
the vehicle's sudden movement due
to vehicle creep), sudden movement
of the vehicle is prevented by
controlling the brakes.
4-15
When Driving
Start/Stop Engine
The brake pedal response may
WARNING
change, sound may occur from the
brakes, or the brake pedal could
Do not rely completely on the vehicle
vibrate from the operation of the
roll prevention function.
vehicle roll prevention function.
¾ The vehicle roll prevention function
However, this does not indicate a
is a supplementary function which
malfunction.
operates for a maximum of 2
▼ i-stop Warning Light (Amber)/
seconds after releasing the brake
i-stop Indicator Light (Green)
pedal and accelerating the vehicle
from an engine idling stop condition.
The i-stop system constantly monitors
Over reliance on the system may
the driver's operations, the vehicle's
result in an unexpected accident if
interior and exterior environment, and
the vehicle were to suddenly
the operational status of the vehicle,
accelerate. Before starting to drive
and uses the i-stop warning light
the vehicle, always confirm the safety
(amber) and i-stop indicator light
of the surroundings and operate the
(green) to inform the driver of various
selector lever, brake pedal, and
cautions and warnings.
accelerator pedal appropriately.
NOTE
Note that the vehicle may move
On vehicles equipped with the center
suddenly depending on the vehicle's
display, the i-stop operation status is
load or if it is towing something.
displayed in the fuel efficiency monitor
¾ Note that the vehicle may move
display.
suddenly after the vehicle roll
Refer to the Fuel Efficiency Monitor
prevention function is released while
section in the Mazda Connect
the vehicle is under the following
Owner's Manual.
conditions:
i-stop warning light (amber)
¾ The selector lever is in the N
position.
¾ If the selector lever is shifted to the
N position and the brake pedal is
released while the i-stop function
is operating, the brake force is
gradually released. To accelerate
When the light is turned on
the vehicle, release the brake pedal
after the engine restarts and shift
The light turns on when the ignition
the selector lever to a position
is switched ON and turns off when
other than the N position.
the engine is started.
If the i-stop warning light (amber)
remains on while the engine is
NOTE
running, the battery performance
When the vehicle is stopped on a
may have decreased. Have your
steep grade, the vehicle roll
vehicle inspected by an Authorized
prevention function does not
Mazda Dealer.
operate because engine idling is not
stopped.
4-16
When Driving
Start/Stop Engine
NOTE
A problem in the system may be
indicated under the following
conditions. Have your vehicle
inspected by an Authorized Mazda
Dealer.
The light does not turn on when the
ignition is switched ON.
The light continues to remain on
while the engine is running.
When the light is flashing
The light continues to flash if the
system has a malfunction. Have your
vehicle inspected by an Authorized
Mazda Dealer.
i-stop indicator light (green)
When the light is turned on
The light turns on while engine idling is
stopped and turns off when the engine
is restarted.
4-17
When Driving
Instrument Cluster and Display
Instrument Cluster and
Instrument Cluster
Display

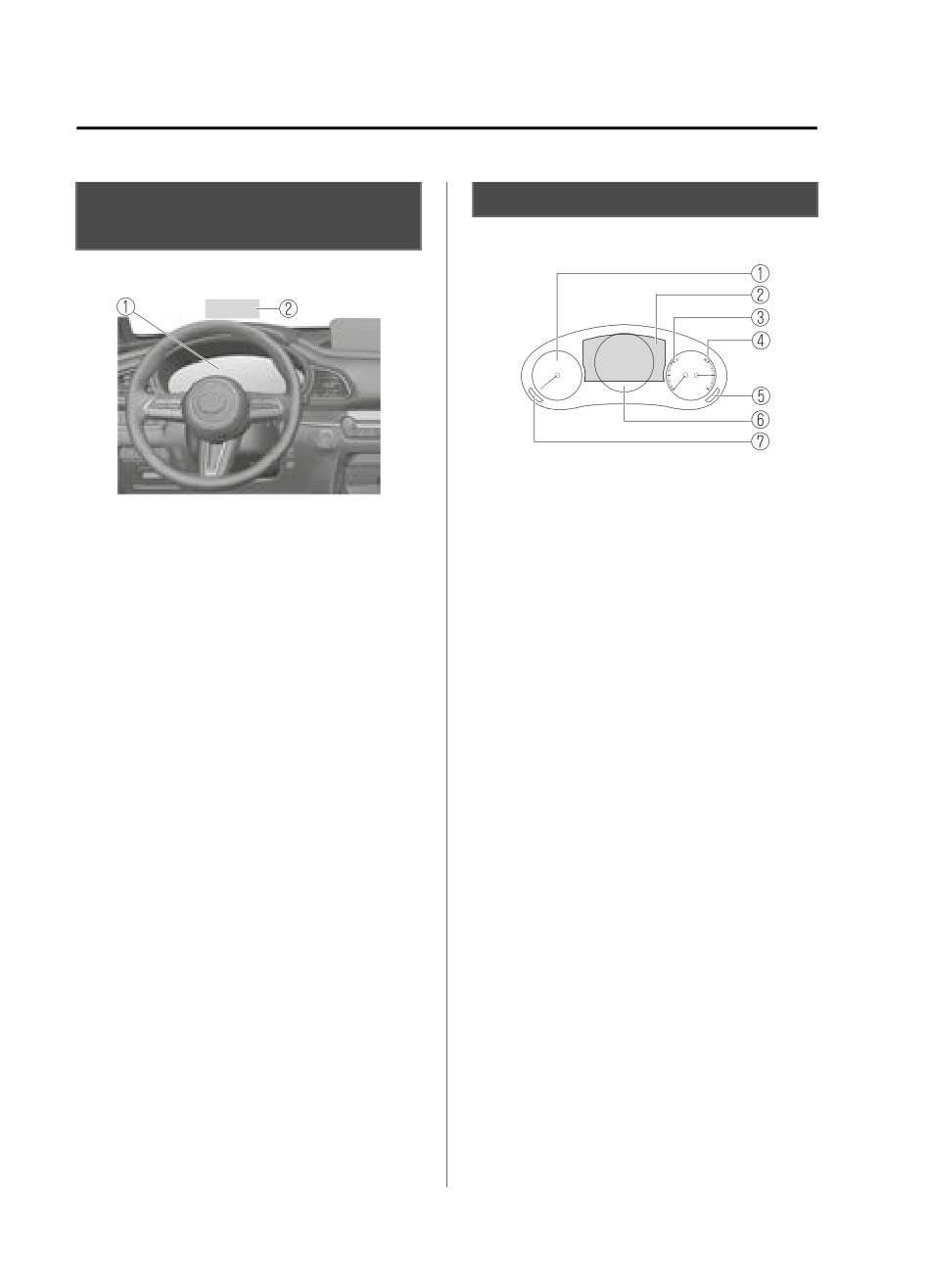

▼ Instrument Cluster
▼ Instrument Cluster and Display
ᶃ Tachometer

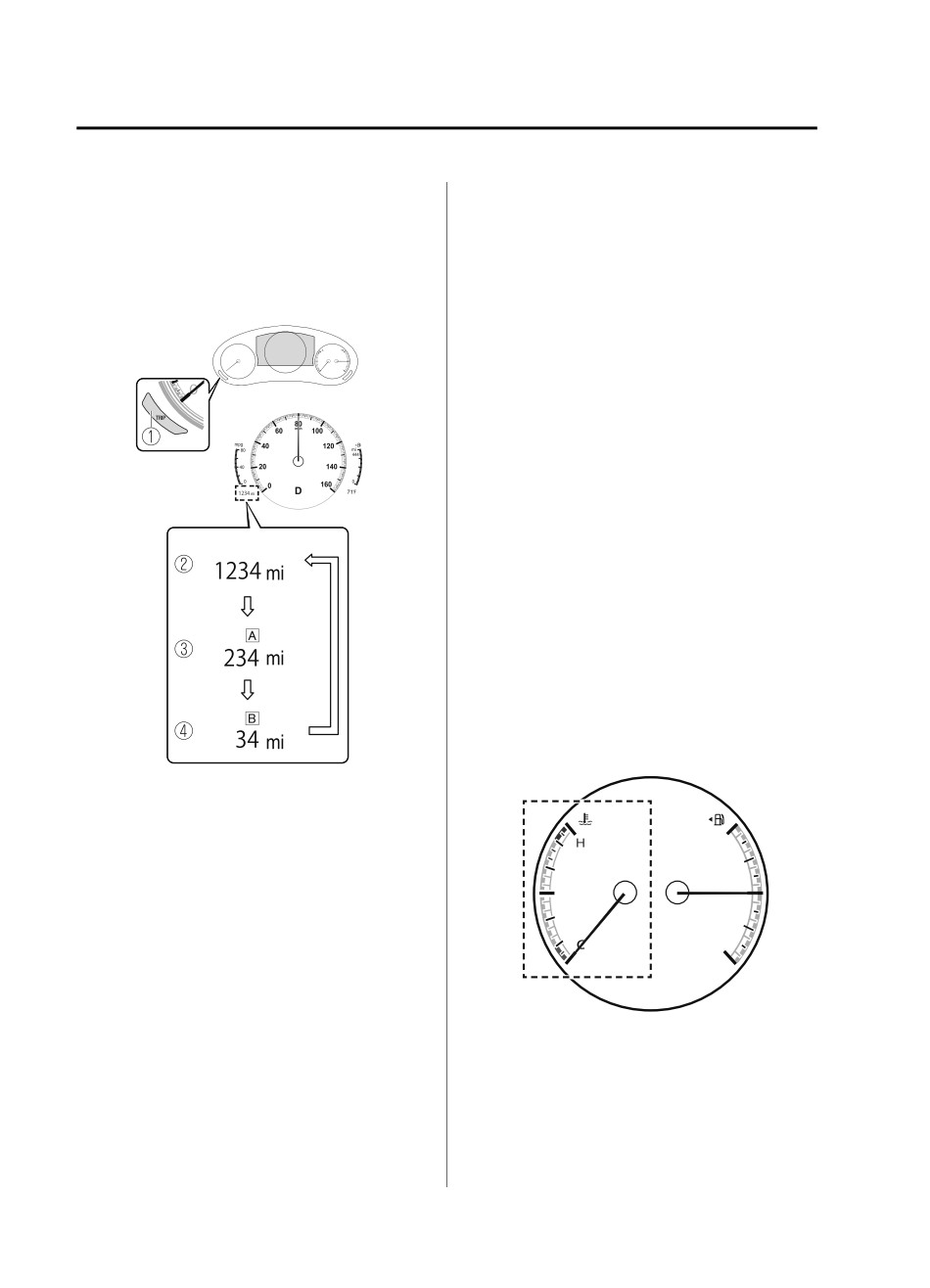

page 4-19
ᶄ Multi-information Display
ᶃ Instrument Cluster
page 4-18
..................................... page 4-20
ᶄ Active Driving Display
page 4-35
ᶅ Engine Coolant Temperature
Gauge
page 4-22
ᶆ Fuel Gauge
page 4-23
ᶇ Dashboard Illumination
Switch
page 4-24
ᶈ Speedometer
page 4-18
ᶉ TRIP Switch
page 4-22
▼ Speedometer
The speedometer indicates the speed
of the vehicle.
4-18
When Driving
Instrument Cluster and Display
▼ Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
CAUTION
Do not run the engine with the
tachometer needle in the RED ZONE.
This may cause severe engine damage.

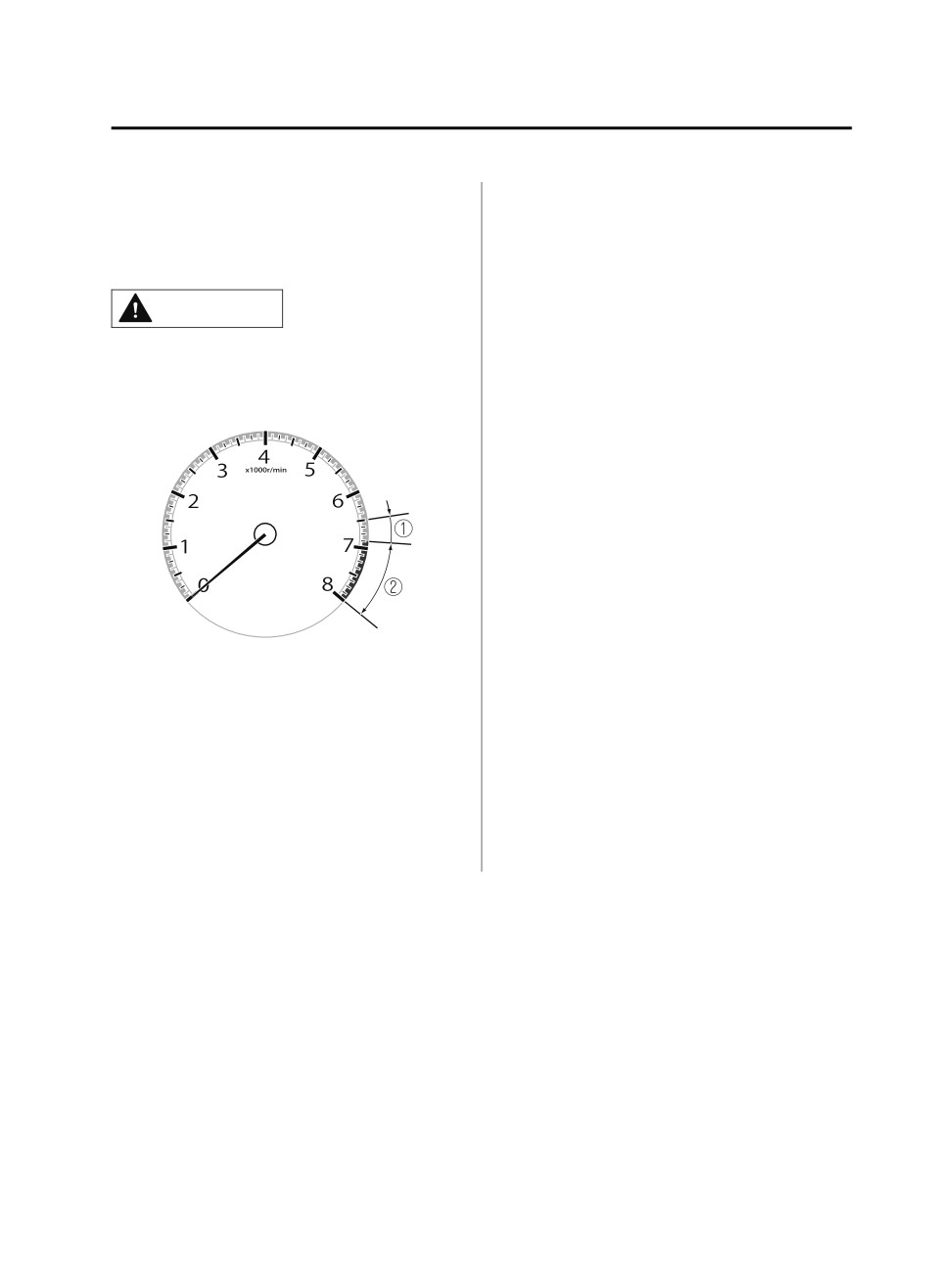

1. STRIPED ZONE*1
2. RED ZONE*1
*1
The range varies depending on the type of
gauge.
NOTE
When the tachometer needle enters
the STRIPED ZONE, this indicates to
the driver that the gears should be
shifted before entering the RED ZONE.
4-19
When Driving
Instrument Cluster and Display
▼ Multi-information Display

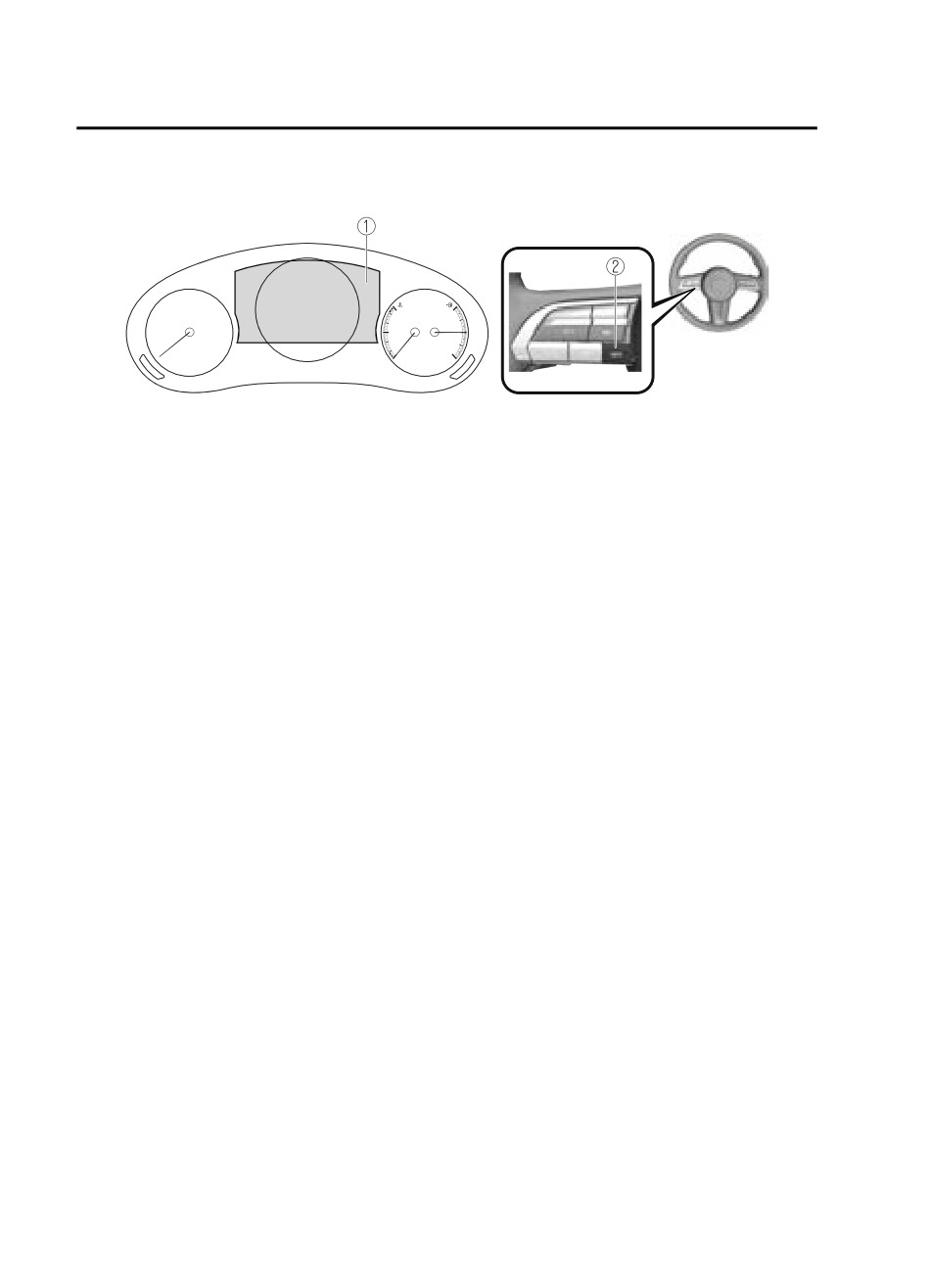

1. Multi-information Display
2. INFO switch
The multi-information display indicates the following information.
Speedometer
Odometer
Trip meter
Outside temperature
Distance-to-empty
Average fuel economy
Current fuel economy
Deceleration Regeneration Charge Display (M Hybrid)
i-ACTIVSENSE Display
Compass Display
Door-Ajar/Liftgate-Ajar Warning Indication*1
Message Display
*1
Displayed when opening door/liftgate.
4-20
When Driving
Instrument Cluster and Display

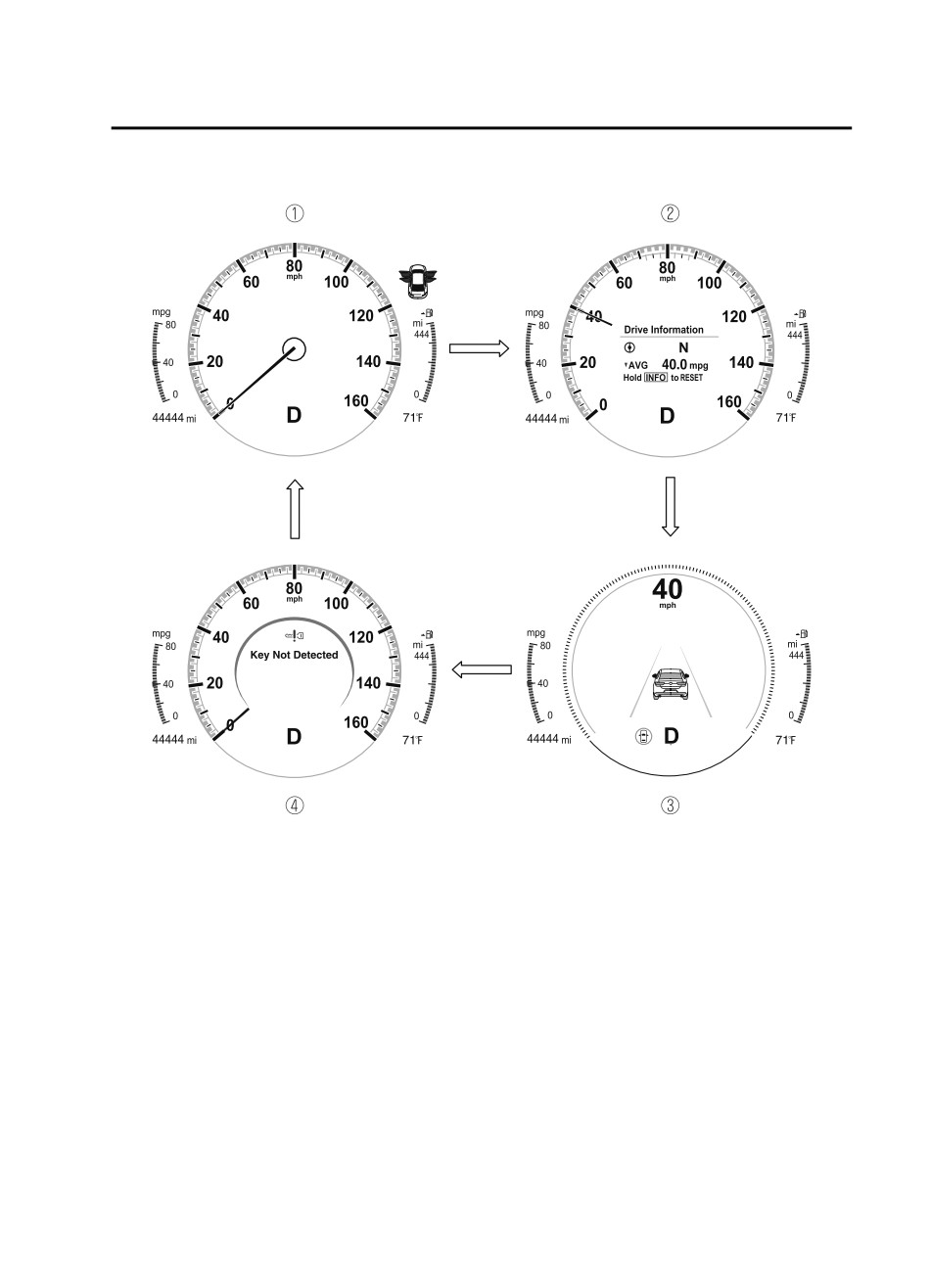

The screen content changes each time the INFO switch is pressed.
1. Basic display
2. Drive information display
3. i-ACTIVSENSE display
4. Message display*1
*1
Displayed only when a warning occurs.
The type of display for the fuel economy and the maximum driving distance can be
changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-21
When Driving
Instrument Cluster and Display
▼ Odometer, Trip Meter and Trip
For instance, trip meter A can record
Meter Selector
the distance from the point of origin,
and trip meter B can record the
You can switch between the odometer
distance from where the fuel tank is
and trip meter display using the TRIP
filled.
switch.
When trip meter A is selected, TRIP A
will be displayed. When trip meter B is
selected, TRIP B will be displayed.
The trip meter can be reset by pressing
the TRIP switch for 1.5 seconds or
more while the trip meter is displayed.
NOTE
Only the trip meters record tenths of
kilometers (miles).
▼ Engine Coolant Temperature
Gauge
Displays the engine coolant
temperature. The blue range of the
gauge indicates that the engine coolant
temperature is low, and the red range
of the gauge indicates that the engine
coolant temperature is high and
overheating.
1.
TRIP switch
2.
Odometer display
3.
Trip meter A display
4.
Trip meter B display
Odometer
The odometer records the total
distance the vehicle has been driven.
Trip meter
The driving distance for a specified
interval is indicated. Two types (TRIP A,
TRIP B) of interval distance can be
measured.
4-22
When Driving
Instrument Cluster and Display
▼ Fuel Gauge
CAUTION
The fuel gauge shows approximately
When the engine coolant temperature
how much fuel is remaining in the tank
gauge needle is in the red range, the
when the ignition is switched ON. We
engine coolant temperature is
recommend keeping the tank over 1/4
extremely high. Drive slowly to reduce
full.
engine load. If the engine coolant
temperature gauge needle is in the red
range, there is the possibility of
overheating. Park the vehicle in a safe
place immediately and take
appropriate measures.
Refer to Overheating on page 7-17.
NOTE
If the engine or engine coolant
temperature is high or low, the
engine output may be restricted to
protect the engine.

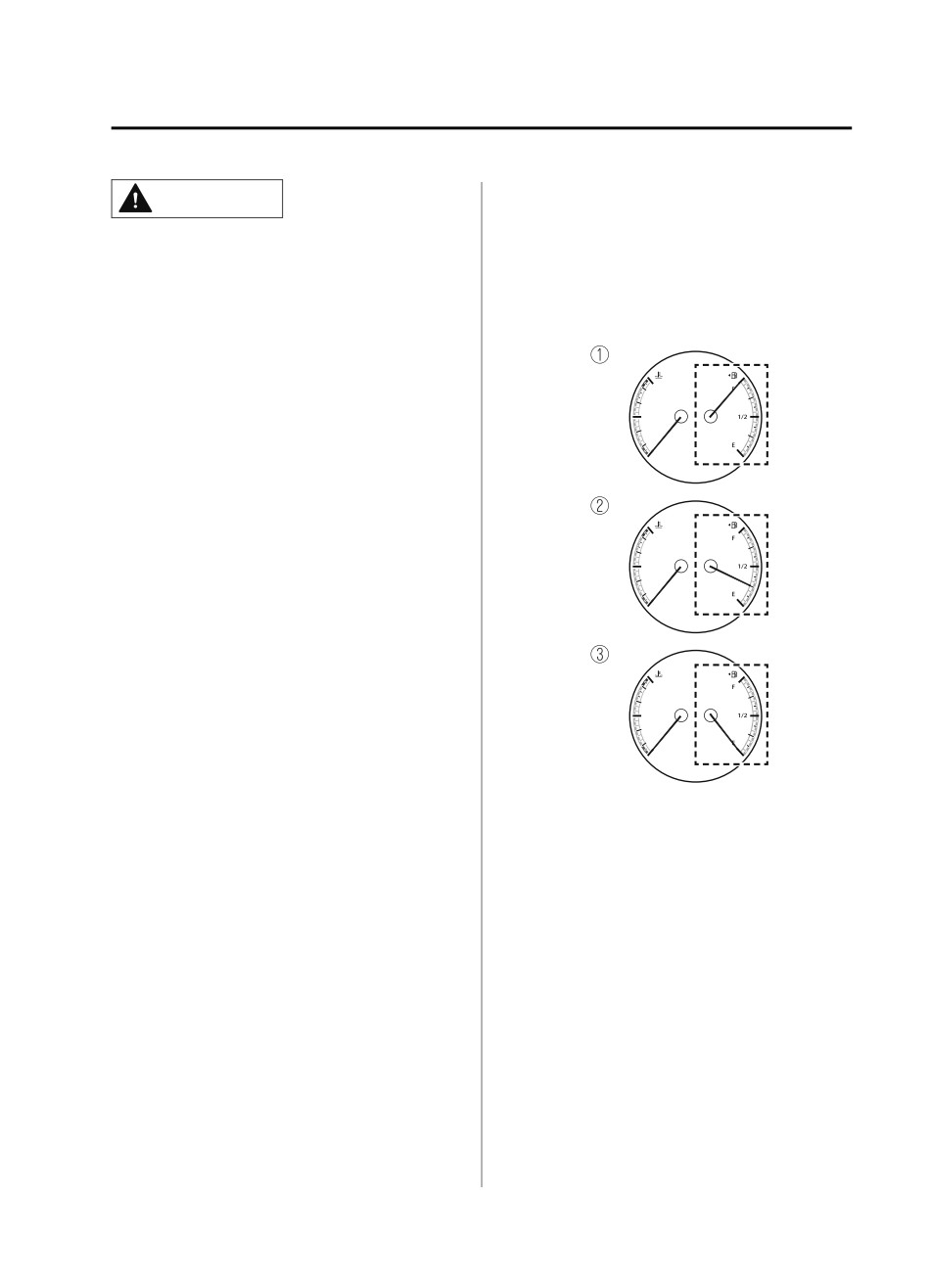

1. Full
2.
1/4 Full
3. Empty
If the low fuel warning light illuminates
or the fuel level is very low, refuel as
soon as possible.
If inconsistency in engine performance
or stalling occurs due to low fuel level
conditions, refuel the vehicle as soon
as possible and add at least 10 L (2.7
US gal, 2.2 Imp gal) of fuel.
Refer to Low Fuel Warning Indication/
Warning Light on page 7-30.
4-23
When Driving
Instrument Cluster and Display
NOTE
The brightness increases by pressing
the + switch.
After refueling, it may require some
The brightness decreases by pressing
time for the indicator to stabilize. In
the - switch. If you press the - switch
addition, the indicator may deviate
while the instrument cluster is at
while driving on a slope or curve
maximum dimness, a sound is
since the fuel moves in the tank.
activated to notify you that the
The direction of the arrow (
)
current dimmer setting is at
indicates that the fuel-filler lid is on
maximum dimness.
the left side of the vehicle.
▼ Dashboard Illumination
(Without auto-light control)
When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
(With auto-light control)
When the lights are turned on with the
ignition switched ON, the brightness of
the dashboard illumination is dimmed.
However, when the light sensor
detects that the surrounding area is

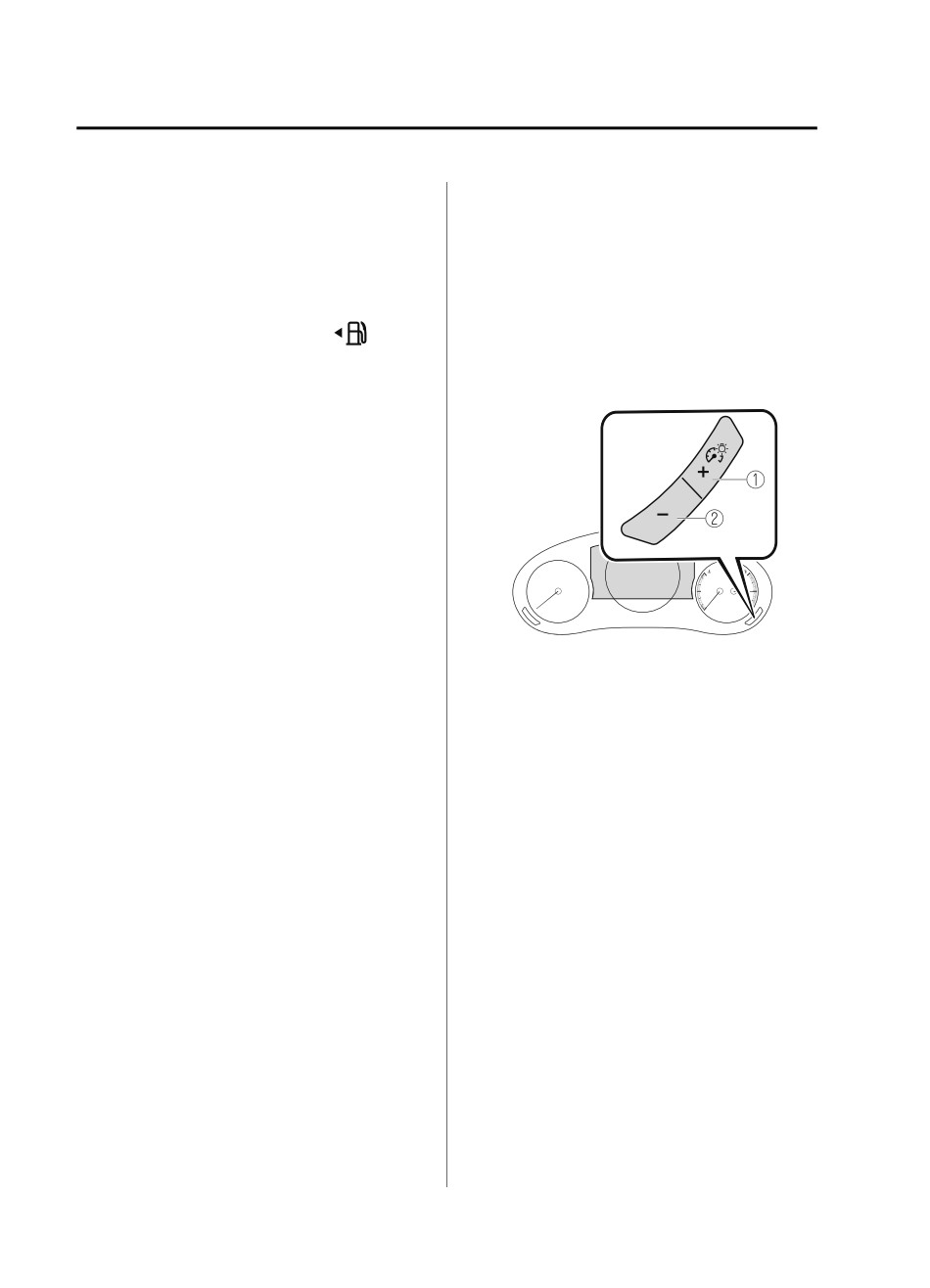

1. Bright
bright such as when the lights are
2. Dim
turned on in the daytime, the
dashboard illumination does not dim.
Function for canceling illumination
dimmer
NOTE
The illumination dimmer can be
(With auto-light control)
canceled by pressing the + switch
When the ignition is switched ON in
while the instrument cluster is at
the early evening or at dusk, the
maximum dimness and while the
dashboard illumination is dimmed
ignition is switched ON. If you press
for several seconds until the light
the + switch again while the
sensor detects the brightness of the
illumination dimmer is canceled, a
surrounding area, however, the
sound is activated to notify you that it
dimming may cancel after the
is canceled. If the instrument cluster's
brightness is detected.
visibility is reduced due to glare from
When the lights are turned on, the
surrounding brightness, cancel the
lights-on indicator light in the
illumination dimmer.
instrument cluster turns on.
Refer to Headlights on page 4-53.
NOTE
The brightness of the instrument panel
When the illumination dimmer is
and dashboard illuminations can be
canceled, the instrument cluster
adjusted by pressing the dashboard
cannot be dimmed even if the lights
illumination switch while the
are turned on.
dashboard illumination is dimmed.
4-24
