Maintenance and Care
Scheduled Maintenance
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
Driveshaft dust boots
I
I
I
I
Bolts and nuts on chassis and body
T
T
T
T
Exhaust system and heat shields
I
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*8
Inspect annually.
Cabin air filter
Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
If the vehicle is operated in very dusty or sandy areas, clean and if necessary, replace the air filter more often
than the recommended intervals.
*2
Top up with new diesel exhaust fluid in the urea tank once a year.
*3
Check the total driving mileage for the last three years.
If 19,200 km (12,000 miles) or more, top up with new diesel exhaust fluid in the urea tank.
If less than 19,200 km (12,000 miles), replace diesel exhaust fluid in the urea tank.
*4
Replace when glow indicator light is continuously ON. Authorized Mazda dealer can replace all the glow
plugs without charge if indicator light comes ON earlier than 240,000 km (150,000 miles).
*5
Engine oil flexible maintenance is available for U.S.A. and Puerto Rico residents whose vehicle is operated
mainly where none of the following conditions apply.
Extended periods of idling or low-speed operation such as police car, taxi or driving school car
Driving in dusty conditions
If any do apply, follow fixed maintenance.
The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and filter change. Reset the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*6
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*7
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*8
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
6-8
Maintenance and Care
Scheduled Maintenance
Canada residents
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
SKYACTIV-G 2.5 AND SKYACTIV-G 2.5T
SKYACTIV-G
Replace every 64,000 km (40,000 miles).
2.5T
Spark plugs
Except SKY-
ACTIV-G
Replace every 120,000 km (75,000 miles).
2.5T
I
I
I
I
I
I
I
I
I
I
I
I
Air filter
Replace every 56,000 km (35,000 miles) or 3 years.
Drive belts
I
I
SKYACTIV-D 2.2
Fuel filter
Replace every 32,000 km (20,000 miles) or 3 years.
C
C
C
C
C
C
Air filter
Replace every 56,000 km (35,000 miles) or 3 years.
Diesel exhaust fluid for SCR system
*1
*1
*2
*1
*1
*2
Glow plug
*3
Drive belts
I
I
I
I
I
I
SKYACTIV-G 2.5, SKYACTIV-G 2.5T, AND SKYACTIV-D 2.2
Engine oil & filter*4
R
R
R
R
R
R
R
R
R
R
R
R
Replace at first 192,000 km (120,000 miles) or 10 years; after
Engine coolant*5
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Fuel lines and hoses*6
I
I
I
Hoses and tubes for emission*6
I
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
Brake and clutch fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Disc brakes
Inspect every 24,000 km (15,000 miles) or 1 year.
Tire (Rotation)
Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear
I
I
I
I
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
Bolts and nuts on chassis and body
T
T
T
6-9
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers (miles), whichever comes first.
Months
6
12
18
24
30
36
42
48
54
60
66
72
Maintenance Interval
×1000 km
8
16
24
32
40
48
56
64
72
80
88
96
×1000 miles
5
10
15
20
25
30
35
40
45
50
55
60
Exhaust system and heat shields
Inspect every 72,000 km (45,000 miles) or 5 years.
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*7
Inspect annually.
Cabin air filter
Replace every 40,000 km (25,000 miles) or 2 years.
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Top up with new diesel exhaust fluid in the urea tank once a year.
*2
Check the total driving mileage for the last three years.
If 19,200 km (12,000 miles) or more, top up with new diesel exhaust fluid in the urea tank.
If less than 19,200 km (12,000 miles), replace diesel exhaust fluid in the urea tank.
*3
Replace when glow indicator light is continuously ON. Authorized Mazda dealer can replace all the glow
plugs without charge if indicator light comes ON earlier than 240,000 km (150,000 miles).
*4
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*5
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*6
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.
*7
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
6-10
Maintenance and Care
Scheduled Maintenance
Scheduled Maintenance (Mexico)
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions) apply.
Repeated short-distance driving
Driving in dusty conditions
Driving with extended use of brakes
Driving in areas where salt or other corrosive materials are used
Driving on rough or muddy roads
Extended periods of idling or low-speed operation
Driving for long periods in cold temperatures or extremely humid climates
Driving in extremely hot conditions
Driving in mountainous conditions continually
If any do apply, follow Schedule 2.
NOTE
For maintenance guidelines beyond the kilometers/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.
▼ Schedule 1
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
6
12
18
24
30
36
42
48
54
60
66
72
×1000 km
10
20
30
40
50
60
70
80
90
100
110
120
Drive belts
I
I
I
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Cooling system
I
I
I
Replace at first 200,000 km or 10 years; after that, every
Engine coolant*2
100,000 km or 5 years
Air filter
R
R
R
R
R
R
Fuel lines and hoses
I*3
I*3
I
Hoses and tubes for emission
I*3
I*3
I
Fuel filter
Replace every 60,000 km
SKYACTIV-G
I
I
I
I
I
I
I
I
I
I
I
I
2.5T
Replace every 64,000 km
Spark plugs
Except SKY-
I
I
I
I
I
I
I
I
I
I
I
I
ACTIV-G
Replace every 120,000 km
2.5T
Brake lines, hoses and connections
I
I
I
I
I
I
Brake and clutch fluid level
I
I
I
I
I
I
I
I
I
Brake fluid
R
R
R
6-11
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
6
12
18
24
30
36
42
48
54
60
66
72
×1000 km
10
20
30
40
50
60
70
80
90
100
110
120
Disc brakes
I
I
I
I
I
I
I
I
I
I
I
I
Tire (Rotation)
Rotate every 10,000 km
Tire inflation pressure and tire wear
I
I
I
I
I
I
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
I
I
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
I
I
I
Bolts and nuts on chassis and body
T
T
T
T
T
T
Exhaust system and heat shields
I
I
I
I
I
I
All locks and hinges
L
L
L
L
L
L
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
▼ Schedule 2
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
3
6
9
12
15
18
21
24
27
30
33
36
×1000 km
5
10
15
20
25
30
35
40
45
50
55
60
Drive belts
I
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Cooling system
I
6-12
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
3
6
9
12
15
18
21
24
27
30
33
36
×1000 km
5
10
15
20
25
30
35
40
45
50
55
60
Replace at first 200,000 km or 10 years; after that, every
Engine coolant*2
100,000 km or 5 years
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Air filter
C
R
C
R
C
R
Fuel lines and hoses
I*3
Hoses and tubes for emission
I*3
Fuel filter
Replace every 60,000 km
SKYACTIV-G
I
I
I
I
I
I
2.5T
Replace every 64,000 km
Spark plugs
Except SKY-
I
I
I
I
I
I
ACTIV-G
Replace every 120,000 km
2.5T
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
Brake and clutch fluid level
I
I
I
I
I
Brake fluid
R
Disc brakes
I
I
I
I
I
I
Tire (Rotation)
Rotate every 10,000 km
Tire inflation pressure and tire wear
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
Bolts and nuts on chassis and body
T
T
T
Exhaust system and heat shields
I
I
I
All locks and hinges
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
6-13
Maintenance and Care
Scheduled Maintenance
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
(Cont.)
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
39
42
45
48
51
54
57
60
63
66
69
72
×1000 km
65
70
75
80
85
90
95
100
105
110
115
120
Drive belts
I
I
Engine oil & filter*1
R
R
R
R
R
R
R
R
R
R
R
R
Cooling system
I
I
Replace at first 200,000 km or 10 years; after that, every
Engine coolant*2
100,000 km or 5 years
Engine coolant level
I
I
I
I
I
I
I
I
I
I
I
I
Air filter
C
R
C
R
C
R
Fuel lines and hoses
I
*3
I
Hoses and tubes for emission
I
*3
I
Fuel filter
Replace every 60,000 km
SKYACTIV-G
I
I
I
I
I
I
2.5T
Replace every 64,000 km
Spark plugs
Except SKY-
I
I
I
I
I
I
ACTIV-G
Replace every 120,000 km
2.5T
Function of all lights
I
I
I
I
I
I
I
I
I
I
I
I
Brake lines, hoses and connections
I
I
I
Brake and clutch fluid level
I
I
I
I
Brake fluid
R
R
Disc brakes
I
I
I
I
I
I
Tire (Rotation)
Rotate every 10,000 km
Tire inflation pressure and tire wear
I
I
I
I
I
I
Steering operation and linkages
I
I
I
I
I
I
Front and rear suspension, ball joints and wheel
I
I
I
bearing axial play
Driveshaft dust boots
I
I
I
6-14
Maintenance and Care
Scheduled Maintenance
Number of months or kilometers, whichever comes first
Maintenance Interval
Months
39
42
45
48
51
54
57
60
63
66
69
72
×1000 km
65
70
75
80
85
90
95
100
105
110
115
120
Bolts and nuts on chassis and body
T
T
T
Exhaust system and heat shields
I
I
I
All locks and hinges
L
L
L
L
L
L
Washer fluid level
I
I
I
I
I
I
Emergency flat tire repair kit (if equipped)*4
Inspect annually.
Cabin air filter
R
R
R
Chart symbols:
I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1
Reset the engine oil data whenever replacing the engine oil regardless of the message/wrench indicator light
display.
*2
Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3
According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or kilometer period to ensure long-term reliability.
*4
Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.
6-15
Maintenance and Care
Owner Maintenance
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.
When Refueling
Brake fluid level (page 6-28)
Engine coolant level (page 6-26)
Engine oil level (page 6-25)
Washer fluid level (page 6-29)
At Least Monthly
Tire inflation pressures (page 6-44)
At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have some mechanical ability
and a few basic tools and if you closely follow the directions in this manual.
Engine coolant (page 6-26)
Engine oil (page 6-22)
Improper or incomplete service may result in problems. This section gives instructions only
for items that are easy to perform.
As explained in the Introduction (page 6-2), several procedures can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
Refer to Introduction (page 6-2) for owner's responsibility in protecting your investment.
For details, read the separate Mazda Warranty statement provided with the vehicle. If you
are unsure about any servicing or maintenance procedure, have it done by an Authorized
Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste properly and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
6-16
Maintenance and Care
Owner Maintenance
WARNING
Do not perform maintenance work if you lack sufficient knowledge and experience or the
proper tools and equipment to do the work. Have maintenance work done by a qualified
technician:
Performing maintenance work on a vehicle is dangerous if not done properly. You can be
seriously injured while performing some maintenance procedures.
If you must run the engine while working under the hood, make certain that you remove all
jewelry (especially rings, bracelets, watches, and necklaces) and all neckties, scarves, and
similar loose clothing before getting near the engine or cooling fan which may turn on
unexpectedly:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry, loose clothing or have long hair or a long beard.
Either can become entangled in moving parts and result in injury.
Pull over to a safe location, then switch the ignition off and make sure the fan is not
running before attempting to work near the cooling fan:
Working near the cooling fan when it is running is dangerous. The fan could continue running
indefinitely even if the engine has stopped and the engine compartment temperature is high.
You could be hit by the fan and seriously injured.
Do not leave items in the engine compartment:
After you have finished checking or doing servicing in the engine compartment, do not forget
and leave items such as tools or rags in the engine compartment.
Tools or other items left in the engine compartment could cause engine damage or a fire
leading to an unexpected accident.
6-17
Maintenance and Care
Owner Maintenance
2.
Insert your hand into the hood
Hood
opening, slide the latch lever to the
right, and lift up the hood.
WARNING
Always check that the hood is closed and
securely locked:
A hood that is not closed and securely
locked is dangerous as it could fly open
Lever
while the vehicle is moving and block the
driver's vision which could result in a
serious accident.

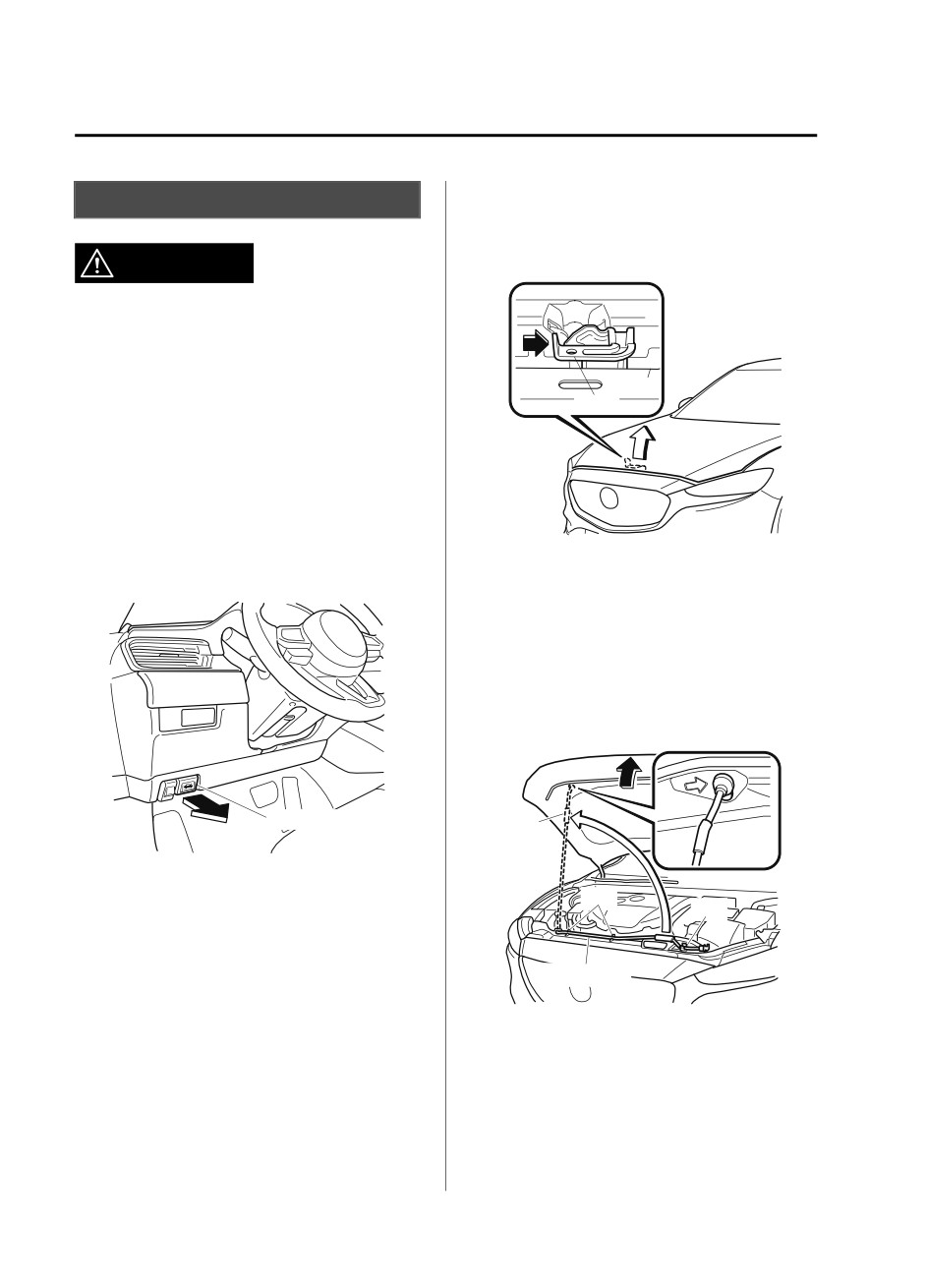

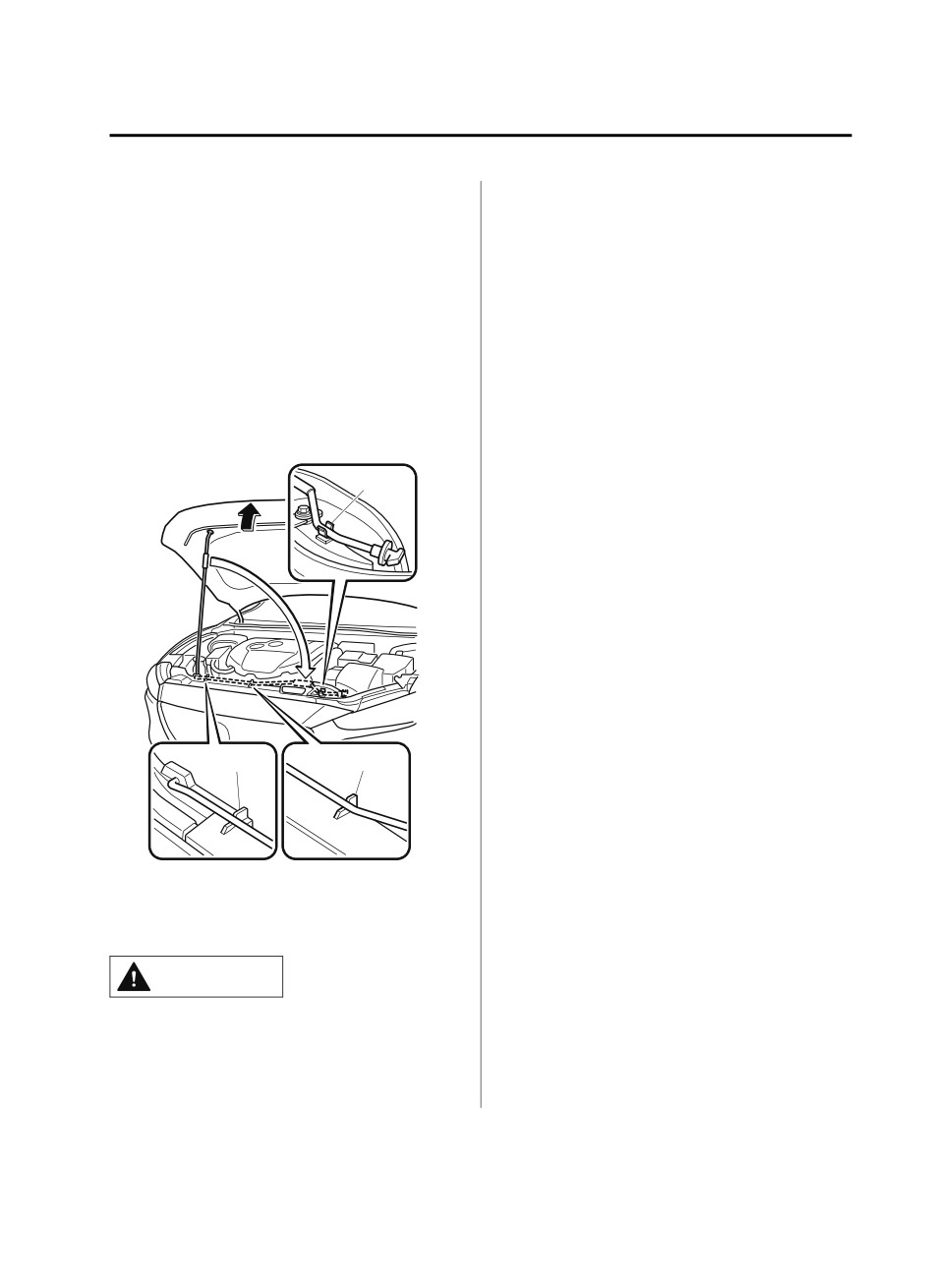

▼ Opening the Hood
1. With the vehicle parked, pull the
release handle to unlock the hood.
NOTE
The lever is located a little to the left of
center when facing the vehicle.
3.
Grasp the support rod in the padded
area and secure it in the support rod
hole indicated by the arrow to hold the
hood open.
Release handle
Pad
Clip
Clip
Support rod
6-18
Maintenance and Care
Owner Maintenance
▼ Closing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
Clip
Clip
Clip
3. Lower the hood slowly to a height of
about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push it
excessively such as by applying your
weight. Otherwise, the hood could be
deformed.
6-19
Maintenance and Care
Owner Maintenance

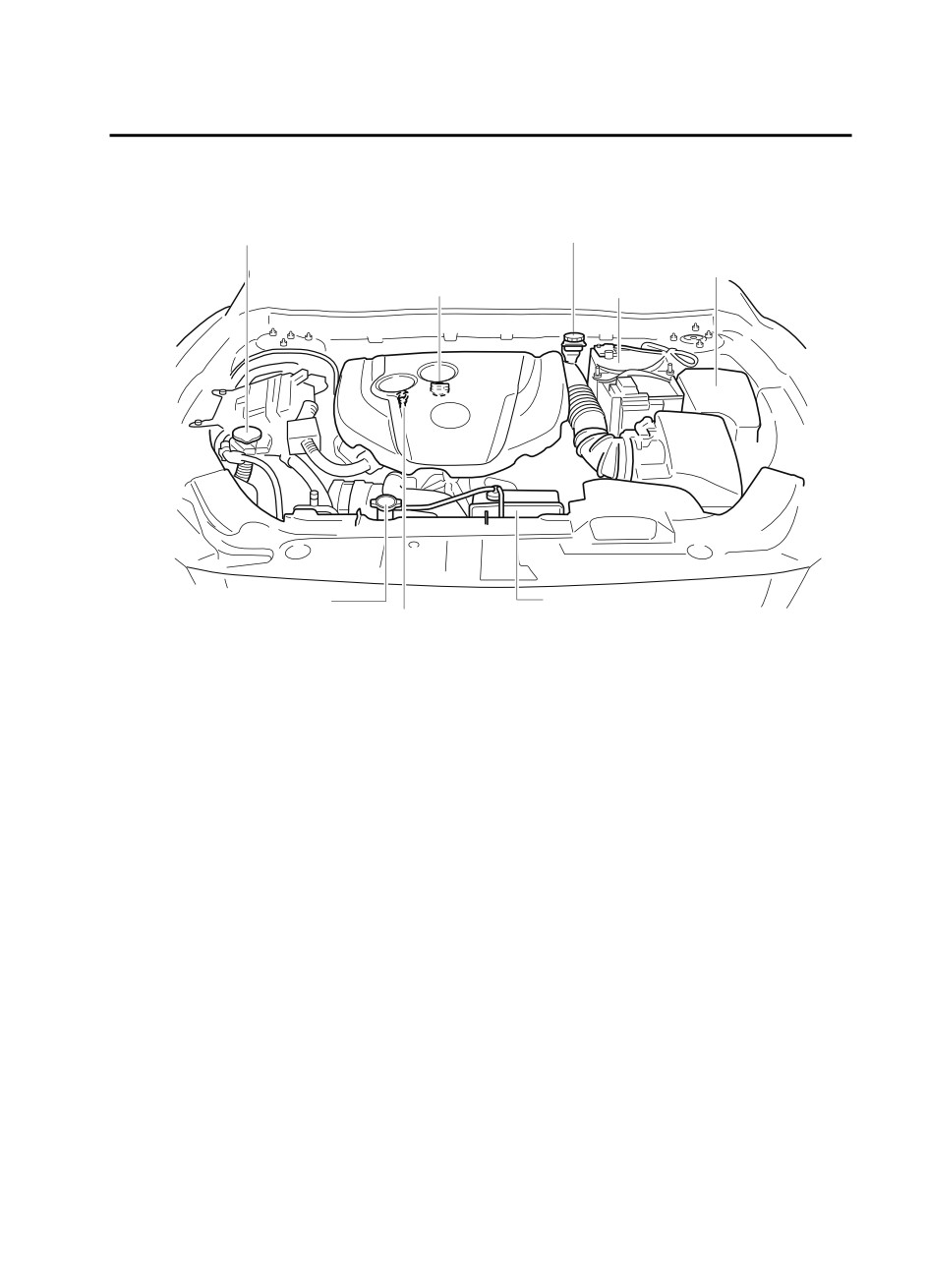

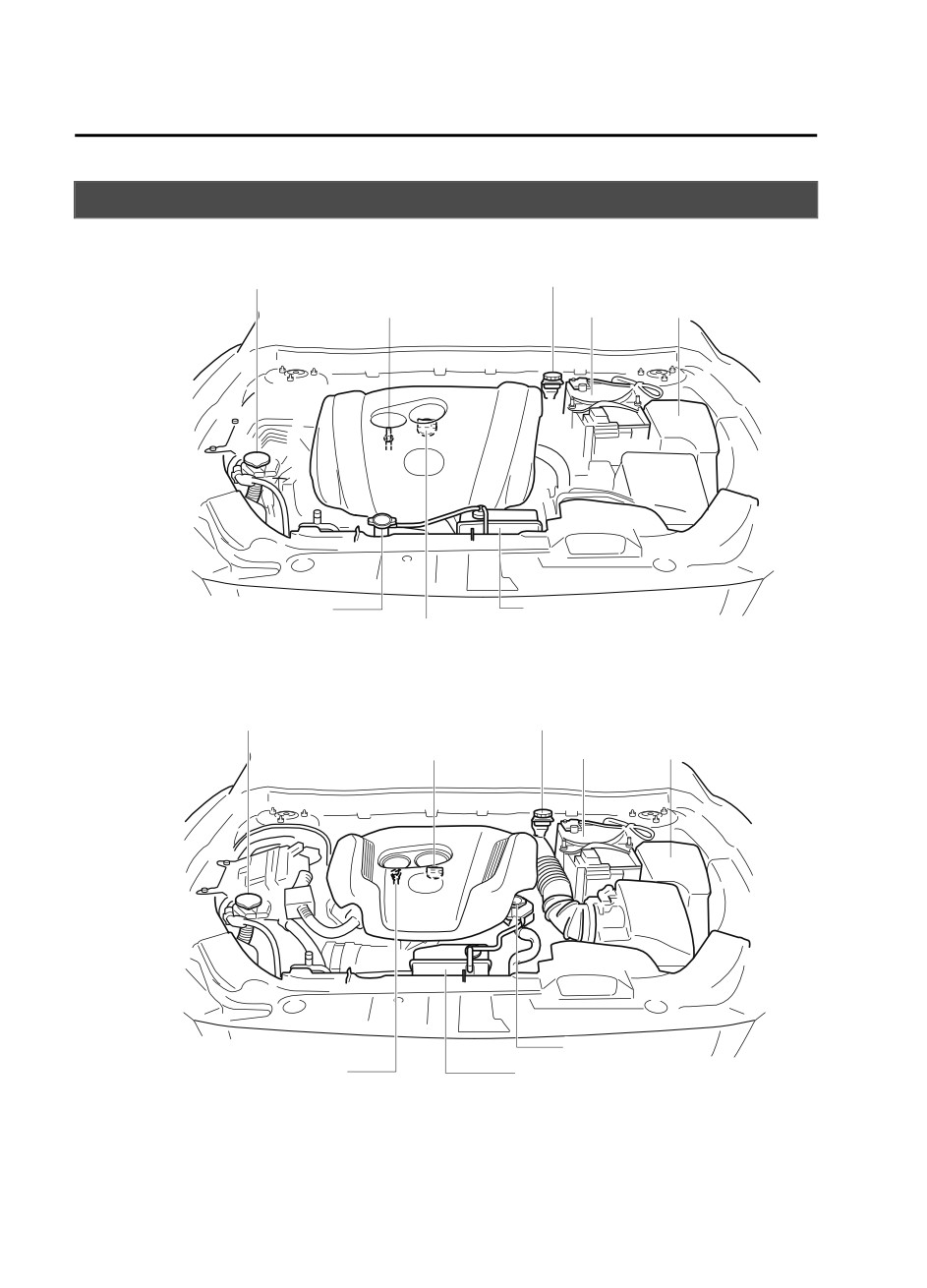

Engine Compartment Overview
SKYACTIV-G 2.5
Windshield washer fluid reservoir
Brake fluid reservoir
Engine oil dipstick
Battery Fuse block
Cooling system cap
Engine coolant reservoir
Engine oil-filler cap
SKYACTIV-G 2.5T
Windshield washer fluid reservoir
Brake fluid reservoir
Engine oil-filler cap
Battery Fuse block
Cooling system cap
Engine oil dipstick
Engine coolant reservoir
6-20
Maintenance and Care
Owner Maintenance
SKYACTIV-D 2.2
Windshield washer fluid reservoir
Brake fluid reservoir
Fuse block
Engine oil-filler cap
Battery
Cooling system cap
Engine coolant reservoir
Engine oil dipstick
6-21
Maintenance and Care
Owner Maintenance
Only use SAE 0W-20 oil “Certified For
Engine Oil
Gasoline Engines” by the American
Petroleum Institute (API).
NOTE
Oil with this trademark symbol conforms
Changing the engine oil should be
to the current engine and emission system
performed by an Authorized Mazda
protection standards and fuel economy
Dealer.
requirements of the International
Refer to Introduction (page 6-2) for
Lubricant Standardization and Approval
owner's responsibility in protecting your
Committee (ILSAC), comprised of U.S.
investment.
and Japanese automobile manufacturers.

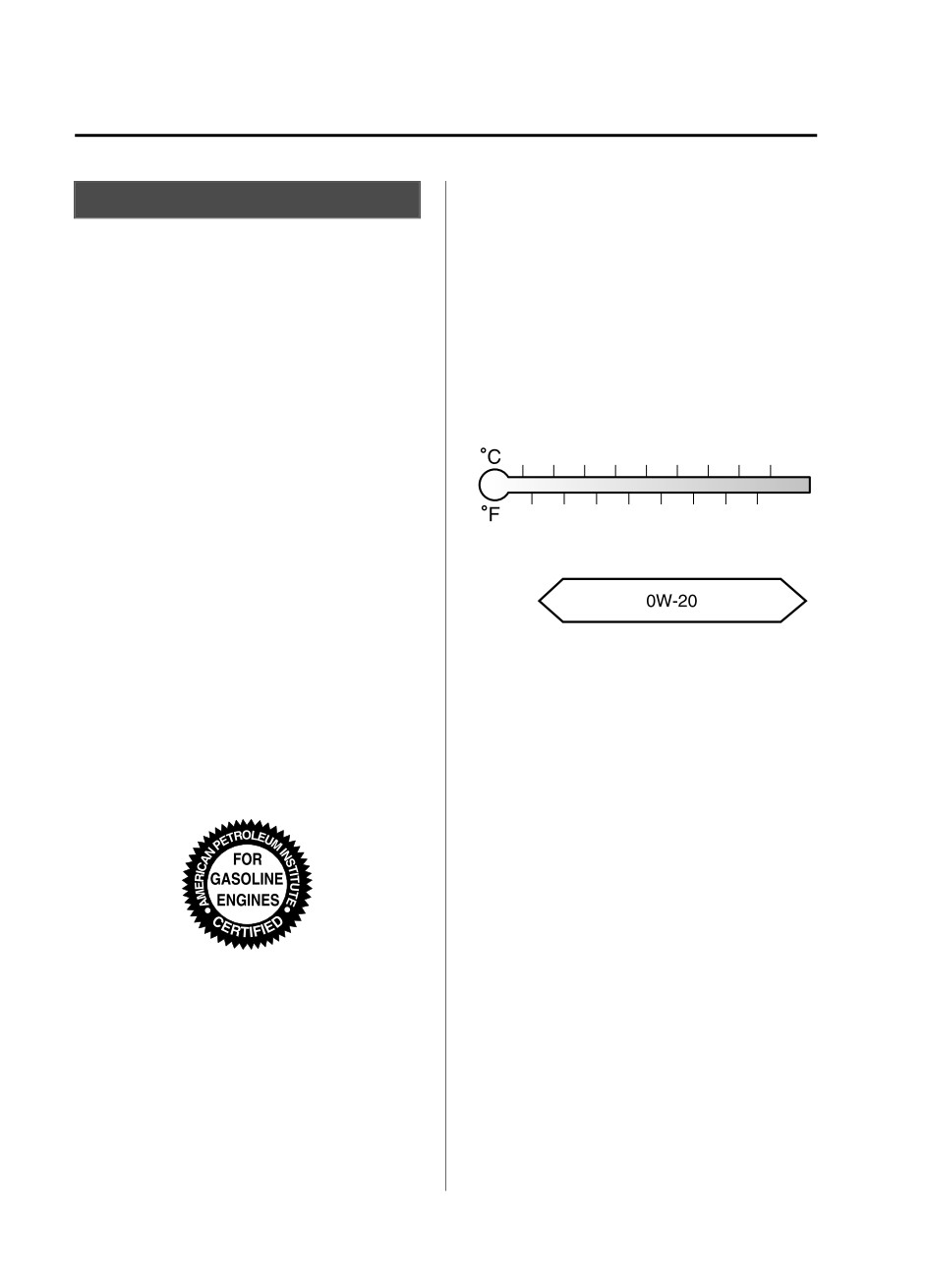

▼ Recommended Oil
-40
-30 -20
-10
0
10
20
30
40
U.S.A., Canada
SKYACTIV-G 2.5
–40
-20
0
20
40
60
80
100
Use SAE 0W-20 engine oil.
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
required to achieve optimum fuel
economy.
For maintenance service, Mazda
recommends Mazda Genuine Parts and
Oil.
(ILSAC)
6-22
Maintenance and Care
Owner Maintenance

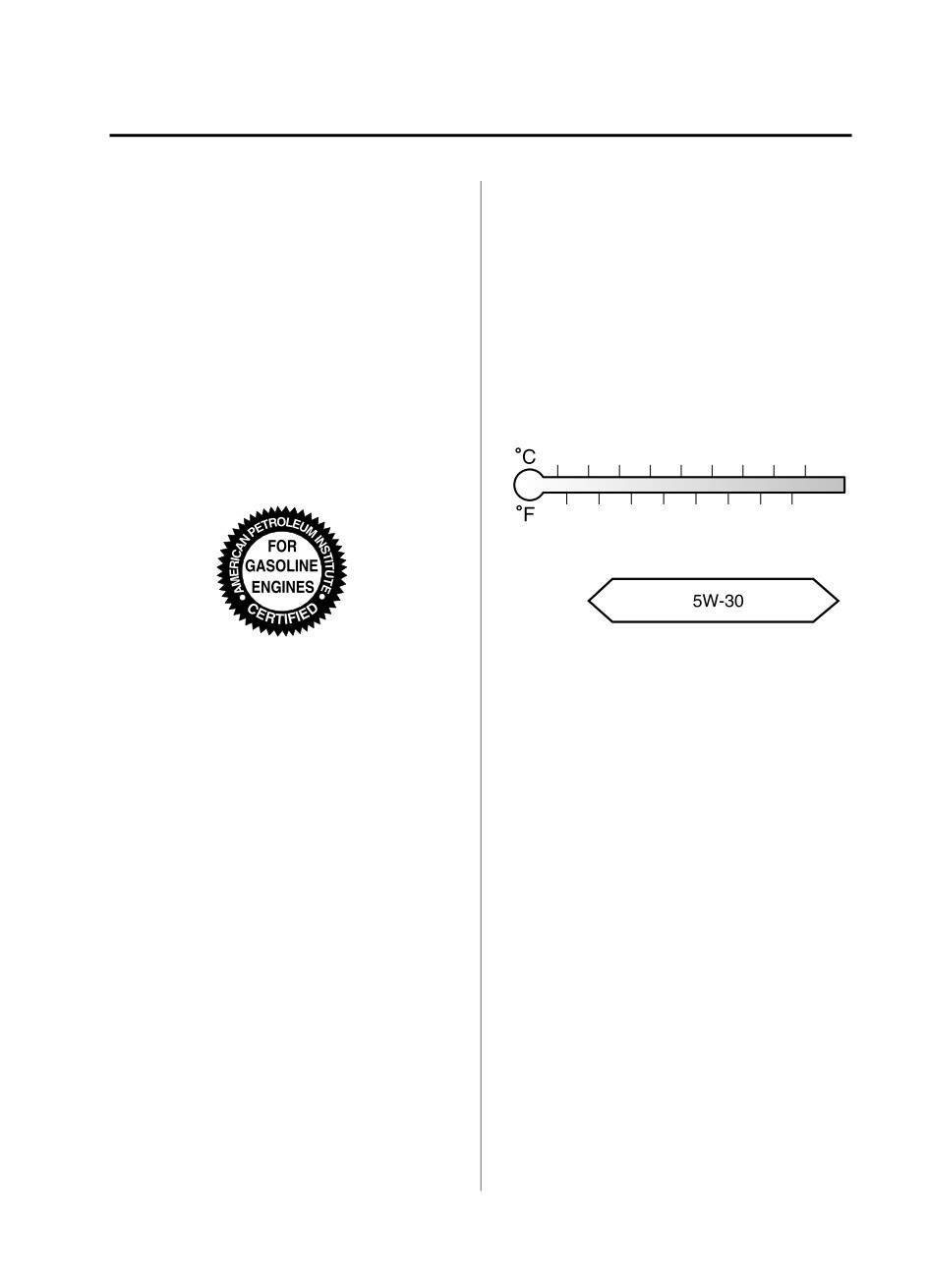

SKYACTIV-G 2.5T

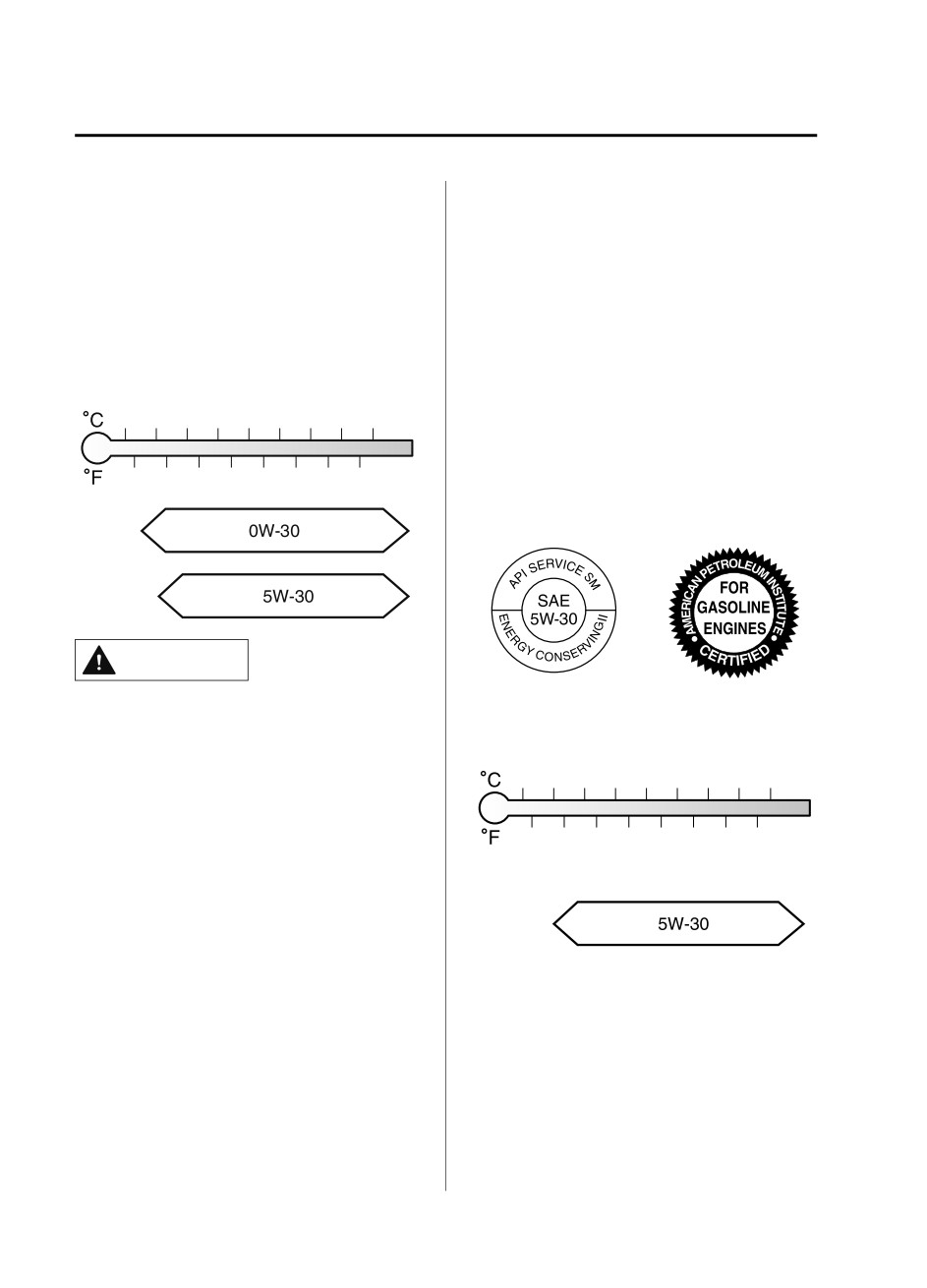

Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Use SAE 5W-30 engine oil.
Petroleum Institute (API).
Mazda Genuine Oil is used in your Mazda
Oil with this trademark symbol conforms
vehicle. Mazda Genuine 5W-30 Oil is
to the current engine and emission system
required to achieve optimum fuel
protection standards and fuel economy
economy.
requirements of the International
Lubricant Standardization and Approval
For maintenance service, Mazda
Committee (ILSAC), comprised of U.S.
recommends Mazda Genuine Parts and
and Japanese automobile manufacturers.
Oil.
-40
-30 -20
-10
0
10
20
30
40
–40
-20
0
20
40
60
80
100
(ILSAC)
SKYACTIV-D 2.2
Mazda Genuine Oil is used in your Mazda
vehicle and is the recommended SAE
0W-30 lubricant. Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel Engine
Oil is required to achieve optimum fuel
economy and durability for the Diesel
Particulate Filter. If Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel Engine
Oil is not available, an alternative oil
specified below may be used for oil level
maintenance and oil changes however, it is
strongly recommended to replace the
alternative oil with Mazda Genuine
SKYACTIV-D SAE 0W-30 Diesel Engine
Oil at the next oil change to maintain
optimum performance.
6-23
Maintenance and Care
Owner Maintenance
Recommended oil: Mazda Genuine
Except U.S.A., Canada
SKYACTIV-D SAE 0W-30 Diesel
Use SAE 5W-30 engine oil.
Engine Oil
Oil container labels provide important
Alternative oil: ACEA C3 and SAE
information.
0W-30 or 5W-30
A chief contribution this type of oil makes
to fuel economy is reducing the amount of
For maintenance service, Mazda
fuel necessary to overcome engine
recommends Mazda Genuine Part.
friction.
-40
-30 -20
-10
0
10
20
30
40
For maintenance service, Mazda
recommends Mazda Genuine Parts.
-40
-20
0
20
40
60
80
100
CAUTION
(ILSAC)
SKYACTIV-D 2.2 uses specified oil. Please
confirm the specification in owner's
manual. If engine oil other than the
(Mexico)
specified oil is used, the Diesel Particulate
-40
-30 -20
-10
0
10
20
30
40
Filter effective period of use will be
shortened or the Diesel Particulate Filter
–40
-20
0
20
40
60
80
100
may be damaged.
NOTE
Whenever the engine oil is replaced, the
vehicles engine control unit needs to be
reset as soon as possible. Otherwise, the
engine oil warning light or the wrench
indicator light may display at the wrong
timing.
Refer to the Information section in the
Mazda Connect Owner's Manual for the
details.
6-24
Maintenance and Care
Owner Maintenance
SKYACTIV-G 2.5
▼ Inspecting Engine Oil Level
Use SAE 5W-30 engine oil. If SAE 5W-30
1. Be sure the vehicle is on a level
engine oil is not available, use SAE 5W-20
surface.
engine oil.
2. Warm up the engine to normal
operating temperature.
The quality designation SM or SN, or
3. Turn it off and wait at least 5 minutes
ILSAC must be on the label.
for the oil to return to the oil pan.

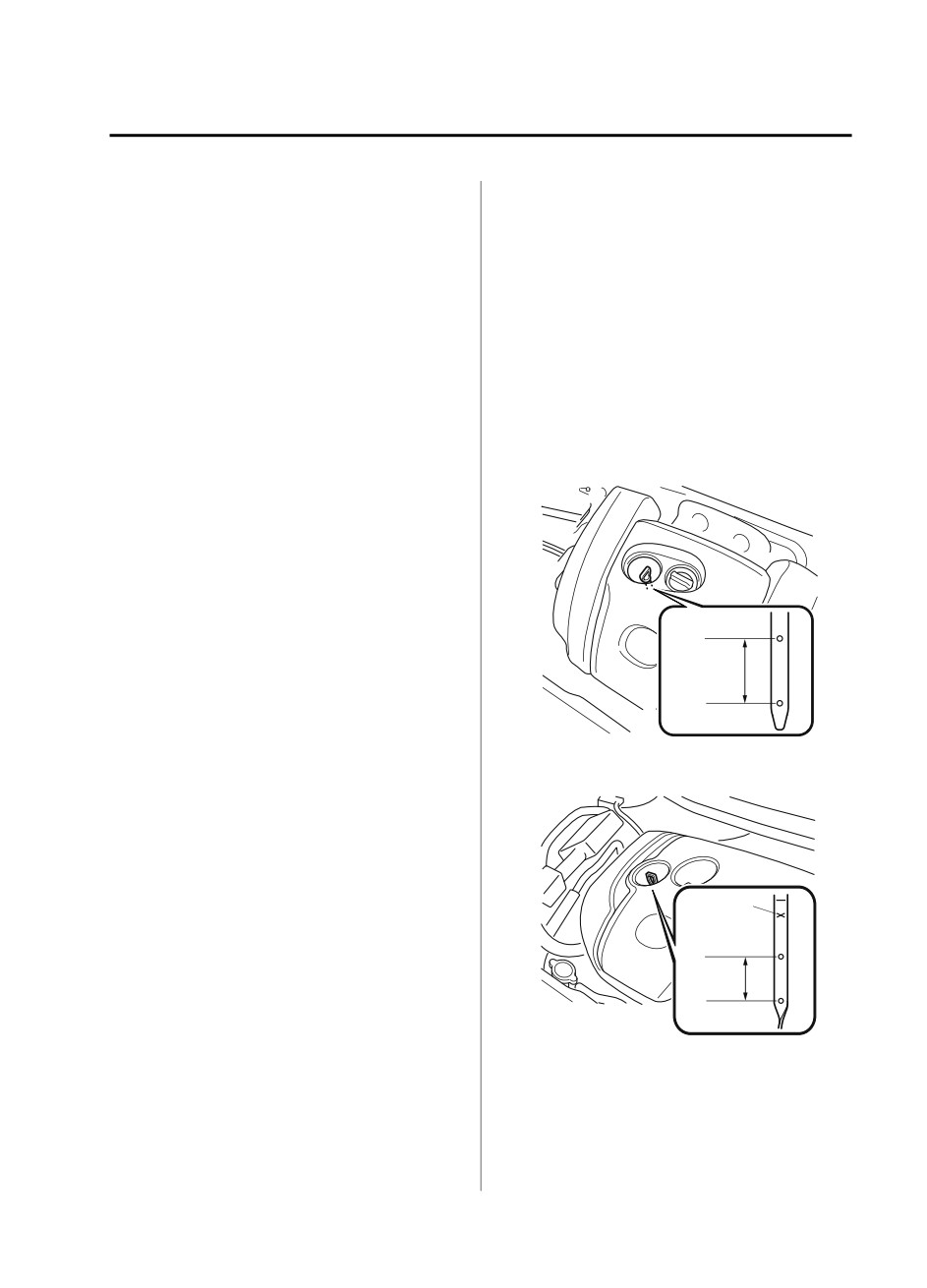

4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
SKYACTIV-G 2.5T
SKYACTIV-G 2.5 and
Use SAE 5W-30 engine oil. If SAE 5W-30
SKYACTIV-G 2.5T
engine oil is not available, use SAE 0W-30
or SAE 10W-30 engine oil.
The quality designation SM or SN, or
ILSAC must be on the label.
MAX
OK
MIN
SKYACTIV-D 2.2
X Mark
MAX
OK
MIN
6-25
Maintenance and Care
Owner Maintenance
NOTE
Engine Coolant
(SKYACTIV-D 2.2)
▼ Inspecting Coolant Level
When inspecting the engine oil level,
pull out the dipstick straight without
twisting. In addition, when inserting
WARNING
the dipstick, always insert it without
twisting so that the “X” mark faces the
Do not use a match or live flame in the
front of the vehicle.
engine compartment. DO NOT ADD
5.
Pull it out again and examine the level.
COOLANT WHEN THE ENGINE IS HOT:
The level is normal if it is between the
A hot engine is dangerous. If the engine has
MIN and MAX marks.
been running, parts of the engine
If it is near or below MIN, add enough
compartment can become very hot. You
oil to bring the level to MAX.
could be burned. Carefully inspect the
engine coolant in the coolant reservoir, but
CAUTION
do not open it.
Do not overfill the engine oil. This may
cause engine damage.
6.
Make sure the O-ring on the dipstick is
Pull over to a safe location, then switch
positioned properly before reinserting
the ignition off and make sure the fan is
the dipstick.
not running before attempting to work
7.
Reinsert the dipstick fully.
near the cooling fan:
Working near the cooling fan when it is
NOTE
running is dangerous. The fan could
(SKYACTIV-D 2.2)
continue running indefinitely even if the
engine has stopped and the engine
Inspect the engine oil level
compartment temperature is high. You
periodically. When inspecting the
could be hit by the fan and seriously
engine oil, if the engine oil level is
injured.
exceeds the “X” mark on the dipstick,
replace the engine oil. This should be
done by an Authorized Mazda Dealer.
When replacing the engine oil, inspect
Do not remove either cooling
the oil level using the oil dipstick and
system cap when the engine and radiator
refill so that the engine oil level is
are hot:
within the range between MIN and
When the engine and radiator are hot,
MAX as shown in the figure.
scalding coolant and steam may shoot out
under pressure and cause serious injury.

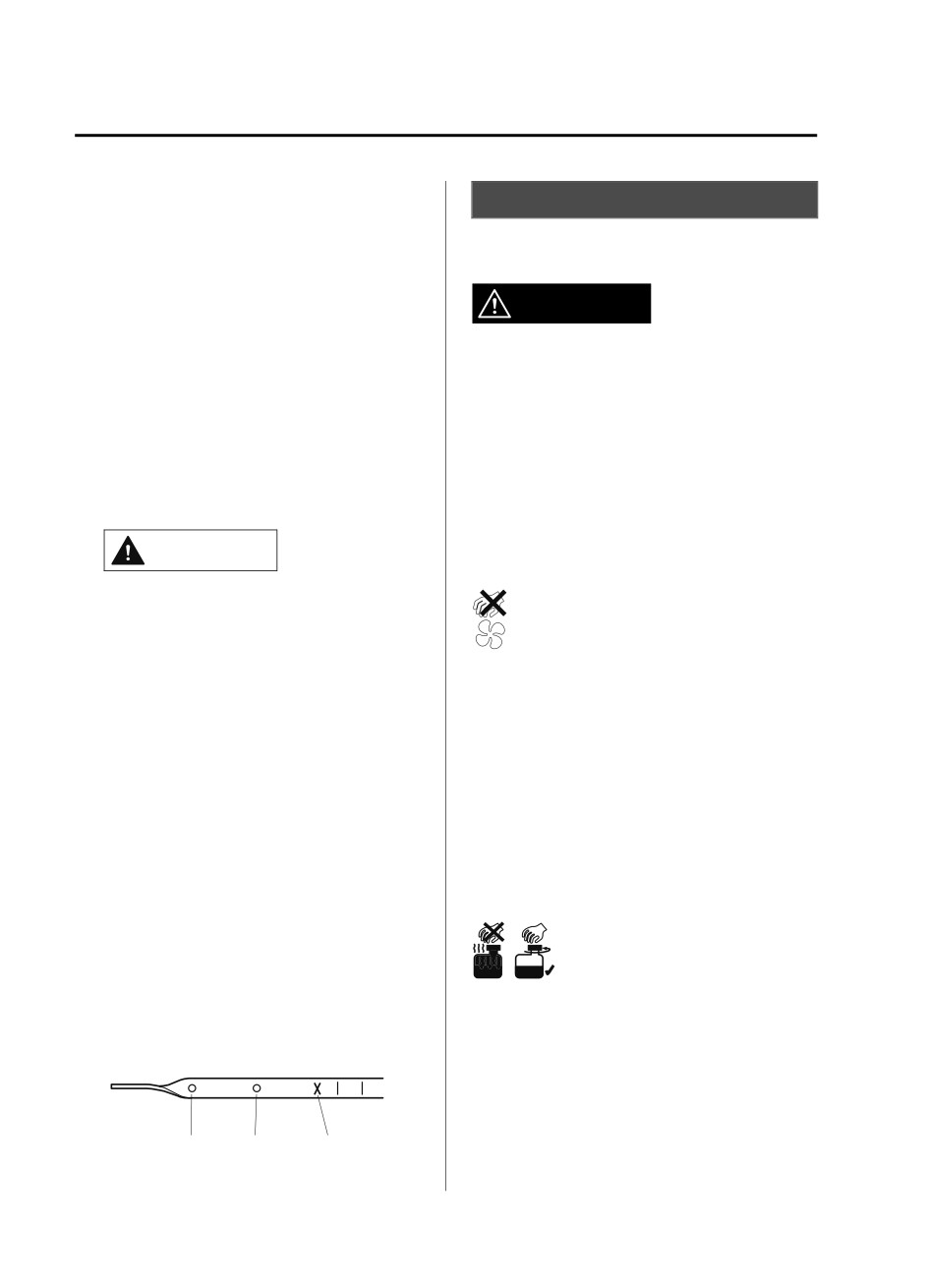

MIN MAX X Mark
6-26
Maintenance and Care
Owner Maintenance
NOTE
SKYACTIV-G 2.5T
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling where
temperatures may drop below freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
SKYACTIV-D 2.2
The coolant should be at full in the
radiator and between the F and L marks on
the coolant reservoir when the engine is
cool.
SKYACTIV-G 2.5
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
6-27
Maintenance and Care
Owner Maintenance
CAUTION
Brake Fluid
▼ Inspecting Brake Fluid Level
¾ Radiator coolant will damage paint.
Rinse it off quickly if spilled.

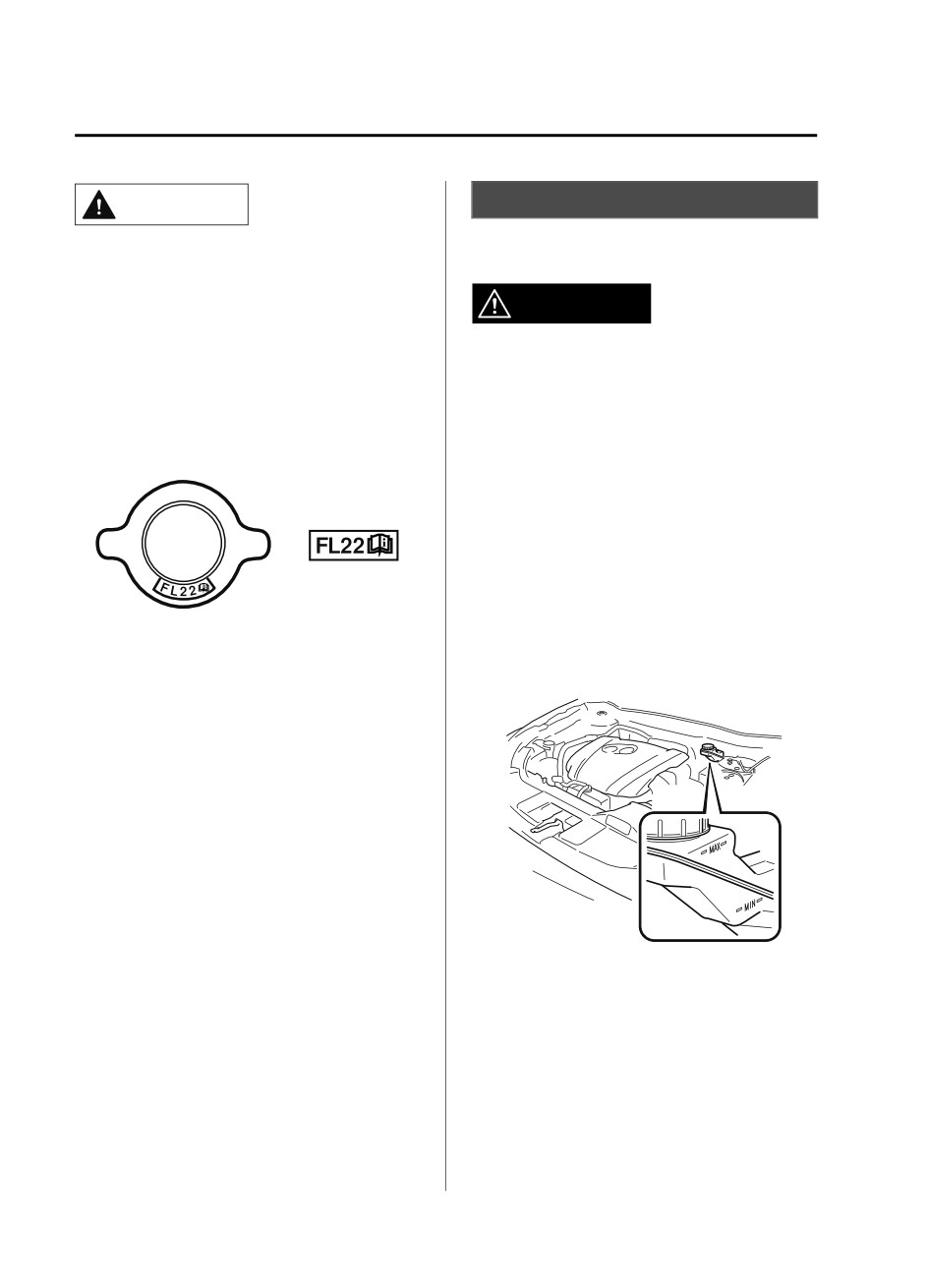

¾ If the “FL22” mark is shown on or near
WARNING
the cooling system cap, use of FL-22 is
recommended when replacing engine
If the brake fluid level is low, have the
coolant. Using engine coolant other than
brakes inspected:
FL-22 may cause serious damage to the
A low brake fluid level is dangerous.
engine and cooling system.
A low level could indicate brake lining wear
or a brake system leak which could cause
the brakes to fail and lead to an accident.

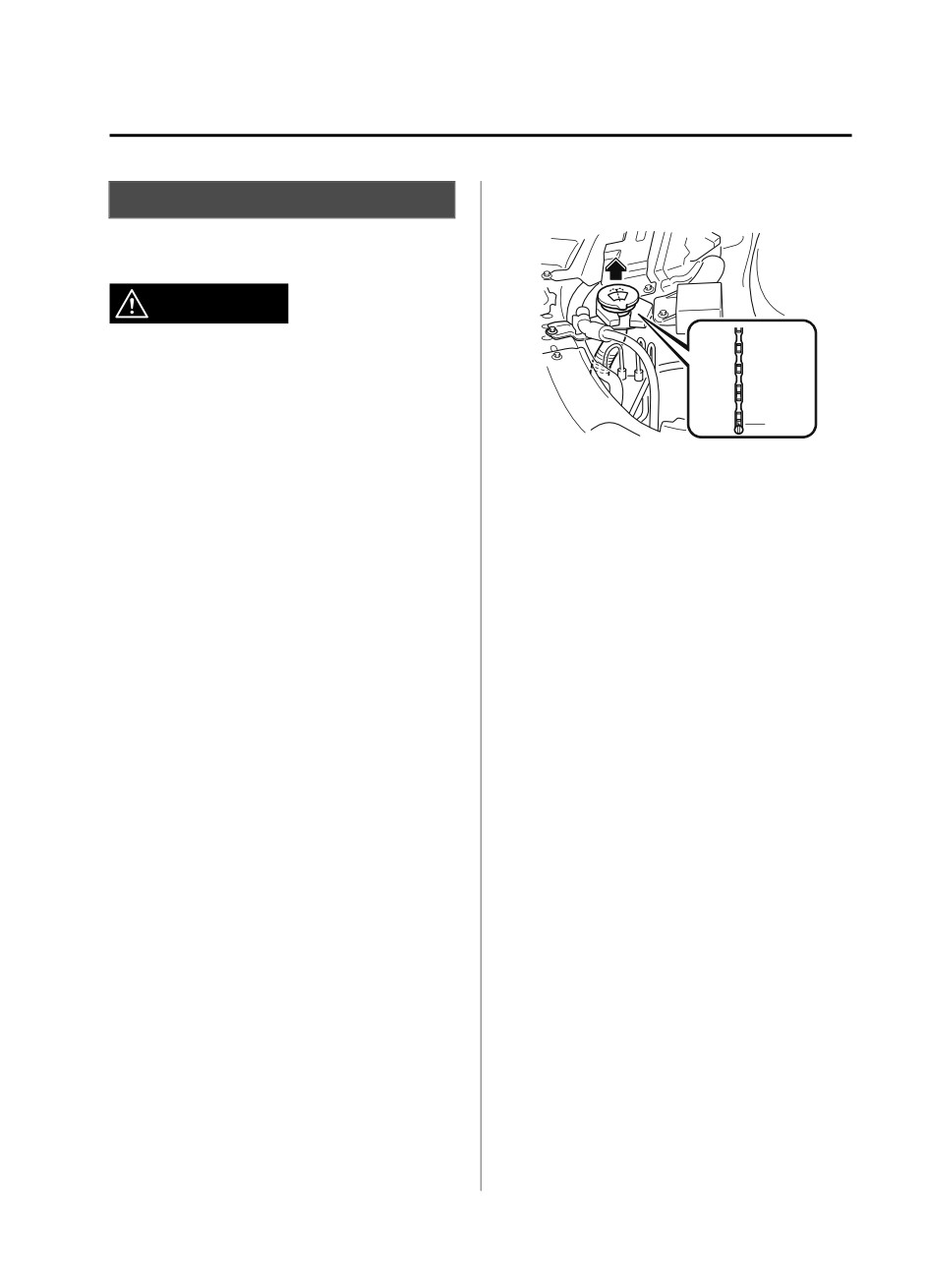

Inspect the fluid level in the reservoir
regularly. It should be kept between the
MAX and MIN lines.
The level normally drops with
accumulated distance, a condition
If the coolant reservoir is empty or new
associated with wear of brake linings. If it
coolant is required frequently, consult an
is excessively low, have the brake system
Authorized Mazda Dealer.
inspected by an Authorized Mazda Dealer.
6-28
Maintenance and Care
Owner Maintenance
Inspect fluid level in the washer fluid
Washer Fluid
reservoir; add fluid if necessary.
▼ Inspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or plain
water in the reservoir:
Using radiator antifreeze as washer fluid is
L
dangerous. If sprayed on the windshield, it
will dirty the windshield, affect your
visibility, and could result in an accident.
Use plain water if washer fluid is
unavailable.
Using Washer Fluid Without Anti-freeze
But use only washer fluid in cold weather
Protection in Cold Weather:
to prevent it from freezing.
Operating your vehicle in temperatures
below 4 °C (40 °F) using washer fluid
without anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In cold
weather, always use washer fluid with
anti-freeze protection.
NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.
6-29
Maintenance and Care
Owner Maintenance
¾ Do not put DEF into a different container.
Diesel Exhaust Fluid
There may be foreign matter in the
(DEF) (SKYACTIV-D 2.2)
container. If DEF containing foreign
matter is used, it could cause a problem
Diesel Exhaust Fluid (DEF) Handling
with the SCR system. In addition,
changing containers is dangerous
CAUTION
because it increases the risk of accidental
ingestion.
¾ If DEF gets in your mouth, wash your
mouth with a large amount of water
NOTE
immediately and seek medical attention.
DEF is a colorless, transparent,
If DEF is mistakenly swallowed, drink 1 to
odorless, and nonpoisonous solution
2 cups of water immediately and seek
(urea: 32.5 %, aqueous solution
medical attention.
(AUS32)).
¾ If DEF gets in your eyes, rinse them with
Store DEF in a cool, dark place.
running water immediately and seek
DEF freezes at -11 °C (12 °F), however,
medical attention.
when the temperature increases, the
¾ Do not use DEF when 2 years have
DEF returns to its original condition.
elapsed from the production date
When opening the container, there may
indicated on the container or the use
be a smell of ammonia. Open the
period has expired. If DEF with an expired
container in a well-ventilated area.
use period is used, the Selective Catalytic
If DEF gets on your hands, wash them
Reduction (SCR) System may not operate
with running water immediately.
normally.
¾ Do not store DEF in the vehicle. DEF may
▼ Diesel Exhaust Fluid (DEF)
deteriorate or the interior may be
Replenishment
damaged due to fluid leakage from the
container.
CAUTION
¾ If DEF gets on the painted surface or the
interior, wash it off with water or wipe it
¾ Use a Mazda genuine product or a
off with a wet cloth immediately.
product conforming to ISO22241-1 for
Otherwise, it may damage the painted
DEF. If incompatible DEF is used, the
surface or the interior.
Selective Catalytic Reduction (SCR)
¾ If DEF crystals form on the painted
system may not operate normally. For
surface or the interior, wipe them off with
the recommended DEF, consult the
a wet cloth. Otherwise, it may damage
nearest Authorized Mazda Dealer.
the painted surface or the interior.
¾ Do not dilute DEF with water. If diluted
¾ Store DEF in a place out of the reach of
DEF is used, it could cause a problem
children.
with the SCR system or damage it.
6-30
Maintenance and Care
Owner Maintenance
¾ Do not add any fluid other than DEF to
Replenishment Procedure
the urea tank. If any fluid other than DEF
1.
Check the remaining amount of Diesel
is added, it could cause a problem with
Exhaust Fluid (DEF) on the
the SCR system or damage it. Do not
multi-information display.
switch the ignition ON, and contact an
Authorized Mazda Dealer.
(Instrument cluster (Type A))
¾ When adding DEF, use a bottle with an
Refer to Remaining Diesel Exhaust
anti-spill nozzle. If a bottle without an
Fluid (DEF) and Maximum Driving
anti-spill nozzle or a commercial
Distance Display (SKYACTIV-D 2.2)
dispenser at a gas station is used, it could
on page 4-23.
cause leakage or the DEF to spray out.
(Instrument cluster (Type B))
¾ Do not overfill the DEF. If DEF is added
unnecessarily, it could cause a problem
Refer to Remaining Diesel Exhaust
with the urea tank or damage it. Always
Fluid (DEF) and Maximum Driving
use a bottle with an auto-stop function
Distance Display (SKYACTIV-D 2.2)
and stop adding fluid when the
on page 4-41.
auto-stop function operates.
5.7 L (1.5 US gal, 1.3 Imp gal) of DEF
or more needs to be added.
NOTE
NOTE
When adding DEF during low
The replenishment amount (reference)
temperatures (-11 ˚C (12 ˚F) or less),
according to the DEF level (%)
move the vehicle to a warm location. If
indication is as follows:
the DEF starts to freeze, it may not flow
correctly and the correct amount may
Percentage (%) indicaఆ
Reference replenishఆ
tion for remaining
not have been added. In addition, if the
ment amount*1
amount
fluid freezes in the urea tank, you may
Replenishment unnecesఆ
not be able to tell if the correct amount
100 — 65
sary
of fluid was added.
About 5.7 L (1.5 US gal,
Replenishment of DEF by an Authorized
60 — 45
1.3 Imp gal)
Mazda Dealer is recommended. If you
About 7.6 L (2.0 US gal,
want to replenish the DEF yourself,
40 — 25
1.7 Imp gal)
follow the replenishment procedure
About 9.5 L (2.5 US gal,
20 — 0
below.
2.1 Imp gal)
*1
Even if DEF is added at the
indicated replenishment amount,
100 % may not be indicated on the
display.
2. Stop the vehicle on level ground.
3. Switch the ignition OFF.
6-31
Maintenance and Care
Owner Maintenance

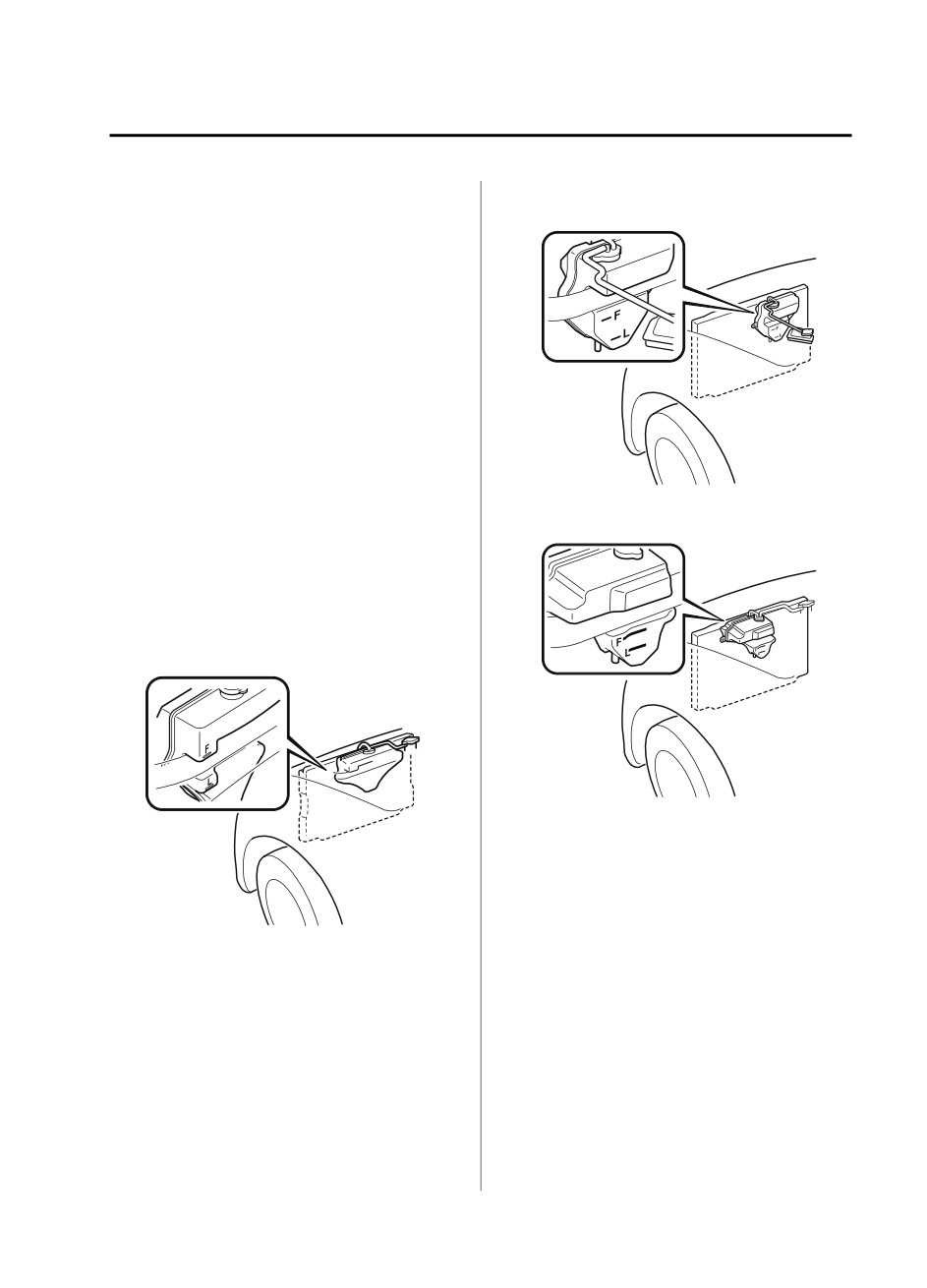

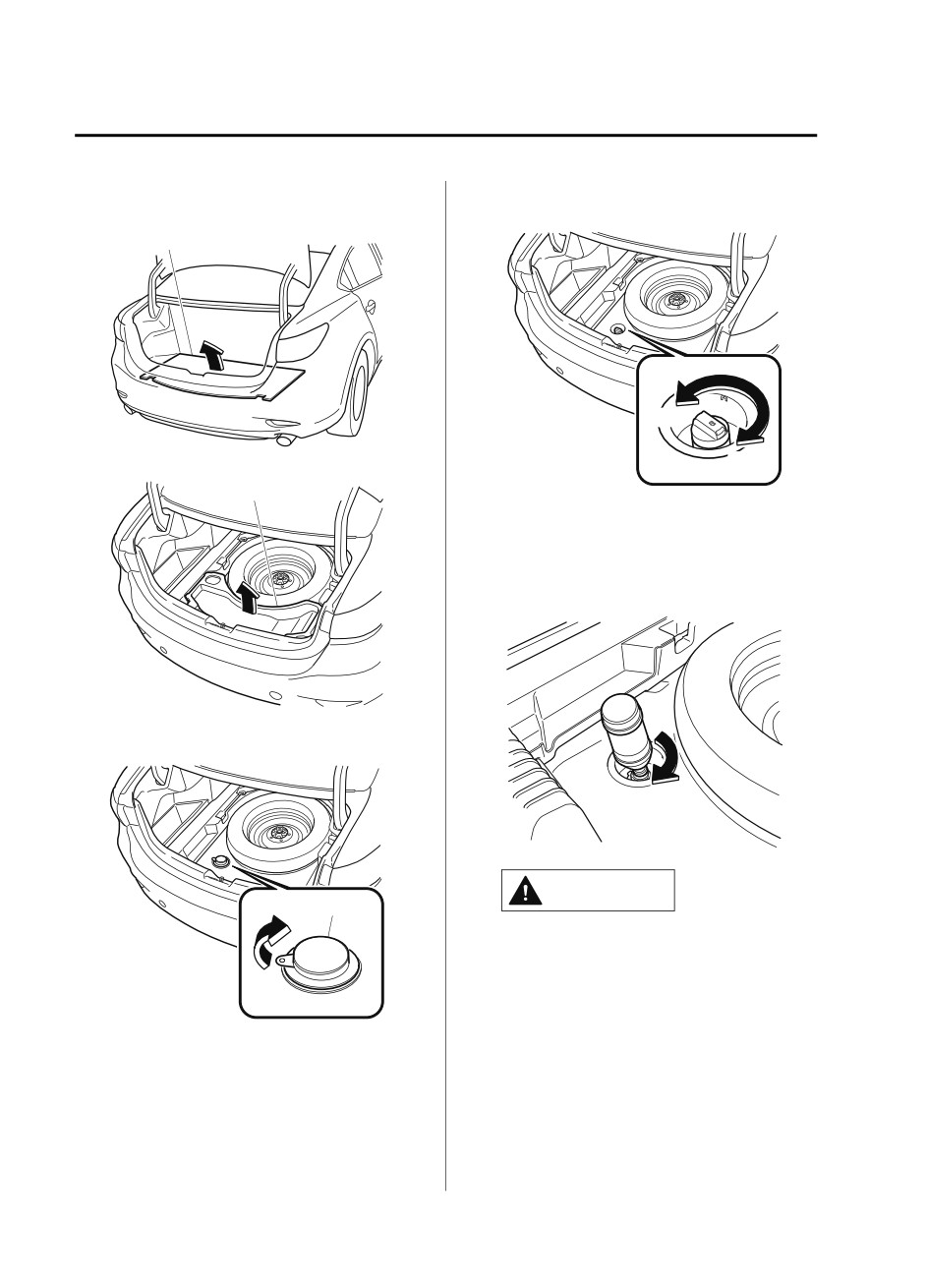

4. Open the trunk lid and remove the
7. Open the cap of the DEF filler port.
trunk mat.
Trunk mat
Open
Close
5. Remove the cargo sub-compartment.
Cargo sub-compartment
8. Remove the cap of a bottle containing
DEF, insert the bottle into the DEF
filler port, and screw it in lightly until
it stops.
6. Open the cover.
CAUTION
Cover
If too much DEF is added, the SCR
system might display a warning.
Contact an Authorized Mazda Dealer if
a warning is displayed. If the warning
remains displayed, the urea tank may
have a problem or it may be damaged.
6-32
Maintenance and Care
Owner Maintenance

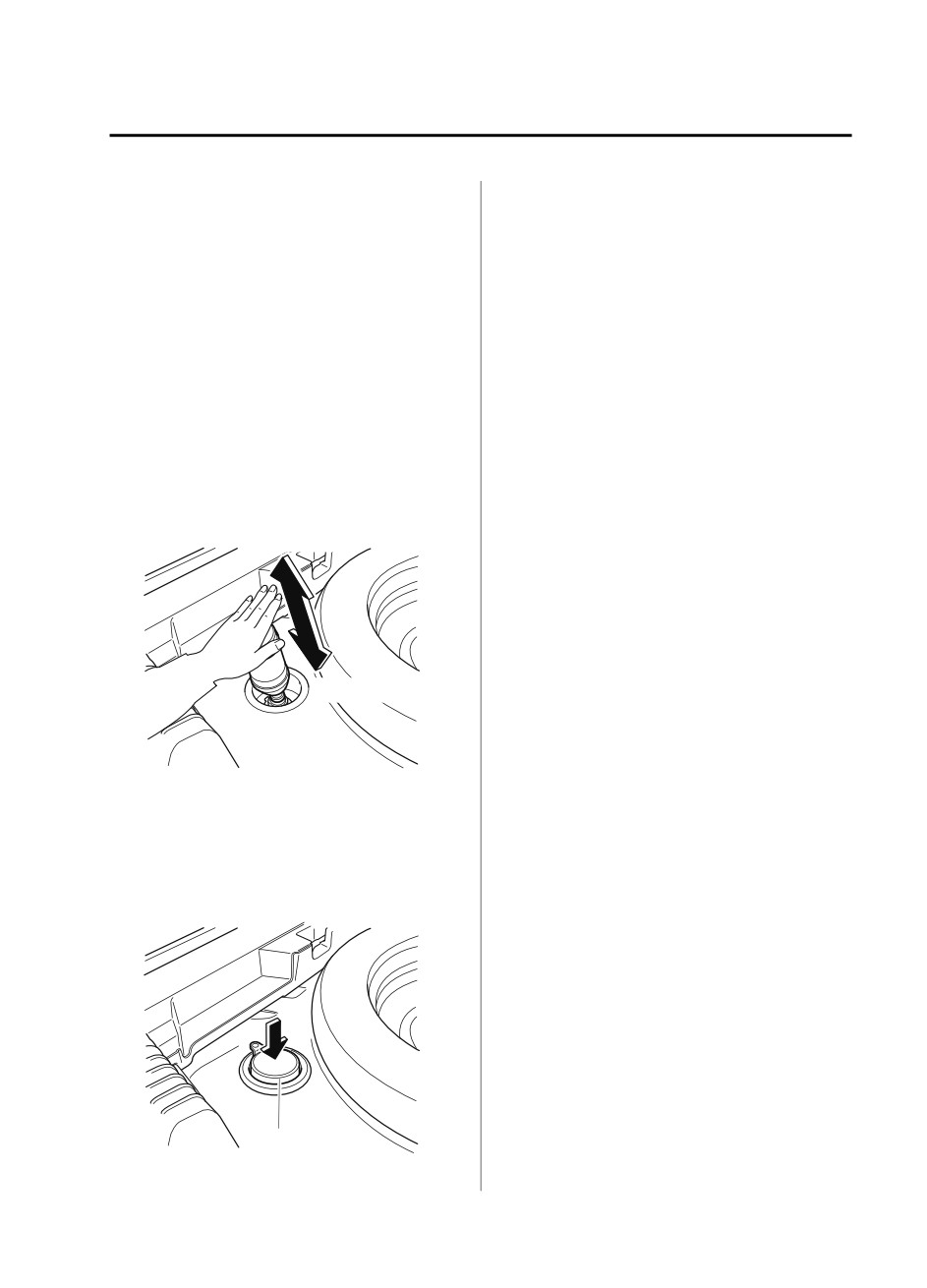

NOTE
NOTE
If excessive force is applied when
If the cover is not closed securely,
pressing in the bottom of the bottle,
water or exhaust gas from the
the bottle or the DEF filler port may
service hole may penetrate the trunk.
be damaged.
13. Switch the ignition ON once.
When the urea tank is full, stop
14. Check the following while the vehicle
adding DEF because the flow from
is stopped.
the bottle slows down by the bottle's
The DEF level warning indication is
auto-stop function. If you continue
not displayed on the
adding DEF, the urea tank will
multi-information display.
overfill.
The DEF level (%) indication on the
9.
Press in the bottom of the bottle
multi-information display shows an
straight and add DEF.
increase.
Release to stop
(Instrument cluster (Type A))
Refer to Remaining Diesel Exhaust
Fluid (DEF) and Maximum Driving
Distance Display (SKYACTIV-D
2.2) on page 4-23.
(Instrument cluster (Type B))
Push to add
Refer to Remaining Diesel Exhaust
Fluid (DEF) and Maximum Driving
Distance Display (SKYACTIV-D
10. Remove the bottle in the reverse order
2.2) on page 4-41.
of the insertion. At this time, be careful
15. Switch the ignition OFF.
of DEF dripping from the bottle.
11. Tighten the cap of the DEF filler port
until you hear 2 or more click sounds.
12. Close the cover securely.
Cover
6-33
Maintenance and Care
Owner Maintenance
If the above indications remain
Body Lubrication
unchanged even after 1 minute has
passed with the vehicle stopped:
All moving points of the body, such as
door and hood hinges and locks, should be
If you have already added 5.7 L (1.5 US
lubricated each time the engine oil is
gal, 1.3 Imp gal) of DEF according to
changed. Use a nonfreezing lubricant on
the DEF level (%) indication on the
locks during cold weather.
multi-information display, prepare an
additional 5.7 L (1.5 US gal, 1.3 Imp
Make sure the hood's secondary latch
gal) of DEF or more and add it
keeps the hood from opening when the
following the replenishment procedure.
primary latch is released.
If you added the correct amount of DEF,
the DEF level (%) indication on the
multi-information display will show an
increase while the vehicle is being
driven. If the DEF level (%) shows no
increase or the speed restriction does not
cancel even while driving the vehicle,
consult an Authorized Mazda Dealer.
6-34
Maintenance and Care
Owner Maintenance
▼ Replacing Windshield Wiper Blades
Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
CAUTION
Replace them.
¾ Hot waxes applied by automatic car
CAUTION
washers have been known to affect the
wiper's ability to clean windows.
¾ To prevent damage to the wiper arms
¾ To prevent damage to the wiper blades,
and other components, do not try to
do not use gasoline, kerosene, paint
sweep the wiper arm by hand.
thinner, or other solvents on or near
¾ Do not bend the blade rubber
them.
unnecessarily when replacing it.
¾ When the wiper lever is in the AUTO
Otherwise, the metal stiffener in the
position and the ignition is switched ON,
blade may deform and the windshield
the wipers may move automatically in
wiper operation may be adversely
the following cases:
affected.
¾ If the windshield above the rain sensor
is touched.
NOTE
¾ If the windshield above the rain sensor
When raising both windshield wiper arms,
is wiped with a cloth.
raise the driver's side wiper arm first.
¾ If the windshield is struck with a hand
When lowering the wiper arms, slowly
or other object.
lower the wiper arm from the passenger's
¾ If the rain sensor is struck with a hand
side first while supporting it with your
or other object from inside the vehicle.
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
Be careful not to pinch hands or fingers
and may scratch or crack the windshield.
as it may cause injury, or damage the
wipers. When washing or servicing the
Replace the wiper blades using the
vehicle, make sure the wiper lever is in
following procedure.
the OFF position.
1. Raise the wiper arm.
Contamination of either the windshield or
CAUTION
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
To prevent damage to the windshield
insects, tree sap, and hot wax treatments
let the wiper arm down easily, do not
used by some commercial car washes.
let it slap down on the windshield.
If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
6-35
Maintenance and Care
Owner Maintenance

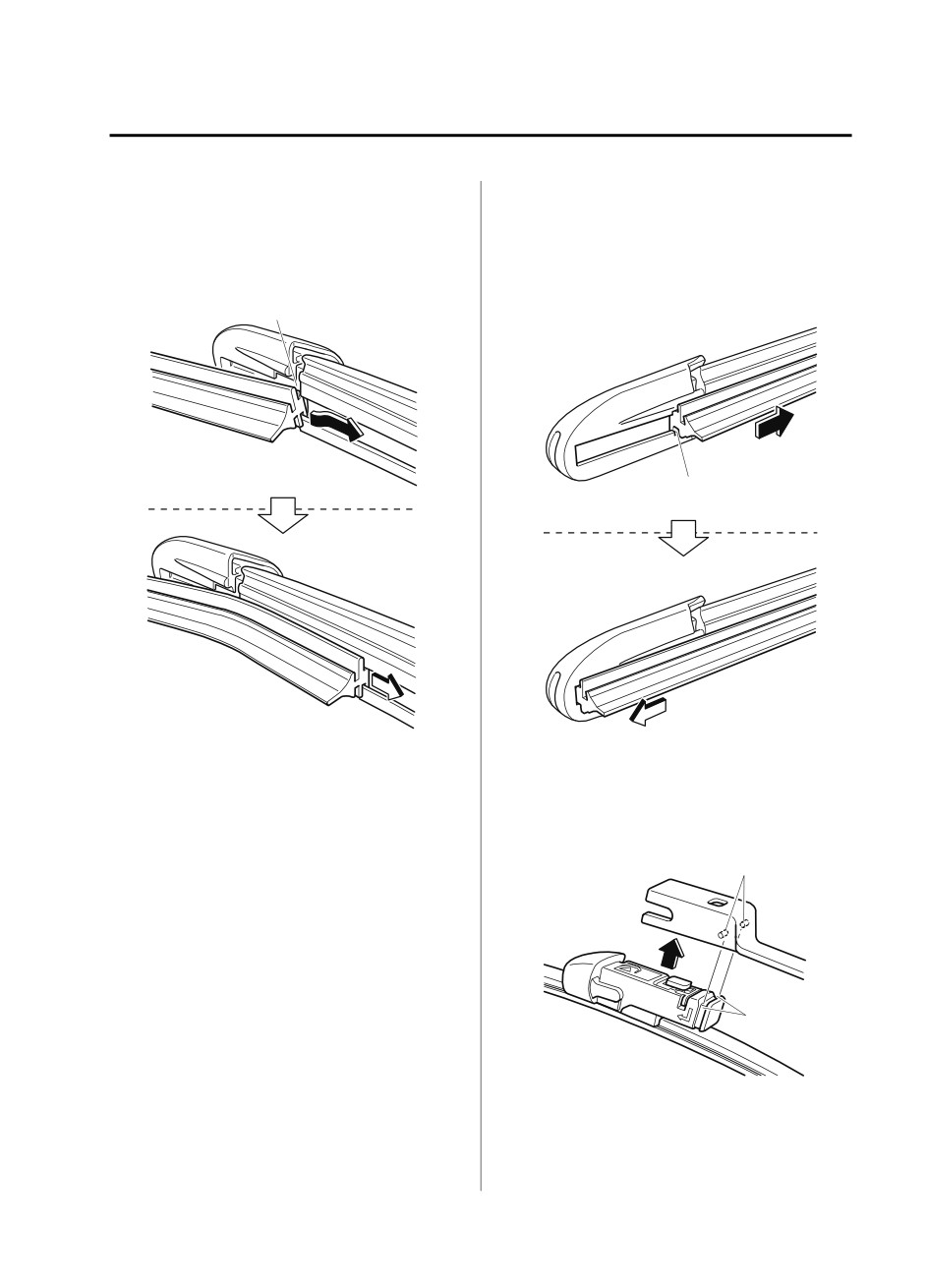

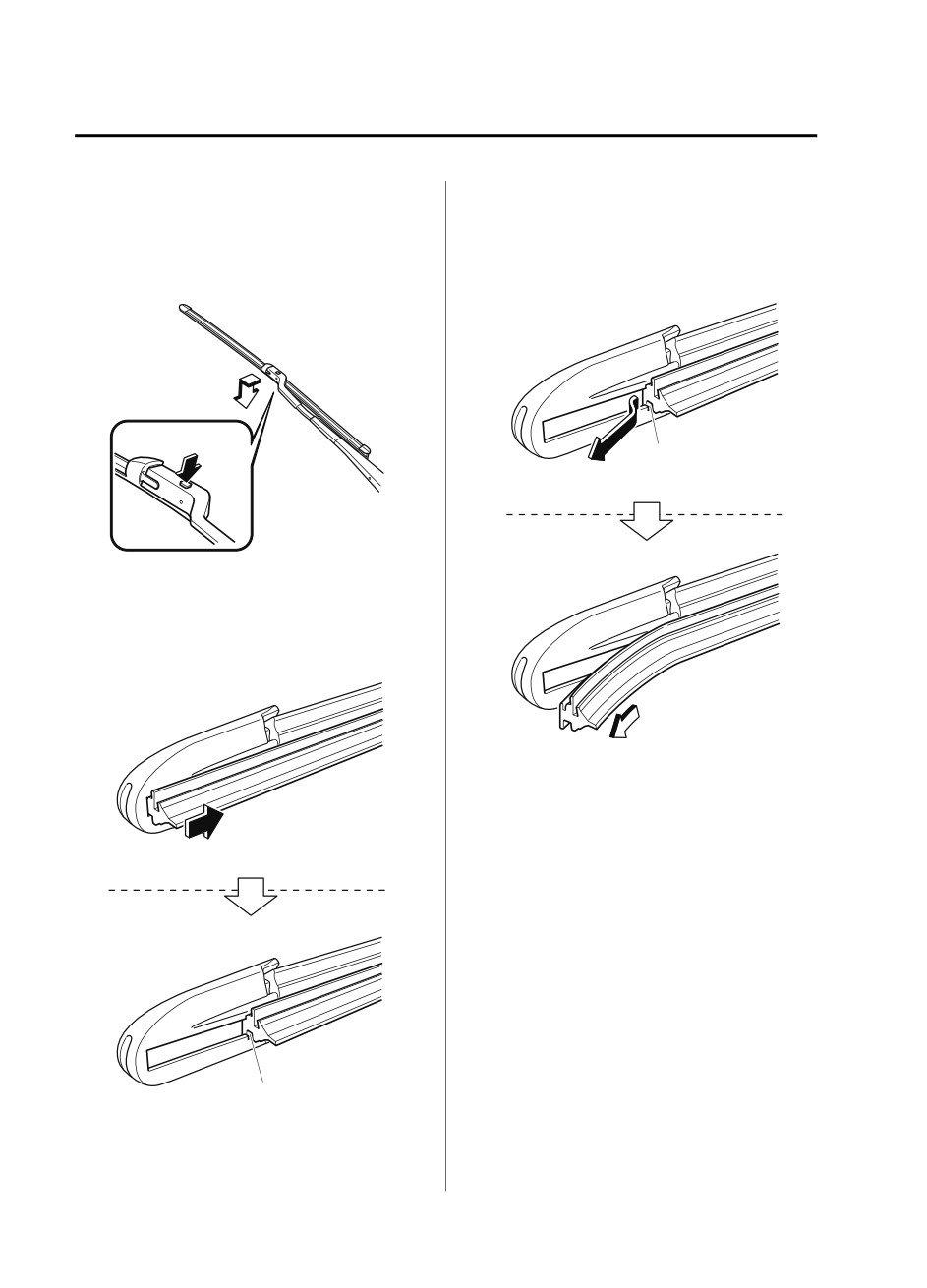

2. Slide the blade component in the
4. Pull the end of the blade rubber from
direction of the arrow while pressing
the blade holder groove in the direction
the wiper arm tab to remove the blade
of the arrow and remove the blade
component from the wiper arm.
rubber from the blade holder.
Groove
3. Pull the blade rubber in the direction of
the arrow and slide it to a position
where the blade holder groove can be
checked.
Groove
6-36
Maintenance and Care
Owner Maintenance
5. Insert the end of the new blade rubber
6. After pulling the blade rubber in the
into the groove of the blade holder
direction of the arrow and sliding the
until it contacts the end of the blade
blade rubber to a position to check the
holder.
blade holder groove, slide the blade
rubber end in the opposite direction.
Groove
Groove
7. Make sure that the blade rubber is
correctly installed to the blade holder.
8. Align the wiper arm tabs with the
blade component grooves.
Tabs
Grooves
6-37
Maintenance and Care
Owner Maintenance

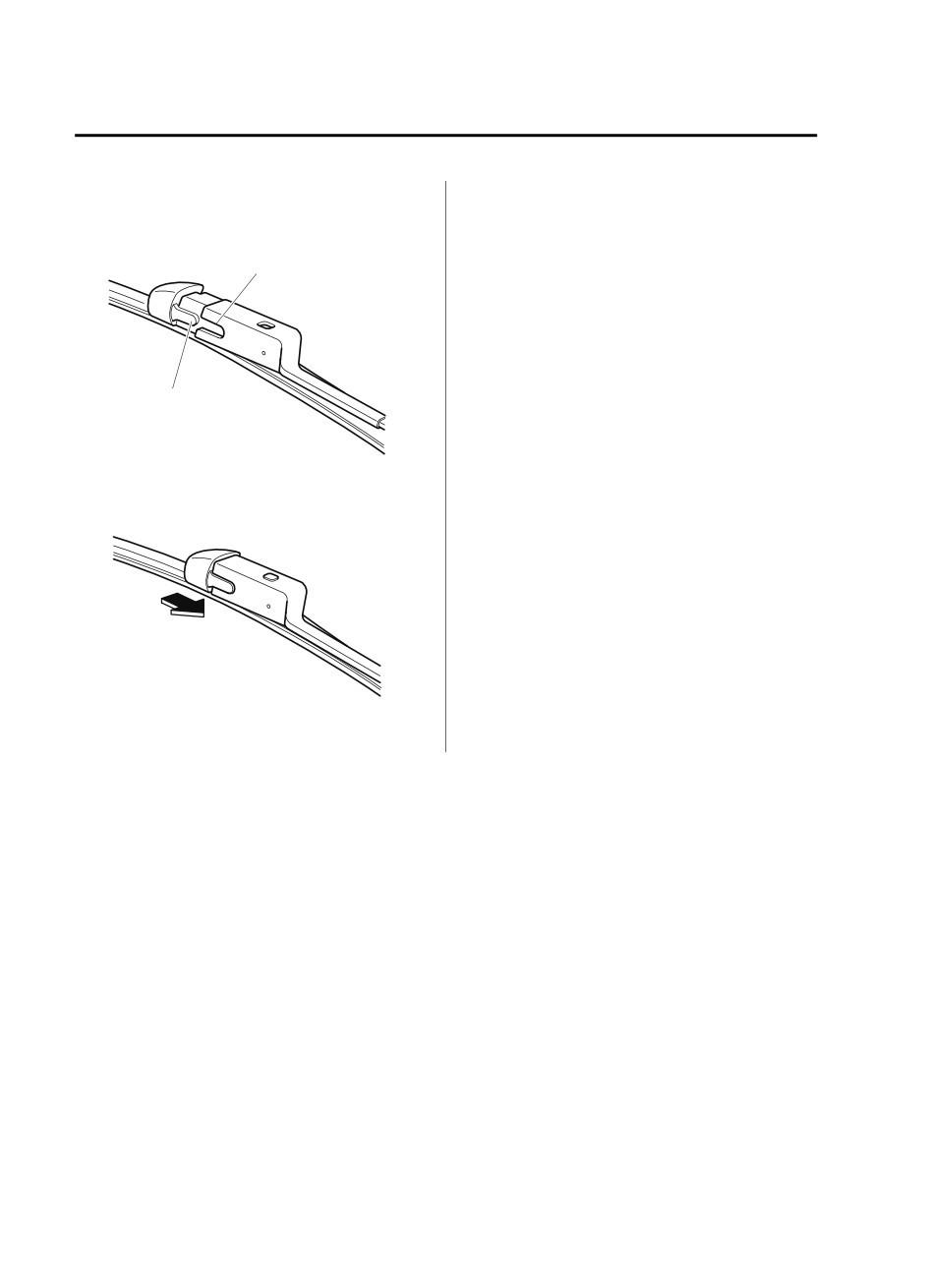

9. Align the blade component projection
with the wiper arm notch.
Notch
Projection
10. Slide the blade component and install
it to the wiper arm.
11. Slowly lower the wiper arm onto the
windshield.
6-38
