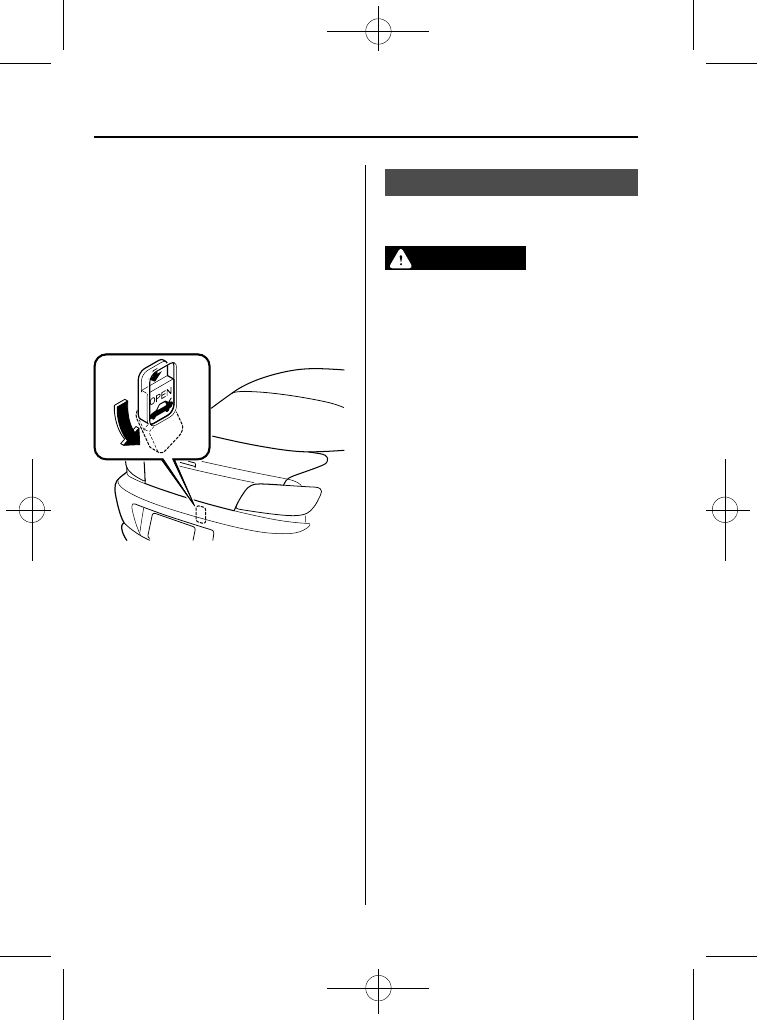

qOpening the Trunk Lid from the

Inside

Slide the inside trunk release lever in the
direction of the arrow. The lever is made
of material that will glow for hours in the
darkness of the trunk following a brief
exposure to ambient light.

The inside trunk release lever is located
on the inside of the trunk end trim.

Power Windows

The ignition must be switched ON for the
power windows to operate.

WARNING

Make sure the opening is clear before
closing a window:

Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.

Always lock the power window with the
power window lock switch on the
driver's side while children are in the
vehicle, and never allow children to
play with power window switches:

Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.

3-34

Knowing Your Mazda

Doors and Locks

RX-8_8BQ7-EA-10H_Edition1 Page104
Wednesday, July 14 2010 11:50 AM

Black plate (105,1)

qOperating the Power Windows

NOTE

The passenger power window can be
operated with the door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-38).

The passenger power window can also be
operated by the power window master
control switches on the driver's door.

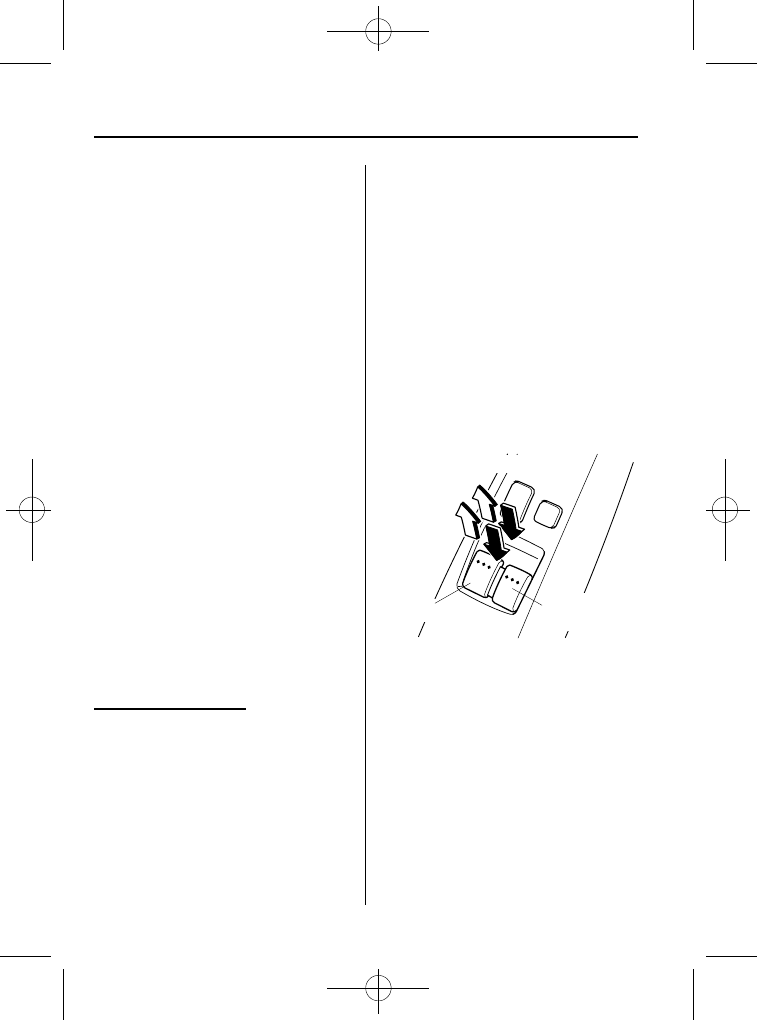

Driver's window

Owner master control switch

Passenger's
window

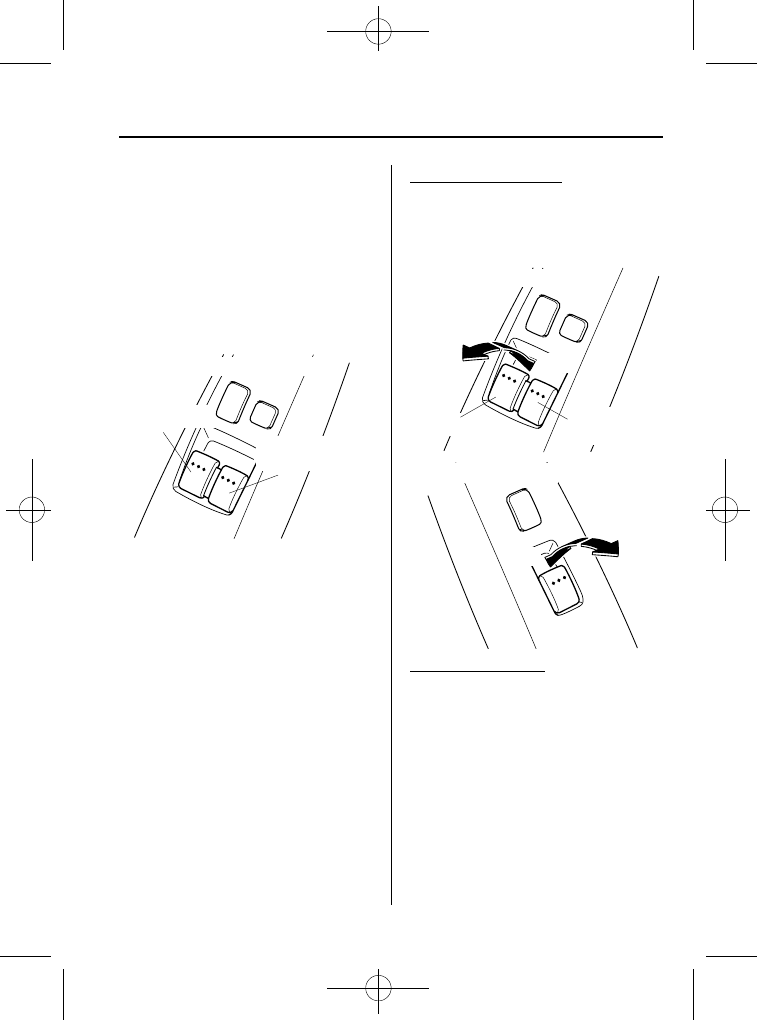

The following functions can be performed
for the power windows using the power
window master control switches on the
driver's door or passenger's door switch.

Manual opening/closing

Auto-opening/closing

Two-step down function

Manual opening/closing

To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.

Driver's window

Open

Passenger's
window

Owner master control switches

Open

Passenger switch

Auto-opening/closing

To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.

To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.

Knowing Your Mazda

Doors and Locks

3-35

RX-8_8BQ7-EA-10H_Edition1 Page105
Wednesday, July 14 2010 11:50 AM

Black plate (106,1)

NOTE

(POWER WINDOW RESET PROCEDURE)
If the battery was disconnected during vehicle
maintenance, or for other reasons such as a
switch continues to be operated after the
window is fully open/close, the power windows
will not fully open and close automatically.
Resetting of the automatic function can be
performed using the driver's master control
switch or the passenger door switch.
The power window auto function reset
procedure can be done on one or both door
switches. The power window auto function will
only resume on the side that has been reset.

1. Switch the ignition ON.

2. Make sure that the power window lock

switch located on the driver's door is not
depressed.

3. Press the switch and fully open the power

window.

4. Pull up the switch to fully close the power

window and continue holding the switch for
about 2 seconds after the window fully
closes.

5. Repeat Steps 3-4 for the passenger power

window.

6. Make sure that the power windows operate

correctly using the door switches.

Two-step down function

With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.

NOTE

Pressing the power window switch once when
the window is fully closed will only open it
about 3 cm (1 in) to allow convenient
ventilation of the cabin.

Canceling the two-step down function

To cancel the two-step down function for
the power windows, carry out the
following procedure using the master
control switches.

1. Switch the ignition ON and complete

the following procedure within 5
seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.

Driver's window

Passenger's
window

Owner master control switches

2. Switch the ignition off.

3. With the ignition off, and within 40

seconds, switch the ignition ON and
complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.

3-36

Knowing Your Mazda

Doors and Locks

RX-8_8BQ7-EA-10H_Edition1 Page106
Wednesday, July 14 2010 11:50 AM

Black plate (107,1)

NOTE

The two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.

If you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.

Restoring the two-step down function

With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.

NOTE

If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.

Jam-safe window

If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.

WARNING

Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:

Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.

NOTE

Depending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.

The jam-safe window function does not
operate until the system is re-initialized.

Engine-off power window operation

The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will be inoperable.

NOTE

For engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.

The two-step down function is inoperable
during engine-off operation.

Knowing Your Mazda

Doors and Locks

3-37

RX-8_8BQ7-EA-10H_Edition1 Page107
Wednesday, July 14 2010 11:50 AM

Black plate (108,1)

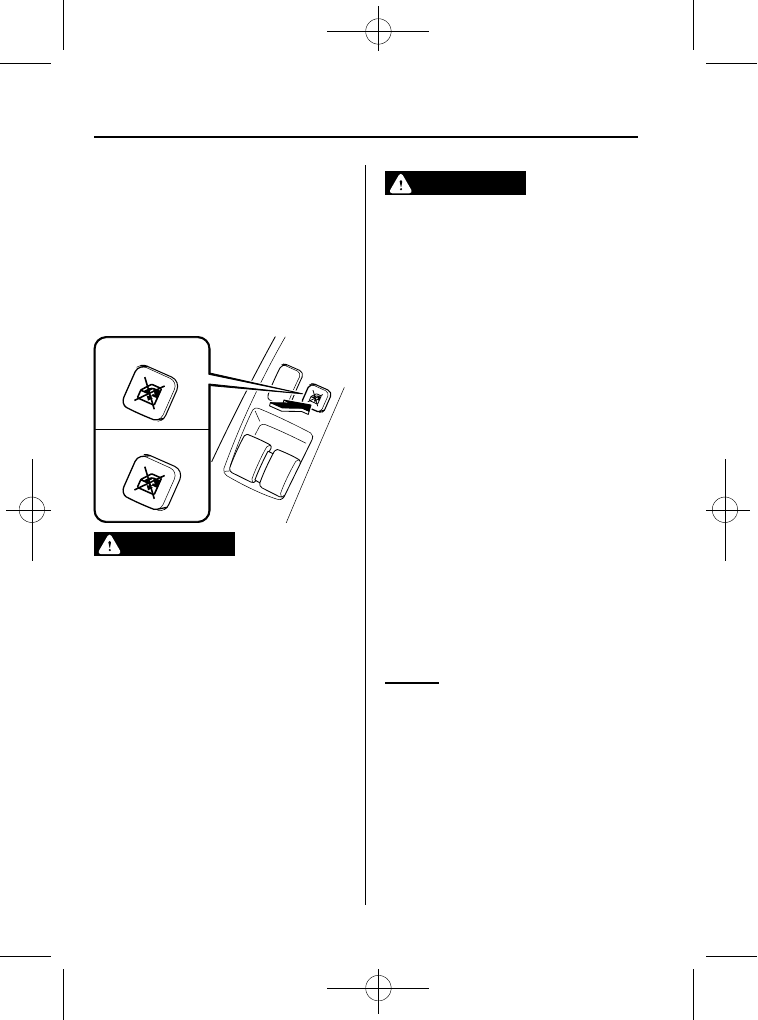

qPower Window Lock Switch

With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.

With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.

Locked position

Unlocked position

WARNING

Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:

Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.

qOpening/Closing the Power

Windows from Outside

Both power windows can be opened or
closed from outside the vehicle after the
doors are closed.
The power windows may be operated
remotely when the power window lock
switch on the driver's door is in the lock
or unlocked position.

WARNING

Make sure the opening is clear before
closing a window:

Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.

NOTE

The power windows cannot be opened or
closed from outside the vehicle under the
following condition:

A door is opened.

The key is inserted into the ignition
switch.

The ignition is in any position except
OFF. (With advanced key)

The power windows may not close
completely. Make sure all the windows are
closed.

If the power windows cannot be closed
completely, operate each power window
switch from inside the vehicle. After closing
the windows from outside the vehicle, verify
that they are completely closed.

Opening

Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the both windows as you approach
the vehicle to get the air moving before
you get in.

3-38

Knowing Your Mazda

Doors and Locks

RX-8_8BQ7-EA-10H_Edition1 Page108
Wednesday, July 14 2010 11:50 AM

Black plate (109,1)

WARNING

Use the remote auto-window function
only when you can see the vehicle and
it is in a secure area:

Do not let children play with your
keys. If they open the window
without your knowing, the open
windows are an even bigger
invitation to a thief than leaving the
doors unlocked.

The windows can be opened for
ventilating the cabin before getting in the
vehicle.

With unlock button (Keyless entry
system)

Press the unlock button on the transmitter
once, then press again within 1.5 seconds
and hold.
After the doors are unlocked, both
windows open while the unlock button is
pressed.
To stop the windows while opening,
release the button.
If the operation is performed from the
beginning again, the windows open.

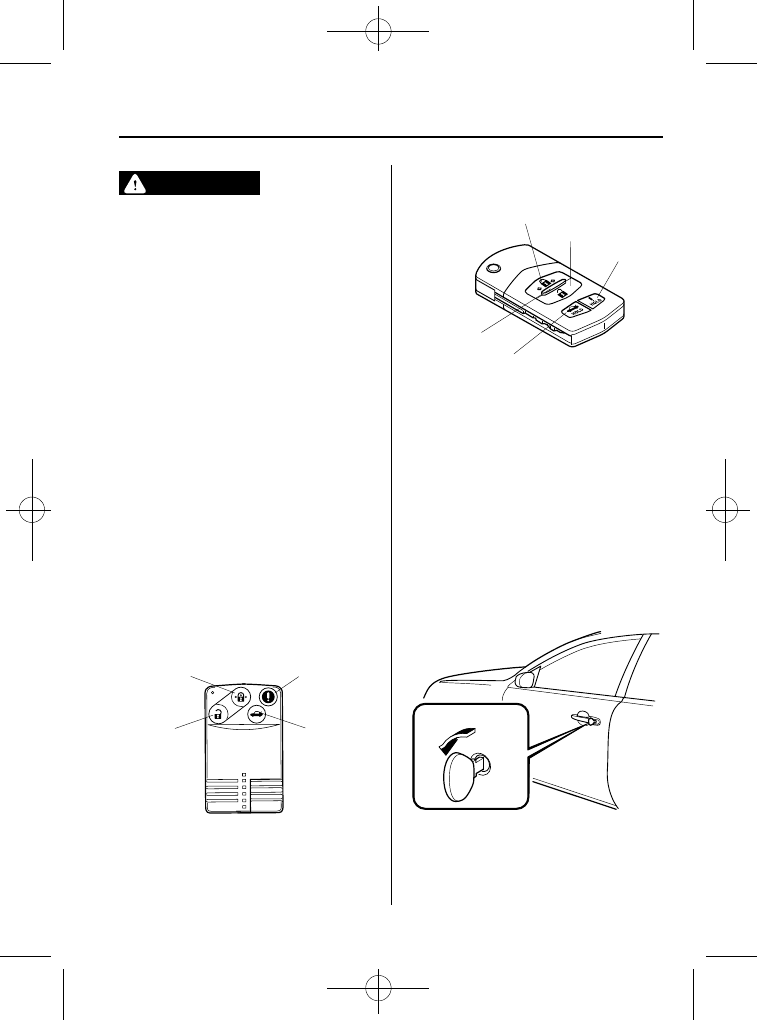

Advanced key

Panic button

Unlock button

Lock button

Trunk button

Retractable type key

Lock button

Unlock button

Trunk button

Panic button

Operation
indicator light

NOTE

The unlock button does not operate unless
it is pressed twice sequentially.

The lock button cannot be used to close the
power windows.

With key

1. Insert the key in the driver's door key

cylinder.

2. Turn the key counterclockwise and

hold until the windows are completely
open. After the doors are unlocked, the
windows fully open automatically.

Open

To stop this operation, turn the key to the
center position, then turn it
counterclockwise again.

Knowing Your Mazda

Doors and Locks

3-39

RX-8_8BQ7-EA-10H_Edition1 Page109
Wednesday, July 14 2010 11:50 AM

Black plate (110,1)

NOTE

The window opening operation also can be
stopped by turning the key clockwise. However,
the doors will lock.

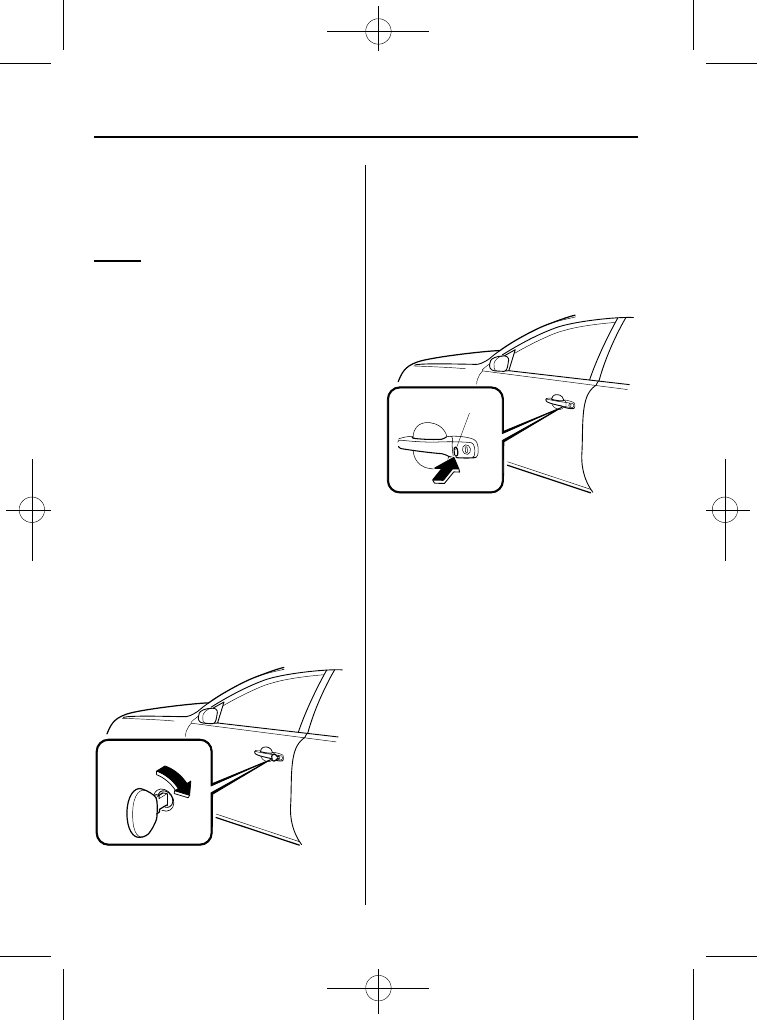

Closing

The windows can be closed in case they
are left open after getting out of the
vehicle.

NOTE

(With advanced key)
If the auto-lock function (page 3-8) has been
activated, the doors automatically lock as you
walk away from the vehicle, however, the
power windows cannot be closed. When
leaving the vehicle, close the windows using
the power window switch inside the vehicle,
the key, or a request switch on the front door
handles.

With key

1. Insert the key in the driver's door key

cylinder.

2. Turn the key clockwise and hold until

the windows are completely close.
After the doors are locked, the
windows close as long as the key is
turned.

With request switch on the driver's
door (Advanced key)

1. If the doors are locked, unlock them.

2. Press and hold the request switch on

the driver's door. After the doors are
locked, the windows close as long as
the request switch is pressed.

Request switch

To stop the windows from closing, release
the request switch. If the operation is
performed from the beginning again, the
windows close.

3-40

Knowing Your Mazda

Doors and Locks

RX-8_8BQ7-EA-10H_Edition1 Page110
Wednesday, July 14 2010 11:50 AM

Black plate (111,1)

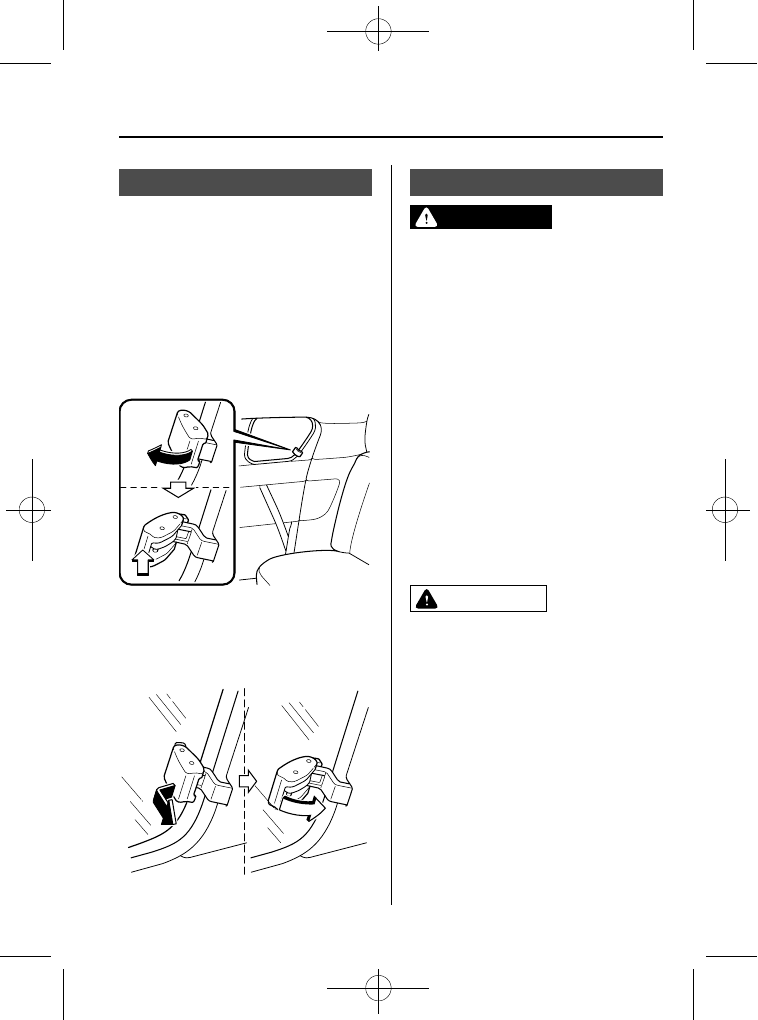

Rear Quarter Windows

Open or close a swing-out rear quarter
window by releasing the latch and moving
the window.

NOTE

When parked in public areas, it is best to keep
the rear quarter windows closed for security.

qOpening a Window

Pull the latch inward and then push the
window outward.

qClosing a Window

Pull the latch inward and then push it
backward until it snaps shut. Make sure
the window is securely closed.

Fuel-Filler Lid and Cap

WARNING

When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:

Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.

Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:

Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.

CAUTION

Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.

Knowing Your Mazda

Doors and Locks

3-41

RX-8_8BQ7-EA-10H_Edition1 Page111
Wednesday, July 14 2010 11:50 AM

Black plate (112,1)

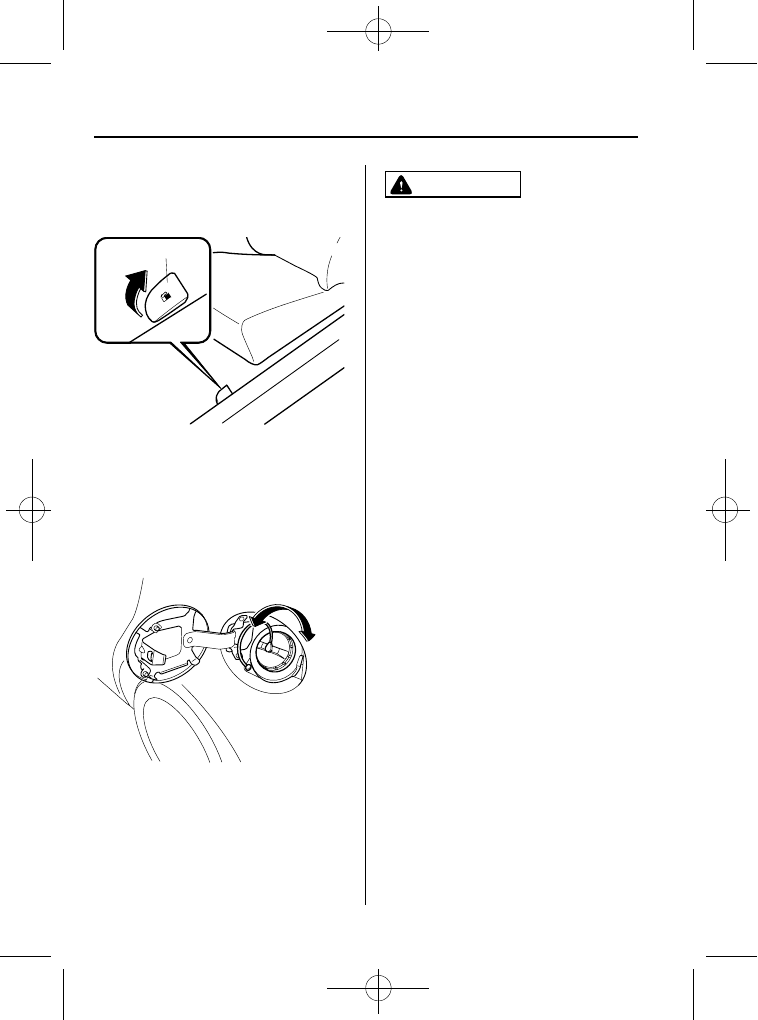

qFuel-Filler Lid

To open, pull up the remote fuel-filler lid
release.

Remote fuel-filler
lid release

qFuel-Filler Cap

To remove the fuel-filler cap, turn it
counterclockwise.

To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.

Open

CAUTION

Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap is
not tightened securely. If the light
remains on (even after you have
tightened the cap securely, driven,
and restarted the engine several
times), it may indicate a different
problem. Contact an Authorized
Mazda Dealer as soon as possible.

3-42

Knowing Your Mazda

Doors and Locks

RX-8_8BQ7-EA-10H_Edition1 Page112
Wednesday, July 14 2010 11:50 AM

Black plate (113,1)

Hood

WARNING

Always check that the hood is closed
and securely locked:

A hood that is not closed and
securely locked is dangerous as it
could fly open while the vehicle is
moving and block the driver's vision
which could result in a serious
accident.

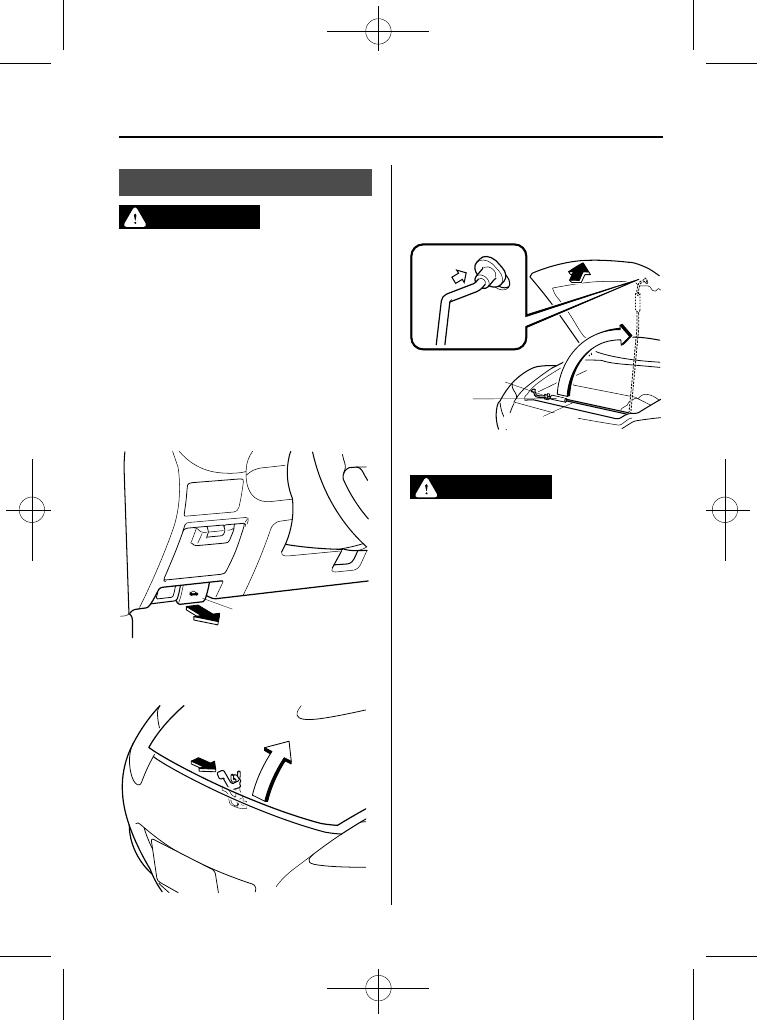

qOpening the Hood

1. With the vehicle parked, pull the

release handle to unlock the hood.

Release handle

2. Insert your hand into the hood opening

and slide the hood latch lever to the
right and lift the hood.

3. Grasp the support rod in the padded

area and secure it in the stay hole
indicated by the arrow to hold the hood
open.

Clip

Support rod

Pad

qClosing the Hood

WARNING

Do not leave items in the engine
compartment:

After you have finished checking or
doing servicing in the engine
compartment, do not forget and
leave items such as tools or rags in
the engine compartment.
Tools or other items left in the engine
compartment could cause engine
damage or a fire leading to an
unexpected accident.

1. Check under the hood area to make

certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.

2. Insert the support rod in its clip while

holding up the hood. Verify that the
support rod is secured in the clip before
closing the hood.

3. Close the hood so that it locks securely.

Knowing Your Mazda

Doors and Locks

3-43

RX-8_8BQ7-EA-10H_Edition1 Page113
Wednesday, July 14 2010 11:50 AM

Black plate (114,1)

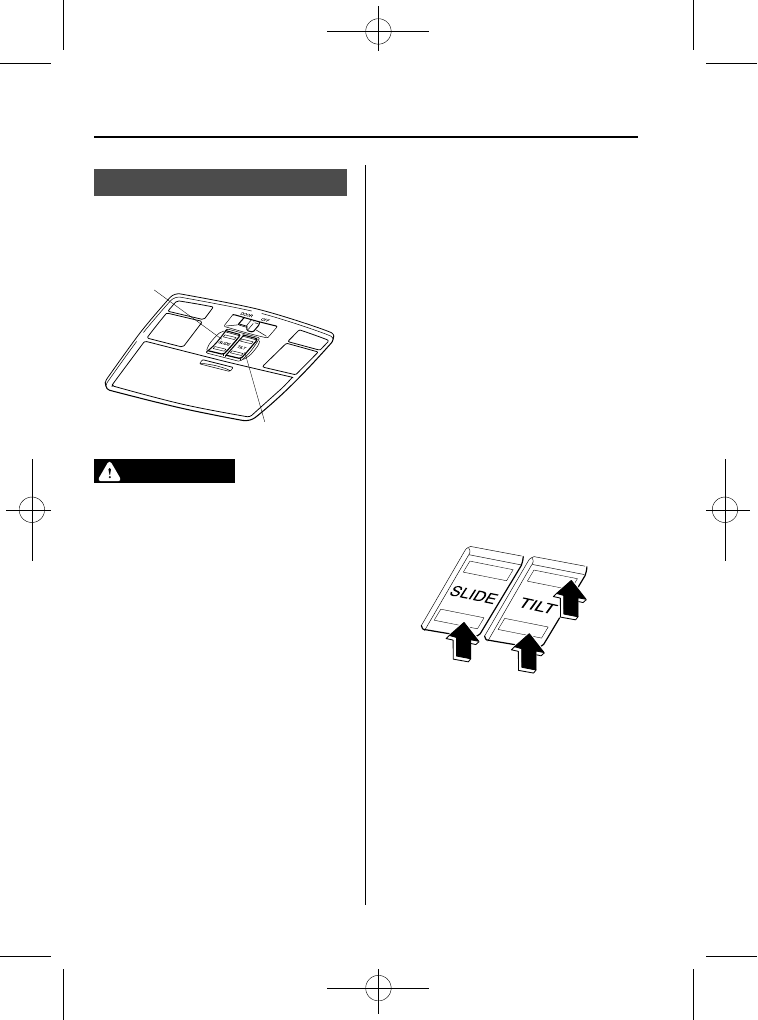

Moonroof

The moonroof can be opened or closed
electrically only when the ignition is
switched ON.

Tilt switch

Slide switch

WARNING

Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:

Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.

Make sure the opening is clear before
closing the moonroof:

A closing moonroof is dangerous. The
hands, head, or even neck of a
person

―especially a child― could

be caught in it as it closes, causing
serious injury or even death.

NOTE

Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.

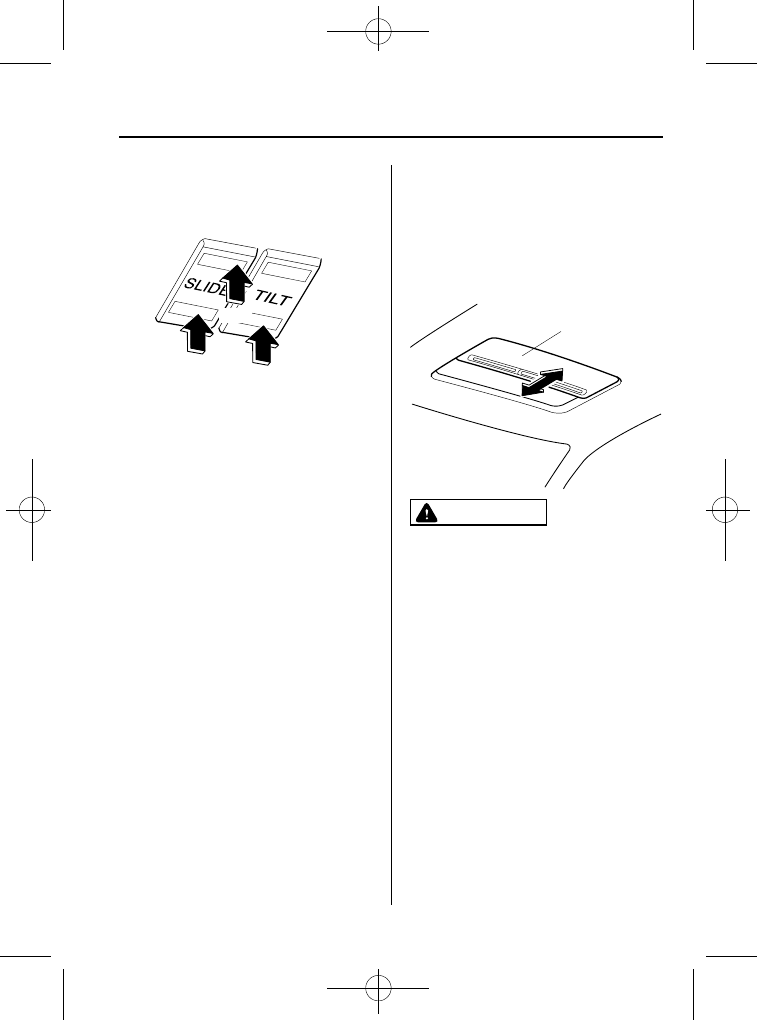

qTilt Operation

The rear of the moonroof can be tilted
open to provide more ventilation.

To fully tilt automatically, momentarily
press the rear of the tilt switch.
To stop tilting partway, press any part of
the tilt or slide switch.

To close to the desired position, press the
front of the tilt or slide switch.

Tilt up

qSlide Operation

To fully open automatically, momentarily
press the rear of the slide switch.
To stop sliding partway, press any part of
the tilt or slide switch.

3-44

Knowing Your Mazda

Some models.

Doors and Locks

RX-8_8BQ7-EA-10H_Edition1 Page114
Wednesday, July 14 2010 11:50 AM

Black plate (115,1)

To close to the desired position, press the
front of the tilt or slide switch.

Open

qPower Moonroof Re-set Procedure

If the battery is disconnected, the
moonroof may not operate correctly. The
moonroof will not operate correctly until
it is re-set. Carry out the following
procedure to re-set the moonroof and
resume operation:

1. Turn the ignition switch to the ON

position.

2. Press and hold the front of the SLIDE

switch with the moonroof closed
completely. The moonroof lowers
slightly and returns to its original
position when the re-setting is finished.

NOTE

Re-set cannot be performed with the moonroof
open. Close the moonroof completely before
re-setting.

qSunshade

The sunshade can be opened and closed
by hand.

The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.

Sunshade

CAUTION

Ø The sunshade does not tilt. To

avoid damaging the sunshade, do
not push up on it.

Ø Do not close the sunshade while

the moonroof is opening. Trying to
force the sunshade closed could
damage it.

Knowing Your Mazda

Doors and Locks

3-45

RX-8_8BQ7-EA-10H_Edition1 Page115
Wednesday, July 14 2010 11:50 AM

Black plate (116,1)

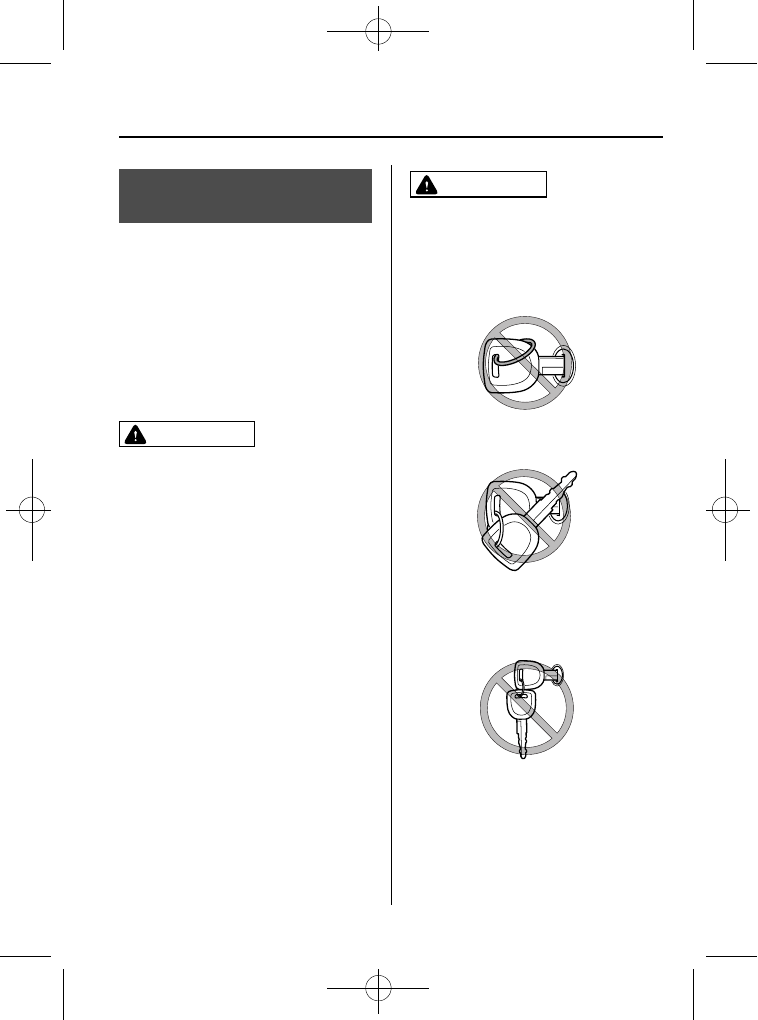

Immobilizer System (with
Advanced Key)

The immobilizer system allows the engine
to start only with an advanced key the
system recognizes.

If someone attempts to start the engine
with an unrecognized advanced key, the
engine will not start, thereby helping to
prevent the theft of your vehicle.
If you have a problem with the
immobilizer system or the advanced key
(including auxiliary key), consult an
Authorized Mazda Dealer.

CAUTION

Ø Radio equipment like this is

governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.

Ø To avoid damage to the key, do

not:

Drop the key.

Get the key wet.

Expose the key to any kind of
magnetic field.

Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.

CAUTION

Do not allow the following when
starting the engine with the auxiliary
key due to an advanced key dead
battery or other malfunction.
Otherwise the signal from the
auxiliary key will not be received
correctly and the engine may not
start.

Ø Metal parts of other keys or metal

objects touch the auxiliary key
grip.

Ø Spare auxiliary keys or keys for

other vehicles equipped with an
immobilizer system touch or come
near the auxiliary key.

Ø Devices for electronic purchases, or

security passage which touch or
come near the auxiliary key.

3-46

Knowing Your Mazda

Security System

RX-8_8BQ7-EA-10H_Edition1 Page116
Wednesday, July 14 2010 11:50 AM

Black plate (117,1)

NOTE

(U.S.A.)
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received, including interference that may
cause undesired operation.

(CANADA)
This device complies with RSS-210 of
Industry CANADA. Operation is subject to
the following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.

The advanced keys (including auxiliary key)
carry a unique electronic code. For this
reason, and to assure your safety, obtaining
a replacement advanced key (including
auxiliary key) requires some waiting time.
They are only available through an
Authorized Mazda Dealer.

Always keep a spare advanced key in case
one is lost. If an advanced key is lost,
consult an Authorized Mazda Dealer as
soon as possible.

If you lose an advanced key (including
auxiliary key), an Authorized Mazda Dealer
will reset the electronic codes of your
remaining advanced keys (including
auxiliary keys) and immobilizer system.
Bring all the remaining advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer to reset.
Starting the vehicle with a key that has not
been reset is not possible.

qOperation

Arming

The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every 2 seconds until the
system is disarmed.

Disarming

The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.

If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.

Knowing Your Mazda

Security System

3-47

RX-8_8BQ7-EA-10H_Edition1 Page117
Wednesday, July 14 2010 11:50 AM

Black plate (118,1)

NOTE

The engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, switch the ignition off, and
then restart the engine.

Signals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.

If the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.

Since the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.

qModification and Add-On

Equipment

Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.

CAUTION

To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.

3-48

Knowing Your Mazda

Security System

RX-8_8BQ7-EA-10H_Edition1 Page118
Wednesday, July 14 2010 11:50 AM

Black plate (119,1)

Immobilizer System
(without Advanced Key)

The immobilizer system allows the engine
to start only with a key the system
recognizes.

If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
If you have a problem with the
immobilizer system or the key, consult an
Authorized Mazda Dealer.

CAUTION

Ø Radio equipment like this is

governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.

Ø To avoid damage to the key, do

not:

Drop the key.

Get the key wet.

Expose the key to any kind of
magnetic field.

Expose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.

CAUTION

When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.

Ø A key ring rests on the key grip.

Ø Metal parts of other keys or metal

objects touch the key grip.

Ø Spare keys or keys for other

vehicles equipped with an
immobilizer system touch or come
near the key grip.

Ø Devices for electronic purchases, or

security passage which touch or
come near the key.

Knowing Your Mazda

Security System

3-49

RX-8_8BQ7-EA-10H_Edition1 Page119
Wednesday, July 14 2010 11:50 AM

Mazda RX-8 (2011 year). Instruction - part 7
