Mazda Protege (2003 year). Instruction - part 17





10-2

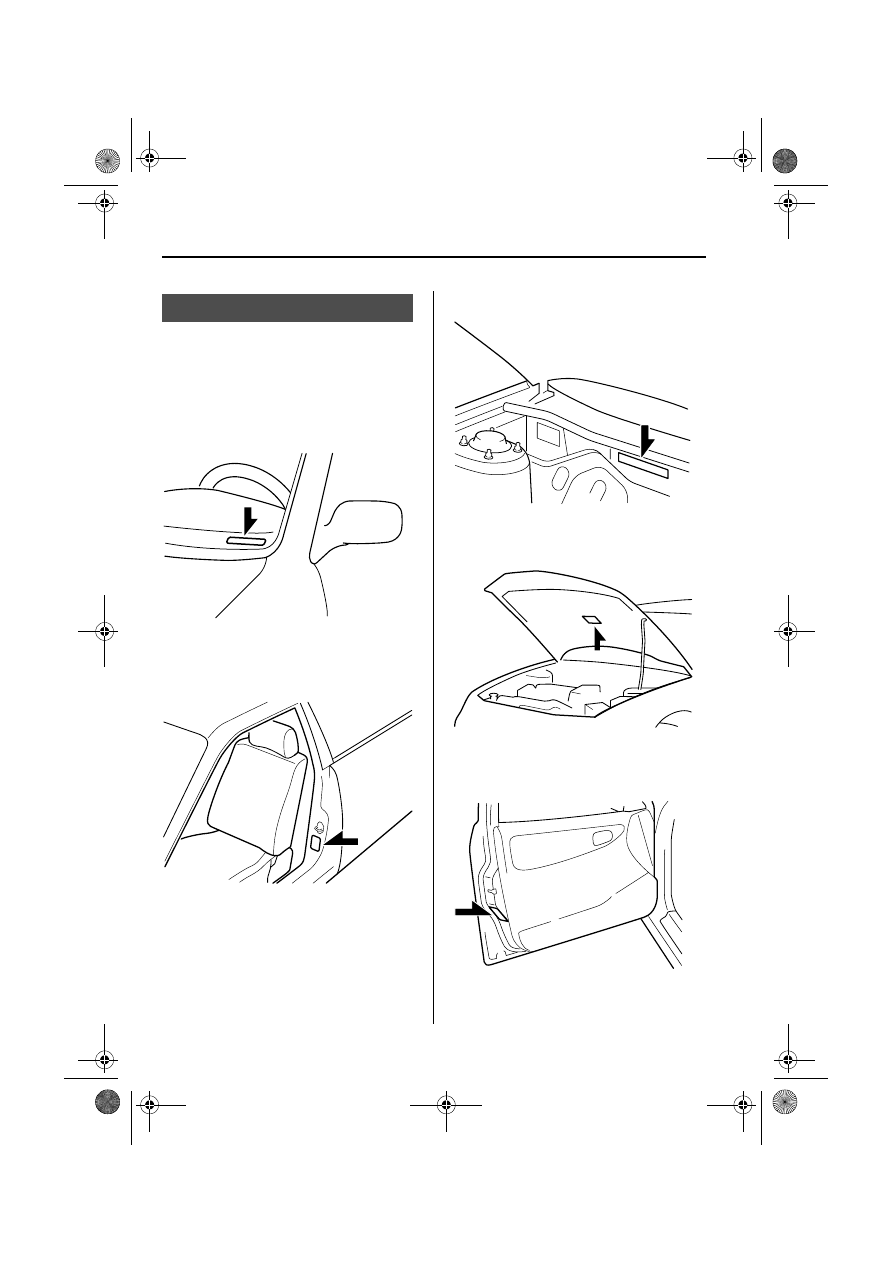

Identification Numbers

▼ Vehicle Identification Number

The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.

▼ Motor Vehicle Safety Standard

Label

▼ Chassis Number

▼ Vehicle Emission Control

Information Label

▼ Tire Pressure Label

Vehicle Information Labels

10-3

Identification Numbers

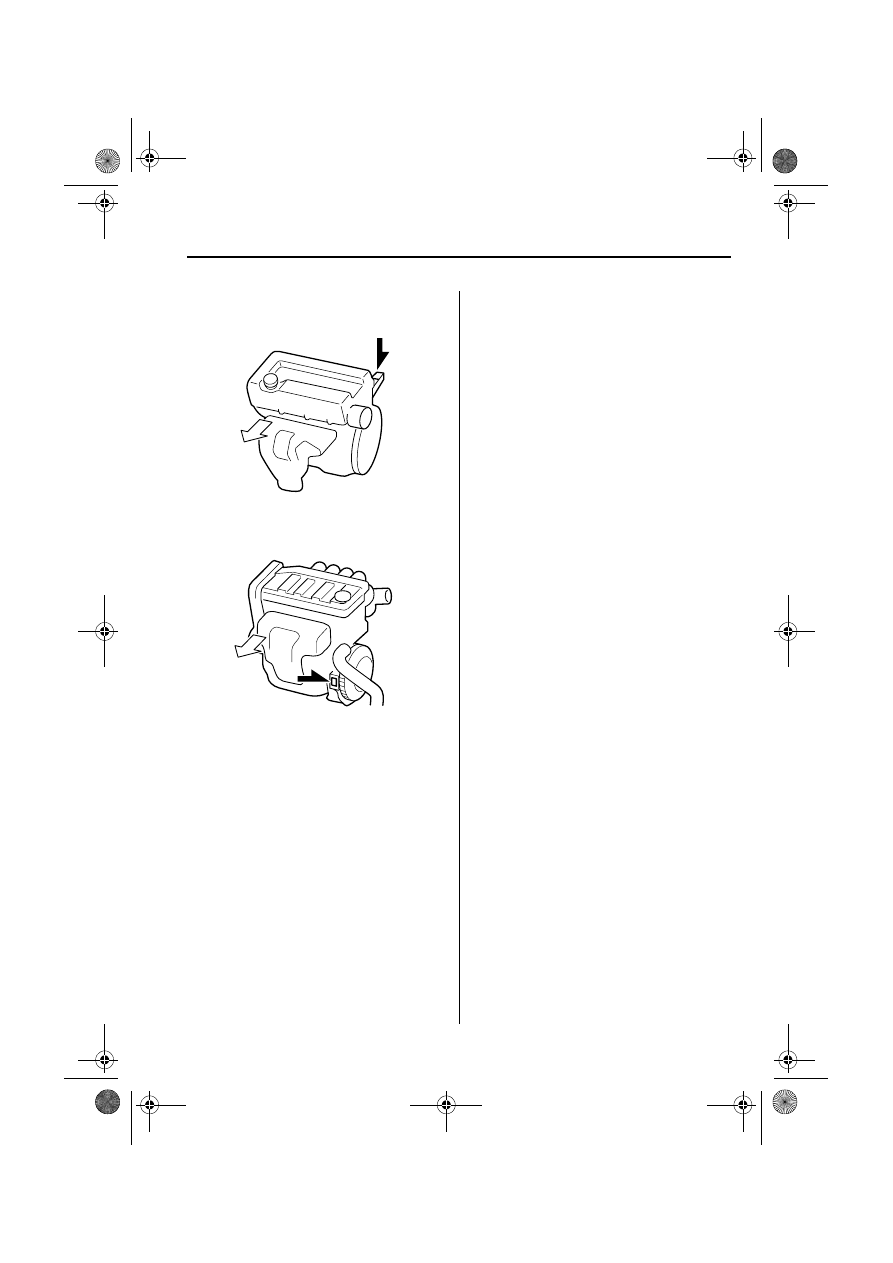

▼ Engine Number

Front

1.6-liter engine

2.0-liter engine

Front

10-4

Specifications

▼ Engine

▼ Electrical System

*

Only for MAZDASPEED Protegé

▼ Lubricant Quality

*

Refer to the recommended SAE viscosity numbers on page 8-9.

Specifications

Item

Model

1.6-liter engine

2.0-liter engine

Type

DOHC-16V in-line, 4-cylinder

Bore×Stroke

78.0 × 83.6 mm (3.07 × 3.29 in)

83.0 × 92.0 mm (3.27 × 3.62 in)

Displacement

1,598 ml (1,598 cc, 97.5 cu in)

1,991 ml (1,991 cc, 121.5 cu in)

Compression ratio

9.0

9.1

Item

Model

1.6-liter engine

2.0-liter engine

Battery

12V-40AH/5HR

12V-40AH/5HR
12V-52AH/5HR

Alternator

12 V-70 A

12 V-80 A

Starter

12 V - 1.0 kW

12 V - 1.0 kW

Spark-plug number

MAZDA

BP13 18 110, BP14 18 110

NGK

ZFR5F-11, ZFR6F-11

BKR5E-11, BKR6E-11, PZFR6F

*

DENSO

KJ16CR11, KJ20CR11

K16PR-U11, K20PR-U11

CHAMPION

RC8YC4, RC10YC4

Spark-plug gap

1.0—1.1 mm (0.040—0.043 in), 0.7—0.8 mm (0.028—0.031 in)

*

Lubricant

Classification

API Service

ILSAC

Engine oil

*

SG (Energy Conserving II)

SH (Energy Conserving II)

GF-I

SJ

GF-II

SL

GF-III

Lubricant

Classification

Manual transaxle oil

Any temperature

API Service

GL-4 or GL-5

SAE

75W-90

Above 10°C (50°F)

API Service

GL-4 or GL-5

SAE

80W-90

Automatic transaxle fluid

ATF M-V

Power steering fluid

ATF M-III or equivalent (e.g. Dexron® III)

Brake/Clutch fluid

SAEJ1703 or FMVSS116 DOT-3

10-5

Specifications

▼ Capacities

(Approximate Quantities)

Check oil and fluid levels with dipsticks or reservoir gauges.

▼ Dimensions

*

Only for MAZDASPEED Protegé

Item

Unit

L

US qt

Imp qt

Engine oil

1.6-liter engine

With oil filter replacement

3.2

3.4

2.8

Without oil filter replacement

3.0

3.2

2.6

2.0-liter engine

With oil filter replacement

3.5

3.7

3.1

Without oil filter replacement

3.3

3.5

2.9

Coolant

1.6-liter engine

With heater

6.0

6.3

5.3

Without heater

5.5

5.8

4.8

2.0-liter engine

With heater

7.5

7.9

6.6

Without heater

6.9

7.3

6.1

Transaxle oil

Manual transaxle

2.7

2.9

2.4

Automatic transaxle

7.2

7.6

6.3

Fuel tank

1.6-liter engine

50

13.2 (US gal)

11.0 (Imp gal)

2.0-liter engine

55

14.5 (US gal)

12.1 (Imp gal)

Item

Model

Sedan

Hatchback

Overall length

4,450 mm (175.2 in), 4,445 mm

*

(175.0 in)

4,331 mm (170.5 in)

Overall width

1,705 mm (67.1 in)

1,705 mm (67.1 in)

Overall height

1,410 mm (55.5 in)

1,410 mm (55.5 in)

Front tread

1,470 mm (57.9 in), 1,455 mm

*

(57.2 in)

1,465 mm (57.7 in)

Rear tread

1,470 mm (57.9 in), 1,460 mm

*

(57.4 in)

1,470 mm (57.9 in)

Wheelbase

2,610 mm (102.8 in)

2,610 mm (102.8 in)

10-6

Specifications

▼ Weights

Sedan

*

Only for MAZDASPEED Protegé

Hatchback

▼ Air Conditioner

Item

Weight

1.6-liter engine

2.0-liter engine

GVWR (Gross Vehicle Weight Rating)

1,600 kg (3,527 lb)

1,653 kg (3,644 lb),

1,674 kg

*

(3,691 lb)

GAWR (Gross Axle Weight Rating)

Front

850 kg (1,874 lb)

883 kg (1,947 lb),

889 kg

*

(1,960 lb)

Rear

760 kg (1,675 lb)

780 kg (1,720 lb),

785 kg

*

(1,731 lb)

CW (Curb Weight)

*

1,273 kg (2,807 lb)

Item

Weight

GVWR (Gross Vehicle Weight Rating)

Manual transaxle

1,638 kg (3,611 lb)

Automatic transaxle

1,662 kg (3,664 lb)

GAWR (Gross Axle Weight Rating)

Front

Manual transaxle

863 kg (1,903 lb)

Automatic transaxle

887 kg (1,955 lb)

Rear

780 kg (1,720 lb)

CW (Curb Weight)

Manual transaxle

1,232 kg (2,716 lb)

Automatic transaxle

1,247 kg (2,749 lb)

Gas complies with SAE J639

Maximum operating charge

HFC134a (R-134a)

0.525 kg (18.55 oz)

10-7

Specifications

▼ Light Bulbs

Light bulb

Wattage

Headlights

Sedan

60/55

Hatchback

Hi

60

Lo

55

Front turn signal/Parking lights

27/8

Side turn signal lights

5

Fog lights

55

Rear turn signal lights

21

Front side-marker lights

5

Rear side-marker lights (Sedan)

3.8

Taillights (Sedan)

3.8

Brake lights/Taillights

21/5

High-mount brake light

Sedan

Type A

21

Type B

5.8

Hatchback

5.8

Reverse lights

21

License plate lights

5

Trunk light (Sedan)

5

Luggage compartment light (Hatchback)

5

Overhead light

Type A

10

Type B

8

Map lights

5

10-8

Specifications

▼ Tires

Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-25.

Standard tire

*

Only for MAZDASPEED Protegé

Temporary spare tire

*

Only for MAZDASPEED Protegé

▼ Fuses

Refer to the fuse rating on page 8-38.

Tire size

Inflation pressure

Front

Rear

P185/65R14 85S

220  kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

220  kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

185/65R14 86T

210  kPa (2.1 kgf/cm

2

, 30 psi or lb/po

2

)

210  kPa (2.1 kgf/cm

2

, 30 psi or lb/po

2

)

P195/55R15 84V

220  kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

220  kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

195/55R15 85V

210  kPa (2.1 kgf/cm

2

, 30 psi or lb/po

2

)

210  kPa (2.1 kgf/cm

2

, 30 psi or lb/po

2

)

P195/50R16 83V

220  kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

220  kPa (2.2 kgf/cm

2

, 32 psi or lb/po

2

)

215/45ZR17 88W

*

Tire size

Inflation pressure

T125/70 D14

420 kPa (60 psi)

T115/70 D15

420 kPa (60 psi)

T135/70 D15

*

420 kPa (60 psi)
