5-40

Driving Your Mazda

Switches and Controls

The ignition switch must be in the ON
position.

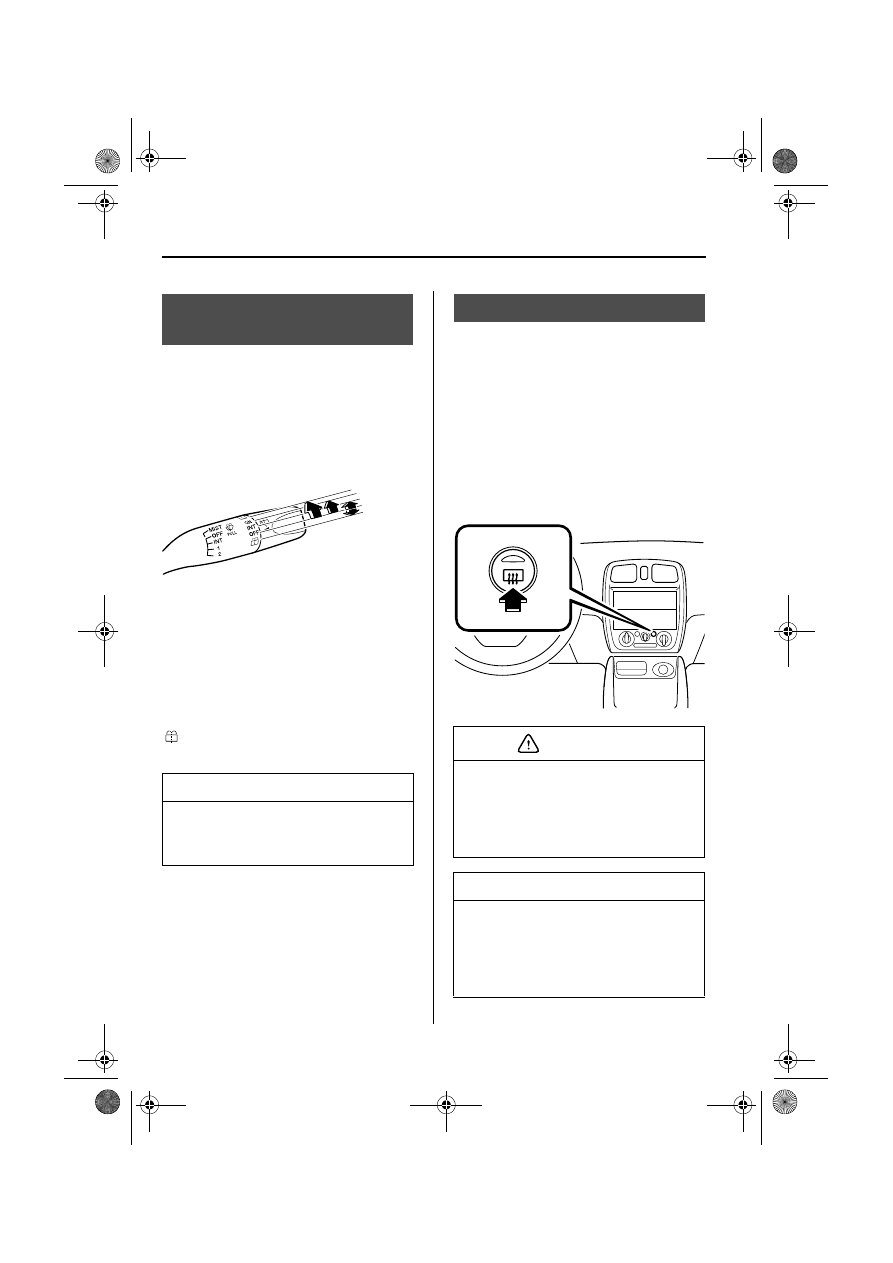

▼ Rear Window Wiper

Turn the wiper on by turning the knob.
ON  Normal
INT  Intermittent

▼ Rear Window Washer

To spray washer fluid, turn the knob to the

 position. After the knob is released,

the washer will stop.

If the washer doesn’t work, inspect the
fluid level (page 8-18). If it’s OK and the
washer still doesn’t work, consult an
Authorized Mazda Dealer.

The rear defroster clears frost, fog, and
thin ice from the rear window.

The ignition switch must be in the ON
position.

Push the switch to turn on the rear
window defroster; the indicator light will
come on.

Push the switch again to turn it off.

Rear Window Wiper and
Washer (Hatchback)

NOTE

There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.

Washer

Washer

ON

INT

OFF

Rear Window Defroster

Don’t use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.

NOTE

This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, brush it off before using the
defroster.

CAUTION

5-41

Driving Your Mazda

Switches and Controls

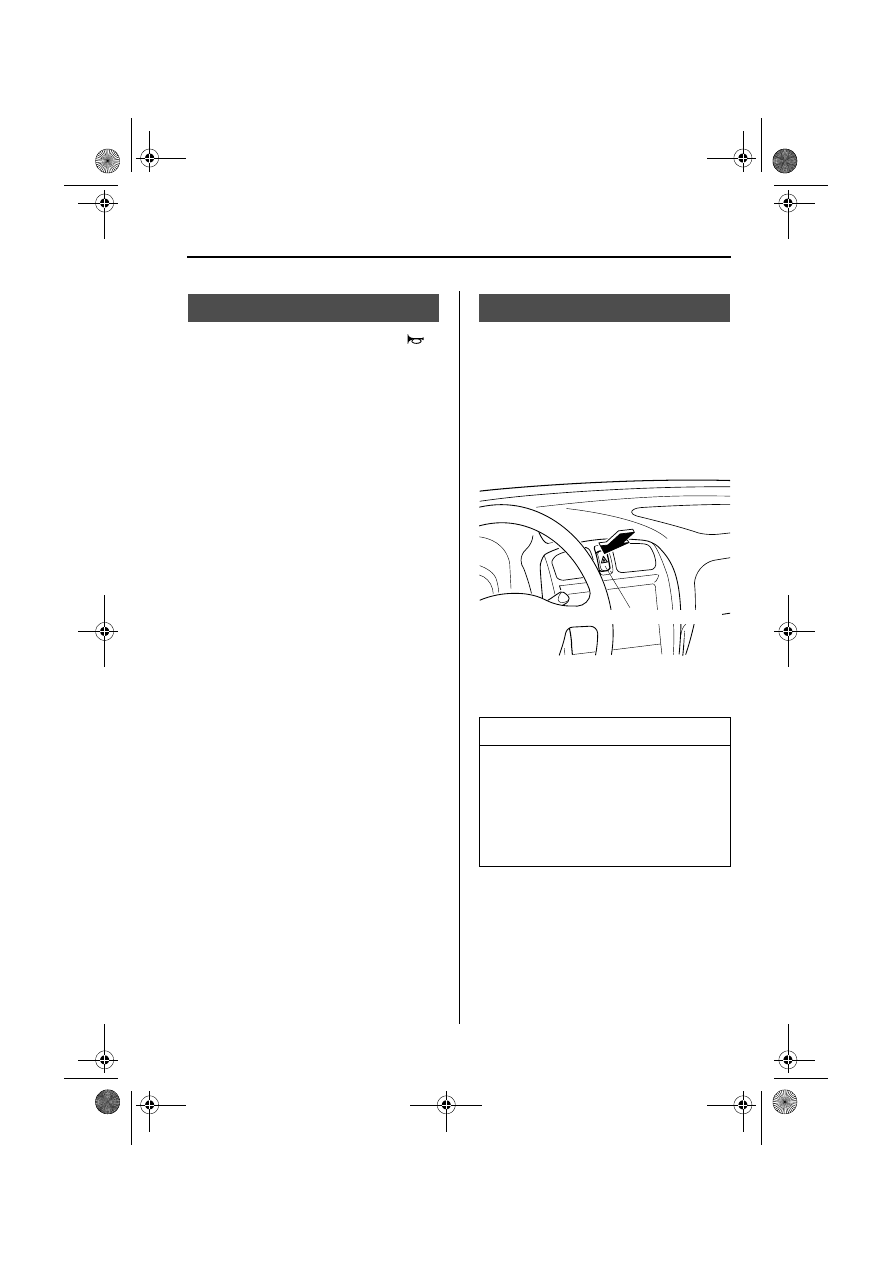

To sound the horn, press around the



mark of the steering wheel.

The hazard warning lights should always
be used when you stop on or near a
roadway.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Depress the hazard warning switch and all
four turn signals will flash at once.

Horn

Hazard Warning Flasher

NOTE

• The turn signals don’t work when

the hazard warning lights are on.

• Check local regulations about the

use of hazard warning lights while
the vehicle is being towed. They
may forbid it.

Hazard warning flasher switch

5-42

6-1

6

Interior Comfort

Use of various features for drive comfort, including climate control
and audio system.

Climate Control System ................................................................ 6-2

Operating Tips  ........................................................................... 6-2
Vent Operation ........................................................................... 6-3
Manual Type  .............................................................................. 6-5

Audio System  ............................................................................... 6-10

Antenna ................................................................................... 6-10
Operating Tips for Audio System ............................................ 6-11
Audio Set ................................................................................. 6-17
Safety Certification .................................................................. 6-34

Interior Equipment  ..................................................................... 6-35

Sunvisors ................................................................................. 6-35
Interior Lights .......................................................................... 6-35
Lighter ..................................................................................... 6-37
Ashtray .................................................................................... 6-38
Cup Holder  .............................................................................. 6-38
Storage Compartments  ............................................................ 6-39

6-2

Interior Comfort

Climate Control System

▼ Operating the Climate Control

System

Operate the climate control system with
the engine running.

▼ Clearing the Air Inlet

Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowling grille to improve the system
efficiency.

▼ Foggy Windows

The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.

To help defog the windows, operate the air
conditioner to dehumidify the air.

▼ Outside/Recirculated Air

Position

Use the outside air position in normal
conditions. The recirculated air position
can be used temporarily when driving on
dusty roads or for quick cooling of the
interior.

▼ Parking in Direct Sunlight

If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

▼ Not Using for a Long Period

Run the air conditioner at least once a
month to keep internal parts lubricated.

▼ Check the Refrigerant before

Weather Gets Hot

Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.

The optional air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

Operating Tips

6-3

Interior Comfort

Climate Control System

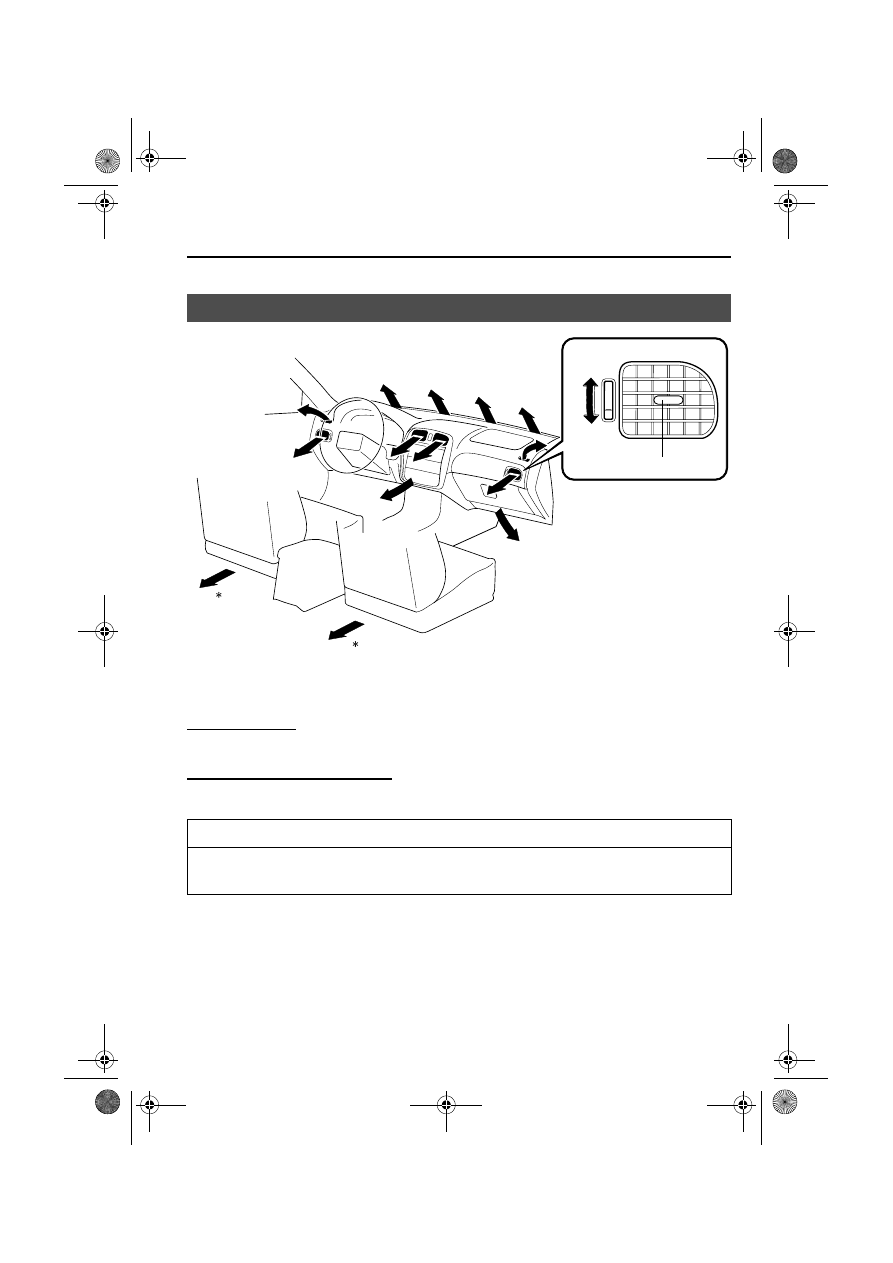

▼ Adjusting the Vents

Directing airflow

You can direct air flow by moving the adjustment knob.

Adjusting the amount of airflow

These vents can be opened and closed with wheel.

Vent Operation

NOTE

When using the air conditioner, mist may come out from the vents. This is not a sign of
trouble but a result of humid air being suddenly cooled.

Knob

Open

Close

* Depending on the model some vents may not be available.

6-4

Interior Comfort

Climate Control System

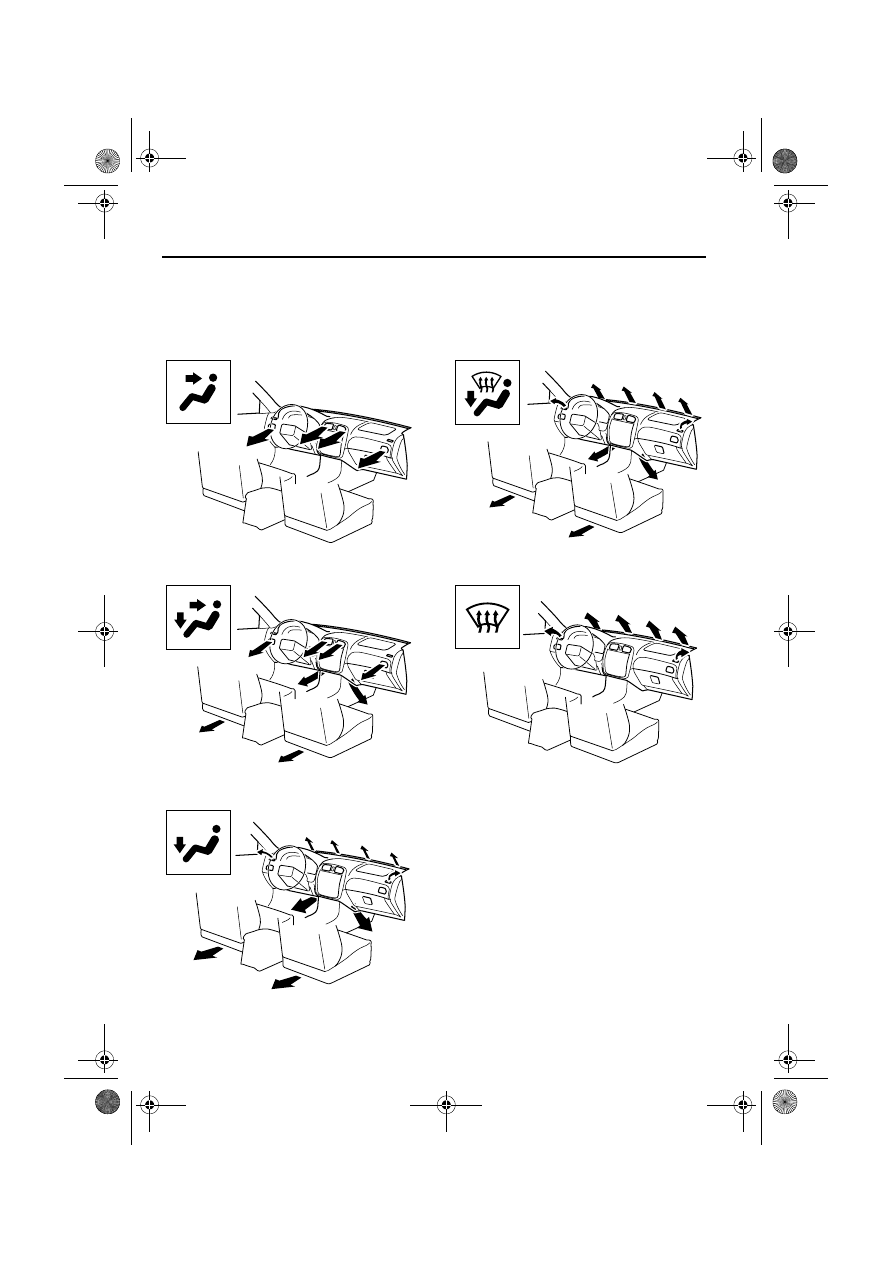

▼ Selecting the Airflow Mode

Dashboard and Floor Vents

Defroster Vents

Floor Vents

Dashboard Vents

Defroster and Floor Vents

6-5

Interior Comfort

Climate Control System

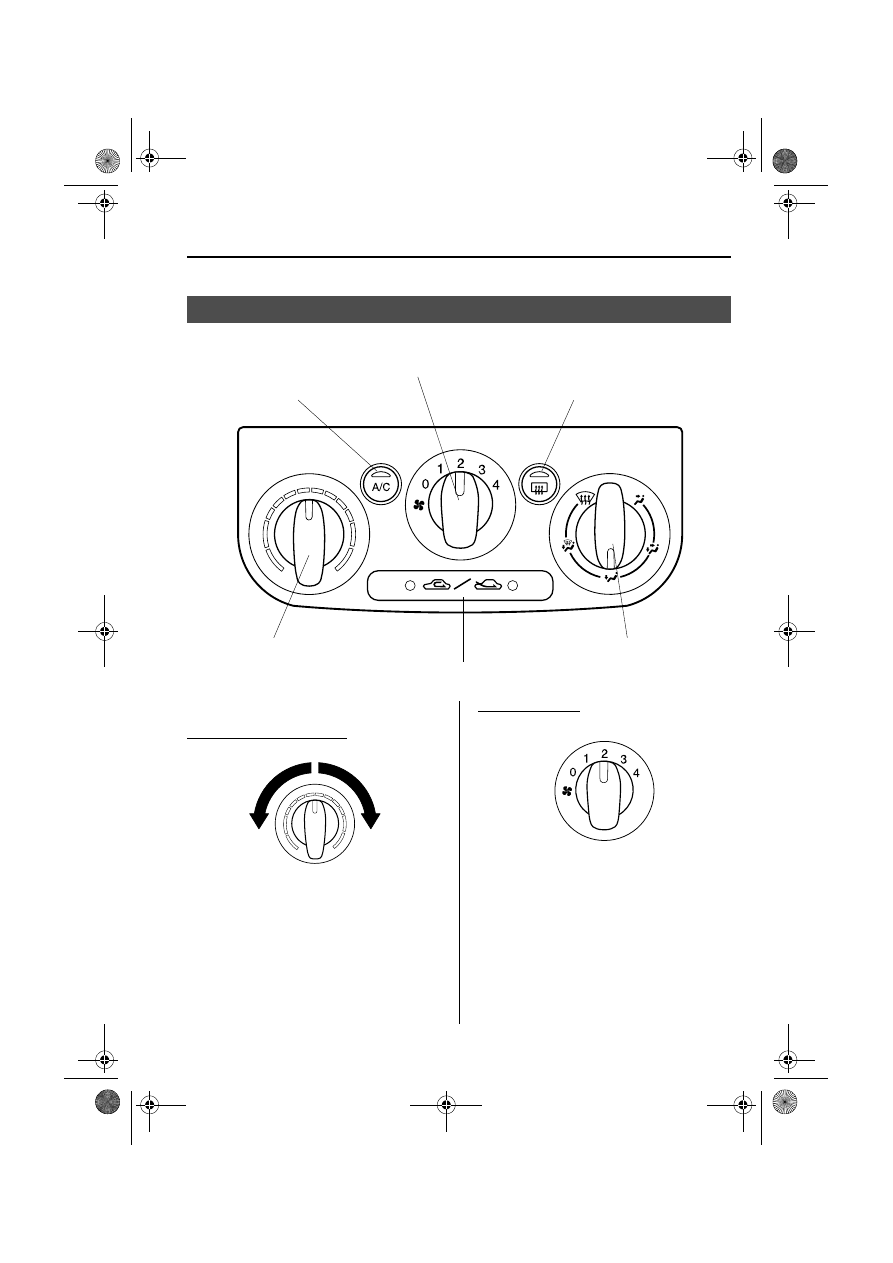

▼ Control Switches

Temperature control dial

This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.

Fan control dial

This dial allows variable fan speeds.
0—Fan off
1—Low speed
2—Medium low speed
3—Medium high speed
4—High speed

Manual Type

A/C switch

Fan control dial

Rear window defroster switch

Temperature control dial

Air intake selector

Mode selector dial

(page 5-40)

Hot

Cold

6-6

Interior Comfort

Climate Control System

Mode selector dial

Turn the mode selector dial to select
airflow mode (page 6-4).

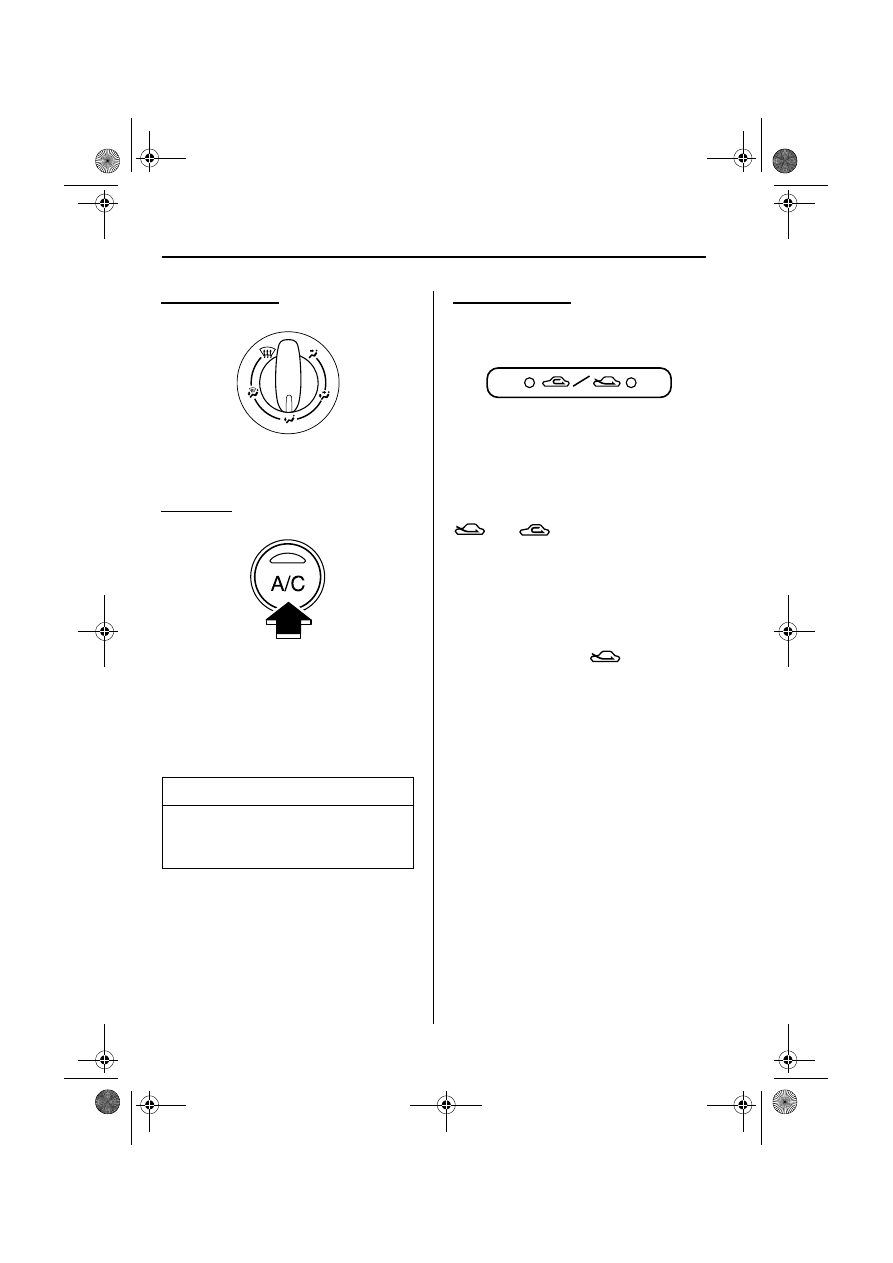

A/C switch

Push the switch to turn the air conditioner
on. An indicator light on the switch will
illuminate when the fan control dial is on.

Push the switch once again to turn the air
conditioner off.

Air intake selector

This switch controls the source of air
entering the vehicle.

Press the switch to alternate between the

 and

 positions. The indicator

light for the selected mode will
illuminate.

It is recommended that under normal
conditions the switch be kept in the
outside air position.

Outside air position (

Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.

NOTE

The air conditioner may not function
when the outside temperature
approaches 0

°C (32 °F).

6-7

Interior Comfort

Climate Control System

Recirculated air position (

Outside air is shut off. Air within the
vehicle is recirculated.

This position can be used when driving on
a dusty road or in similar conditions. It
also helps to provide quicker cooling of
the interior.

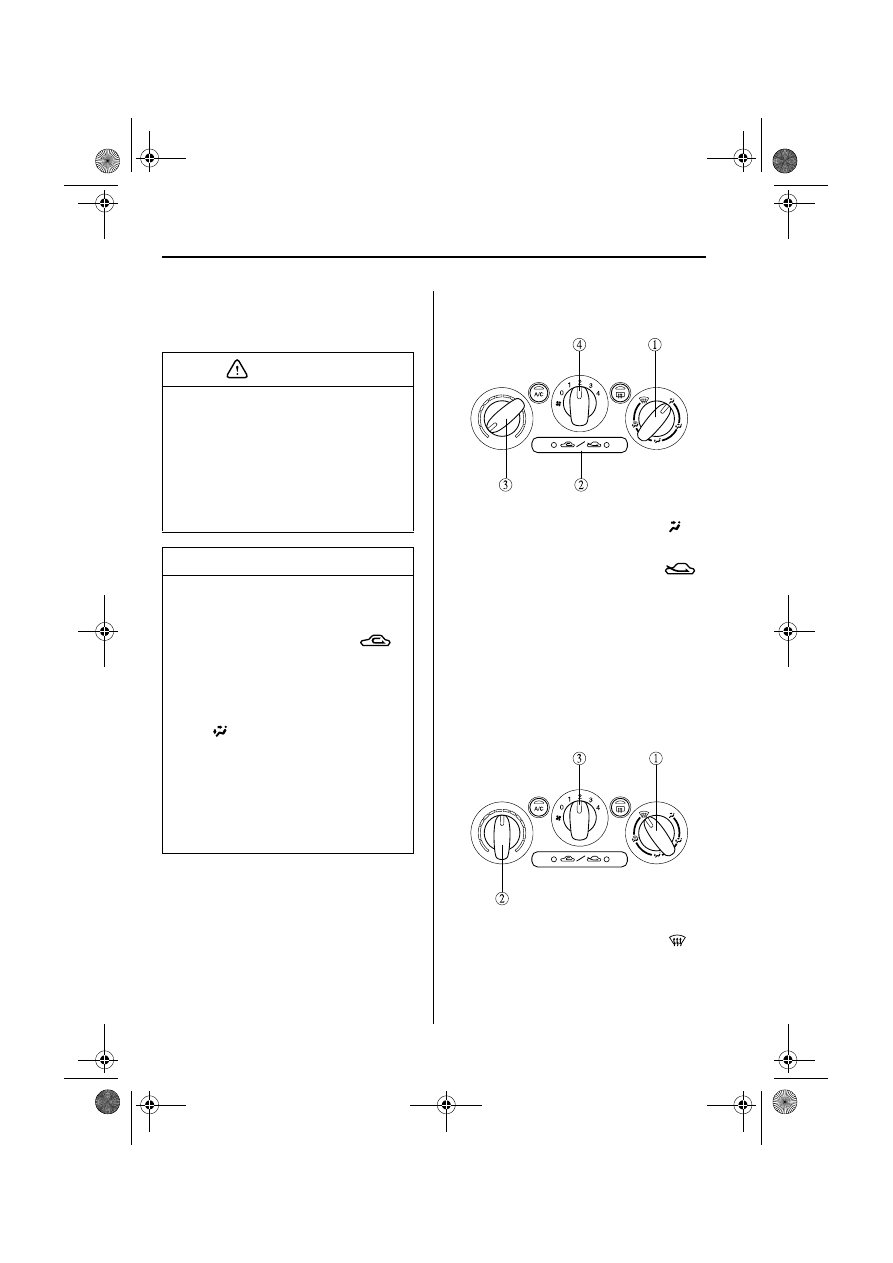

▼ Heating

1. Set the mode selector dial to the



position.

2. Set the temperature control dial to the

hot position.

3. Set the fan control dial to the desired

speed.

▼ Cooling (With Air Conditioner)

1. Set the mode selector dial to the



position.

2. Set the temperature control dial to the

desired position.

3. Set the fan control dial to the desired

speed.

4. Turn on the air conditioner.

The Recirculated Air Position:
Using the

 position in cold or

rainy weather will cause the glass to
fog up. Your vision will be hampered,
which could lead to a serious
accident. Do not use the



position in cold or rainy weather.

WARNING

NOTE

• If the windshield fogs up easily, set

the mode selector dial to the



position.

• If cooler air is desired at face level,

set the mode selector dial at the



position and adjust the temperature
control dial to maintain maximum
comfort.

• The air to the floor is warmer than

air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).

• In the   position, the outside air is

automatically selected.

6-8

Interior Comfort

Climate Control System

5. Adjust the fan control dial and

temperature control dial to maintain
maximum comfort.

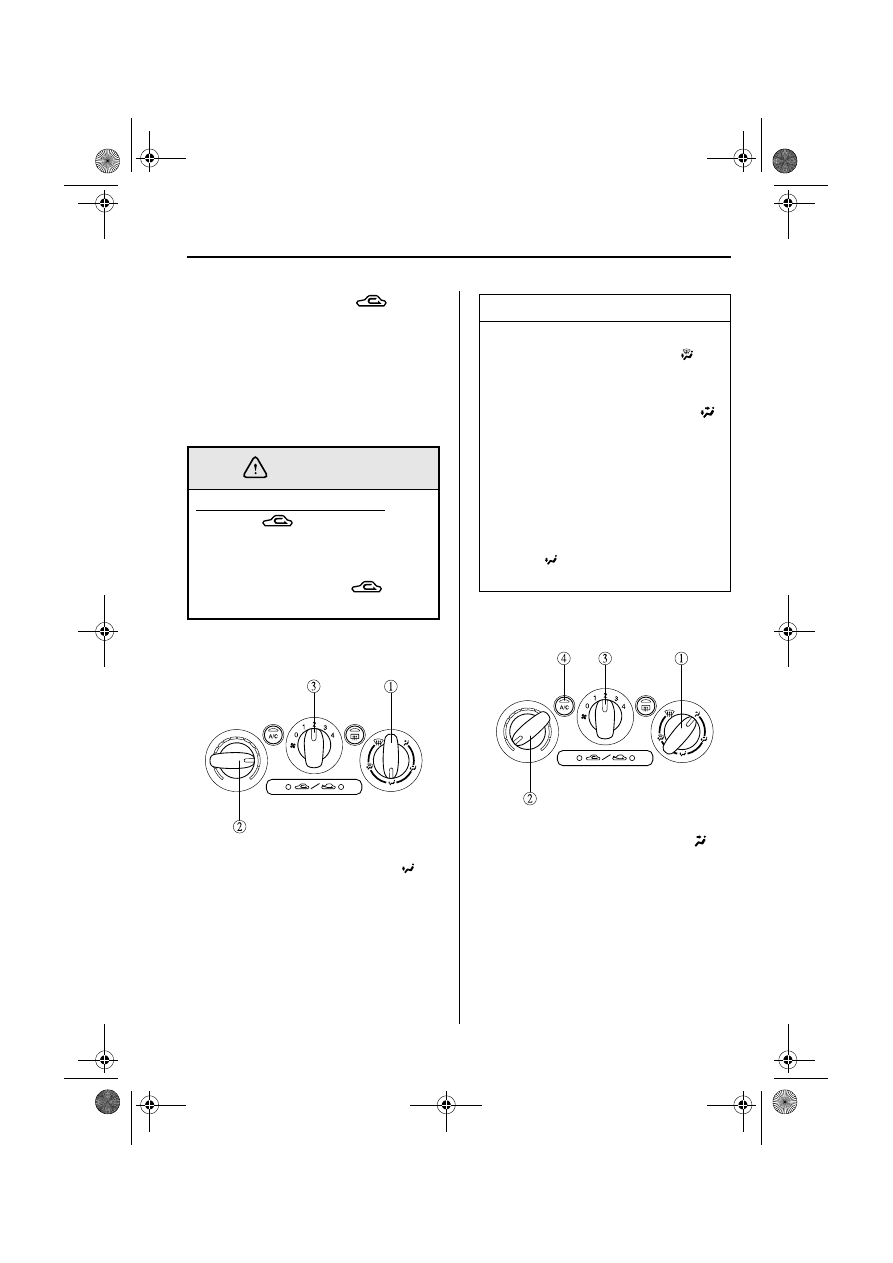

▼ Ventilation

1. Set the mode selector dial to the



position.

2. Set the air intake selector to the



position.

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

▼ Windshield Defrosting and

Defogging

1. Set the mode selector dial to the



position.

2. Set the temperature control dial to the

desired position.

When using the air conditioner while
driving up long hills or in heavy traffic,
closely monitor the temperature gauge
(page 5-25).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off.

NOTE

• When maximum cooling is desired,

set the temperature control dial to
the extreme cold position and set
the air intake selector to the



position, then set the fan control dial
to the position 4.

• If warmer air is desired at floor

level, set the mode selector dial at
the

 position and adjust the

temperature control dial to maintain
maximum comfort.

• The air to the floor is warmer than

air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).

CAUTION

6-9

Interior Comfort

Climate Control System

3. Set the fan control dial to the desired

speed.

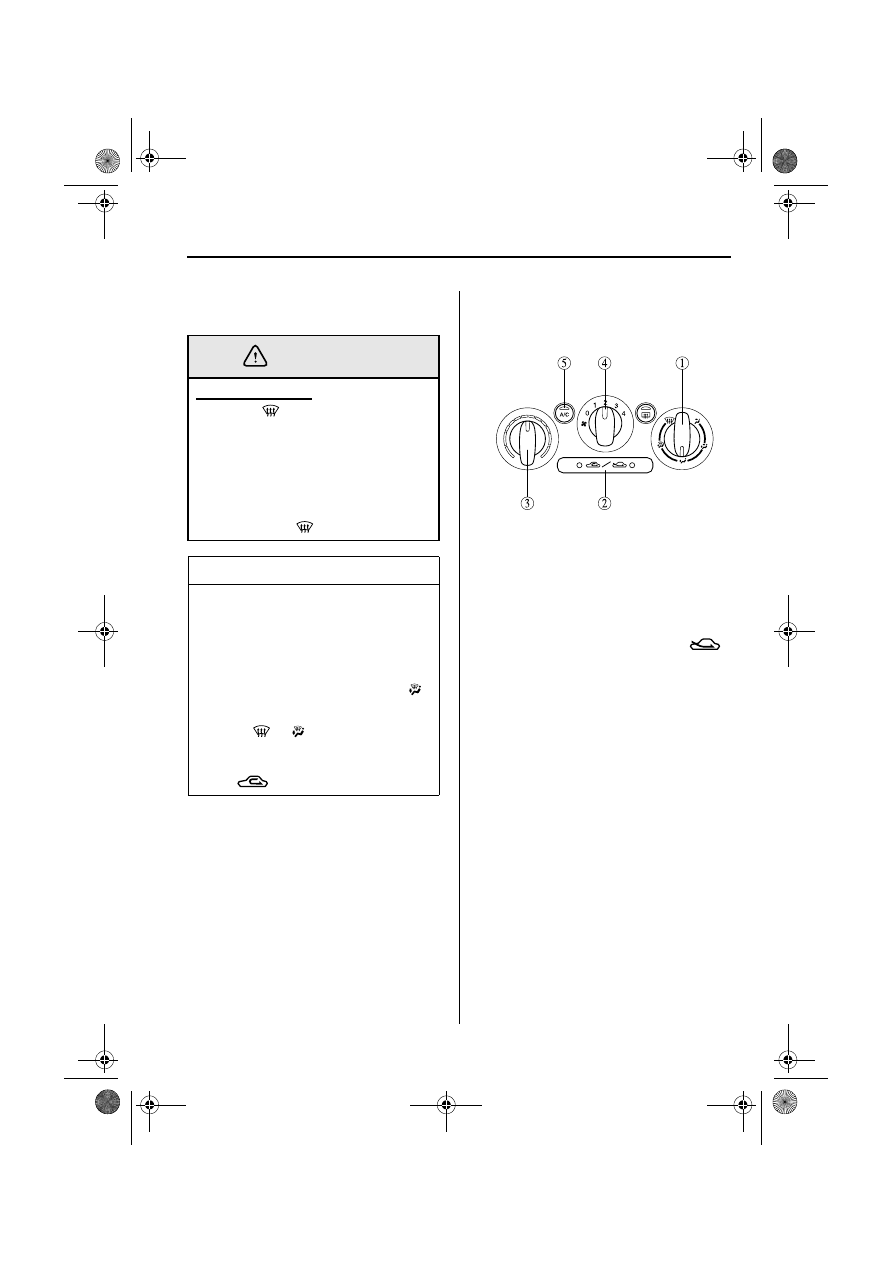

▼ Dehumidifying (With Air

Conditioner)

Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.

1. Set the mode selector dial to the

desired position.

2. Set the air intake selector to the



position.

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

5. Turn on the air conditioner.

Foggy Windshield:
Using the

 position with the

temperature control set to the cold
position will cause the outside of the
glass to fog up. Your vision will be
hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the

 position.

NOTE

• For maximum defrosting, set the

temperature control dial to the
extreme hot position and the fan
control dial to position 4.

• If warm air is desired at the floor,

set the mode selector dial to the



position.

• In the

 or

 position, outside air

is automatically selected. The air
intake selector cannot be changed to
the

position.

WARNING

6-10

Interior Comfort

Audio System

▼ Manual Type

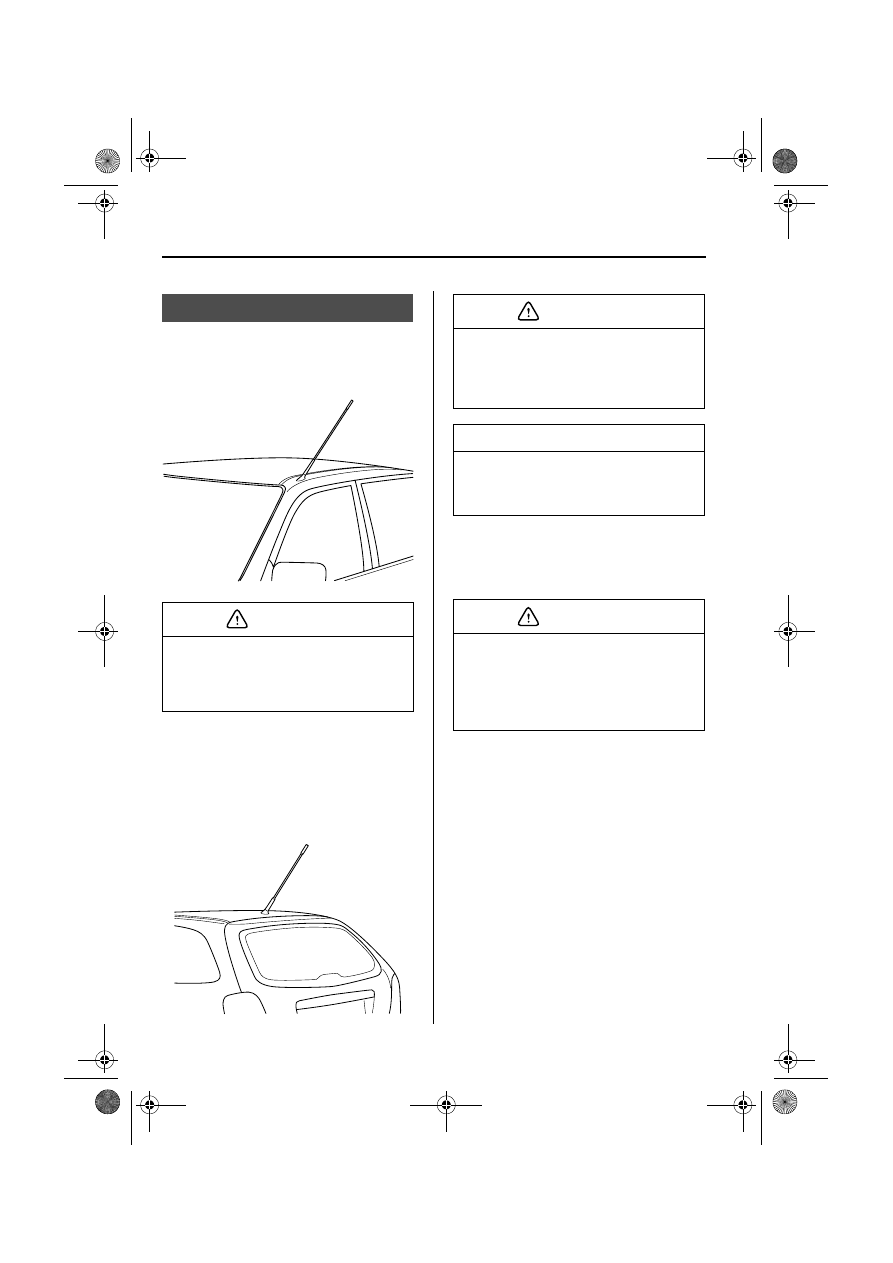

The manual antenna must be raised and
lowered by hand.

▼ Detachable Type

To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is security
installed.

▼ Rear Window Antenna

The rear window antenna receives both
AM and FM signals.

Antenna

To prevent from damaging the antenna,
retract it before entering a car wash
facility or passing beneath a low
overhead clearance.

CAUTION

To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.

NOTE

When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.

When washing the inside rear window,
use a soft cloth dampened in lukewarm
water, gently wiping the antenna lines.
Use of glass cleaning products could
damage the antenna.

CAUTION

CAUTION

6-11

Interior Comfort

Audio System

▼ Radio Reception

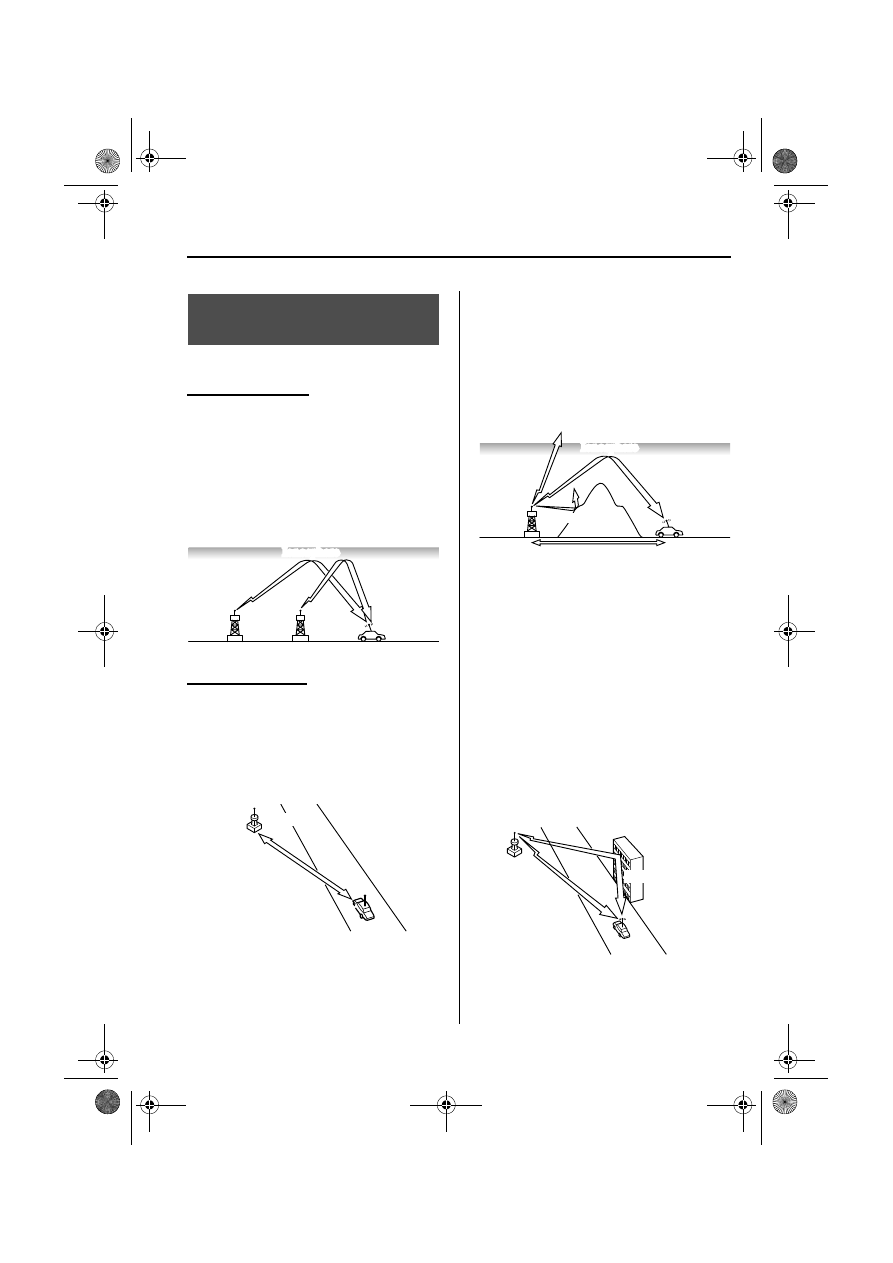

AM characteristics

AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.

FM characteristics

An FM broadcast range is usually about
40—50 km (25—30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.

Signals from an FM transmitter are
similar to beams of light because they do
not bend around corners, but they do
reflect. Unlike AM signals, FM signals
cannot travel beyond the horizon.
Therefore, FM stations cannot be received
at the great distances possible with AM
reception.

Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.

Multipath noise

Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.

Operating Tips for Audio
System

Ionosphere

Station 1

Station 2

FM Station

40—50 km
(25—30 miles)

Ionosphere

100—200 km (60—120 miles)

FM wave

FM wave

AM wave

Direct

Reflected wave

6-12

Interior Comfort

Audio System

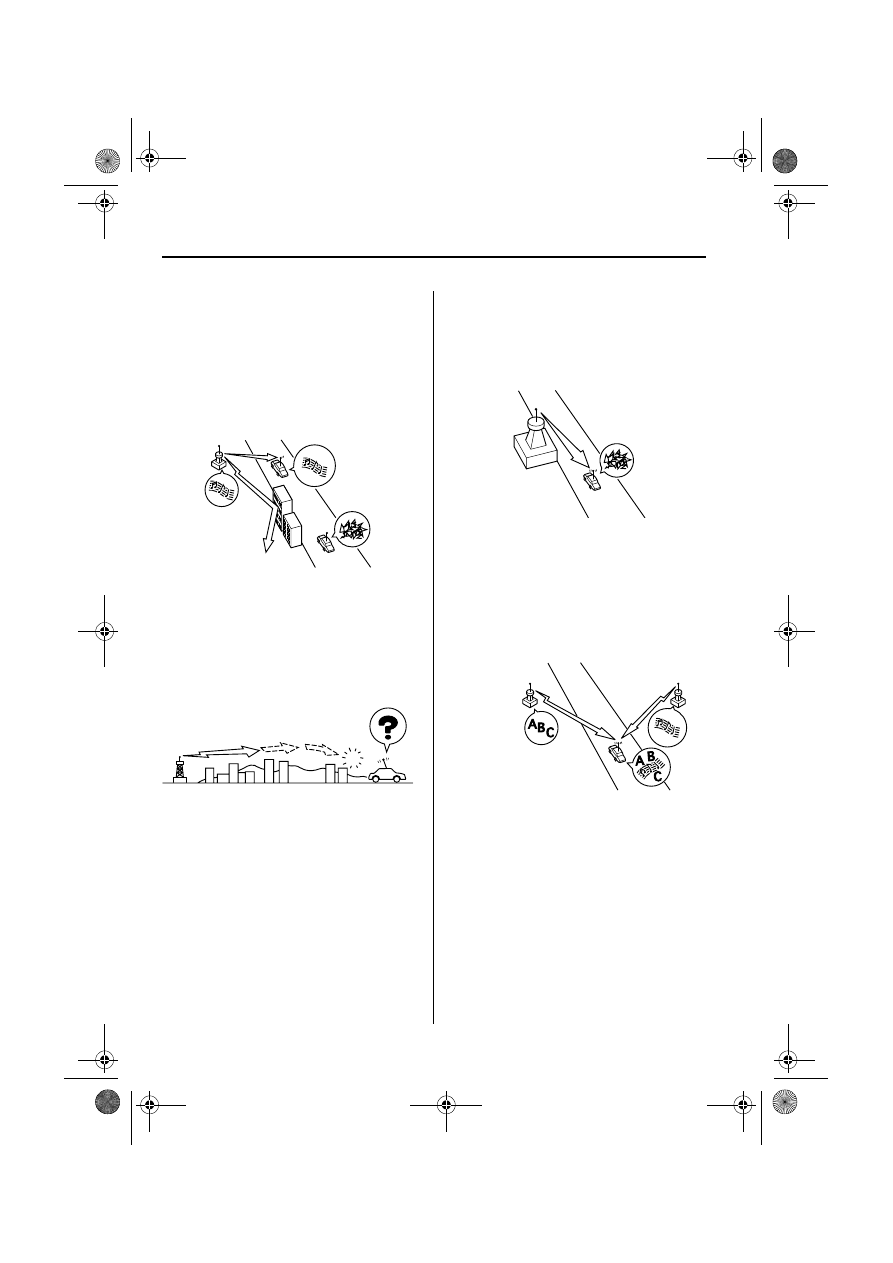

Flutter/Skip noise

Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly,
resulting in annoying noise.

Weak signal noise

In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.

Strong signal noise

This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.

Station drift noise

When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.

Station 1
88.1 MHz

Station 2
88.3 MHz

6-13

Interior Comfort

Audio System

▼ Operating Tips for Cassette Tape

Player

Cleaning the cassette tape player

The tape head, capstans, and pinch rollers
will gather oxide residue from cassette
tapes. This can cause weak or wavering
sounds and damage to the cassette tapes
and player. Use a good quality head-
cleaning tape or a liquid cleaner cassette
tape to remove it.
Should the unit not operate normally,
consult an Authorized Mazda Dealer.
Never attempt to repair it or insert a
screwdriver or anything else.

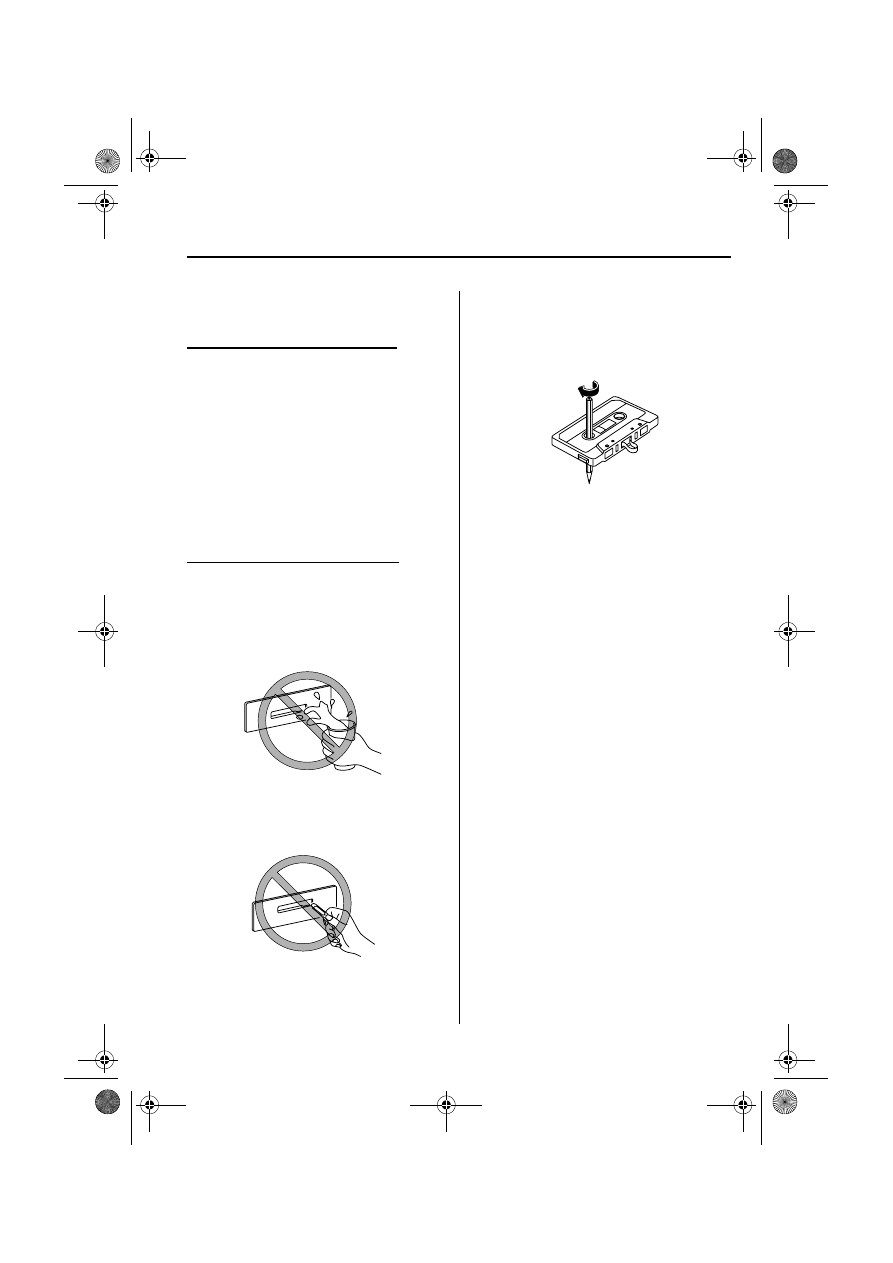

Handling the cassette tape player

The following precautions should be
observed.
• Do not spill any liquid on the audio

system.

• Do not insert any objects, other than

cassette tape, into the slot.

• If the cassette tape is loose, it may

produce poor sound or performance
during playback. Use a pencil or
something similar to remove any slack.

• Only cassette tapes that play no longer

than 90 minutes should be used.
Cassette tape exceeding 90 minutes are
thin and may easily break.

• Do not leave a cassette tape in the tape

player slot when not in use. Remove it
completely to permit the slot door to
close and to protect the mechanism
from dust.

• Store cassette tapes away from extreme

heat, magnetic fields, and direct
sunlight. Protect the exposed cassette
tape from dirt and damage. Store
cassette tapes in their original cases or
other protective cases.

• Insert only cassette tapes into the slot.

If objects other than cassette tapes are
inserted, they may damage the player.















Content   ..  7  8  9  10   ..
