Mazda Protege (2003 year). Instruction - part 2





2-12

Seat Belt Systems

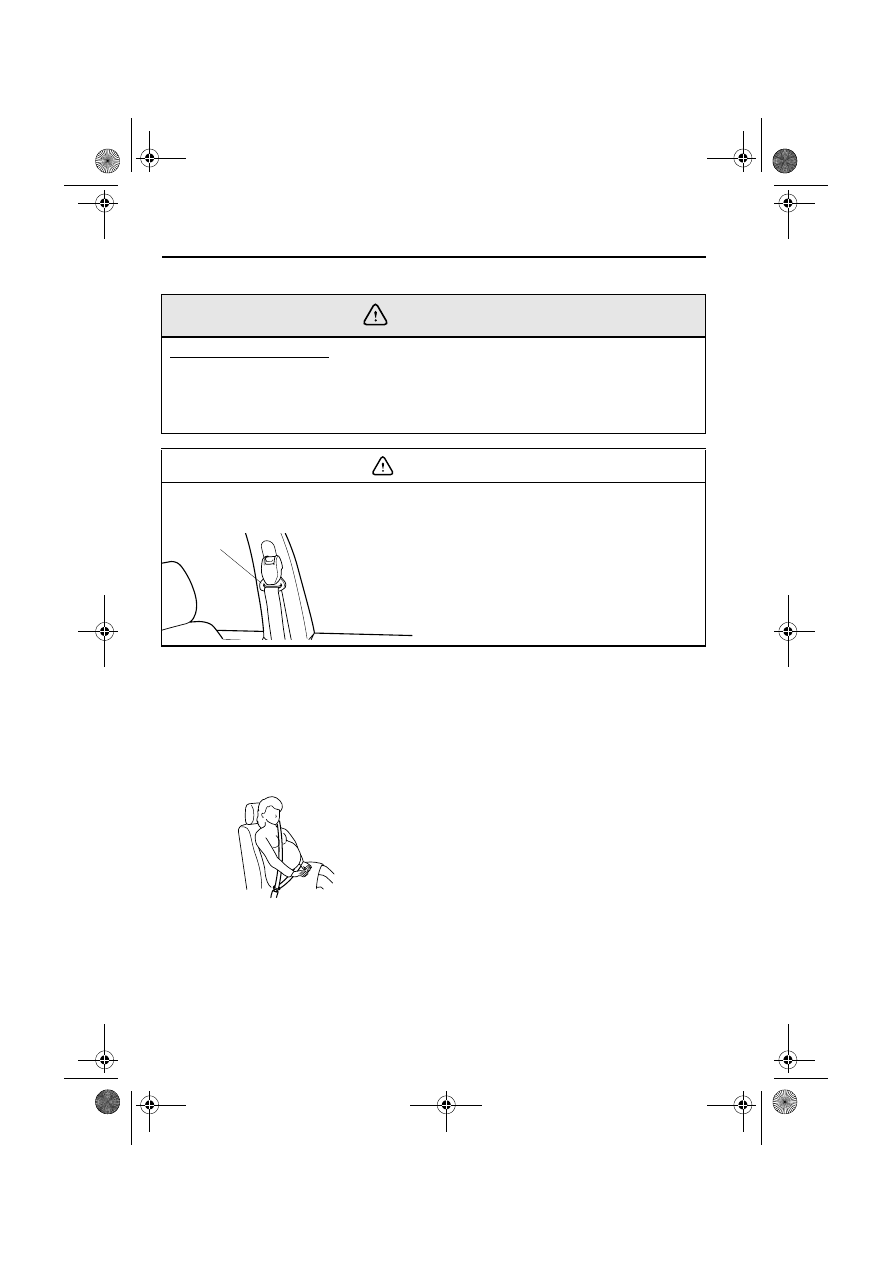

▼ Pregnant Women and Persons with Serious Medical Conditions

Pregnant women should wear seat belts. Ask your doctor for specific recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.

One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.

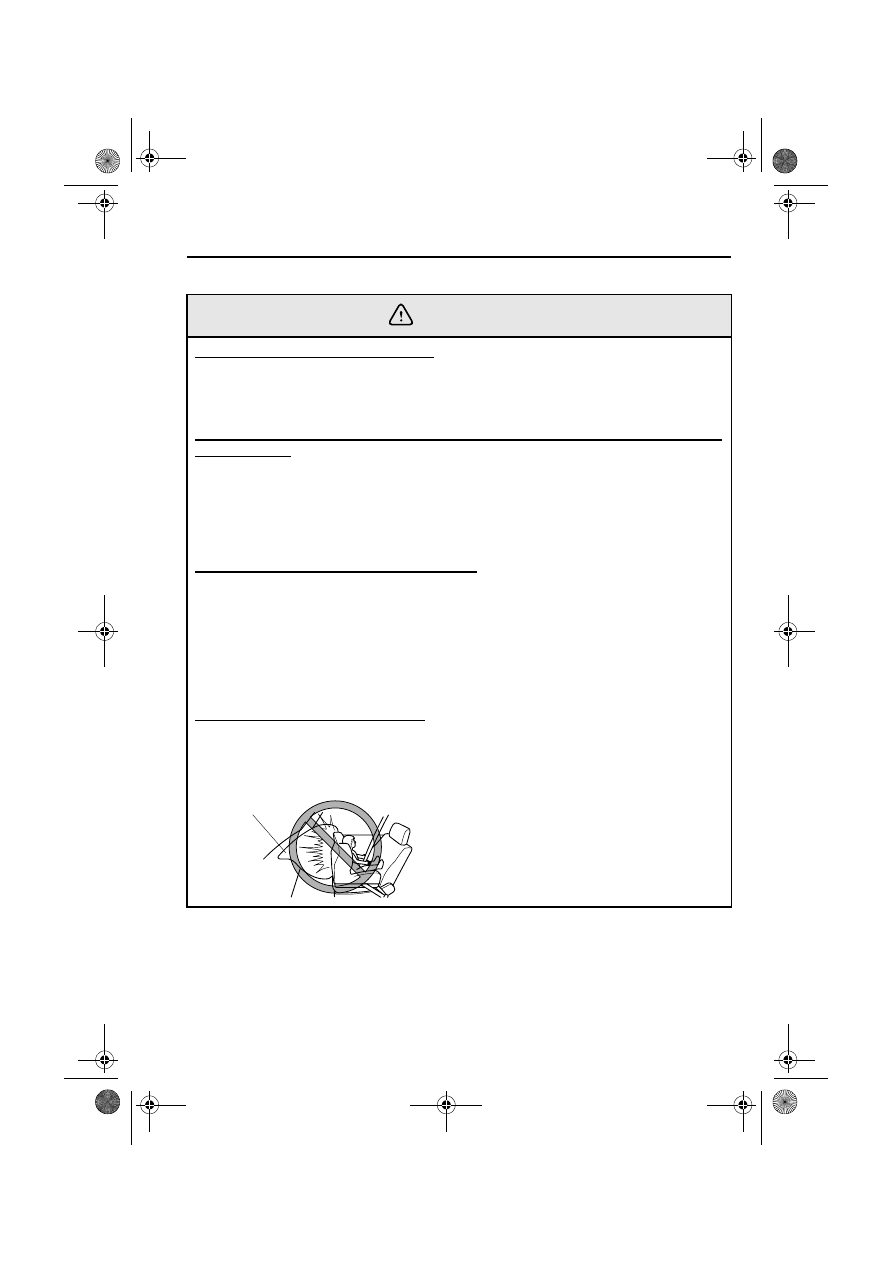

Belt retraction may become difficult if the belts and rings are soiled, so try to keep them
clean.

WARNING

CAUTION

Ring

2-13

Seat Belt Systems

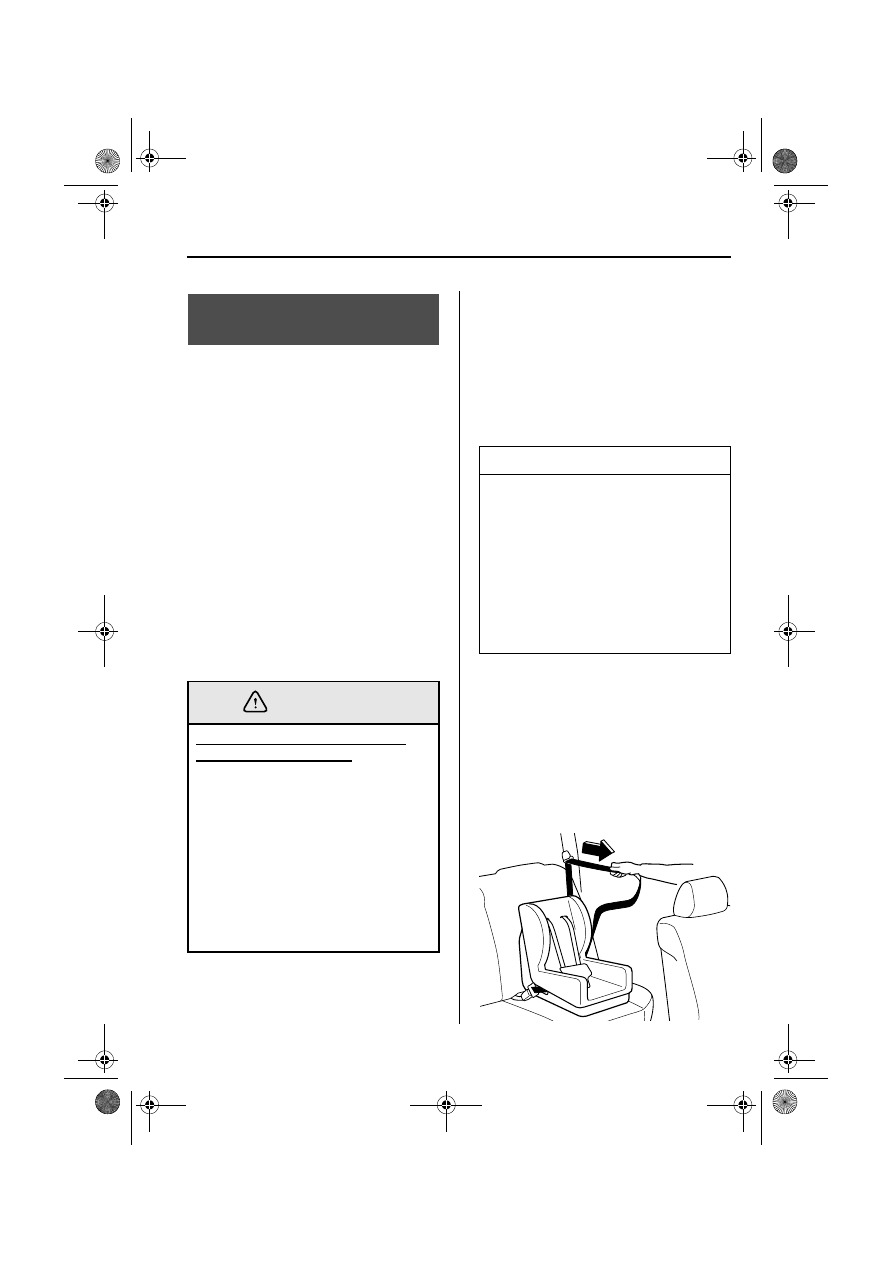

▼ Emergency Locking Mode

If the belt has fully retracted, it will always be in the emergency locking mode until you
move it into automatic locking mode by pulling the belt all the way out to its full length. In
the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision.
If the belt feels tight and hinders comfortable movement while the vehicle is stopped or in
motion, you may be in the automatic locking mode because you have pulled the belt too far
out. To return to the more comfortable emergency locking mode, wait until you can stop
the vehicle in a safe area, retract the belt fully to convert it back to emergency locking
mode and then again extend it around you.

▼ Automatic Locking Mode

Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To get the seat belt into the automatic
locking mode, pull it all the way out and connect it as instructed on the child-restraint
system. It will retract down to the child-restraint system and stay locked on it. See the
section on child restraint (page 2-22).

2-14

Seat Belt Systems

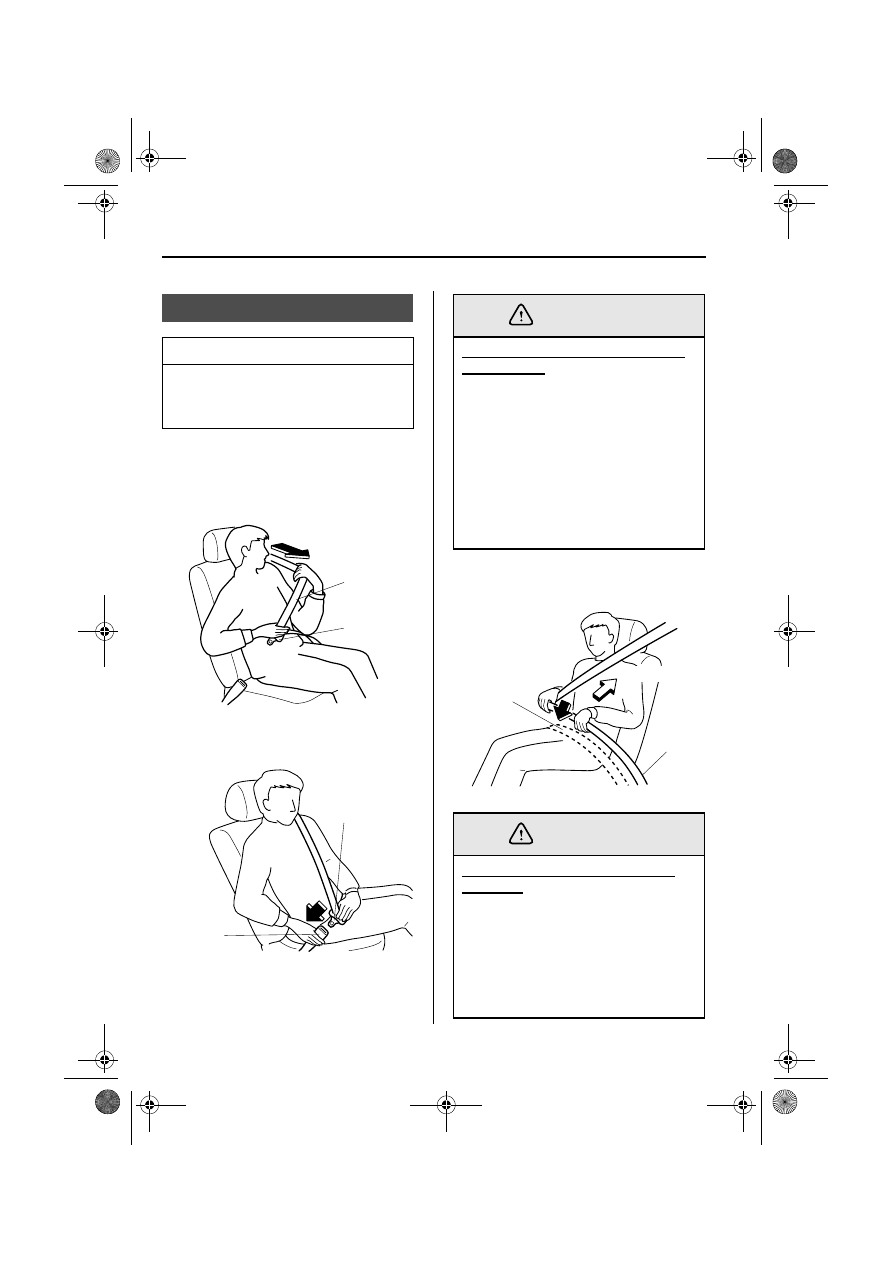

▼ Fastening the Seat Belts

1. Grasp the buckle and tongue.

2. Slowly pull out the lap/shoulder belt.

3. Insert the tongue into the buckle until

you hear a click.

4. Make sure the shoulder belt is snugly

fitted against your body.

3-Point Type Seat Belt

NOTE

When using the rear center seat belt,
refer to "Rear Center Position Seat
Belt" (page 2-18).

Belt

Tongue

Tongue

Buckle

Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.

Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.

WARNING

Keep low on
hip bone

Take up slack

Too high

WARNING

2-15

Seat Belt Systems

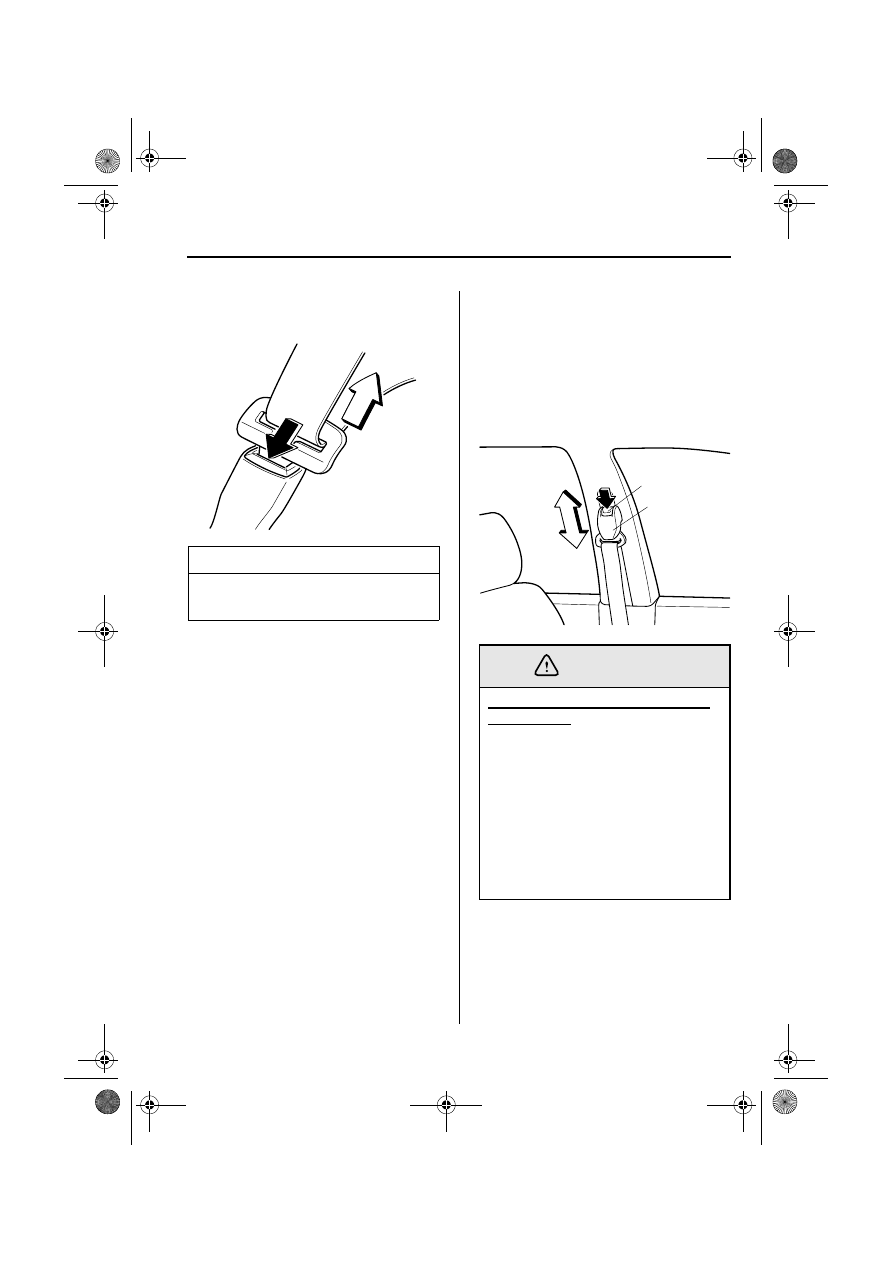

▼ Unfastening the Seat Belts

Depress the button on the buckle.

▼ Shoulder Belt Adjuster

Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, push the button and slide it
down. Make sure the adjuster is locked.

NOTE

If a belt does not fully retract, inspect it
for kinks and twists.

Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.

Button

Shoulder belt
adjuster

WARNING

2-16

Seat Belt Systems

For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems.
In moderate or greater frontal or near-
frontal accidents, the front air bag and
pretensioner systems deploy
simultaneously. The pretensioners take up
slack in the front seat belts as the air bags
are expanding. The load limiting system
releases belt webbing in a controlled
manner to reduce belt force on the
occupant’s chest.

Front Seat Belt
Pretensioner and Load
Limiting Systems

Incorrect Positioning of the Driver
and Front Passenger Seat Belts:
Incorrect positioning of the driver
and passenger seat belts is dangerous.
Without proper positioning, the
pretensioner and load limiting
systems cannot provide adequate
protection in an accident and this
could result in serious injury. Wear
seat belts only as recommended in
this owner’s manual.

WARNING

Expended Seat Belt Pretensioners:
Use of front seat belts with the
pretensioner system expended is
dangerous.
The seat belt pretensioners will only
function once. After they are
expended, they will not work again
and must be replaced immediately,
even if there was no front seat
occupant seated at the time.
If the seat belt pretensioners are not
replaced, the risk of injury in a
collision will increase.
Always have an Authorized Mazda
Dealer inspect and replace the seat
belt pretensioners after a collision.

Modification or Testing of the
Pretensioner System:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable which
would prevent it from activating in an
accident. The occupants could be
seriously injured. Never modify the
components or wiring, or use
electronic testing devices on the
pretensioner system.

Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.

WARNING

2-17

Seat Belt Systems

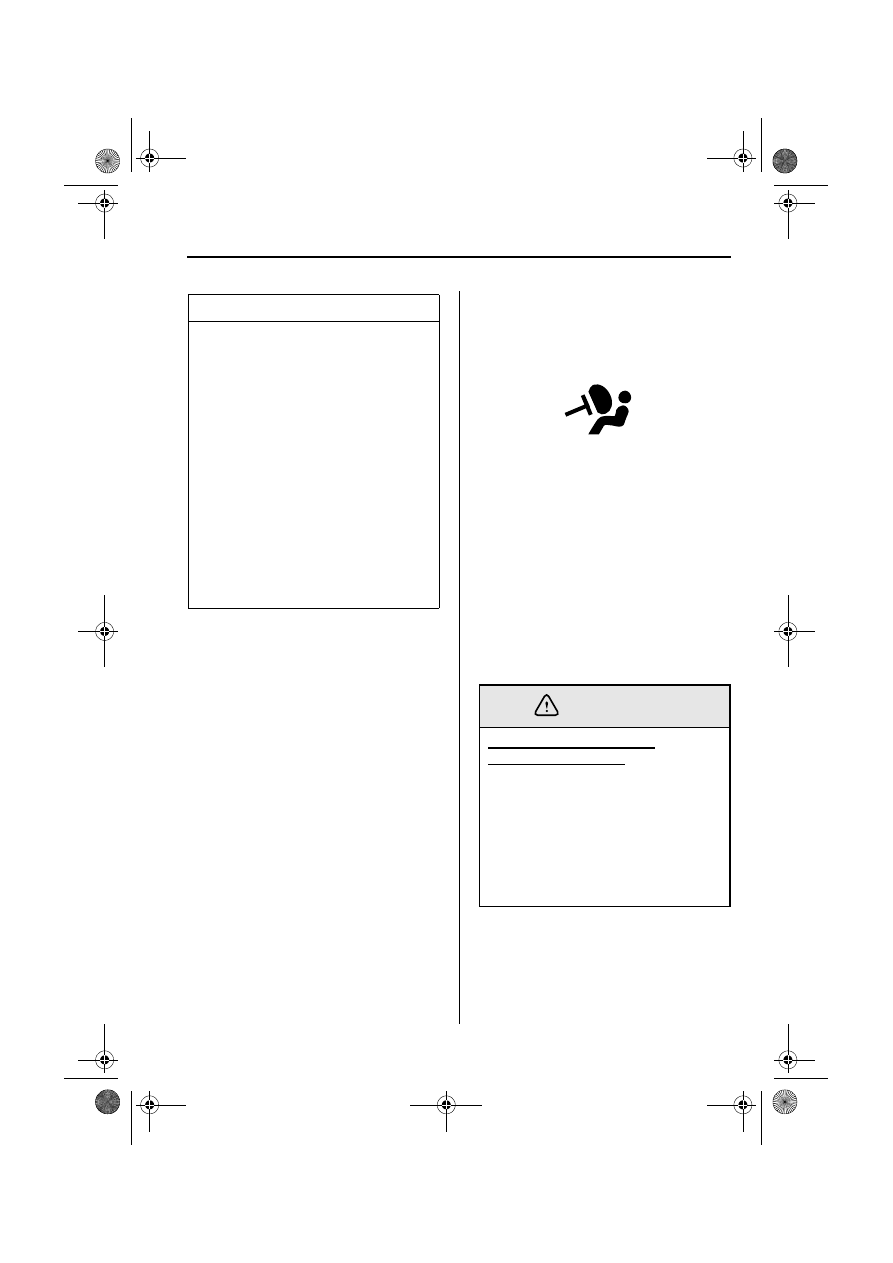

▼ Air Bag/Front Seat Belt

Pretensioner Systems Warning
Light

If the air bag/front seat belt pretensioner
system is OK, the warning light comes on
when the ignition switch is turned to the
ON position or after the engine is cranked.
After about 6 seconds it goes out.

A system malfunction is indicated when
the warning light constantly flashes, stays
on or doesn’t come on at all. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.

NOTE

• The pretensioner system will only

activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in side or rear
impacts.

• Some smoke (non-toxic gas) will be

released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally
has no effect on occupants,
however, those with sensitive skin
may experience light skin irritation.
If residue from the deployment of
the air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.

Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.

WARNING

2-18

Seat Belt Systems

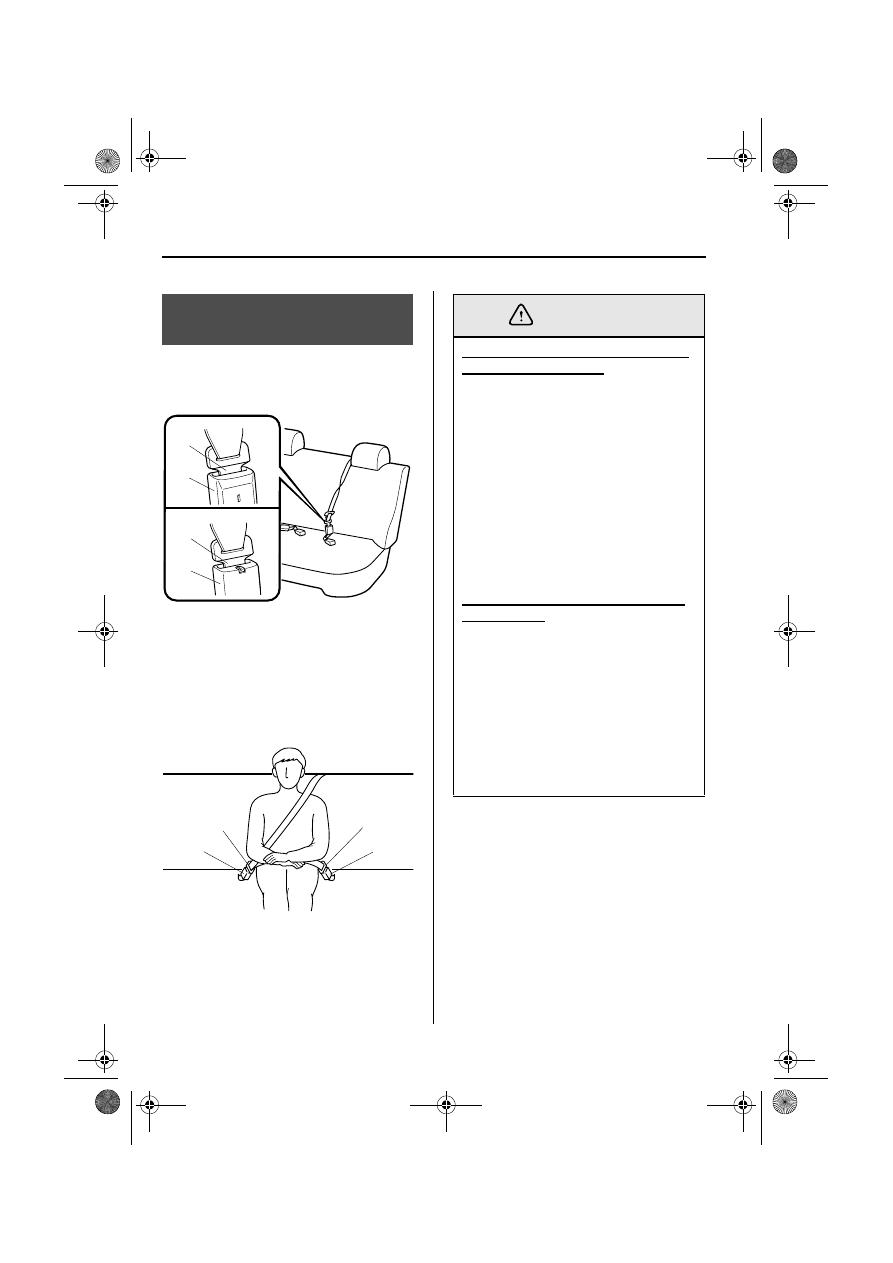

Before using the rear-center lap/shoulder
belt make sure tongue (A) and anchor
buckle (B) are fastened.

▼ Fastening the Seat Belt

1. Grasp the buckle (D) and tongue (C).

2. Slowly pull out the lap/shoulder belt.

3. Insert the tongue (C) into the buckle

(D) until you hear a click.

4. Make sure the shoulder belt is snugly

fitted against your body.

Rear Center Position Seat
Belt

Sedan

Hatchback

(A)

(B)

(A)

(B)

(C)

(D)

(A)

(B)

Fastening the Rear-Center Seat Belt
with Only One Buckle:
Fastening the rear-center seat belt
with only one buckle is dangerous. If
only one pair of seat belt tongue and
buckle, either tongue (A) and anchor
buckle (B) or tongue (C) and anchor
buckle (D), is fastened, the seat belt
cannot provide full protection. In a
sudden stop or collision, the user
could slide under the belt and suffer
serious injuries. Always make sure
that both pairs of seat belt tongues
and buckles as fastened properly.

Positioning the Shoulder Portion of
the Seat Belt:
Improper positioning of the shoulder
portion of the seat belt is dangerous.
An improperly positioned belt will
provide little or no protection in a
collision. Always make sure the
shoulder portion of the seat belt is
positioned across your shoulder and
near your neck, but never under your
arm, on your neck, or on your upper
arm.

WARNING

2-19

Seat Belt Systems

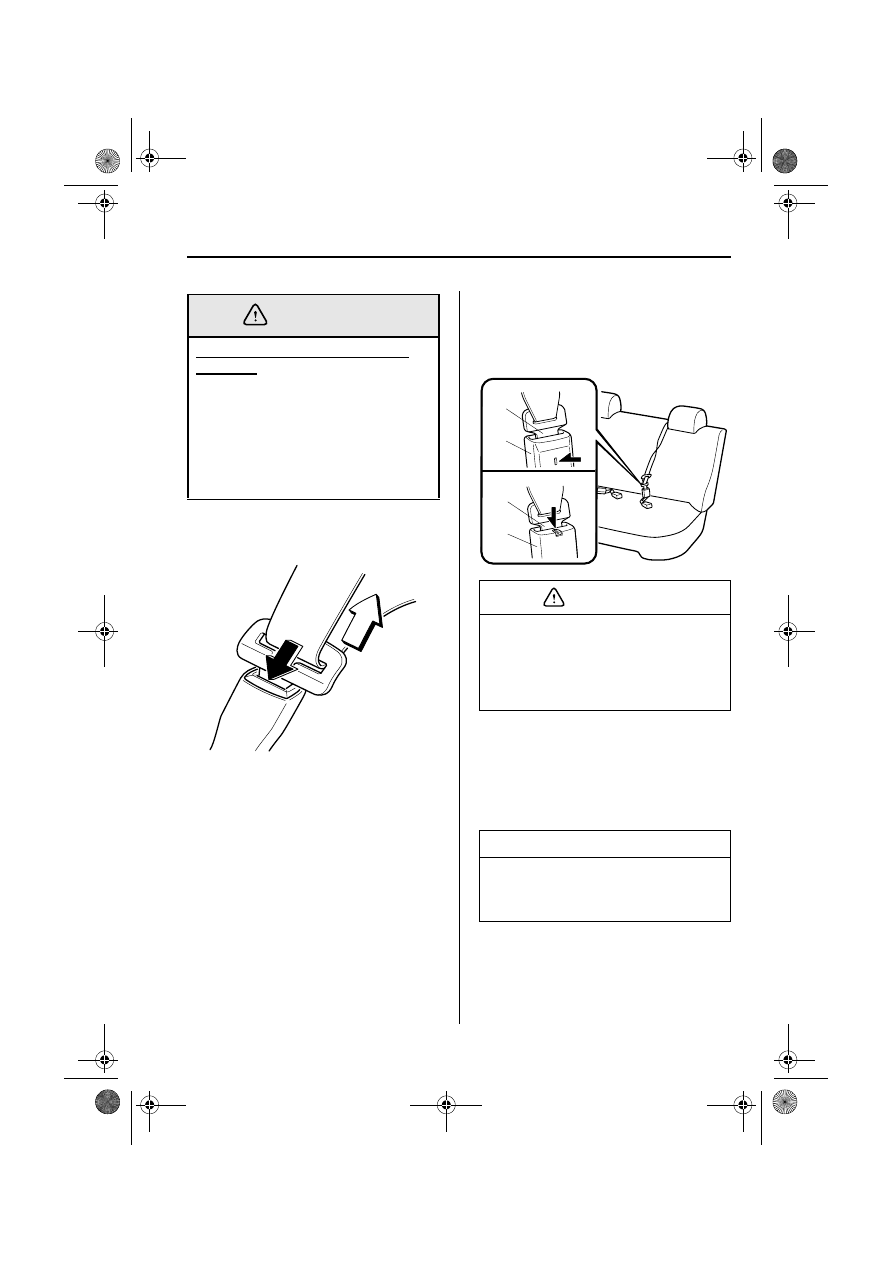

▼ Unfastening the Seat Belt

Depress the button on the buckle.

▼ Unfastening the Lap Portion of

the Seat Belt

Insert a small object in the anchor buckle
(B) slot, such as a key.

▼ Fastening the Lap Portion of the

Seat Belt

Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.

Positioning the Lap Portion of the
Seat Belt:
The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.

WARNING

Always unfasten the lap portion of the
belt before folding the rear-left
seatback. Leaving the lap portion of
the belt fastened could cause damage
to the seat belt, buckle and seatback.

NOTE

After returning the rear-left seatback to
its upright position, fasten the lap
portion of the belt.

Sedan

Hatchback

(A)

(B)

(A)

(B)

CAUTION

2-20

Seat Belt Systems

If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.

Seat Belt Extender

Unnecessary Use of an Extender:
Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.

Using an Improper Extender:
Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt will
not provide adequate protection and
the user could be seriously injured in
an accident. Only use the extender
provided for you and for the
particular vehicle and seat. NEVER
use the extender in a different vehicle
or seat.

Using an Extender That is Too Long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Don’t use the extender or choose one
shorter in length if the distance
between the extender’s buckle and the
center of the user’s body is less than
15cm (6 in).

WARNING

2-21

Seat Belt Systems

If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.

If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Seat Belt Warning Light

Seat Belt Warning Beep

2-22

Child Restraint

Mazda strongly urges the use of child-restraint systems for children small enough to use
them.

You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or provincial laws for specific requirements regarding the safety
of children riding in your vehicle.

Whatever child-restraint system you consider, please pick the appropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.

A child who has outgrown child-restraint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle in the outboard seats, and towards the buckle on the right if the
child is seated in the center seat.

Statistics confirm that the rear seat is the best place for all children up to 12 years of age-
the more so with a supplemental restraint system (air bags).

A rear-facing child-restraint system should NEVER be used in the front seat because it
would be too close to the air bag. The front passenger’s seat is also the least preferred seat
for other child-restraint systems.

Child Restraint Precautions

2-23

Child Restraint

Proper Size of Child-Restraint System:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.

Follow the Manufacturer’s Instructions and Always Keep the Child-Restraint System
Buckled Down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make sure
the child-restraint system is properly secured in place according to the child-restraint
system manufacturer’s instructions. When not in use, remove it from the vehicle or
fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors.

Holding a Child While the Vehicle is Moving:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a sudden
stop or collision and it could result in serious injury or death to the child or other
occupants. Even in a moderate accident, the child may be exposed to air bag forces
that could result in serious injury or death to the child, or the child may be slammed
into the adult, injuring the adult. Always secure a child in a proper child-restraint
system.

Rear-Facing Child-Restraint System:
Rear-facing child-restraint systems on the front seat are particularly dangerous.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child. NEVER use a rear-facing
child-restraint system in the front seat with an air bag that could deploy.

WARNING

Deploying air bag

2-24

Child Restraint

Children and Seating Position with Side Air Bag:
Allowing anyone to lean over or against the front door is dangerous. If the vehicle is
equipped with side air bags, the impact of an inflating side air bag could cause serious
injury or death to the person. Children are more likely to sleep in the vehicle; when
they do, they are more at risk in the front passenger’s seat that has a side air bag
because they may slump over into the path of the seatback-mounted air bag.
Furthermore, leaning over or against the doors could block the side air bag and
eliminate the advantages of supplemental protection. With the front air bag and the
additional side air bag that comes out of the front seat, the rear seat is always a better
location for children who are prone to sleeping. If a child can’t be seated in the rear,
do not allow the child to lean over or against the front door, even if the child is seated
in a child-restraint system.

One Belt, One Passenger:
Using one seat belt for more than one person at a time is dangerous. A seat belt used
in this way can’t spread the impact forces properly and the two passengers could be
crushed together and seriously injured or even killed. Never use one belt for more
than one person at a time.

A seat belt or child-restraint system can become very hot in a closed vehicle during
warm weather. To avoid burning yourself or a child, check them before you or your child
touches them.

NOTE

Your Mazda is equipped with LATCH lower anchors for attachment of specially
designed LATCH child-restraint systems in the rear seats. When using these anchors to
secure a child-restraint system, refer to "LATCH Child-Restraint Systems" (page 2-31).

WARNING

CAUTION

2-25

Child Restraint

Accident statistics reveal that a child is
safer in the rear seat. The front
passenger’s seat is clearly the worst
choice for any child under 12, and with
rear-facing child-restraint systems it is
clearly unsafe due to air bags.

Some child-restraint systems now come
with tethers and therefore must be
installed on the seats that take tethers to
be effective. In your Mazda, tethered
child-restraint systems can only be
accommodated in the three positions on
the rear seat.

Some child-restraint systems also employ
specially designed LATCH attachments;
refer to "LATCH Child-Restraint
Systems" (page 2-31).

▼ Rear Seat Child-Restraint

System Installation

Follow these instructions when using a
child-restraint system, unless you are
attaching a LATCH-equipped child-
restraint system to the rear LATCH lower
anchors. Refer to "LATCH Child-
Restraint Systems" (page 2-31).

1. Secure the child-restraint system with

the lap portion of the lap/shoulder belt.
See the instructions on the child-
restraint system for belt routing
instructions.

2. To get the retractor into the automatic

locking mode, pull the shoulder belt
portion of the seat belt until the entire
length of the belt is out of the retractor.

Installing Child-Restraint
Systems

Tethered Child-Restraint Systems
Work Only on Rear Seat:
Installation of a tether equipped
child-restraint system in the front
passenger’s seat defeats the safety
design of the system and will result in
an increased chance of serious injury
if the child-restraint system goes
forward without benefit of being
tethered.
Place tether equipped child-restraint
systems where there are tether
anchors.

WARNING

NOTE

Follow the child-restraint system
manufacturer’s instructions carefully.
If you are not sure whether you have a
LATCH system or tether, check in the
child-restraint system manufacturer’s
instructions and follow them
accordingly. Depending on the type of
child-restraint system, it may not
employ seat belts which are in
automatic locking mode.

2-26

Child Restraint

3. Push the child-restraint system firmly

into the vehicle seat. Be sure the belt
retracts as snugly as possible. Clicking
from the retractor will be heard during
retraction if the system is in the
automatic locking mode. If the belt
does not lock the seat down tight,
repeat this step.

4. If your child-restraint system requires

the use of a tether strap, hook and
tighten the tether strap by following the
manufacturer’s instructions.

NOTE

Inspect this function before each use of
the child-restraint system. You should
not be able to pull the shoulder belt out
of the retractor while the system is in
the automatic locking mode. When
you remove the child-restraint system,
be sure the belt fully retracts to return
the system to emergency locking mode
before occupants use the seat belts.

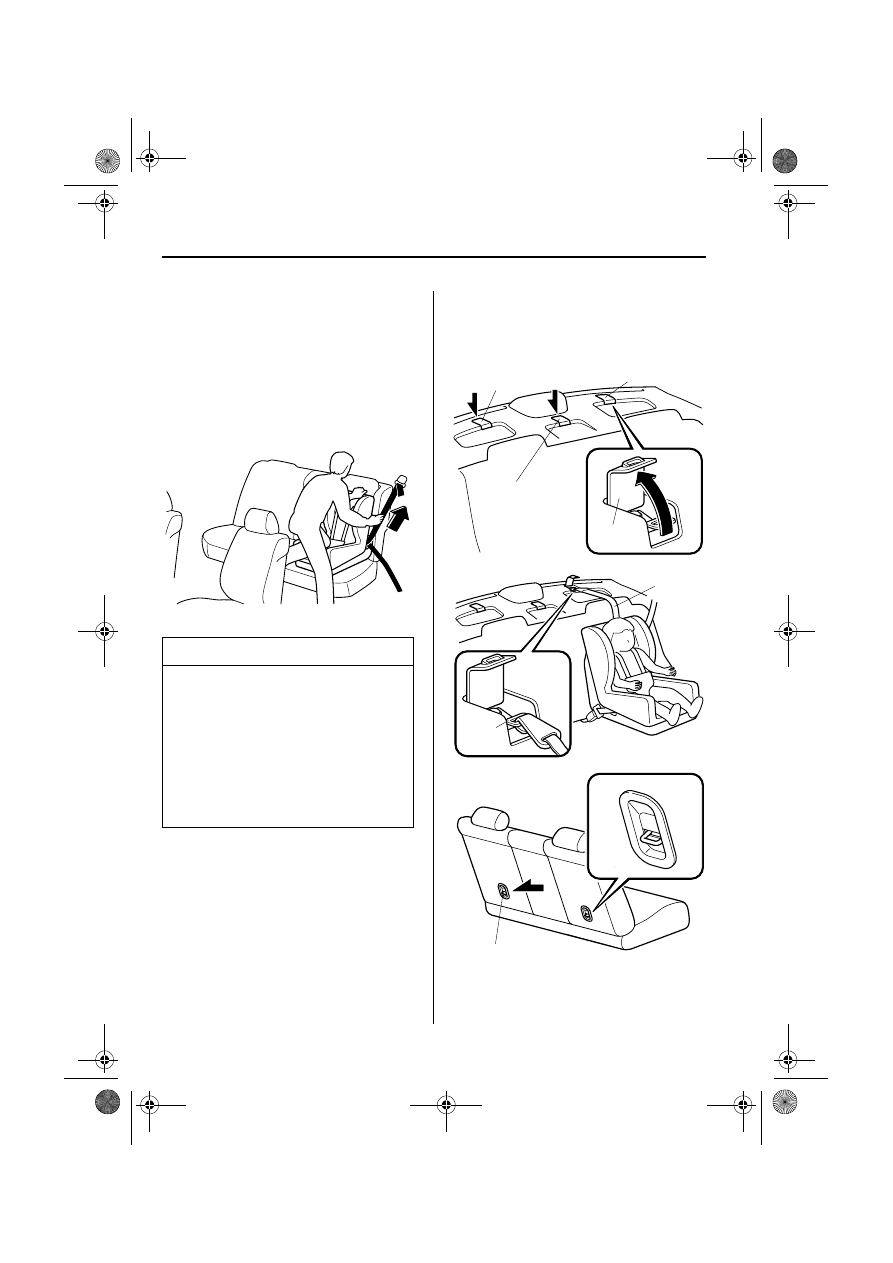

Sedan

For rear right seat

For rear left seat

For rear center seat

Cover

Open

Sedan

Tether strap

Anchor
bracket

Hatchback
(Outboard position)

 For rear left seat

2-27

Child Restraint

Anchor
bracket

Hatchback
(Outboard position)

Hatchback
(Center position)

For rear center seat

Anchor
bracket

Hatchback
(Center position)

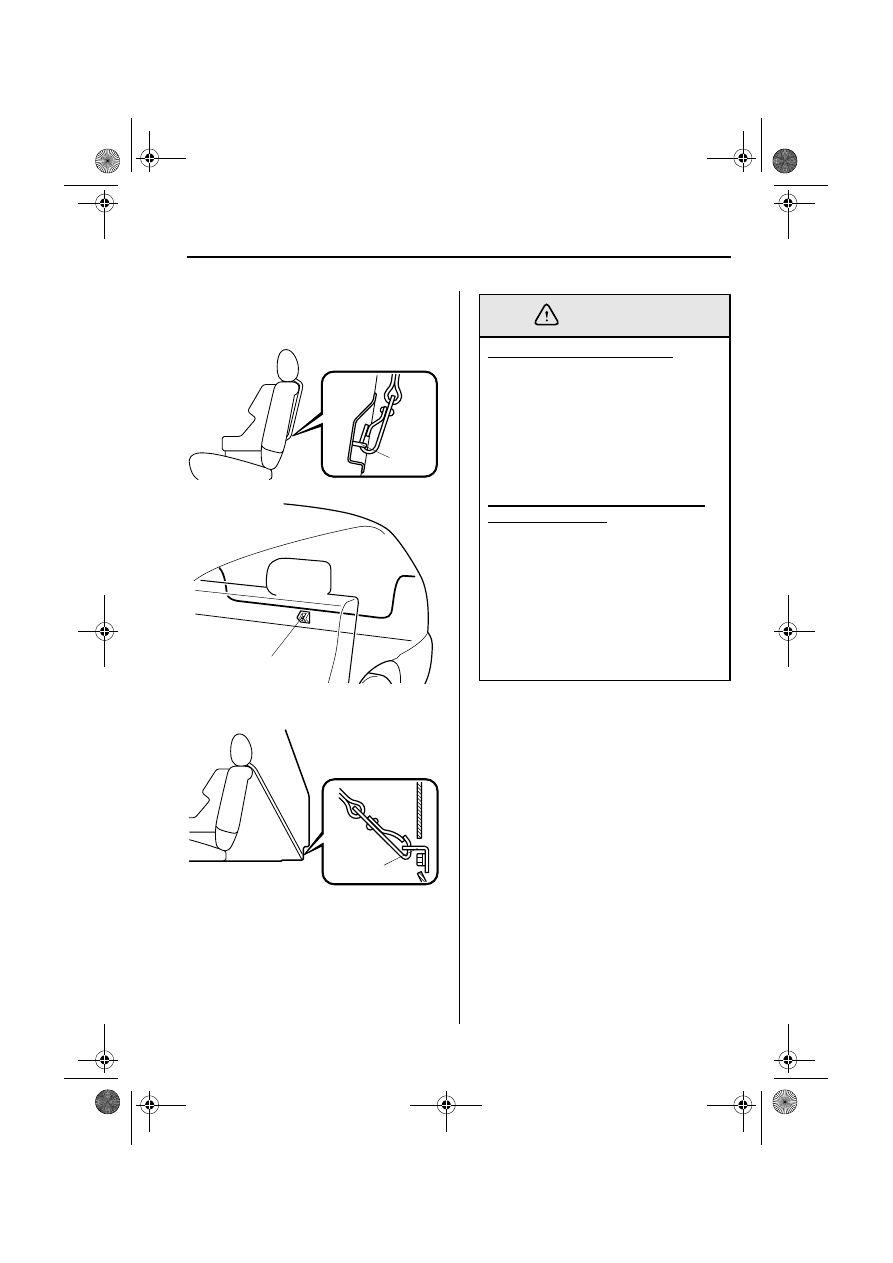

Child-Restraint Tether Usage:
Using the tether to secure anything
but a child-restraint system is
dangerous. This could weaken or
damage the tether or tether anchor
and result in injury. Use the tether
and tether anchor only for a child-
restraint system.

Incorrect Positioning of the Tether
Strap (Hatchback):
Positioning the tether strap on top of
the head restraint is dangerous. In a
collision, the head restraint could
bend or break. This will cause the
strap to loosen. The child-restraint
system could move and injure the
child or someone else. Always
position the tether strap between the
head restraint and the seatback.

WARNING















Content   ..   1  2  3   ..
