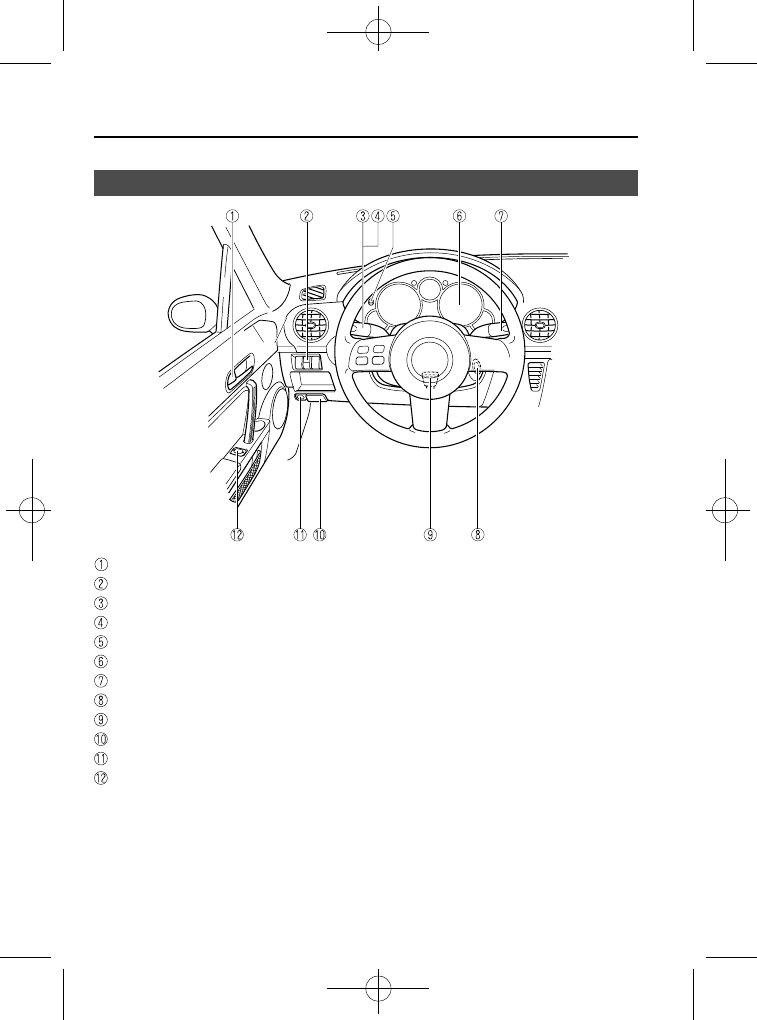

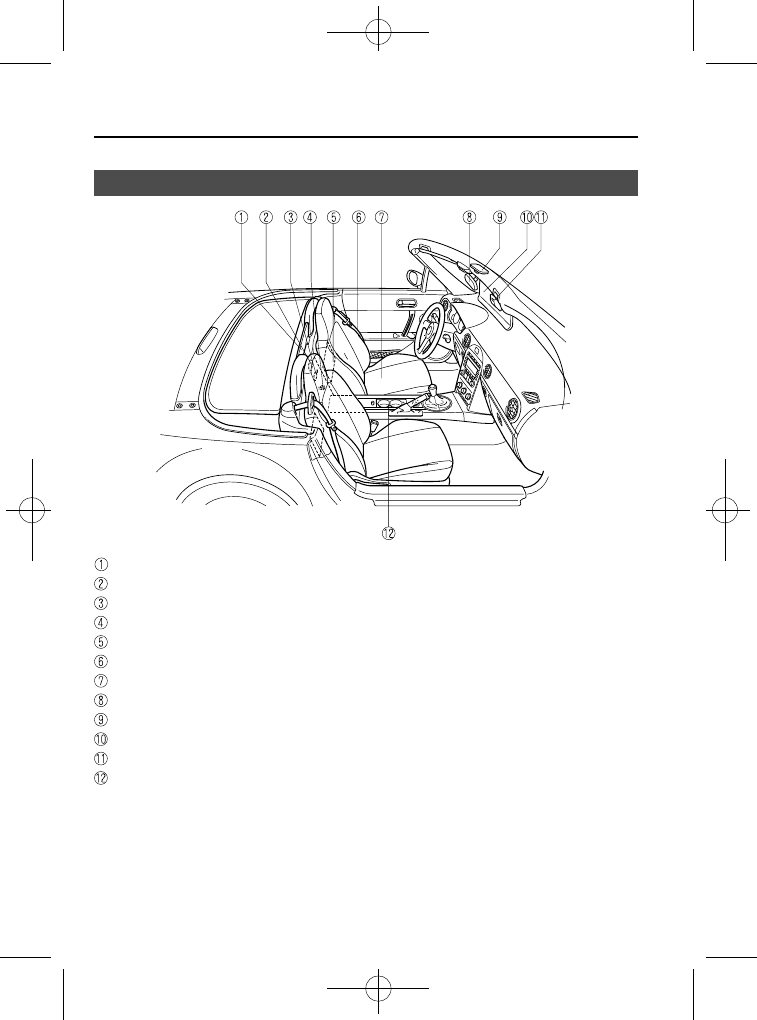

Interior Equipment (View A)

1-2

Your Vehicle at a Glance

The equipment and installation position varies by vehicle

Interior Overview

MX-5_8EN7-EA-14E_Edition1 Page8
Friday, March 28 2014 3:37 PM

Black plate (9,1)

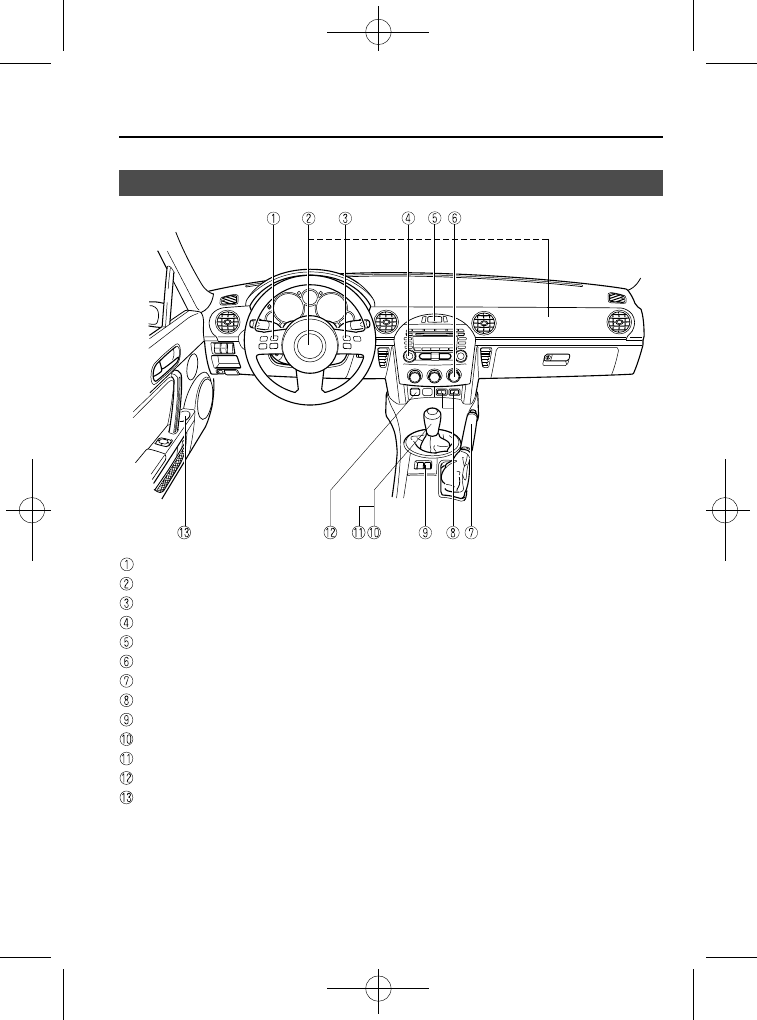

Interior Equipment (View B)

Your Vehicle at a Glance

Interior Overview

1-3

The equipment and installation position varies by vehicle

MX-5_8EN7-EA-14E_Edition1 Page9
Friday, March 28 2014 3:37 PM

Black plate (10,1)

Interior Equipment (View C)

1-4

Your Vehicle at a Glance

The equipment and installation position varies by vehicle

Interior Overview

MX-5_8EN7-EA-14E_Edition1 Page10
Friday, March 28 2014 3:37 PM

Black plate (11,1)

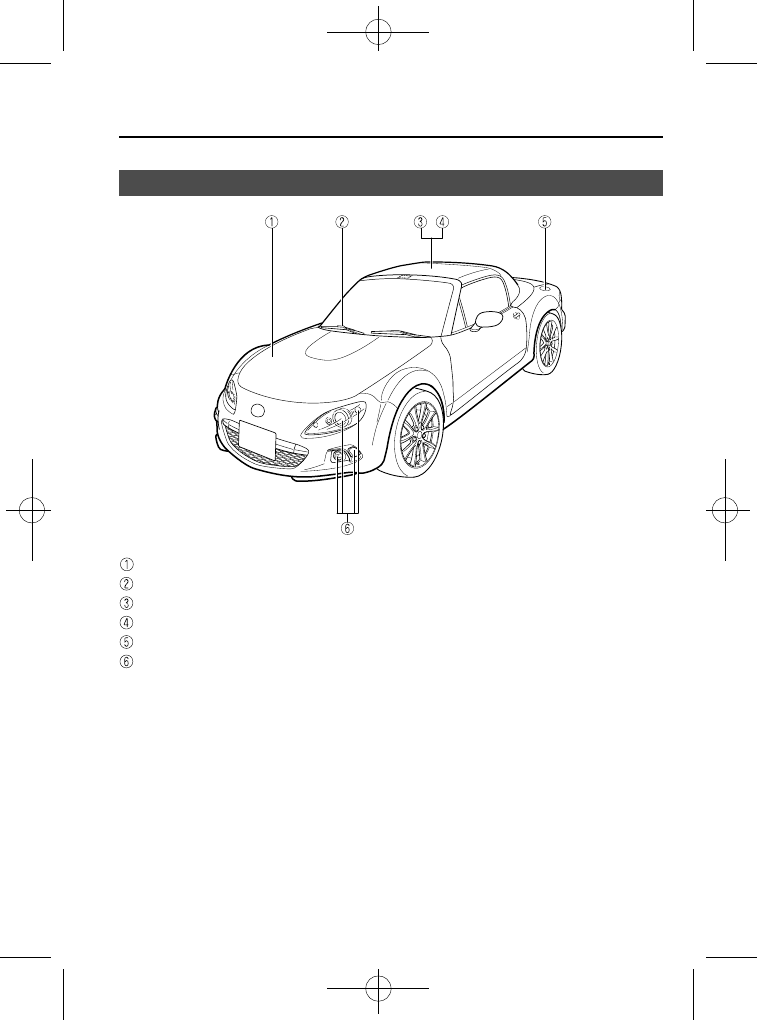

Front

Your Vehicle at a Glance

Exterior Overview

1-5

The equipment and installation position varies by vehicle

MX-5_8EN7-EA-14E_Edition1 Page11
Friday, March 28 2014 3:37 PM

Black plate (12,1)

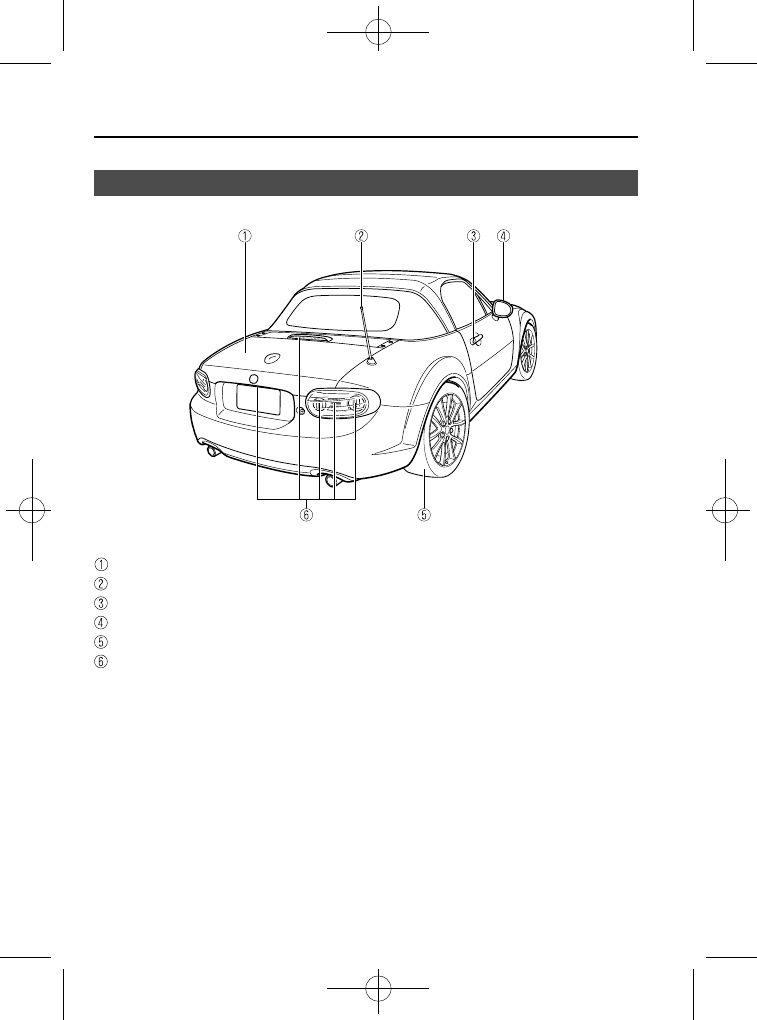

Rear

1-6

Your Vehicle at a Glance

The equipment and installation position varies by vehicle

Exterior Overview

MX-5_8EN7-EA-14E_Edition1 Page12
Friday, March 28 2014 3:37 PM

Black plate (13,1)

Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.

Seats ............................................................................................... 2-2

Seats .......................................................................................... 2-2
Non-Adjustable Head Restraints ............................................... 2-4
Seat Warmer

........................................................................... 2-5

Seat Belt Systems .......................................................................... 2-7

Child Restraint ............................................................................ 2-18

Child Restraint Precautions ..................................................... 2-18
Child-Restraint System Installation Position .......................... 2-22
Installing a Child-Restraint System ......................................... 2-23

SRS Air Bags ............................................................................... 2-25

2-1

Some models.

MX-5_8EN7-EA-14E_Edition1 Page13
Friday, March 28 2014 3:37 PM

Black plate (14,1)

Seats

WARNING

Do not modify or replace the front
seats:

Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.

Do not drive with damaged front seats:

Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.

Make sure the adjustable components
of a seat are locked in place:

Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.

Adjust the driver's seat only when the
vehicle is stopped:

Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.

CAUTION

Be careful not to place your hands
and fingers around moving parts of
the front seat when adjusting the
seat positions to prevent injury.

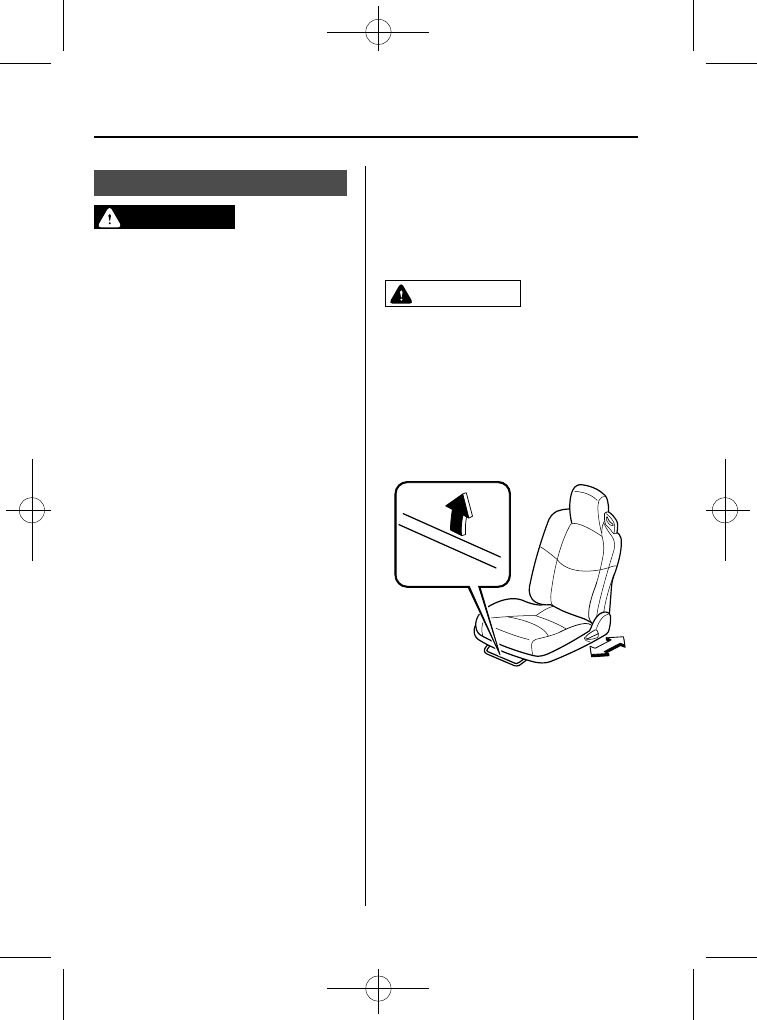

qSeat Slide

To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.

Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.

2-2

Seats

MX-5_8EN7-EA-14E_Edition1 Page14
Friday, March 28 2014 3:37 PM

Black plate (15,1)

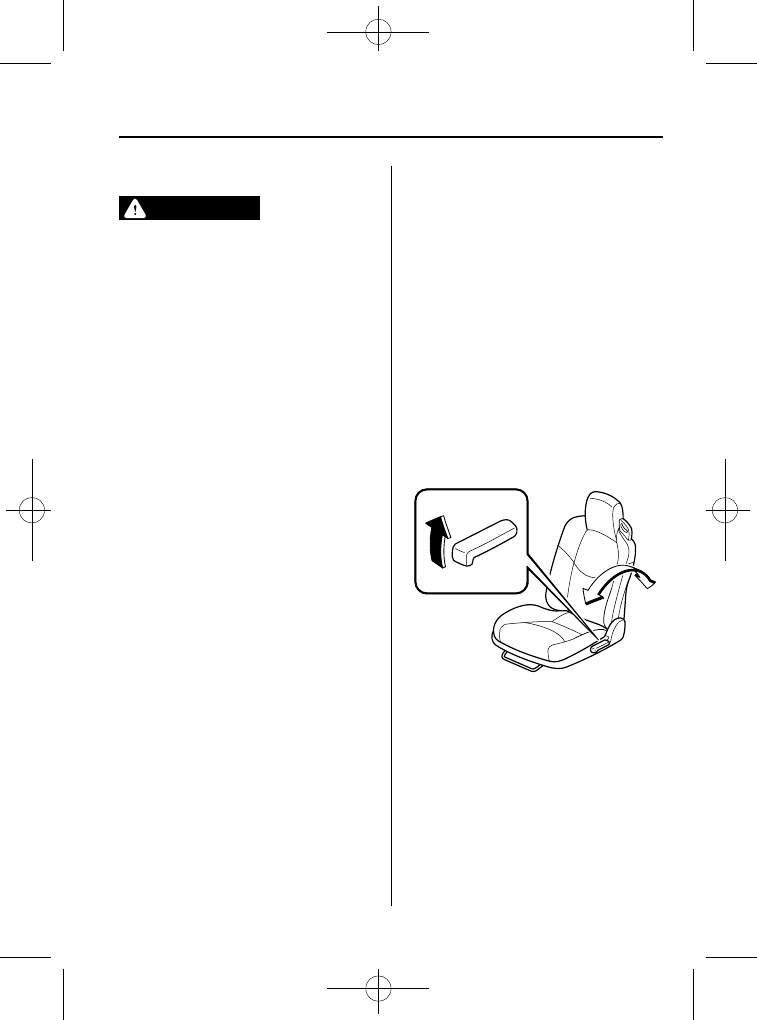

qSeat Recline

WARNING

Do not drive with either front seat
reclined:

Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.

Always sit in the passenger seat
properly with the seatback upright and
feet on the floor:

Your passenger seat has weight
sensors, sitting in the passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the passenger
sensing system. As a result the
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.

Do not drive with the seatback
unlocked:

All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.

To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.

Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.

Seats

2-3

MX-5_8EN7-EA-14E_Edition1 Page15
Friday, March 28 2014 3:37 PM

Black plate (16,1)

CAUTION

When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.

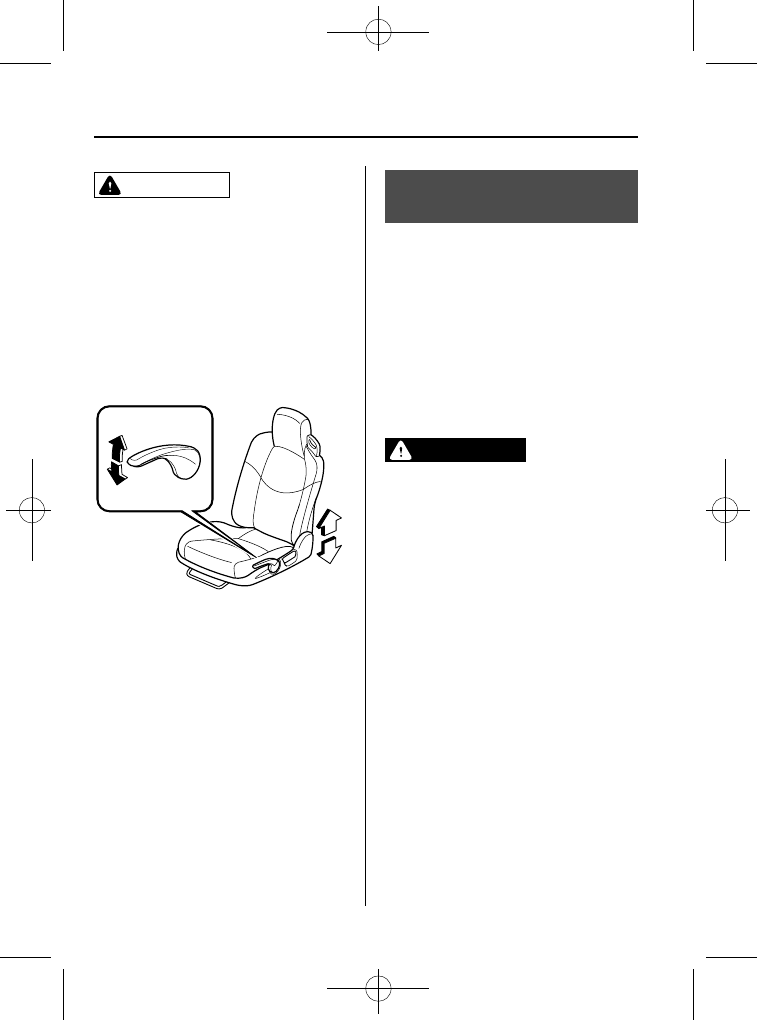

qHeight Adjustment (Driver's Seat)

To adjust the seat height, move the lever
up or down.

Down

Non-Adjustable Head
Restraints

Your vehicle is equipped with non-
adjustable head restraints on the driver's
and front passenger's seatbacks. The non-
adjustable head restraints consist of a
trimmed foam covering over the upper
structure of the seatbacks and are intended
to help protect you and the front
passenger from neck injury. Adjust the
seatbacks to their upright, on-road
positions so that the head restraint is
positioned as close as possible to the back
of your head.

WARNING

Make sure the seatbacks are properly
adjusted to their upright, on-road
positions before the vehicle is driven:

Driving with the seatbacks not
adjusted properly is dangerous. With
no support behind your head, your
neck could be seriously injured in a
collision.

2-4

Some models.

Seats

MX-5_8EN7-EA-14E_Edition1 Page16
Friday, March 28 2014 3:38 PM

Black plate (17,1)

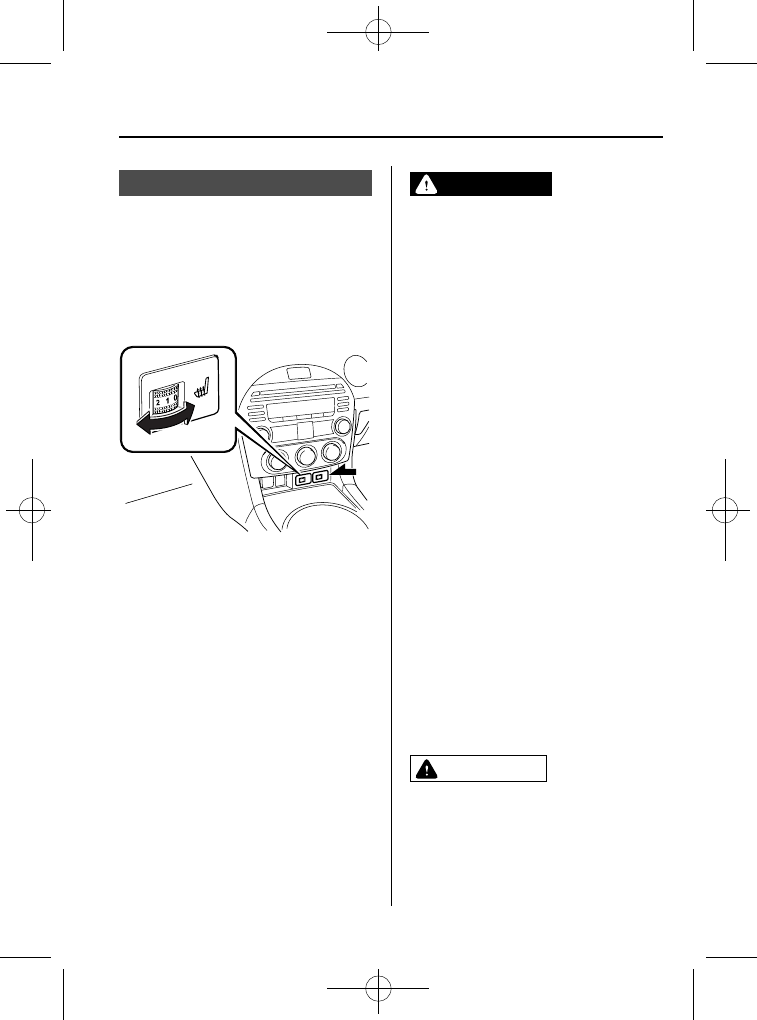

Seat Warmer

The driver and passenger seats can be
warmed by rotating the applicable seat
warmer dial while the ignition is switched
ON.
The seat temperature increases as the
number on the dial increases. When the
seat warmers are not in use, rotate the seat
warmer dials to 0.

WARNING

Ø Be careful when using the seat

warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.

Infants, small babies, elderly
people, and physically
challenged people

People with delicate skin

People who are excessively
fatigued

People who are intoxicated

People who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine

Ø Do not use the seat warmer with

anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.

Ø Do not use the seat warmer even

when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.

Ø Do not place heavy objects with

sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.

CAUTION

Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.

Seats

2-5

Some models.

MX-5_8EN7-EA-14E_Edition1 Page17
Friday, March 28 2014 3:38 PM

Black plate (18,1)

NOTE

Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.

2-6

Seats

MX-5_8EN7-EA-14E_Edition1 Page18
Friday, March 28 2014 3:38 PM

Black plate (19,1)

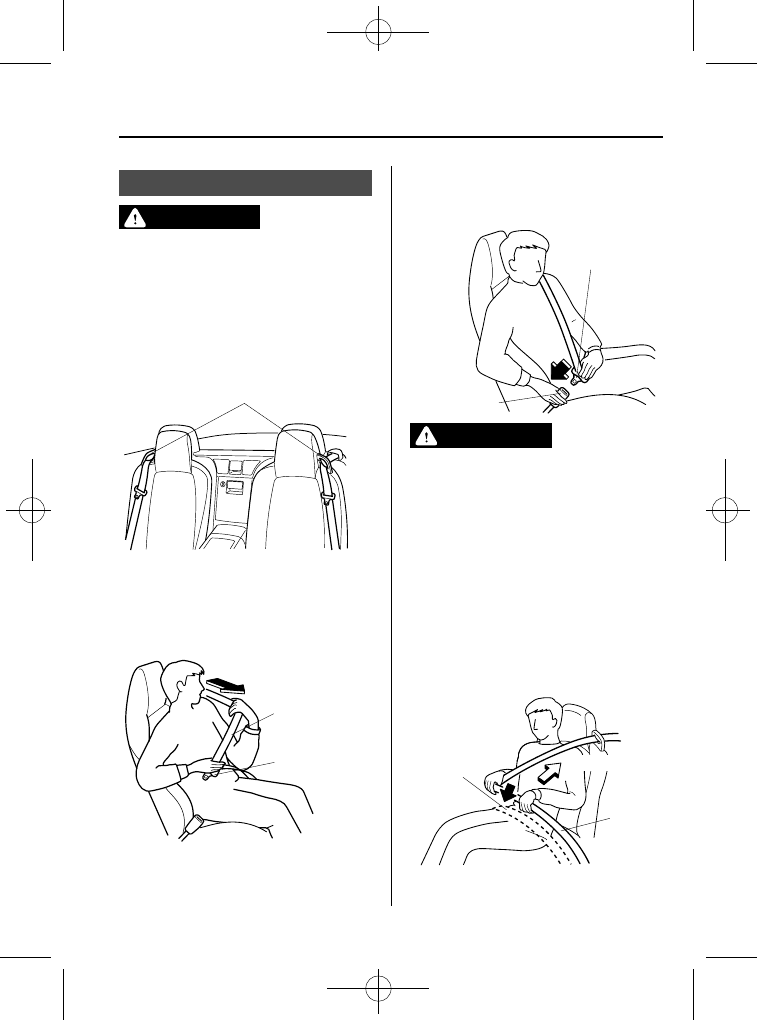

Seat Belt Precautions

Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and passenger always wear seat belts.

All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.

The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.

However, the passenger's seat lap/shoulder belt retractors operate in two modes: emergency
locking mode, and for child-restraint systems, automatic locking mode.

Seat Belt Systems

2-7

MX-5_8EN7-EA-14E_Edition1 Page19
Friday, March 28 2014 3:38 PM

Black plate (20,1)

WARNING

Always wear your seat belt and make sure all occupants are properly restrained:

Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.

Do not wear twisted seat belts:

Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.

Never use one seat belt on more than one person at a time:

Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.

Do not operate a vehicle with a damaged seat belt:

Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.

Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:

Always have an Authorized Mazda Dealer immediately inspect the seat belt
pretensioners and air bags after any collision. Like the air bags, the seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the seat belt
pretensioners and load limiters are not replaced, the risk of injury in a collision will
increase.

2-8

Seat Belt Systems

MX-5_8EN7-EA-14E_Edition1 Page20
Friday, March 28 2014 3:38 PM

Black plate (21,1)

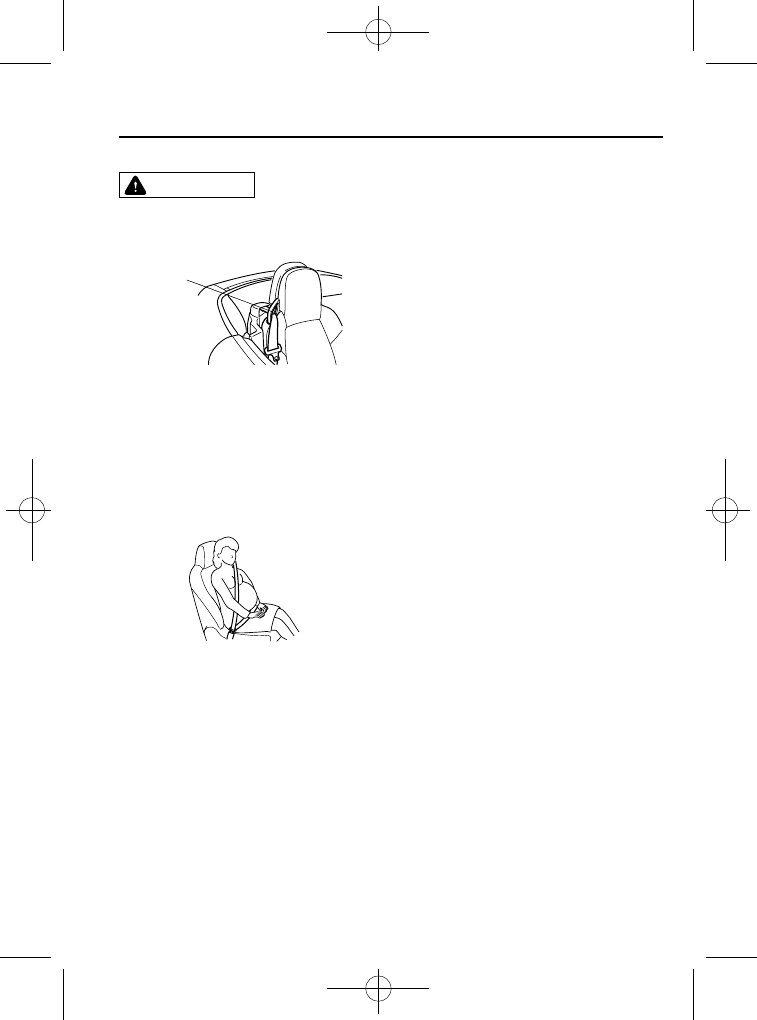

CAUTION

Belt retraction may become difficult if the belts and seat belt guides are soiled, so try
to keep them clean. For more details about cleaning the seat belts, refer to

“Cleaning

the Lap/Shoulder Belt Webbing

” (page 8-61).

Seat belt guide

qPregnant Women and Persons with Serious Medical Conditions

Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.

qEmergency Locking Mode

In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.

Seat Belt Systems

2-9

MX-5_8EN7-EA-14E_Edition1 Page21
Friday, March 28 2014 3:38 PM

Black plate (22,1)

qAutomatic Locking Mode

To enable seat belt automatic locking mode, pull it all the way out and connect it as
instructed on the child-restraint system. It will retract down to the child-restraint system
and stay locked on it. See the section on child restraint (page 2-18).

2-10

Seat Belt Systems

MX-5_8EN7-EA-14E_Edition1 Page22
Friday, March 28 2014 3:38 PM

Black plate (23,1)

Seat Belt

WARNING

Always wear the seat belt with it
correctly routed in its guide:

Wearing a seat belt without the seat
belt routed in its guide is dangerous
because the seat belt would not be
able to provide adequate protection
in an accident, which could result in
serious injury.

Seat belt guide

qFastening the Seat Belt

1. Grasp the seat belt tongue.

2. Slowly pull out the lap/shoulder belt.

Lap/shoulder belt

Seat belt tongue

3. Insert the seat belt tongue into the seat

belt buckle until you hear a click
sound.

Seat belt tongue

Seat belt buckle

WARNING

Positioning the Shoulder Portion of the
Seat Belt:

Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.

4. Position the lap belt as low as possible,

not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.

Too high

Take up slack

Keep low on
hip bone

Seat Belt Systems

2-11

MX-5_8EN7-EA-14E_Edition1 Page23
Friday, March 28 2014 3:38 PM

Content .. 1 2 ..
