Black plate (168,1)

CAUTION

Don't continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.

qEngine Oil Pressure Warning Light

This warning light illuminates when the
ignition switch is turned to the ON
position and turns off when the engine is
started.

This warning light indicates low engine
oil pressure.

If the light illuminates while driving:

1. Drive to the side of the road and park

off the right-of-way on level ground.

2. Turn off the engine and inspect the

engine oil level (page 8-12). If it's low,
add oil.

3. Check the light.

If the light remains illuminated even after
you add oil, have your vehicle towed to
an Authorized Mazda Dealer.

CAUTION

Don't run the engine if oil pressure is
low. It could result in extensive engine
damage.

qCheck Engine Light

If this light comes on while driving, the
vehicle may have a problem. It is
important to note the driving conditions
when the light came on and consult an
Authorized Mazda Dealer.

The check engine light may come on in
the following cases:

The fuel tank level being very low or
approaching empty.

The engine's electrical system has a
problem.

The emission control system has a
problem.

The fuel-filler cap is missing or not
tightened securely.

If the check engine light remains on or
flashes continuously, do not drive at high
speeds and consult an Authorized Mazda
Dealer as soon as possible.

5-28

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

Mazda MPV_8U61-EA-05G_Edition1 Page168
Tuesday, June 21 2005 9:34 AM

Black plate (169,1)

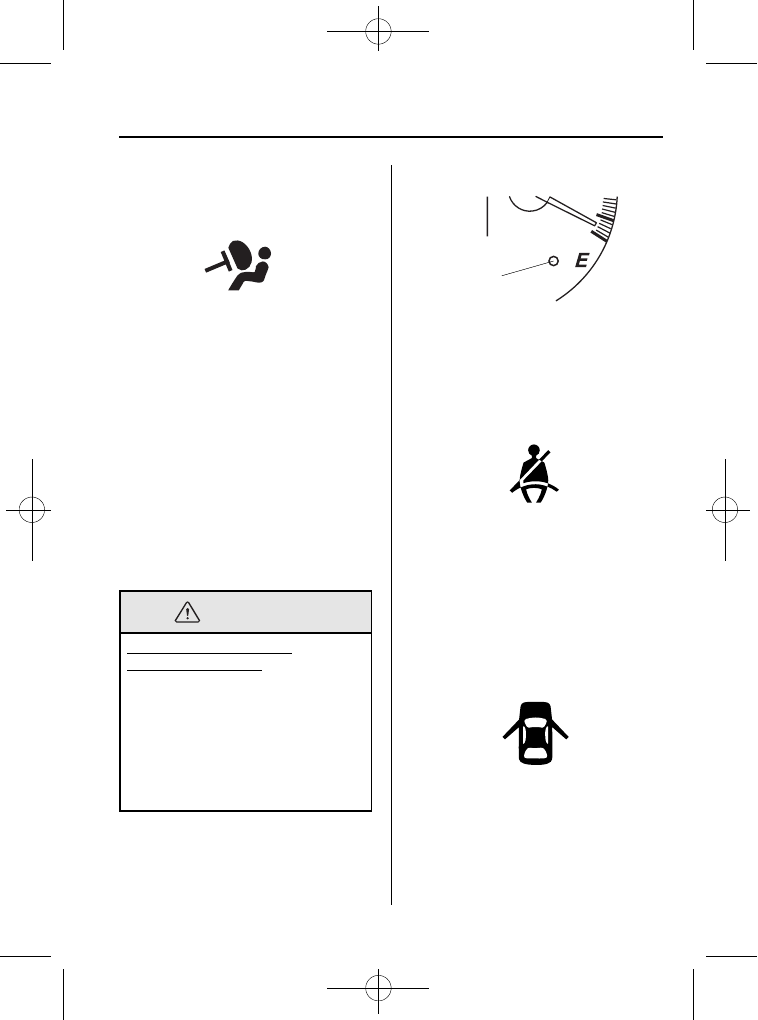

qAir Bag/Front Seat Belt

Pretensioner System Warning Light

If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.

A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.

WARNING

Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.

qLow Fuel Warning Light

Low fuel
warning light

This warning light in the fuel gauge
signals that the fuel tank will soon be
empty.
Refuel as soon as possible.

qSeat Belt Warning Light

If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, the seat belt warning light
will remain on until the belt is fastened.
If the system does not operate correctly,
consult an Authorized Mazda Dealer.

qDoor-Ajar Warning Light

This warning light comes on when any
door or liftgate isn't securely closed.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-29

Mazda MPV_8U61-EA-05G_Edition1 Page169
Tuesday, June 21 2005 9:34 AM

Black plate (170,1)

qImmobilizer System Warning/

Security Indicator Light

Immobilizer system warning light

When the key is in the ignition switch,
this light serves as the immobilizer system
warning light.

If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.

If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.

Security indicator light

When there is no key in the ignition
switch, and the theft-deterrent system has
been armed, the light will flash once every
3 seconds. This indicates that the system
is working properly.

qHeadlight High-Beam Indicator

Light

This light indicates one of two things:

The high-beam headlights are on.

The turn signal lever is in the flash-to-
pass position.

qO/D OFF Indicator Light

This light comes on when the overdrive
has been turned off.

CAUTION

If the overdrive-off indicator light
flashes, the transaxle has an electrical
problem. Continuing to drive your
Mazda in this condition could cause
damage to your transaxle. Consult an
Authorized Mazda Dealer as soon as
possible.

5-30

Driving Your Mazda

Some models.

Warning/Indicator Lights and Beep Sounds

Mazda MPV_8U61-EA-05G_Edition1 Page170
Tuesday, June 21 2005 9:34 AM

Black plate (171,1)

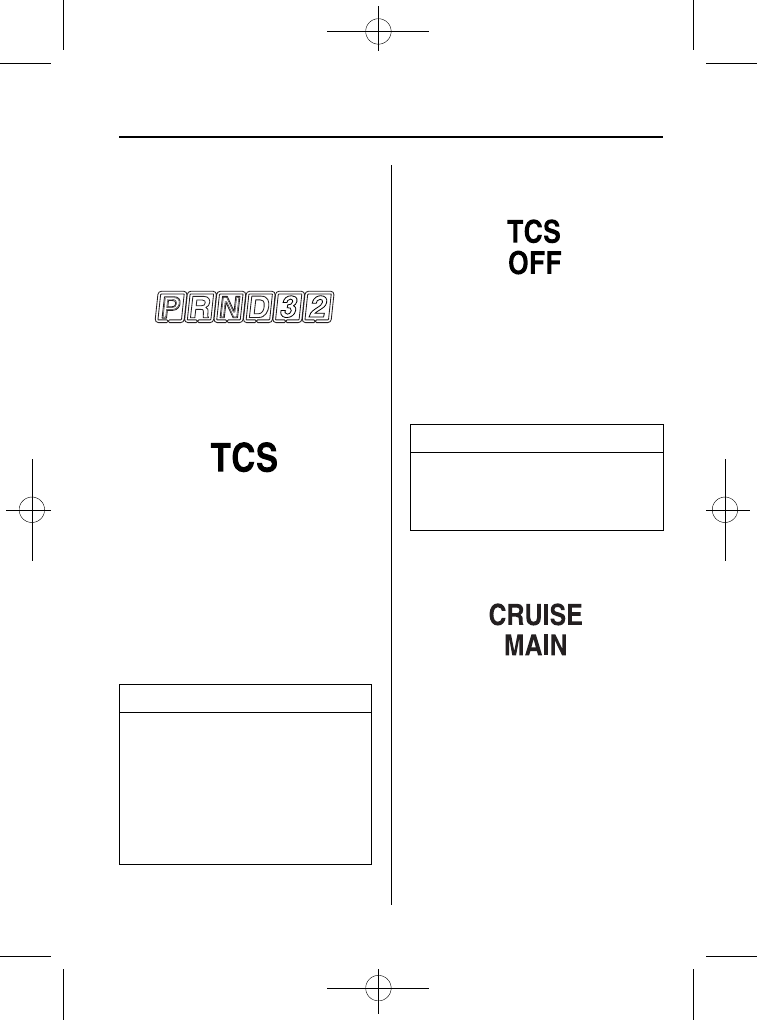

qShift Position Indicator Light

This indicates the selected shift position
when the ignition switch is in the ACC or
ON position.

qTCS Indicator Light

This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS is
operating, the indicator light flashes.

If the light stays on, the TCS may have a
malfunction and it may not operate
correctly. Take your vehicle to an
Authorized Mazda Dealer.

NOTE

In addition to the indicator light
flashing, a slight lugging sound will
come from the engine. This indicates
that the TCS is operating properly.

On slippery surfaces, such as fresh
snow, it will be impossible to
achieve high rpm when the TCS is
on.

qTCS OFF Indicator Light

This light comes on when the ignition
switch is turned to the ON position.
It goes off when the engine is started. It
also comes on when you switch off the
traction control system or when the
system has a malfunction.

NOTE

After starting the engine on very cold
days, the TCS OFF indicator will
remain on and TCS will not operate
until the engine is warm.

qCruise Main Indicator Light

This light comes on when the ON/OFF
switch is pressed and the cruise control
system is activated.

Driving Your Mazda

Warning/Indicator Lights and Beep Sounds

5-31

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page171
Tuesday, June 21 2005 9:34 AM

Black plate (172,1)

qCruise Set Indicator Light

This light comes on when a cruising speed
is set.

qTurn-Signal/Hazard Warning

Indicator Lights

When operating the turn signal lights, the
left or right turn signal indicator light
flashes to indicate which turn signal light
is operating (page 5-34).

When operating the hazard warning
lights, both turn signal indicator lights
flash (page 5-38).

NOTE

If an indicator light remains illuminated
(does not flash) or if it flashes
abnormally, one of the turn signal bulbs
may be burned out.

Beep Sounds

qSeat Belt Warning Beep

If the driver's seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep sound will be heard
for about 6 seconds.

qIgnition Key Reminder

If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.

qLights-On Reminder

If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.

qPower Sliding Door Beep

The beep sound will be heard according to
the power sliding door operation.
If there is a malfunction in the power
sliding door system, a beep sound will be
heard continuously. If this happens, press
the power sliding doors main switch to the
OFF position and the beep sound will
stop. Consult an Authorized Mazda
Dealer to have the power sliding doors
checked.
Refer to Power Sliding Doors on page
3-12.

5-32

Driving Your Mazda

Some models.

Warning/Indicator Lights and Beep Sounds

Mazda MPV_8U61-EA-05G_Edition1 Page172
Tuesday, June 21 2005 9:34 AM

Black plate (173,1)

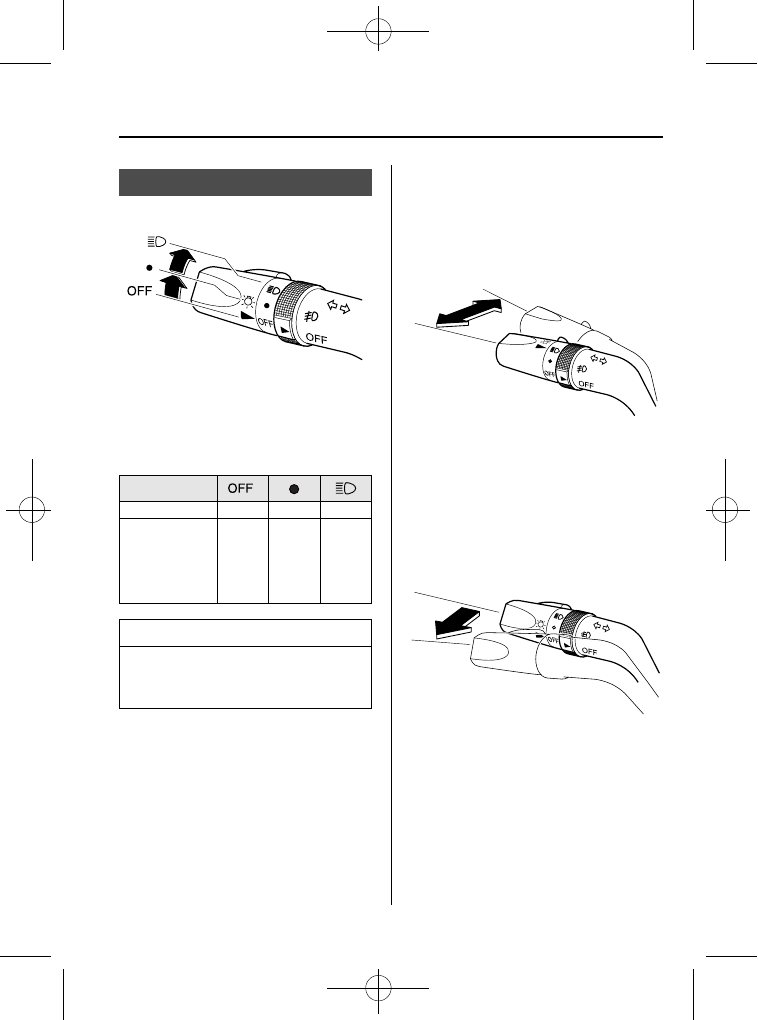

Lighting Control

qHeadlights

To turn on the lights, turn the headlight
switch on the end of the control lever.

Switch Position

Headlights

Off

Taillights
Parking lights
License lights
Side-marker lights
Dashboard
illumination

Off

NOTE

To prevent discharging the battery, don't
leave the lights on while the engine is
off unless safety requires them.

qLights-On Reminder

If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.

qHeadlight High-Low Beam

Push the lever forward for high beam.
Pull back to original position for low
beam.

High beam

Low beam

qFlashing the Headlights

To flash the headlights, pull the lever fully
toward you. The headlight switch does
not need to be on, and the lever will return
to the normal position when released.

Driving Your Mazda

Switches and Controls

5-33

Mazda MPV_8U61-EA-05G_Edition1 Page173
Tuesday, June 21 2005 9:34 AM

Black plate (174,1)

qDaytime Running Lights (Canada

Model)

In Canada, vehicles must be driven with
the headlights on during daytime
operation.

For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.

NOTE

The Daytime Running Lights turn off
when the parking brake is applied.

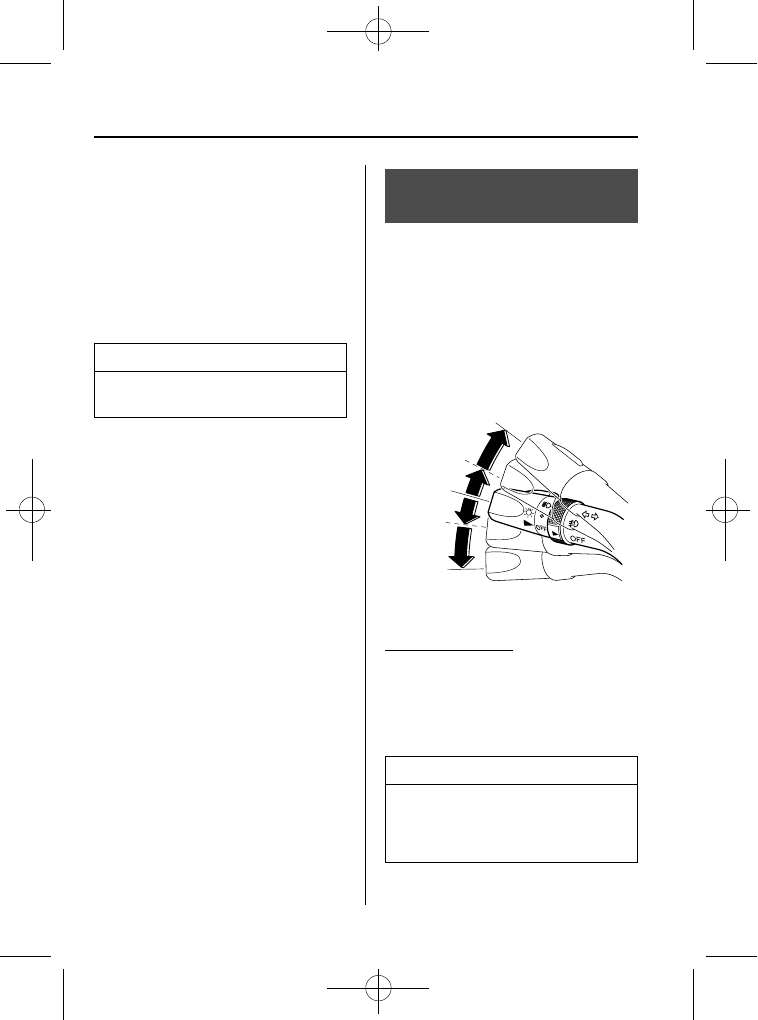

Turn and Lane-Change
Signals

qTurn Signal

Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.

If the indicator light continues to flash
after a turn, manually return the lever to
its original position.

Right turn

Left turn

OFF

Right lane
change

Left lane
change

Green indicators on the dashboard show
which signal is working.

Lane-change signals

Move the lever slightly toward the
direction of the change

―until the

indicator flashes

― and hold it there. It

will return to the off position when
released.

NOTE

If an indicator light stays on without
flashing or if it flashes abnormally, one
of the turn signal bulbs may be burned
out.

5-34

Driving Your Mazda

Switches and Controls

Mazda MPV_8U61-EA-05G_Edition1 Page174
Tuesday, June 21 2005 9:35 AM

Black plate (175,1)

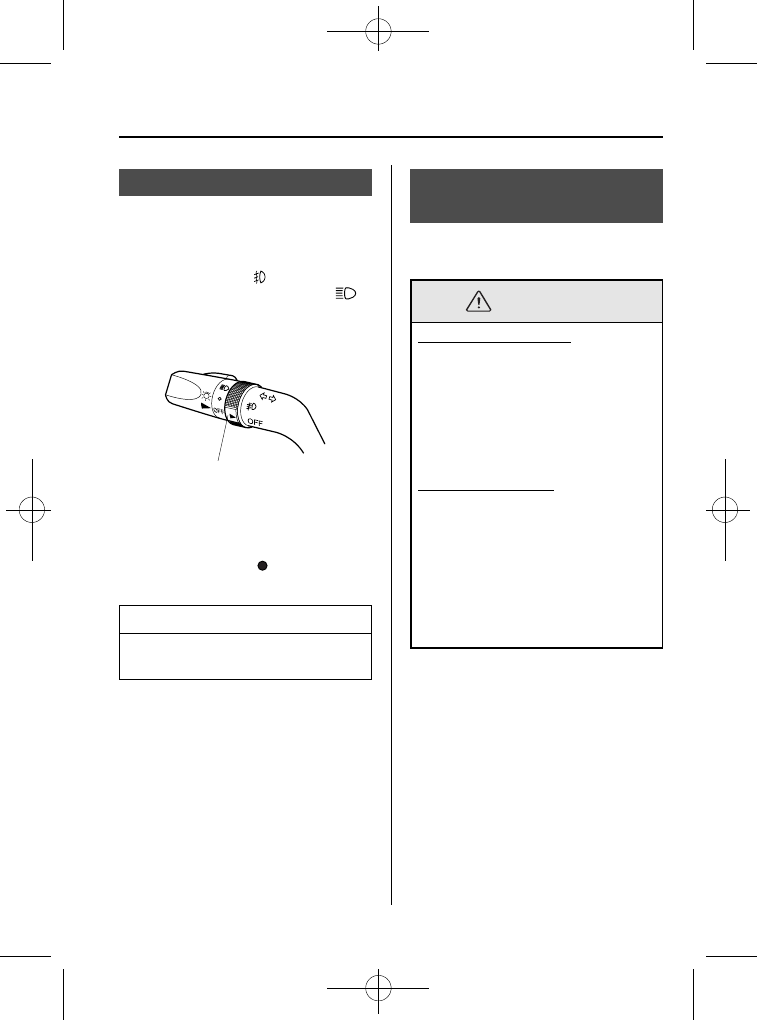

Fog Lights

Use this switch to turn on the fog lights.
They help you to see as well as to be seen.

To turn the front fog lights on, rotate the
fog light switch to the

position.

The headlight switch must be in the
position to turn on the front fog lights.

Fog light switch

To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the

or OFF

position.

NOTE

The fog lights will turn off when the
headlights are set at high beam.

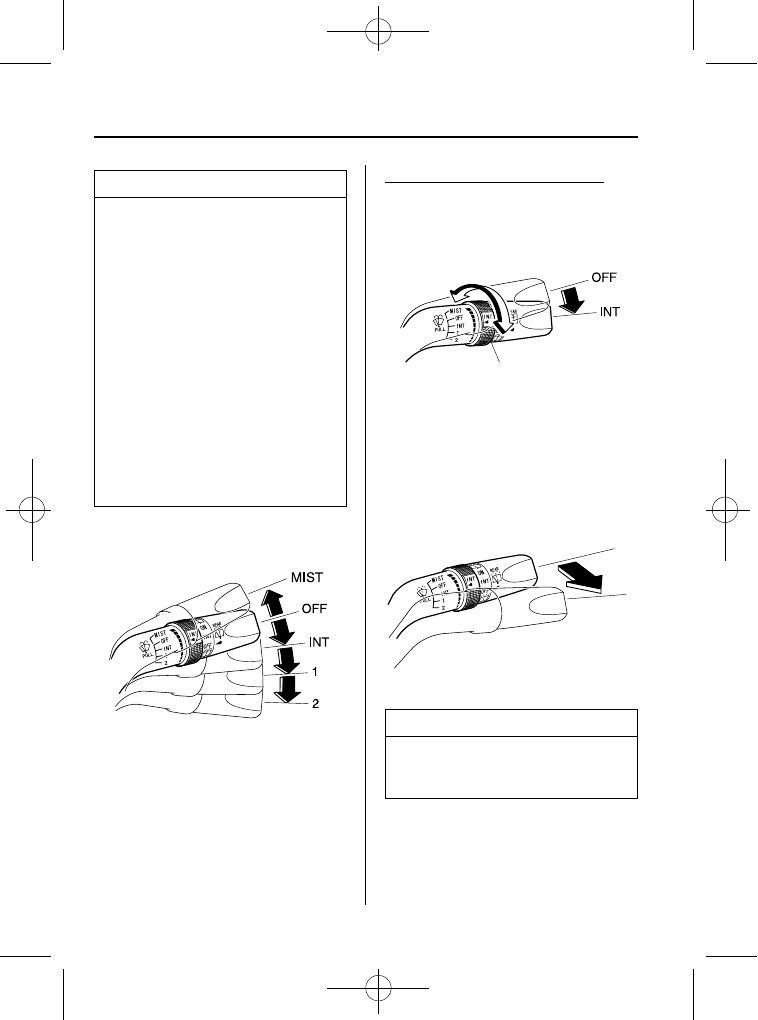

Windshield Wipers and
Washer

The ignition switch must be in the ON
position.

WARNING

Substitute Washer Fluid:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident. Use only windshield
washer fluid or plain water in the
reservoir.

Frozen Washer Fluid:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don't use the
washer without first warming the
windshield and never use plain tap
water.

Driving Your Mazda

Switches and Controls

5-35

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page175
Tuesday, June 21 2005 9:35 AM

Black plate (176,1)

NOTE

Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road
and park off the right-of-way. Wait until
the weather clears before trying to drive
with the wipers inoperative.

qWindshield Wipers

Turn the wipers on by pulling the lever
down.
MIST

― Mist

INT

― Intermittent

― Normal

― Fast

For a single wiping cycle, push the lever
up to MIST.

Variable-speed intermittent wipers

Set the lever to INT and choose the
interval timing by rotating the ring.

INT ring

qWindshield Washer

Pull the lever toward you and hold it to
spray washer fluid.

OFF

Washer

NOTE

With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.

If the washer doesn't work, inspect the
fluid level (page 8-20). If it's OK, consult
an Authorized Mazda Dealer.

5-36

Driving Your Mazda

Switches and Controls

Mazda MPV_8U61-EA-05G_Edition1 Page176
Tuesday, June 21 2005 9:35 AM

Black plate (177,1)

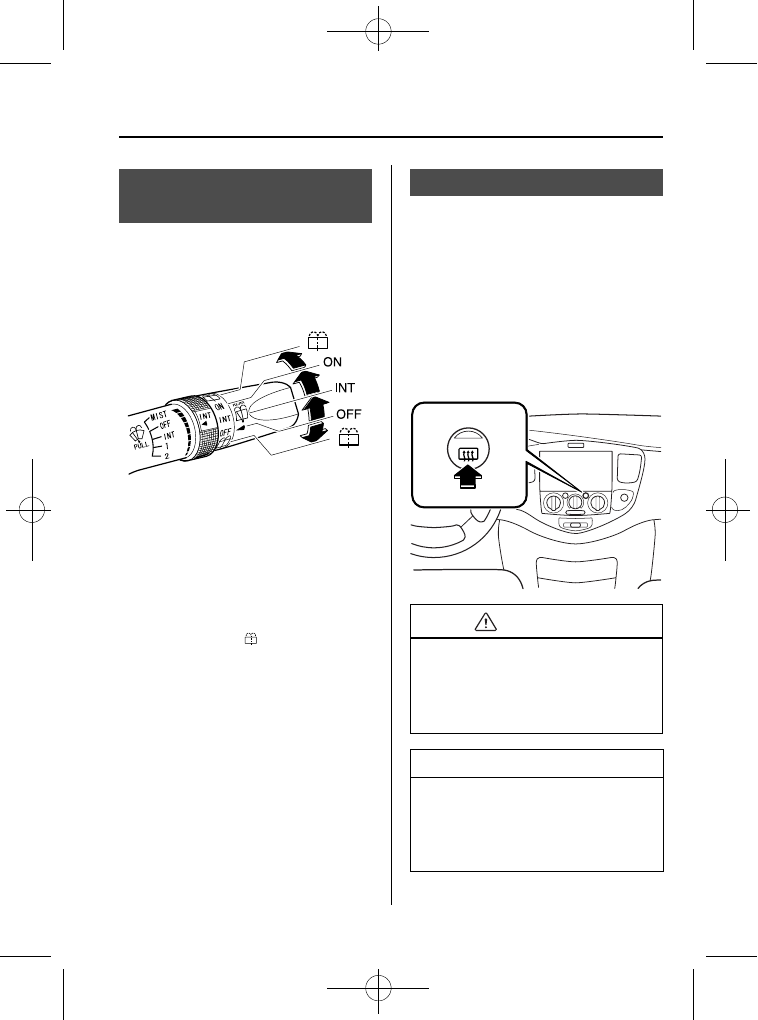

Rear Window Wiper and
Washer

The ignition switch must be in the ON
position.

qRear Window Wiper

Turn the wiper on by turning the rear
wiper/washer switch.
ON

― Normal

INT

― Intermittent

qRear Window Washer

To spray washer fluid, turn the rear wiper/
washer switch to the

position. After

the switch is released, the washer will
stop.
If the washer doesn't work, inspect the
fluid level (page 8-20). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.

Rear Window Defroster

The rear window defroster clears frost,
fog, and thin ice from the rear window.

The ignition switch must be in the ON
position.

Press the switch to turn on the rear
window defroster, the indicator light will
illuminate.

Press the switch again to turn it off.

CAUTION

Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.

NOTE

This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.

Driving Your Mazda

Switches and Controls

5-37

Mazda MPV_8U61-EA-05G_Edition1 Page177
Tuesday, June 21 2005 9:35 AM

Black plate (178,1)

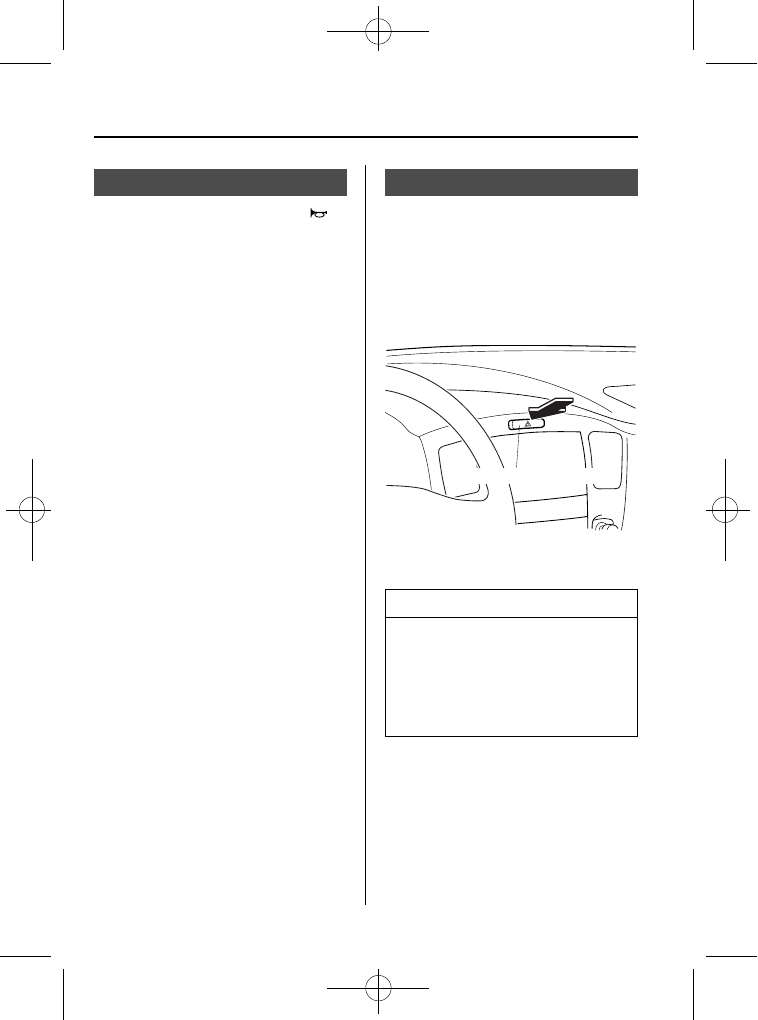

Horn

To sound the horn, press around the
mark on the steering wheel.

Hazard Warning Flasher

The hazard warning lights should always
be used when you stop on or near a
roadway.

The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.

Hazard warning flasher

Depress the hazard warning flasher and all
four turn signals will flash.

NOTE

The turn signals don't work when the
hazard warning lights are on.

Check local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.

5-38

Driving Your Mazda

Switches and Controls

Mazda MPV_8U61-EA-05G_Edition1 Page178
Tuesday, June 21 2005 9:35 AM

Black plate (179,1)

Interior Comfort

Use of various features for drive comfort, including air-conditioning and audio
system.

Climate Control System ............................................................... 6-2

Operating Tips ........................................................................... 6-2
Vent Operation (Front) .............................................................. 6-3
Control Panel (Front) ................................................................ 6-5
Vent Operation (Rear) ............................................................. 6-10
Control Panel (Rear)

............................................................ 6-12

Audio System ............................................................................... 6-14

Antenna ................................................................................... 6-14
Operating Tips for Audio System ........................................... 6-14
Audio Set

............................................................................. 6-21

Audio Control Switch Operation (Steering Wheel)

............. 6-42

Safety Certification ................................................................. 6-44

Interior Equipment ..................................................................... 6-45

Sunvisors ................................................................................. 6-45
Interior Lights ......................................................................... 6-46
Lighter

.................................................................................. 6-49

Ashtray

................................................................................. 6-49

Cup Holder .............................................................................. 6-51
Bottle Holder ........................................................................... 6-53
Storage Compartments ............................................................ 6-53
Accessory Sockets

................................................................ 6-57

6-1

Some models.

Mazda MPV_8U61-EA-05G_Edition1 Page179
Tuesday, June 21 2005 9:35 AM

Black plate (180,1)

Operating Tips

qOperating the Climate Control

System

Operate the climate control system with
the engine running.

NOTE

To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with
the ignition switch in the ACC position
when the engine is not running.

qClearing the Air Inlet

Clear all obstructions like leaves, snow
and ice from the hood and the air inlet in
the cowl grille to improve the system
efficiency.

qFoggy Windows

The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.

To help defog the windows, operate the
air conditioner to dehumidify the air.

NOTE

The air conditioner may be used along
with the heater to dehumidify the air.

qOutside/Recirculated Air Position

Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.

qParking in Direct Sunlight

If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.

qNot Using for a Long Period

Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.

qCheck the Refrigerant before the

Weather Gets Hot

Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.

The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.

qReplacement of the Cabin Air Filter

If your vehicle is equipped with an air
filter for the air conditioner, it is necessary
to change the filter periodically as
indicated in scheduled maintenance (page
8-3). Consult an Authorized Mazda
Dealer for replacement of the cabin air
filter.

6-2

Interior Comfort

Climate Control System

Mazda MPV_8U61-EA-05G_Edition1 Page180
Tuesday, June 21 2005 9:35 AM

Black plate (181,1)

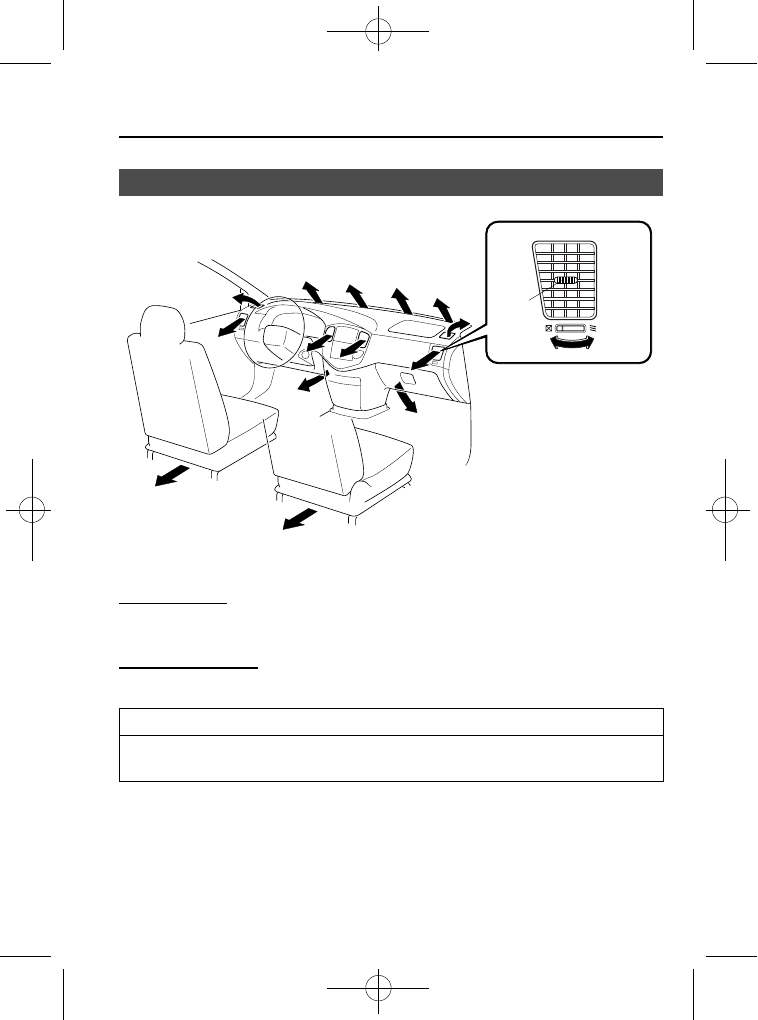

Vent Operation (Front)

Knob

Open

qAdjusting the Vents

Directing airflow

You can direct air flow by moving the adjustment knob.
Horizontal air flow can be adjusted by pressing the vent left or right.

Opening/closing vents

These vents can be opened and closed with wheel.

NOTE

When using the air conditioner, mist may come out from the vents. This is not a sign of
trouble but a result of humid air being suddenly cooled.

Interior Comfort

Climate Control System

6-3

Mazda MPV_8U61-EA-05G_Edition1 Page181
Tuesday, June 21 2005 9:35 AM

Black plate (182,1)

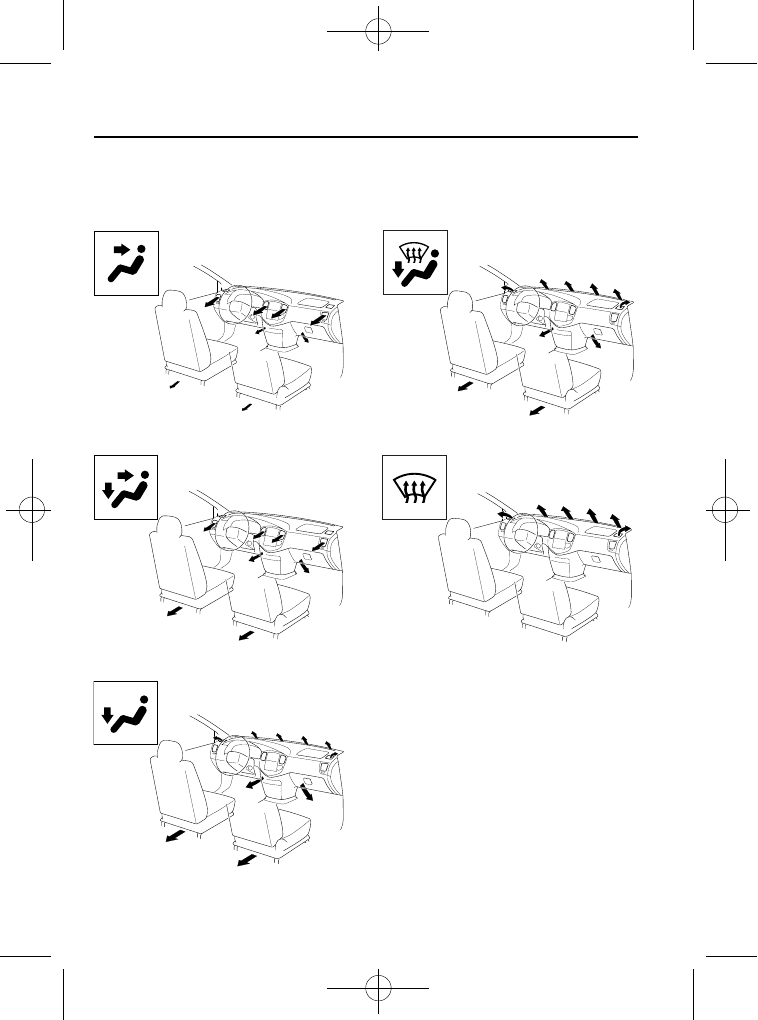

qSelecting the Airflow Mode

Dashboard and Floor Vents

Defroster Vents

Floor Vents

Dashboard Vents

Defroster and Floor Vents

6-4

Interior Comfort

Climate Control System

Mazda MPV_8U61-EA-05G_Edition1 Page182
Tuesday, June 21 2005 9:35 AM

Black plate (183,1)

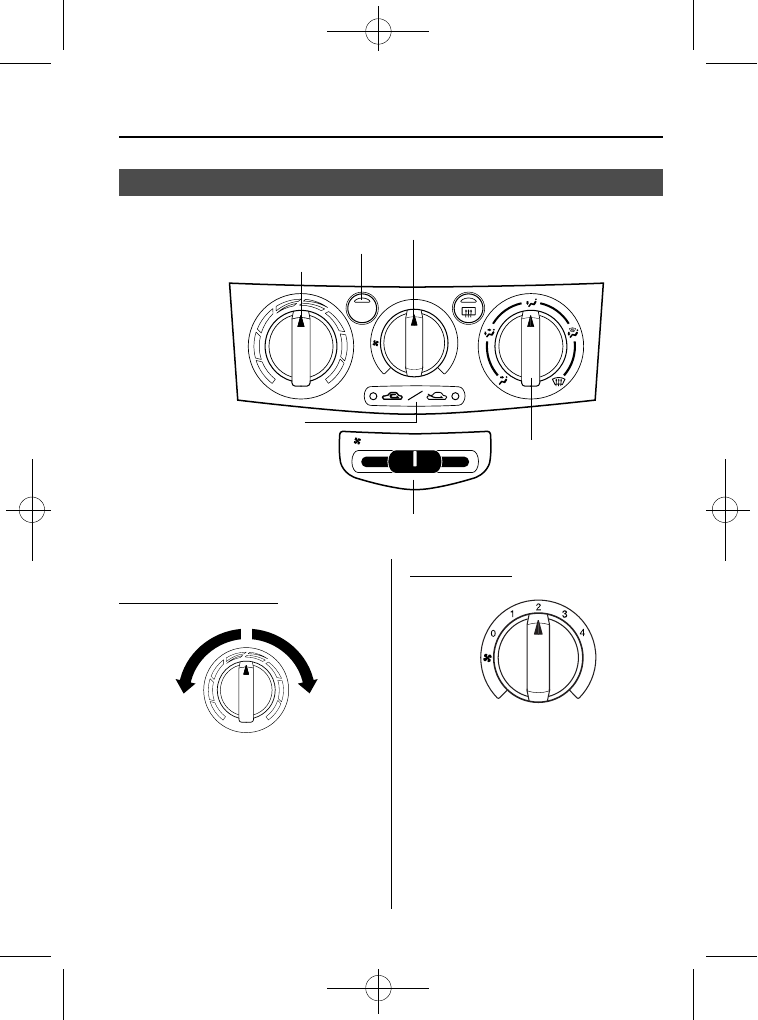

Control Panel (Front)

A/C

REAR

Temperature control dial

A/C switch

Fan control dial

Air intake selector switch

Rear air-conditioner main switch

Mode selector dial

qControl Switches

Temperature control dial

Cold

Hot

This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.

Fan control dial

This dial allows variable fan speeds.
0

―Fan off

―Low speed

―Medium low speed

―Medium high speed

―High speed

Interior Comfort

Climate Control System

6-5

Mazda MPV_8U61-EA-05G_Edition1 Page183
Tuesday, June 21 2005 9:35 AM

Content .. 9 10 11 12 ..
