Mazda Mazdaspeed 3 (2013 year). Instruction

Keep all flames, including cigarettes, and sparks away from open battery cells:

Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.

Do not jump-start a frozen battery or one with a low fluid level:

Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:

Connecting the end of the second jumper cable to the negative ( ) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

Route the jumper cables away from parts that will be moving:

Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.

CAUTION

Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).

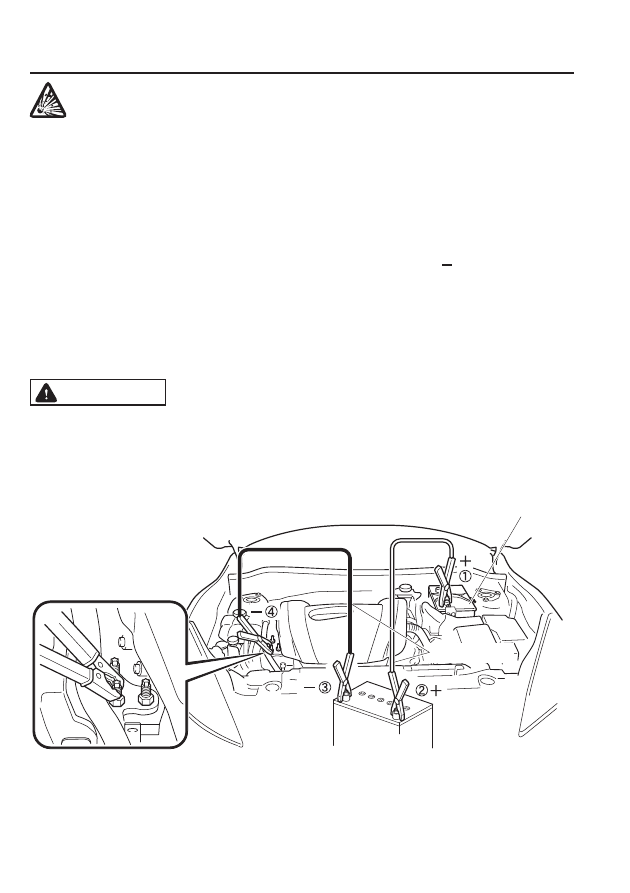

SKYACTIV-G 2.0

Connect cables in numerical order and disconnect in reverse order.

Booster battery

Discharged battery

Jumper cables

7-20

In Case of an Emergency

Emergency Starting

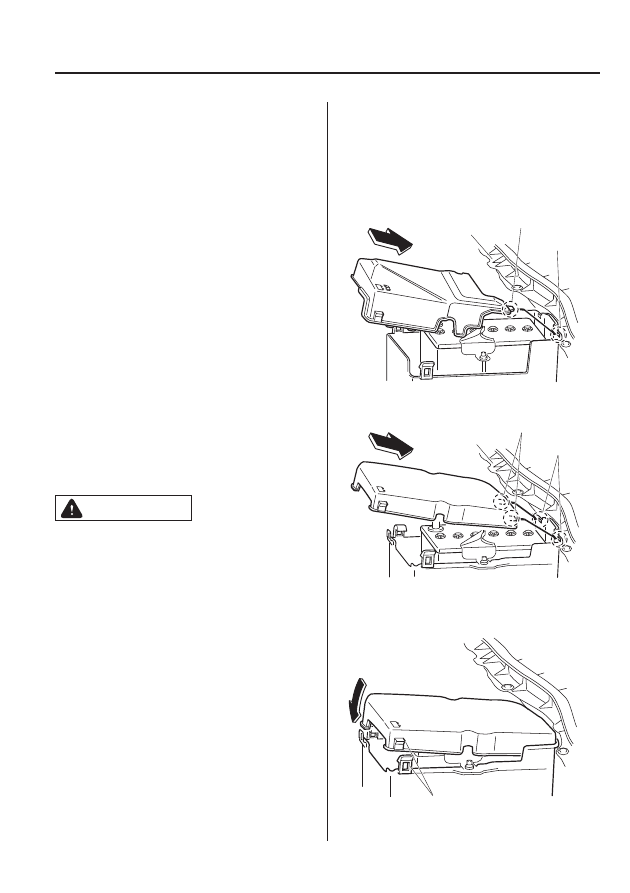

1. Remove the battery cover from its front

side.

Battery cover

CAUTION

Ø Do not use a tool which applies

excessive force such as a
screwdriver or pliers.
If excessive force is applied to the
clips, they could be damaged.
To prevent damaging the battery
cover, remove the battery cover
using the following procedure.

1 Detach the clip facing the side of

the vehicle first and pull it outward
with your finger approx. 4 mm (0.2
in). Then, lift the cover slightly to
clear the lock.

Clip

2 Detach the clip facing the vehicle

interior first and pull it outward
with your finger approx. 4 mm (0.2
in). Then, lift the cover slightly to
clear the lock.

Clip

3 Pull out the battery cover being

careful not to allow it to contact
the cowl grille.

Battery cover

Cowl grille

2. Make sure the booster battery is 12 V

and that its negative terminal is
grounded.

3. If the booster battery is in another

vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.

7-22

In Case of an Emergency

Emergency Starting

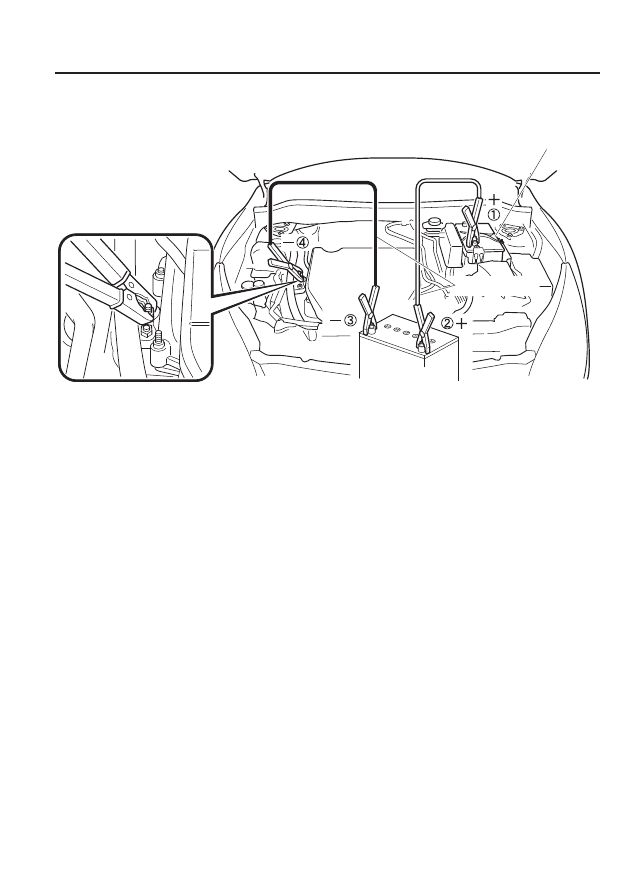

4. Connect the jumper cables in the exact

sequence as in the illustration.

Connect one end of a cable to the
positive terminal on the discharged
battery (1).

Attach the other end to the positive
terminal on the booster battery (2).

Connect one end of the other cable
to the negative terminal of the
booster battery (3).

Connect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).

5. Start the engine of the booster vehicle

and run it a few minutes. Then start the
engine of the other vehicle.

6. When finished, carefully disconnect the

cables in the reverse order described in
the illustration.

7. Install the battery cover.

CAUTION

Ø Do not use a tool which applies

excessive force such as a
screwdriver or pliers.
If excessive force is applied to the
clips, they could be damaged.
To prevent damaging the battery
cover, install the battery cover
using the following procedure.

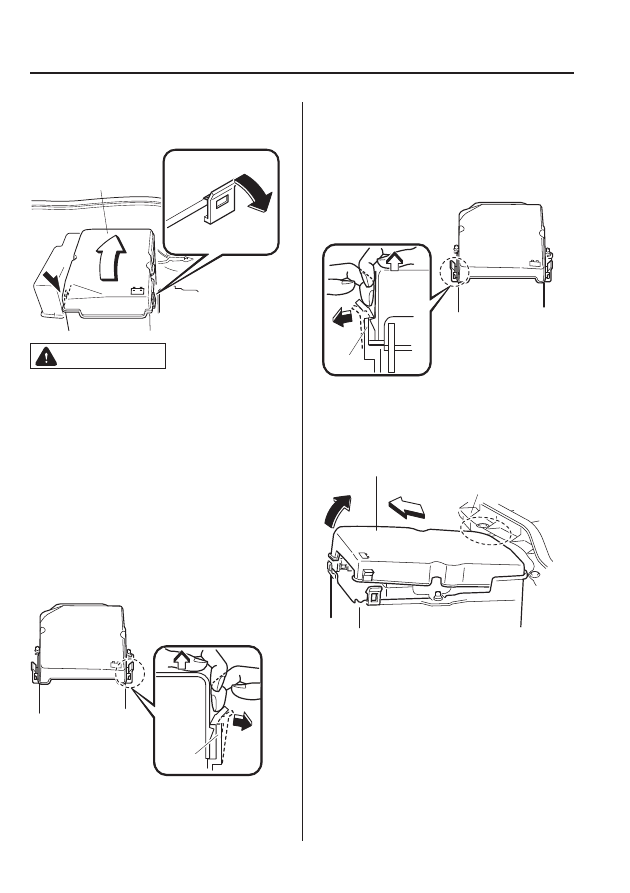

1 Being careful not to contact the

cowl grille, insert the tabs on the
one end of the battery cover into
the holes of the battery tray and
engage the tabs.

Cowl grille

Tab

Hole

SKYACTIV-G 2.0

Cowl grille

Tabs

Holes

MZR 2.0, MZR 2.3 DISI Turbo
and MZR 2.5

2 Attach the clips on both sides of

the battery cover.

Clips

In Case of an Emergency

Emergency Starting

7-23

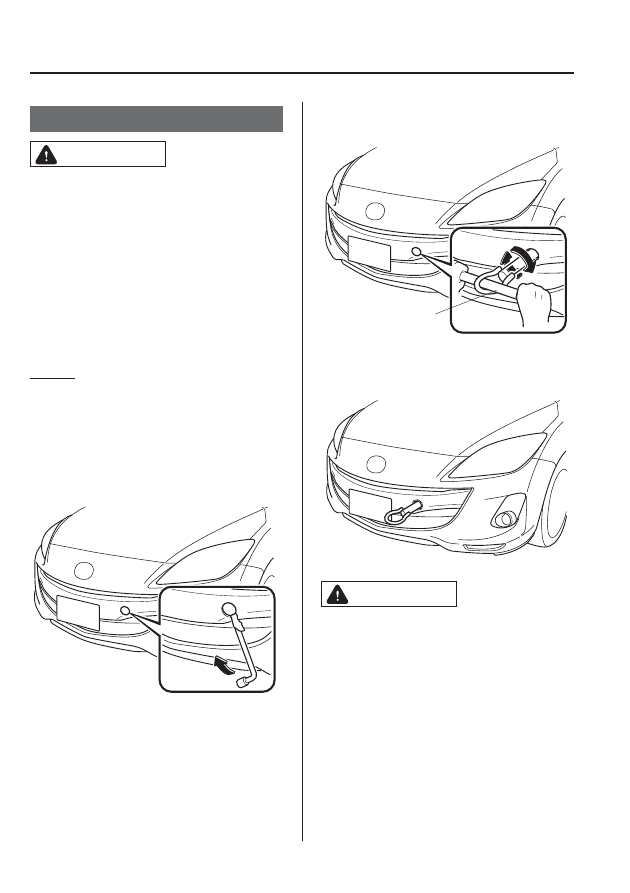

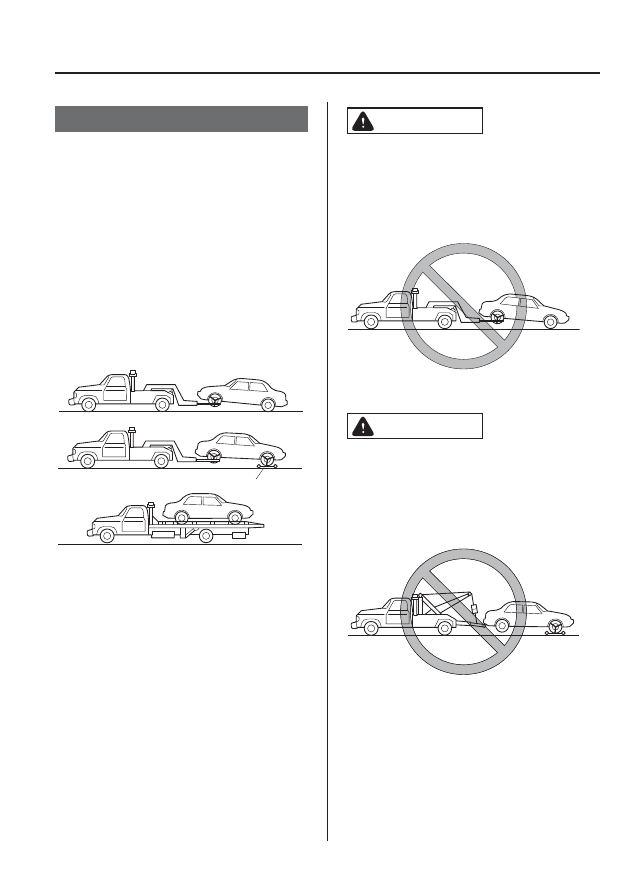

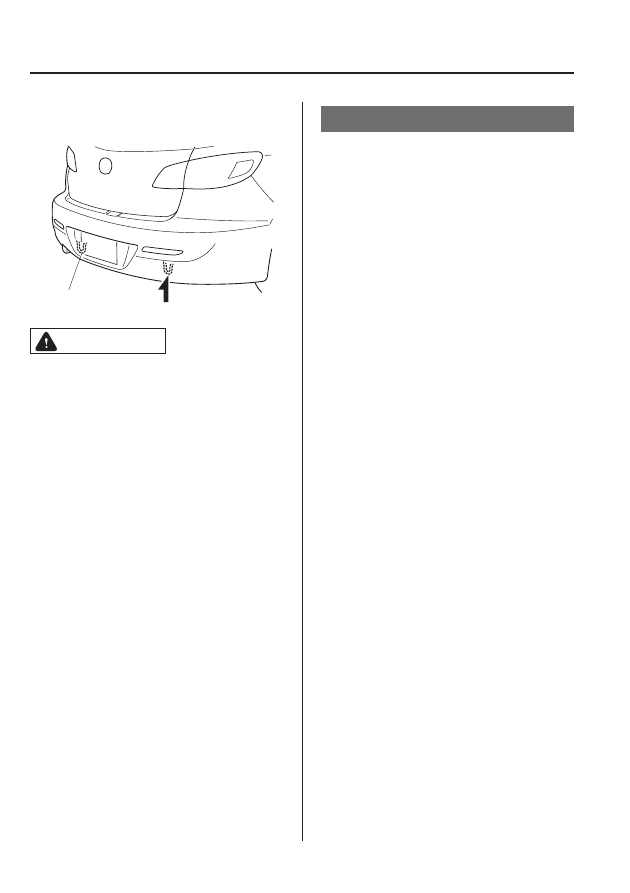

Tiedown Hook

CAUTION

Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.

qTiedown Hook-Front

Type A

1. Remove the tiedown eyelet and the lug

wrench from the trunk (page 7-3).

2. Wrap the lug wrench with a soft cloth

to prevent damage to the bumper and
remove the cover located on the front
bumper.

NOTE

Remove the cover completely and store it so as
not to lose it.

3. Securely install the tiedown eyelet

using the lug wrench.

Lug wrench

4. Hook the tying rope to the tiedown

eyelet.

CAUTION

Ø If the tiedown eyelet is not securely

tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.

Ø The front tiedown hook is

designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.

7-26

In Case of an Emergency

Emergency Towing

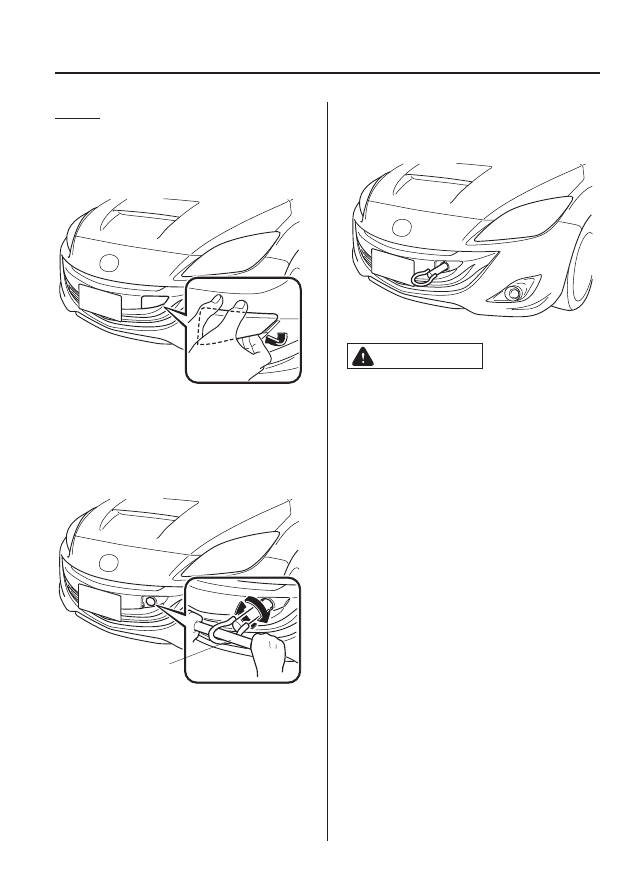

Type B

1. Remove the tiedown eyelet from the

trunk (page 7-3).

2. Remove the cover.

NOTE

Remove the cover completely and store it so as
not to lose it.

3. Securely install the tiedown eyelet

using the lug wrench.

Lug wrench

4. Hook the tying rope to the tiedown

eyelet.

CAUTION

Ø If the tiedown eyelet is not securely

tightened, it may loosen or
disengage from the bumper when
tying down the vehicle. Make sure
that the tiedown eyelet is securely
tightened to the bumper.

Ø The front tiedown hook is

designed only for lashing the
vehicle during overseas transport.
Do not use the front tiedown hook
for any other use such as
transporting the vehicle on trucks
or railway.

In Case of an Emergency

Emergency Towing

7-27

Maintenance and Care

How to keep your Mazda in top condition.

Introduction .................................................................................. 8-2

Introduction ............................................................................... 8-2

Scheduled Maintenance ................................................................ 8-4

Scheduled Maintenance (USA, Canada, and Puerto Rico) ....... 8-4
Scheduled Maintenance (Mexico) ............................................. 8-9

Owner Maintenance ................................................................... 8-16

Owner Maintenance Schedule ................................................ 8-16
Owner Maintenance Precautions ............................................. 8-17
Engine Compartment Overview .............................................. 8-19
Engine Oil ............................................................................... 8-21
Engine Coolant ....................................................................... 8-25
Brake/Clutch Fluid .................................................................. 8-27
Power Steering Fluid ............................................................... 8-27
Automatic Transaxle Fluid (ATF)

........................................ 8-28

Washer Fluid ........................................................................... 8-29
Body Lubrication .................................................................... 8-30
Wiper Blades ........................................................................... 8-31
Battery ..................................................................................... 8-35
Tires ........................................................................................ 8-39
Light Bulbs ............................................................................. 8-46
Fuses ....................................................................................... 8-58

Appearance Care ........................................................................ 8-65

How to Minimize Environmental Paint Damage .................... 8-65
Exterior Care ........................................................................... 8-67
Interior Care ............................................................................ 8-71

8-1

Some models.

Introduction

Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.

If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Mazda Dealer.

To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in
this manual. As part of this you must keep your maintenance records, receipts, repair orders
and any other documents as evidence this maintenance was performed. You must present
these documents, should any warranty coverage disagreement occur. Failure to do so can
result in your warranty being voided either in whole or in part.

This evidence may consist of the following:

The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.

Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.

For self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany
this statement.

NOTE

If you elect to perform maintenance yourself or have your vehicle serviced at a location other than an
Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials must meet Mazda
standards for durability and performance as described in this manual.

Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.

8-2

Maintenance and Care

Introduction

Scheduled Maintenance (USA, Canada, and Puerto Rico)

Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.

Repeated short-distance driving

Driving in dusty conditions

Driving with extended use of brakes

Driving in areas where salt or other corrosive materials are used

Driving on rough or muddy roads

Extended periods of idling or low-speed operation

Driving for long periods in cold temperatures or extremely humid climates

Driving in extremely hot conditions

Driving in mountainous conditions continually

If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).

NOTE

After the prescribed period, continue to follow the described maintenance at the recommended
intervals.

8-4

Maintenance and Care

Scheduled Maintenance

qSchedule 1

Maintenance Interval

Number of months or kilometers (miles), whichever comes first

Months

×1000 km

×1000 miles

7.5

22.5

37.5

52.5

ENGINE

Engine valve clearance

Audibly inspect every 120,000 km (75,000 miles), if noisy,

adjust

Drive belts

Engine oil

Engine oil filter

COOLING SYSTEM

Engine coolant

FL22 type

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years

Others

Replace at first 96,000 km (60,000 miles) or 4 years; after that,

every 2 years

FUEL SYSTEM

Air filter

Fuel lines and hoses

Hoses and tubes for emission

IGNITION SYSTEM

Spark plugs

Replace every 120,000 km (75,000 miles)

CHASSIS and BODY

Brake lines, hoses and connections

Disc brakes

Tire (Rotation)

Rotate every 12,000 km (7,500 miles)

Steering operation and linkages

Front and rear suspension, ball joints and wheel
bearing axial play

Driveshaft dust boots

Bolts and nuts on chassis and body

Exhaust system and heat shields

Inspect every 72,000 km (45,000 miles) or 5 years

All locks and hinges

Maintenance and Care

Scheduled Maintenance

8-5

Maintenance Interval

Number of months or kilometers (miles), whichever comes first

Months

×1000 km

×1000 miles

7.5

22.5

37.5

52.5

AIR CONDITIONER SYSTEM

Cabin air filter

Chart symbols:

I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
T: Tighten

Remarks:

*1 Use FL22 type coolant in vehicles with the inscription

“FL22” on the radiator cap itself or the surrounding

area. Use FL22 when replacing the coolant.

*2 According to state/provincial and federal regulations, failure to perform maintenance on these items will not

void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long-term reliability.

8-6

Maintenance and Care

Scheduled Maintenance

qSchedule 2

Maintenance Interval

Number of months or kilometers (miles), whichever comes first

Months

×1000 km

×1000 miles

ENGINE

Engine valve clearance

Audibly inspect every 120,000 km (75,000 miles), if noisy,

adjust

Drive belts

Engine oil

Puerto Rico

Replace every 5,000 km (3,000 miles) or 3 months

Others

Engine oil filter

COOLING SYSTEM

Engine coolant

FL22 type

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years

Others

Replace at first 96,000 km (60,000 miles) or 4 years; after that,

every 2 years

Engine coolant level

FUEL SYSTEM

Air filter

Puerto Rico

Others

Fuel lines and hoses

Hoses and tubes for emission

IGNITION SYSTEM

Spark plugs (Except MZR 2.3 DISI Turbo)

Replace every 120,000 km (75,000 miles)

Spark plugs
(for MZR 2.3 DISI Turbo)

USA

Replace every 96,000 km (60,000 miles)

Others

Replace every 120,000 km (75,000 miles)

ELECTRICAL SYSTEM

Function of all lights

Maintenance and Care

Scheduled Maintenance

8-7

Mazda Mazdaspeed 3 (2013 year). Instruction - part 29
