Cruise Control

With cruise control, you can set and
automatically maintain any speed of more
than about 32 km/h (20 mph).

WARNING

Do not use the cruise control under the
following conditions:

Using the cruise control under the
following conditions is dangerous
and could result in loss of vehicle
control.

Ø Hilly terrain

Ø Steep inclines

Ø Heavy or unsteady traffic

Ø Slippery or winding roads

Ø Similar restrictions that require

inconsistent speed

qCruise Main Indicator Light

(Amber)/Cruise Set Indicator
Light (Green)

The indicator light has two colors.

Cruise Main Indicator Light (Amber)

The indicator light illuminates amber
when the ON switch is pressed and the
cruise control system is activated.

Cruise Set Indicator Light (Green)

The indicator light illuminates green when
a cruising speed has been set.

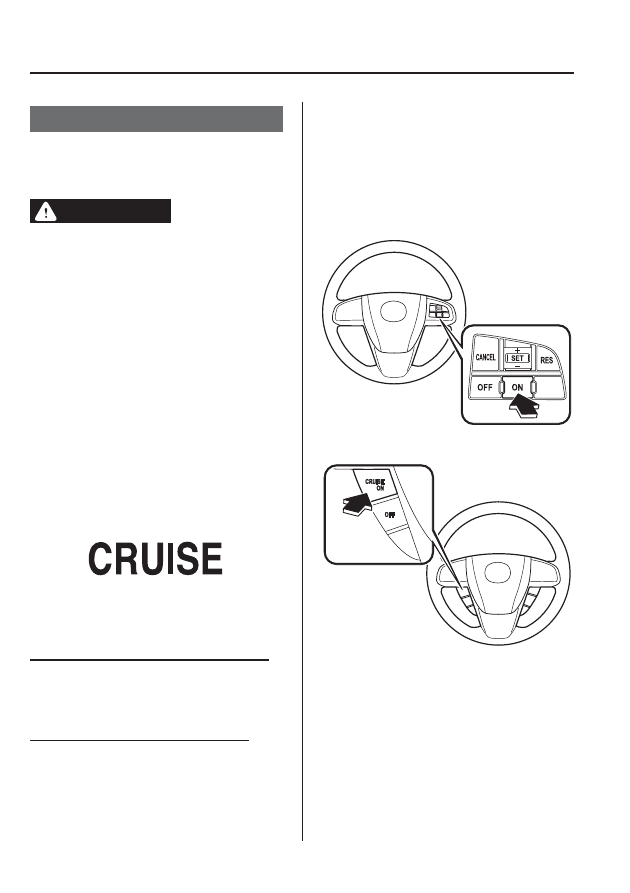

qActivation/Deactivation

To activate the system, press the ON
switch.

To deactivate the system, press the OFF
switch.
(Type A)

(Type B)

5-22

Driving Your Mazda

Some models.

Starting and Driving

WARNING

Always turn off the cruise control
system when it is not in use:

Leaving the cruise control system in
an activation-ready state while the
cruise control is not in use is
dangerous as the cruise control could
unexpectedly activate if the
activation button is accidentally
pressed, and result in loss of vehicle
control and an accident.

qTo Set Speed

Type A

1. Activate the cruise control system by

pressing the ON switch.

2. Accelerate to the desired speed, which

must be more than 32 km/h (20 mph).

3. Set the cruise control by pressing the

cruise control SET

/SET - switch up

or down at the desired speed. The
cruise control is set at the moment the
cruise control SET

/SET - switch is

pressed up or down. Release the
accelerator pedal simultaneously.

Cruise control
switch

NOTE

Release the cruise control switch at the
desired speed, otherwise the speed will
continue increasing while the switch is
pressed up, and continue decreasing while
it is pressed down (except when the
accelerator pedal is depressed).

On a steep grade, the vehicle may
momentarily slow down while ascending,
or speed up while descending.

Cruise control will turn off if the vehicle
speed decreases below 27 km/h (17 mph)
when cruise is activated, such as when
climbing a steep grade.

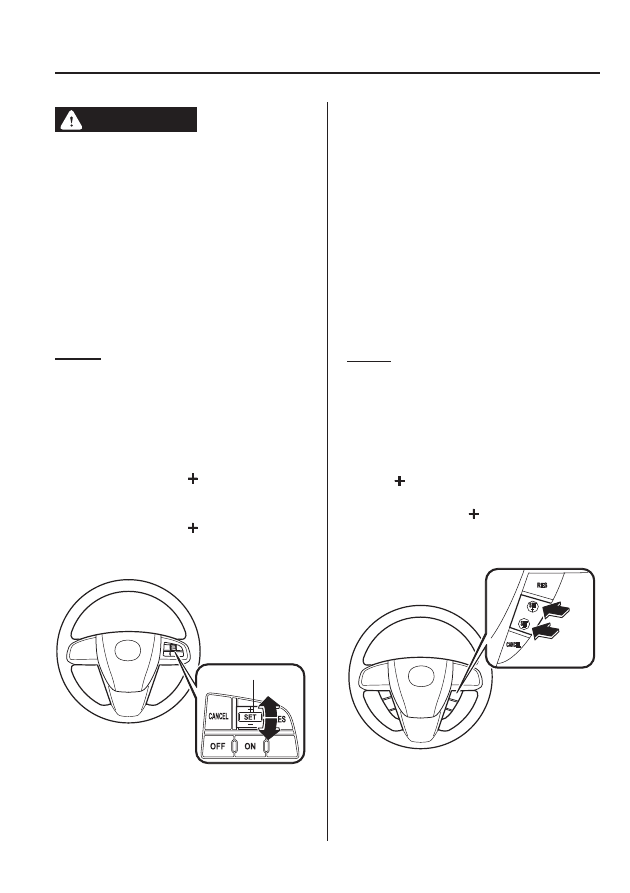

Type B

1. Activate the cruise control system by

pressing the CRUISE ON switch.

2. Accelerate to the desired speed, which

must be more than 32 km/h (20 mph).

3. Set the cruise control by pressing the

SET

or SET - switch at the desired

speed. The cruise control is set at the
moment the SET

or SET - switch is

pressed. Release the accelerator pedal
simultaneously.

Driving Your Mazda

Starting and Driving

5-23

NOTE

Release the SET

or SET - switch at the

desired speed, otherwise the speed will
continue increasing while the SET
switch is pressed and held, and continue
decreasing while the SET - switch is pressed
and held (except when the accelerator
pedal is depressed).

On a steep grade, the vehicle may
momentarily slow down while ascending,
or speed up while descending.

Cruise control will turn off if the vehicle
speed decreases below 27 km/h (17 mph)
when cruise is activated, such as when
climbing a steep grade.

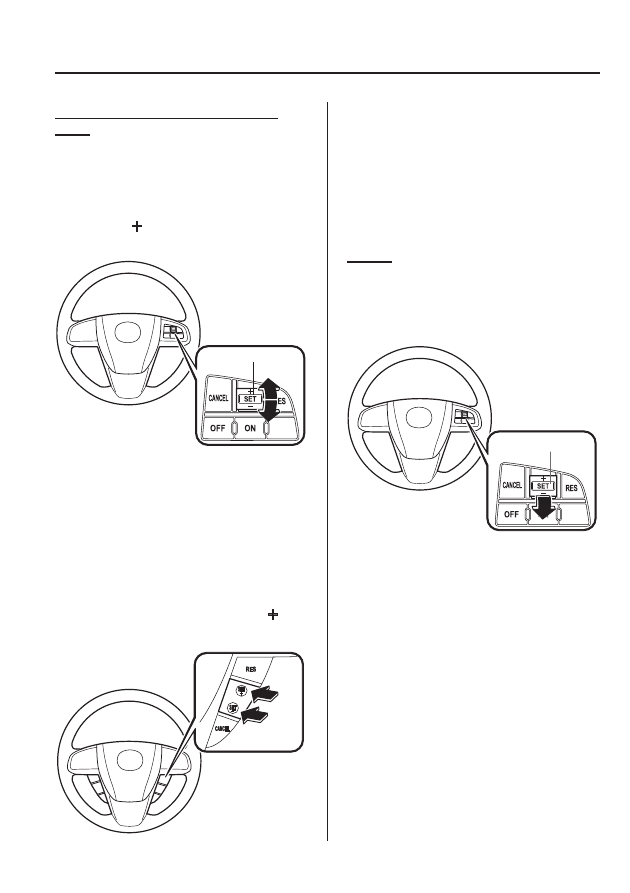

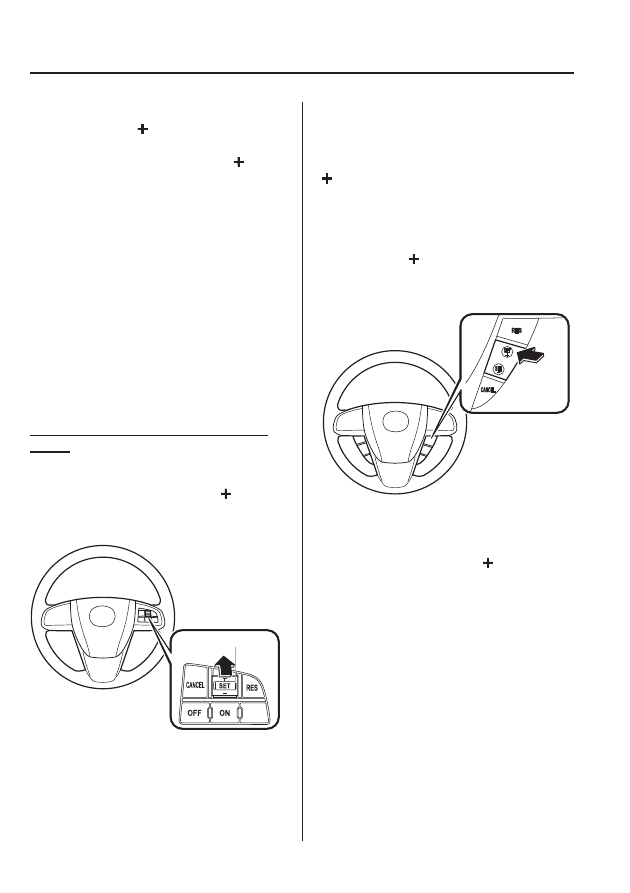

qTo Increase Cruising Speed

Follow either of these procedures.

To increase speed using cruise control
switch

Type A

Press up the cruise control SET

switch

and hold it. Your vehicle will accelerate.
Release the switch at the speed you want.

Cruise control
switch

Your vehicle has a tap-up feature that
allows you to increase your current speed
in increments of 1.6 km/h (1 mph) by a
momentary tap of the cruise control SET

switch. Multiple taps will increase

your vehicle speed 1.6 km/h (1 mph) for
each tap.

Type B

Press the SET

switch and hold it. Your

vehicle will accelerate.
Release the switch at the speed you want.

Your vehicle has a tap-up feature that
allows you to increase your current speed
in increments of 1.6 km/h (1 mph) by a
momentary tap of the SET

switch.

Multiple taps will increase your vehicle
speed 1.6 km/h (1 mph) for each tap.

5-24

Driving Your Mazda

Starting and Driving

To increase speed using accelerator
pedal

Type A

Depress the accelerator pedal to accelerate
to the desired speed.
Press down or press up on the cruise
control SET

/SET - switch and release

it immediately.

Cruise control
switch

NOTE

Accelerate if you want to speed up temporarily
when the cruise control is on. Greater speed
will not interfere with or change the set speed.
Take your foot off the accelerator to return to
the set speed.

Type B

Depress the accelerator pedal to accelerate
to the desired speed. Press the SET

SET - switch and release it immediately.

NOTE

qTo Decrease Cruising Speed

Type A

Press down the cruise control SET -
switch and hold it. The vehicle will
gradually slow.
Release the switch at the speed you want.

Cruise control
switch

Your vehicle has a tap-down feature that
allows you to decrease your current speed
in decrements of 1.6 km/h (1 mph) by a
momentary tap of the cruise control SET -
switch. Multiple taps will decrease your
vehicle speed 1.6 km/h (1 mph) for each
tap.

Driving Your Mazda

Starting and Driving

5-25

Type B

Press the SET - switch and hold it. The
vehicle will gradually slow.
Release the switch at the speed you want.

Your vehicle has a tap-down feature that
allows you to decrease your current speed
in decrements of 1.6 km/h (1 mph) by a
momentary tap of the SET- switch.
Multiple taps will decrease your vehicle
speed 1.6 km/h (1 mph) for each tap.

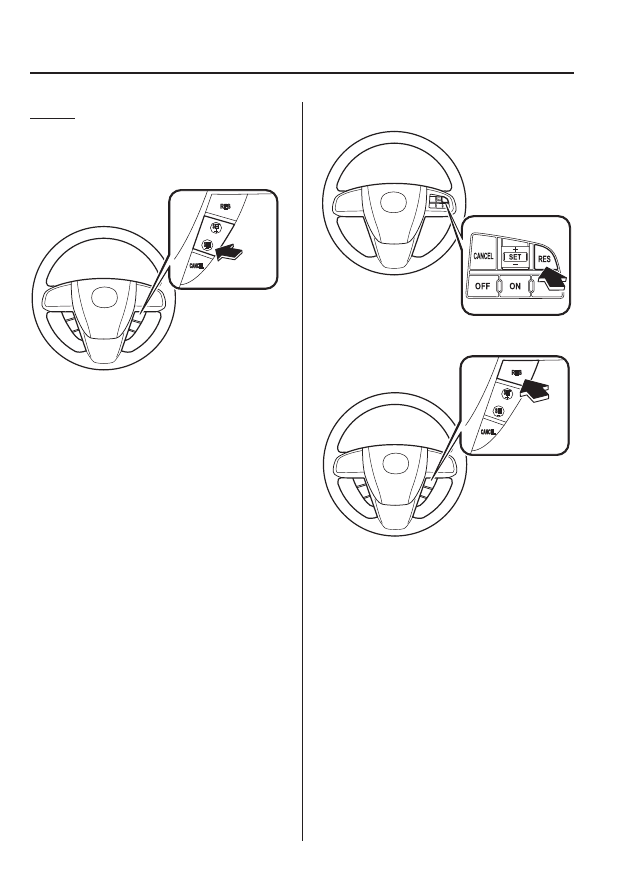

qTo Resume Cruising Speed at

More Than 32 km/h (20 mph)

If some other method besides the OFF
switch was used to cancel cruising speed
(such as applying the brake pedal) and the
system is still activated, the most recent
set speed will automatically resume when
the RES switch is pressed.
If vehicle speed is below 32 km/h (20
mph), increase the vehicle speed up to 32
km/h (20 mph) or more and press the RES
switch.

(Type A)

(Type B)

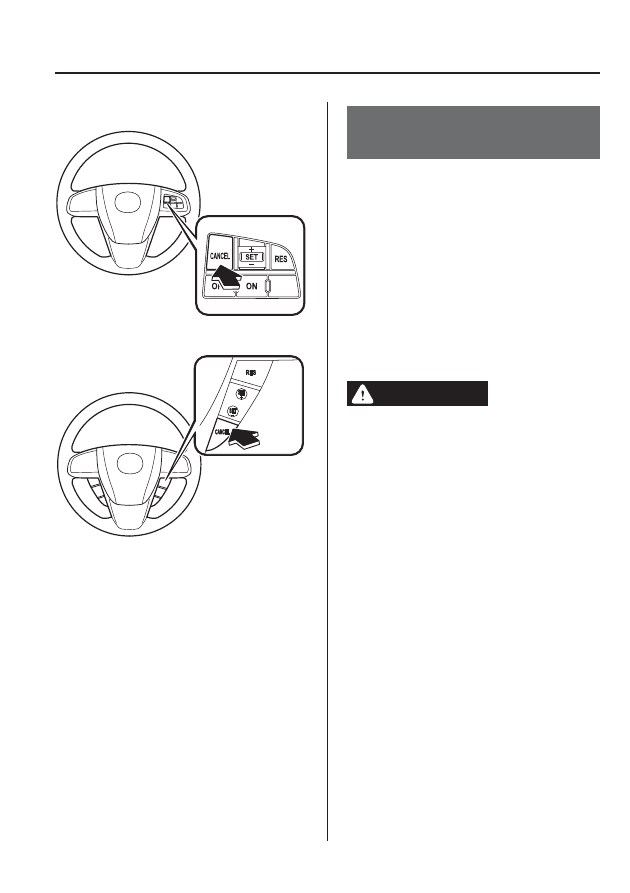

qTo Cancel

To cancel the system, use one of these
methods:

Press the OFF switch.

Slightly depress the brake pedal.

Depress the clutch pedal (Manual
transaxle only).

Press the CANCEL switch.

5-26

Driving Your Mazda

Starting and Driving

(Type A)

(Type B)

The system turns off when the ignition is
switched off.

NOTE

Cruise control will cancel at about 15 km/h (9
mph) below the preset speed (such as may
happen when climbing a long, steep grade).

Traction Control System
(TCS)

The Traction Control System (TCS)
enhances traction and safety by
controlling engine torque and braking.
When the TCS detects driving wheel
slippage, it lowers engine torque and
operates the brakes to prevent loss of
traction.

This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels,
limiting wheel spin and loss of traction.

WARNING

Do not rely on the traction control
system as a substitute for safe driving:

The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.

Use snow tires or tire chains and drive
at reduced speeds when roads are
covered with ice and/or snow:

Driving without proper traction
devices on snow and/or ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident.

NOTE

To turn off the TCS, press the DSC OFF switch
(page 5-29).

Driving Your Mazda

Starting and Driving

5-27

Some models.

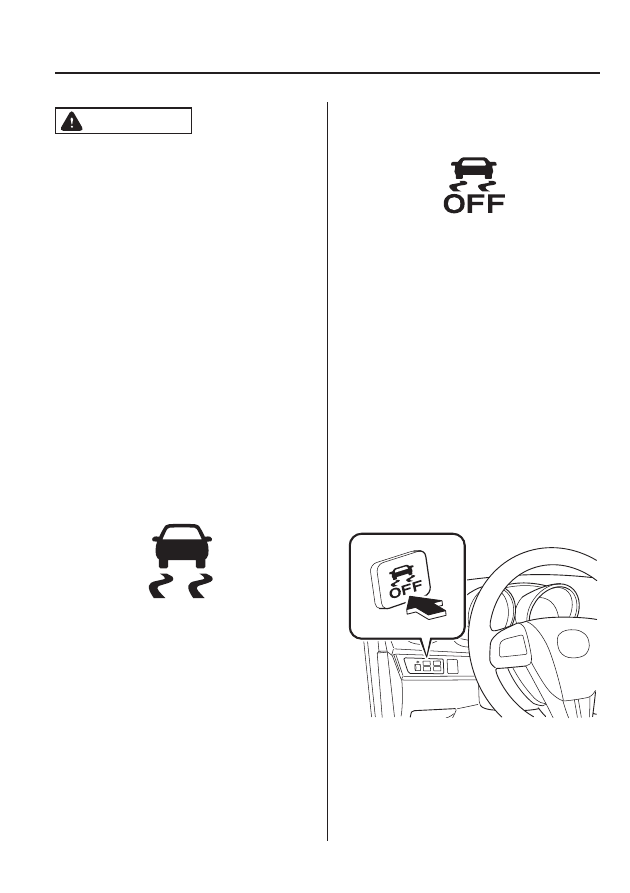

qTCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

NOTE

In addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS is
operating properly.

On slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.

Dynamic Stability Control
(DSC)

The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such
as ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.

Refer to ABS (page 5-8) and TCS (page
5-27).

DSC operation is possible at speeds
greater than 20 km/h (12 mph).

WARNING

Do not rely on the dynamic stability
control as a substitute for safe driving:

The dynamic stability control (DSC)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.

5-28

Driving Your Mazda

Some models.

Starting and Driving

CAUTION

Ø The DSC may not operate correctly

unless the following are observed:

Use tires of the correct size
specified for your Mazda on all
four wheels.

Use tires of the same
manufacturer, brand and tread
pattern on all four wheels.

Do not mix worn tires.

Ø The DSC may not operate correctly

when tire chains are used or a
temporary spare tire is installed
because the tire diameter changes.

NOTE

After switching the ignition ON, a clicking
sound may be heard behind the dashboard.
This sound is the result of the DSC system self-
check operation and does not indicate an
abnormality.

qTCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

qDSC OFF Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the DSC OFF
switch is pressed and TCS/DSC is
switched off (page 5-29).

If the light stays on when the TCS/DSC is
not switched off, take your vehicle to an
Authorized Mazda Dealer. The dynamic
stability control may have a malfunction.

qDSC OFF Switch

Press the DSC OFF switch to turn off the
TCS/DSC. The DSC OFF indicator light
illuminates.

Press the switch again to turn the TCS/
DSC back on. The DSC OFF indicator
light turns off.

Driving Your Mazda

Starting and Driving

5-29

NOTE

When DSC is on and you attempt to free the
vehicle when it is stuck, or drive it out of
freshly fallen snow, the TCS (part of the
DSC system) will activate. Depressing the
accelerator will not increase engine power
and freeing the vehicle may be difficult.
When this happens, turn off the TCS/DSC.

If the TCS/DSC is off when the engine is
turned off, it automatically activates when
the ignition is switched ON.

Leaving the TCS/DSC on will provide the
best stability.

The DSC only operates when the brake
pedal is depressed while driving and it is
determined that operation of the DSC is
required, even if the DSC OFF indicator
light illuminates by pressing the DSC OFF
switch.

The TCS/DSC can be cancelled. By
pressing the DSC OFF switch for more
than five seconds, the DSC OFF indicator
light illuminates, and the TCS/DSC is
cancelled.
The TCS/DSC remains cancelled until the
ignition is switched off. When the ignition is
switched from OFF to ON, the system turns
back on automatically.

5-30

Driving Your Mazda

Starting and Driving

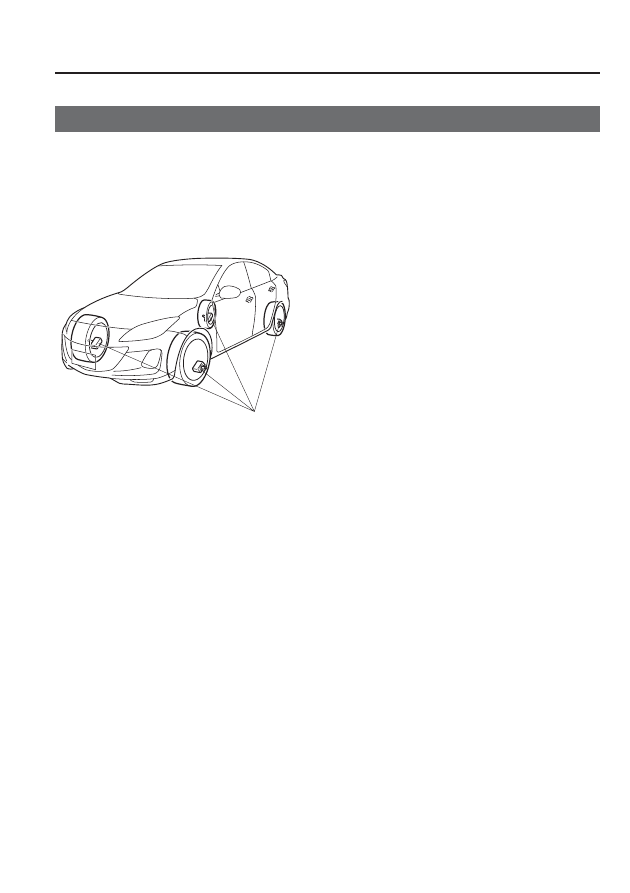

Tire Pressure Monitoring System

The tire pressure monitoring system (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument panel and by the warning beep sound.

The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.

Tire pressure sensors

NOTE

When the ambient temperature is low due to seasonal changes, tire temperatures are also lower.
When the tire temperature decreases, the air pressure decreases as well. The TPMS warning light
may illuminate more frequently. Visually inspect the tires daily before driving, and check tire
pressures monthly with a tire pressure gauge. When checking tire pressures, use of a digital tire
pressure gauge is recommended.

TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.

Driving Your Mazda

Starting and Driving

5-31

Some models.

CAUTION

Ø Each tire, including the spare (if provided), should be checked monthly when cold

and inflated to the inflation pressure recommended by the vehicle manufacturer
on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or tire inflation
pressure label, you should determine the proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS) that illuminates a low tire pressure telltale when one
or more of your tires is significantly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Underinflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it
is the driver's responsibility to maintain correct tire pressure, even if underinflation
has not reached the level to trigger illumination of the TPMS low tire pressure
telltale.

Ø Your vehicle has also been equipped with a TPMS malfunction indicator to

indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale.
When the system detects a malfunction, the telltale will flash for approximately
one minute and then remain continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS from functioning properly. Always
check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow
the TPMS to continue to function properly.

Ø To avoid false readings, the system samples for a little while before indicating a

problem. As a result it will not instantaneously register a rapid tire deflation or
blow out.

NOTE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

5-32

Driving Your Mazda

Starting and Driving

qTire Pressure Monitoring System

Warning Light

This warning light illuminates for a few
seconds when the ignition is switched
ON.

Thereafter, the warning light illuminates
and a beep is heard when tire pressure is
too low in one or more tires, and flashes
when there is a system malfunction.

WARNING

If the tire pressure monitoring system
warning light illuminates or flashes, or
the tire pressure warning beep sound is
heard, decrease vehicle speed
immediately and avoid sudden
maneuvering and braking:

If the tire pressure monitoring system
warning light illuminates or flashes,
or the tire pressure warning beep
sound is heard, it is dangerous to
drive the vehicle at high speeds, or
perform sudden maneuvering or
braking. Vehicle drivability could
worsen and result in an accident.
To determine if you have a slow leak
or a flat, pull over to a safe position
where you can check the visual
condition of the tire and determine if
you have enough air to proceed to a
place where air may be added and
the system monitored again by an
Authorized Mazda Dealer or a tire
repair station.

Do not ignore the TPMS Warning Light:

Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious
situation that could lead to tire
failure and a dangerous accident.

Warning light illuminates/Warning
beep sounds

When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low in one or
more tires.

Driving Your Mazda

Starting and Driving

5-33

Adjust the tire pressure to the correct tire
pressure. Refer to the specification charts
(page 10-12).

CAUTION

When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.

NOTE

Perform tire pressure adjustment when the
tires are cold. Tire pressure will vary
according to the tire temperature, therefore
let the vehicle stand for 1 hour or only drive
it 1.6 km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold inflation
pressure, the TPMS warning light/beep may
turn on after the tires cool and pressure
drops below specification.
Also, an illuminated TPMS warning light,
resulting from the tire air pressure dropping
due to cold ambient temperature, may turn
off if the ambient temperature rises. In this
case, it will also be necessary to adjust the
tire air pressures. If the TPMS warning
light illuminates due to a drop in tire air
pressure, make sure to check and adjust the
tire air pressures.

After adjusting the tire air pressures, it may
require some time for the TPMS warning
light to turn off. If the TPMS warning light
remains illuminated, drive the vehicle at a
speed of at least 25 km/h (16 mph) for 10
minutes, and then verify that it turns off.

Tires lose air naturally over time and the
TPMS cannot tell if the tires are getting too
soft over time or you have a flat. However,
when you find one low tire in a set of four-
that is an indication of trouble; you should
have someone drive the vehicle slowly
forward so you can inspect any low tire for
cuts and any metal objects sticking through
tread or sidewall. Put a few drops of water
in the valve stem to see if it bubbles
indicating a bad valve. Leaks need to be
addressed by more than simply refilling the
trouble tire as leaks are dangerous - take it
to an Authorized Mazda Dealer which has
all the equipment to fix tires, TPMS systems
and order the best replacement tire for your
vehicle.

5-34

Driving Your Mazda

Starting and Driving

If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture. Replace the
punctured tire with the temporary spare
tire (page 7-9).

NOTE

A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used.

Warning light flashes

When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.

qSystem Error Activation

When the TPMS warning light flashes,
there may be a system malfunction.
Consult an Authorized Mazda Dealer.
A system error activation may occur in
the following cases:

When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.

When using the following devices in
the vehicle that may cause radio
interference with the receiver unit.

A digital device such as a personal
computer.

A current converter device such as a
DC-AC converter.

When excess snow or ice adheres to
the vehicle, especially around the
wheels.

When the tire pressure sensor batteries
are exhausted.

When using a wheel with no tire
pressure sensor installed.

When using tires with steel wire
reinforcement in the side walls.

When using tire chains.

qTires and Wheels

CAUTION

When inspecting or adjusting the tire
air pressures, do not apply excessive
force to the stem part of the wheel
unit. The stem part could be
damaged.

Changing tires and wheels

The following procedure allows the
TPMS to recognize a tire pressure sensor's
unique ID signal code whenever tires or
wheels are changed, such as changing to
and from winter tires.

NOTE

Each tire pressure sensor has a unique ID
signal code. The signal code must be
registered with the TPMS before it can work.
The easiest way to do it is to have an
Authorized Mazda Dealer change your tire and
complete ID signal code registration.

When having tires changed at an
Authorized Mazda Dealer

When an Authorized Mazda Dealer
changes your vehicle's tires, they will
complete the tire pressure sensor ID signal
code registration.

When changing tires yourself

If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.

1. After tires have been changed, switch

the ignition ON, then back to ACC or
OFF.

2. Wait for about 15 minutes.

Driving Your Mazda

Starting and Driving

5-35

3. After about 15 minutes, drive the

vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.

NOTE

If the vehicle is driven within about 15 minutes
of changing tires, the tire pressure monitoring
system warning light will flash because the
sensor ID signal code would not have been
registered. If this happens, park the vehicle for
about 15 minutes, after which the sensor ID
signal code will register upon driving the
vehicle for 10 minutes.

Replacing tires and wheels

CAUTION

Ø When replacing/repairing the tires

or wheels or both, have the work
done by an Authorized Mazda
Dealer, or the tire pressure sensors
may be damaged.

Ø The wheels equipped on your

Mazda are specially designed for
installation of the tire pressure
sensors. Do not use non-genuine
wheels, otherwise it may not be
possible to install the tire pressure
sensors.

Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installations are possible.

The tire pressure sensor is removed
from the old wheel and installed to the
new one.

The same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.

A new tire pressure sensor is installed
to a new wheel.

NOTE

The tire pressure sensor ID signal code
must be registered when a new tire pressure
sensor is purchased. For purchase of a tire
pressure sensor and registration of the tire
pressure sensor ID signal code, consult an
Authorized Mazda Dealer.

When reinstalling a previously removed tire
pressure sensor to a wheel, replace the
grommet (seal between valve body/sensor
and wheel) for the tire pressure sensor.

5-36

Driving Your Mazda

Starting and Driving

Blind Spot Monitoring (BSM) System

The Blind Spot Monitoring (BSM) system is designed to assist the driver by monitoring
blind spots on both sides of the vehicle to the rear in certain situations such as when
changing lanes on roads and freeways.

The BSM system monitors the detection areas on both sides of the vehicle to the rear when
the vehicle speed is about 32 km/h (20 mph) or more, and notifies the driver of vehicles in
the detection area by illuminating the BSM warning light.
If the turn signal lever is operated in the direction the BSM warning light is illuminated, the
system warns the driver of the vehicle in the detection area with a beep sound.

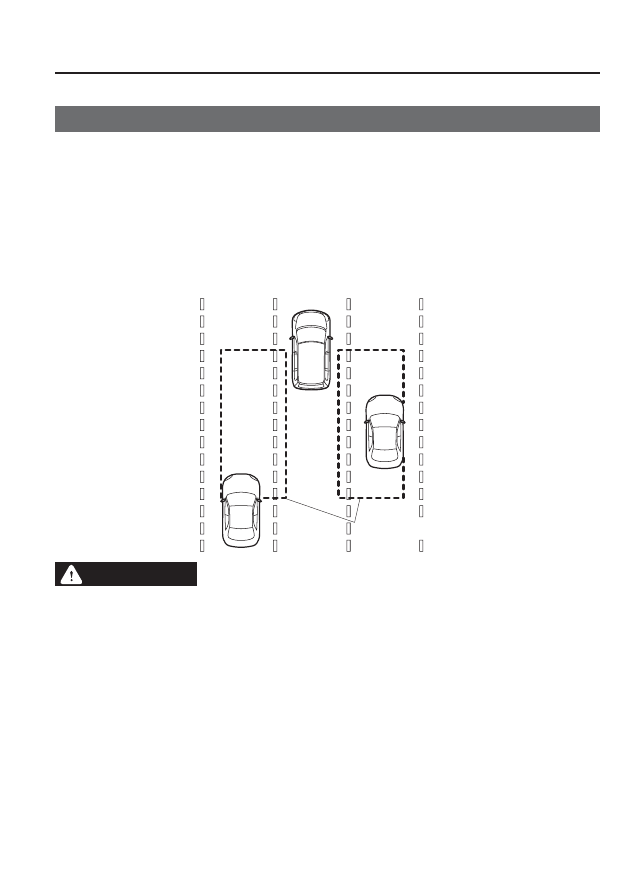

Detection areas

WARNING

Do not rely completely on the BSM system and be sure to look over your shoulder
before changing lanes:

The BSM system can assist the driver in confirming the safety of the surroundings
but is not a complete substitute. The driver is responsible for assuring lane changes
and other maneuvers. Always pay attention to the direction in which the vehicle is
traveling and the vehicle's surroundings.

NOTE

The BSM system does not operate when the vehicle speed is lower than about 32 km/h (20 mph).

The radar sensors are equipped inside the rear bumper. (page 5-40)

The radar sensors do not detect human, animal, or static objects such as fences. In addition, the
system pauses when the selector lever is shifted to the R position. (The system resumes
automatically when the selector lever is shifted from the R position.)

Driving Your Mazda

Starting and Driving

5-37

Some models.

Mazda Mazdaspeed 3 (2013 year). Instruction - part 12
