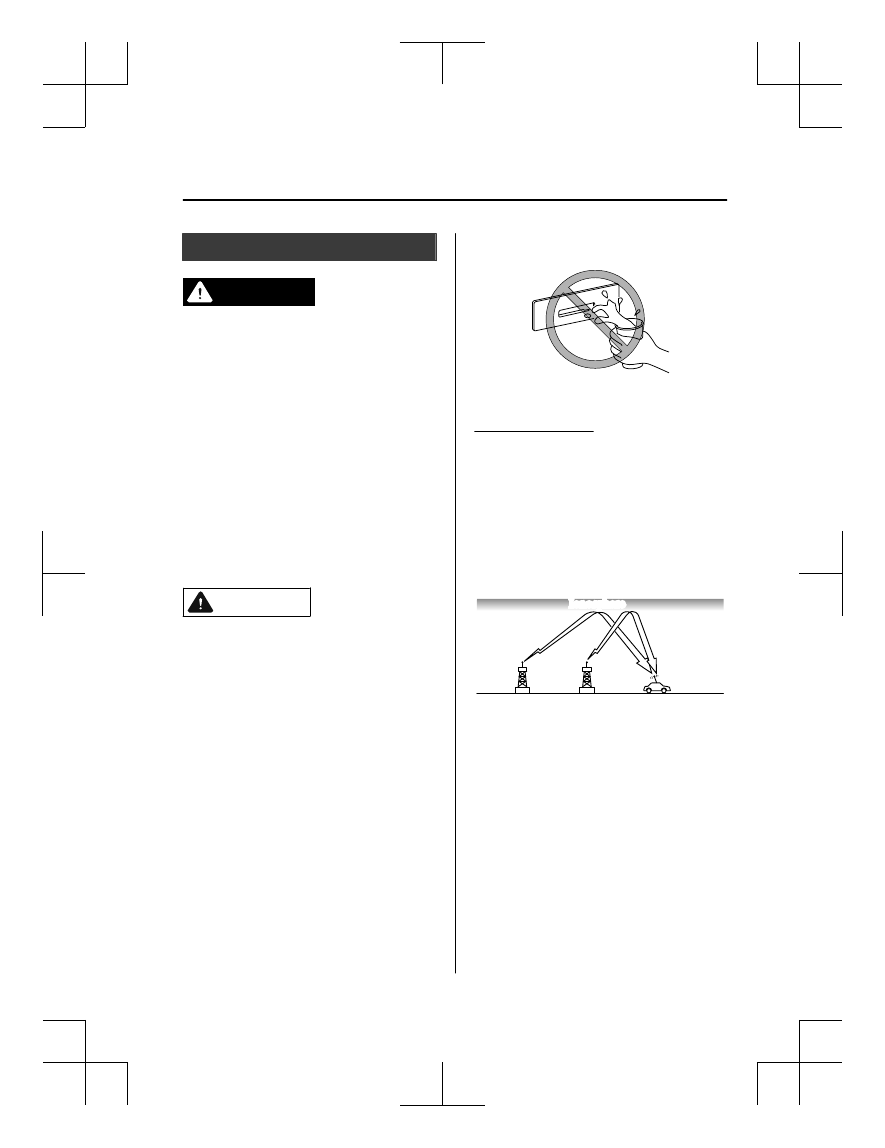

Interior Features

Audio Set

5-84

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Things You Need to Know

WARNING

Always adjust the audio while the vehicle is
stopped:
Do not adjust the audio control switches
while driving the vehicle. Adjusting the
audio while driving the vehicle is
dangerous as it could distract your
attention from the vehicle operation which
could lead to a serious accident.
Even if the audio control switches are
equipped on the steering wheel, learn to
use the switches without looking down at
them so that you can keep your maximum
attention on the road while driving the
vehicle.

CAUTION

For the purposes of safe driving, adjust the
audio volume to a level that allows you to
hear sounds outside of the vehicle
including car horns and particularly
emergency vehicle sirens.

NOTE



To prevent the battery from being
discharged, do not leave the audio
system on for a long period of time when
the engine is not running.



If a cellular phone or CB radio is used
in or near the vehicle, it could cause
noise to occur from the audio system,
however, this does not indicate that the
system has been damaged.

Do not spill any liquid on the audio
system.

▼ Radio Reception

AM characteristics

AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere.
Therefore, they can reach longer distances
than FM signals.
Because of this, 2 stations may sometimes
be picked up on the same frequency at the
same time.

Station 2

Station 1

Ionosphere

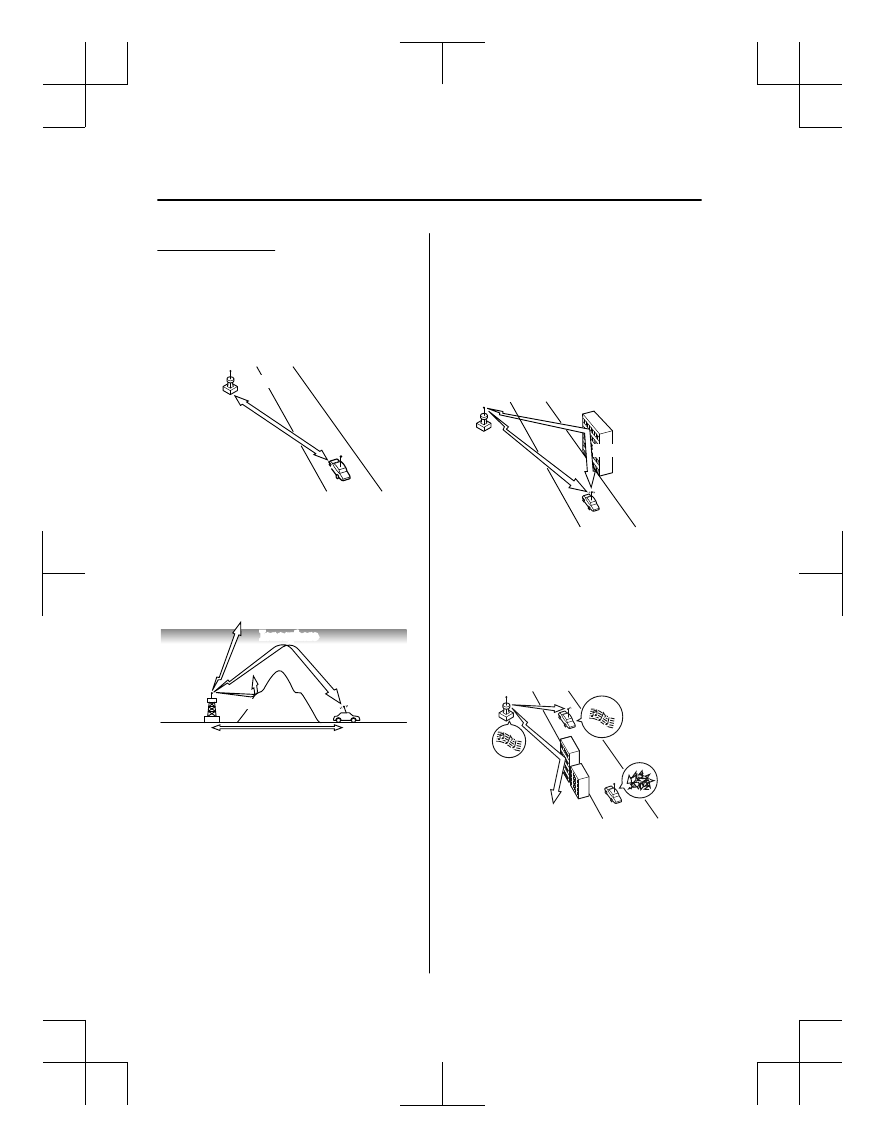

Interior Features

Appendix

5-85

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

FM characteristics

An FM broadcast range is usually about
40―50 km (25―30 miles) from the
source. Because of extra coding needed to
break the sound into 2 channels, stereo FM
has even less range than monaural
(non-stereo) FM.

FM Station

40—50km
(25—30 miles)

Signals from an FM transmitter are similar
to beams of light because they do not bend
around corners, but they do reflect. Unlike
AM signals, FM signals cannot travel
beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.

AM wave

FM wave

100—200 km (60—120 miles)

Ionosphere

Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days may
provide better reception than clear days.

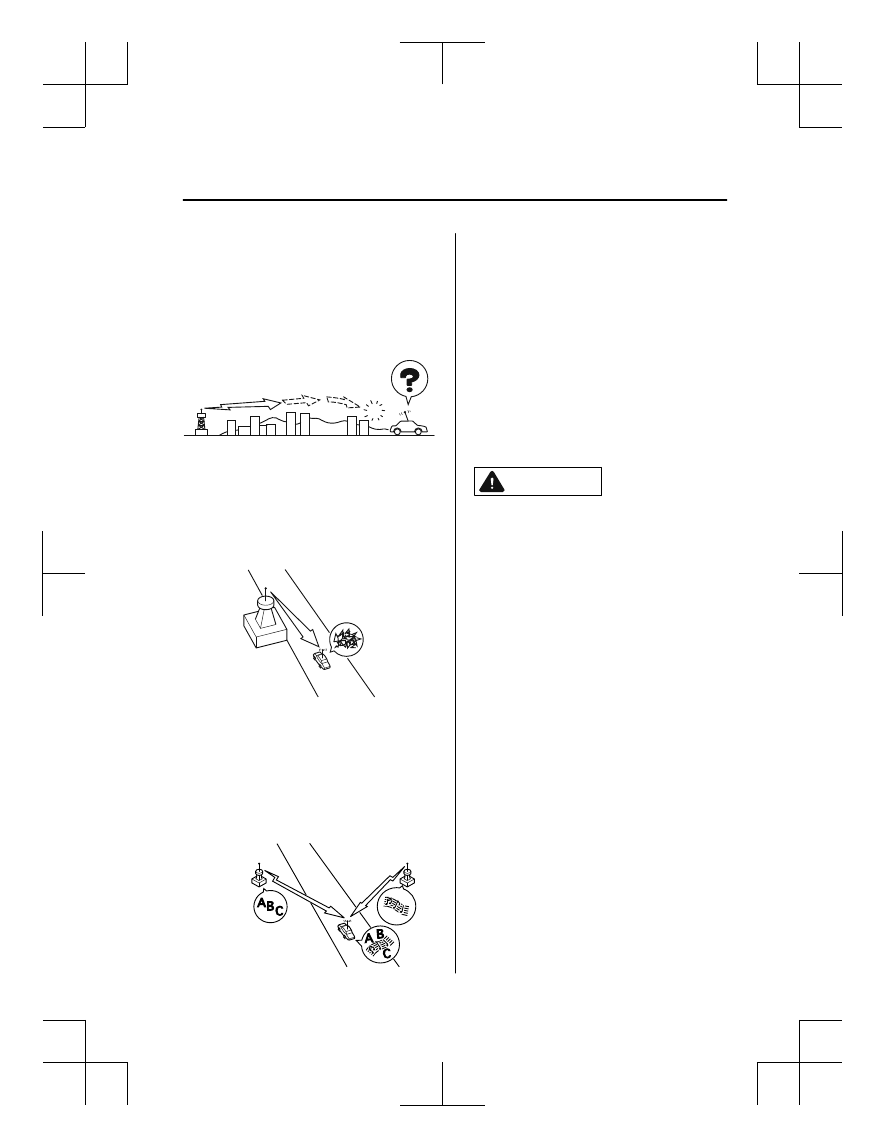

Multipath noise

Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.

Reflected wave

Direct

Flutter/Skip noise

Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.

Interior Features

Appendix

5-86

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Weak signal noise

In suburban areas, broadcast signals
become weak because of distance from the
transmitter. Reception in such fringe areas
is characterized by sound breakup.

Strong signal noise

This occurs very close to a transmitter
tower. The broadcast signals are extremely
strong, so the result is noise and sound
breakup at the radio receiver.

Station drift noise

When a vehicle reaches the area of 2
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.

Station 2
88.3 MHz

Station 1
88.1 MHz

▼ Operating Tips for MP3

MP3 stands for MPEG Audio Layer 3,
which is standardized voice compression
established by the ISO

working group

(MPEG).
Use of MP3 allows for audio data to be
compressed to approximately a tenth of
the source data size.
This unit plays files with the extension
(.mp3) as MP3 files.

1 International Organization for

Standardization

CAUTION

Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.

NOTE
Supply of this product only conveys a
license for private, non-commercial use
and does not convey a license nor imply
any right to use this product in any
commercial (i.e. revenue-generating) real
time broadcasting (terrestrial, satellite,
cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems,
such as pay-audio or audio-on-demand
applications. An independent license for
such use is required. For details, please
visit http://www.mp3licensing.com.



When naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.



The number of characters which can be
displayed is restricted.

Interior Features

Appendix

5-87

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Operating Tips for WMA

WMA is short for Windows Media

Audio and is the audio compression
format used by Microsoft

Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.wma) as WMA files.

1 Windows Media and Microsoft are

registered trademarks of Microsoft
Corporation U.S. in the United States
and other countries.

CAUTION



WMA files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.



The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.wma”
to the end of the file name, and then
write it to the memory.

▼ Operating Tips for AAC

AAC stands for Advanced Audio Coding,
which is standardized voice compression
established by the ISO

working group

(MPEG). Audio data can be created and
stored at a higher compression ratio than
MP3.

This unit plays files with the extensions
(.aac/.m4a/.wav) as the AAC files.

CAUTION



AAC files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.



The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.aac”,
“.m4a”, or “.wav” to the end of the file
name, and then write it to the memory.
*1 International Organization for
Standardization

Interior Features

Appendix

5-88

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Operating Tips for OGG

OGG is the audio compression format for
Xiph. Org Foundation.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.ogg) as OGG files.

CAUTION



OGG files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.



The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.ogg”
to the end of the file name, and then
write it to the memory.

▼ Operating Tips for USB device

This unit plays audio files as follows:

Extension

Playback with this unit

.mp3

MP3

.wma

WMA

.aac

AAC

.m4a
.wav

WAV

.ogg

OGG

CAUTION

NOTE



Playback may not be possible depending
on the type and condition of the USB
flash memory even if the audio file
complies with the standard.



A copyright protected WMA/AAC file
cannot be played in this unit.



If a file name in the USB memory is too
long, it could cause operation problems
such as not being able to playback the
song.
(Recommended: Within 80 characters)



The order of the music data stored in the
device may differ from the playback
order.



To prevent loss or damage of stored
data, we recommend that you always
back up your data.



(Vehicles without USB port indicated
with )

Interior Features

Appendix

5-89

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

If a device exceeds the maximum
electric current value of 1,000 mA, it
may not operate or recharge when
connected.



(Vehicles with USB port indicated with

)

If the current consumption of the
connected device exceeds the following
current value, it may not operate or
recharge.



Apple device is connected : 2,100 mA



Device compatible with BC1.2 is
connected : 1,500 mA



Device other than the above is
connected : 500 mA



Do not pull out the USB device while in
the USB mode (only pull it out while in
FM/AM radio mode).



The device will not operate if the data is
password protected.

MP3/WMA/AAC/OGG files written under
specifications other than the indicated
specification may not play normally or
files/folder names may not display
correctly.

▼ Agreements and disclaimers related

to Apple CarPlay™

This unit is compatible with Apple
CarPlay™ which can operate an iPhone

using the vehicle's audio device.

 iPhone, Siri and Apple Music are

registered trademarks of Apple Inc.

 Apple CarPlay is trademarks of Apple

Inc.

 iOS is a trademark or registered

trademark of Cisco in the U.S. and other
countries and is used under license.

May not be compatible depending on the
model or OS version.

CAUTION

For the purposes of safety, do not

operate your iPhone

while driving.

Disconnect the iPhone

when it is not in

use. If the device is left in the cabin, it
could be damaged or the battery may
deteriorate due to the excessive
temperature or humidity inside the
cabin.

If the iPhone

battery has deteriorated, it

may not recharge or play audio even if it
is connected to this unit.

Before use, carefully read the user

instructions for the iPhone

NOTE
To prevent loss or damage of stored data,
we recommend that you always back up
your data.

▼ Operating Tips for Android™

Requires the Android Auto app on Google
Play and an Android compatible
smartphone running Android™ 5.0
Lollipop or higher.

CAUTION

For the purposes of safety, do not

operate your Android™ Smartphone
while driving.

Disconnect the Android™ Smartphone

when it is not in use. If the device is left in
the cabin, it could be damaged or the
battery may weaken due to the excessive
temperature or humidity inside the
cabin.

Interior Features

Appendix

5-90

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

If the Android™ Smartphone battery has

deteriorated, it may not recharge or play
audio even if it is connected to this unit.

Before use, carefully read the user

instructions for the Android™
Smartphone.

NOTE
To prevent loss or damage of stored data,
we recommend that you always back up
your data.

 Google, Android, Android Auto and

other related marks are trademarks of
Google LLC.

Interior Features

Appendix

5-91

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

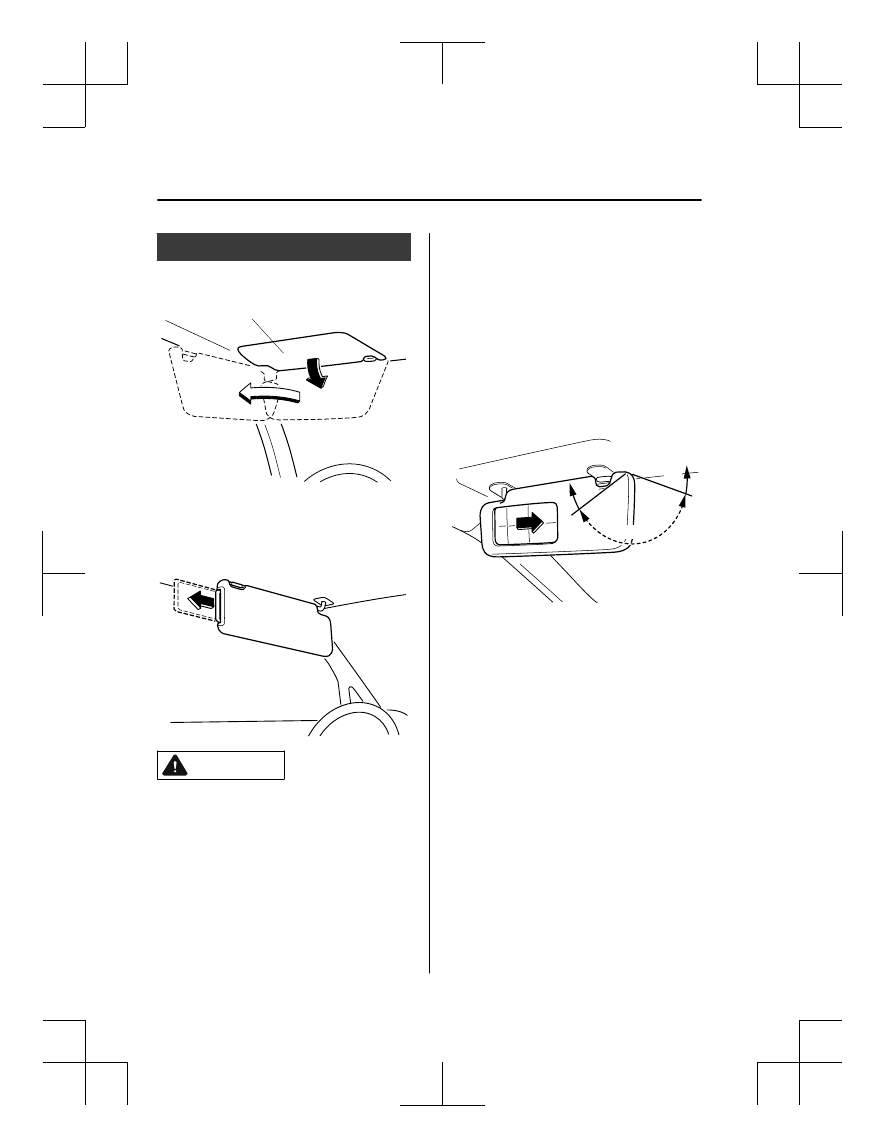

Sunvisors

When you need a sunvisor, lower it for use
in front or swing it to the side.

Sunvisor

▼ Side Extension Sunvisors

The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.

CAUTION

When moving the sunvisor, retract the visor
extender to its original position. Otherwise,
the visor extender could hit the rearview
mirror.

▼ Vanity Mirrors

To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
To prevent the battery from being
discharged, the vanity mirror will only
illuminate in the tilt range shown in the
figure.

off

Interior Features

Interior Equipment

5-92

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Interior Lights

NOTE



Do not leave the lights on for long
periods while the engine is turned off.
Otherwise the battery power could be
depleted.

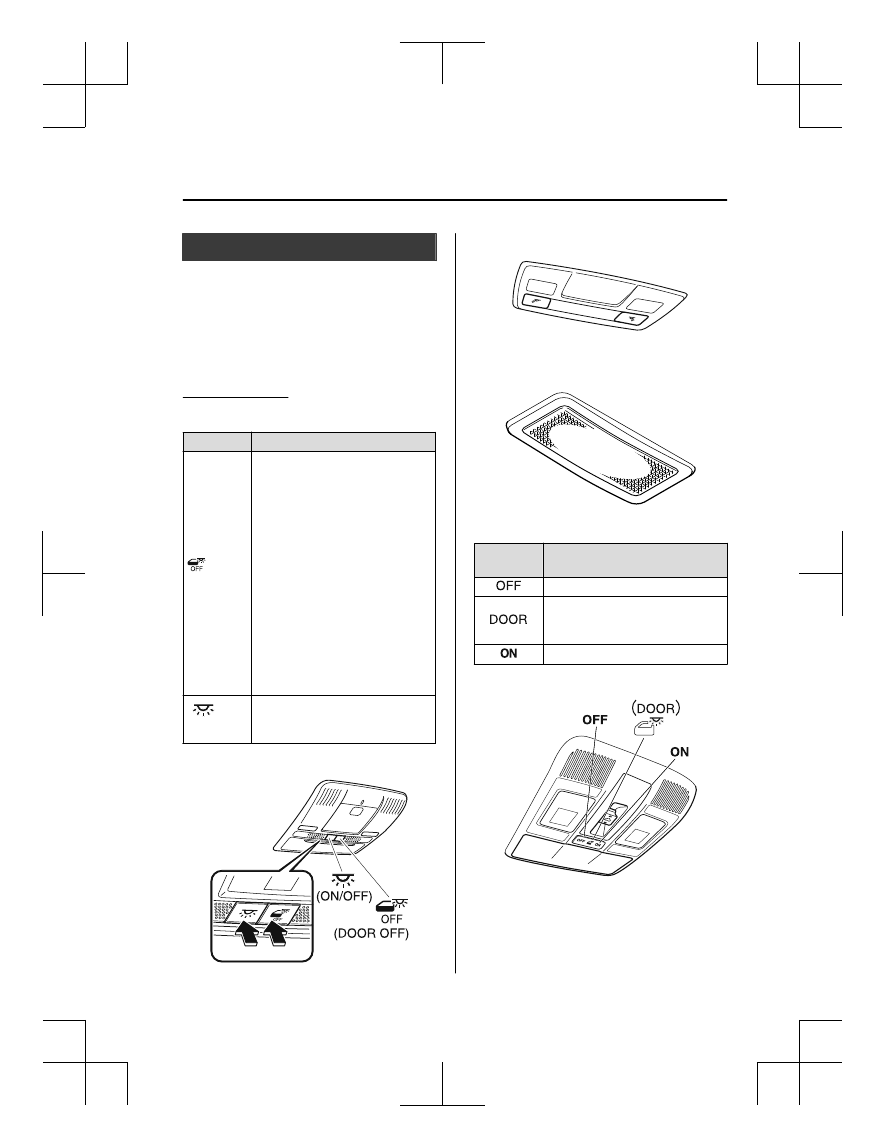

Overhead Lights

Type A

Switch

Overhead Lights

(DOOR

OFF)

The DOOR OFF switch can be
switched between the DOOR posi‐
tion and DOOR OFF position.
DOOR position



The lights turn on when any of the
doors is opened.



The lights turn on/off in conjunc‐
tion with the illuminated entry
system.

DOOR OFF position



The lights do not turn on even if
any of the doors is opened.



The lights do not turn on/off in
conjunction with the illuminated
entry system.

(ON/

OFF)

Press the switch to turn it on. Press
the switch again to turn off the
lights.

Front

Center

Rear

Type B

Switch Posi‐

tion

Overhead Lights

Light off



Light is on when any door is open



Light is on or off when the illumi‐
nated entry system is on

Light on

Front

Interior Features

5-93

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Center

Rear

NOTE
The rear overhead light and the center
map lights also turn on and off when the
front overhead light switch is operated.

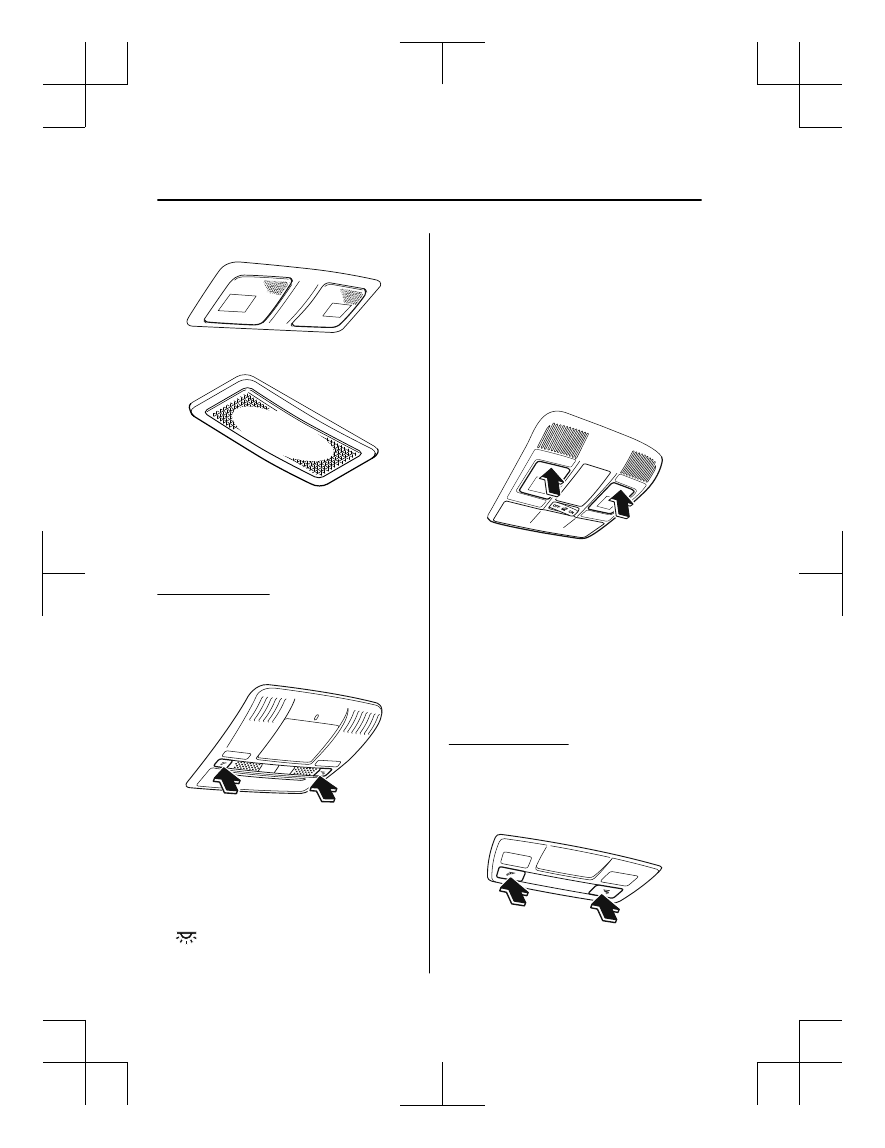

Front Map Lights

Type A

Press the switch to illuminate the front
map lights, and then press the switch again
to turn them off.

NOTE
The front map lights will not turn off even
if the switch is pressed in the following
cases:



The overhead lights turn on by
operating the overhead ON/OFF switch
(



The overhead lights turn on in
conjunction with a door opening/
closing.



The illuminated entry system is on.

Type B

When the overhead light switch is in the
door or off position, press the lens to
illuminate the front map lights, and then
press the lens again to turn them off.

NOTE
The front map lights will not turn off even
if the lens is pressed in the following
cases:



The overhead light switch is in the ON
position.



The overhead light switch is in the door
position with the door open.



The illuminated entry system is on.

Center Map Lights

Type A

Press the switch to illuminate the center
map lights, and then press the switch again
to turn them off.

Interior Features

Interior Equipment

5-94

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

NOTE



Once the center map lights have been
turned off, they will turn on and off in
conjunction with the overhead light
operation.



The center map lights will not turn off
even if the switch is pressed in the
following cases:



The overhead lights turn on by
operating the overhead ON/OFF
switch (



The overhead lights turn on in
conjunction with a door opening/
closing.



The illuminated entry system is on.

Type B

When the overhead light switch is in the
door or off position, press the lens to
illuminate a center map light, and then
press the lens again to turn it off.

NOTE



Once the center map lights have been
turned off, they will turn on and off
depending on the position to which the
overhead light is switched.



The center map lights will not turn off
even if the lens is pressed in the
following cases:



The overhead light switch is ON.



The overhead light switch is in the
door position with the door open.



The illuminated entry system is on.

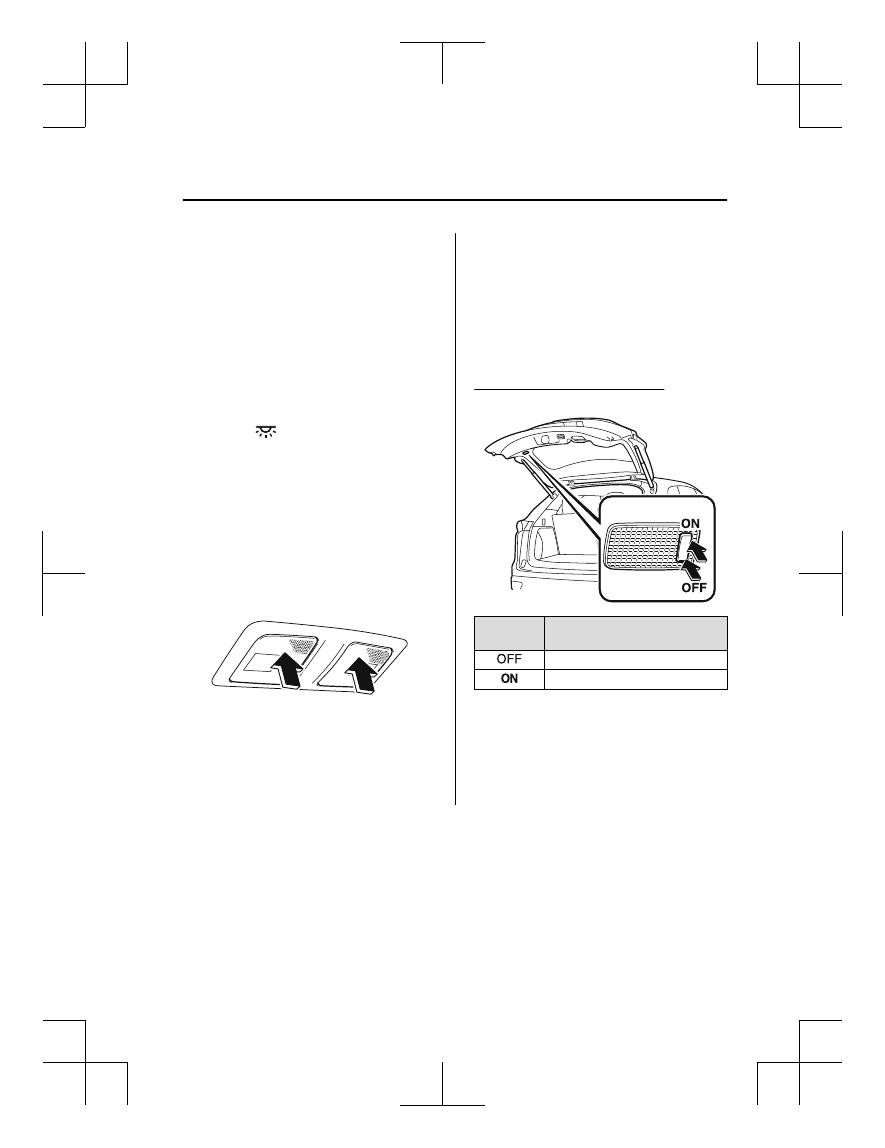

Luggage Compartment Lights

Switch Posi‐

tion

Luggage Compartment Light

Light off
Light on when the liftgate is open

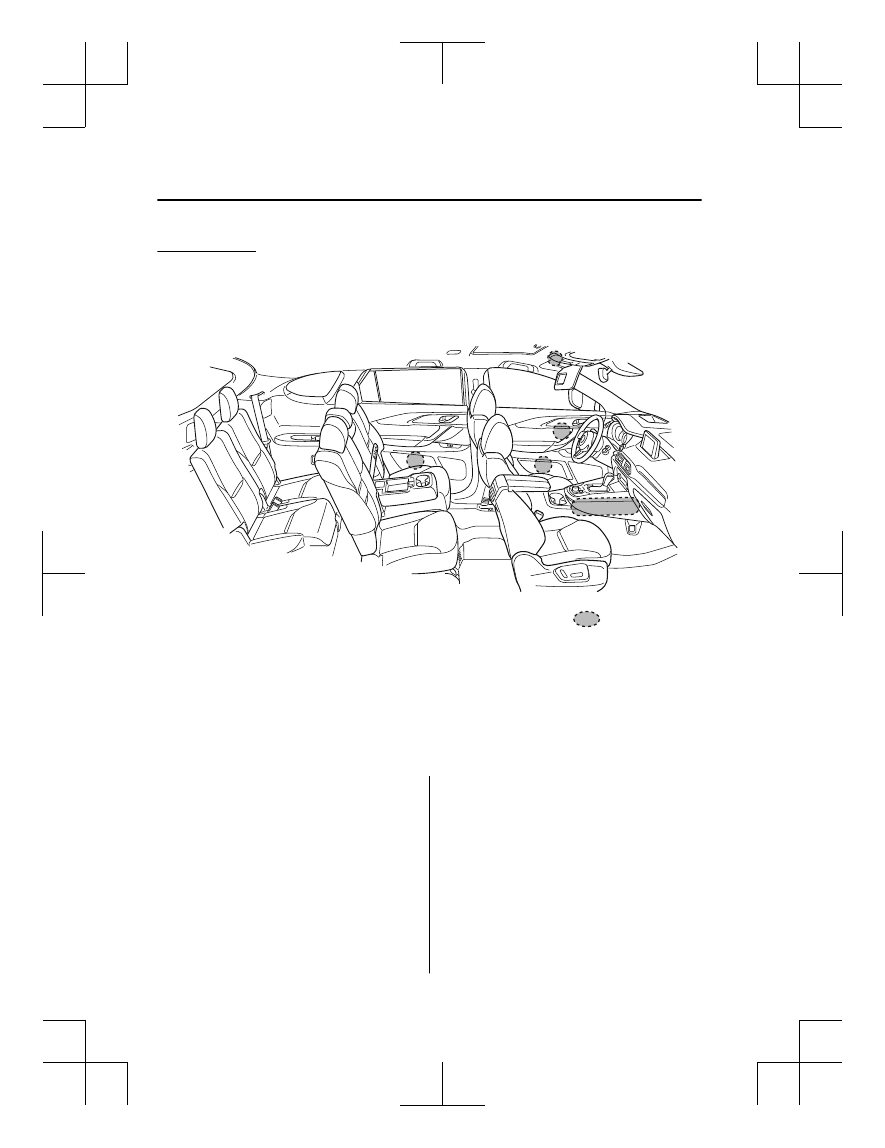

Interior Features

5-95

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Ambient Light

The ambient lights continuously turn on when the ignition is switched ON.
The ambient lights dim when the parking lights or headlights are turned on.

Ambient light

NOTE



The ambient lights turn on or off in conjunction with the illuminated entry system when
the ignition is switched OFF.



The ambient light illumination level can be changed while the parking lights or headlights
are turned on.
Refer to Personalization Features on page 9-10.

▼ Illuminated Entry System

The overhead lights turn on when any of
the following operations is done with the
overhead light switch in the DOOR
position.
The ambient lights turn on regardless of
the overhead light switch position.



The driver's door is unlocked with the
ignition is switched OFF.



The ignition is switched OFF with all
doors closed.

Interior Features

Interior Equipment

5-96

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

NOTE



The illumination time differs depending
on the operation.



Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.



The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-10.



(Type A)
The illumination entry system does not
operate in conjunction with the
overhead lights when the overhead
lights are turned on using the overhead
light ON/OFF switch.

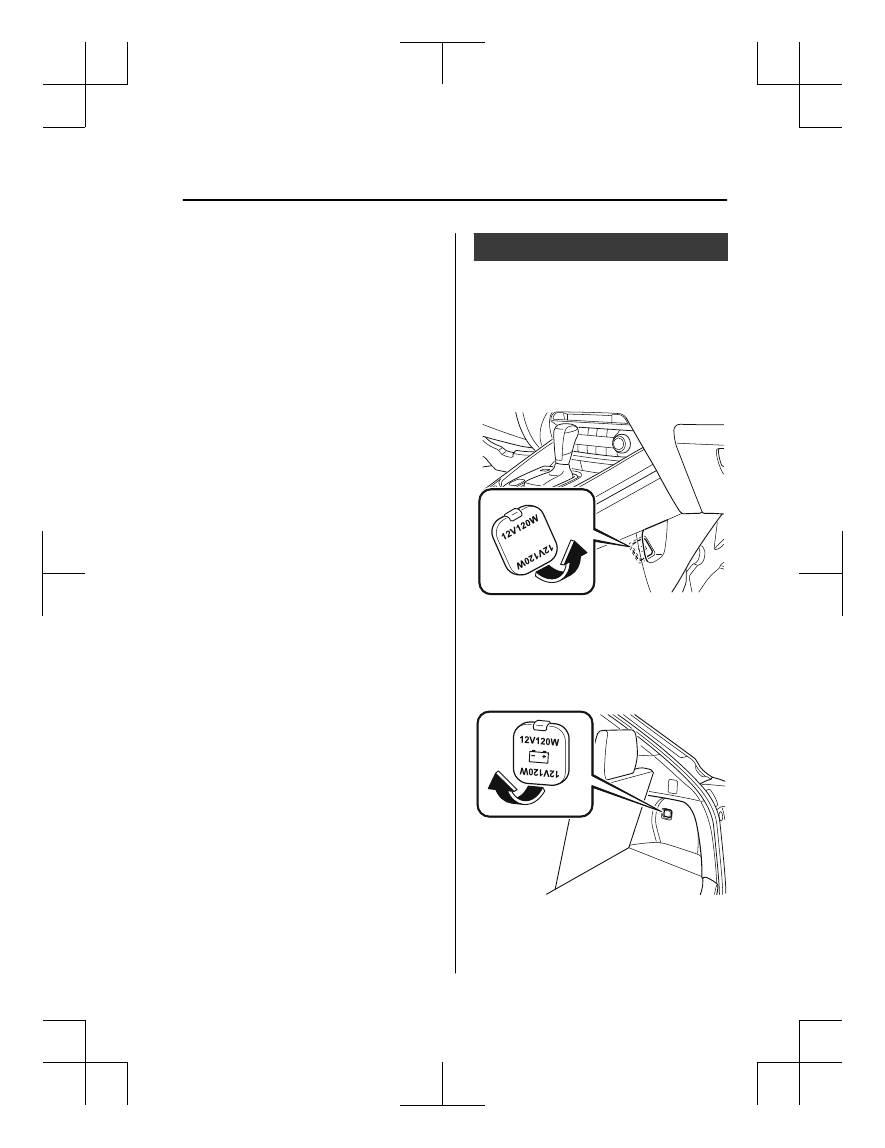

Accessory Sockets

Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).

Front

The ignition must be switched to ACC or
ON.

Rear

The accessory sockets can be used
regardless of whether the ignition is on or
off.

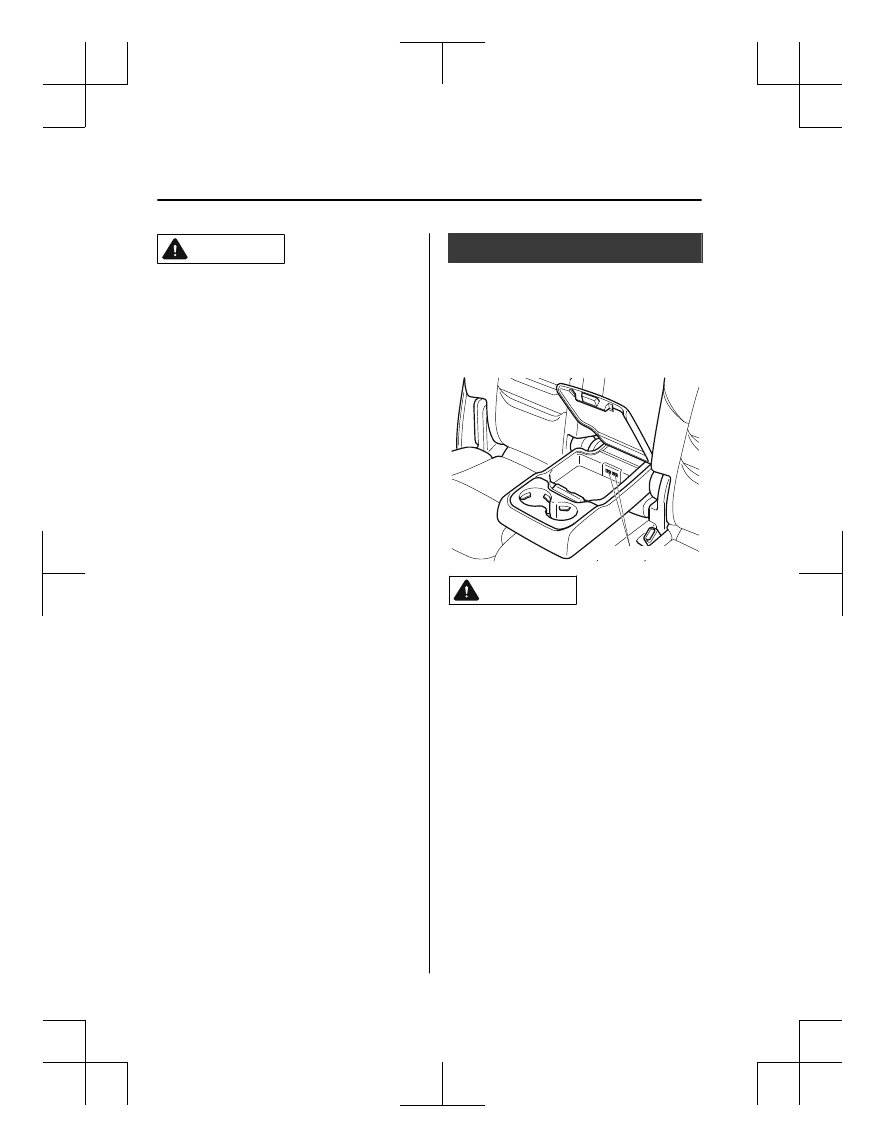

Interior Features

5-97

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

CAUTION

To prevent accessory socket damage or

electrical failure, pay attention to the
following:

Do not use accessories that require

more than 120 W (DC 12 V, 10 A).

Do not use accessories that are not

genuine Mazda accessories or the
equivalent.

Close the cover when the accessory

socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.

Correctly insert the plug into the

accessory socket.

Do not insert the cigarette lighter into

the accessory socket.

Noise may occur on the audio playback

depending on the device connected to
the accessory socket.

Depending on the device connected to

the accessory socket, the vehicle's
electrical system may be affected, which
could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem is
resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the problem
is not resolved, consult an Authorized
Mazda Dealer.

NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.

USB Power Outlet

The USB power outlets can be used
regardless of whether the ignition is
switched to ACC or ON.
Only use USB devices that have a
maximum power consumption of 10.5W
(DC5V, 2.1A) or below.

USB power outlet

CAUTION

To prevent USB power outlets damage or

electrical failure, pay attention to the
following:

Do not use USB devices that require

more than 10.5 W (DC 5 V, 2.1 A).

Close the lid when the USB power

outlets are not in use to prevent
foreign objects and liquids from
getting into the USB power outlets.

Correctly connect the USB connector

into the USB power outlets.

NOTE



The USB power outlets are designed
only for charging and they cannot be
used for connecting to the vehicle's
audio system.

Interior Features

Interior Equipment

5-98

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



To prevent discharging of the battery, do
not use the USB power outlets for long
periods with the engine off or idling.

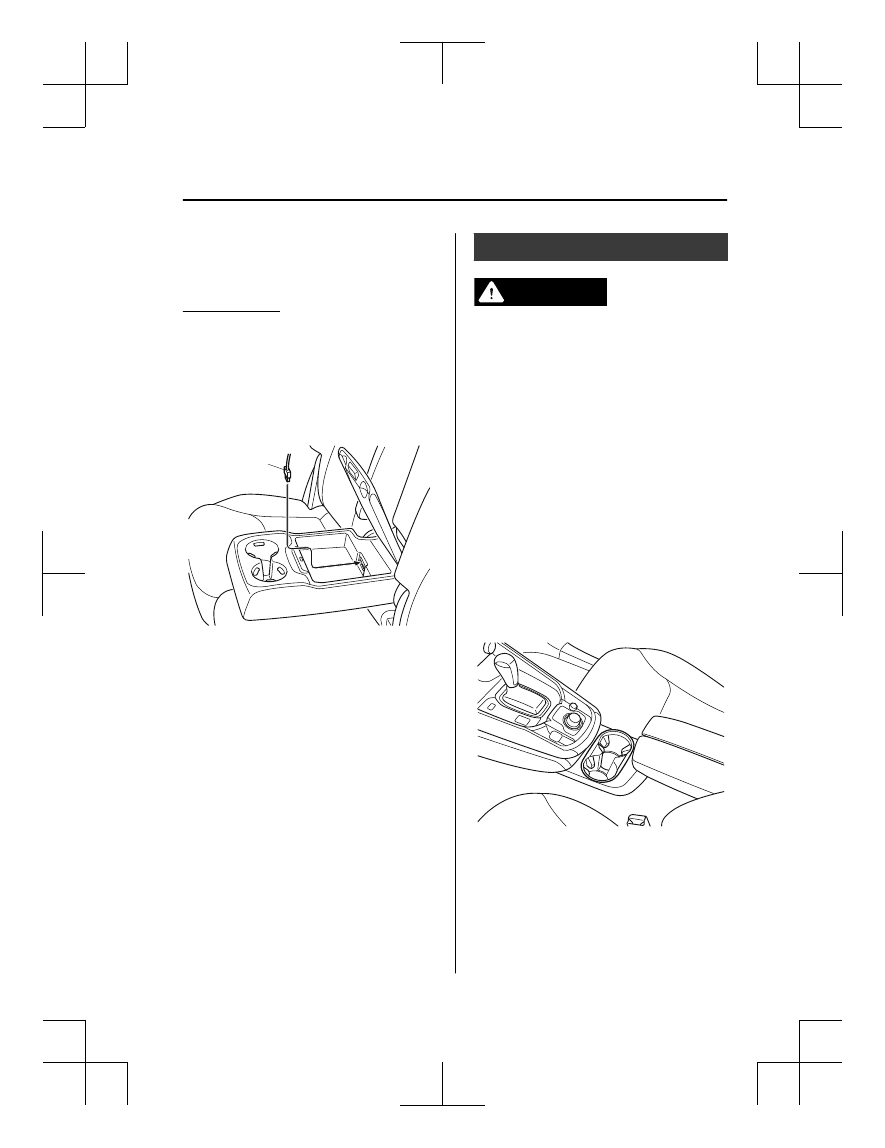

How to connect

The groove in the armrest box can be used
to pass the cord of the device into the box
to connect it to the USB power outlets.
1. Open the lid.
2. Route the cord through the groove in

the armrest box and insert the USB
connector into the USB power outlets.

Connector

Cup Holder

WARNING

Never use a cup holder to hold hot liquids
while the vehicle is moving:
Using a cup holder to hold hot liquids while
the vehicle is moving is dangerous. If the
contents spill, you could be scalded.

Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or drink
cans in a cup holder is dangerous.
During sudden braking or maneuvering,
occupants could be hit and injured, or
objects could be thrown around the
vehicle, causing interference with the driver
and the possibility of an accident. Only use
a cup holder for cups or drink cans.

▼ Front

Interior Features

5-99

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Content .. 28 29 30 31 ..
