Mazda CX-9 (2019 year). Instruction



The following settings for the LAS &
LDWS can be changed. Refer to
Personalization Features on page
9-10.



Steering operation assist operational/
non-operational



Cancel sensitivity (likelihood of
steering assist)

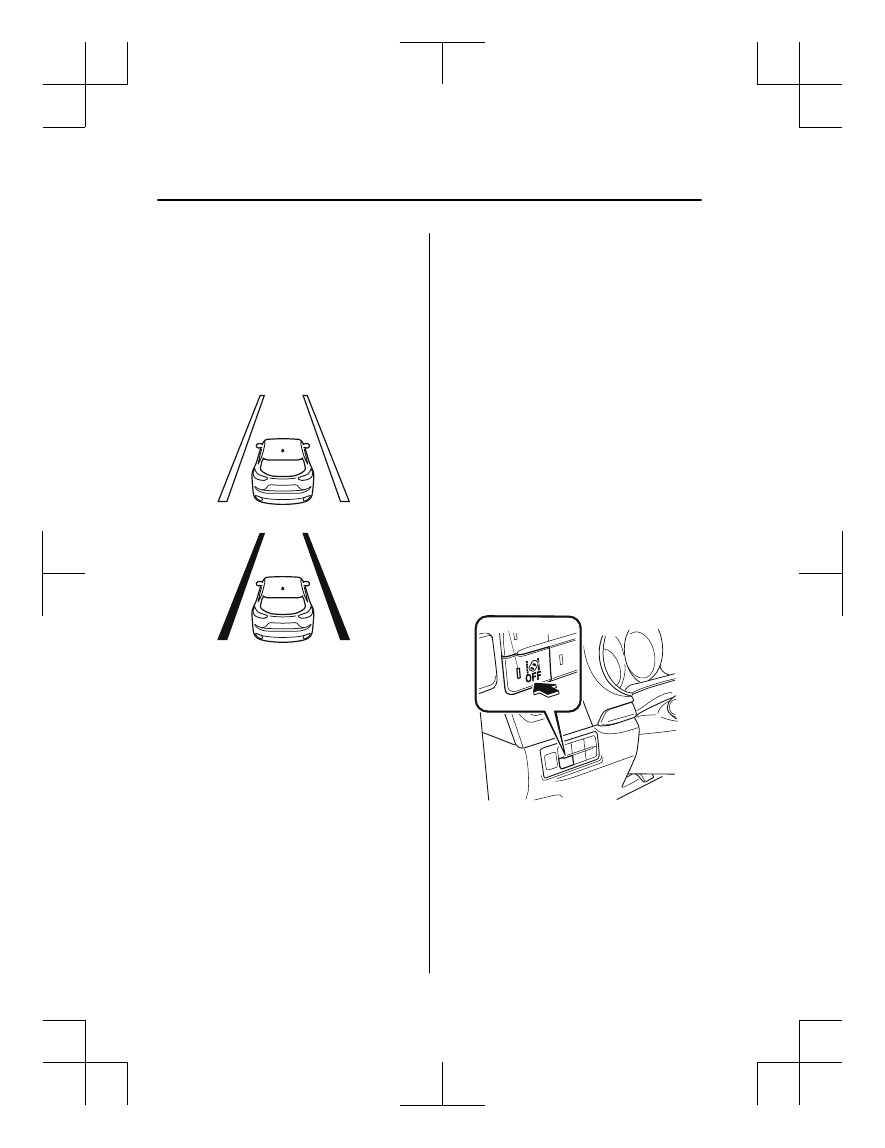

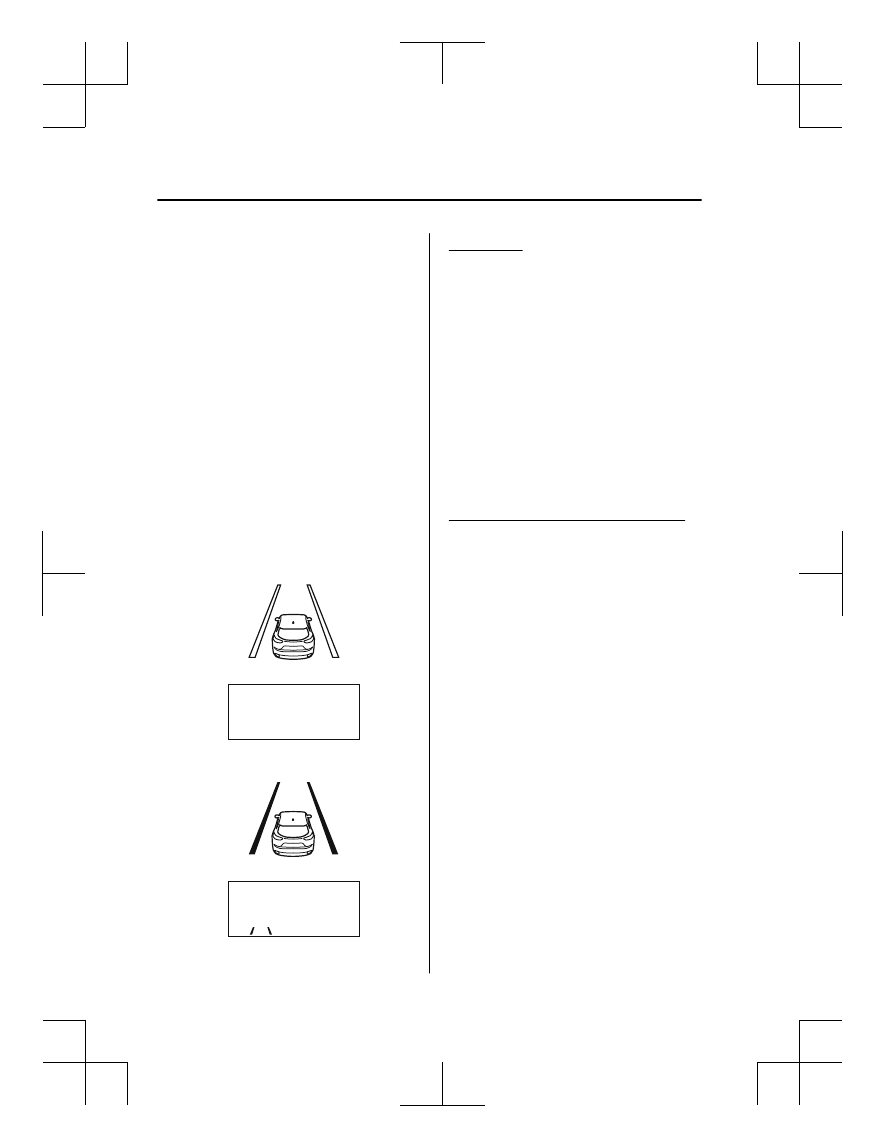

Vehicle lane line display
When the LAS & LDWS becomes
operational while on standby, the vehicle
lane lines are displayed in the
multi-information display and the active
driving display. In the vehicle lane lines
display indicating the operation status, the
color of the vehicle lane lines being
detected changes to white.

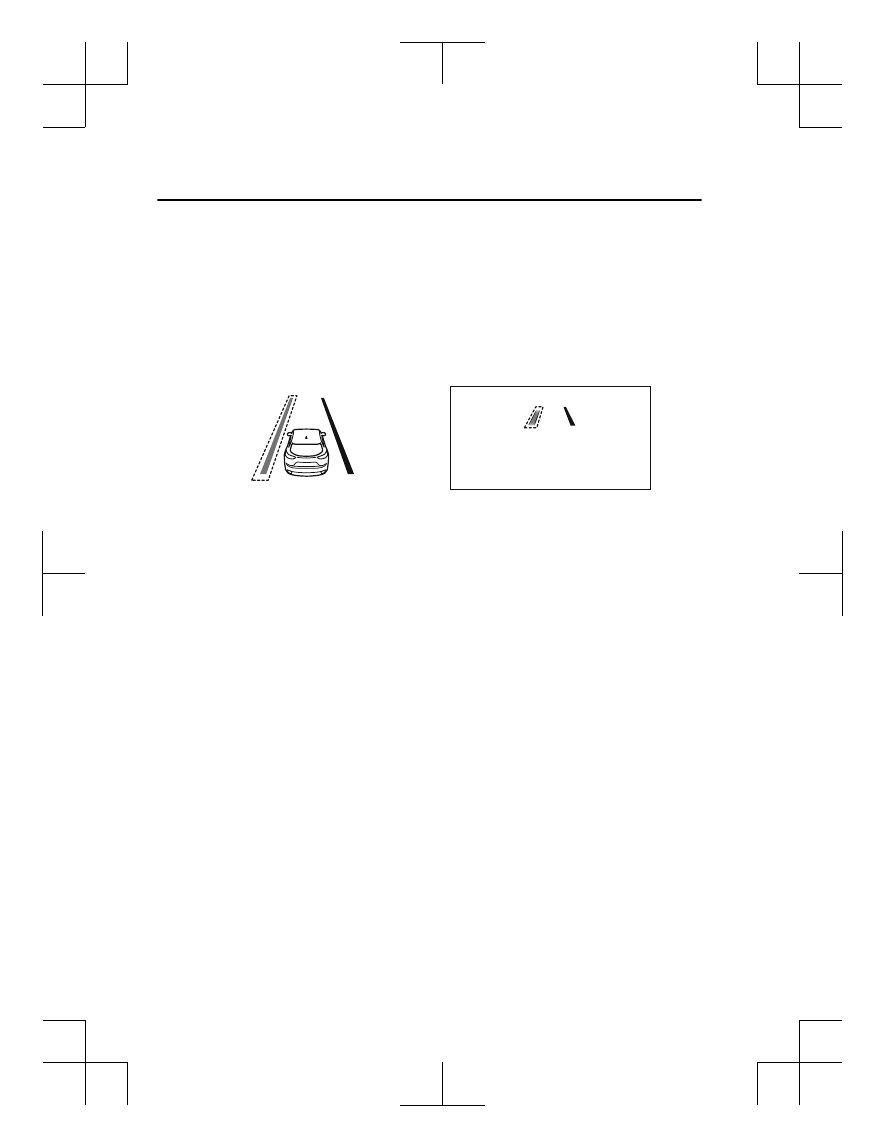

(Stand-by status)

Multi-information Display

Active Driving Display

(Operational status)

Multi-information Display

Active Driving Display

Auto cancel

In the following cases, the LAS & LDWS
is automatically canceled, the LAS &
LDWS warning indication (amber) turns
on, and an alert is displayed. When the
LAS & LDWS become operational, the
system turns back on automatically.



The temperature inside the camera is
high or low.



The windshield around the camera is
foggy.



The windshield around the camera is
blocked by an obstruction, causing poor
forward visibility.

Auto cancel of warning/steering assist

When the following operations are
performed, the LAS & LDWS operation is
canceled automatically. The LAS &
LDWS resumes automatically after the
operation.



The steering wheel is operated abruptly.



The brake pedal is operated.



The accelerator pedal is operated.
(To cancel the automatic sensitivity
cancel function, deselect “Cancel
sensitivity” in the personalization
features setting.)



The turn signal lever is operated.



The vehicle crosses a lane line.

NOTE



After the operation, the LAS & LDWS
operation may not operate for a period
of 5 seconds at the most until the lane
lines are detected.



Under the following conditions, the LAS
& LDWS cancels the warning/steering
assist automatically.

When Driving

i-ACTIVSENSE

4-152

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



The driver takes his/her hands off the
steering wheel.
(The LAS & LDWS is designed to
assist the driver's steering operation
and it will resume operation
automatically when the driver holds
the steering wheel.)



The TCS OFF switch is pressed to
cancel the TCS.

Steering operation assist OFF
(non-operational)

The steering operation assist for the LAS
& LDWS can be changed to
non-operational (OFF).
Refer to Setting Change (Personalization
Features) on page 9-10.
When the steering operation assist has
been changed to inoperable (OFF), only
the lane departure warning is operational.
System operation
Make sure that the LAS & LDWS OFF
switch indicator light is turned off. When
the LAS & LDWS OFF switch indicator
light turns on, press the switch and make
sure that the switch indicator light turns
off.

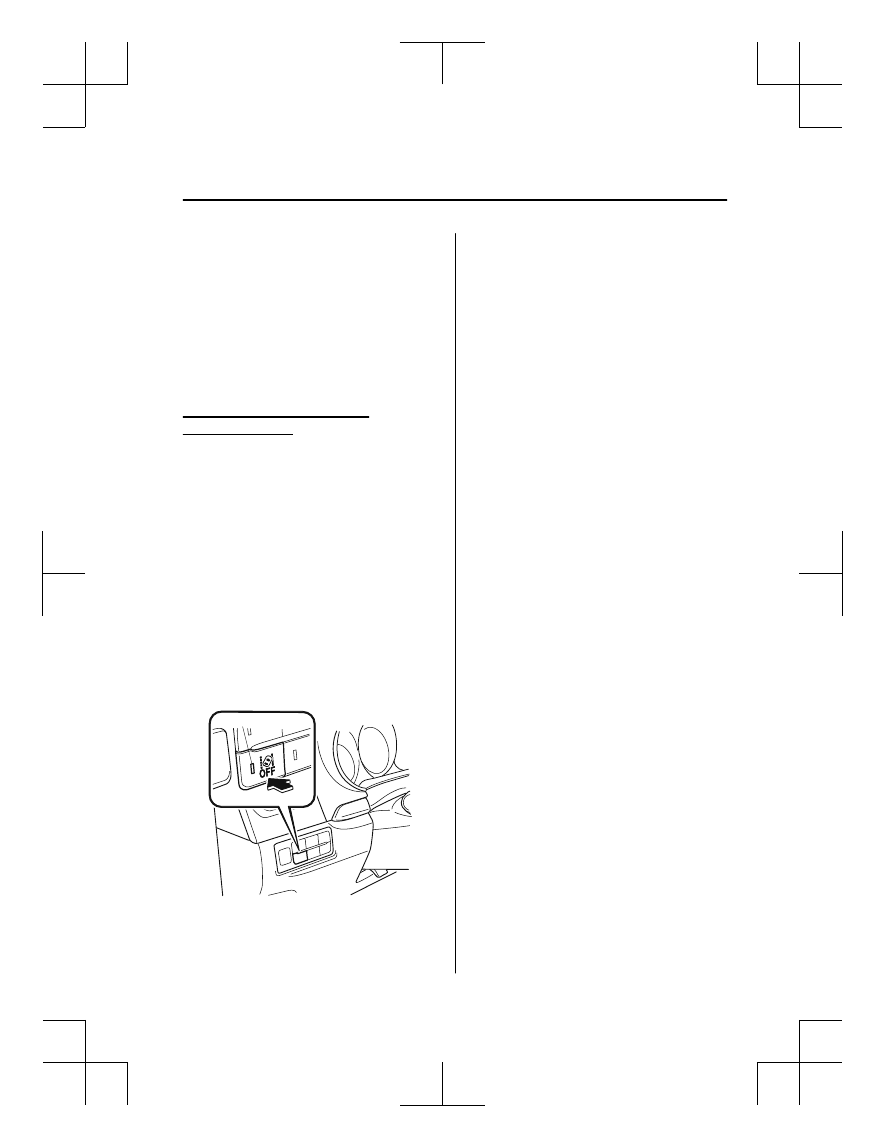

Indicator light

Drive the vehicle in the center of the
driving lane while the LAS & LDWS OFF
switch indicator light is turned off.
The system becomes operational when all
of the following conditions are met.



The system detects white (yellow) lane
lines on both the right and left sides or
on either side.



The vehicle speed is about 60 km/h (37
mph) or faster.



The vehicle is driven on a straight road
or road with gentle curves.



The engine is running.

The LAS & LDWS goes on stand-by
status in the following cases:



The system cannot detect white (yellow)
lane lines.



The vehicle speed is less than about 60
km/h (37 mph).



The vehicle is making a sharp curve.



The vehicle is making a curve at an
inappropriate speed.

NOTE



The LAS & LDWS remains on stand-by
until it detects white (yellow) lines on
both the left and right sides, or on either
side.



When the system detects a white
(yellow) lane line on one side only, the
system will not activate warnings for the
lane line on the side that is not being
detected.



The distance and warning sensitivity
(likelihood of a warning) which the
system uses to determine the possibility
of a lane departure can be changed.
Refer to Setting Change
(Personalization Features) on page
9-10.

When Driving

i-ACTIVSENSE

4-153

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Vehicle lane line display
When the LAS & LDWS becomes
operational while on standby, the vehicle
lane lines are displayed in the
multi-information display. The system
changes to operational status display when
the system detects a white (yellow) line on
either the left or right.
(Stand-by status)

(Operational status)

Auto cancel
In the following cases, the LAS & LDWS
is automatically canceled, the LAS &
LDWS warning indication (amber) turns
on, and an alert is displayed. When the
LAS & LDWS become operational, the
system turns back on automatically.



The temperature inside the camera is
high or low.



The windshield around the camera is
foggy.



The windshield around the camera is
blocked by an obstruction, causing poor
forward visibility.

(Auto cancel of warnings)
When the following operations are
performed, the LAS & LDWS determines
that the driver intends to make a lane
change and the system operation is
canceled automatically. The LAS &
LDWS resumes automatically after the
operation.



The steering wheel is operated abruptly.



The brake pedal is depressed.



The accelerator pedal is depressed.
(To cancel the automatic sensitivity
cancel function, deselect “Warning
sensitivity” in the personalization
features setting.)



The turn signal lever is operated.



The vehicle crosses a lane line.

▼ System Canceling

When the LAS & LDWS is turned off,
press the LAS & LDWS OFF switch.

Indicator light

The LAS & LDWS OFF switch indicator
light turns on.

When Driving

i-ACTIVSENSE

4-154

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

NOTE



In the following cases, the LAS & LDWS
is canceled automatically and the LAS
& LDWS OFF indication is displayed in
the multi-information display. Have your
vehicle inspected at an Authorized
Mazda Dealer.



There is a malfunction in the power
steering.



There is a malfunction in the TCS.



There is a malfunction in the Forward
Sensing Camera (FSC).



When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition
is switched OFF with the lane-keep
system operable, the system will be
operable when the ignition is switched
ON the next time.

When the LAS & LDWS is turned off, the
vehicle lane line indication in the
multi-information display and the active
driving display turn off.

When Driving

i-ACTIVSENSE

4-155

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Lane Departure Warning

If the system determines that the vehicle may deviate from its lane, the lane departure
warning (beep sound, rumble sound

, or steering wheel vibration) is activated and the

direction in which the system determines that the vehicle may deviate is indicated in the
multi-information display and the active driving display.
If the system determines that the vehicle may deviate from its lane, the color of the lane line
on the side being detected by the system changes from white to amber, and flashes.

Multi-information Display

Active Driving Display

NOTE



If you have set the lane departure warning sound to the beep sound/rumble sound

setting, the warning sound may not be heard depending on the surrounding noise
conditions.



If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt depending on the road surface conditions.



When the setting for the steering operation assist is changed to operational, the warnings
can be set to activate/not activate. (When the setting for the steering operation assist is
changed to non-operational, the warnings cannot be set to not activate.)
Refer to Setting Change (Personalization Features) on page 9-10.



The LAS & LDWS can be changed to the following settings regardless of whether the
steering operation assist has been set to operational/non-operational. Always check the
setting status when driving the vehicle and make setting changes if necessary.
Refer to Setting Change (Personalization Features) on page 9-10.



Steering wheel vibration: Strong/weak



Warning sound volume



Types of warnings (steering wheel vibration/beep sound/rumble sound

)

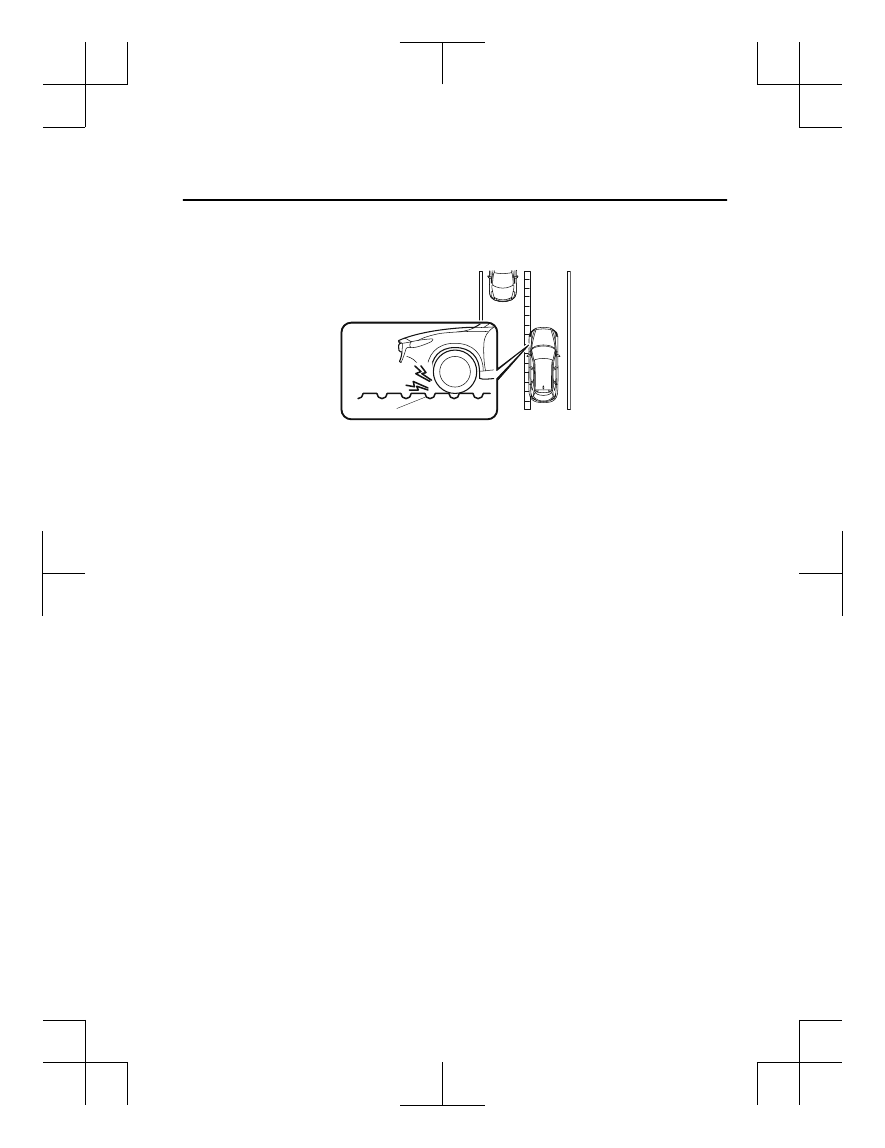

1 A rumble strip is a series of grooves in the road pavement surface positioned at specific

intervals, and when the vehicle passes over it a vibration and rumble sound is produced
which alerts the driver that the vehicle is departing from the lane.

When Driving

i-ACTIVSENSE

4-156

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

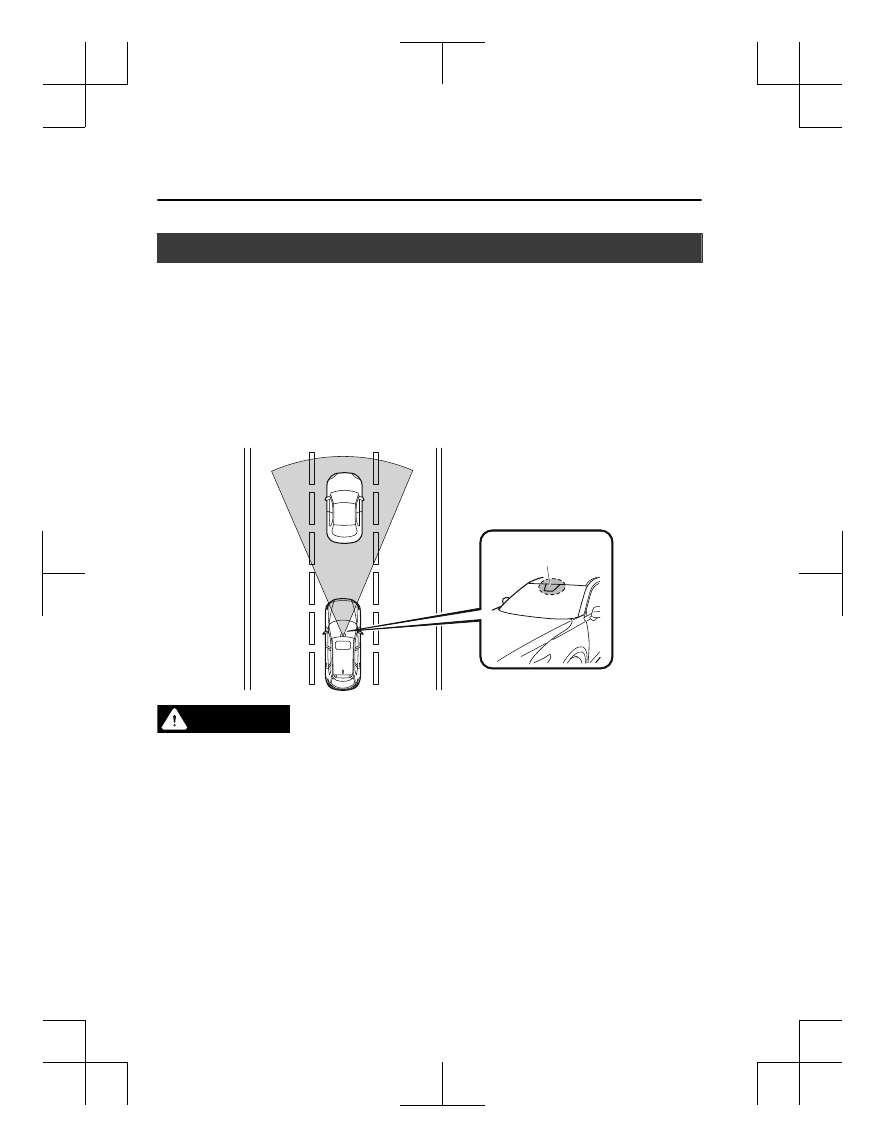

Advanced Smart City Brake Support (Advanced SCBS)

The Advanced SCBS alerts the driver of a possible collision using the display and a warning
sound when the Forward Sensing Camera (FSC) detects a vehicle ahead or pedestrian and
determines that a collision with the object is unavoidable while the vehicle is driven at a
vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a vehicle ahead and about
10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian. In addition, the system reduces
damage in the event of a collision by operating the brake control (Advanced SCBS brake)
when the system determines that a collision is unavoidable. In addition, when the driver
depresses the brake pedal, the brakes are applied firmly and quickly to assist. (Brake Assist
(Advanced SCBS brake assist))

Forward Sensing
Camera (FSC)

WARNING

Do not rely completely on the Advanced SCBS system:

The Advanced SCBS system is only designed to reduce damage in the event of a collision.

Over reliance on the system leading to the accelerator pedal or brake pedal being
mistakenly operated could result in an accident.

The Advanced SCBS system operates in response to a vehicle ahead or a pedestrian. The

system does not operate in response to obstructions such as a wall, 2-wheeled vehicles, or
animals.

When Driving

i-ACTIVSENSE

4-158

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

CAUTION

In the following cases, turn the system off to prevent a mis-operation:

The vehicle is being towed or when towing another vehicle.
The vehicle is on a chassis roller.
When driving on rough roads such as in areas of dense grass or off-road.

Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System Operation
on page 4-160 on how to turn off the Advanced SCBS system.

NOTE



The Advanced SCBS system will operate under the following conditions.



The engine is running.



The Smart City Brake Support (SCBS) warning indication(amber) does not illuminate.



(Object is vehicle ahead)
The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).



(Object is a pedestrian)
The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).



The Advanced SCBS system is not turned off.



Under the following conditions, the Advanced SCBS system may not operate normally:



The Advanced SCBS system will not operate if the driver is deliberately performing
driving operations (accelerator pedal and steering wheel).



If there is the possibility of partial contact with a vehicle ahead.



The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.



The braking performance is adversely affected due to cold temperatures or wet brakes.



The vehicle is driven at the same speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



In the following cases, the Advanced SCBS may operate.



Objects on the road at the entrance to a curve.



Vehicles passing in the opposite lane while making a curve.



When passing through a toll gate.



When passing through low gates, narrow gates, car washing machines, or tunnels.



If you suddenly come close to a vehicle ahead.



2-wheeled vehicles, animals, or standing trees.

When Driving

i-ACTIVSENSE

4-159

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

▼ Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display or the active
driving display.

NOTE
The operation distance and volume of the
collision warning can be changed. Refer
to Personalization Features on page
9-10.

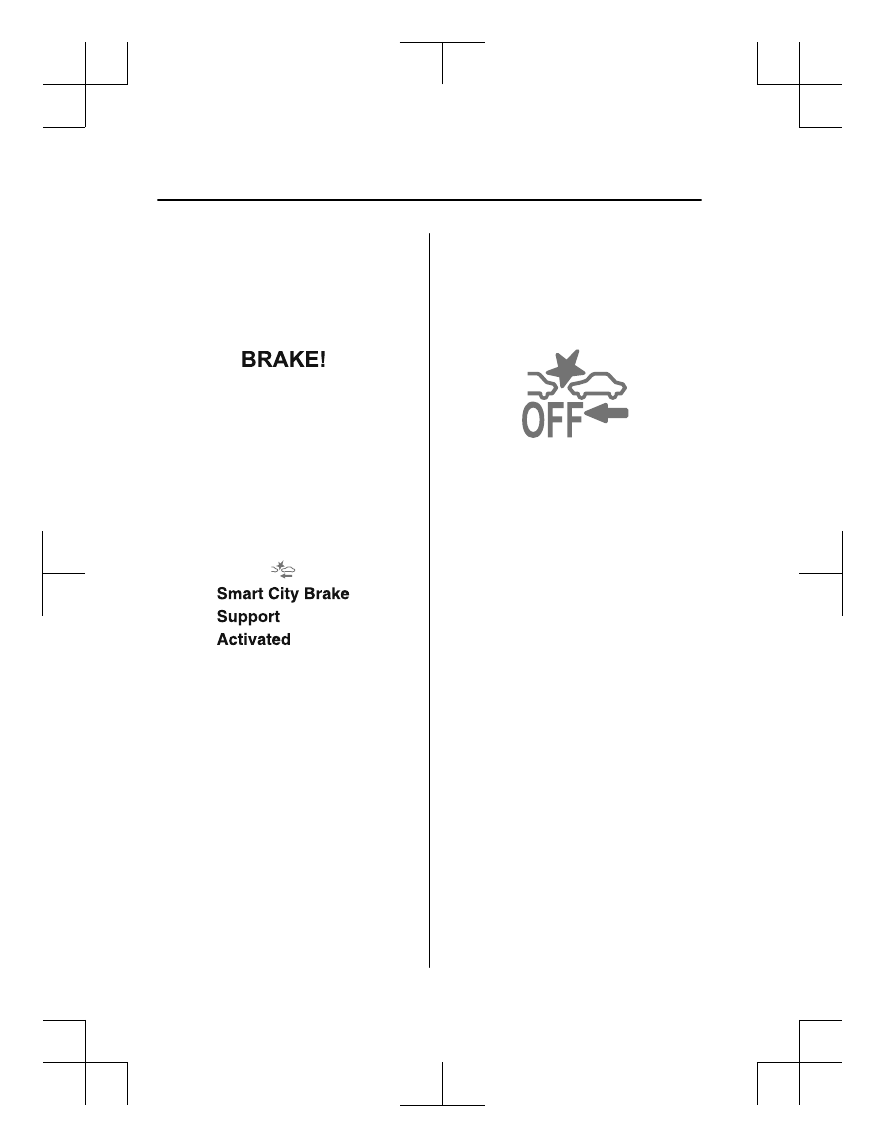

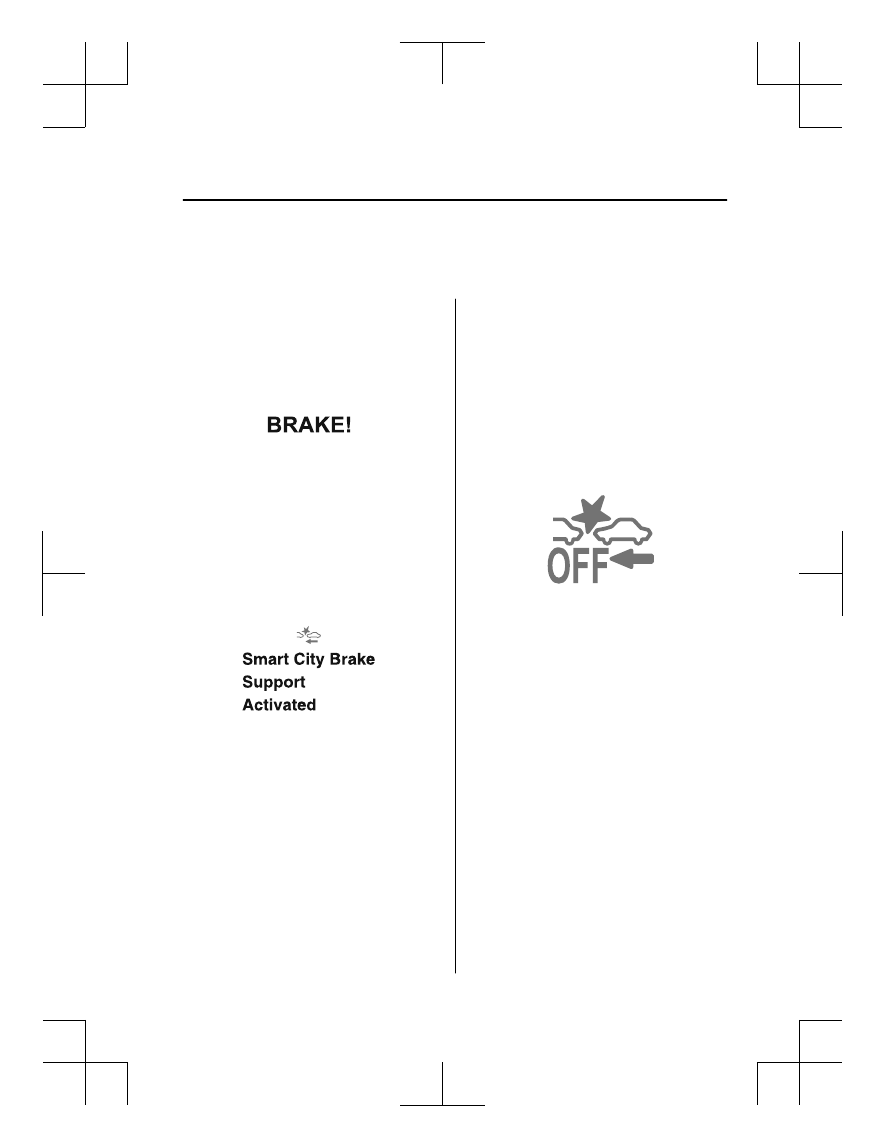

▼ Automatic Brake Operation Display

The automatic brake operation display is
indicated on the multi-information display
after the Advanced SCBS is operated.

NOTE



The collision warning beep sounds
intermittently while the Advanced SCBS
brake or brake assist (Advanced SCBS
brake assist) is operating.



If the vehicle is stopped by the Advanced
SCBS operation and the brake pedal is
not depressed, the warning beep sounds
1 time after about 2 seconds and the
Advanced SCBS brake is automatically
released.

▼ Stopping the Advanced Smart City

Brake Support (Advanced SCBS)
System Operation

The Advanced SCBS system can be
temporarily deactivated.

Refer to Personalization Features on page
9-10.
When the Advanced SCBS system is
turned off, the Smart City Brake Support
(SCBS) OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE
When the Advanced SCBS system is set to
inoperable, the Smart Brake Support
(SBS) are also set to inoperable.

When Driving

i-ACTIVSENSE

4-160

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

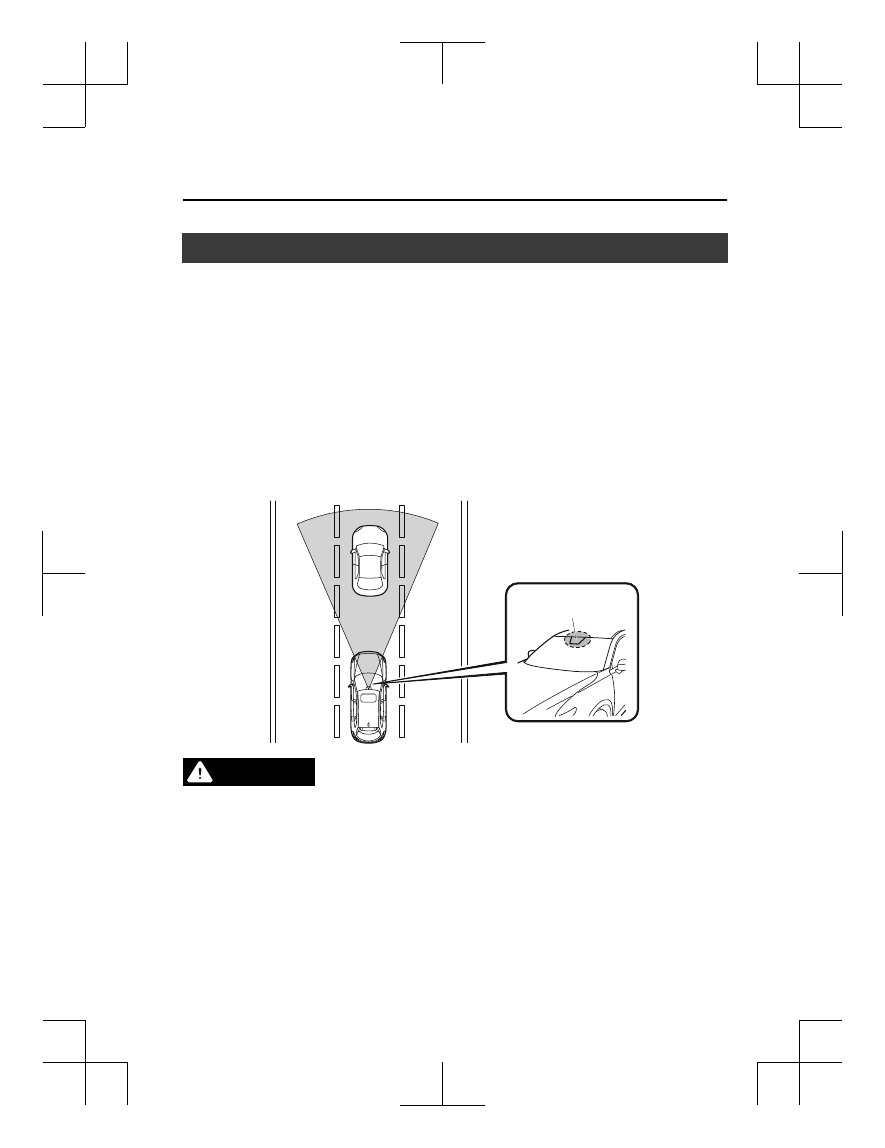

Smart City Brake Support (SCBS)

The SCBS system alerts the driver of a possible collision using an indication in the display
and a warning sound when the Forward Sensing Camera (FSC) detects a vehicle ahead and
determines that a collision with a vehicle ahead is unavoidable while the vehicle is being
driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph). In addition, the system
reduces damage in the event of a collision by operating the brake control (Smart City Brake
Support (SCBS) brake) when the system determines that a collision is unavoidable while the
vehicle is being driven at a vehicle speed of about 4 to 30 km/h (2 to 18 mph). It may also
be possible to avoid a collision if the relative speed between your vehicle and the vehicle in
front of you is less than about 20 km/h (12 mph). In addition, when the driver depresses the
brake pedal while the system is in the operation range at about 4 to 30 km/h (2 to 18 mph),
the brakes are applied firmly and quickly to assist. (Brake Assist (Smart City Brake Support
(SCBS) brake assist))

Forward Sensing
Camera (FSC)

WARNING

Do not rely completely on the SCBS system:

The SCBS system is only designed to reduce damage in the event of a collision. Over reliance

on the system leading to the accelerator pedal or brake pedal being mistakenly operated
could result in an accident.

The SCBS is a system which operates in response to a vehicle ahead. The system may not be

able to detect or react to 2-wheeled vehicles or pedestrians.

When Driving

i-ACTIVSENSE

*Some models.

4-161

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

CAUTION

In the following cases, turn the system off to prevent a mis-operation:

The vehicle is being towed or when towing another vehicle.
The vehicle is on a chassis roller.
When driving on rough roads such as in areas of dense grass or off-road.

Refer to Stopping the Smart City Brake Support (SCBS) system Operation on page 4-163 on
how to turn off the SCBS system.

NOTE



The SCBS system will operate under the following conditions.



The engine is running.



The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system warning
indication (amber) does not illuminate.



(Rear-end collision warning)
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).



(Brake control (Smart City Brake Support (SCBS) brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).



The SCBS system is not turned off.



Under the following conditions, the SCBS system may not operate normally:



The SCBS system will not operate if the driver is deliberately performing driving
operations (accelerator pedal and steering wheel).



If there is the possibility of partial contact with a vehicle ahead.



The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.



The braking performance is adversely affected due to cold temperatures or wet brakes.



The vehicle is driven at the same speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the SCBS may operate.



Objects on the road at the entrance to a curve.



Vehicles passing in the opposite lane while making a curve.



Metal objects, bumps, or protruding objects on the road.



When passing through a toll gate.



When passing through low gates, narrow gates, car washing machines, or tunnels.

When Driving

i-ACTIVSENSE

4-162

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



If you suddenly come close to a vehicle ahead.



2-wheeled vehicles, pedestrians, animals or standing trees.



Vehicle is driven with some of the tires having significant wear.

▼ Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display and the
active driving display.

NOTE
The operation distance and volume of the
collision warning can be changed. Refer
to Personalization Features on page
9-10.

▼ Automatic Brake Operation Display

The automatic brake operation display is
indicated on the multi-information display
after the SCBS is operated.

NOTE



The collision warning beep sounds
intermittently while the SCBS brake or
brake assist (SCBS brake assist) is
operating.



If the vehicle is stopped by the SCBS
operation and the brake pedal is not
depressed, the warning beep sounds 1
time after about 2 seconds and the SCBS
brake is automatically released.

▼ Stopping the Smart City Brake

Support (SCBS) System Operation

The SCBS system can be temporarily
deactivated.
Refer to Personalization Features on page
9-10.
When the SCBS system is turned off, the
Smart City Brake Support (SCBS) OFF
indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE
When the SCBS system is set to
inoperable, the Smart Brake Support
(SBS) are also set to inoperable.

When Driving

i-ACTIVSENSE

4-163

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Smart Brake Support

(SBS)

The SBS system alerts the driver of a
possible collision using a display and
warning sound if the radar sensor (front)
and the Forward Sensing Camera (FSC)
determine that there is the possibility of a
collision with a vehicle ahead while the
vehicle is being driven at about 15 km/h or
faster (10 mph or faster). Furthermore, if
the radar sensor (front) and the Forward
Sensing Camera (FSC) determines that a
collision is unavoidable, the automatic
brake control is performed to reduce
damage in the event of a collision.
In addition, when the driver depresses the
brake pedal, the brakes are applied firmly
and quickly to assist. (Brake Assist (SBS
brake assist))

WARNING

Do not rely completely on the SBS system
and always drive carefully:
The SBS is designed to reduce damage in
the event of a collision, not avoid an
accident. The ability to detect an
obstruction is limited depending on the
obstruction, weather conditions, or traffic
conditions. Therefore, if the accelerator
pedal or brake pedal is mistakenly
operated it could result in an accident.
Always verify the safety of the surrounding
area and depress the brake pedal or
accelerator pedal while keeping a safer
distance from vehicles ahead or on-coming
vehicles.

CAUTION

In the following cases, turn the system off
to prevent a mis-operation:

The vehicle is being towed or when

towing another vehicle.

The vehicle is on a chassis roller.
When driving on rough roads such as in

areas of dense grass or off-road.

NOTE



The SBS system operates when all of the
following conditions are met:



The ignition is switched ON.



The SBS system is on.



The vehicle speed is about 15 km/h or
faster (10 mph or faster).



The relative speed between your
vehicle and the vehicle ahead is about
15 km/h or faster (10 mph or faster).



The Dynamic Stability Control (DSC)
is not operating.



The SBS system may not operate under
the following conditions:



If the vehicle is accelerated rapidly
and it comes close to a vehicle ahead.



The vehicle is driven at the same
speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



The turn signal is being used.



When the vehicle ahead is not
equipped with taillights or the
taillights are turned off.

When Driving

i-ACTIVSENSE

4-164

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27



When warnings and messages, such
as a dirty windshield, related to the
Forward Sensing Camera (FSC) are
being displayed in the
multi-information display.



Although the objects which activate the
system are four-wheeled vehicles, the
radar sensor (front) could detect the
following objects, determine them to be
an obstruction, and operate the SBS
system.



Objects on the road at the entrance to
a curve (including guardrails and
snow banks).



A vehicle appears in the opposite lane
while cornering or rounding a curve.



When crossing a narrow bridge.



When passing under a low gate or
through a tunnel or narrow gate.



When entering an underground
parking area.



Metal objects, bumps, or protruding
objects on the road.



If you suddenly come close to a
vehicle ahead.



When driving in areas where there is
high grass or forage.



Two-wheeled vehicles such as
motorbikes or bicycles.



Pedestrians or non-metallic objects
such as standing trees.



If there is a problem with the SBS
system, a message is displayed in the
multi-information display. Check the
center display to verify the problem and
then have your vehicle inspected by an
Authorized Mazda Dealer.
Refer to Message Indicated on Display
on page 7-43.

▼ Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display and the
active driving display.

▼ Stopping The Smart Brake Support

(SBS) System Operation

The SBS system can be temporarily
deactivated.
Refer to Personalization Features on page
9-10.
When the SBS system is turned off, the
SBS OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE
If the SBS system operation is turned off,
the Smart City Brake Support (SCBS)
system operation is turned off
simultaneously.

When Driving

i-ACTIVSENSE

4-165

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

360° View Monitor

The 360° View Monitor consists of the following functions which assist the driver in
checking the area surrounding the vehicle using various indications in the center display and
a warning sound while the vehicle is being driven at low speeds or while parking.



Top view
The top view displays an image of the vehicle from directly above on the center display
by combining the images taken from the 4 cameras set on all sides of the vehicle. The top
view displays on the right side of the screen when the front view or rear view screen is
being displayed. The top view assists the driver in checking the area surrounding the
vehicle when the vehicle is moving forward or in reverse.



Front view/front wide view
The image from the front of the vehicle is displayed on the center display.
The view from the front assists the driver in checking the front of the vehicle by
displaying guide lines on the displayed image taken from the front of the vehicle.



Side view
The images taken from the front left and right sides of the vehicle are displayed on the
center display.
The side view assists the driver in checking the front sides of the vehicle by displaying
guide lines on the displayed image taken from the front left and right sides of the vehicle.



Rear view/rear wide view
The image from the rear of the vehicle is displayed on the center display.
The image from the rear assists the driver in checking the rear of the vehicle by displaying
guide lines on the displayed image taken from the rear of the vehicle.



Parking sensor
If there are any obstructions near the vehicle while the top view/side view is displayed, an
obstruction detection indication turns on around the bumper in the center display.
The parking sensors use ultrasonic sensors to detect obstructions around the vehicle when
the vehicle is driven at low speeds, such as during garage or parallel parking, and notifies
the driver of the approximate distance from the vehicle to the surrounding obstruction
using sound and an obstruction detection indication.
Refer to Parking Sensor System on page 4-220.



Rear Cross Traffic Alert (RCTA)
If there is the possibility of a collision with an approaching vehicle while the rear view/
rear wide view is displayed, a warning is displayed on the center display.
The Rear Cross Traffic Alert (RCTA) uses radar sensors (rear) to detect vehicles
approaching from the rear left and right sides of the vehicle, and it assists the driver in
checking the rear of the vehicle while reversing by flashing the Blind Spot Monitoring
(BSM) warning lights and activating the warning sound.
Refer to Rear Cross Traffic Alert (RCTA) on page 4-130.

When Driving

i-ACTIVSENSE

4-166

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

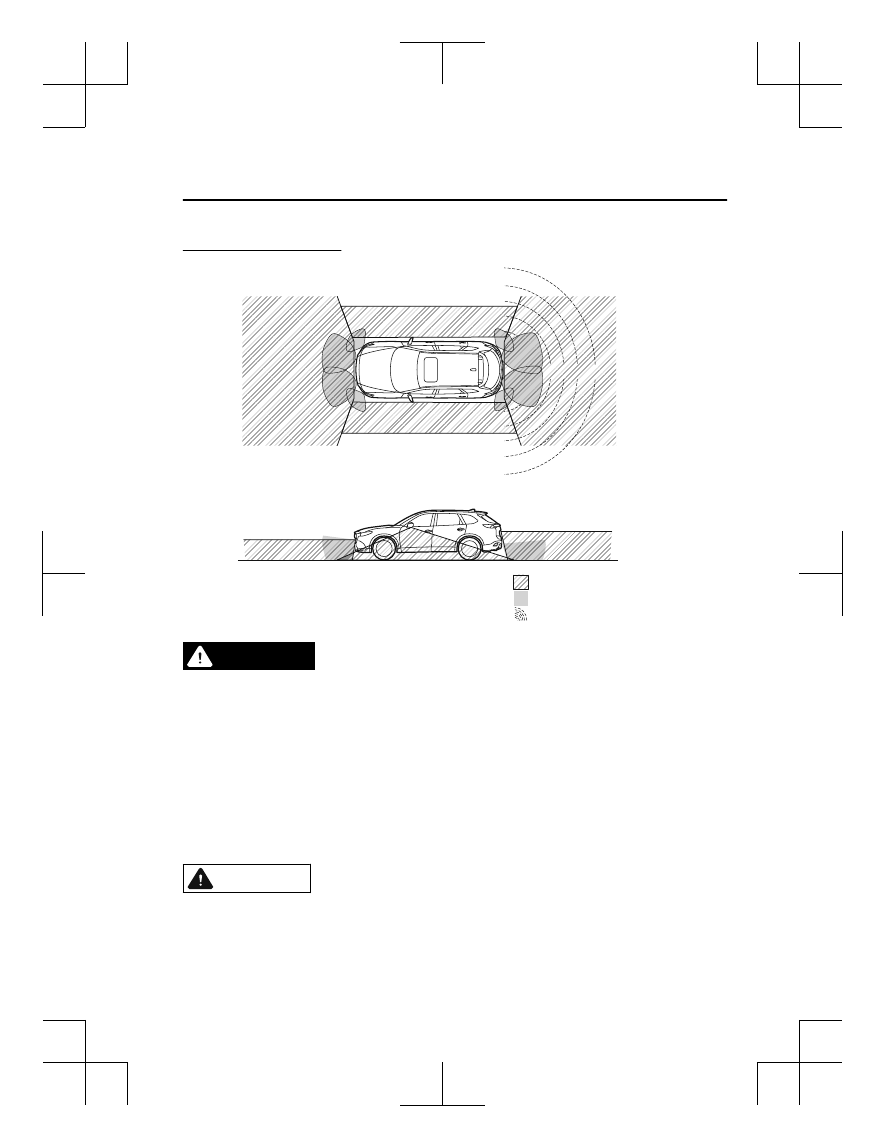

360°View Monitor Range

: Cameras
: Ultrasonic sensors
: Radar sensors (rear)

WARNING

Always confirm the safety of the area around the vehicle with the mirrors and directly with
your eyes when driving.
The 360°View Monitor is an auxiliary device which assists the driver in checking the safety of
the area around the vehicle.
The shooting range of the cameras and detection range of the sensors are limited. For
example, the areas in black at the front and rear of the vehicle image and the seams where
each of the camera images merge are blind spots where an obstruction may not be visible. In
addition, the extended vehicle width lines and projected vehicle path lines are only to be used
as references, and the images on the screen may differ from the actual conditions.

CAUTION

Do not use the 360°View Monitor under any of the following conditions.

Icy or snow-covered roads.
Tire chains or a temporary spare tire is installed.

When Driving

i-ACTIVSENSE

4-167

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Mazda CX-9 (2019 year). Instruction - part 20
