Mazda CX-9 (2019 year). Instruction - part 1

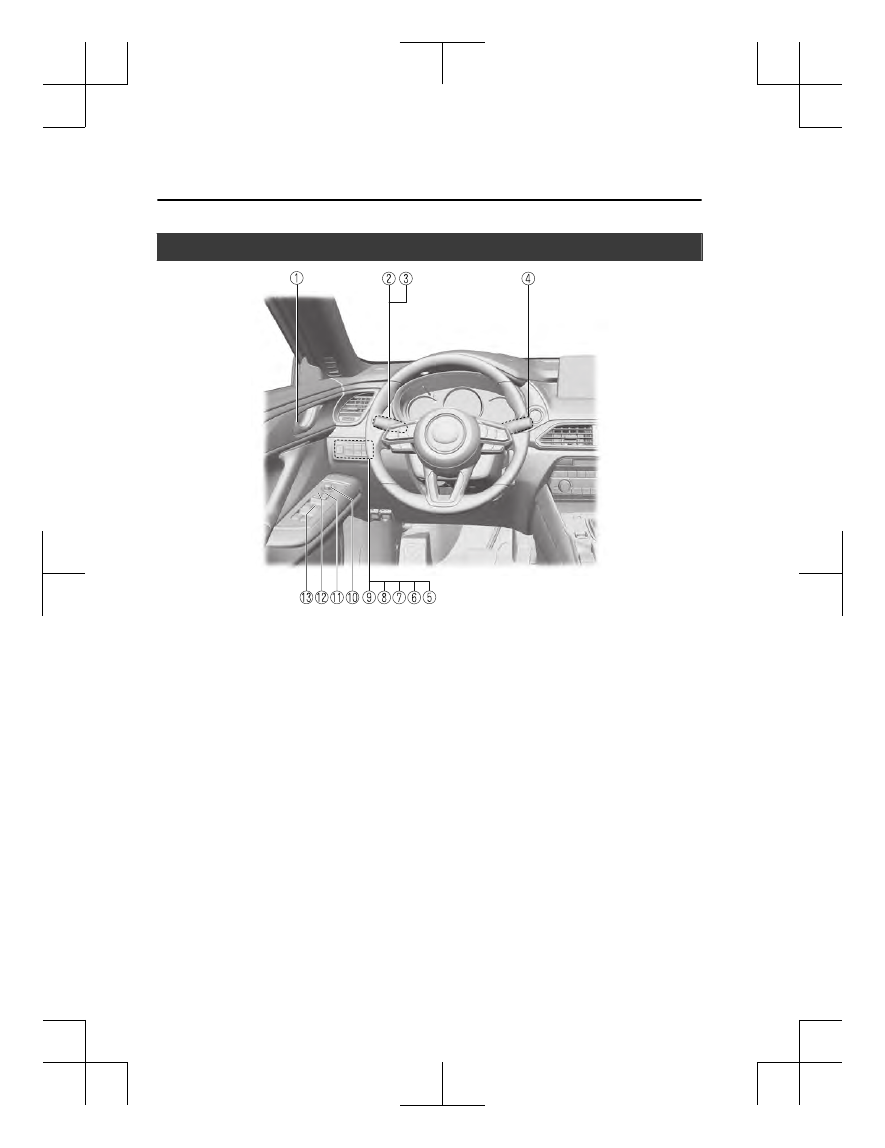

Interior Equipment (View A)

①

Door-lock knob..................................................................................................... page 3-18

②

Turn and lane-change signal..................................................................................page 4-73

③

Lighting control.....................................................................................................page 4-68

④

Wiper and washer lever.........................................................................................page 4-74

⑤

TCS OFF switch....................................................................................................page 4-96

⑥

Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF
switch.................................................................................................................. page 4-150

⑦

Parking sensor switch......................................................................................... page 4-224

⑧

360° View Monitor switch..................................................................................page 4-172

⑨

Power liftgate switch.............................................................................................page 3-21

⑩

Outside mirror switch............................................................................................page 3-32

⑪

Door-lock switch................................................................................................... page 3-16

⑫

Power window lock switch................................................................................... page 3-37

⑬

Power window switches........................................................................................page 3-37

Pictorial Index

Interior Overview

1-2

The equipment and installation position varies by vehicle

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

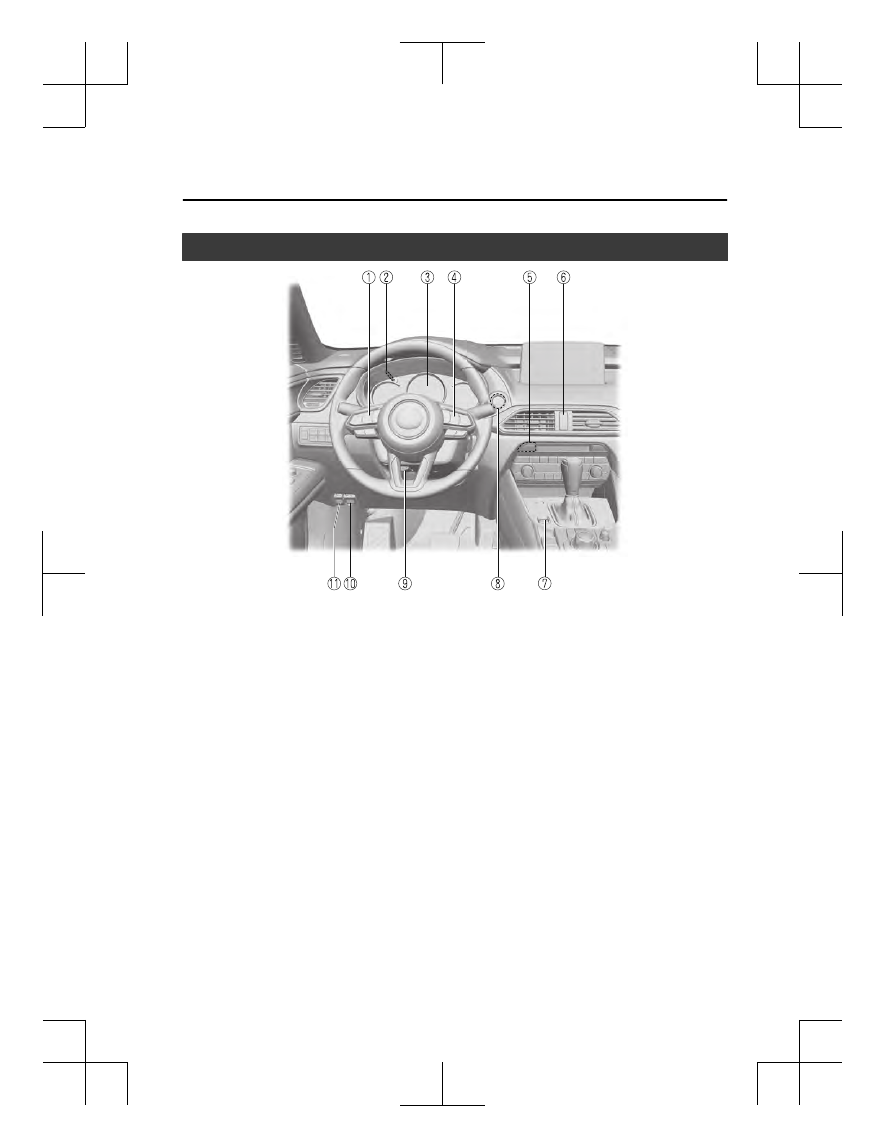

Interior Equipment (View B)

①

Audio control switches..........................................................................................page 5-15

②

Dashboard illumination knob............................................................. page 4-18, 4-34, 4-49

③

Instrument cluster.................................................................................................. page 4-11

④

Cruise control switches........................................................................... page 4-138, 4-203

⑤

Heated steering wheel switch................................................................................page 2-26

⑥

Hazard warning flasher switch..............................................................................page 4-80

⑦

Drive selection switch.........................................................................................page 4-102

⑧

Push button start......................................................................................................page 4-4

⑨

Lock release lever................................................................................................... page 2-5

⑩

Hood release handle.............................................................................................. page 6-20

⑪

Remote fuel-filler lid release.................................................................................page 3-30

Pictorial Index

Interior Overview

The equipment and installation position varies by vehicle

1-3

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

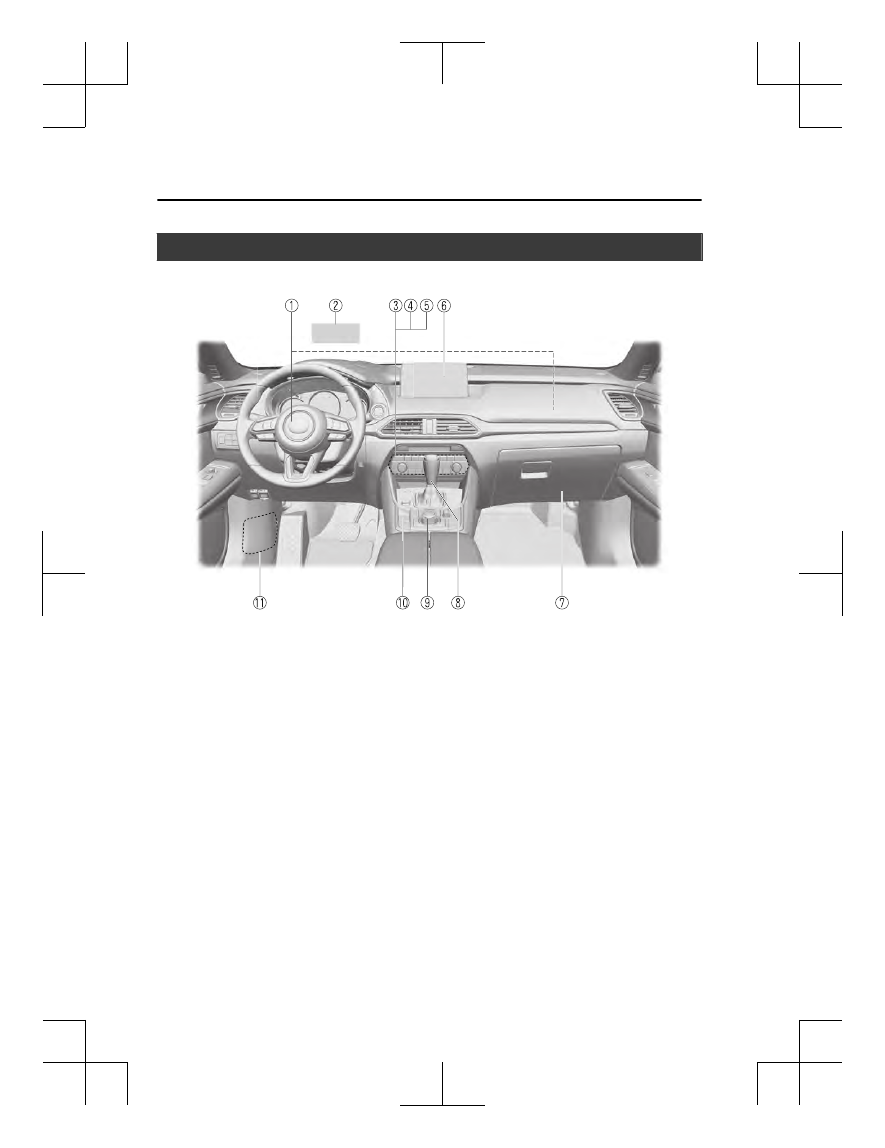

Interior Equipment (View C)

①

SRS air bags.......................................................................................................... page 2-62

②

Active driving display........................................................................................... page 4-56

③

Climate control system............................................................................................page 5-4

④

Rear window defogger switch...............................................................................page 4-78

⑤

Seat warmer switches............................................................................................page 2-24

⑥

Audio.....................................................................................................................page 5-19

⑦

Glove compartment.............................................................................................page 5-101

⑧

Selector lever.........................................................................................................page 4-59

⑨

Commander switch................................................................................................page 5-19

⑩

Electric parking brake (EPB) switch.....................................................................page 4-90

⑪

Fuse block (Left side)............................................................................................page 6-50

Pictorial Index

Interior Overview

1-4

The equipment and installation position varies by vehicle

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

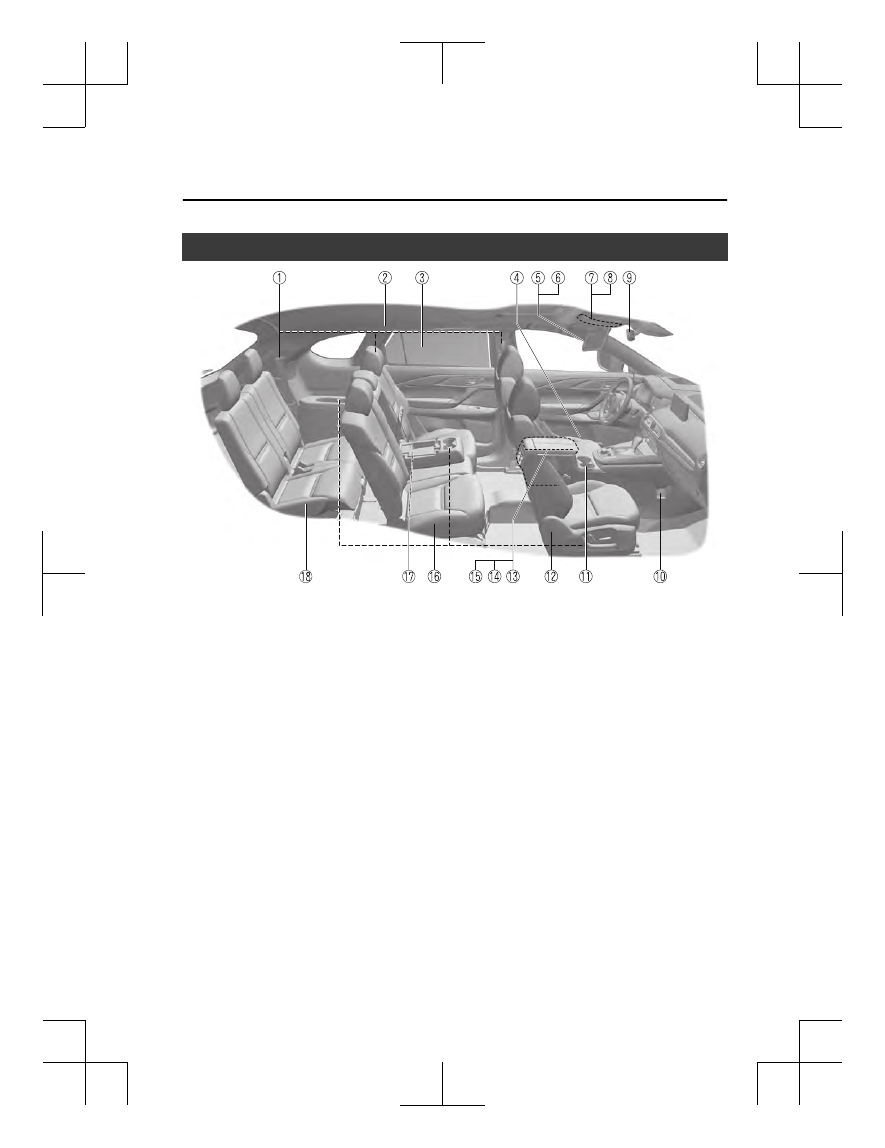

Interior Equipment (View D)

①

Seat belts............................................................................................................... page 2-28

②

SRS air bag............................................................................................................page 2-62

③

Rear door sunshade.............................................................................................page 5-106

④

Bottle holder....................................................................................................... page 5-100

⑤

Sunvisor.................................................................................................................page 5-92

⑥

Vanity mirror......................................................................................................... page 5-92

⑦

Overhead lights..................................................................................................... page 5-93

⑧

Moonroof switch................................................................................................... page 3-40

⑨

Rearview mirror.................................................................................................... page 3-34

⑩

Accessory socket...................................................................................................page 5-97

⑪

Cup holders........................................................................................................... page 5-99

⑫

Front seat.................................................................................................................page 2-5

⑬

Center console.................................................................................................... page 5-102

⑭

External input terminal..........................................................................................page 5-16

⑮

Seat warmer switches............................................................................................ page 2-24

⑯

Second-row seat.................................................................................................... page 2-15

⑰

USB power outlet..................................................................................................page 5-98

⑱

Third-row seat....................................................................................................... page 2-20

Pictorial Index

Interior Overview

The equipment and installation position varies by vehicle

1-5

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

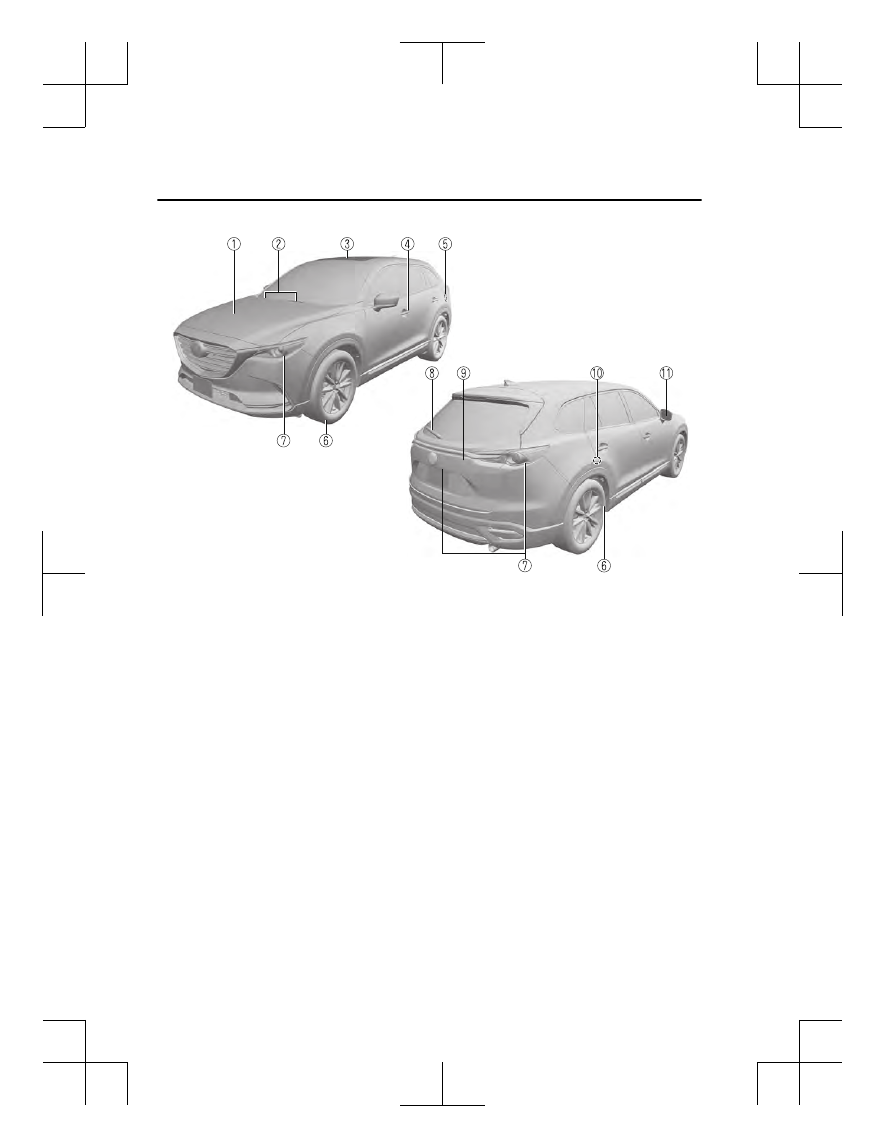

①

Hood......................................................................................................................page 6-20

②

Windshield wiper blades....................................................................................... page 6-29

③

Moonroof...............................................................................................................page 3-40

④

Door and key......................................................................................................... page 3-11

⑤

Fuel-filler lid......................................................................................................... page 3-30

⑥

Wheels and Tires................................................................................................... page 6-38

⑦

Exterior lights........................................................................................................page 6-42

⑧

Rear window wiper blade......................................................................................page 6-32

⑨

Liftgate.................................................................................................................. page 3-20

⑩

Child safety lock................................................................................................... page 3-19

⑪

Outside mirror....................................................................................................... page 3-32

Pictorial Index

Exterior Overview

1-6

The equipment and installation position varies by vehicle

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

2

Essential Safety Equipment

Important information about safety equipment, including seats, seat
belt system, child-restraint systems and SRS air bags.

Seats.................................................... 2-2

Seat Precautions............................2-2
Front Seat......................................2-5
Second-Row Seat........................2-15
Third-Row Seat.......................... 2-20
Head Restraints...........................2-21

Seat Warmer/Seat Ventilation/Heated
Steering Wheel.................................2-24

Seat Warmer

*

..............................2-24

Seat Ventilation

*

......................... 2-25

Heated Steering Wheel

*

............. 2-26

Seat Belt Systems.............................2-28

Seat Belt Precautions..................2-28
Seat Belt......................................2-31
Seat Belt Warning Systems.........2-32
Front Seat Belt Pretensioner and
Load Limiting Systems...............2-33
Seat Belt Extender...................... 2-35

Child Restraint................................ 2-37

Child-Restraint Precautions........2-37
Child-Restraint System
Installation.................................. 2-42
Child-Restraint System Suitability
for Various Seat Positions
Table........................................... 2-44
Installing Child-Restraint
Systems.......................................2-48

SRS Air Bags....................................2-62

Supplemental Restraint System
(SRS) Precautions.......................2-62
Supplemental Restraint System
Components................................2-69
How the SRS Air Bags Work..... 2-71
SRS Air Bag Deployment
Criteria........................................2-75
Limitations to SRS Air Bag........2-76
Front Passenger Occupant
Classification System

*

................2-78

Constant Monitoring...................2-83

*Some models.

2-1

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Seat Precautions

WARNING

Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a sudden stop
or collision, the seat or seatback could move, causing injury. Make sure the adjustable
components of the seat are locked in place by attempting to slide the seat forward and
backward and rocking the seatback.

Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a child's
hands or feet become caught in the seat.

Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown around
and baggage to strike occupants in a sudden stop or collision, resulting in severe injury. After
adjusting the seatback at any time, even when there are no other passengers, rock the
seatback to make sure it is locked in place.

Adjust a seat only when the vehicle is stopped:
If the seat is adjusted while the vehicle is being driven, the seating posture may become
unstable and the seat could move unexpectedly resulting in injury.

Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening any bolts
is dangerous. The front seats contain air bag components essential to the supplemental
restraint system. Such modifications could damage the supplemental restraint system and
result in serious injury. Consult an Authorized Mazda Dealer if there is any need to remove or
reinstall the front seats.

Do not drive with damaged front seats:
Driving with damaged front seats, such as seat cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to inflate the air bags, could
damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have an
Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air bags
after a collision.

Essential Safety Equipment

Seats

2-2

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Do not drive with either front seats reclined:
Sitting in a reclined position while the vehicle is moving is dangerous because you do not get
the full protection from seat belts. During sudden braking or a collision, you can slide under
the lap belt and suffer serious internal injuries. For maximum protection, sit well back and
upright.

Do not recline a second-row seatback when the third-row seat is occupied:
Reclining the second-row seatback when the third-row seat is occupied is dangerous. Because
the clearance in the third-row seat is limited, occupants in the third-row seat could be hurt
seriously on a reclined second-row seatback.

Do not place an object such as a cushion between the seatback and your back:
Putting an object such as a cushion between the seatback and your back is dangerous
because you will be unable to maintain a safe driving posture and the seat belt cannot
function at its full capacity in a collision, which could result in a serious accident, injury or
death.

Do not place objects under the seat:
The object could get stuck and cause the seat to not be fixed securely, and result in an
accident.

Do not stack cargo higher than the seatbacks:
Stacking luggage or other cargo higher than the seatbacks is dangerous. During sudden
braking or a collision, objects can fly around and become projectiles that may hit and injure
passengers.

Make sure luggage and cargo is secured before driving:
Not securing cargo while driving is dangerous as it could move or be crushed during sudden
braking or a collision and cause injury.

Never allow a passenger to sit or stand on the folded seatback while the vehicle is moving:
Driving with a passenger on the folded seatback is dangerous. Allowing a child to sit up on
the folded seatback while the vehicle is moving is particularly dangerous. In a sudden stop or
even a minor collision, a child not in a proper seat or child-restraint system and seat belt could
be thrown forward, back or even out of the vehicle resulting in serious injuries or death. The
child in the baggage area could be thrown into other occupants and cause serious injury.

CAUTION

When operating a seat, be careful not to put your hands or fingers near the moving parts of

the seat or on the side trim to prevent injury.

Seats

2-3

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

When moving the seats, make sure there is no cargo in the surrounding area. If the cargo

gets caught it could damage the cargo.

(Manual Seat)

When moving the seats forward and rearward or returning a rear-reclined seatback to its
upright position, make sure you hold onto the seatback with your hand while operating. If
the seatback is not held, the seat will move suddenly and could cause injury.

NOTE



When returning a rear seat to its original position, place the seat belt in its normal
position. Verify that the seat belt pulls out and retracts.



(Power Seat)
The seat-bottom power adjustment is operated by motors. Avoid extended operation
because excessive use can damage the motors.



To prevent the battery from running down, avoid using the power adjustment when the
engine is stopped. The adjuster uses a large amount of electrical power.



Do not use the switch to make more than one adjustment at a time.

Essential Safety Equipment

Seats

2-4

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

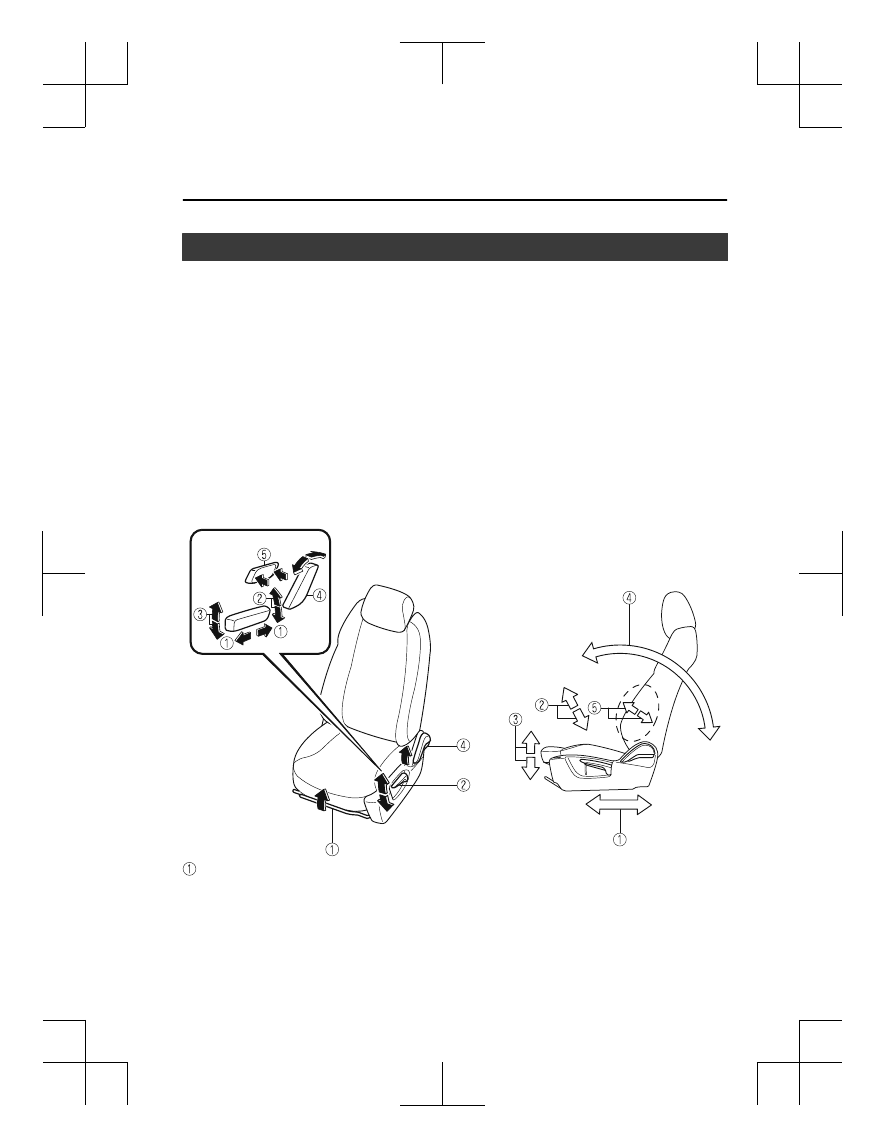

Front Seat

▼ Adjusting the Driver's Seat

Using the driving position set up procedure recommended by Mazda allows you to maintain
a relaxed posture, drive the vehicle for longer periods without feeling tired, and make quick
operations naturally.
Also, you can be assured of a clear view in the forward direction to help you drive more
safely and comfortably.
The adjustments for the driving position recommended by Mazda are done using the
following procedures.
1. Moving the steering wheel and seat to their default positions.
2. Adjusting the seatback angle.
3. Adjusting the seat position forward and back.
4. Adjusting the seat height.
5. Adjusting the steering wheel position.
6. Adjusting the head restraint position.

Power operation

 Seat Slide

(Manual Seat)
To move a seat forward or backward, raise the lever and slide the seat to the desired position
and release the lever.

Seats

2-5

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

Make sure the lever returns to its original position and the seat is locked in place by
attempting to push it forward and backward.
(Power Seat)
To slide the seat, move the slide lifter switch on the outside of the seat to the front or back
and hold it. Release the switch at the desired position.

 Height Adjustment

(Manual Seat)
To adjust the seat height, move the lever up or down.
(Power Seat)
To adjust the seat height, move the switch up or down.

 Height Adjustment for Front Edge of Seat Bottom (Power Seat)

*

To adjust the front height of the seat bottom, raise or lower the front of the slide lifter
switch.

 Seat Recline

(Manual Seat)
To change the seatback angle, lean forward slightly while raising the lever. Then lean back
to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is locked in place by
attempting to push it forward and backward.
(Power Seat)
To change the seatback angle, press the front or rear side of the reclining switch. Release the
switch at the desired position.

 Lumbar Support Adjustment (Power Seat)

*

To increase the seat firmness, press and hold the front part of the switch to the desired
position, then release it.
Press the rear part of the switch to decrease firmness.

Before making adjustments to the driving position recommended by Mazda

Before making adjustments, move the steering wheel and seat to their default positions.

How to move the steering wheel to its default position

WARNING

Never adjust the steering wheel while the vehicle is moving:
Adjusting the steering wheel while the vehicle is moving is dangerous. Moving it can very
easily cause the driver to abruptly turn to the left or right. This can lead to loss of control or an
accident.

Essential Safety Equipment

Seats

2-6

*Some models.

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

After adjusting the steering wheel position, make sure it is securely locked by trying to move it
up and down:
Driving with the steering wheel not securely locked in position is dangerous. If the steering
wheel moves unexpectedly while driving, you could lose control of the steering resulting in an
accident.

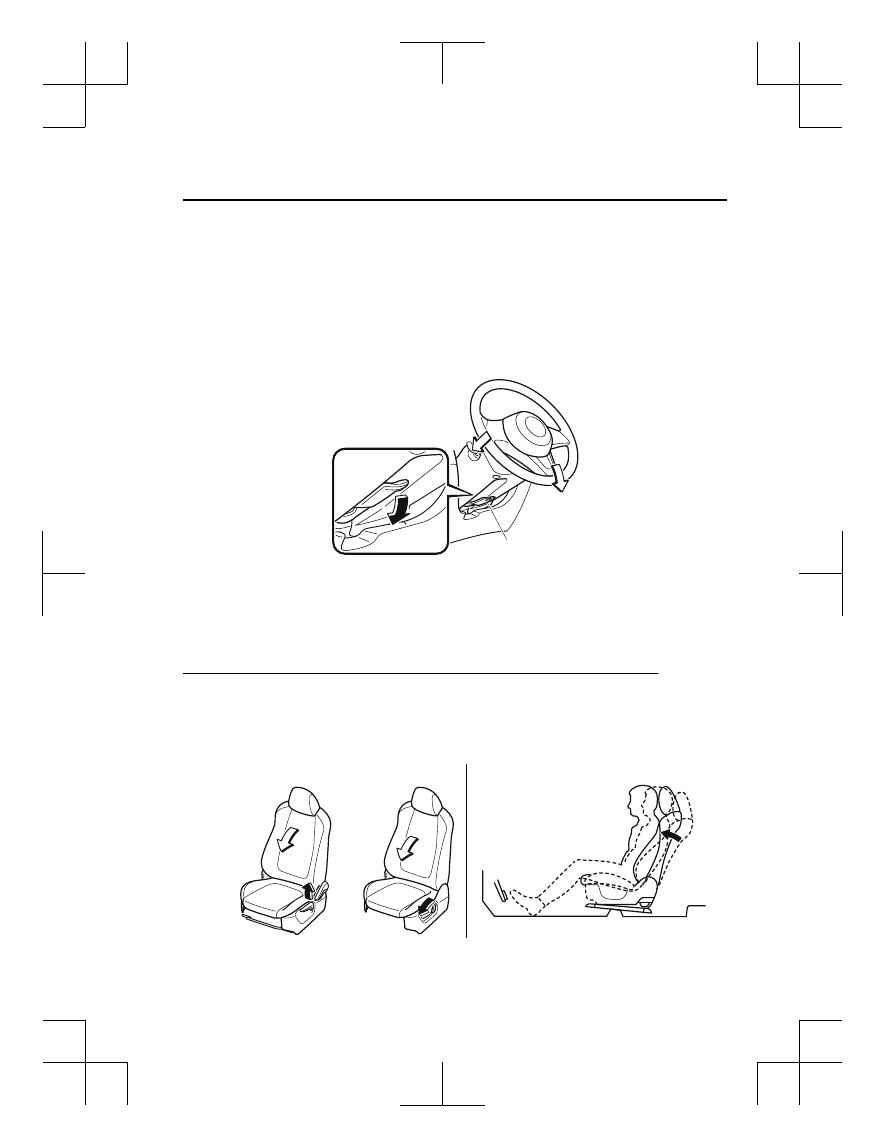

Lower the lever, move the steering wheel to the lowest position, and then push it down and
all the way back.

Lock release lever

How to move a driver’s seat to its default position

1. Slide the seat all the way back.
2. Lower the seat to its lowest height.
3. Sit squarely in the seat and rest your back against the seatback.

Seat adjustment procedure for the driving position recommended by Mazda

Adjusting the seatback angle (reclining)

Adjust the seatback to the angle providing a comfortable seated posture.
1. With your posture slightly slouched, move the seatback forward to the angle where your

waist feels slightly cramped.

Manual Seat

Power Seat

Seats

2-7

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

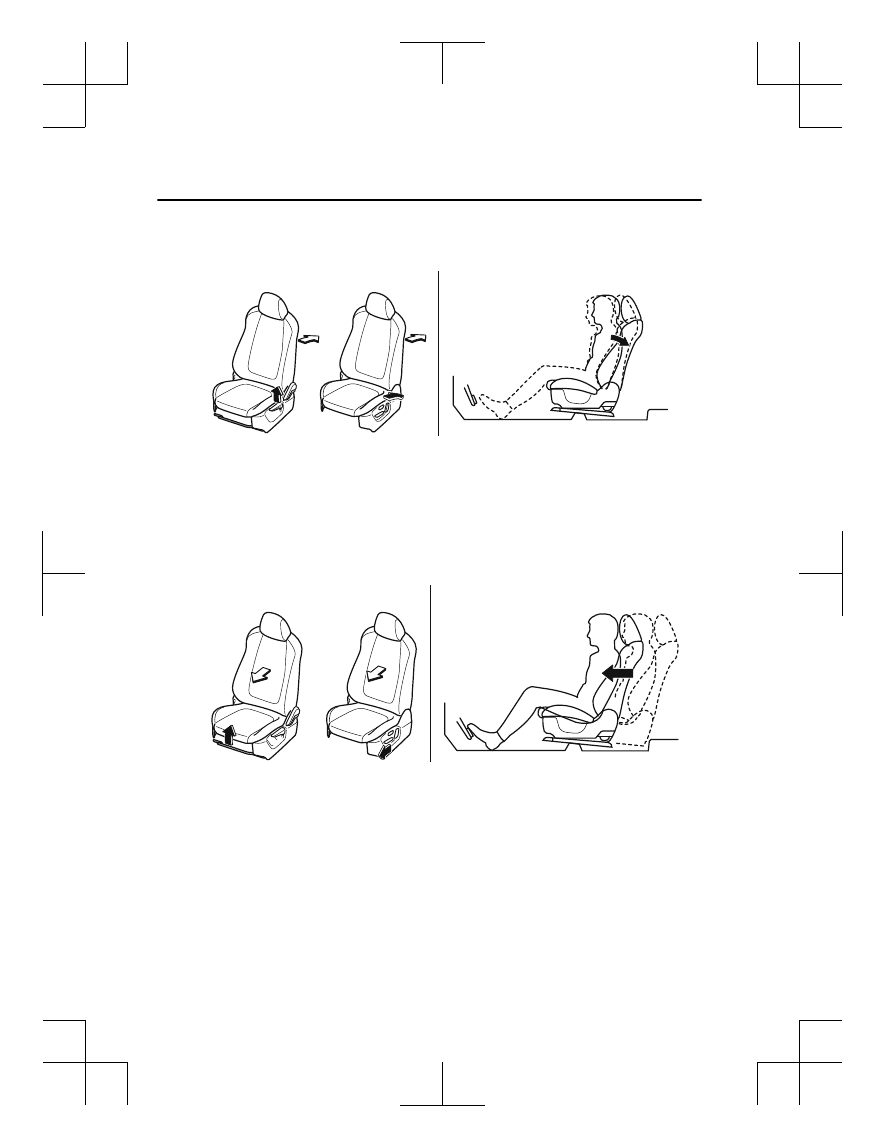

2. Move the seatback backward to a comfortable seated posture without any feeling of

cramping in your waist.

Manual Seat

Power Seat

Adjusting the seat position forward and back (sliding)

Adjust the seat to the position best for operating the accelerator and brake pedals.
1. Place your left foot on the footrest, your right foot between the accelerator and brake

pedals, and position your heel to the position allowing easy switching between the
pedals.

2. With your heel set on the floor, set your right foot on the brake pedal and move the seat

forward as far as possible until you feel a slight cramping in your ankle.

Manual Seat

Power Seat

3. With your right foot set on the brake pedal, move the seat back until you no longer feel

cramping in your ankle.

4. With your heel set on the floor, make sure you can move your foot between the brake

pedal and accelerator pedal smoothly.

Essential Safety Equipment

Seats

2-8

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

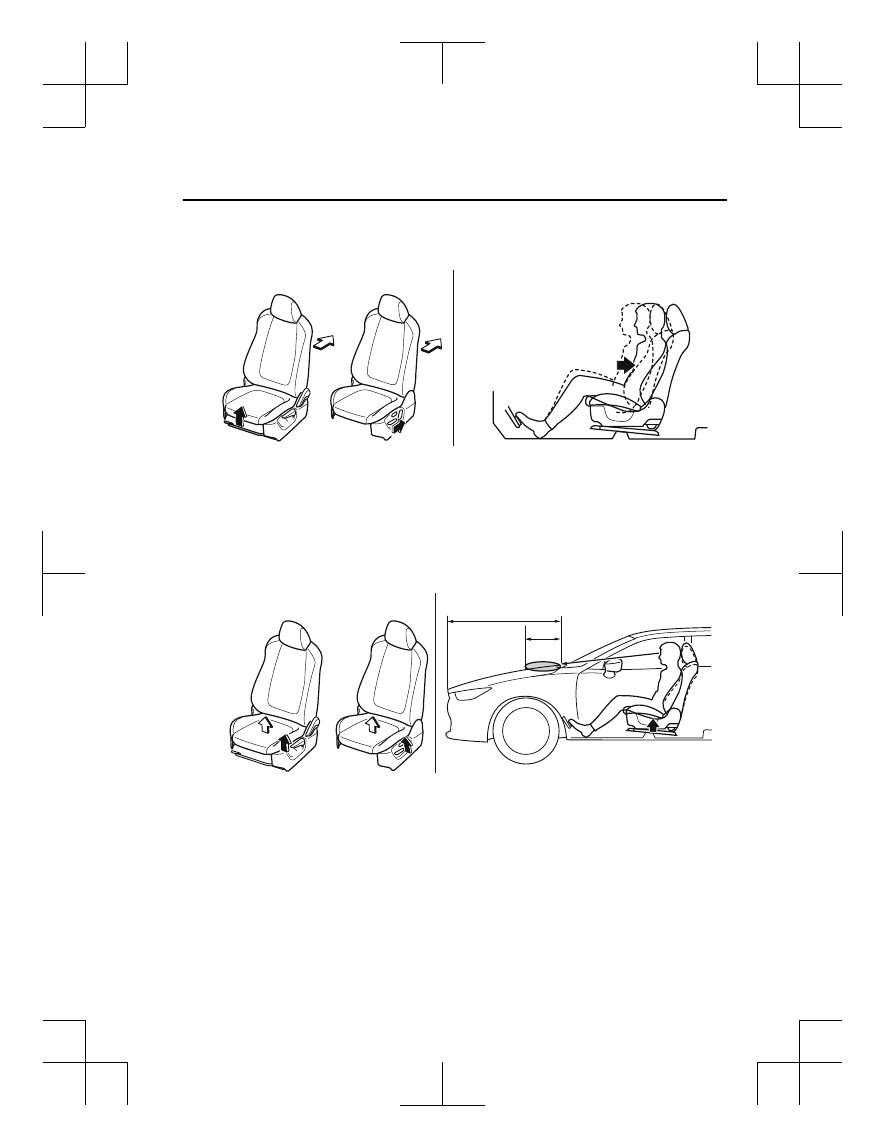

5. Depress the accelerator pedal completely with your heel set on the floor and make sure

that your ankle does not feel over-stretched.

Manual Seat

Power Seat

Adjusting the seat height

Adjust the seat height to a position where you have a clear forward view and you can drive
the vehicle easily.
1. With your back resting against the seatback, adjust the seat to the height where you can

see the first quarter part of the hood from the windshield.
With the manual seat, if you raise the seat height, the seat moves forward. Adjust the
seat forward or back again.

Manual Seat

Power Seat

1/4

Adjusting the steering wheel position

Adjust the steering wheel to the position where it can be operated easily and the gauges can
be viewed easily.

Seats

2-9

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

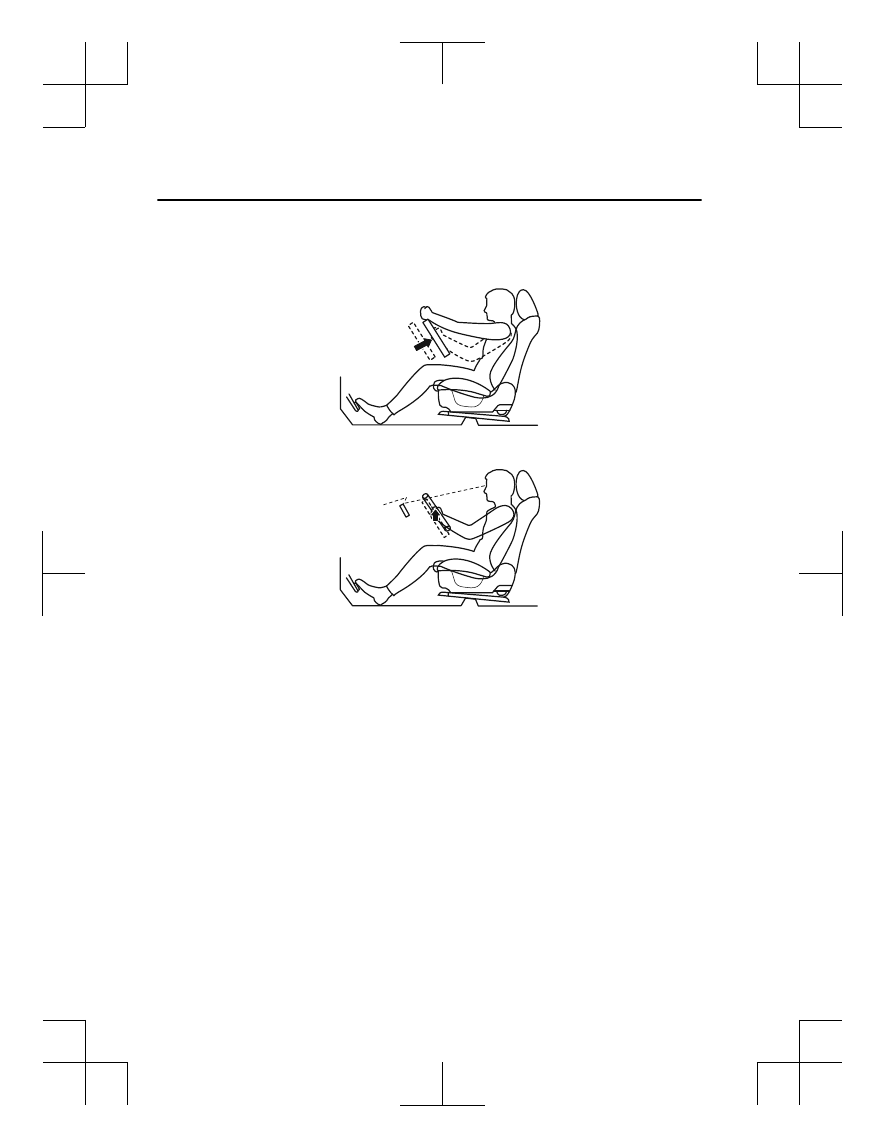

1. With your back resting against the seatback, extend both arms, place them on the top of

the steering wheel, and pull the steering wheel towards you to the position of your
wrists.

2. Adjust the steering wheel height so that the gauges can be viewed easily.
3. Raise the lever to securely lock the steering wheel.

Adjusting the head restraint position

To prevent shock to the head and neck, adjust the head restraints to their correct positions.
Refer to Height Adjustment on page 2-21.

Essential Safety Equipment

Seats

2-10

CX-9_8HB2-EA-18G_Edition1

2018-5-11 13:09:27

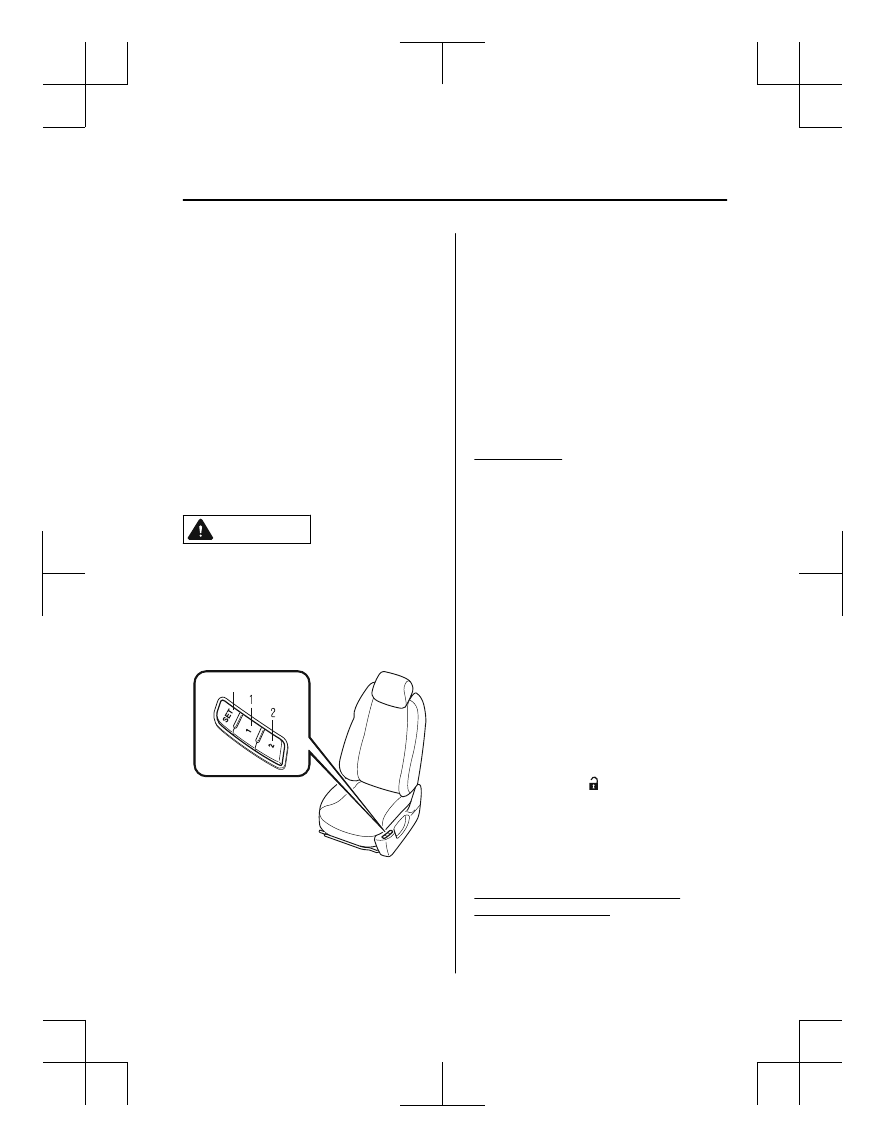

▼ Driving Position Memory

*

The desired driving position can be called
up after programming the position.
The following driving positions can be
programmed.



Driver’s seat position (seat slide, height
adjustment, front edge of seat bottom,
seat recline)
Refer to Adjusting the Driver's Seat on
page 2-5.



Active driving display (display position,
brightness level, display information)
Refer to Active Driving Display on page
4-56.

CAUTION

Do not place fingers or hands around the
bottom of the seat while the seat memory
function is operating. The seat moves
automatically while the seat memory
function is operating and fingers or hands
could get pinched and injured.

SET button

A driving position can be programmed or
operated using the buttons on the side of
the seat or the key.

NOTE



Lumbar support adjustment cannot be
programmed.



A driving position can be programmed
to the buttons on the side of the seat and
the key in use for driving the vehicle.



If the vehicle has been serviced and the
battery cables disconnected, the
programmed seat positions will have
been erased. Re-program the seat
positions.

Programming

1. Make sure the parking brake is on.
2. Make sure the selector lever is in the P

position.

3. Start the engine.
4. Adjust the seat and the active driving

display to the desired driving position.

5. Press the SET button on the seat until a

beep sound is heard 1 time.

6. Perform one of the following settings

within 5 seconds of completing step 5
above:



Programming using a button on
the side of the seat
Press the button you want to
program, either button 1 or 2, until a
beep sound is heard 1 time.



Programming using the key
Press the key   button until a beep
sound is heard 1 time.

NOTE
If a beep sound is heard 3 times, the
operation is canceled.

To move the driving position to a
programmed position

(Using a button on the side of the seat)

1. Make sure the parking brake is on.

Seats

*Some models.

2-11
