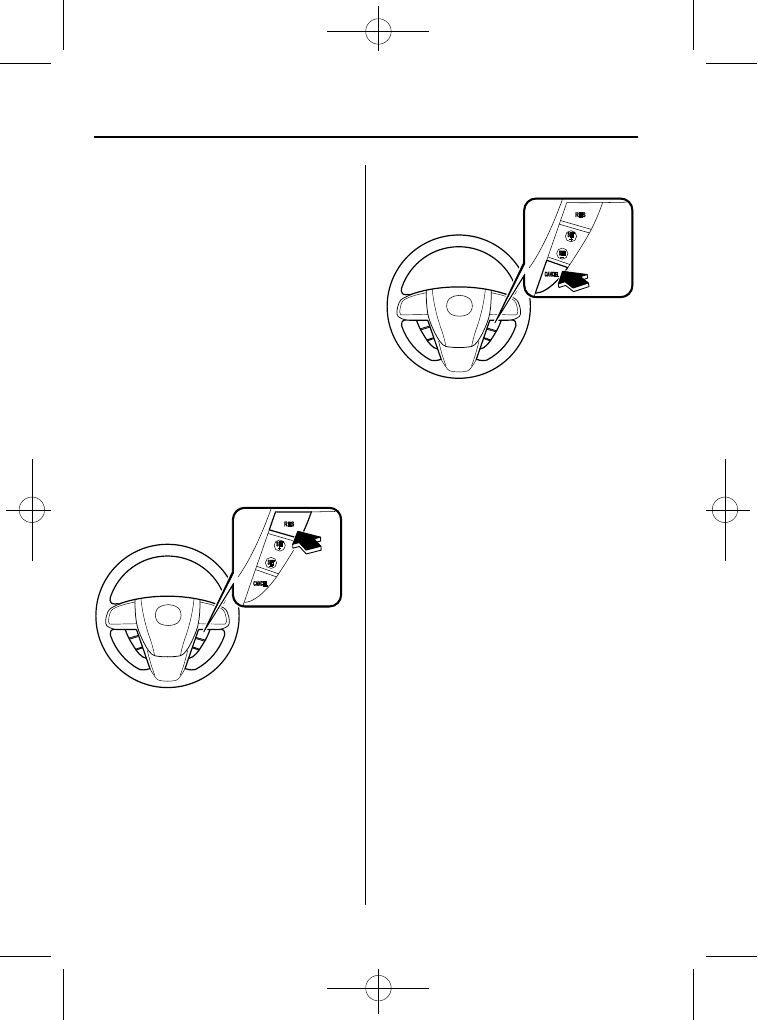

Your vehicle has a tap-down feature that
allows you to decrease your current speed
in decrements of 1.6 km/h (1 mph) by a
momentary tap of the SET- switch.
Multiple taps will decrease your vehicle
speed 1.6 km/h (1 mph) for each tap.

qTo Resume Cruising Speed at

More Than 30 km/h (19 mph)

If some other method besides the OFF
switch was used to cancel cruising speed
(such as applying the brake pedal) and the
system is still activated, the most recent
set speed will automatically resume when
the RES switch is pressed.
If vehicle speed is below 30 km/h (19
mph), increase the vehicle speed up to 30
km/h (19 mph) or more and press the RES
switch.

qTo Cancel

To cancel the system, use one of these
methods:

Press the OFF switch.

Slightly depress the brake pedal.

Press the CANCEL switch.

The system turns off when the ignition is
switched off.

NOTE

Cruise control will cancel at about 15 km/h (9
mph) below the preset speed (such as may
happen when climbing a long, steep grade).

5-24

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page184
Saturday, September 24 2011 10:32 AM

Black plate (185,1)

Traction Control System
(TCS)

The Traction Control System (TCS)
enhances traction and safety by
controlling engine torque and braking.
When the TCS detects driving wheel
slippage, it lowers engine torque and
operates the brakes to prevent loss of
traction.

This means that on a slick surface, the
engine adjusts automatically to provide
optimum power to the drive wheels,
limiting wheel spin and loss of traction.

WARNING

Do not rely on the traction control
system as a substitute for safe driving:

The traction control system (TCS)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.

Use snow tires or tire chains and drive
at reduced speeds when roads are
covered with ice and/or snow:

Driving without proper traction
devices on snow and/or ice-covered
roads is dangerous. The traction
control system (TCS) alone cannot
provide adequate traction and you
could still have an accident.

qTCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

NOTE

In addition to the indicator light flashing, a
slight lugging sound will come from the
engine. This indicates that the TCS is
operating properly.

On slippery surfaces, such as fresh snow, it
will be impossible to achieve high rpm
when the TCS is on.

Driving Your Mazda

Starting and Driving

5-25

CX-7_8CG3-EA-11J_Edition1 Page185
Saturday, September 24 2011 10:32 AM

Black plate (186,1)

qTCS OFF Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 5-27.
If the light remains illuminated and the
TCS is not switched off, take your vehicle
to an Authorized Mazda Dealer. The
dynamic stability control may have a
malfunction.

NOTE

If the battery is disconnected or a fuse is
replaced, the DSC will be inoperable. When
this happens, the TCS OFF indicator light
flashes and the TCS/DSC indicator light
illuminates.
To reactivate the DSC, perform the following
procedure with the battery connected.

1. Switch the ignition ON.

2. Turn the steering clockwise fully, then turn

it counterclockwise fully.

3. Make sure the TCS OFF indicator light

turns off.

4. Switch the ignition off, then switch the

ignition ON again.

5. Make sure the TCS/DSC indicator light

turns off.

If the TCS/DSC indicator light and the TCS
OFF indicator light remain illuminated even
after switching the ignition from ON to OFF,
and back to ON, attempt the procedure again.
If this still does not resolve the issue, consult
an Authorized Mazda Dealer.

5-26

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page186
Saturday, September 24 2011 10:32 AM

Black plate (187,1)

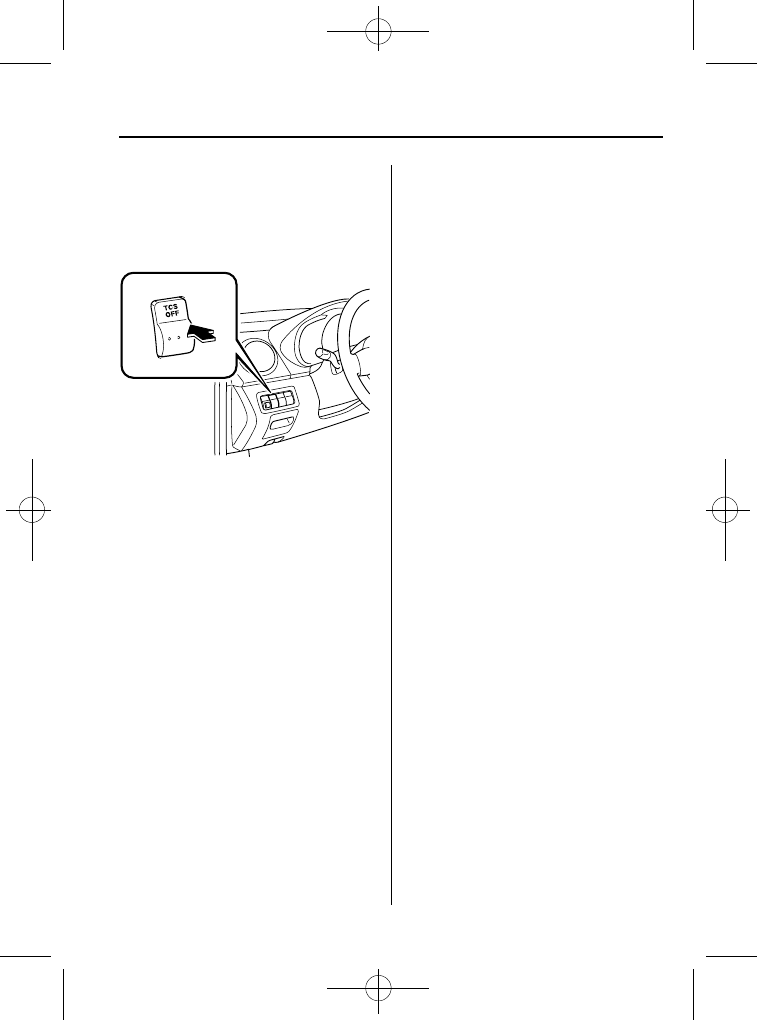

qTCS OFF Switch

If the vehicle speed is less than 30 km/h
(18 mph), press the TCS OFF switch to
turn off the TCS. The TCS OFF indicator
light will illuminate.

Press the switch again to turn the TCS
back on. The TCS OFF indicator light
will turn off. If the vehicle speed is more
than 30 km/h (18 mph), the TCS OFF
indicator light will not illuminate even if
the switch is pressed.

NOTE

When TCS is on and you attempt to free the
vehicle when it is stuck, or drive it out of
freshly fallen snow, the TCS will activate.
Depressing the accelerator will not
increase engine power and freeing the
vehicle may be difficult. When this happens,
turn off the TCS.

If the TCS is off when the engine is turned
off, it automatically activates when the
ignition is switched ON.

Leaving the TCS on will provide the best
traction.

If the TCS is OFF when the vehicle speed is
more than 30 km/h (18 mph), it
automatically activates and the TCS OFF
indicator light will turn off.

If the TCS OFF switch is pressed and held
for 10 seconds or more, the TCS OFF
switch malfunction detection function
operates and the TCS system activates
automatically. The TCS OFF indicator light
turns off while the TCS system is operative.

Driving Your Mazda

Starting and Driving

5-27

CX-7_8CG3-EA-11J_Edition1 Page187
Saturday, September 24 2011 10:32 AM

Black plate (188,1)

Dynamic Stability Control
(DSC)

The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such
as ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.

Refer to ABS (page 5-9) and TCS (page
5-25).

DSC operation is possible at speeds
greater than 20 km/h (12 mph).

WARNING

Do not rely on the dynamic stability
control as a substitute for safe driving:

The dynamic stability control (DSC)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.

CAUTION

Ø The DSC may not operate correctly

unless the following are observed:

Use tires of the correct size
specified for your Mazda on all
four wheels.

Use tires of the same
manufacturer, brand and tread
pattern on all four wheels.

Do not mix worn tires.

Ø The DSC may not operate correctly

when tire chains are used or a
temporary spare tire is installed
because the tire diameter changes.

qTCS/DSC Indicator Light

This indicator light stays on for a few
seconds when the ignition is switched
ON. If the TCS or DSC is operating, the
indicator light flashes.

If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.

5-28

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page188
Saturday, September 24 2011 10:32 AM

Black plate (189,1)

Tire Pressure Monitoring System

The tire pressure monitoring system (TPMS) monitors the pressure for each tire.
If tire pressure is too low in one or more tires, the system will inform the driver via the
warning light in the instrument panel and by the warning beep sound.

The tire pressure sensors installed on each wheel send tire pressure data by radio signal to
the receiver unit in the vehicle.

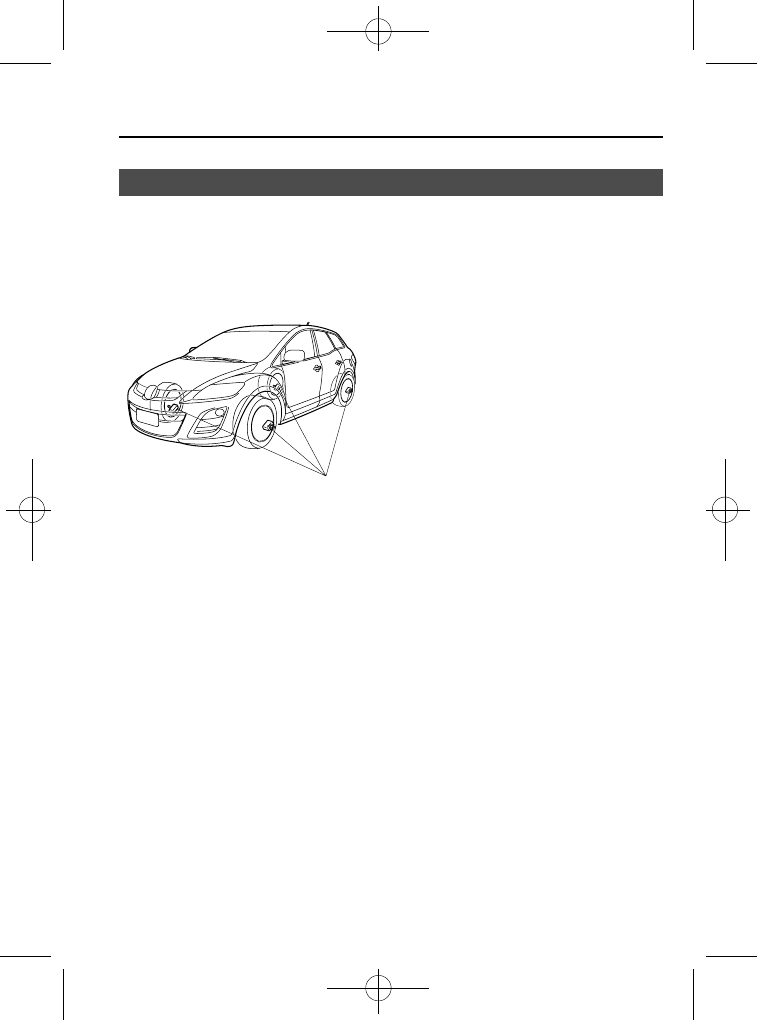

Tire pressure sensors

NOTE

When the ambient temperature is low due to seasonal changes, tire temperatures are also lower.
When the tire temperature decreases, the air pressure decreases as well. The TPMS warning light
may illuminate more frequently. Visually inspect the tires daily before driving, and check tire
pressures monthly with a tire pressure gauge. When checking tire pressures, use of a digital tire
pressure gauge is recommended.

TPMS does not alleviate your need to check the pressure and condition of all four tires
regularly.

Driving Your Mazda

Starting and Driving

5-29

Some models.

CX-7_8CG3-EA-11J_Edition1 Page189
Saturday, September 24 2011 10:32 AM

Black plate (190,1)

CAUTION

Ø Each tire, including the spare (if provided), should be checked monthly when cold

and inflated to the inflation pressure recommended by the vehicle manufacturer
on the vehicle placard or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or tire inflation
pressure label, you should determine the proper tire inflation pressure for those
tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS) that illuminates a low tire pressure telltale when one
or more of your tires is significantly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's
handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it
is the driver's responsibility to maintain correct tire pressure, even if under-
inflation has not reached the level to trigger illumination of the TPMS low tire
pressure telltale.

Ø Your vehicle has also been equipped with a TPMS malfunction indicator to

indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale.
When the system detects a malfunction, the telltale will flash for approximately
one minute and then remain continuously illuminated. This sequence will
continue upon subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be able to
detect or signal low tire pressure as intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPMS from functioning properly. Always
check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow
the TPMS to continue to function properly.

Ø To avoid false readings, the system samples for a little while before indicating a

problem. As a result it will not instantaneously register a rapid tire deflation or
blow out.

NOTE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

5-30

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page190
Saturday, September 24 2011 10:32 AM

Black plate (191,1)

qTire Pressure Monitoring System

Warning Light

This warning light illuminates for a few
seconds when the ignition is switched
ON.

Thereafter, the warning light illuminates
and a beep is heard when tire pressure is
too low in one or more tires, and flashes
when there is a system malfunction.

WARNING

If the tire pressure monitoring system
warning light illuminates or flashes, or
the tire pressure warning beep sound is
heard, decrease vehicle speed
immediately and avoid sudden
maneuvering and braking:

If the tire pressure monitoring system
warning light illuminates or flashes,
or the tire pressure warning beep
sound is heard, it is dangerous to
drive the vehicle at high speeds, or
perform sudden maneuvering or
braking. Vehicle drivability could
worsen and result in an accident.
To determine if you have a slow leak
or a flat, pull over to a safe position
where you can check the visual
condition of the tire and determine if
you have enough air to proceed to a
place where air may be added and
the system monitored again by an
Authorized Mazda Dealer or a tire
repair station.

Do not ignore the TPMS Warning Light:

Ignoring the TPMS warning light is
dangerous, even if you know why it is
illuminated. Have the problem taken
care of as soon as possible before it
develops into a more serious
situation that could lead to tire
failure and a dangerous accident.

Warning light illuminates/Warning
beep sounds

When the warning light illuminates, and
the warning beep sound is heard (about 3
seconds), tire pressure is too low in one or
more tires.

Driving Your Mazda

Starting and Driving

5-31

CX-7_8CG3-EA-11J_Edition1 Page191
Saturday, September 24 2011 10:32 AM

Black plate (192,1)

Adjust the tire pressure to the correct tire
pressure. Refer to the specification charts
(page 10-7).

CAUTION

When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.

NOTE

Perform tire pressure adjustment when the
tires are cold. Tire pressure will vary
according to the tire temperature, therefore
let the vehicle stand for 1 hour or only drive
it 1.6 km (1 mile) or less before adjusting
the tire pressures. When pressure is
adjusted on hot tires to the cold inflation
pressure, the TPMS warning light/beep may
turn on after the tires cool and pressure
drops below specification.
Also, an illuminated TPMS warning light,
resulting from the tire air pressure dropping
due to cold ambient temperature, may turn
off if the ambient temperature rises. In this
case, it will also be necessary to adjust the
tire air pressures. If the TPMS warning
light illuminates due to a drop in tire air
pressure, make sure to check and adjust the
tire air pressures.

After adjusting the tire air pressures, it may
require some time for the TPMS warning
light to turn off. If the TPMS warning light
remains illuminated, drive the vehicle at a
speed of at least 25 km/h (16 mph) for 10
minutes, and then verify that it turns off.

Tires lose air naturally over time and the
TPMS cannot tell if the tires are getting too
soft over time or you have a flat. However,
when you find one low tire in a set of four-
that is an indication of trouble; you should
have someone drive the vehicle slowly
forward so you can inspect any low tire for
cuts and any metal objects sticking through
tread or sidewall. Put a few drops of water
in the valve stem to see if it bubbles
indicating a bad valve. Leaks need to be
addressed by more than simply refilling the
trouble tire as leaks are dangerous - take it
to an Authorized Mazda Dealer which has
all the equipment to fix tires, TPMS systems
and order the best replacement tire for your
vehicle.

5-32

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page192
Saturday, September 24 2011 10:32 AM

Black plate (193,1)

If the warning light illuminates again even
after the tire pressures are adjusted, there
may be a tire puncture. Replace the
punctured tire with the temporary spare
tire (page 7-6).

NOTE

A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used.

Warning light flashes

When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.

qSystem Error Activation

When the TPMS warning light flashes,
there may be a system malfunction.
Consult an Authorized Mazda Dealer.
A system error activation may occur in
the following cases:

When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.

When using the following devices in
the vehicle that may cause radio
interference with the receiver unit.

A digital device such as a personal
computer.

A current converter device such as a
DC-AC converter.

When excess snow or ice adheres to
the vehicle, especially around the
wheels.

When the tire pressure sensor batteries
are exhausted.

When using a wheel with no tire
pressure sensor installed.

When using tires with steel wire
reinforcement in the side walls.

When using tire chains.

qTires and Wheels

CAUTION

When inspecting or adjusting the tire
air pressures, do not apply excessive
force to the stem part of the wheel
unit. The stem part could be
damaged.

Changing tires and wheels

The following procedure allows the
TPMS to recognize a tire pressure sensor's
unique ID signal code whenever tires or
wheels are changed, such as changing to
and from winter tires.

NOTE

Each tire pressure sensor has a unique ID
signal code. The signal code must be
registered with the TPMS before it can work.
The easiest way to do it is to have an
Authorized Mazda Dealer change your tire and
complete ID signal code registration.

When having tires changed at an
Authorized Mazda Dealer

When an Authorized Mazda Dealer
changes your vehicle's tires, they will
complete the tire pressure sensor ID signal
code registration.

When changing tires yourself

If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.

1. After tires have been changed, switch

the ignition ON, then back to ACC or
OFF.

2. Wait for about 15 minutes.

Driving Your Mazda

Starting and Driving

5-33

CX-7_8CG3-EA-11J_Edition1 Page193
Saturday, September 24 2011 10:32 AM

Black plate (194,1)

3. After about 15 minutes, drive the

vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.

NOTE

If the vehicle is driven within about 15 minutes
of changing tires, the tire pressure monitoring
system warning light will flash because the
sensor ID signal code would not have been
registered. If this happens, park the vehicle for
about 15 minutes, after which the sensor ID
signal code will register upon driving the
vehicle for 10 minutes.

Replacing tires and wheels

CAUTION

Ø When replacing/repairing the tires

or wheels or both, have the work
done by an Authorized Mazda
Dealer, or the tire pressure sensors
may be damaged.

Ø The wheels equipped on your

Mazda are specially designed for
installation of the tire pressure
sensors. Do not use non-genuine
wheels, otherwise it may not be
possible to install the tire pressure
sensors.

Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installations are possible.

The tire pressure sensor is removed
from the old wheel and installed to the
new one.

The same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.

A new tire pressure sensor is installed
to a new wheel.

NOTE

The tire pressure sensor ID signal code
must be registered when a new tire pressure
sensor is purchased. For purchase of a tire
pressure sensor and registration of the tire
pressure sensor ID signal code, consult an
Authorized Mazda Dealer.

When reinstalling a previously removed tire
pressure sensor to a wheel, replace the
grommet (seal between valve body/sensor
and wheel) for the tire pressure sensor.

5-34

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page194
Saturday, September 24 2011 10:32 AM

Black plate (195,1)

Blind Spot Monitoring (BSM) System

The Blind Spot Monitoring (BSM) system is designed to assist the driver by monitoring
blind spots on both sides of the vehicle to the rear in certain situations such as when
changing lanes on roads and freeways.

The BSM system monitors the detection areas on both sides of the vehicle to the rear when
the vehicle speed is about 32 km/h (20 mph) or more, and notifies the driver of vehicles in

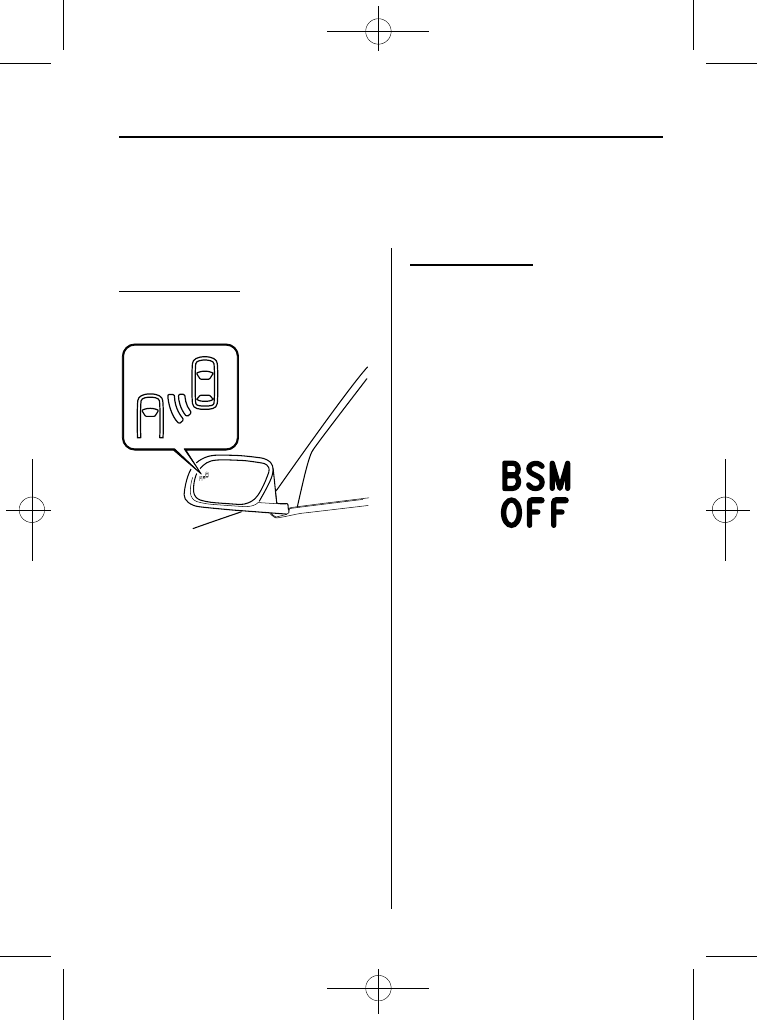

the detection area by illuminating the BSM warning light.
If the turn signal lever is operated in the direction the BSM warning light is illuminated, the
system warns the driver of the vehicle in the detection area with a beep sound.

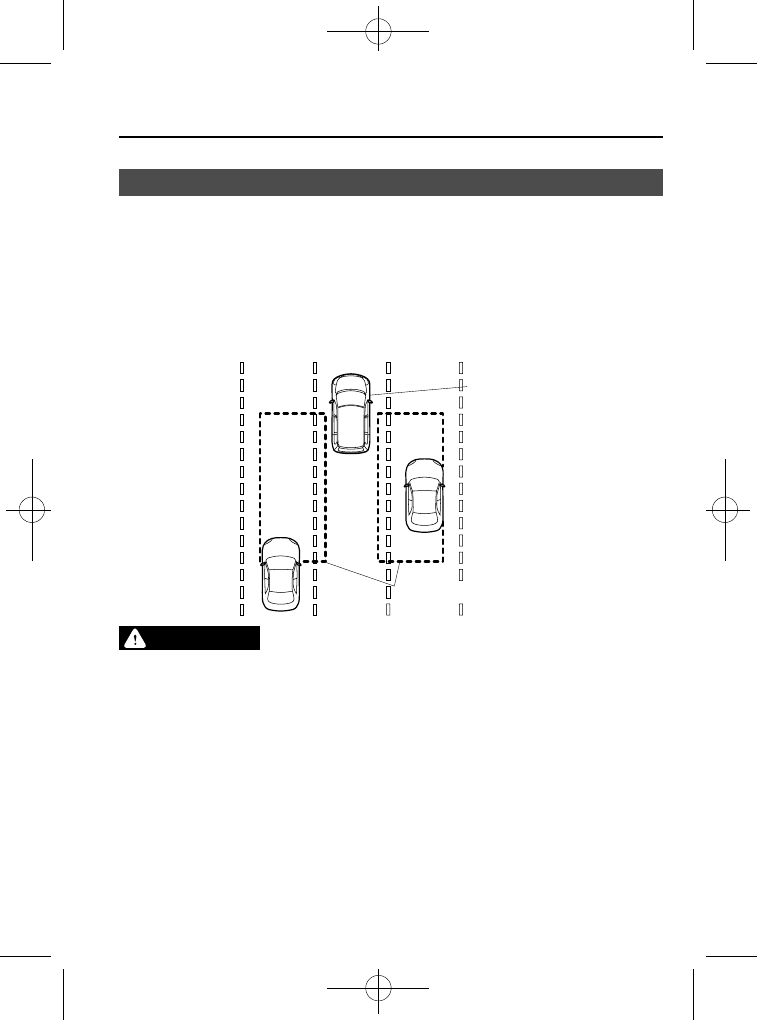

Detection areas

Your vehicle

WARNING

Do not rely completely on the BSM system and be sure to look over your shoulder
before changing lanes:

The BSM system can assist the driver in confirming the safety of the surroundings
but is not a complete substitute. The driver is responsible for assuring lane changes
and other maneuvers. Always pay attention to the direction in which the vehicle is
traveling and the vehicle's surroundings.

NOTE

The BSM system does not operate when the vehicle speed is lower than about 32 km/h (20 mph).

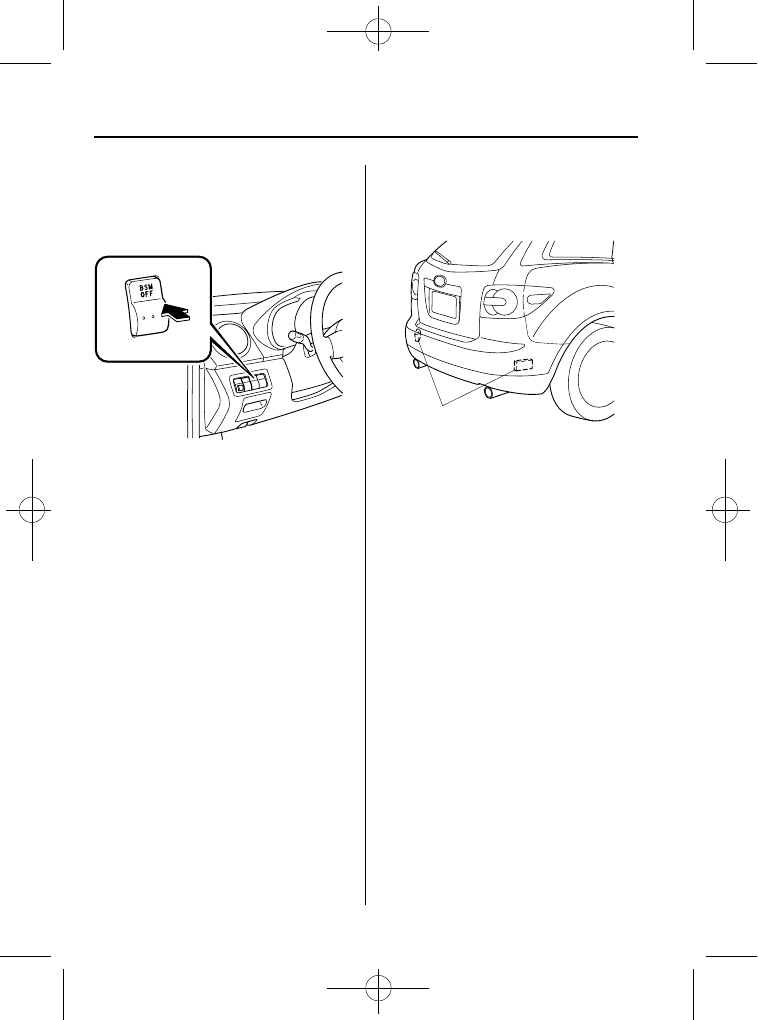

The radar sensors are equipped inside the rear bumper. (page 5-38)

The system may not operate normally when towing a trailer. Turn off the system by operating the
BSM OFF switch when towing a trailer.

The radar sensors do not detect human, animal, or static objects such as fences. In addition, the
system pauses when the selector lever is shifted to the R position. (The system resumes
automatically when the selector lever is shifted from the R position.)

Driving Your Mazda

Starting and Driving

5-35

Some models.

CX-7_8CG3-EA-11J_Edition1 Page195
Saturday, September 24 2011 10:32 AM

Black plate (196,1)

The detectability of the radar sensors has its limitations. The BSM system may not operate
properly under the following conditions:

Ice, snow, or soil adheres to the rear bumper surface around the radar sensors.

During adverse weather conditions such as rain or snow, or under conditions where water is
sprayed.

The rear bumper area around the radar sensors is blocked by foreign material (such as
stickers or a bicycle carrier).

The radar sensors may not detect all types of vehicles around your vehicle, especially the
following types of vehicles:

Motorcycles

Vehicles with body shapes that radar may not reflect such as a flatbed trailer with no cargo.

Vehicles with lower body height such as sports cars.

Have the radar sensors inspected at an Authorized Mazda Dealer if any shock is applied to the
rear bumper, even in a minor accident. If the vehicle is driven with a damaged radar sensor, the
system may not operate properly resulting in an accident.

For repairs or paintwork around the radar sensors, or replacement of the bumper, consult an
Authorized Mazda Dealer.

The radar sensors of the BSM system may be regulated under the radio wave related laws of the
country where the vehicle is driven. The sensors in this system are approved for use in the U.S.A.
(including territories), Canada, and Mexico. If a vehicle with a BSM system is driven in a country
other than the U.S.A., Canada, or Mexico, the system has to be turned off using the BSM OFF
switch.

The detection area of the system has been determined based on the lane width of general
freeways. Therefore on a road with a narrower lane width, the system may detect vehicles on a
lane next to the adjacent lane and operate the warning light/beep. On a road with wider lane
width, the system may not detect vehicles on the adjacent lane and may not operate the warning
light/beep.

Operation of the warning light/beep may be delayed or the system may not operate the warning
light/beep under the following conditions:

The vehicle accelerates from a standing-start with a vehicle alongside.

A vehicle moves from a lane two lanes over to the adjacent lane.

The difference in vehicle speed between your vehicle and another vehicle is larger when
passing or being passed, and the vehicle passes the detection area within a short period of
time.

On a steep incline, or when there is a difference in height between lanes.

Immediately after the system has been activated by pressing the BSM OFF switch again after it
has been turned off (BSM OFF indicator light in instrument panel illuminates) by pressing the
switch.

Although the system may detect objects on the road side such as parked vehicles or guardrails and
operate the warning light/beep, it does not indicate a malfunction.

If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors can
detect, the system may pause (The BSM OFF indicator light in the instrument panel flashes).
However, it does not indicate a malfunction.

5-36

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page196
Saturday, September 24 2011 10:32 AM

Black plate (197,1)

The following conditions may affect the visibility of the BSM warning lights on the outside mirror,
making it difficult to confirm the illumination of the lights:

Ice or snow adheres to the surface of the outside mirrors.

The door window glass is tinted.

qBSM Warning Light/Beep

BSM warning light

Equipped on the left and right door
mirrors.

This warning light illuminates for a few
seconds when the ignition is switched
ON.
If the BSM system detects a vehicle in the
detection area while the vehicle is driven
at a speed of about 32 km/h (20 mph) or
more, the BSM warning light illuminates
on the side of the vehicle where the rear
on-coming vehicle is detected.

NOTE

If ice or snow adhere to the outer mirror
surface, the BSM warning light may not be
visible.

If the door window glass is tinted, it may
affect the visibility of the BSM warning
light, making it difficult to confirm the
illumination of the light.

BSM warning beep

The warning beep operates when the turn
signal lever is operated to the side where
the BSM warning light is illuminated.

NOTE

The system can be customized so that the BSM
warning beep does not operate. Consult an
Authorized Mazda Dealer.

qBSM OFF Indicator Light

This indicator light illuminates for a few
seconds when the ignition is switched
ON.

The BSM OFF indicator light illuminates
when the BSM system is turned off by
pressing the BSM OFF switch.
The indicator light flashes if the BSM
system has a malfunction. Consult an
Authorized Mazda Dealer.

NOTE

If the vehicle is driven on a road with less
traffic and few vehicles that the radar sensors
can detect, the system may pause (The BSM
OFF indicator light in the instrument panel
flashes). However, it does not indicate a
malfunction.

Driving Your Mazda

Starting and Driving

5-37

CX-7_8CG3-EA-11J_Edition1 Page197
Saturday, September 24 2011 10:32 AM

Black plate (198,1)

qBSM OFF Switch

When the BSM switch is pressed, the
BSM system turns off and the BSM OFF
indicator light illuminates.

Press the BSM OFF switch again to turn
on the BSM system. The BSM OFF
indicator light turns off.

NOTE

The system may not operate normally when
towing a trailer. Turn off the system by
operating the BSM OFF switch when
towing a trailer.

If the ignition is switched off with the BSM
system turned off, the system becomes
operable automatically when the ignition is
switched ON.

qCare of Radar Sensors

The radar sensors are equipped inside the
rear bumper.

Radar sensors

Always keep the bumper surface near the
radar sensor area clean so that the BSM
system operates normally. Refer to the
Exterior Care (page 8-58).

NOTE

The BSM OFF indicator light flashes if the
radar sensors cannot operate normally. If
the light remains flashing after cleaning the
bumper surface near the radar sensor area,
consult an Authorized Mazda Dealer.

For repairs or paintwork around the radar
sensors, or replacement of the bumper,
consult an Authorized Mazda Dealer.

5-38

Driving Your Mazda

Starting and Driving

CX-7_8CG3-EA-11J_Edition1 Page198
Saturday, September 24 2011 10:32 AM

Black plate (199,1)

qSafety Certification

Radiation Hazard

This BSM (blind spot monitoring) device
emits intentional electromagnetic
radiation in the 24 GHz to 25 GHz
frequency range. The total radiated
average power over the entire bandwidth
is below _14 dBm (40 µW). The active
emitting antenna surface is 72 cm

;

therefore the radiated power density in
front of the BSM device is 0.55 µW/cm

This value is far below the legal human
exposure protection limit of 1 mW/cm

(MPE) in Europe and US.

Declaration of compliance for 24 GHz
blind spot radar

(U.S.A)

FCC ID: KR5SV2008BSD
FCC ID: OAYBSDTX
This vehicle is equipped with a 24 GHz
blind spot monitoring (BSM) radar
system, which complies with part 15 of
the FCC rules. Operation is subject to the
following conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any

interference received, including
interference that may cause undesired
operation.

3. This device may only work when the

vehicle is in operation pursuant to
§15.252 (a) (4).

(CANADA)

ICDCE2008075 (temporary permission
until RSS·220 is in force)
IC:4135A-BSDTX
This vehicle is equipped with a 24 GHz
blind spot monitoring (BSM) radar
system, which complies with the radio
standards specification RSS-220 of
Industry Canada. Operation is subject to
the following conditions:

1. This device may not cause harmful

interference, and

2. This device must accept any

interference received, including
interference that may cause undesired
operation.

NOTE

During printing time of this user manual the
approvals listed below are granted. Further
countries may become available or actual
certification identifiers may be subject to
change or update.

WARNING

Changes or modifications not
expressively approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.

Driving Your Mazda

Starting and Driving

5-39

CX-7_8CG3-EA-11J_Edition1 Page199
Saturday, September 24 2011 10:32 AM

Content .. 10 11 12 13 ..
