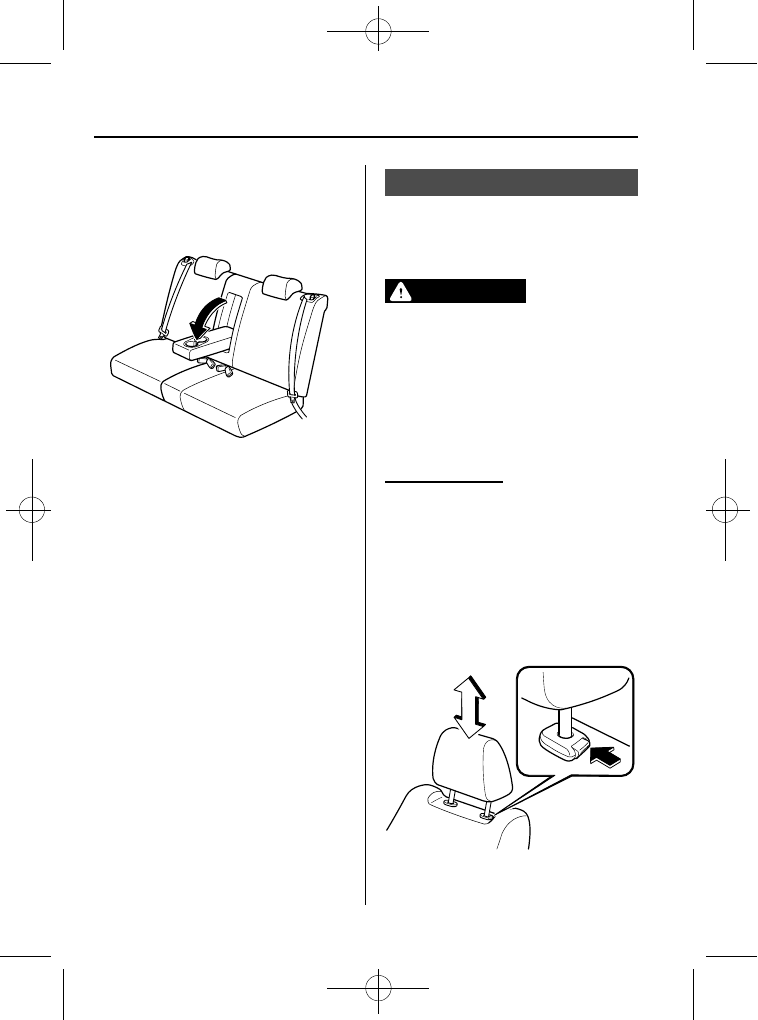

qArmrest

The rear armrest in the center of the rear
seatback can be used (no occupant in the
center seat) or placed upright.

Head Restraints

Your vehicle is equipped with head
restraints on all outboard seats. The head
restraints are intended to help protect you
and the passengers from neck injury.

WARNING

Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:

Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.

Height adjustment

To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
Front outboard seat

2-12

Seats

CX-7_8CG3-EA-11J_Edition1 Page24
Saturday, September 24 2011 10:31 AM

Black plate (25,1)

Rear outboard seat

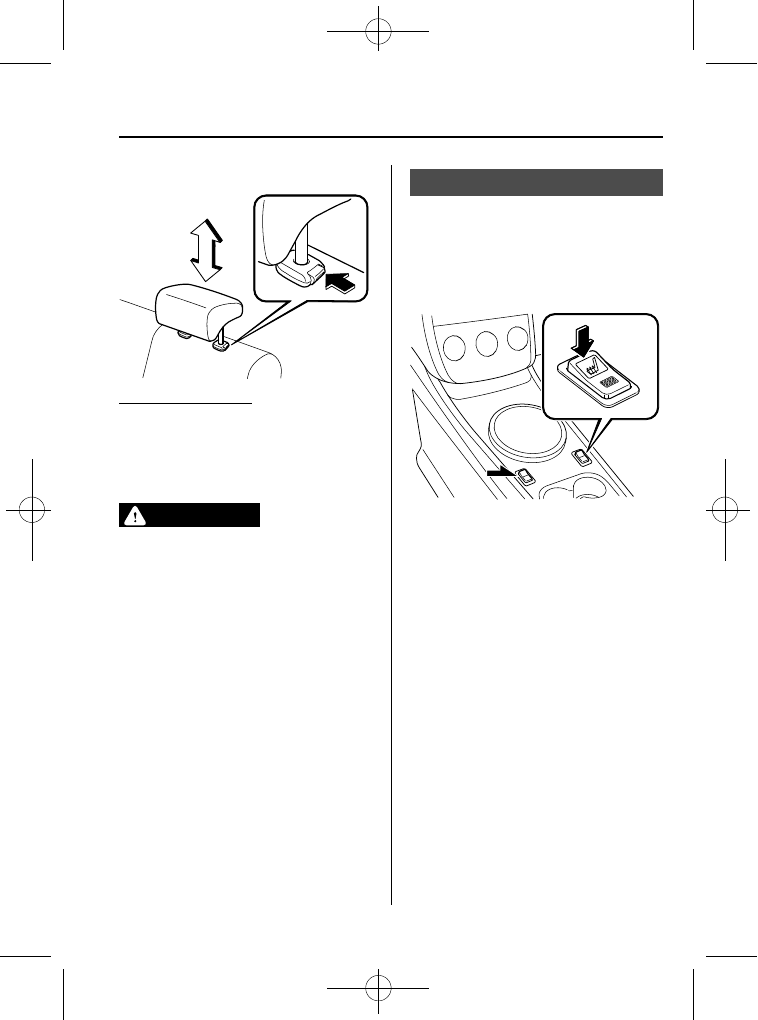

Removal/Installation

To remove the head restraint, pull it up
while pressing the stop-catch.
To install the head restraint, press the
uprights into the holes while pressing the
stop-catch.

WARNING

Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:

Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.

Seat Warmer

The front seats are electrically heated. The
ignition must be switched ON.

Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.

Seats

2-13

Some models.

CX-7_8CG3-EA-11J_Edition1 Page25
Saturday, September 24 2011 10:31 AM

Black plate (26,1)

WARNING

Ø Be careful when using the seat

warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.

Infants, small babies, elderly
people, and physically
challenged people

People with delicate skin

People who are excessively
fatigued

People who are intoxicated

People who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine

Ø Do not use the seat warmer with

anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.

Ø Do not use the seat warmer even

when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.

Ø Do not place heavy objects with

sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.

CAUTION

Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.

NOTE

Use the seat warmer when the engine is
running, and do not continue to use it for a
long period of time.

The temperature of the seat warmer cannot
be adjusted because the seat warmer is
controlled by a thermostat.

2-14

Seats

CX-7_8CG3-EA-11J_Edition1 Page26
Saturday, September 24 2011 10:31 AM

Black plate (27,1)

Seat Belt Precautions

Seat belts help to decrease the possibility of severe injury during accidents and sudden
stops. Mazda recommends that the driver and all passengers always wear seat belts.

All of the seat belt retractors are designed to keep the lap/shoulder belts out of the way
when not in use.

The driver's seat belt has no provisions for child-restraint systems and has only an
emergency locking mode. The driver may wear it comfortably, and it will lock during a
collision.

However, the front passenger's seat and all rear lap/shoulder belt retractors operate in two
modes: emergency locking mode, and for child-restraint systems, automatic locking mode.
While we recommend you put all children in the rear seats, if you must use the front
passenger seat for a child, slide the front passenger seat as far back as possible and make
sure any child-restraint system is secured properly.

Seat Belt Systems

2-15

CX-7_8CG3-EA-11J_Edition1 Page27
Saturday, September 24 2011 10:31 AM

Black plate (28,1)

WARNING

Always wear your seat belt and make sure all occupants are properly restrained:

Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.

Do not wear twisted seat belts:

Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death. So, if your seat belt is twisted, you must
straighten the seat belt to remove any twists and to allow the full width of the belt to
be used.

Never use one seat belt on more than one person at a time:

Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.

Do not operate a vehicle with a damaged seat belt:

Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.

Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:

Always have an Authorized Mazda Dealer immediately inspect the front seat belt
pretensioners and air bags after any collision. Like the air bags, the front seat belt
pretensioners and load limiters will only function once and must be replaced after
any collision that caused them to deploy. A seat belt with an expended pretensioner
or load limiter is still better than wearing no seat belt at all; however, if the front
seat belt pretensioners and load limiters are not replaced, the risk of injury in a
collision will increase.

In a rollover crash, an unbelted person is significantly more likely to die than a
person wearing a seat belt.

2-16

Seat Belt Systems

CX-7_8CG3-EA-11J_Edition1 Page28
Saturday, September 24 2011 10:31 AM

Black plate (29,1)

CAUTION

Belt retraction may become difficult if the belts and rings are soiled, so try to keep
them clean. For more details about cleaning the seat belts, refer to

“Cleaning the

Lap/Shoulder Belt Webbing

” (page 8-64).

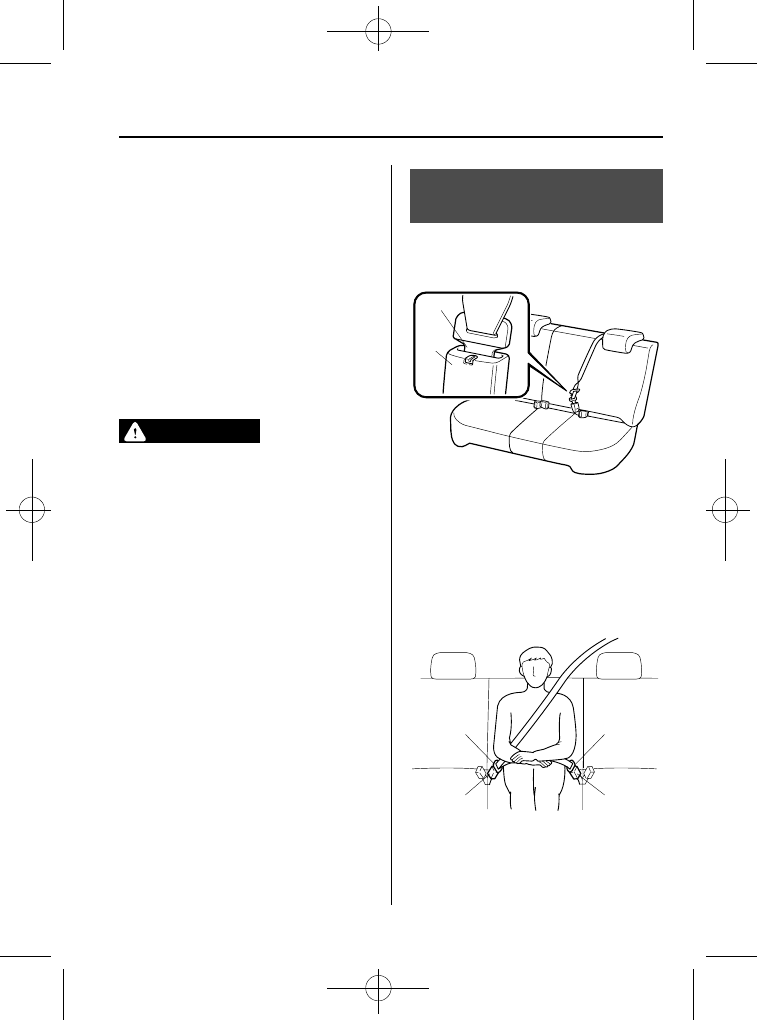

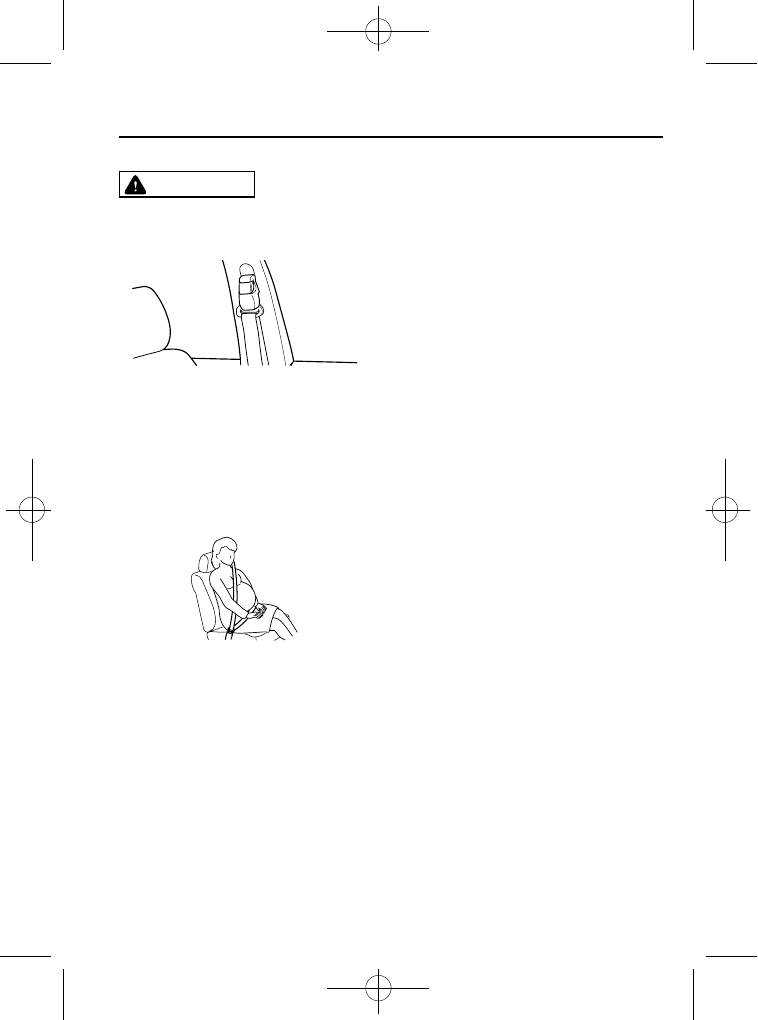

qPregnant Women and Persons with Serious Medical Conditions

Pregnant women should always wear seat belts. Ask your doctor for specific
recommendations.
The lap belt should be worn SNUGLY AND AS LOW AS POSSIBLE OVER THE HIPS.
The shoulder belt should be worn across your shoulder properly, but never across the
stomach area.
Persons with serious medical conditions also should wear seat belts. Check with your
doctor for any special instructions regarding specific medical conditions.

qEmergency Locking Mode

In the emergency locking mode, the belt remains comfortable on the occupant and the
retractor will lock in position during a collision. When the seat belt is fastened, it will
always be in the emergency locking mode until it is switched to automatic locking mode by
pulling it all the way out to its full length. If the belt feels tight and hinders comfortable
movement while the vehicle is stopped or in motion, it may be in the automatic locking
mode because the belt has been pulled too far out. To return the belt to the more
comfortable emergency locking mode, wait until the vehicle has stopped in a safe, level
area, retract the belt fully to convert it back to emergency locking mode and then extend it
around you again.
If the belt is locked and cannot be pulled out, retract the belt once, and then try pulling it
out slowly. If this fails, pull the belt strongly one time and loosen, then pull it out again
slowly.

Seat Belt Systems

2-17

CX-7_8CG3-EA-11J_Edition1 Page29
Saturday, September 24 2011 10:31 AM

Black plate (30,1)

qAutomatic Locking Mode

Always use the automatic locking mode to keep the child-restraint system from shifting to
an unsafe position in the event of an accident. To enable seat belt automatic locking mode,
pull it all the way out and connect it as instructed on the child-restraint system. It will
retract down to the child-restraint system and stay locked on it. See the section on child
restraint (page 2-30).

2-18

Seat Belt Systems

CX-7_8CG3-EA-11J_Edition1 Page30
Saturday, September 24 2011 10:31 AM

Black plate (31,1)

Seat Belt (Except Center-
Rear Position)

qFastening the Seat Belt

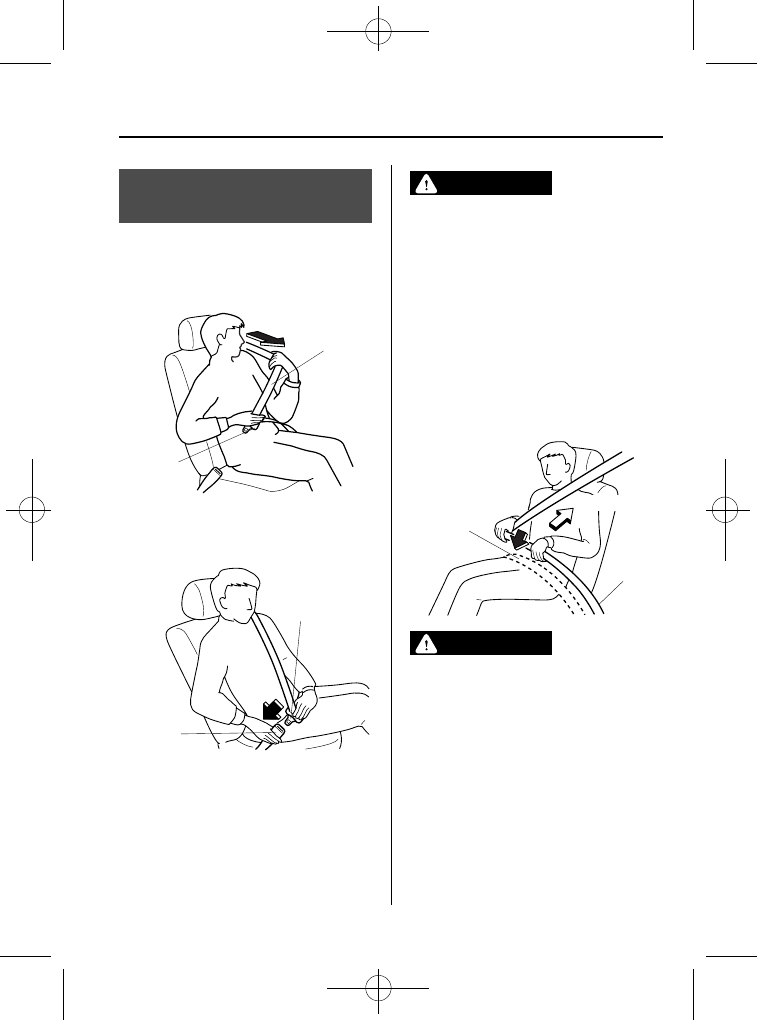

1. Grasp the seat belt tongue.

2. Slowly pull out the lap/shoulder belt.

Lap/shoulder
belt

Seat belt
tongue

3. Insert the seat belt tongue into the seat

belt buckle until you hear a click
sound.

Seat belt tongue

Seat belt
buckle

WARNING

Positioning the Shoulder Portion of the
Seat Belt:

Improper positioning of the shoulder
portion of the seat belt is dangerous.
Always make sure the shoulder
portion of the seat belt is positioned
across your shoulder and near your
neck, but never under your arm, on
your neck, or on your upper arm.

4. Position the lap belt as low as possible,

not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.

Keep low on
hip bone

Too high

Take up slack

WARNING

Positioning the Lap Portion of the Seat
Belt:

The lap portion of the seat belt worn
too high is dangerous. In a collision,
this would concentrate the impact
force directly on the abdominal area,
causing serious injury. Wear the lap
portion of the belt snugly and as low
as possible.

Seat Belt Systems

2-19

CX-7_8CG3-EA-11J_Edition1 Page31
Saturday, September 24 2011 10:31 AM

Black plate (32,1)

qUnfastening the Seat Belt

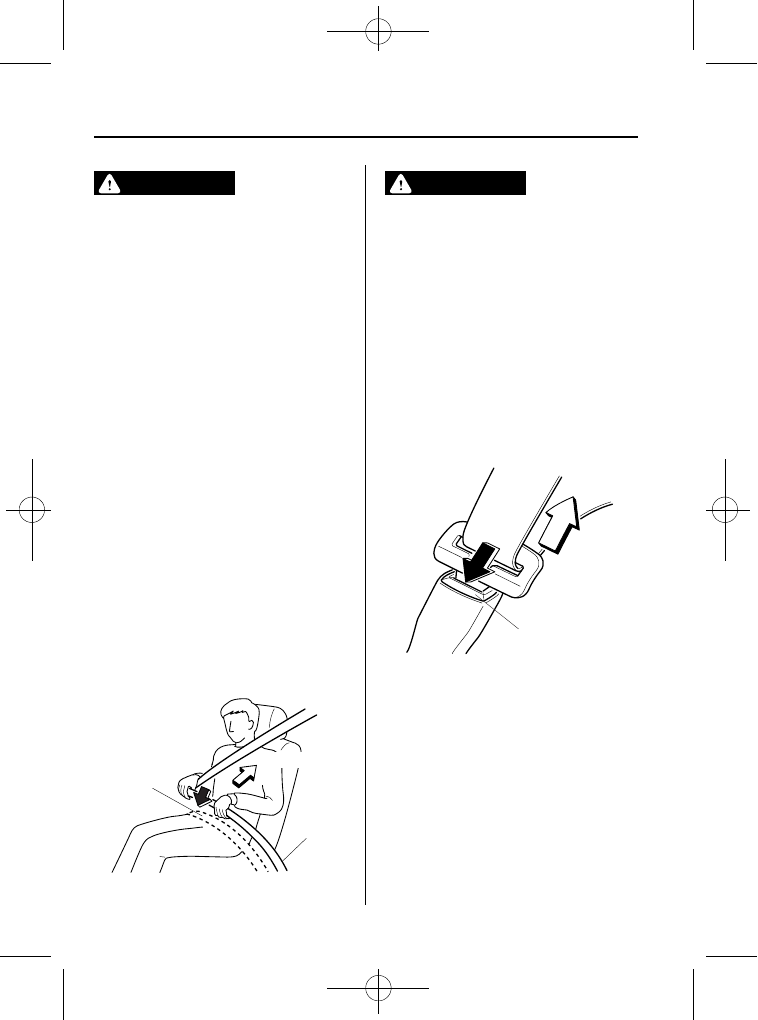

Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.

Button

NOTE

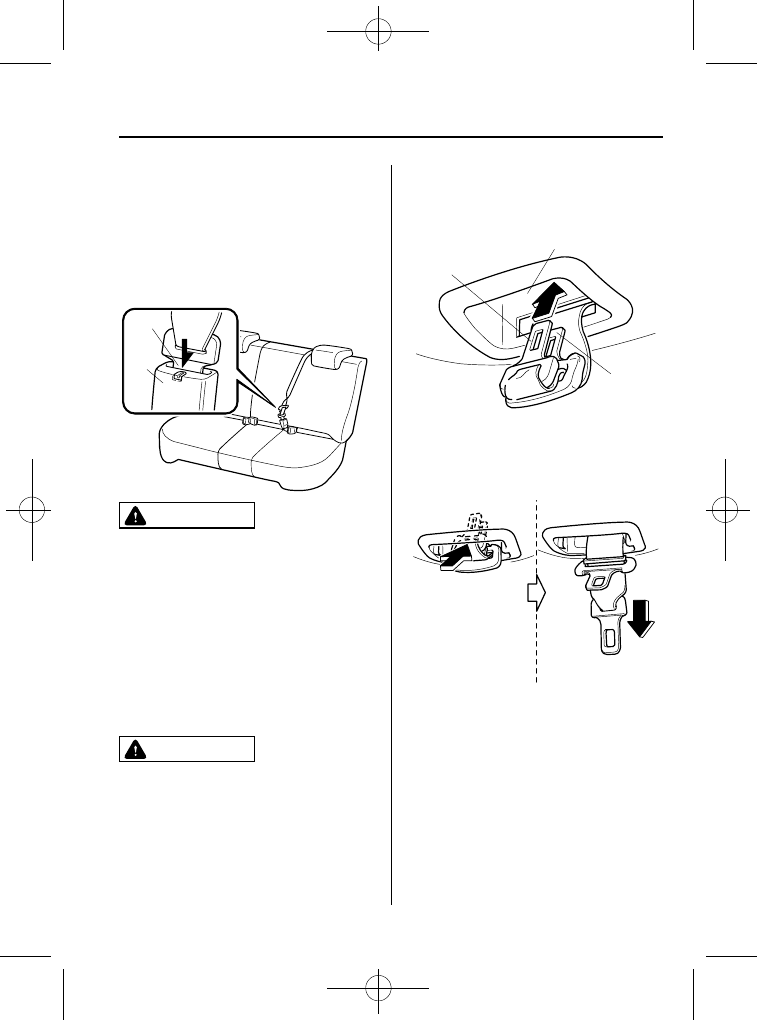

When using the center-rear seat belt, refer
to

“Center-Rear Position Seat Belt” (page

2-23).

If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.

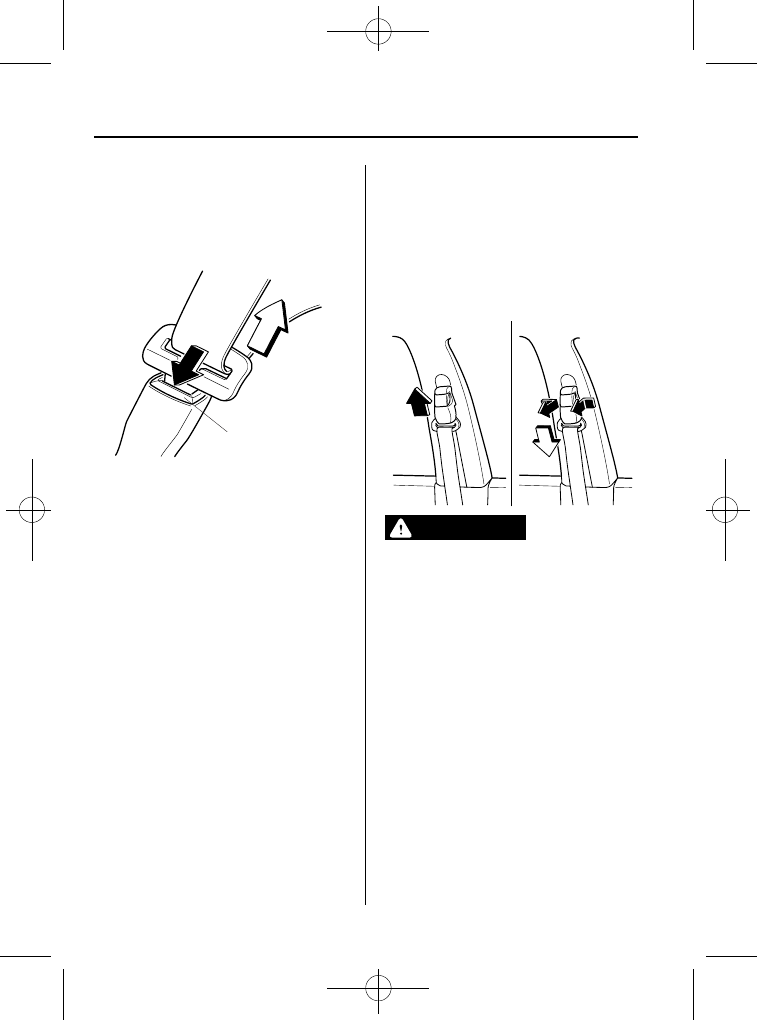

qFront Shoulder Belt Adjuster

Adjust the height of the shoulder belt if
the seat belt touches your neck, or if it
crosses your arm instead of your shoulder.
To raise the shoulder belt adjuster, push
the adjuster up. To lower the shoulder belt
adjuster, pull the adjuster and slide it
down. Make sure the adjuster is locked.

To raise

To lower

WARNING

Positioning the Shoulder Portion of the
Seat Belt:

2-20

Seat Belt Systems

CX-7_8CG3-EA-11J_Edition1 Page32
Saturday, September 24 2011 10:31 AM

Black plate (33,1)

Front Seat Belt Pretensioner
and Load Limiting Systems

For optimum protection, the driver and
front passenger seat belts are equipped
with pretensioner and load limiting
systems. For both these systems to work
properly you must wear the seat belt
properly.

Pretensioners:
The front seat belt retractors remove slack
quickly as the air bags are expanding.
Any time the air bags and seat belt
pretensioners have fired they must be
replaced.
For deployment details, refer to the SRS
Air Bag Deployment Criteria (page 2-56).
In addition, the pretensioner system for
the front passenger, like the front
passenger air bag, is designed to only
deploy in accordance with the total seated
weight on the front passenger seat. For
details, refer to the driver and front
passenger occupant classification system
(page 2-59).

Load limiter:
The load limiting system releases belt
webbing in a controlled manner to reduce
belt force on the occupant's chest. While
the most severe load on a seat belt occurs
in frontal collisions, the load limiter has
an automatic mechanical function and can
activate in any accident mode with
sufficient occupant movement.
Even if the pretensioners have not fired,
the load limiting function must be
checked by an Authorized Mazda Dealer.

WARNING

Wear seat belts only as recommended
in this owner's manual:

Incorrect positioning of the driver and
front passenger seat belts is
dangerous. Without proper
positioning, the pretensioner and
load limiting systems cannot provide
adequate protection in an accident
and this could result in serious injury.
For more details about wearing seat
belts, refer to

“Fastening the seat

belts

” (page 2-19).

Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended:

Always have an Authorized Mazda
Dealer immediately inspect the front
seat belt pretensioners and air bags
after any collision. Like the air bags,
the front seat belt pretensioners and
load limiters will only function once
and must be replaced after any
collision that caused them to deploy.
A seat belt with an expended
pretensioner or load limiter is still
better than wearing no seat belt at
all; however, if the front seat belt
pretensioners and load limiters are
not replaced, the risk of injury in a
collision will increase.

Seat Belt Systems

2-21

CX-7_8CG3-EA-11J_Edition1 Page33
Saturday, September 24 2011 10:31 AM

Black plate (34,1)

Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:

Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.

Properly dispose of the pretensioner
system:

Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.

NOTE

The pretensioner system will activate in a
moderate or severe frontal, near-frontal
collision or roll-over accident. It will not
activate in most side or rear impacts.
The pretensioner system for the front
passenger is designed to only deploy in
accordance with the total seated weight on
the front passenger seat.

Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.

qAir Bag/Front Seat Belt

Pretensioner System Warning Light

If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition is
switched ON or after the engine is
cranked. The warning light turns off after
a specified period of time.

A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition is
switched ON. If any of these occur,
consult an Authorized Mazda Dealer as
soon as possible. The system may not
work in an accident.

WARNING

Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:

Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.

2-22

Seat Belt Systems

CX-7_8CG3-EA-11J_Edition1 Page34
Saturday, September 24 2011 10:31 AM

Black plate (35,1)

qAir Bag/Front Seat Belt

Pretensioner System Warning Beep

If a malfunction is detected in the air bag/
front seat belt pretensioner systems and
the warning light, a warning beep sound
will be heard for about 5 seconds every
minute.

The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.

WARNING

Do not drive the vehicle with the air
bag/front seat belt pretensioner system
warning beep sounding:

Driving the vehicle with the air bag/
front seat belt pretensioner system
warning beep sounding is dangerous.
In a collision, the air bags and the
front seat belt pretensioner system
will not deploy and this could result
in death or serious injury.
Contact an Authorized Mazda Dealer
to have the vehicle inspected as soon
as possible.

Center-Rear Position Seat
Belt

Before using the center-rear lap/shoulder
belt make sure tongue (A) and anchor
buckle (B) are fastened.

(B)

(A)

qFastening the Seat Belt

1. Grasp the seat belt tongue (C).

2. Slowly pull out the lap/shoulder belt.

3. Insert the seat belt tongue (C) into the

seat belt buckle (D) until you hear a
click sound.

(A)

(B)

(C)

(D)

Seat Belt Systems

2-23

CX-7_8CG3-EA-11J_Edition1 Page35
Saturday, September 24 2011 10:31 AM

Black plate (36,1)

WARNING

Fastening the Center-Rear Seat Belt
with Only One Buckle:

Fastening the center-rear seat belt
with only one buckle is dangerous. If
only one pair of seat belt tongues
and buckles is fastened (either seat
belt tongue (C) and seat belt anchor
buckle (D) or seat belt tongue (A) and
seat belt buckle (B)), then the seat
belt cannot provide full protection. In
a sudden stop or collision, the user
could slide under the belt and suffer
serious injuries. Always make sure
that both pairs of seat belt tongues
and buckles are fastened properly.

Positioning the Shoulder Portion of the
Seat Belt:

4. Position the lap belt as low as possible,

not on the abdominal area, then adjust
the shoulder belt so that it fits snugly
against your body.

Keep low on
hip bone

Too high

Take up slack

WARNING

Positioning the Lap Portion of the Seat
Belt:

qUnfastening the Seat Belt

Depress the button on the seat belt buckle.
If the belt does not fully retract, pull it out
and check for kinks or twists. Then make
sure it remains untwisted as it retracts.

Button

NOTE

If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.

2-24

Seat Belt Systems

CX-7_8CG3-EA-11J_Edition1 Page36
Saturday, September 24 2011 10:31 AM

Black plate (37,1)

qRetracting the Center Seat Belt to

Lower the Seatbacks for
Carrying Cargo

To retract the center belt and lower the
seatbacks for carrying cargo, insert a
small object such as a key in the seat belt
anchor buckle (B) slot.

(B)

(A)

CAUTION

Always unfasten the lap portion of
the belt before folding the left-rear
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, seat belt
buckle and seatback.

qStowing and pulling out the

Center-Rear Position Seat Belt

The center-rear position seat belt can be
stowed using the following procedure.

CAUTION

When stowing the seat belt, make
sure the belt is locked securely into
the recess. If the seat belt is not
properly stowed, it might get caught
in the seats and be damaged.

To stow the seat belt, retract the belt, put
the seat belt tongues (A) and (C) together
and insert them into the recess.

(A)

(C)

Ceiling recess

To pull out the seat belt, slide the seat belt
tongue (A) with your finger while moving
it downward, and slowly pull out the seat
belt from the ceiling recess.

NOTE

To encourage rear seat passengers to wear
their seat belts, we suggest leaving the
center-rear lap position of the belt fastened
at all times except when folding the rear
seat forward.

Pulling the seat belt all the way out will
switch it to automatic locking mode. If
automatic locking mode is not needed,
retract the seat belt fully to convert it back
to emergency locking mode.

Seat Belt Systems

2-25

CX-7_8CG3-EA-11J_Edition1 Page37
Saturday, September 24 2011 10:31 AM

Black plate (38,1)

qRe-attaching the Seat Belt after

the Rear Seatbacks are Returned
to their Upright Positions

To re-attach the center seat belt after the
rear seats are returned to their upright
positions, grasp the seat belt tongue (A)
and insert it into the seat belt anchor
buckle (B) until you hear a click sound. It
is now secure for passenger use.

NOTE

After returning the left-rear seatback to its
upright position, fasten the lap portion of the
belt.

Seat Belt Extender

If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order
one that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.

WARNING

Do not use a seat belt extender unless
it is necessary:

Using a seat belt extender when not
necessary is dangerous. The seat belt
will be too long and not fit properly.
In an accident, the seat belt will not
provide adequate protection and you
could be seriously injured. Only use
the extender when it is required to
fasten the seat belt properly.

2-26

Seat Belt Systems

CX-7_8CG3-EA-11J_Edition1 Page38
Saturday, September 24 2011 10:31 AM

Black plate (39,1)

Do not use an improper extender:

Using a seat belt extender that is for
another person or a different vehicle
or seat is dangerous. The seat belt
will not provide adequate protection
and the user could be seriously
injured in an accident. Only use the
extender provided for you and for the
particular vehicle and seat. NEVER
use the extender in a different vehicle
or seat. If you sell your Mazda, do
not leave your seat belt extender in
the vehicle. It could be used
accidentally by the new owner of the
vehicle. After removing the seat belt
extender, discard it. Never use the
seat belt extender in any other
vehicle you may own in the future.

Do not use an extender that is too
long:

Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accident, the seat belt
will not provide adequate protection
and you could be seriously injured.
Do not use the extender or choose
one shorter in length if the distance
between the extender's buckle and
the center of the user's body is less
than 15 cm (6 in).

Do not leave a seat belt extender
connected to the buckle:

Leaving a seat belt extender
connected to the buckle without
using the seat belt is dangerous.
When the seat belt extender is
connected to the driver's seat belt
buckle (or front passenger) seat, the
SRS driver's (or front passenger's) air
bag system will determine that the
driver (or front passenger) is wearing
the seat belt even if the driver (or
front passenger) is not wearing it.
This condition could cause the
driver's (or front passenger's) air bag
to not activate correctly and result in
death or serious injury in the event of
collision. Always wear the seat belt
with the seat belt extender.

Do not use the seat belt extender when
installing a child-restraint system on
the front or rear passenger seat:

Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the child-
restraint system manufacturer's
installation instructions and never
use a seat belt extender.

NOTE

When not in use, remove the seat belt extender
and store it in the vehicle. If the seat belt
extender is left connected, the seat belt
extender might get damaged as it will not
retract with the rest of the seat belt and can
easily fall out of the door when not in use and
be damaged. In addition, the seat belt warning
light will not illuminate and function properly.

Seat Belt Systems

2-27

CX-7_8CG3-EA-11J_Edition1 Page39
Saturday, September 24 2011 10:31 AM

Mazda CX-7 (2012 year). Instruction - part 2
