Mazda Training manual - part 287





AIR CONDITIONING
04 - Refrigerant Charging





SG04-3

TC070-15-01H

NOTE

When using service can, do not open the high-pressure side valve while the engine
is running. If you open, the compressed refrigerant will enter into the can causing a
burst and it may damages surroundings and you may get injured.


3.  Open the high-pressure side valve.


NOTE

Always begin charging with the high-pressure side valve open. If you begin with the
low-pressure side valve, the vanes of the A/C compressor will not spread to work
properly and abnormal noise may occur.


4.  When the low-pressure side reading increases to 0.098 MPa {1.0 kgf/cm

2

, 14

psi}, close the high-pressure side valve.


5.  Using an electronic leak detector, inspect the system for leakage from the cooler

pipe/hose connections. (If leakage is found at a loose joint, tighten the joint, then
inspect for leakage again.)


6.  Open the high-pressure side valve and charge with refrigerant until the weight of

refrigerant tank has decreased 250 g {8.83 oz} from the recorded amount in Step
2.


7.  Close the high-pressure side valve.

8.  Start the engine and actuate the A/C compressor.

9.  Open the low-pressure side valve and charge with refrigerant until the weight of

the refrigerant tank has decreased regular amount from the recorded amount in
Step 2.


10. Close the low-pressure side valve and the valve of the refrigerant tank.

11. Stop the engine and A/C compressor.



Leak Test

1.  Using an electronic leak detector, inspect the system for leakage. (If leakage is

detected at a loose joint, tighten the joint and/or repair the faulty place.)


2.  Disconnect the pressure gauge from the charging valves.


4. Install the caps to the charging valves.


AIR CONDITIONING
04 - Refrigerant Charging





SG04-4

TC070-15-01H



Instructor Sign-Off:
Now that you have completed this activity, you should be able to:



perform A/C refrigerant charging

This skill will help you properly charge the refrigerant.

Instructor’s initials:



AIR CONDITIONING
SG02 - Control System [Manual Air Conditioning]





SG02-1

TC070-15-01H


OBJECTIVES

After completing this section, you will be able to:





Identify the components of Manual Air Conditioner and distinguish the
components from those of Full-auto Air Conditioner.



Describe a control system and how the system controls the Manual Air
Conditioner.



Identify major components of a manual A/C system




Activities To complete this section, you will perform the following activities:


Activity Title/Description

Location

AC – 05

Units and parts checks*

Shop

AC – 06

Symptom troubleshooting

Shop



What’s in this section?



Control System [Manual Air Conditioner] ..................................................  2
Control System [Full-auto Air Conditioner] ................................................  3
Control System Wiring Diagram [Manual Air Conditioner] .........................  4
Blower relay ...............................................................................................  5
Blower motor .............................................................................................  5
Resistor .....................................................................................................  6
Air intake actuator .....................................................................................  6
Evaporator temperature sensor .................................................................  7
A/C relay ...................................................................................................  9
Magnetic clutch .........................................................................................  9
Refrigerant pressure switch .......................................................................  11
Fan switch .................................................................................................  12
Climate control unit ....................................................................................  12
Climate control unit inspection (Reference) ...............................................  16
Technical Data ..........................................................................................  18
Review Exercise ........................................................................................  19




* Activity AC – 05 is an optional activity. If units and parts are not available, this

activity is to be cancelled.



AIR CONDITIONING
SG02 - Control System [Manual Air Conditioning]





SG02-2

TC070-15-01H



Control System [Manual Air Conditioner]

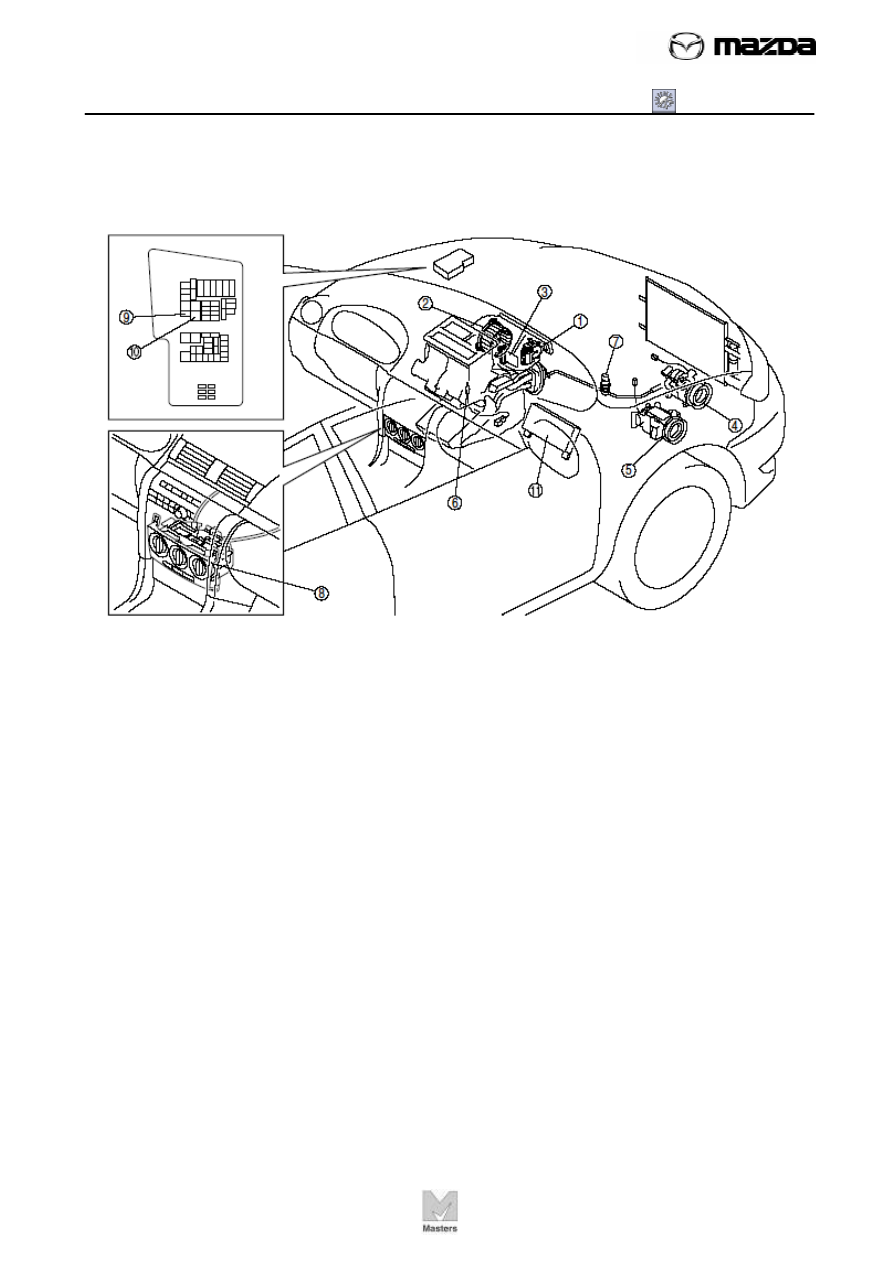

Structural View (Mazda 3)






1. Air intake actuator
2. Blower motor
3. Resistor
4. Magnetic clutch (Z6)
5. Magnetic clutch (LF)
6. Evaporator temperature sensor
7. Refrigerant pressure switch
8. Climate control unit
9. A/C relay
10. Blower relay
11. Main fuse block
