Air Conditioning Fundamentals

TC070-05-01S

10 – SERVICING AIR
CONDITIONING SYSTEMS







70

OBJECTIVES


After completing this section, you will be able to describe how to:

•

Use a manifold gauge


• Recover

refrigerant


•

Evacuate an A/C system


•

Test for a leak


•

Charge a system using liquid or vapor refrigerant.




OVERVIEW

An automotive A/C system is under pressure and contains potentially lethal materials.
Recharging an A/C system is not simply a matter of opening the system and adding
refrigerant. You must take special precautions to prevent accidents.


Follow these five steps to ensure a safe and accurate recharge:

1.      Air conditioners have both a high-pressure and a low-pressure side. Use a manifold

gauge to check the system’s pressures. If either side’s pressure is too high or low, the
A/C system will not perform correctly, and might explode.


2.   Recover the refrigerant.

3.      Evacuate the trapped moisture in the system. If moisture remains, the system will not

perform properly and dangerous chemical compounds may form.


4.      Check the system for leaks and repair any you find.

5.      Recharge the system with the correct type and amount of refrigerant.


The remainder of this section, discuses each step in detail.


Air Conditioning Fundamentals

TC070-05-01S

10 – SERVICING AIR
CONDITIONING SYSTEMS







71



























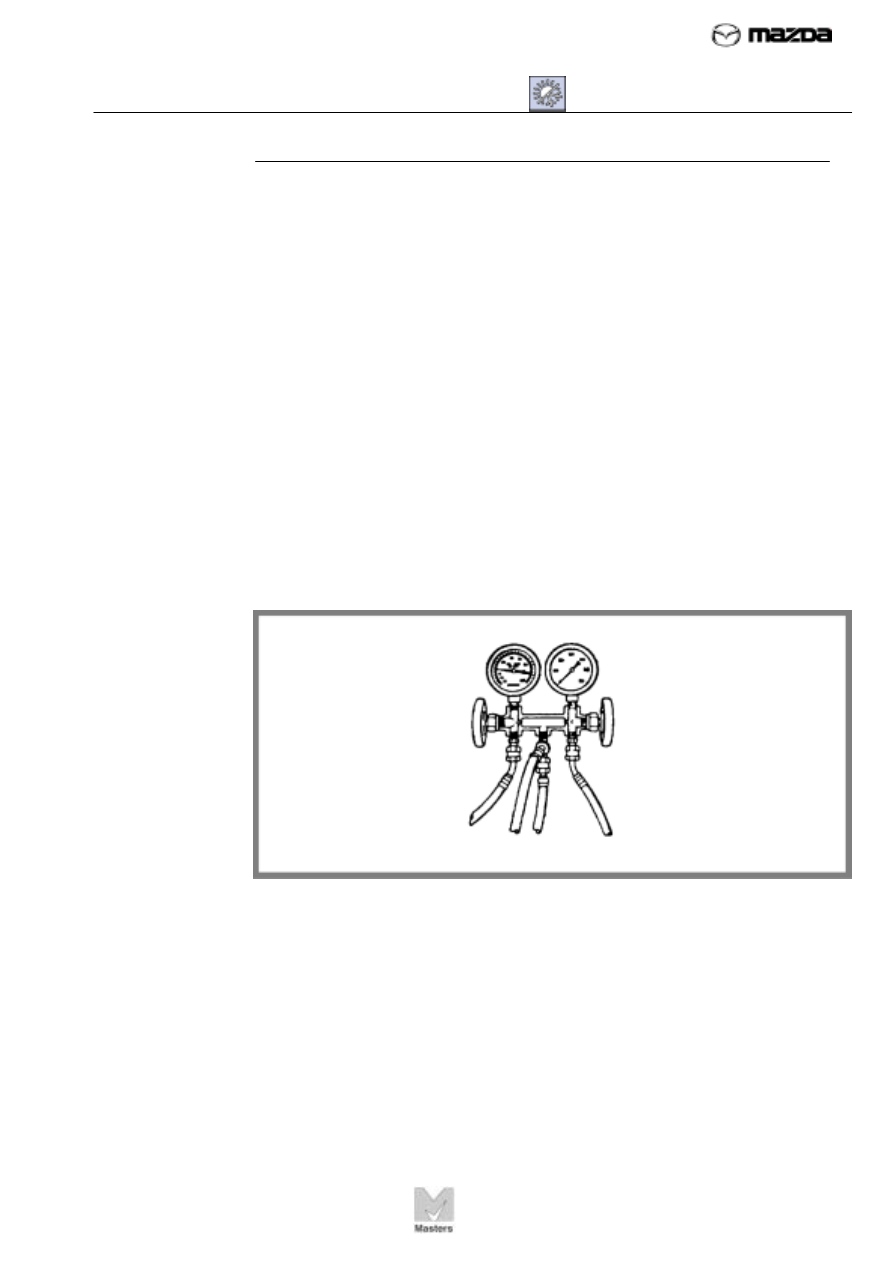

FIGURE 37. A
manifold gauge is a
calibrated device
used for measuring
A/C system pressure.






Answers to
Review Exercise 9





1.  A



2.  D



3.  E



4.  C



5.  B





CHECK THE PRESSURE


Servicing an A/C system starts with using a manifold gauge set to
check the pressure.

The Manifold Gauge

A manifold gauge is a calibrated device used to measure air
conditioning system pressure. This device allows the technician to
perform four important tasks:

1. Monitor the pressure inside the operating system.

2. Monitor the flow of refrigerant into the system during charging.

3. Control the flow of refrigerant into the system during charging.

4. Access the system for discharging

A typical manifold gauge set, shown in Figure 37, consists of a center
manifold and two (or sometimes three) gauges.





Manifold gauges help determine where and at what pressure to deliver
refrigerant. The valves open and close passageways to the center port
and its service hose.



The gauges on either end of the manifold select which system to apply
to the center manifold area. Although the low pressure gauge appears
on the left in this drawing, and the high pressure gauge appears on the
right, not all manifold gauge sets will be oriented this way.


Air Conditioning Fundamentals

TC070-05-01S

10 – SERVICING AIR
CONDITIONING SYSTEMS







72

Making the Connection

Use one of the following methods to ensure that you connect the manifold gauge correctly.



•  Identify the high and low side of the system by tracing the hose from the condenser

back to the compressor. The compressor connects to the high- pressure side of the
system.



•  Both R-12 and R-134a systems use connectors of different sizes to help prevent

connecting the gauges to the wrong sides. Furthermore, R-12 and R-134a system have
different-sized valves, to prevent accidental mixing of refrigerants.



•  The threaded Schrader valve is the most commonly used service valve, or port, for the

R-12 system. R-134a systems use larger, metric-thread, quick- connect service valves.



Air Conditioning Fundamentals

TC070-05-01S

10 – SERVICING AIR
CONDITIONING SYSTEMS







73

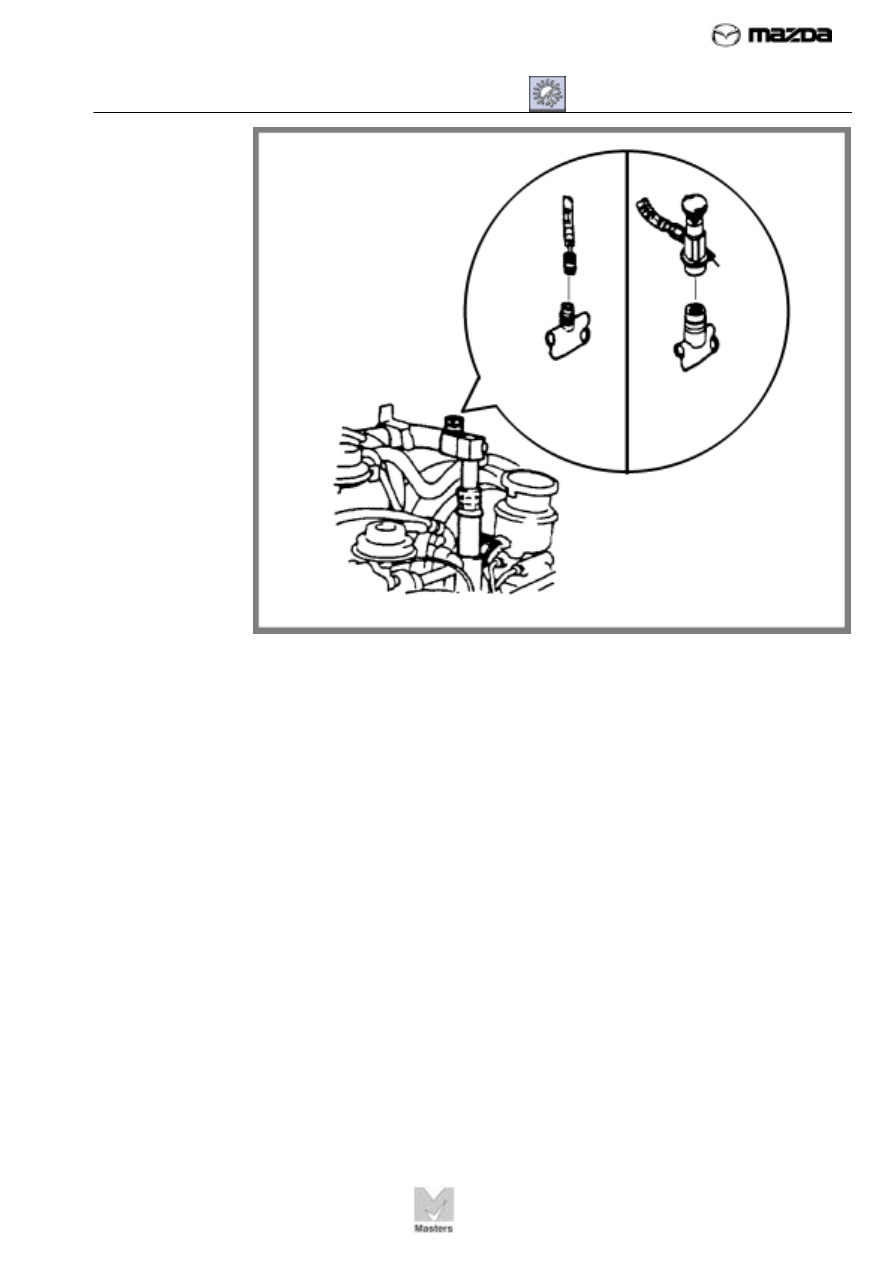

FIGURE 38. R-12 and
R-134a systems use
different connections
to the manifold
gauge.




























The manifold gauge connects to the air conditioning system as shown
in Figure 38.



1.      The low pressure gauge connects to the service valve between

the evaporator and compressor suction port.



2.      The high pressure gauge connects to the service valve between

the compressor and the condenser.



3.      The center port is used to add and remove refrigerant. This port

can be connected to refrigerant supply tank, evacuation pump, or
refrigeration oil canister.



For R-12 only

        For R-134a only
