TC001-18-01H

INTRODUCTION TO M-MDS
15 - Updating IDS






Activity 15- Page 4

Activity 15
(Continued)

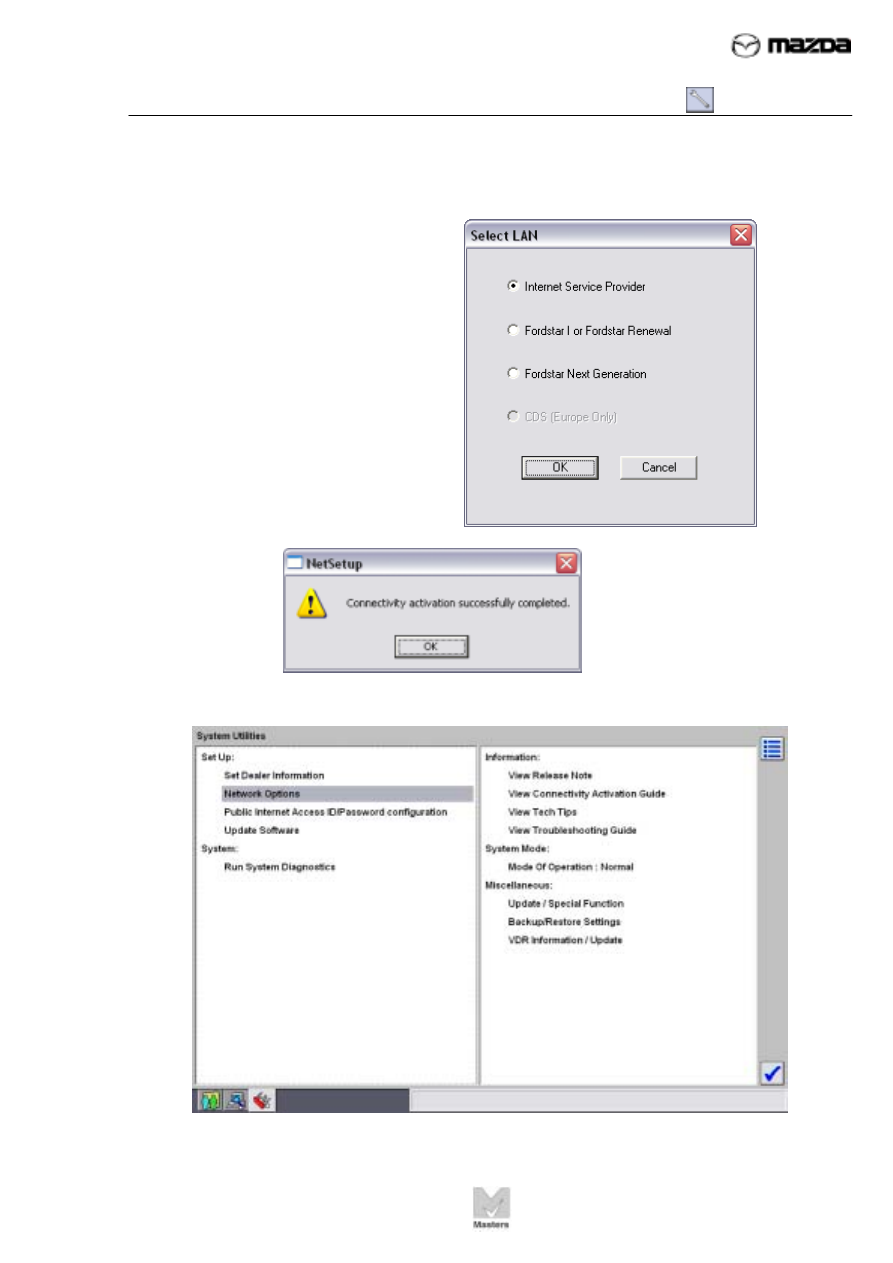

7. Verify Internet Service Provider

is selected, then click OK.















8. Click OK.






9. Select Network Options again, then click tick.






















TC001-18-01H

INTRODUCTION TO M-MDS
15 - Updating IDS






Activity 15- Page 5

Activity 15
(Continued)

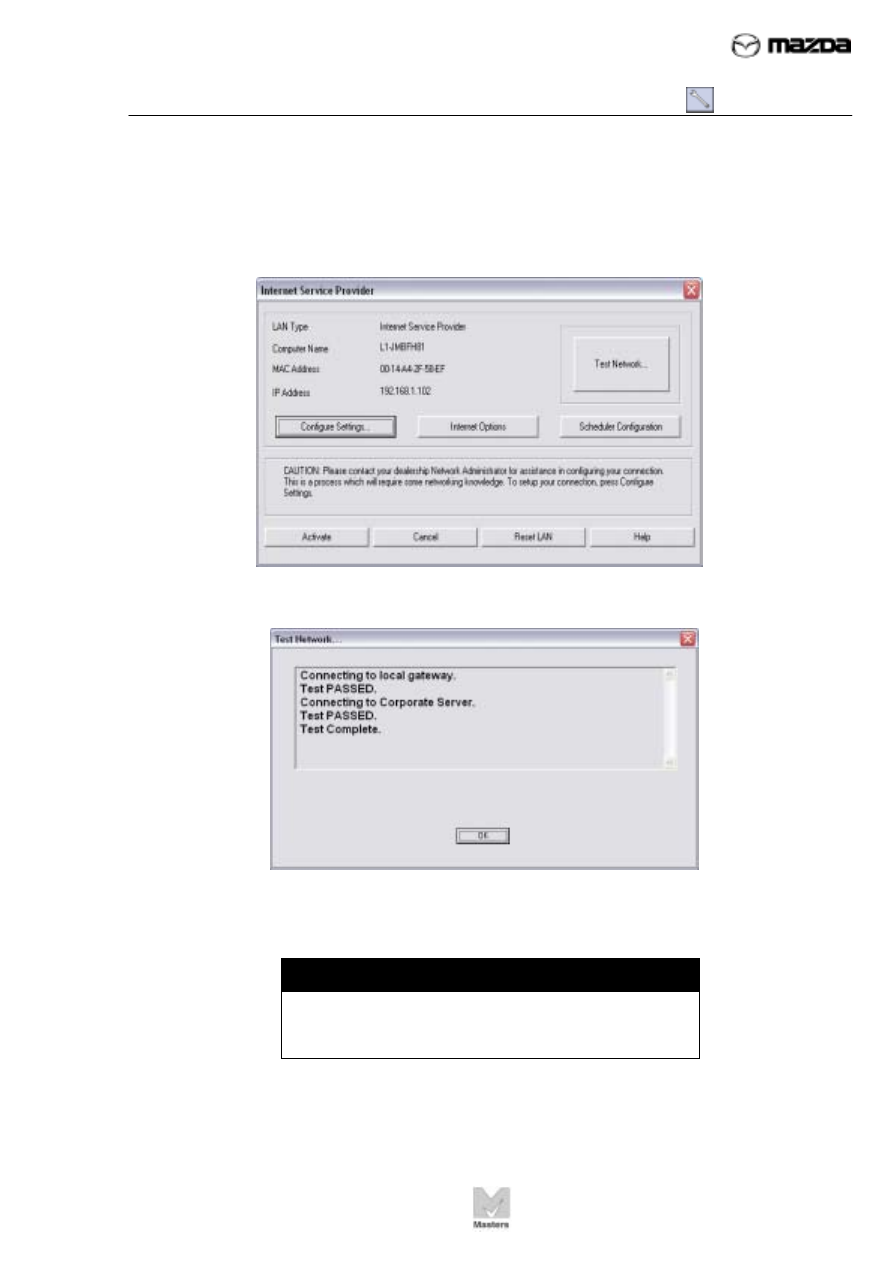

10. Click

the

Test Network button in the upper right corner.


















11.  The Test Network screen should look like this; if so, click OK.



























NOTE

If any part of this test fails at your dealership, you
will need to contact your dealership’s Information
Technology department.



TC001-18-01H

INTRODUCTION TO M-MDS
15 - Updating IDS






Activity 15- Page 6

Activity 15
(Continued)

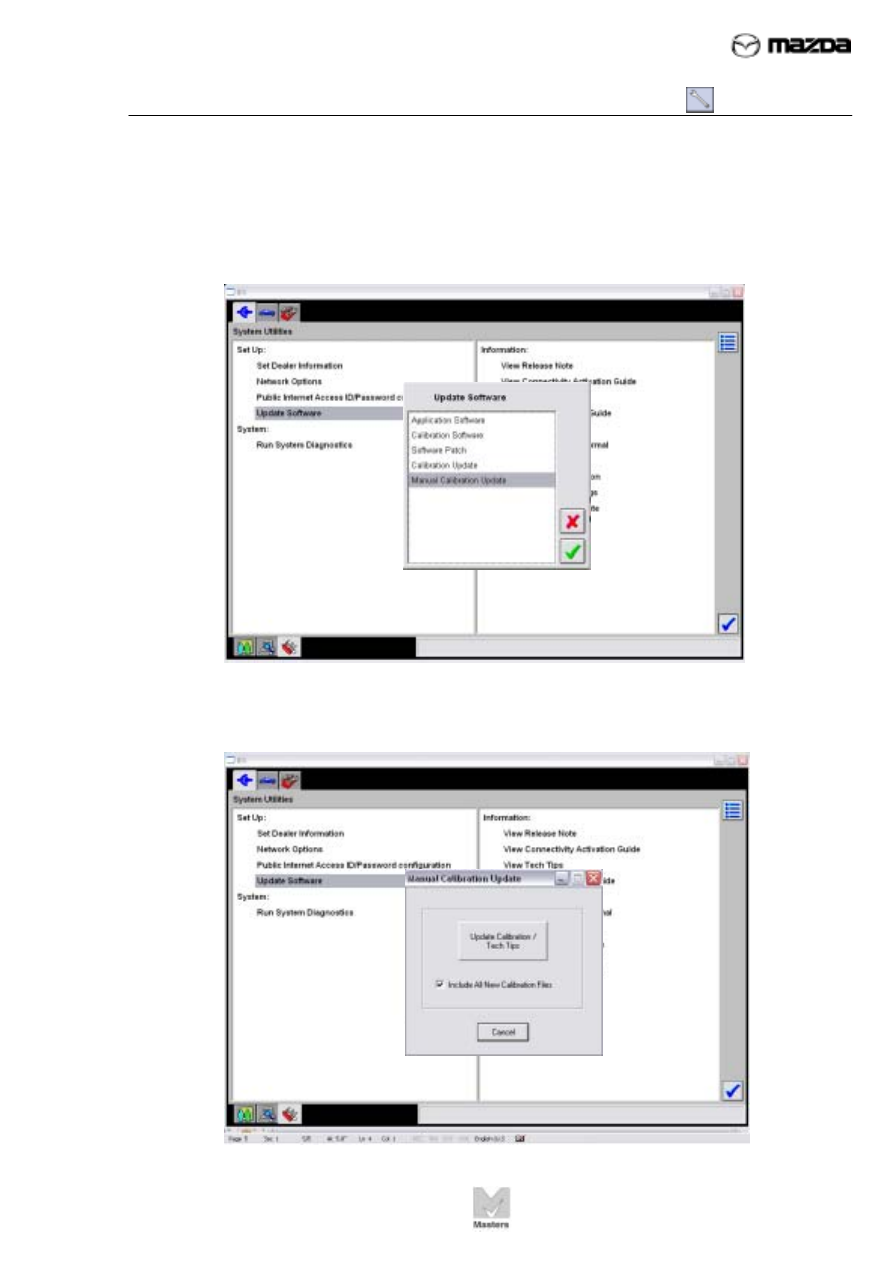

12. Select

Update Software, and then click tick.  Now, select highlight Manual

Calibration Update in the pop-up window, then click tick.






















13. Verify Include All New Calibration Files is checked, then click the Update

Calibration / Tech Tips button.






















TC001-18-01H

INTRODUCTION TO M-MDS
15 - Updating IDS






Activity 15- Page 7

Activity 15
(Continued)

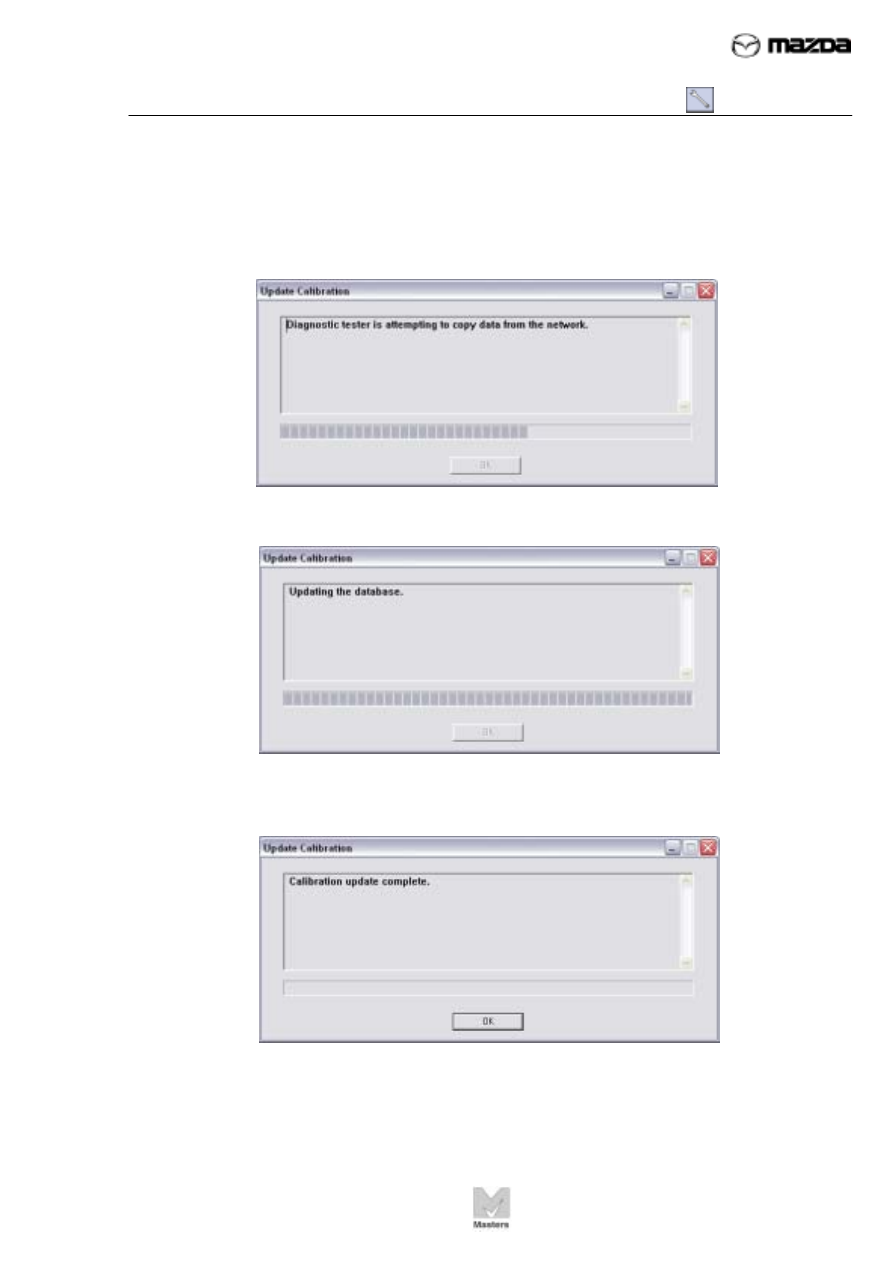

14.  The Update Calibration screen indicates the progress of data being downloaded

from the network. It may take several minutes to complete this process.













15.  The Update Calibration screen looks like this after the network files are copied.












16. Click

OK when you see this updated screen.
