INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page4

Activity 08
(Continued)

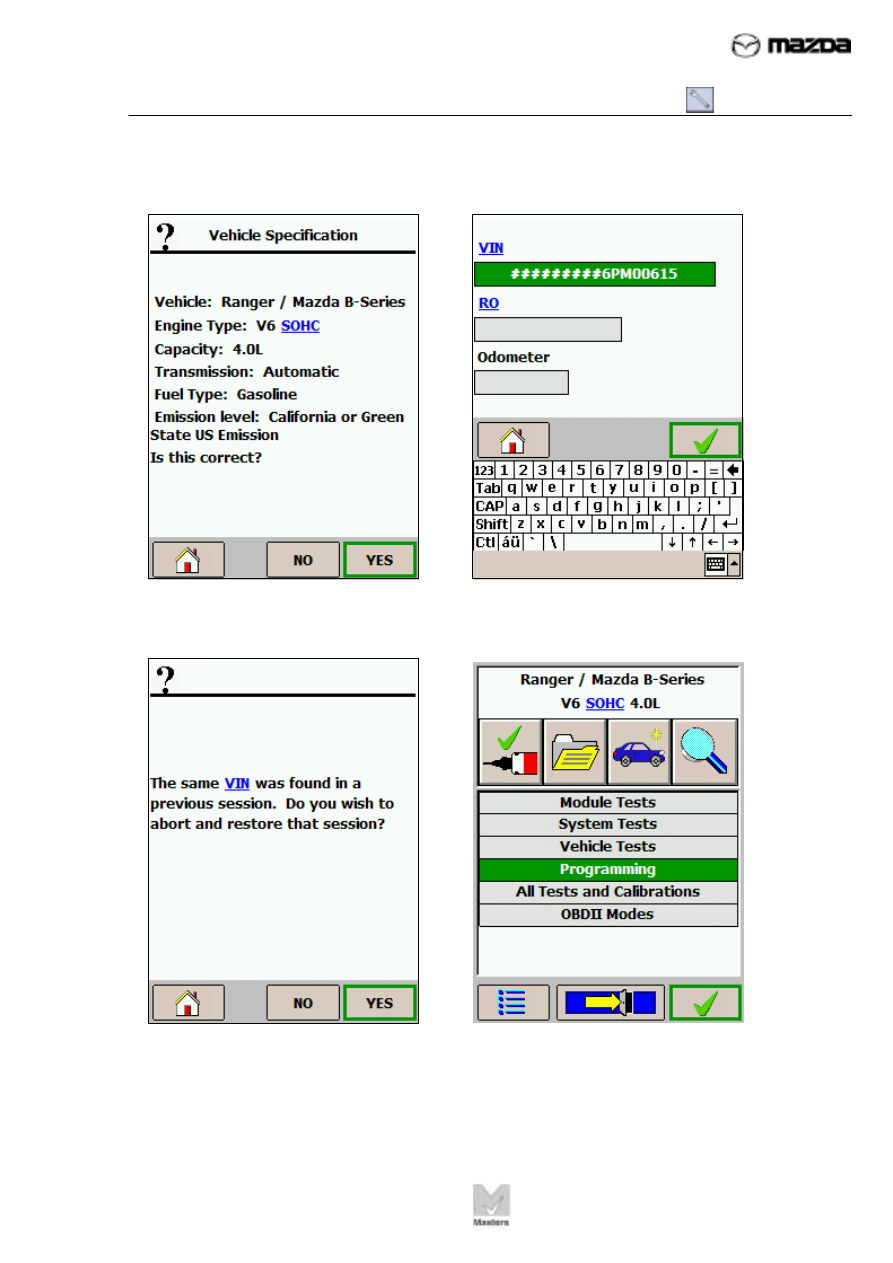

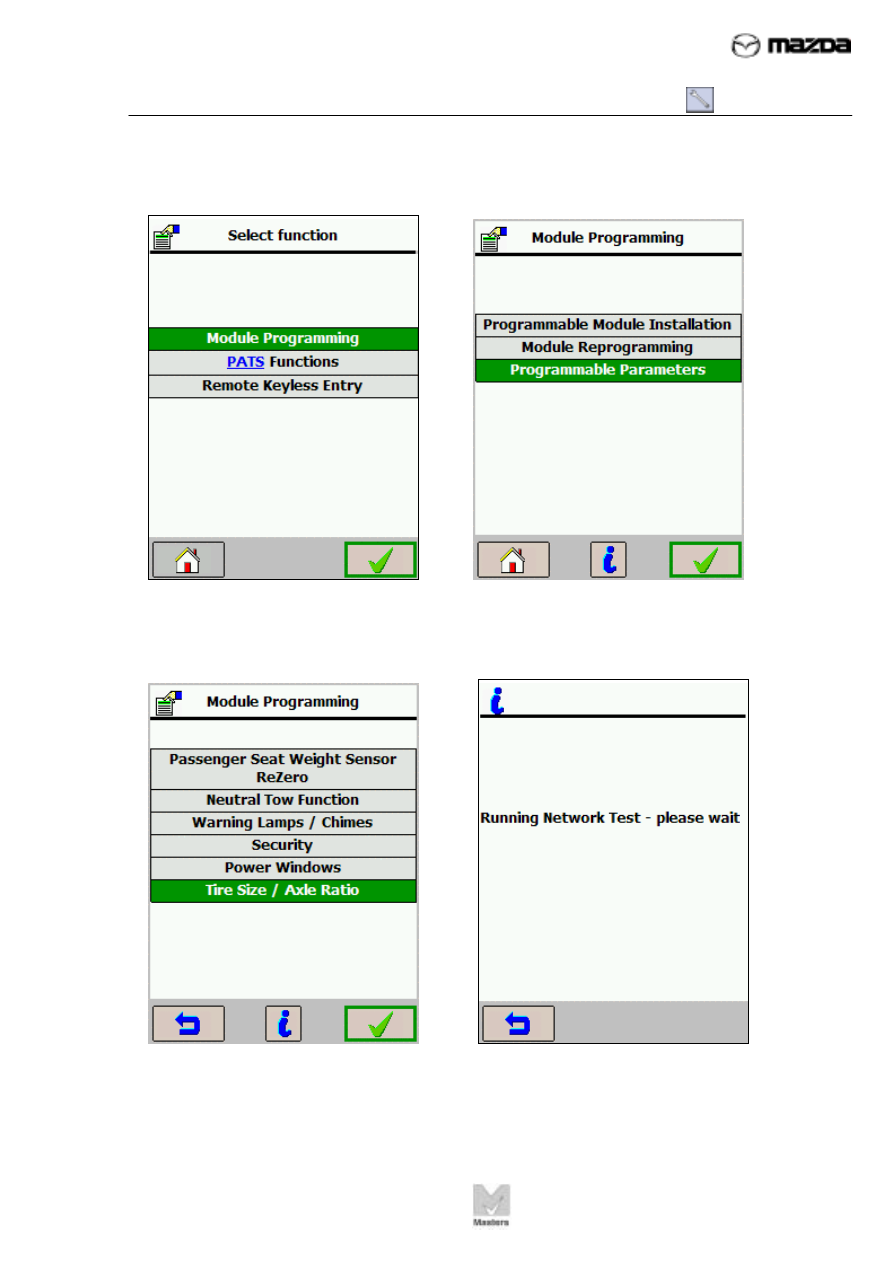

5.  Tap Yes                                              6.  Tap Tick








7. Tap NO                                                8.  Select Programming, Tap Tick






TC001-18-01H

INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page5

Activity 08
(Continued)







9.  Tap Tick                                             10.  Select Programmable Parameters,
                                                                 Tap Tick








11. Select Tire Size/Axle Ratio,              12.  Please wait.

Tap Tick





TC001-18-01H

INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page6

Activity 08
(Continued)

Confirm the tire size and axle ratio.  If they are incorrect, select the correct size/axle
ratio then Tap Tick.  Verify correct information with your instructor.

Where did you find the information?________________________________

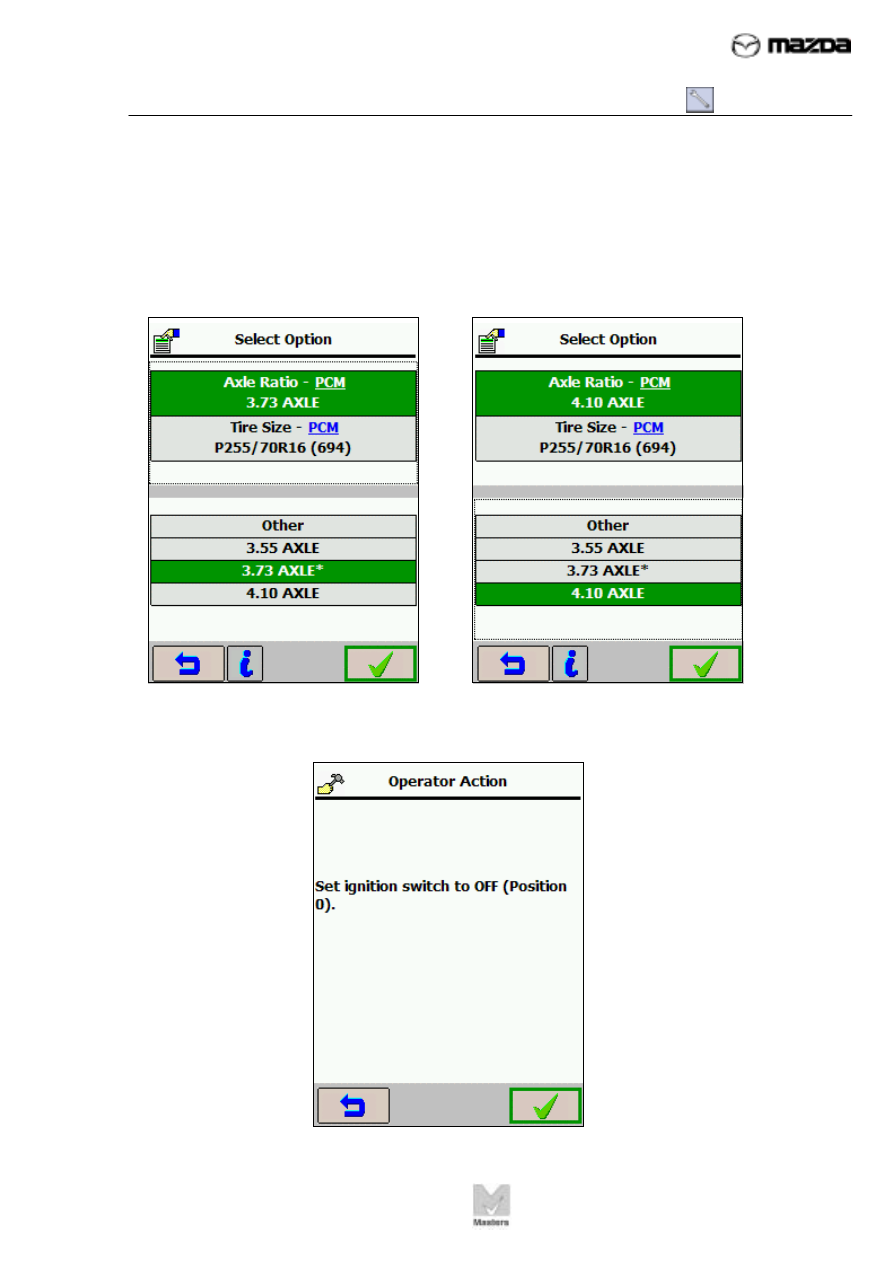

13.  If Size and Ratio is now                 14.  Tap Tick
       correct, Tap Tick






                             15.  Follow prompts on screen. Tap Tick


TC001-18-01H

INTRODUCTION TO M-MDS
08 - Verify/Change Programmable Parameters










Activity 08- Page7

Activity 08
(Continued)


NOTE

Do NOT remove fuses as instructed to on the next screen.  Make sure the
vehicles battery is fully charged and that you have a battery charger set to
around 15 amps connected to the vehicles battery.

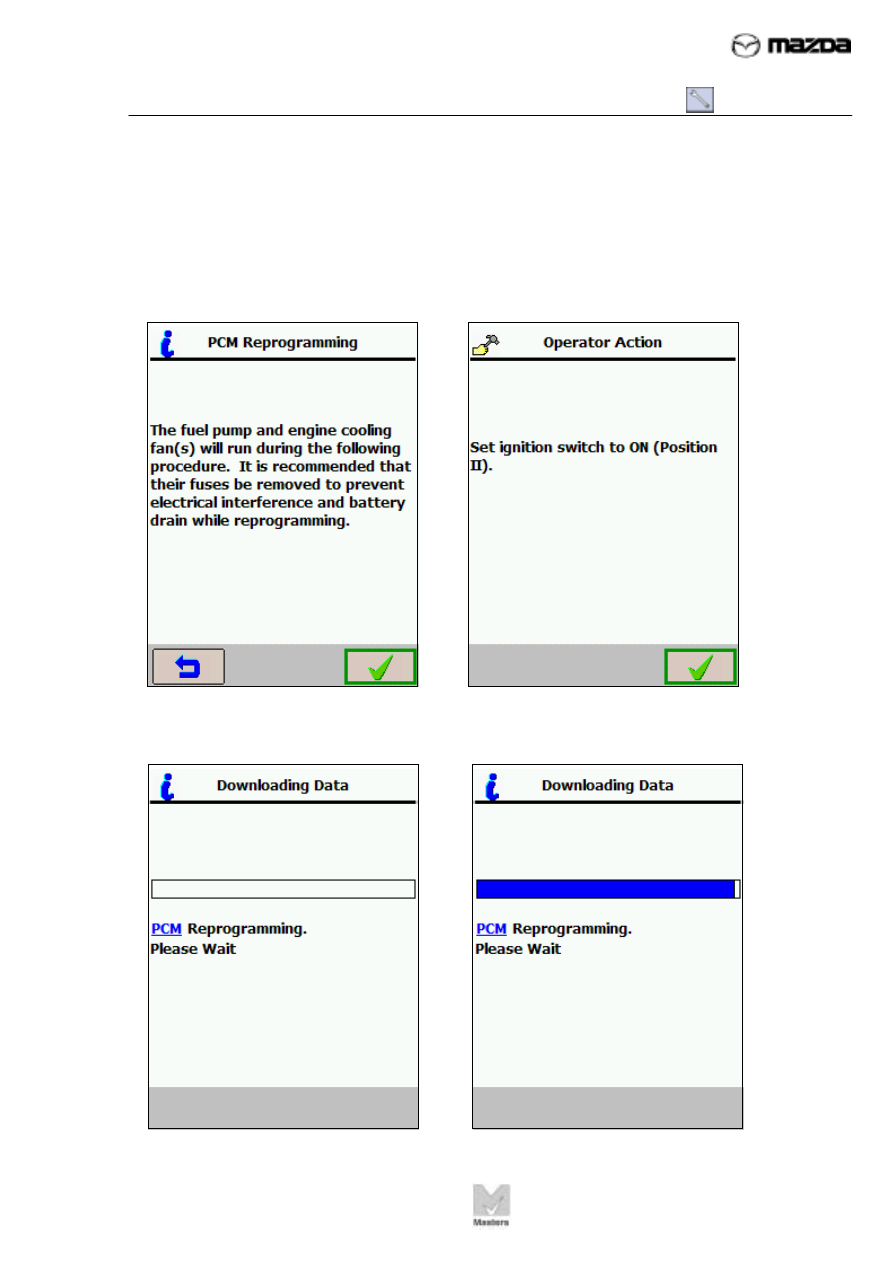

1.  Tap Tick                                            2.  Turn Ignition on, Tap Tick








3.  Wait until the screens have shown the finished reprogramming.
