Mazda Training manual - part 97

Dynamic Driving Safety Systems

DSC

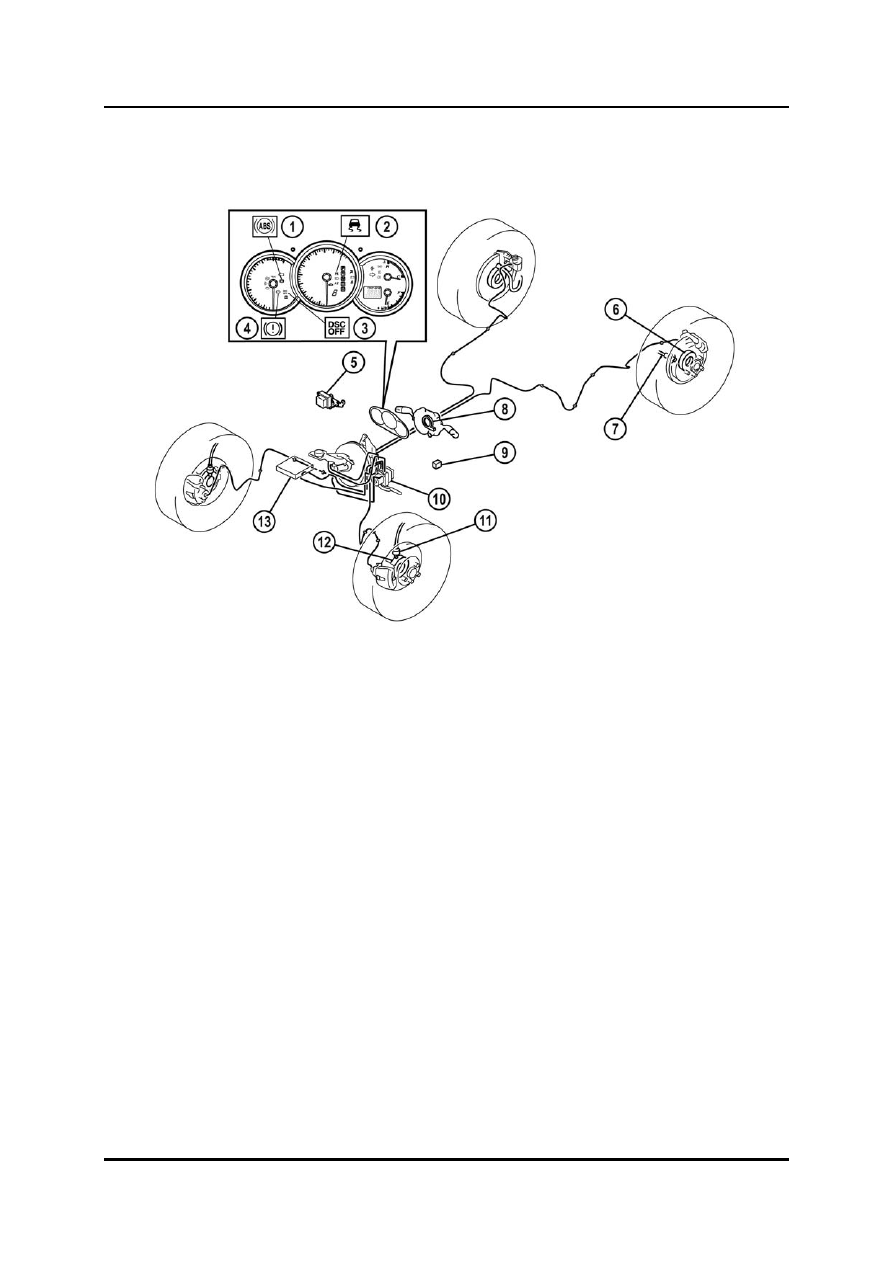

Parts Location





L2003_02027



1

ABS warning light

8

Steering angle sensor

2

DSC indicator light

9

DSC OFF switch

3

DSC OFF indicator light

10

DSC HU/CM

4

Brake system warning light

11

Front ABS wheel-speed sensor

5

Combined sensor

12

Front ABS pulse rotor

6

Rear ABS pulse rotor

13

PCM

7

Rear ABS wheel-speed sensor







Curriculum Training

02-47

DSC

Dynamic Driving Safety Systems

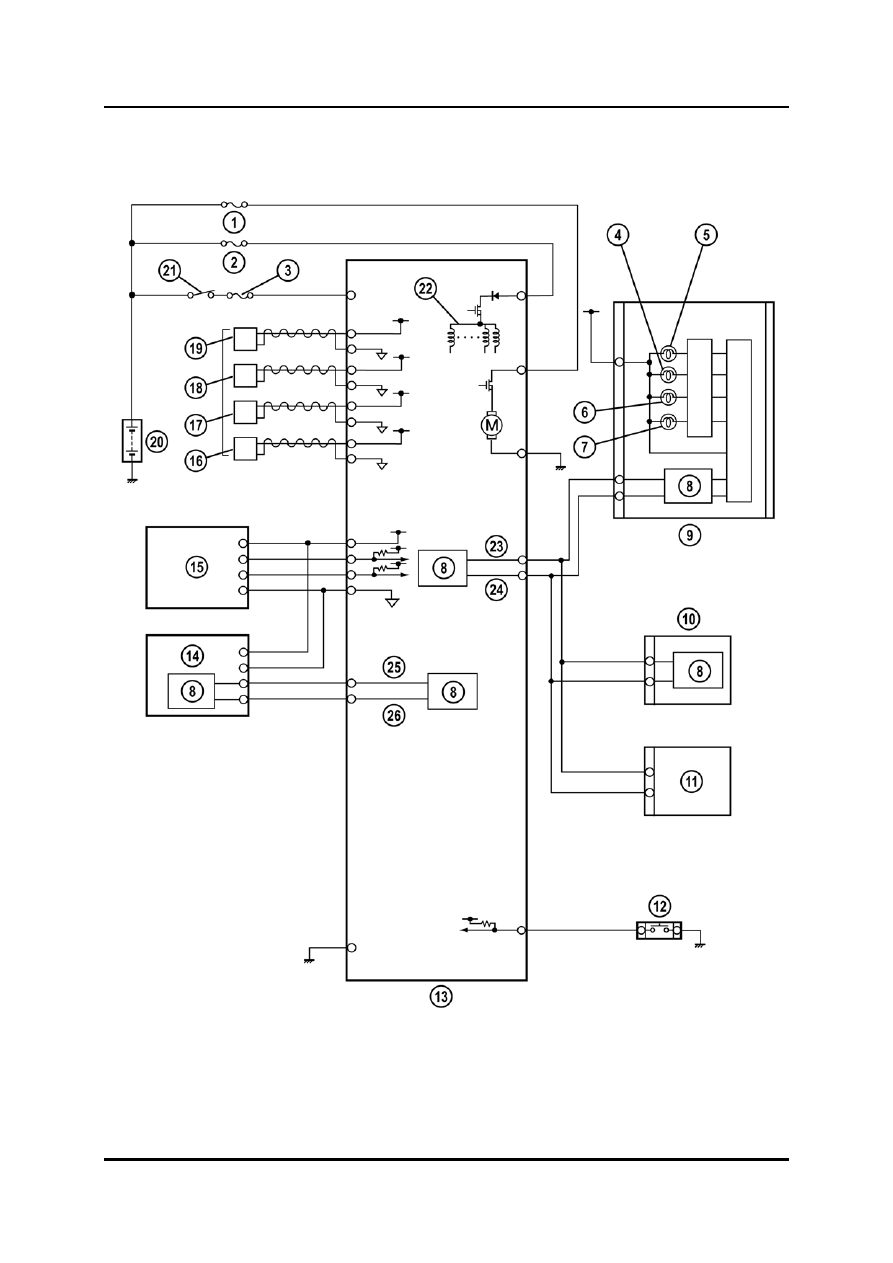

Wiring Diagram



L2003_02028



02-48 Curriculum

Training

Dynamic Driving Safety Systems

DSC



1

ABS fuse 1

14

Combined sensor

2

ABS fuse 2

15

Steering angle sensor

3

ABS ignition fuse

16

ABS wheel-speed sensor LR

4

Brake system warning light

17

ABS wheel-speed sensor RR

5

ABS warning light

18

ABS wheel-speed sensor LF

6

DSC OFF indicator light

19

ABS wheel-speed sensor RF

7

DSC indicator light

20

Battery

8

CAN driver

21

Ignition switch

9 IC

22 Solenoid

valves

10 PCM

23 CAN

H

11 DLC-2

24 CAN

L

12

DSC OFF switch

25

CAN2 L

13 DSC

HU/CM

26 CAN2

H



Curriculum Training

02-49

DSC

Dynamic Driving Safety Systems

Hydraulic Circuit

•

The HU for DSC is equipped with 12 solenoid valves that can be activated for the ABS,
TCS and DSC operation. It has two more solenoid valves than a vehicle with four
channel ABS and TCS. The additional valves are the stability control solenoid valves,
which are closed when not actuated by the CM. One valve is used for each brake circuit.
They are in line with the brake master cylinder and the suction side of the pump in the
HU. This ensures that a sufficient amount of brake fluid is available during DSC
operation.



LF-RR
RF-LR
LF-RR
RF-LR
LF
RF
LR
RR
LF
RF
LR
RR

Pump motor

OFF (stopped)

L2003_T02015

Outlet solenoid valve

OFF (closed)

OFF (open)

Stability control solenoid valve

OFF (closed)

OFF (open)

Traction control solenoid valve

Inlet solenoid valve







02-50 Curriculum
