M-MDS Introduction

•

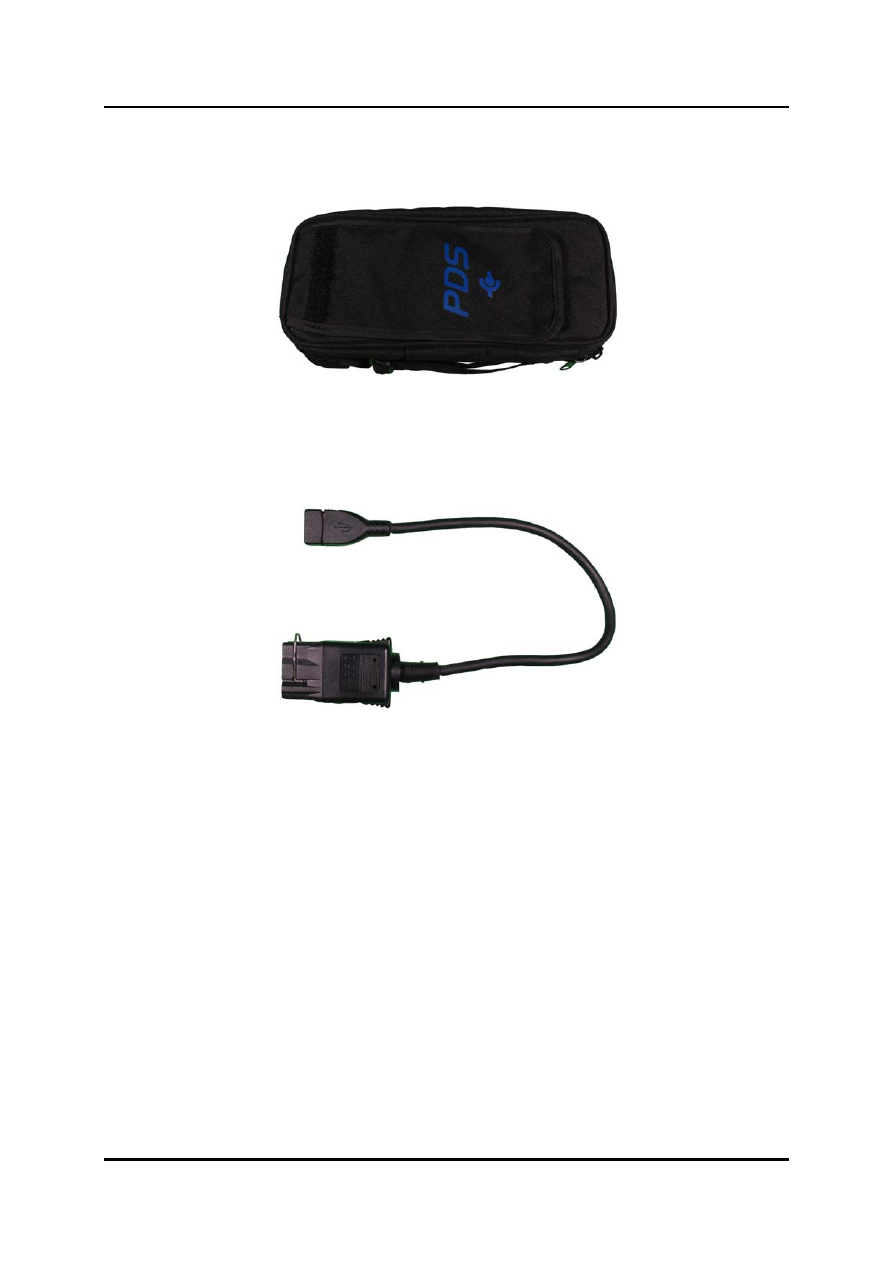

PDS Soft Case

–

This soft case can be used to carry the optional available Pocket PC and the VCM.

L1001.2_007

•

PDS USB Master Host Adapter

–

The VCM and the designated Pocket PC can be connected using an off-the-shelf
USB sync cable or USB/Serial autosync cable with this adapter.

L1001.2_008

Curriculum Training

00-7

Introduction M-MDS

Optional M-MDS Accessory

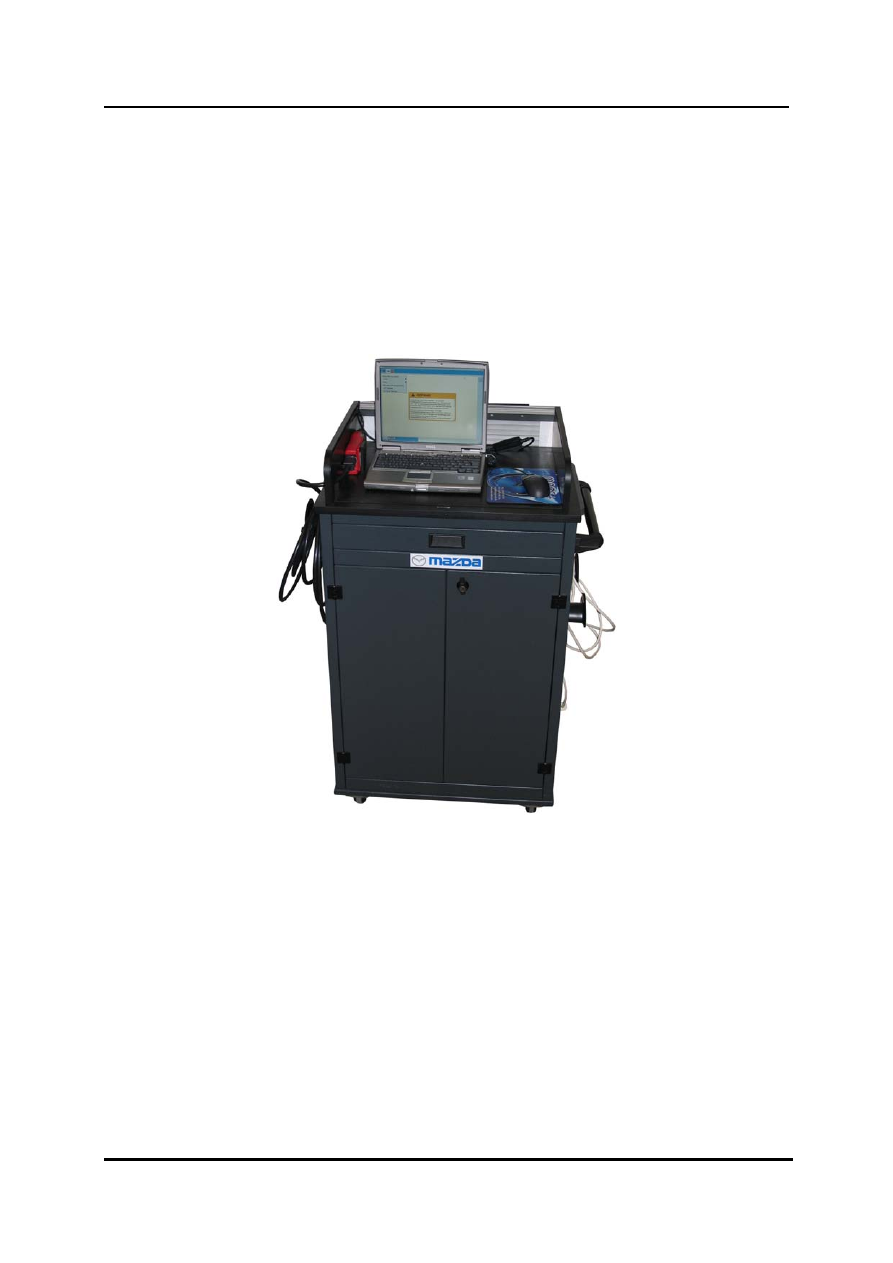

M-MDS Cart

•

The optional wheeled cart accommodates all the system components and allows flexible
use of the M-MDS laptop in different working locations. It comprises a retractable desk
and a VCM holding space.

•

In addition to that, the dedicated M-MDS cart is the right way to store and protect the
M-MDS when not in use. The laptop PC case and the lower cabinet can be locked by
key.

L1001.2_009

00-8 Curriculum

Training

IDS Installation

Curriculum Training

01-1

Setting up M-MDS

•

The following pages will enable you to build a fully operational M-MDS diagnostic
computer from the M-MDS Kit and a locally supplied laptop computer.

Installing IDS Software on the Laptop Computer

•

In this step the software will be installed on the laptop PC.

–

insert IDS DVD

–

select "IDS" from installation menue

–

select set-up language

–

click NEXT

–

accept license agreement (tick) and click NEXT

–

confirm information about firewall characteristics (tick) and click NEXT

–

accept (recommended) or change the proposed installation location on your hard
drive and click NEXT

–

click INSTALL (this will take a few minutes)

–

when the installation process is completed you will be asked to remove the IDS DVD
from the DVD drive

–

click FINISH

–

restart your computer

Installation IDS

01-2 Curriculum

Training

Installing Calibration Files

•

In this step the calibration files needed for module programming will be installed on the
laptop PC.

–

insert IDS DVD again

–

select "Calibrations" from installation menue

–
