AUTOMATIC TRANSAXLE

K1–53

K1

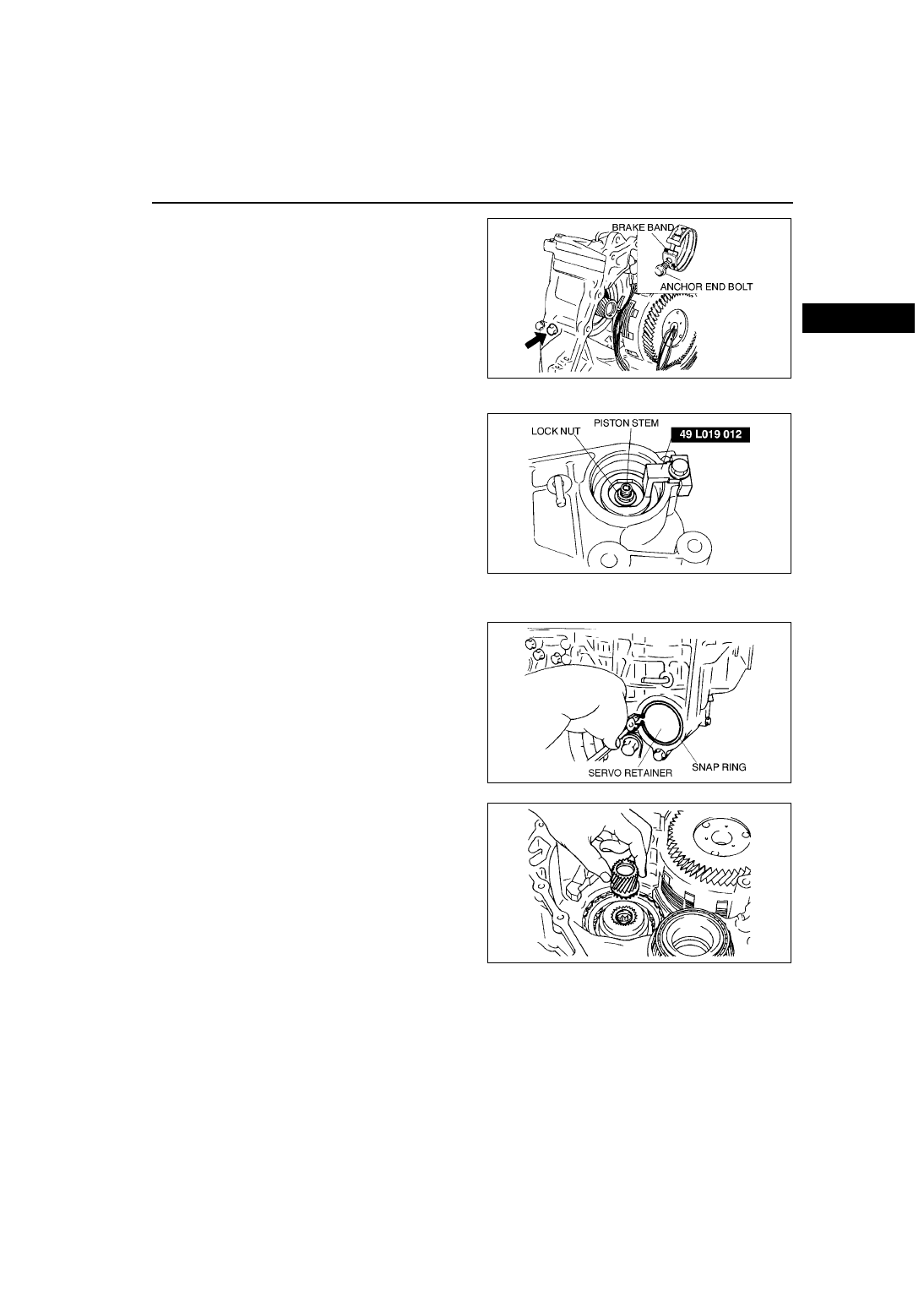

37. Install a new anchor end bolt.

Tightening torque

64—94 N·m {6.5—9.5 kgf·m, 47—69 ft·lbf}

38. Adjust the brake band.

(1) Set the SST to prevent the brake band piston

from turning.

(2) Tighten the piston stem.

Tightening torque

4.0—6.0 N·m

{0.40—0.60 kgf·m, 2.9—4.3 ft·lbf}

(3) Loosen the piston stem 5 rotations.

(4) Tighten the lock nut while preventing the

piston stem from turning.

Tightening torque

39—50 N·m {4.1—5.2 kgf·m, 40—51 ft·lbf}

39. Position the reduction brake band servo.

40. Install the snap ring which secures the reduction

brake band servo.

41. Install the sun gear on the direct clutch drum.

AMU0517A134

AMU0517A135

AMU0517A018

AMU0517A017

K1–54

AUTOMATIC TRANSAXLE

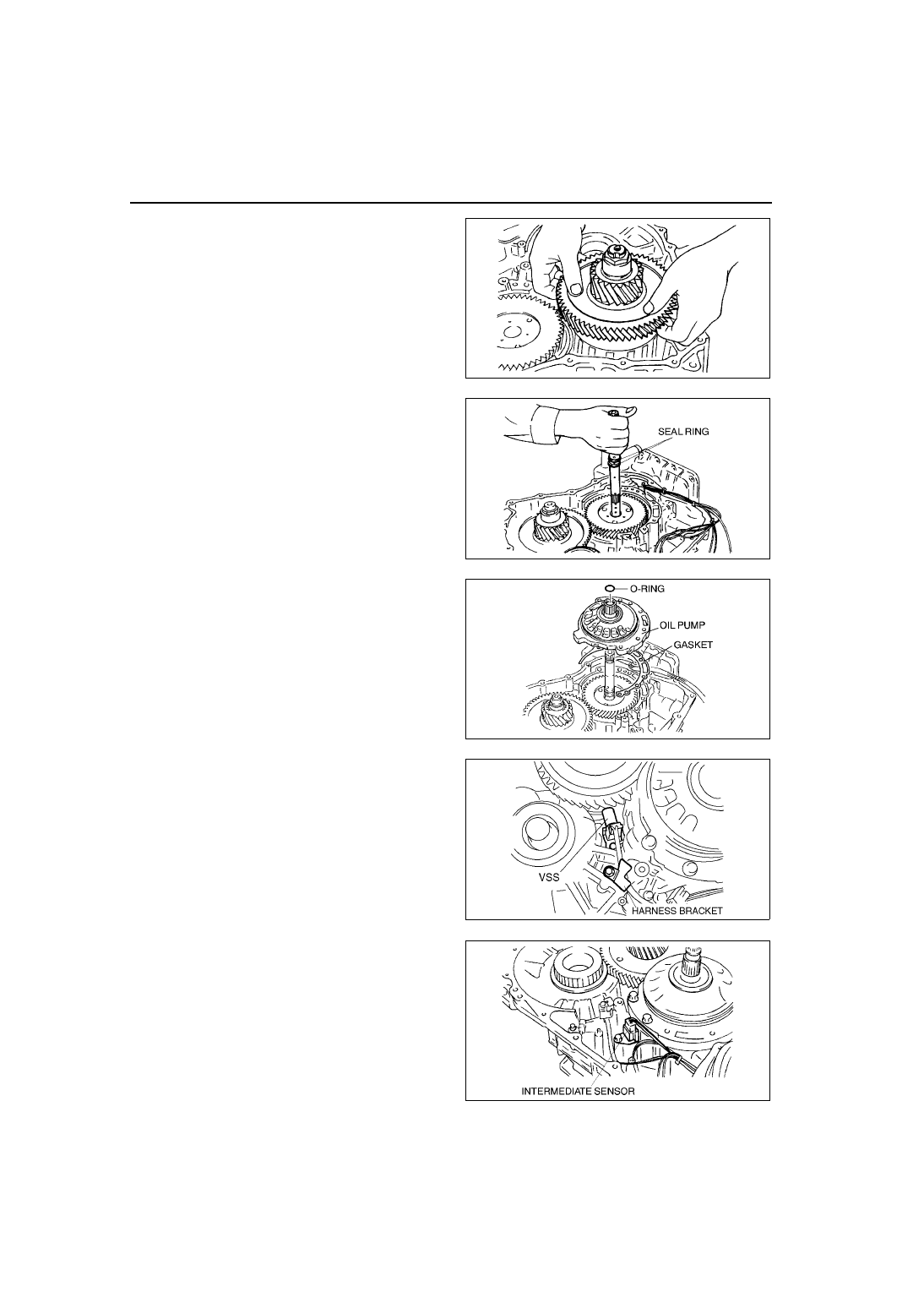

42. Install the reduction gear component.

43. Apply petroleum jelly to new seal rings, then

assemble them to the input shaft.

44. Install the input shaft.

Caution

•••• If the oil pump gasket is bent or

scratched, do not reuse it.

45. Position the oil pump gasket.

46. Install the oil pump component and tighten bolts.

Tightening torque

19—22 N·m

 {1.9—2.2 kgf·m, 14—16 ft·lbf}

47. Apply a coat of ATF to a new O-ring, then install it

to the input shaft.

48. Install the vehicle speedometer sensor (VSS).

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

49. Connect the VSS connector.

50. Install the harness bracket.

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

51. Install the intermediate sensor.

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

52. Connect the intermediate sensor connector.

AMU0517A016

AMU0517A015

AMU0517A014

AMU0517A013

AMU0517A012

AUTOMATIC TRANSAXLE

K1–55

K1

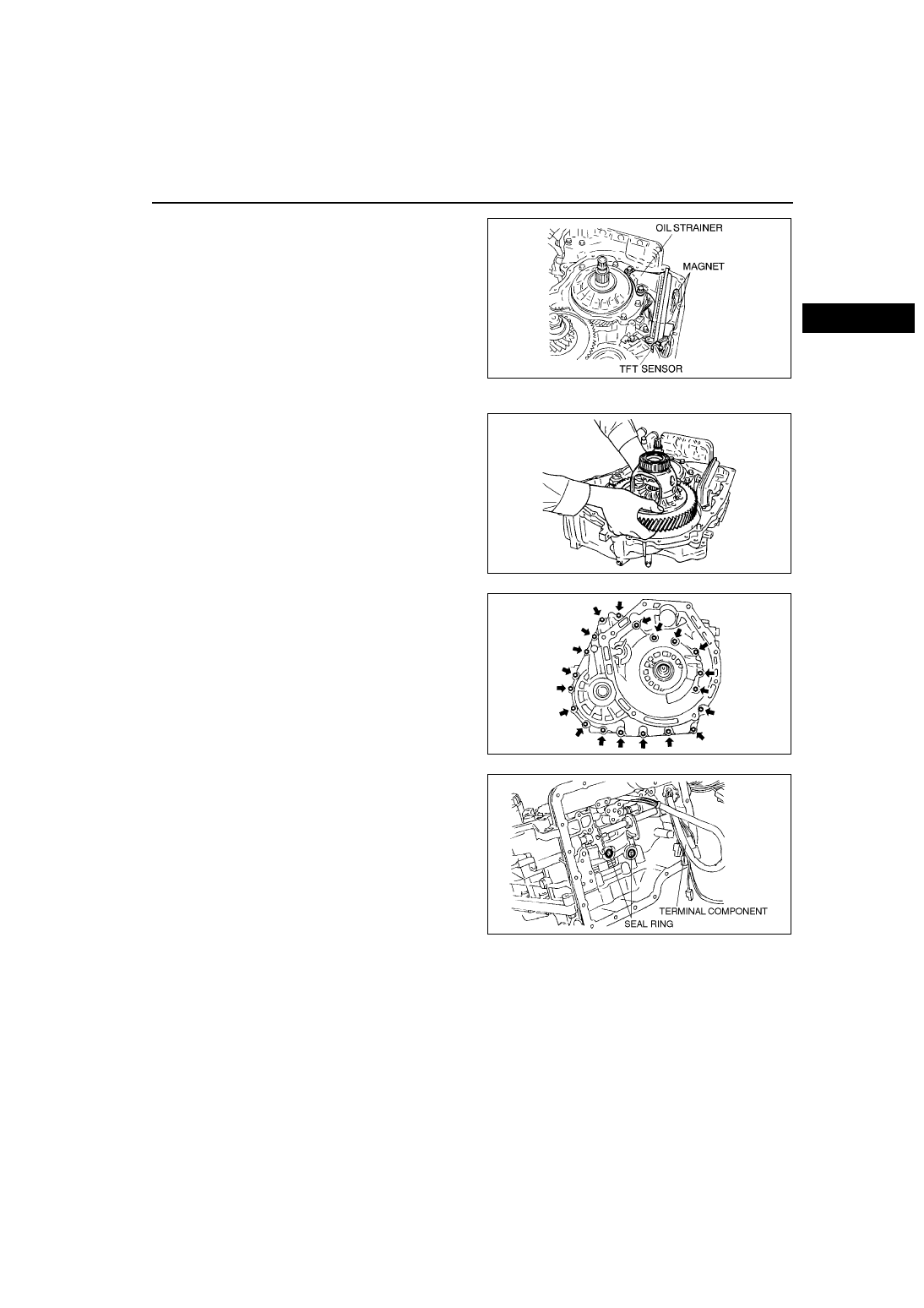

53. Install the magnets.

54. Install the transaxle fluid temperature (TFT)

sensor.

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

55. Install the oil strainer.

Tightening torque

19—22 N·m

 {1.9—2.2 kgf·m, 14—16 ft·lbf}

56. Install the differential component.

57. Install the converter housing.

Tightening torque

27—30 N·m {2.8—3.1 kgf·m, 20—22 in·lbf}

Caution

•••• Be careful not to scratch the mating

surface of the converter housing and

transaxle case.

58. Install the terminal component.

59. Install the bracket to the coupling connector.

Note

• If the seal ring is misplaced or scratched, do

not reuse it.

60. Apply a coat of ATF to new seal rings, then install

them to the transaxle case.

AMU0517A011

AMU0517A010

AMU0517A009

AMU0517A008

K1–56

AUTOMATIC TRANSAXLE

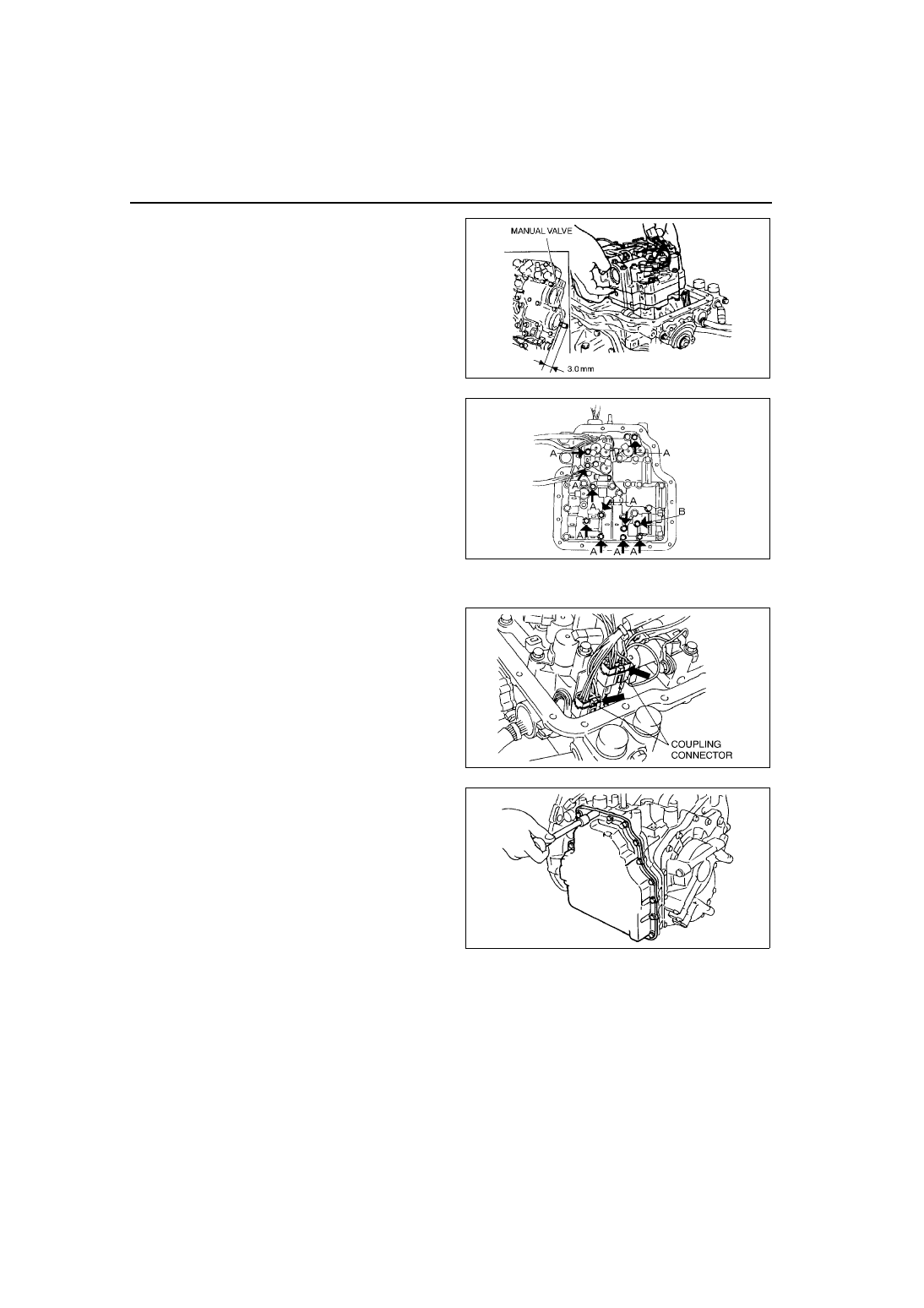

61. Install the control valve body to the transaxle

case.

(1) Set the manual shaft at L renge.

(2) Position the manual valve so that it protrudes

from the control valve body end by 3.0 mm.

(3) Install the control valve body while holding the

manual valve in the position.

(4) Move the manual shaft , when verify in

conjunction with manual valve.

62. Tighten the bolts which secure the control valve

body to the transaxle case.

(1) Tighten the bolt A. (10 pieces)

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

(2) Tighten the bolt B. (1 pieces)

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

63. Tighten the bracket on the coupling connector.

64. Connect the coupling connectors between the

solenoid valves and terminal component.

65. Apply a light coat of silicone sealant to the contact

surfaces of the control valve body cover and

transaxle case.

66. Install the control valve body cover.

Tightening torque

6.9—8.8 N·m

{0.70—0.90 kgf·m, 5.1—6.5 ft·lbf}

67. Remove the transaxle from the transaxle stand.

AMU0517A186

AMJ5614A072

AMU0517A005

AMU0517A184
