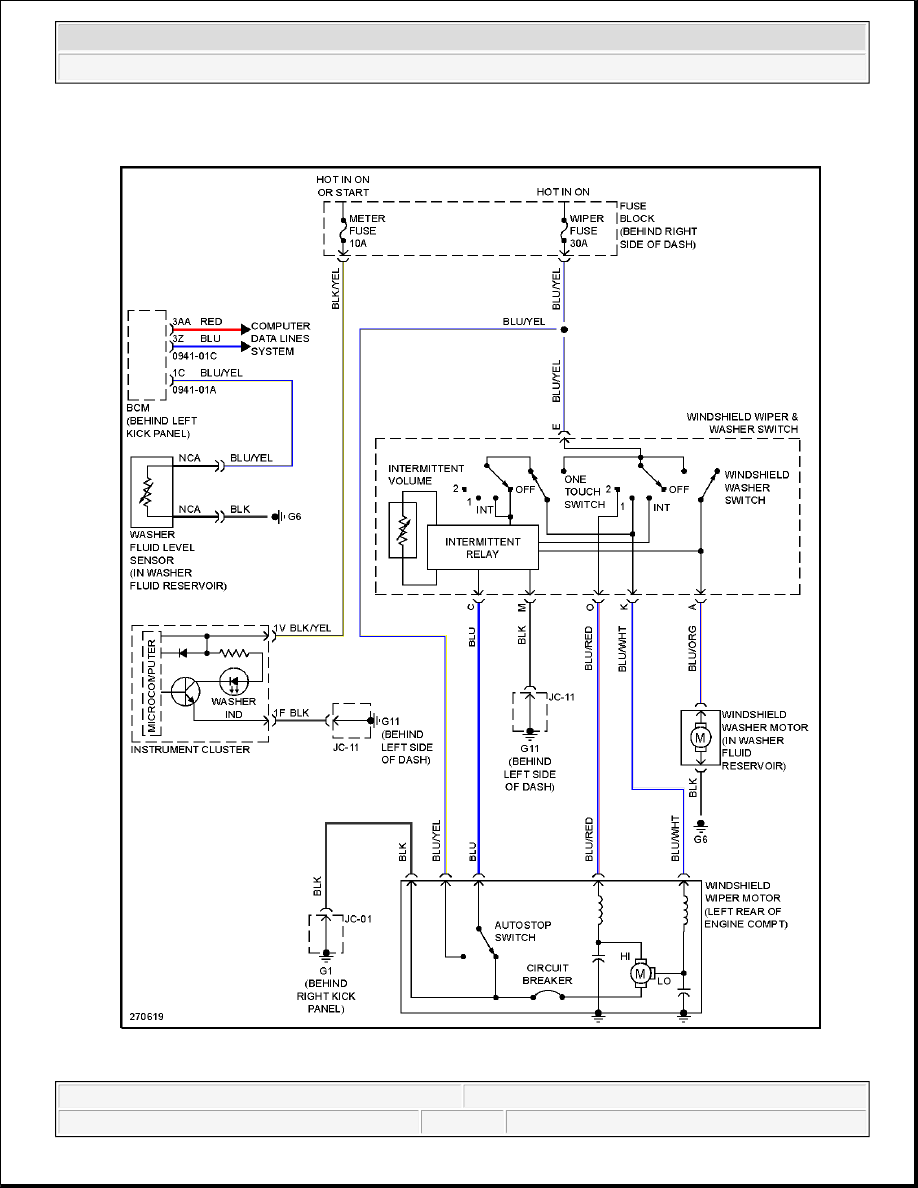

Fig. 60: Front Wiper/Washer Circuit, W/ Automatic Wiper



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 121

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 122

© 2005 Mitchell Repair Information Company, LLC.

Fig. 61: Front Wiper/Washer Circuit, W/O Automatic Wiper



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 123

© 2005 Mitchell Repair Information Company, LLC.



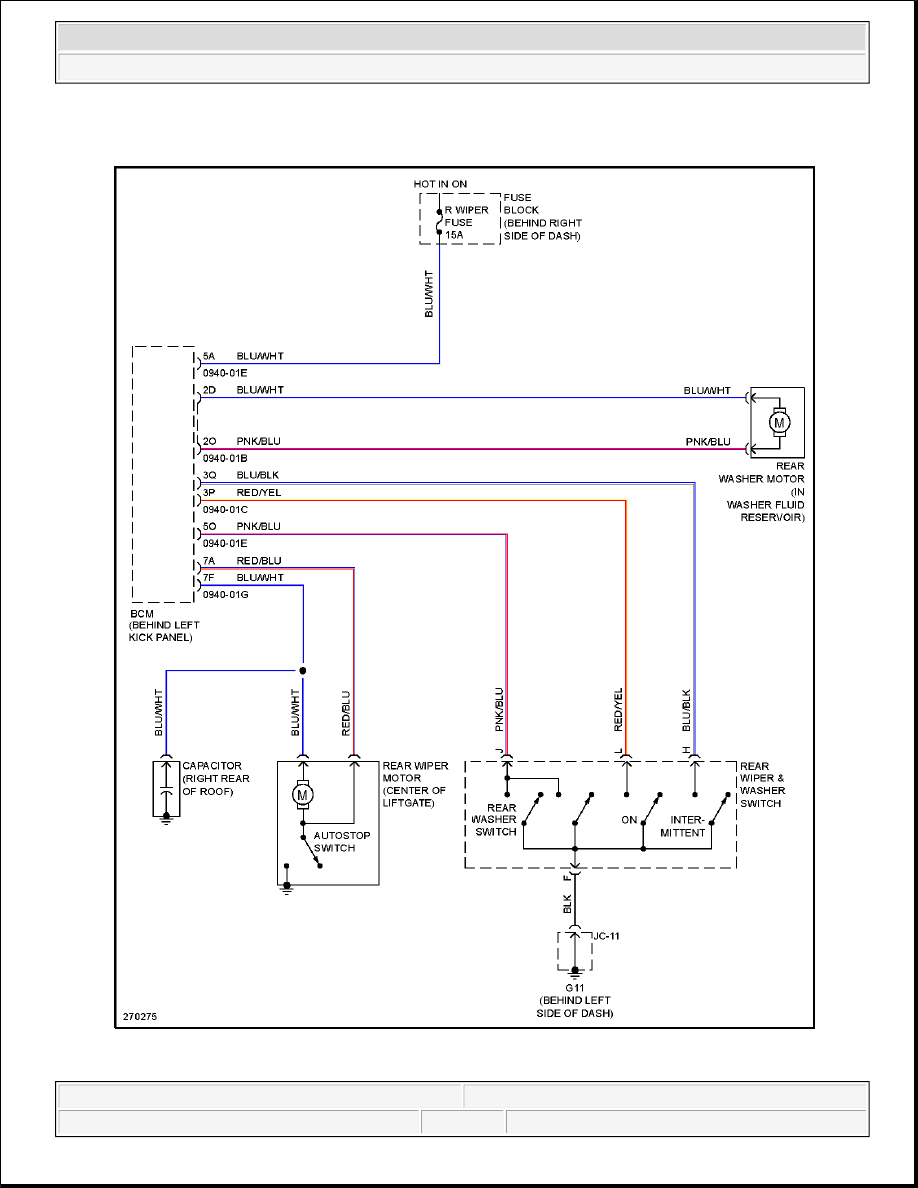

2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:32 AM

Page 124

© 2005 Mitchell Repair Information Company, LLC.
