Mazda CX-9 Grand Touring. Manual - part 630

Fig. 26: Instrument Cluster Circuit (1 of 2)



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 53

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 54

© 2005 Mitchell Repair Information Company, LLC.

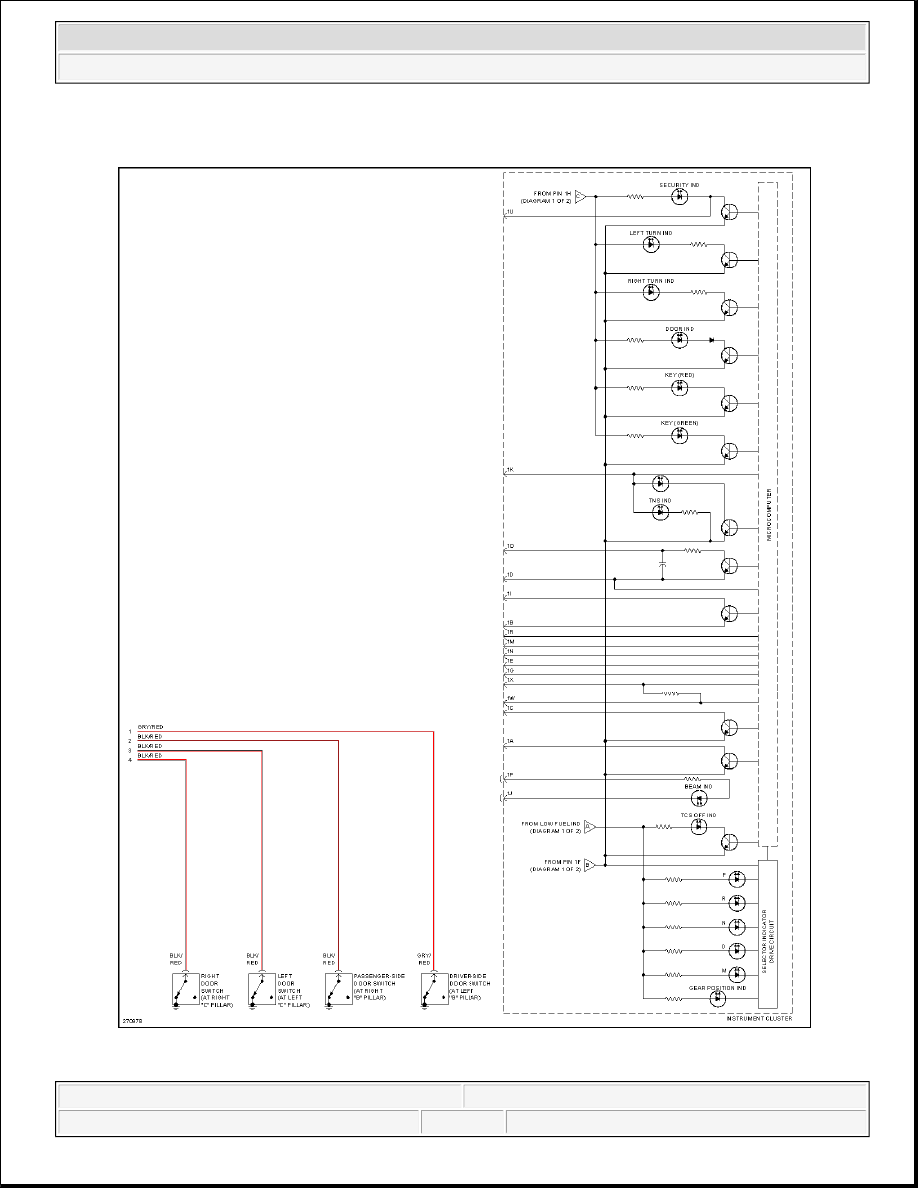

Fig. 27: Instrument Cluster Circuit (2 of 2)



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 55

© 2005 Mitchell Repair Information Company, LLC.



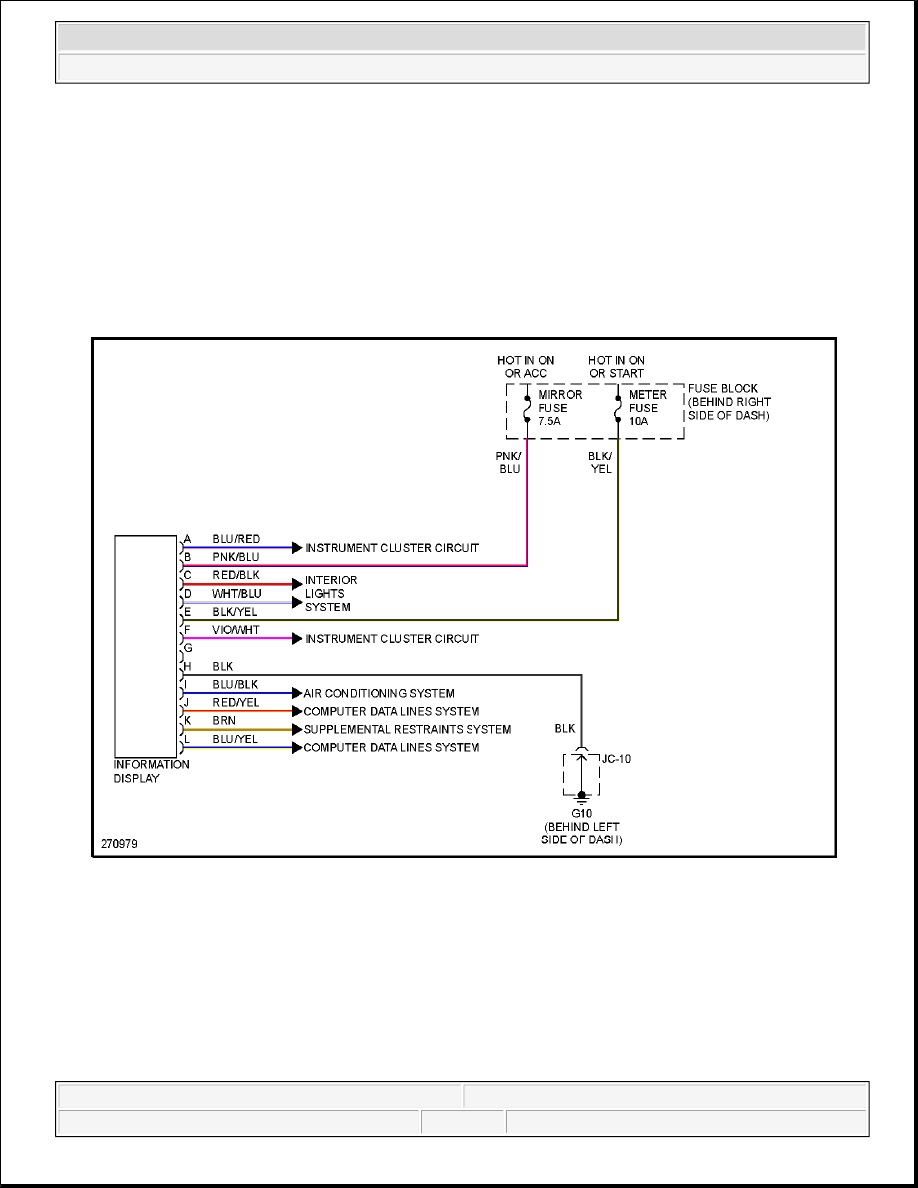

2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:31 AM

Page 56

© 2005 Mitchell Repair Information Company, LLC.
