Mazda CX-9 Grand Touring. Manual - part 617

2007 SYSTEM WIRING DIAGRAMS

Mazda - CX-9

USING MITCHELL1'S WIRING DIAGRAMS

For information on using these wiring diagrams, see USING MITCHELL1'S SYSTEM WIRING
DIAGRAMS article.

AIR CONDITIONING



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9





2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 9:34:38 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 2

© 2005 Mitchell Repair Information Company, LLC.

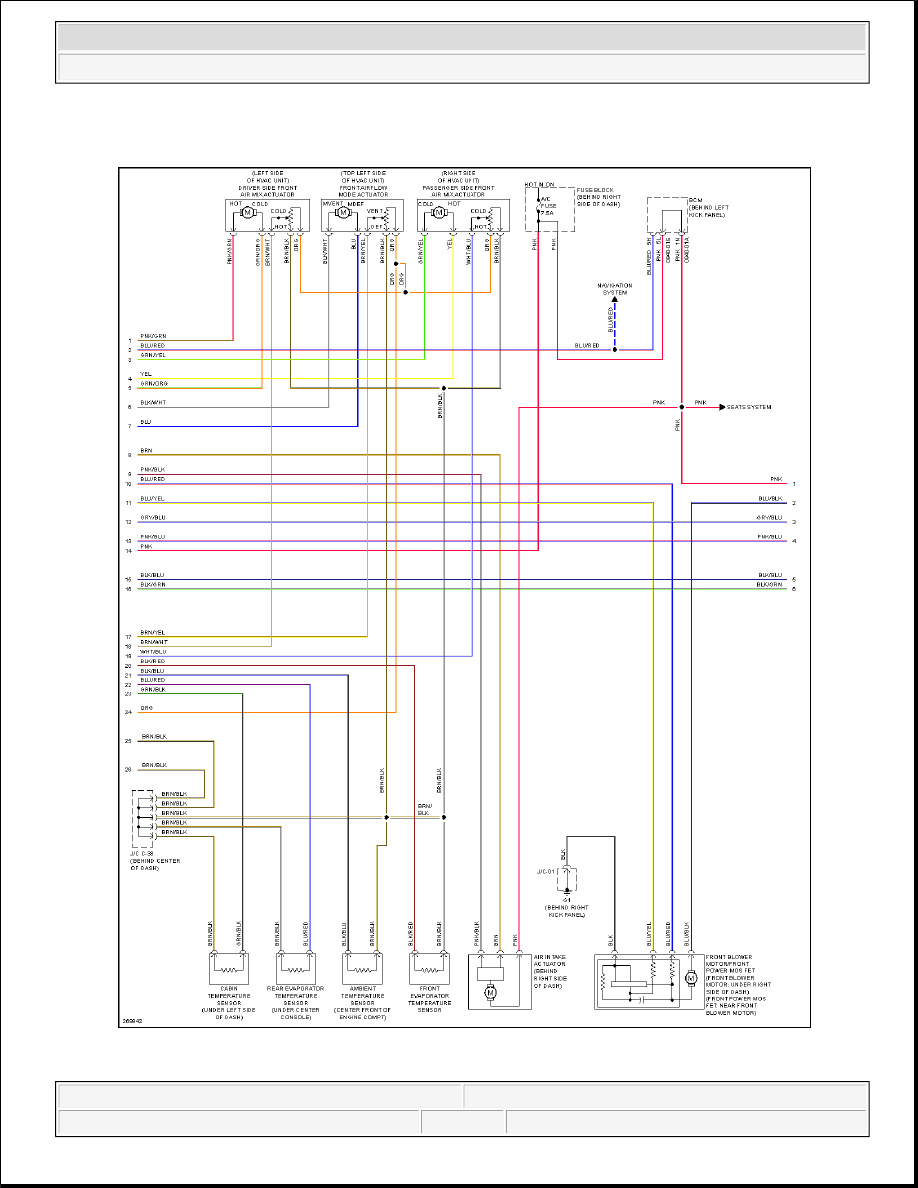

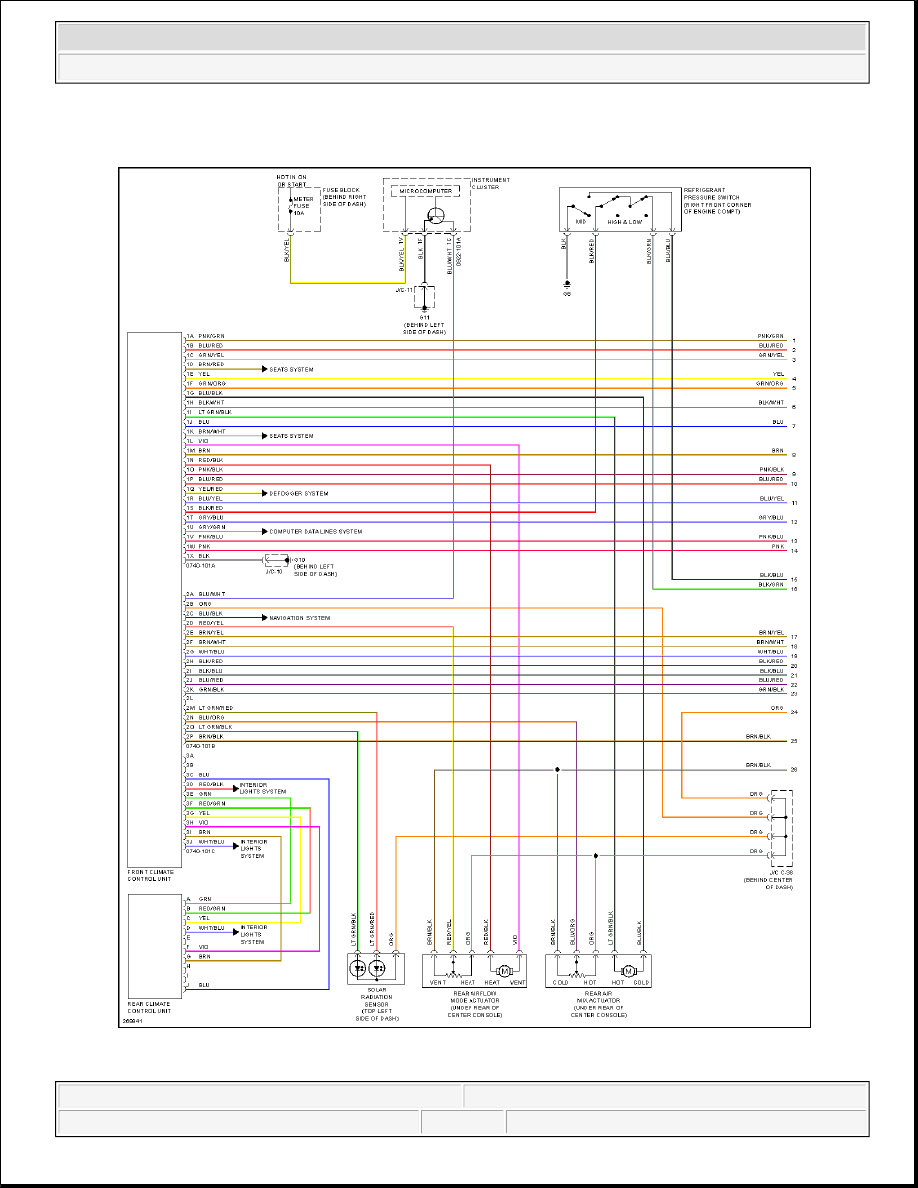

Fig. 1: Automatic A/C Circuit, Dual Fans (1 of 3)



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 3

© 2005 Mitchell Repair Information Company, LLC.



2007 Mazda CX-9 Grand Touring

2007 SYSTEM WIRING DIAGRAMS Mazda - CX-9



Microsoft



Sunday, November 15, 2009 9:34:30 AM

Page 4

© 2005 Mitchell Repair Information Company, LLC.
