Mazda CX-9 Grand Touring. Manual - part 571





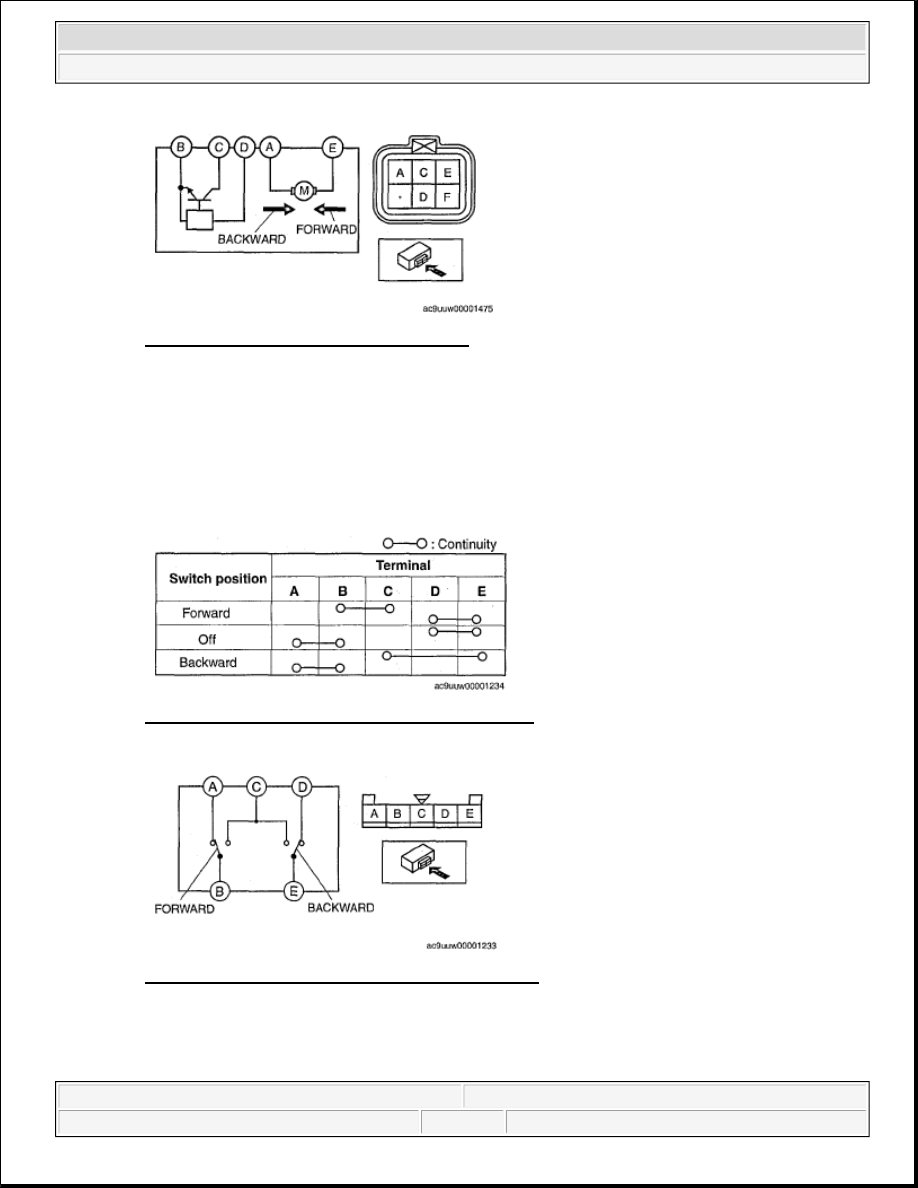

Fig. 18: Recliner Motor - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

LUMBAR SUPPORT SWITCH INSPECTION

1. Disconnect the lumbar support switch connector.

2. Inspect for continuity between the lumbar support switch connector terminals.

If not as specified, replace the lumbar support switch.

Fig. 19: Lumbar Support Switch Continuity Chart
Courtesy of MAZDA MOTORS CORP.

Fig. 20: Lumbar Support Switch - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

LUMBAR SUPPORT MOTOR INSPECTION



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 14

© 2005 Mitchell Repair Information Company, LLC.

1. Disconnect the lumbar support motor connector.

2. Connect battery positive voltage to lumbar support motor terminal A or B, then verify that the lumbar

support motor operate as shown in the table.

If the lumbar support motor does not operate as indicated in the table, replace the Seat back frame.

MOTOR OPERATION

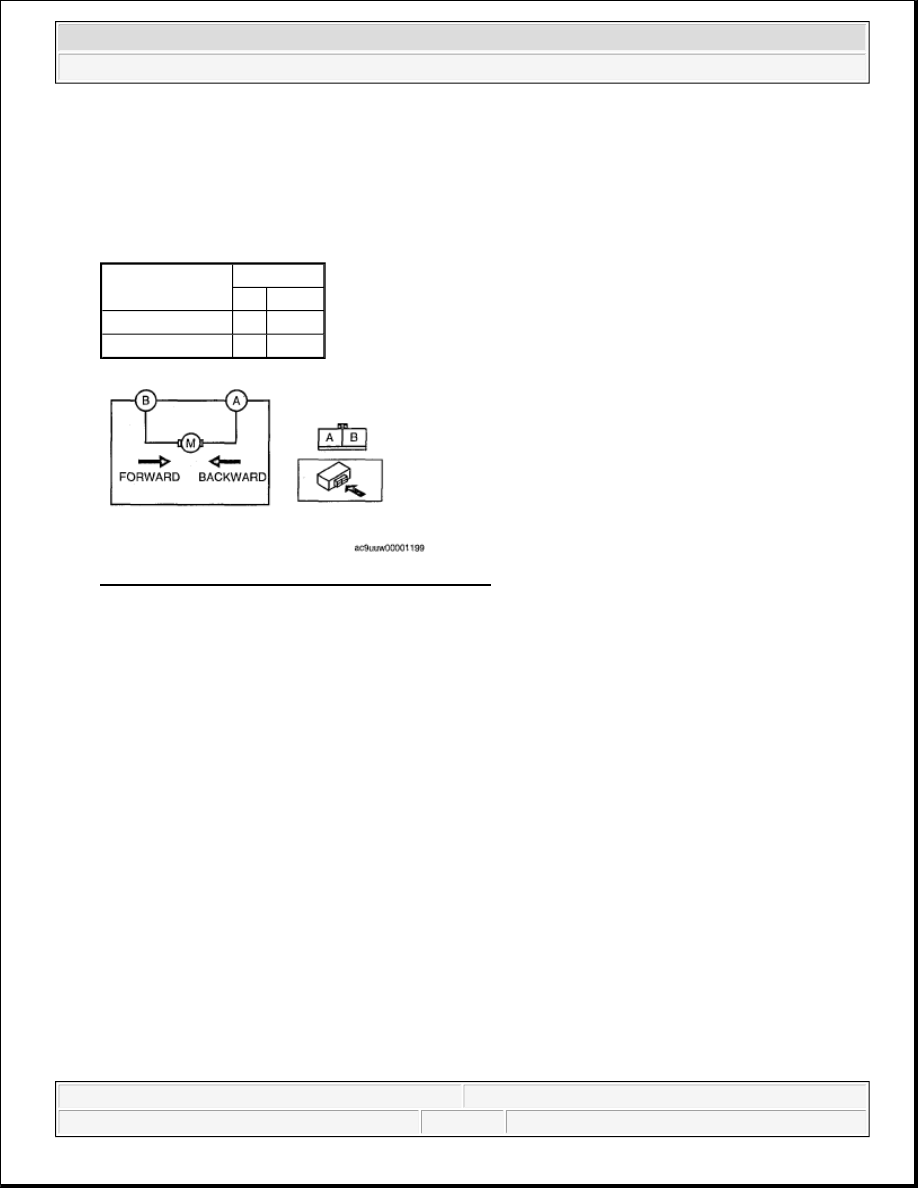

Fig. 21: Lumbar Support Motor - Circuit Diagram
Courtesy of MAZDA MOTORS CORP.

POWER SEAT SWITCH INSPECTION

1. Disconnect the power seat switch connector.

2. Inspect for continuity between the power seat switch connector terminals.

If not as specified, replace the power seat switch.

Motor operation

Connection

B+ GND

Forward

B

A

Backward

A

B



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 15

© 2005 Mitchell Repair Information Company, LLC.

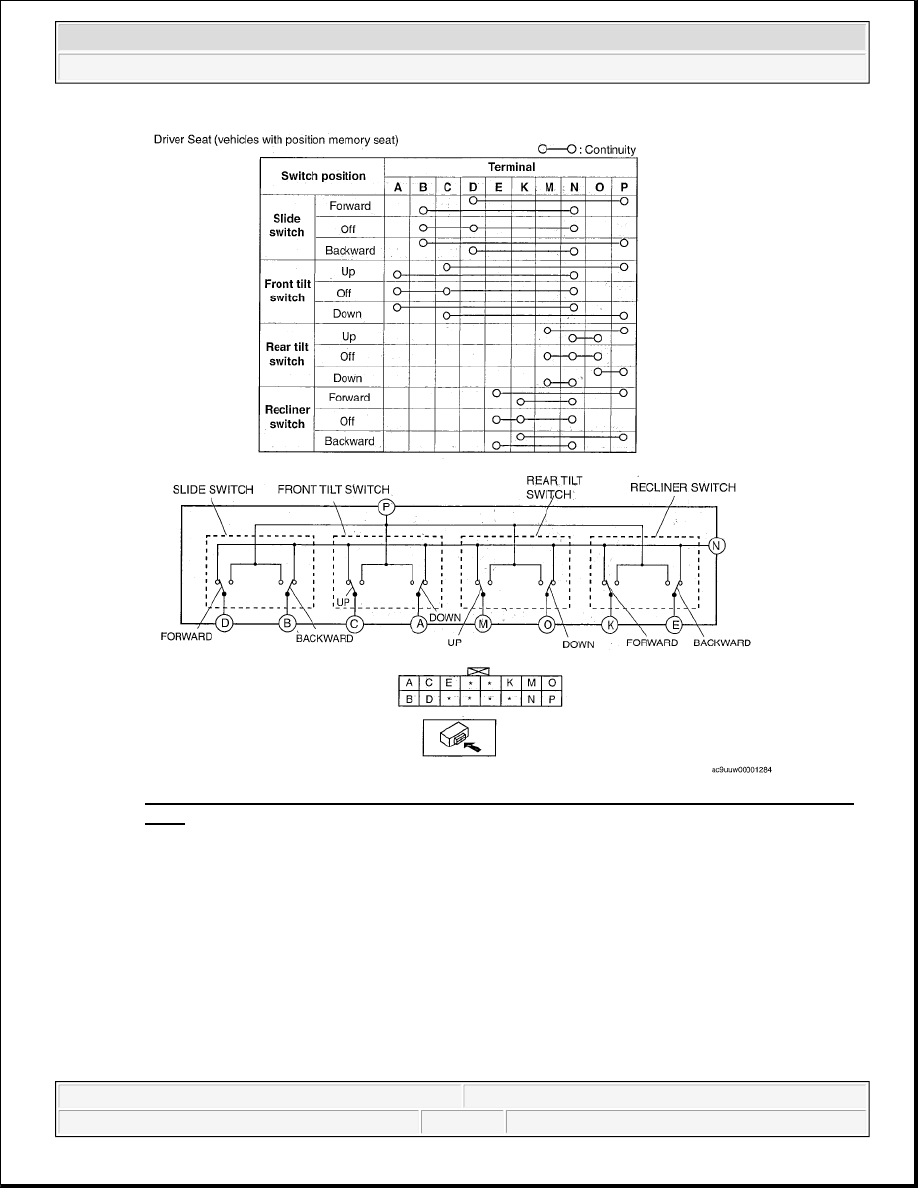

Fig. 22: Power Seat Switch (Driver Seat) - Circuit Diagram (Vehicles With Position Memory
Seat)

Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 16

© 2005 Mitchell Repair Information Company, LLC.

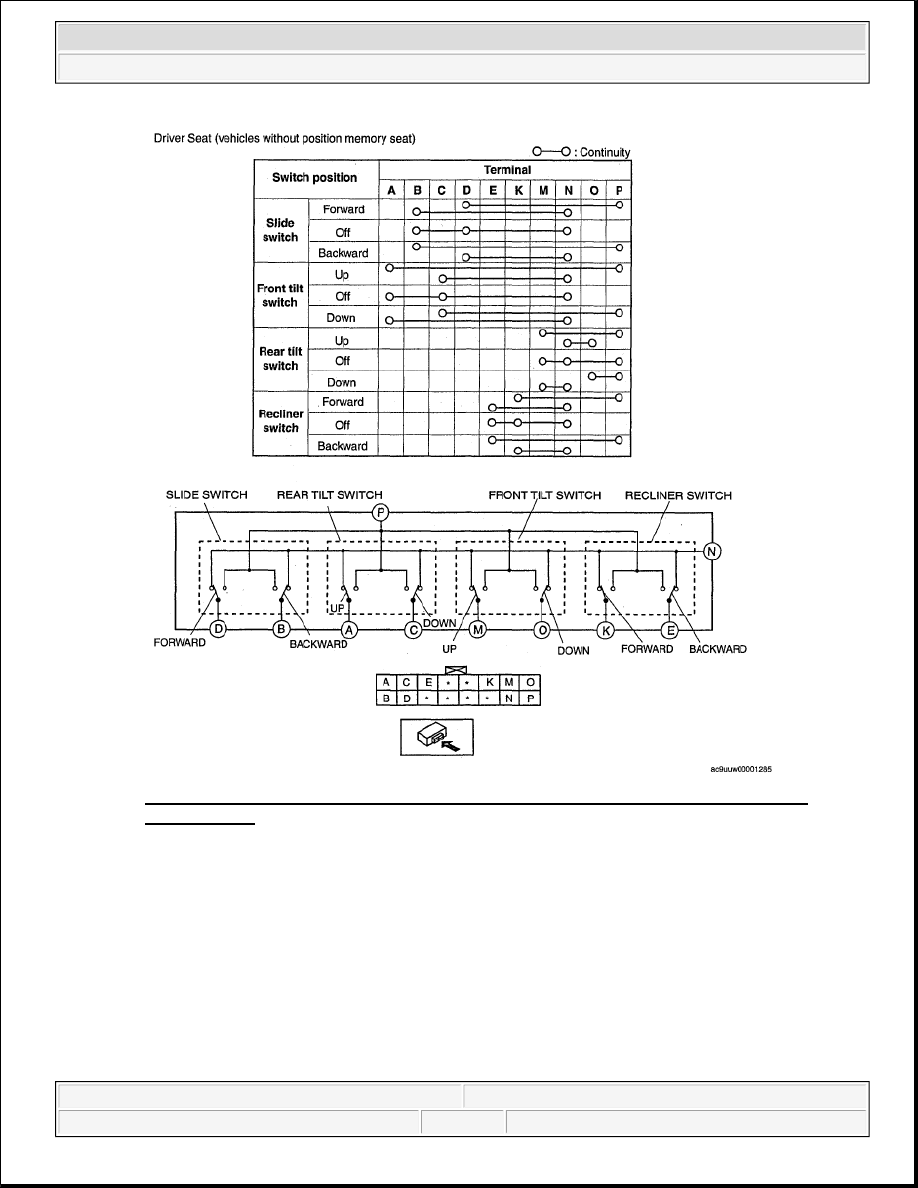

Fig. 23: Power Seat Switch (Driver Seat) - Circuit Diagram (Vehicles Without Position
Memory Seat)

Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 BODY & ACCESSORIES Seats - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:40:01 AM

Page 17

© 2005 Mitchell Repair Information Company, LLC.
