Mazda CX-9 Grand Touring. Manual - part 564

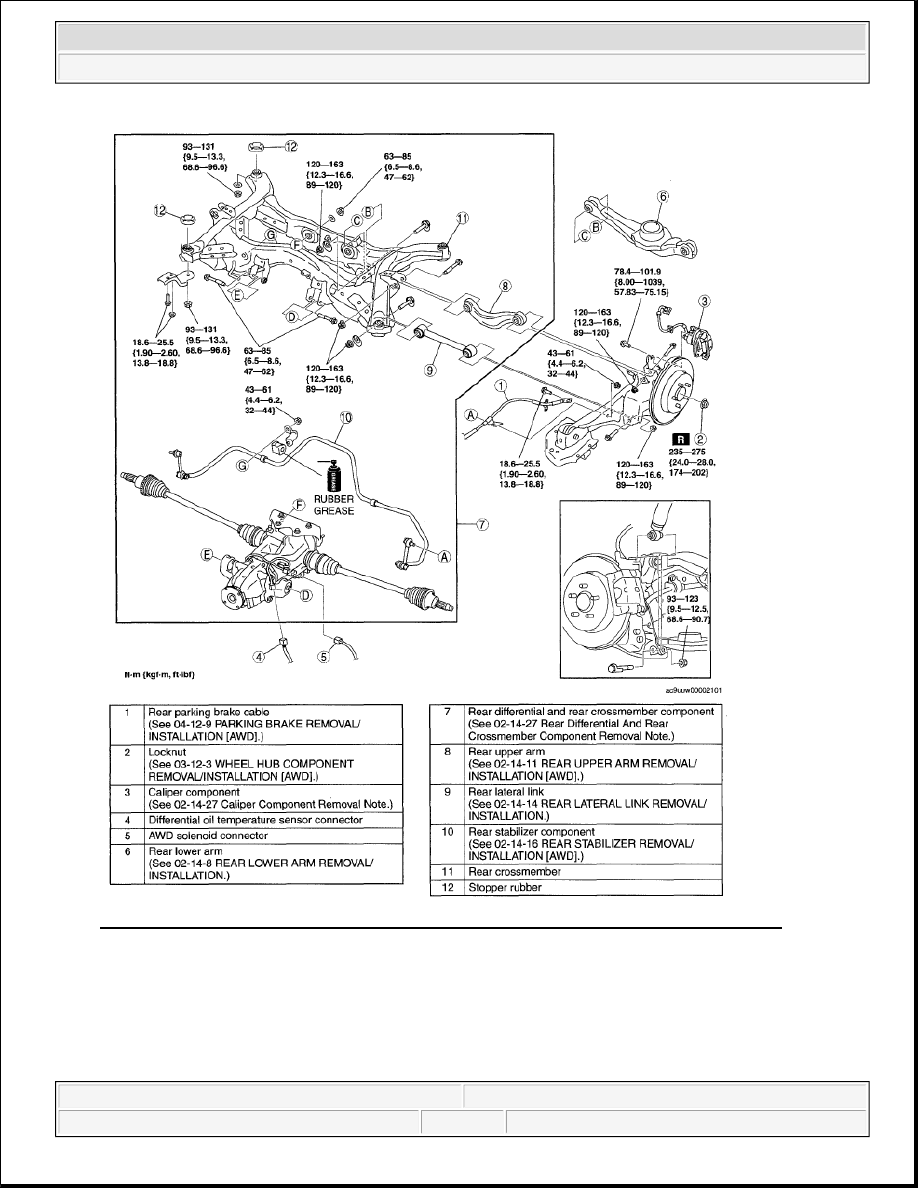

Fig. 50: Identifying Rear Wheel Alignment Components & Torque Specifications - AWD
Courtesy of MAZDA MOTORS CORP.

CALIPER COMPONENT REMOVAL NOTE

1. Remove the rear brake caliper component, and suspend it with a cable in a location out of the way.

REAR DIFFERENTIAL AND REAR CROSSMEMBER COMPONENT REMOVAL NOTE



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 34

© 2005 Mitchell Repair Information Company, LLC.

1. Support the crossmember component using a mission jack and remove the installation nuts.

2. Remove the rear crossmember component.

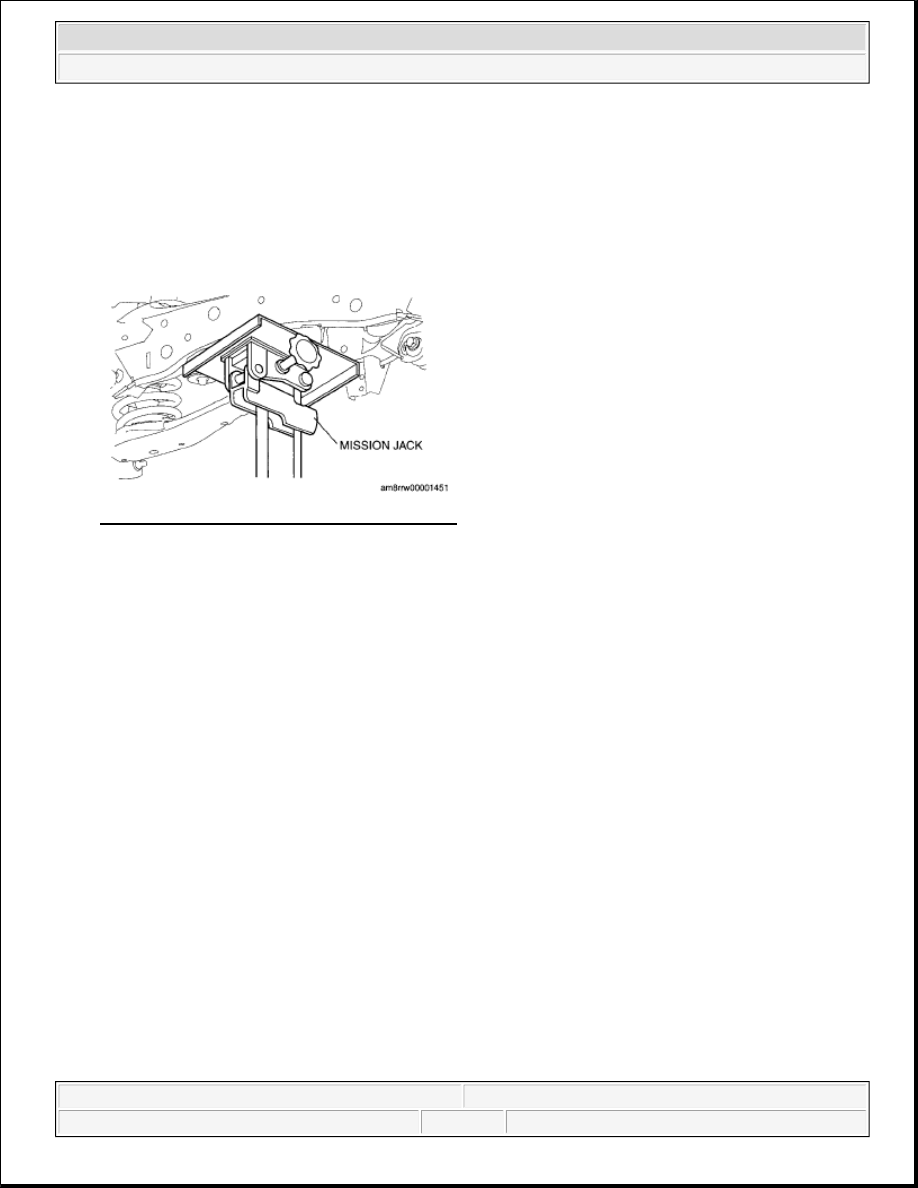

Fig. 51: Supporting Crossmember Component
Courtesy of MAZDA MOTORS CORP.

WARNING:



Removing the crossmember is dangerous. The crossmember
component could fall and cause serious injury or death. Verify that
the mission jack securely supports the crossmember component.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 35

© 2005 Mitchell Repair Information Company, LLC.

2008 RESTRAINTS

Seat Belt - Mazda CX-9

SEAT BELT LOCATION INDEX

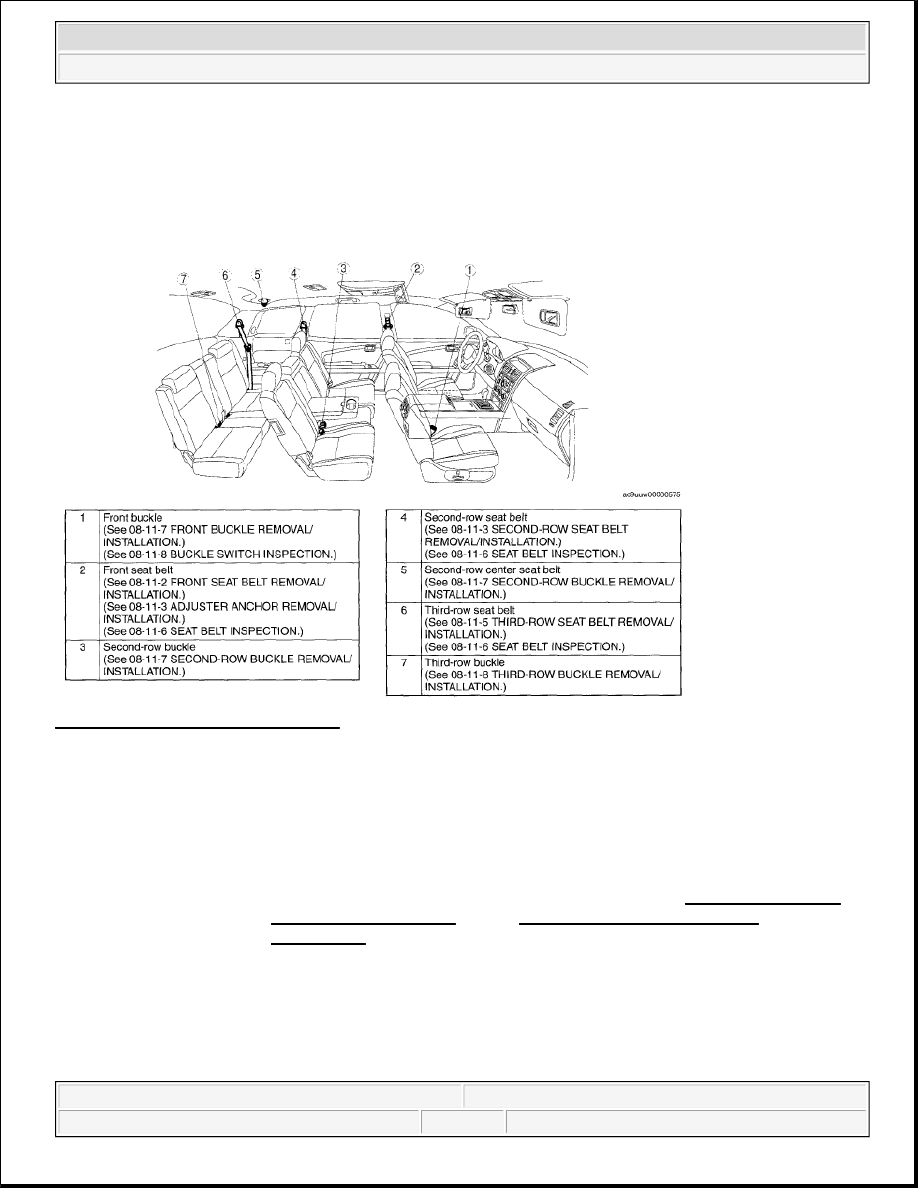

Fig. 1: Identifying Seat Belt Location
Courtesy of MAZDA MOTORS CORP.

FRONT SEAT BELT REMOVAL/INSTALLATION

WARNING:



Handling the front seat belt (pre-tensioner seat belt) improperly can
accidentally deploy the pre-tensioner seat belt, which may seriously
injure you. Read the service warnings and cautions before handling
the front seat belt (pre-tensioner seat belt). (See AIR BAG SYSTEM
SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE
CAUTIONS .)



Side air bag sensor No.1 is attached to the lower part of the B-pillar.
When working around the B-pillar, disconnect the negative battery
cable or work carefully, avoiding excessive impact to the lower part
of the B-pillar.

CAUTION:



2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Seat Belt - Mazda CX-9





2008 Mazda CX-9 Grand Touring

2008 RESTRAINTS Seat Belt - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:19:40 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

Microsoft



Sunday, November 15, 2009 10:19:43 AM

Page 1

© 2005 Mitchell Repair Information Company, LLC.

1. Turn the ignition switch to the LOCK position.

2. Disconnect the negative battery cable and wait for 1 min or more .

3. Remove the front scuff plate inner. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)

4. Remove the rear scuff plate inner. (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)

5. Remove the cover by pulling it in the direction of the arrow.

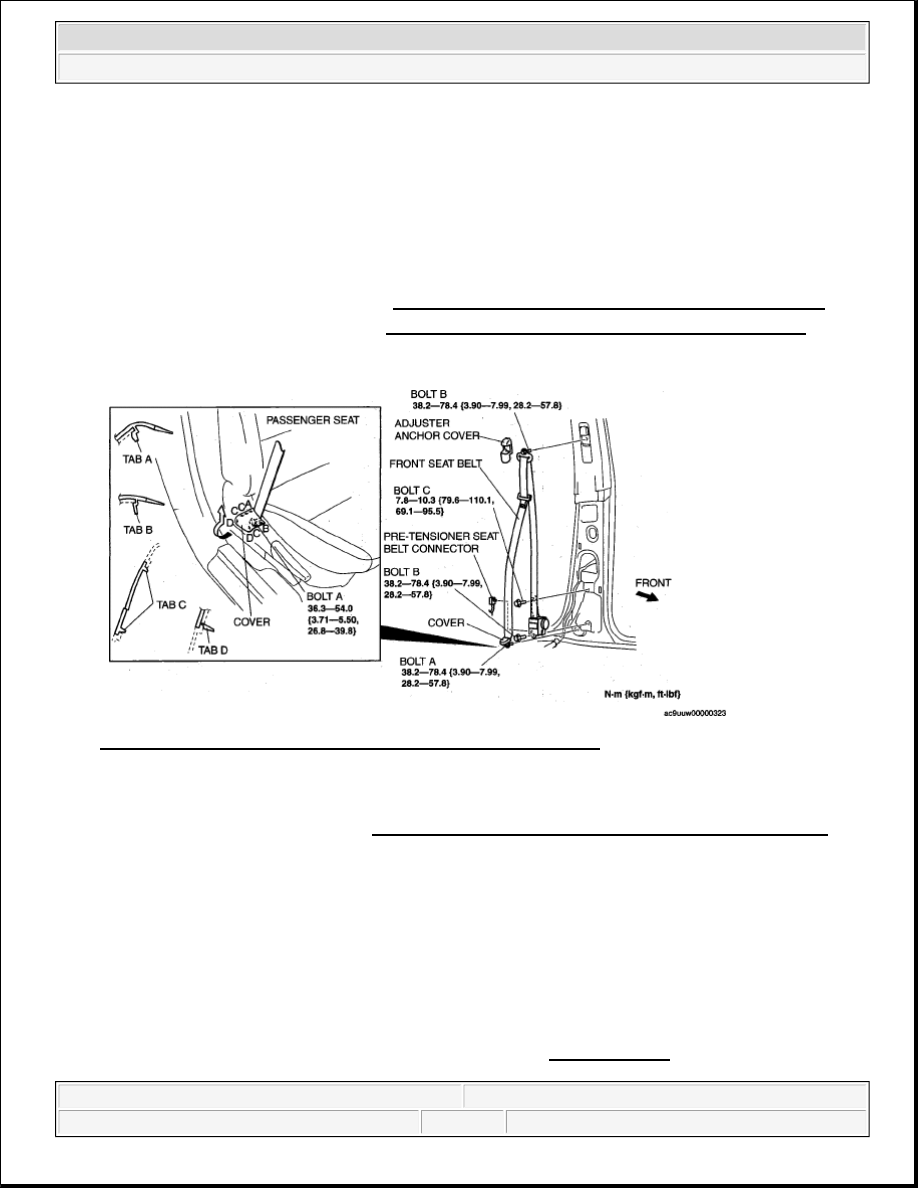

Fig. 2: Identifying Front Seat Belt, Bolts & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

6. Remove the bolt A.

7. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)

8. Remove the adjuster anchor cover.

9. Remove the bolt B and bolt C, then remove the front seat belt.

10. Using a screwdriver, pry out the pre-tensioner seat belt connector's stopper plate.

11. Disconnect the pre-tensioner seat belt connector.

12. Install in the reverse order of removal.

13. Turn the ignition switch to the ON position.

14. Verify that the air bag system warning light illuminates for approx. 6 s and goes out.



If the air bag system warning light does not operate, refer to the on-board diagnostic system (air
bag system) and perform inspection of the system. (See FLOWCHART .)



The ELR (emergency locking retractor) has a spring that will unwind
if the retractor cover is removed. The spring cannot be rewound by
hand. If this occurs, the ELR will not work properly. Therefore, do not
disassemble the retractor.
