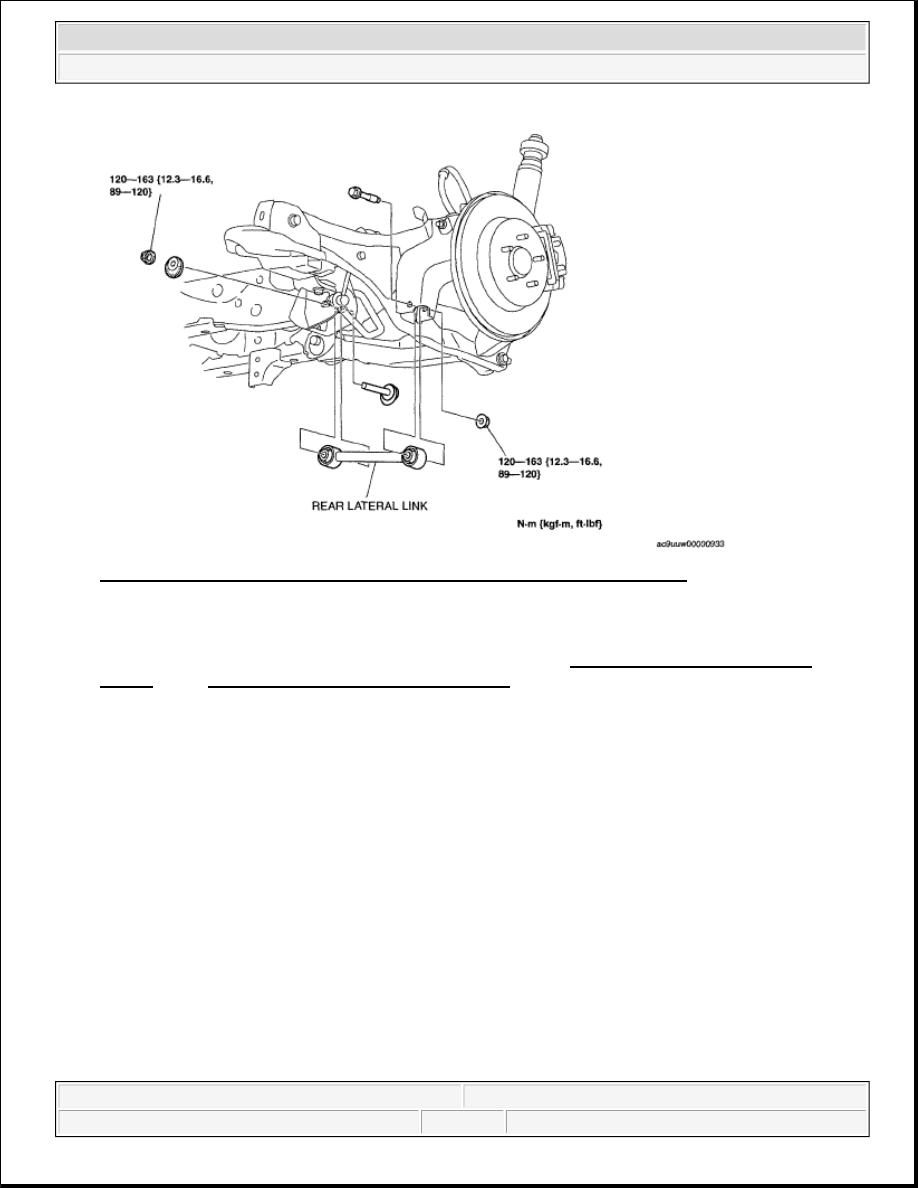

Fig. 28: Identifying Rear Lateral Link Components & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

4. Install the rear lateral link by aligning it with the mark placed during removal.

5. Inspect for rear wheel alignment, and adjust it as necessary. (See REAR WHEEL ALIGNMENT

[2WD] .) (See REAR WHEEL ALIGNMENT [AWD] .)

REAR STABILIZER REMOVAL/INSTALLATION [2WD]

1. Remove in the order indicated in the table.

2. Install in the reverse order of removal.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 18

© 2005 Mitchell Repair Information Company, LLC.

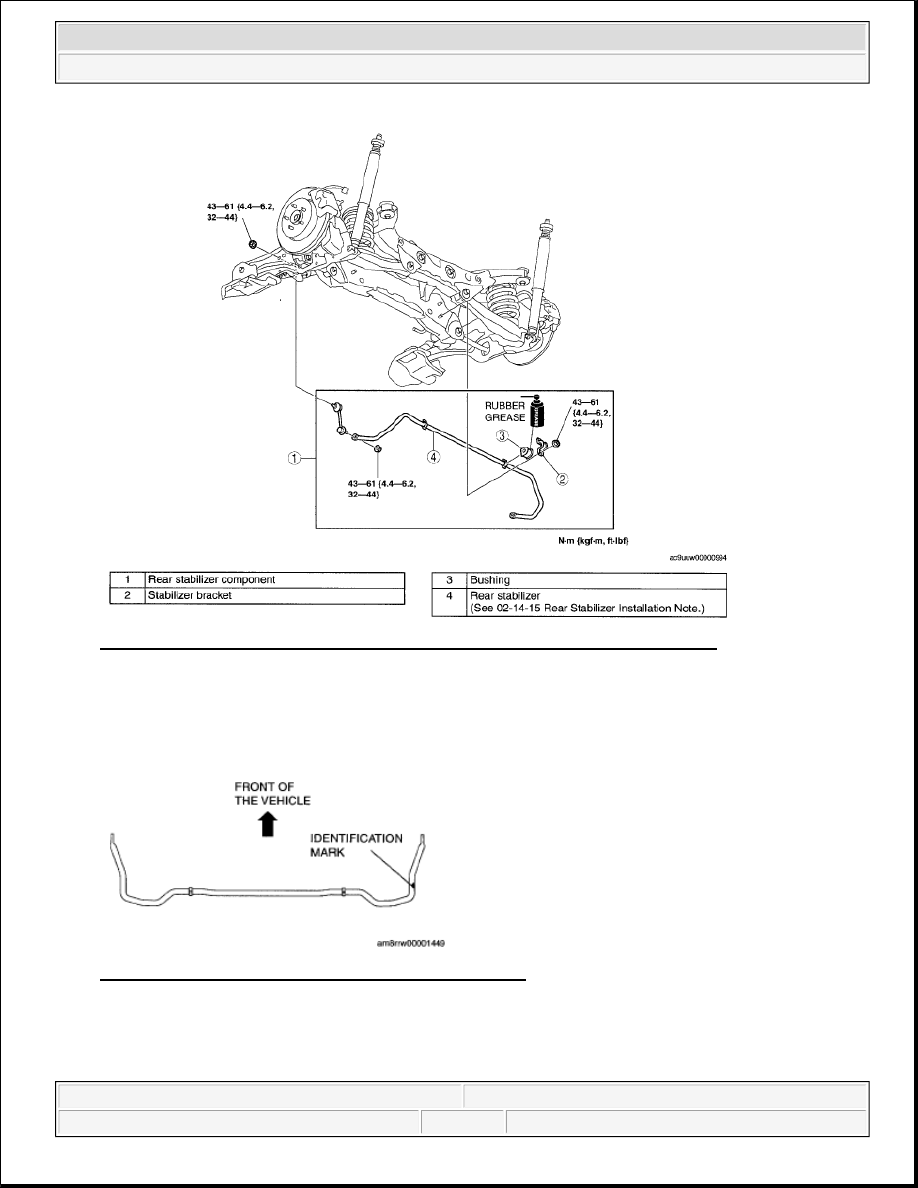

Fig. 29: Identifying Rear Stabilizer Components & Torque Specifications - 2WD
Courtesy of MAZDA MOTORS CORP.

REAR STABILIZER INSTALLATION NOTE

1. Install the rear stabilizer so that the identification mark faces the right side of the vehicle.

Fig. 30: Identifying Rear Stabilizer Identification Mark
Courtesy of MAZDA MOTORS CORP.

REAR STABILIZER REMOVAL/INSTALLATION [AWD]



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 19

© 2005 Mitchell Repair Information Company, LLC.

1. Remove the presilencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)

2. Remove the presilencer insulator.

3. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)

4. Remove the rear ABS wheel-speed sensor. (See REAR ABS WHEEL-SPEED SENSOR

REMOVAL/INSTALLATION [AWD] .)

5. Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION.)

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

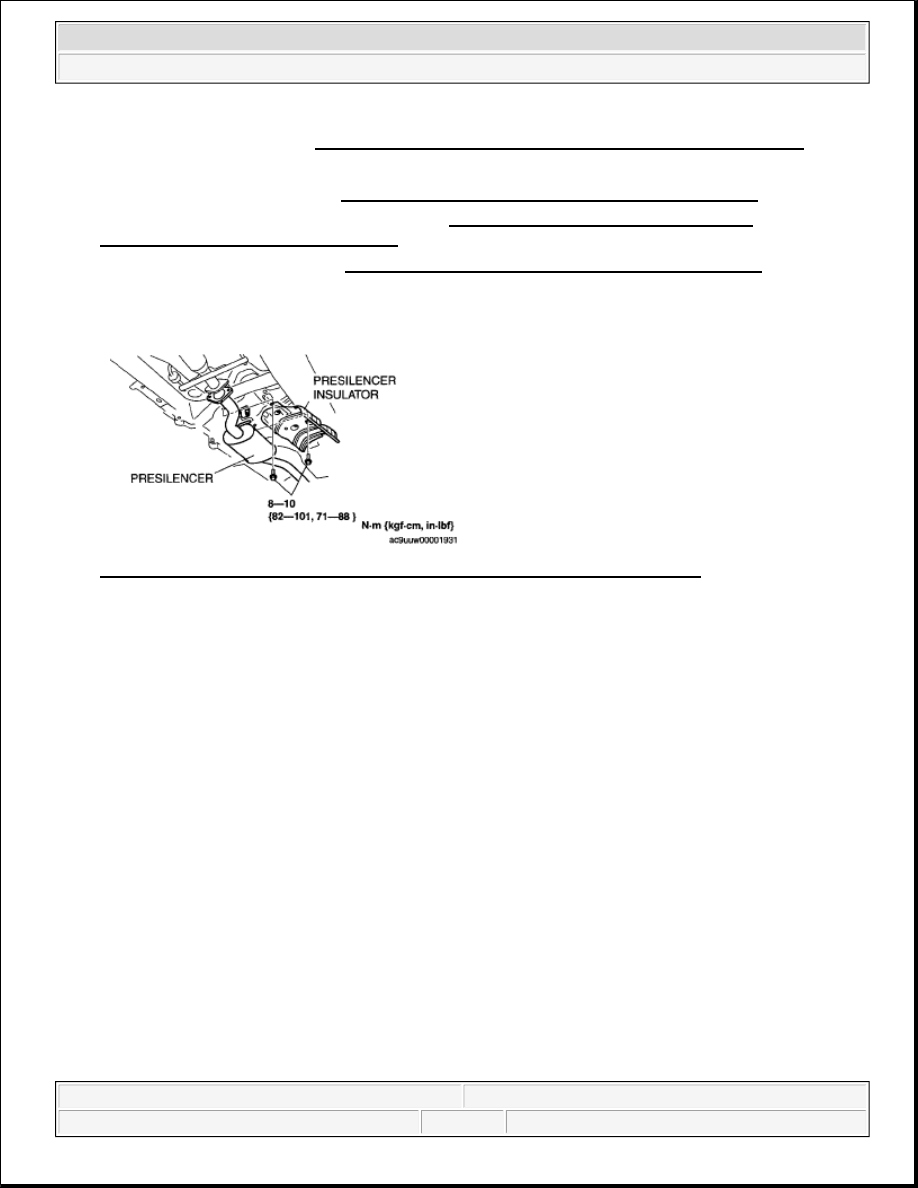

Fig. 31: Identifying Presilencer Insulator, Presilencer & Torque Specifications
Courtesy of MAZDA MOTORS CORP.



2008 Mazda CX-9 Grand Touring

2008 SUSPENSION Rear Suspension - Mazda CX-9



Microsoft



Sunday, November 15, 2009 10:24:02 AM

Page 20

© 2005 Mitchell Repair Information Company, LLC.

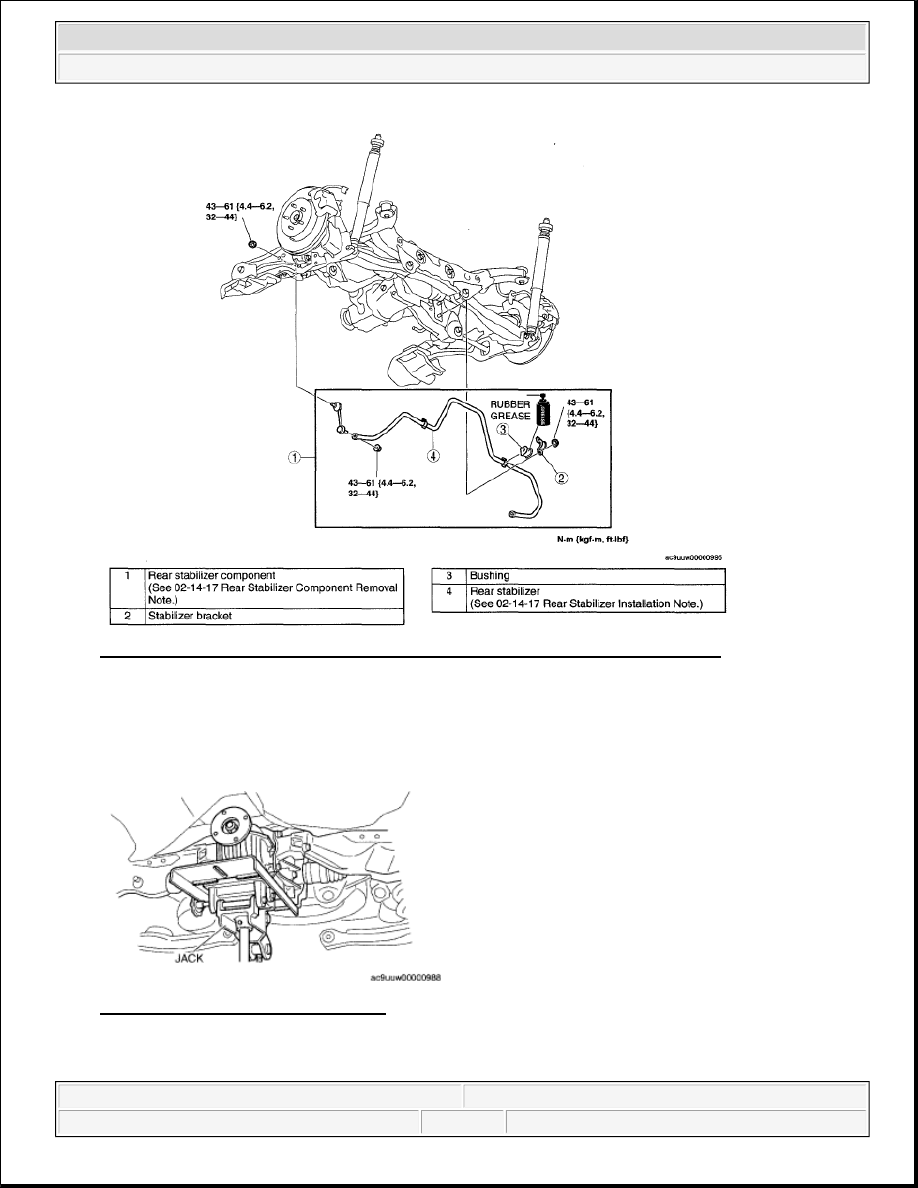

Fig. 32: Identifying Rear Stabilizer Components & Torque Specifications - AWD
Courtesy of MAZDA MOTORS CORP.

REAR STABILIZER COMPONENT REMOVAL NOTE

1. Support the rear differential using a jack.

Fig. 33: Supporting Rear Differential
Courtesy of MAZDA MOTORS CORP.

2. Remove the rear differential mounting bracket (front) installation bolts.
